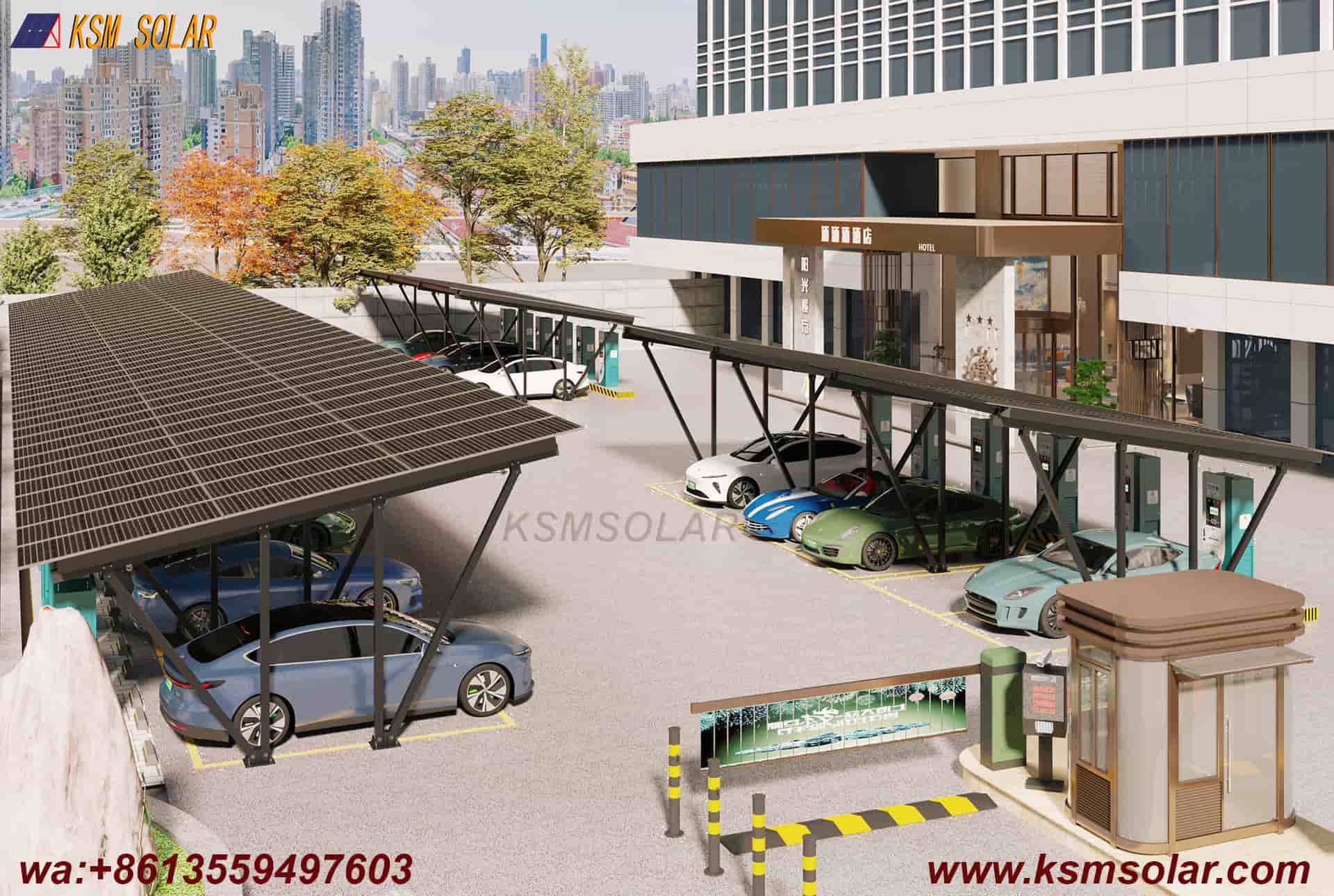

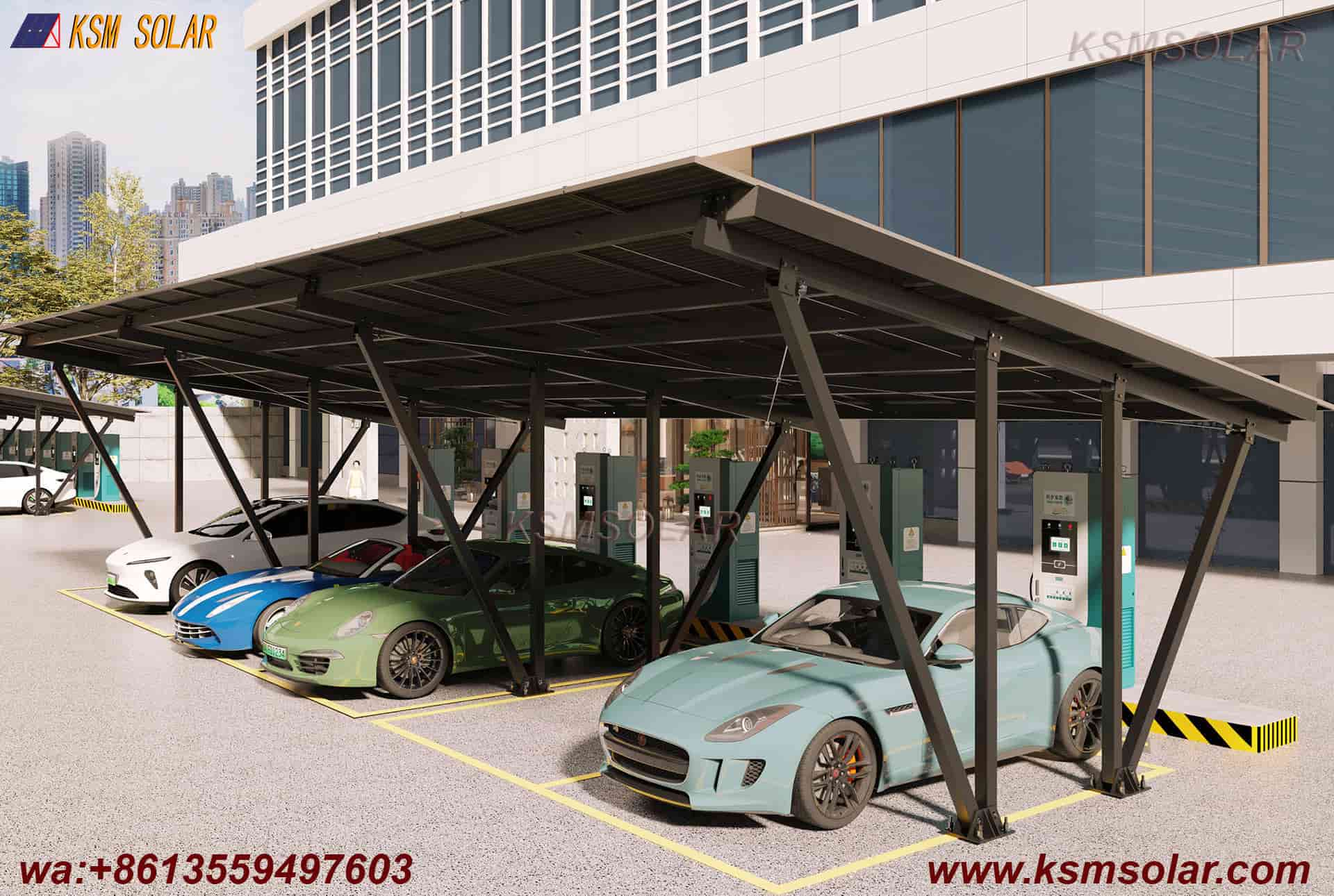

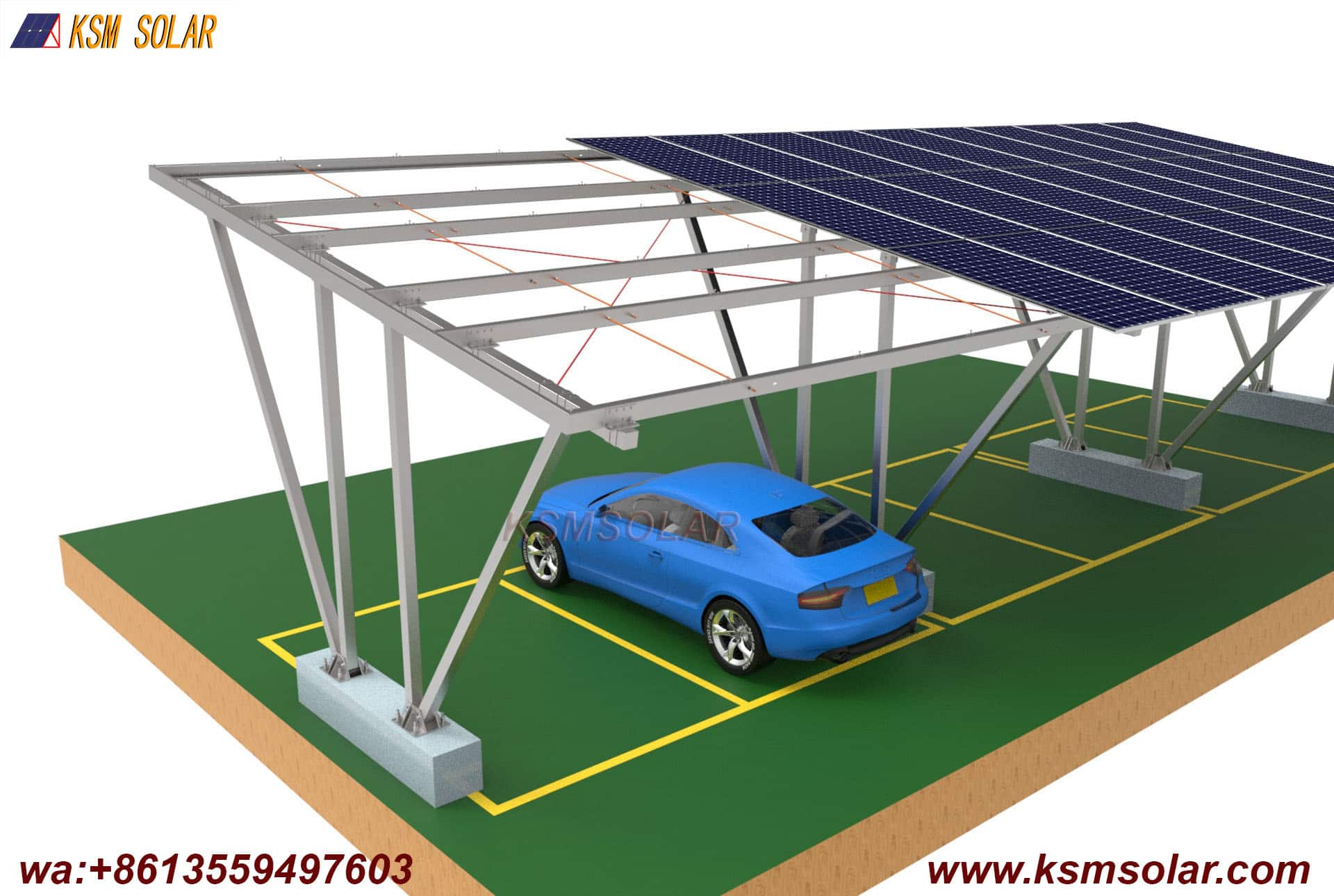

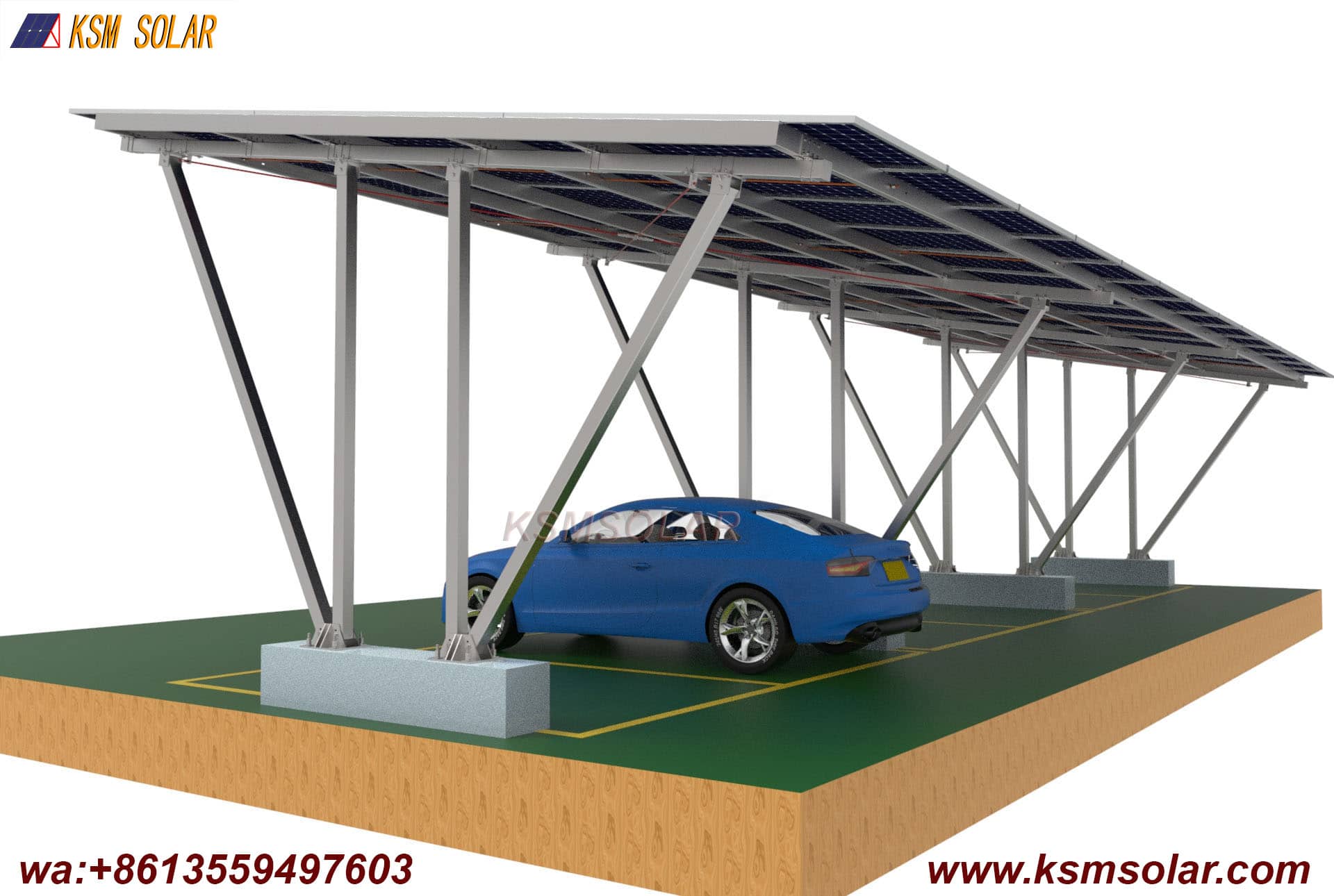

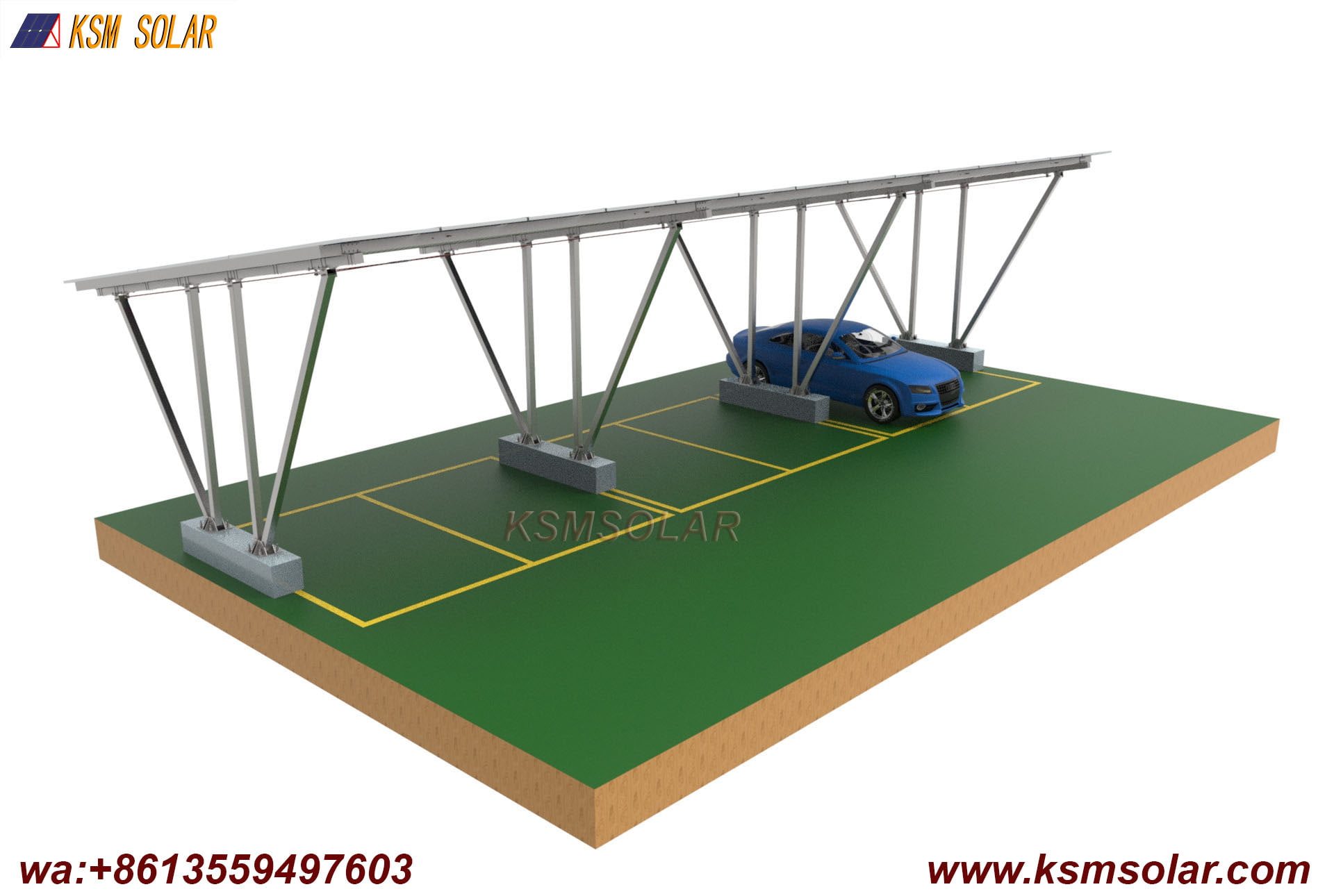

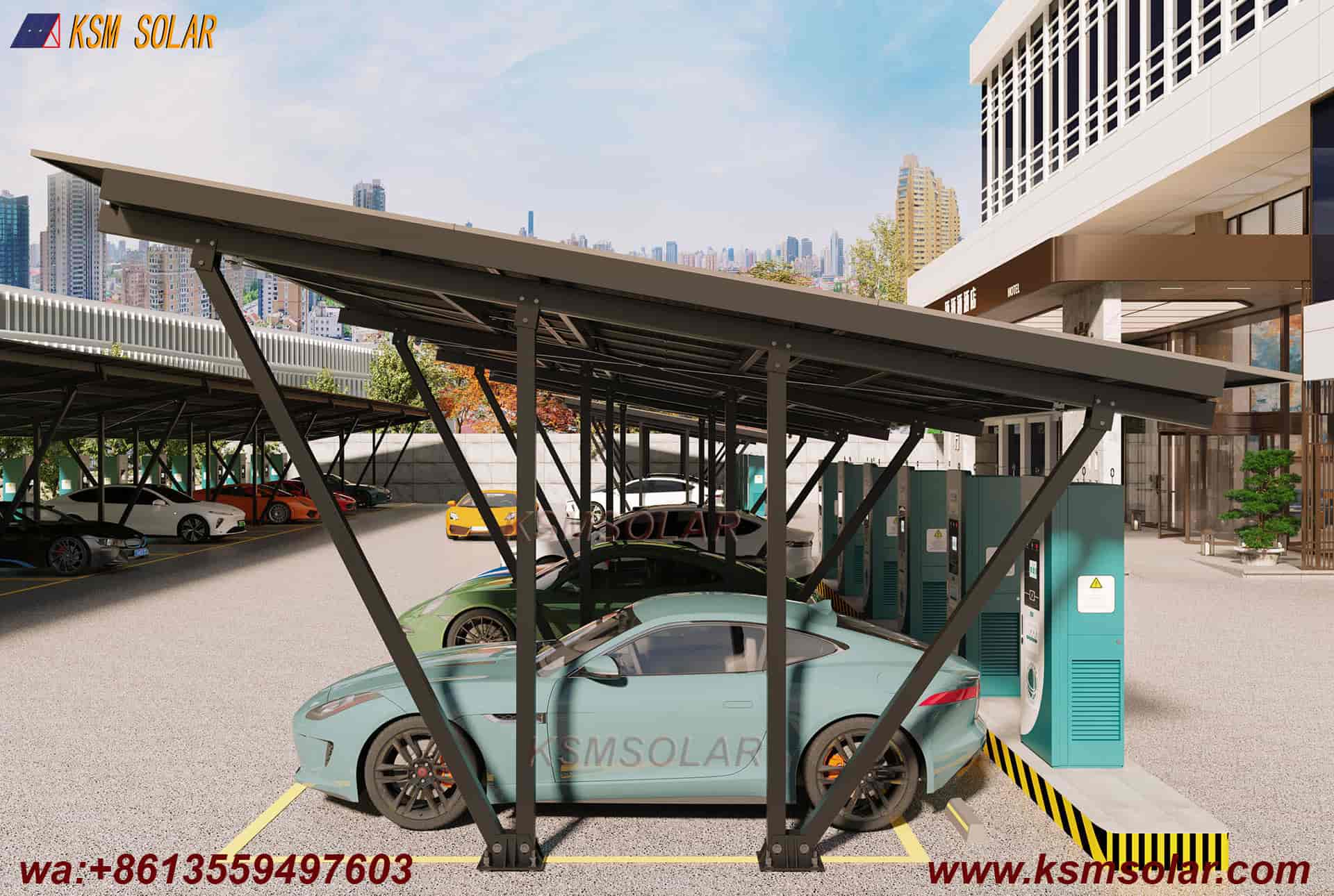

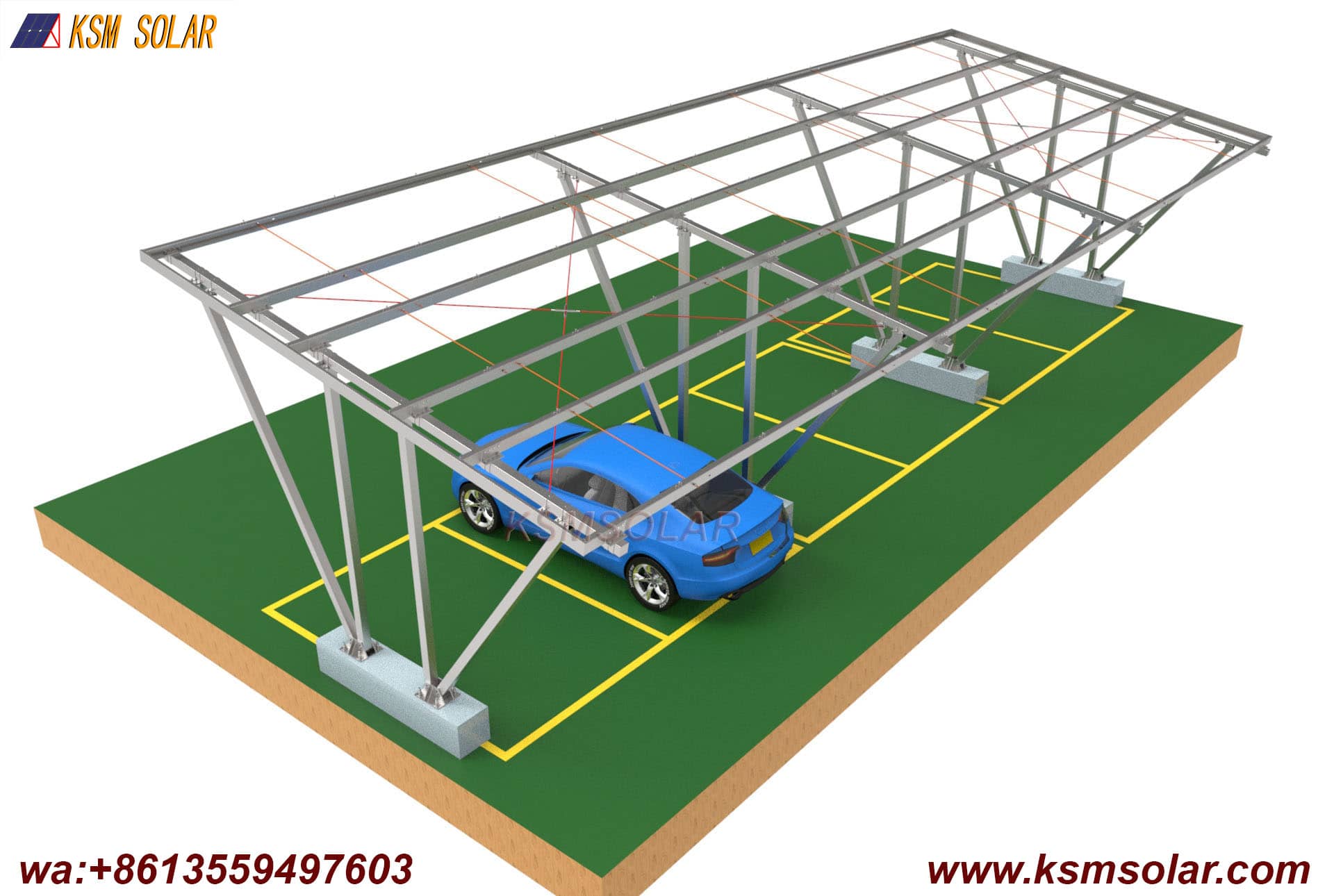

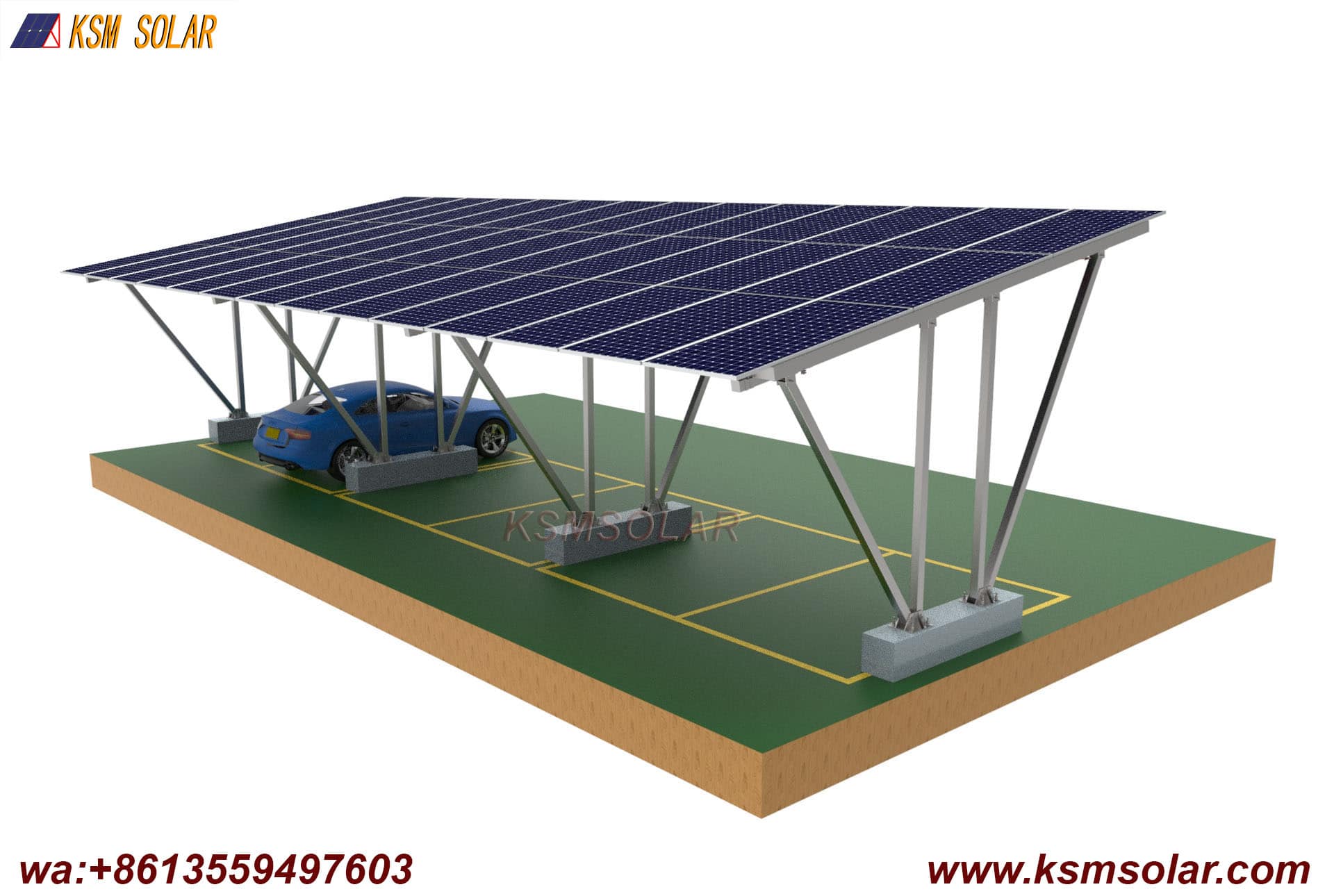

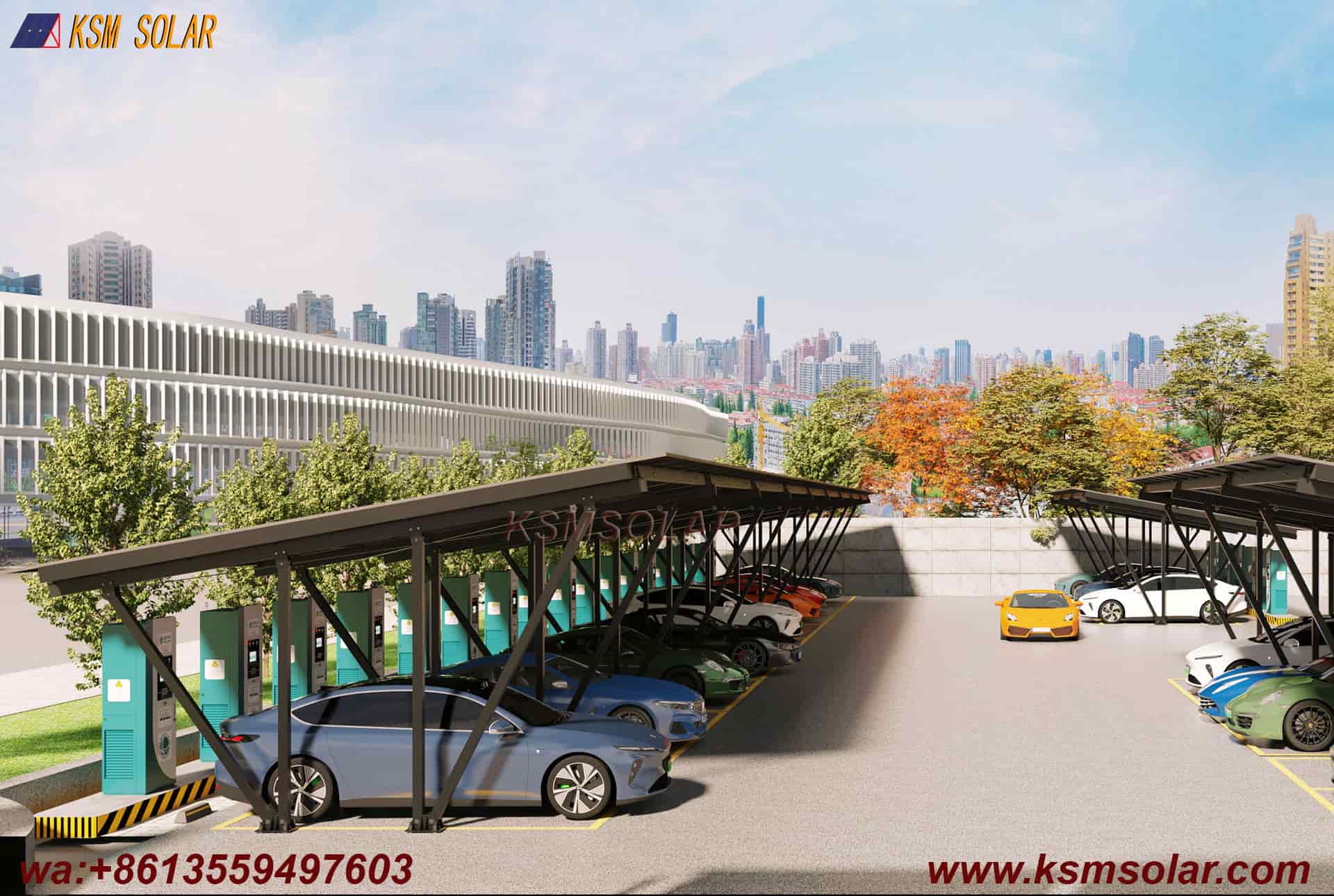

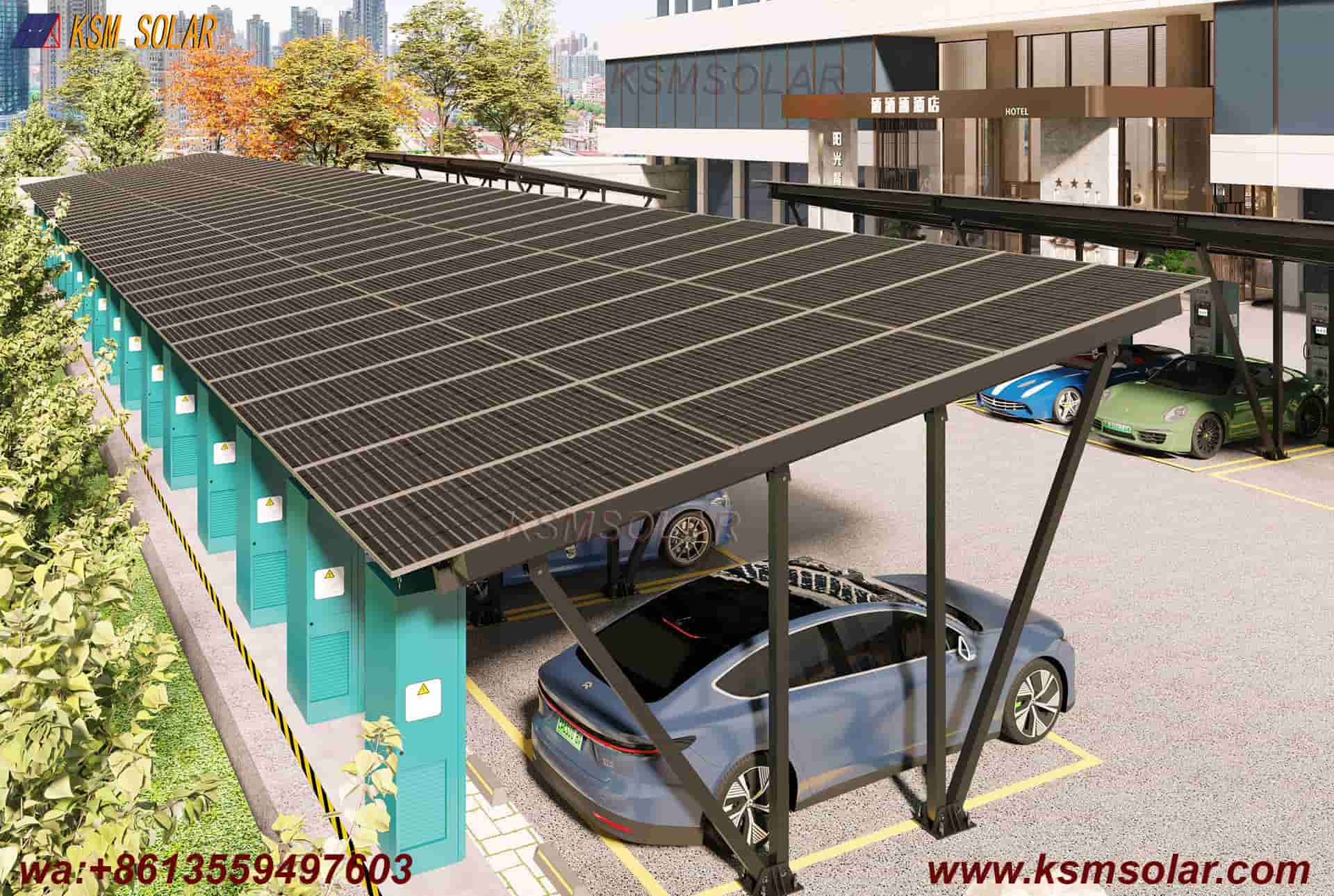

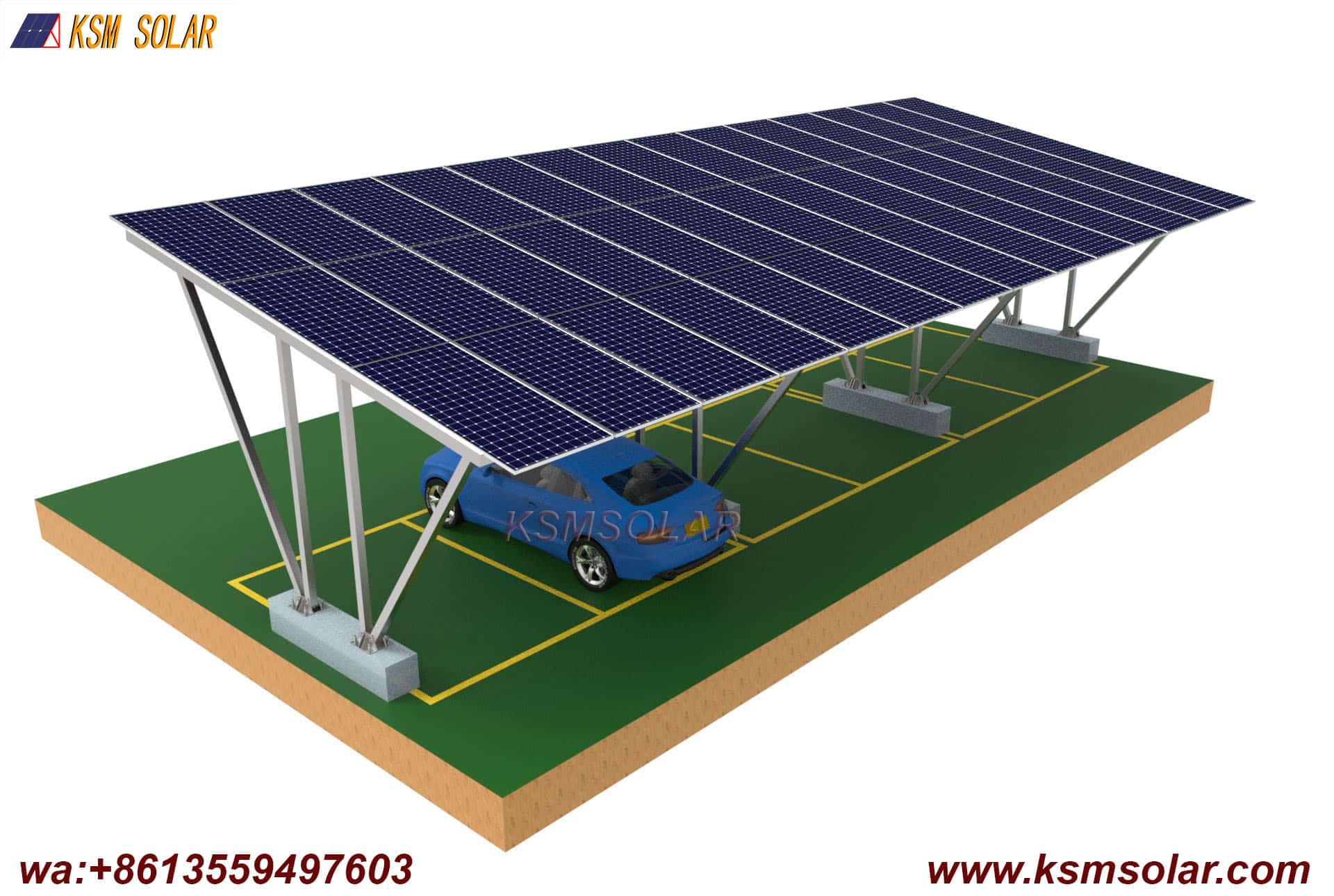

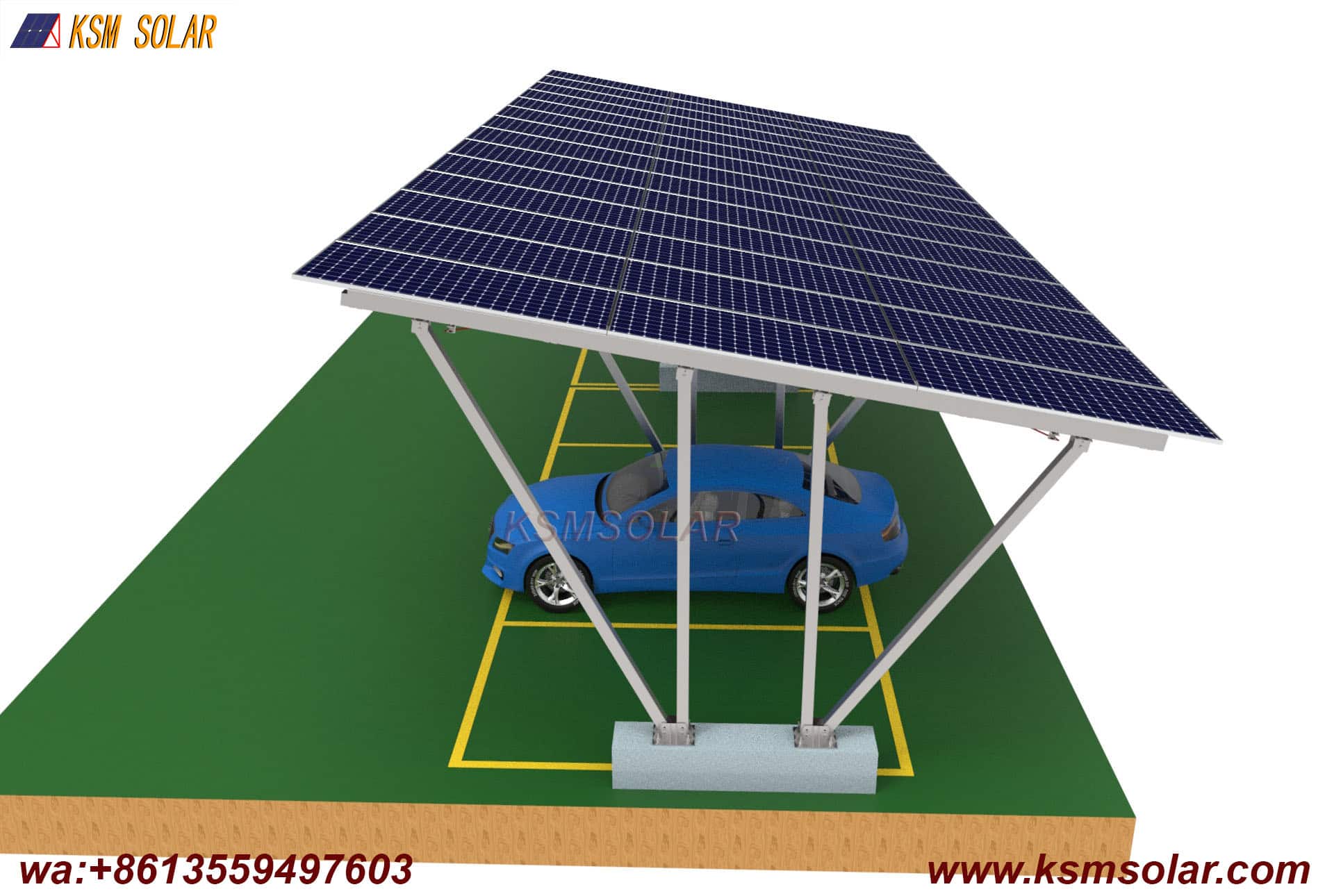

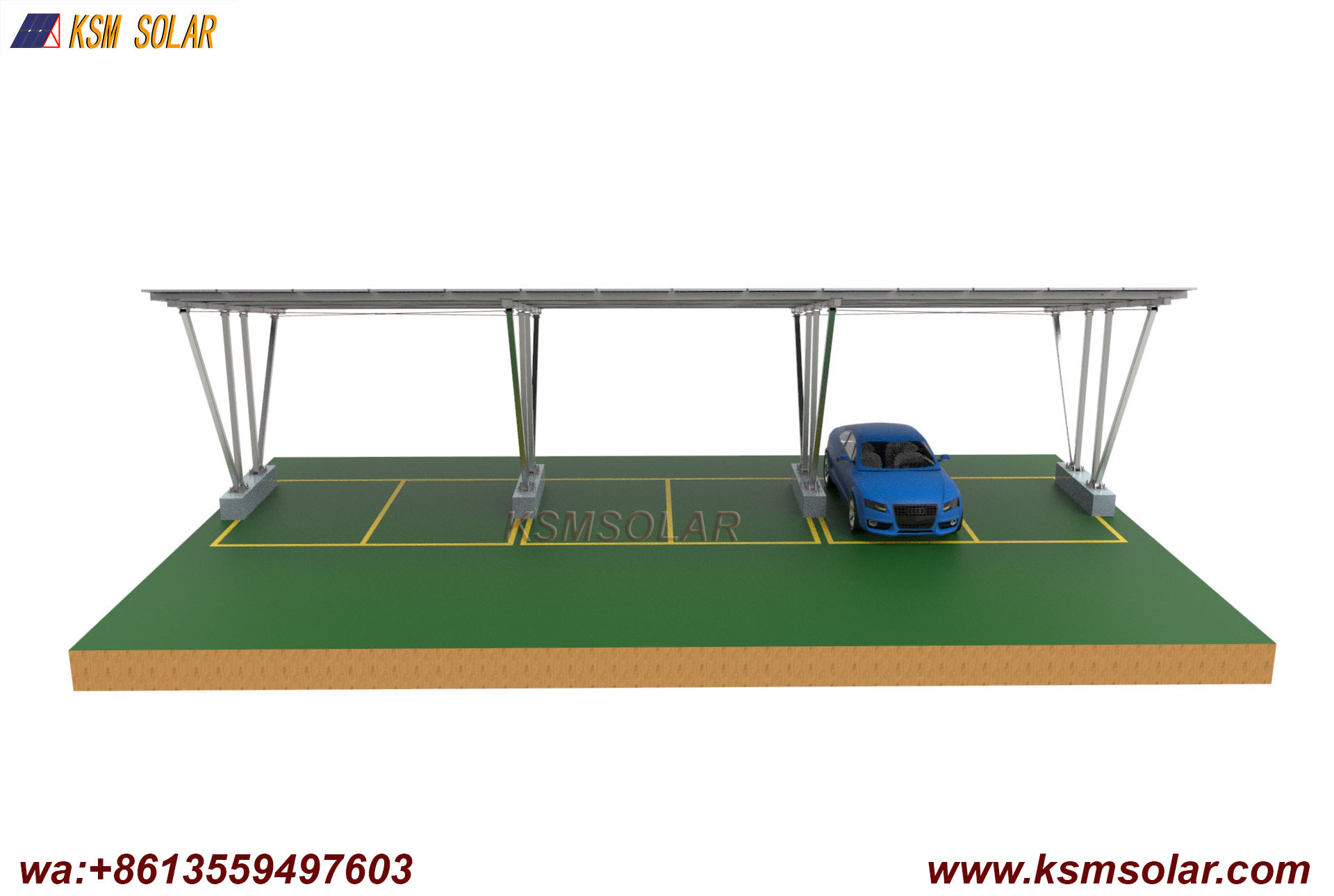

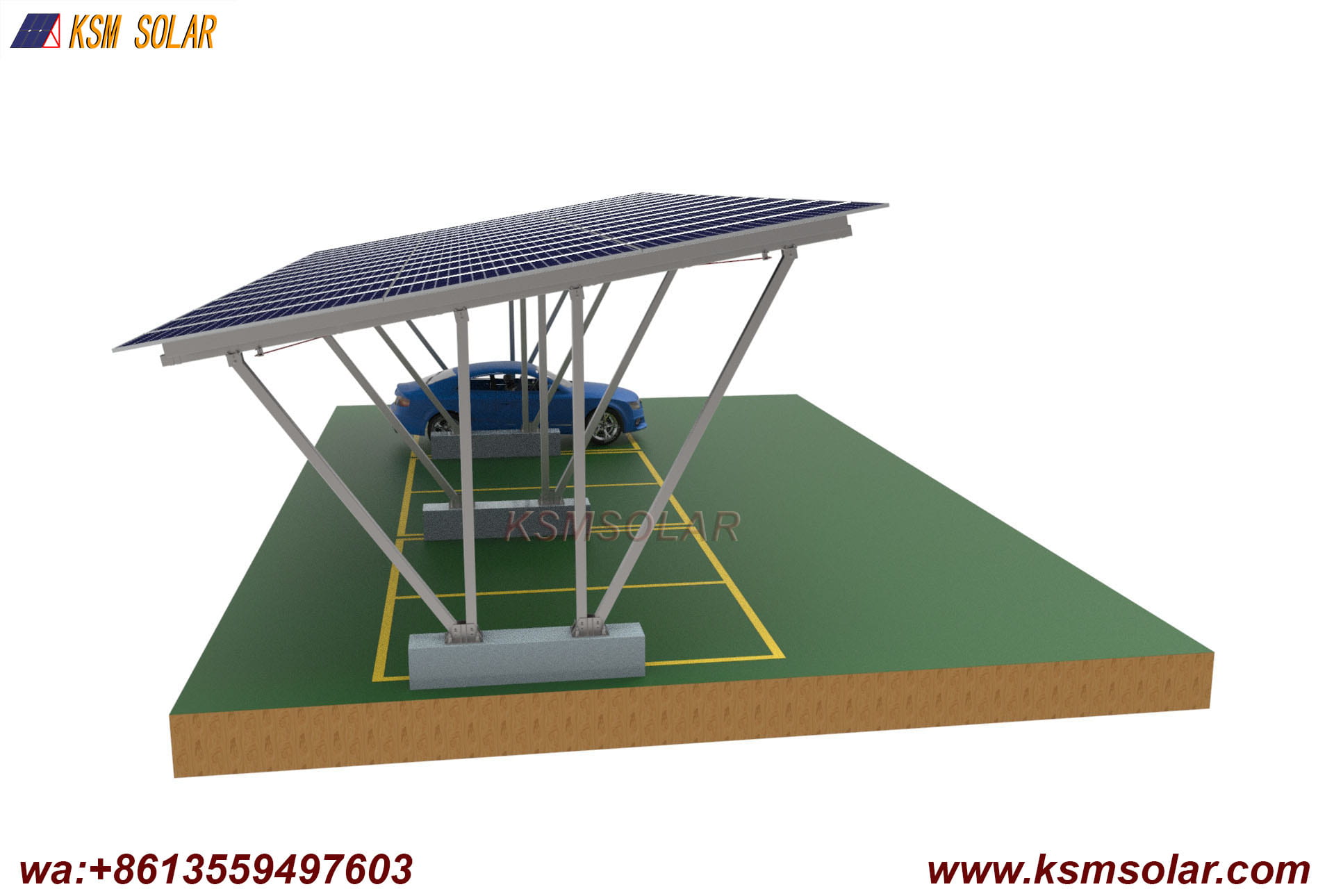

Our Zinc-Aluminum-Magnesium (ZAM) Double-V Structure Photovoltaic Carport represents a sophisticated engineering advancement in solar support systems, designed to deliver exceptional load-bearing capacity, optimal space utilization, and superior weather resilience. By integrating two interconnected V-shaped frames, this configuration achieves unparalleled structural performance for large-span applications while maintaining the corrosion-defying properties of ZAM steel, making it an ideal heavy-duty photovoltaic carport solution.

Key Features & Advantages:

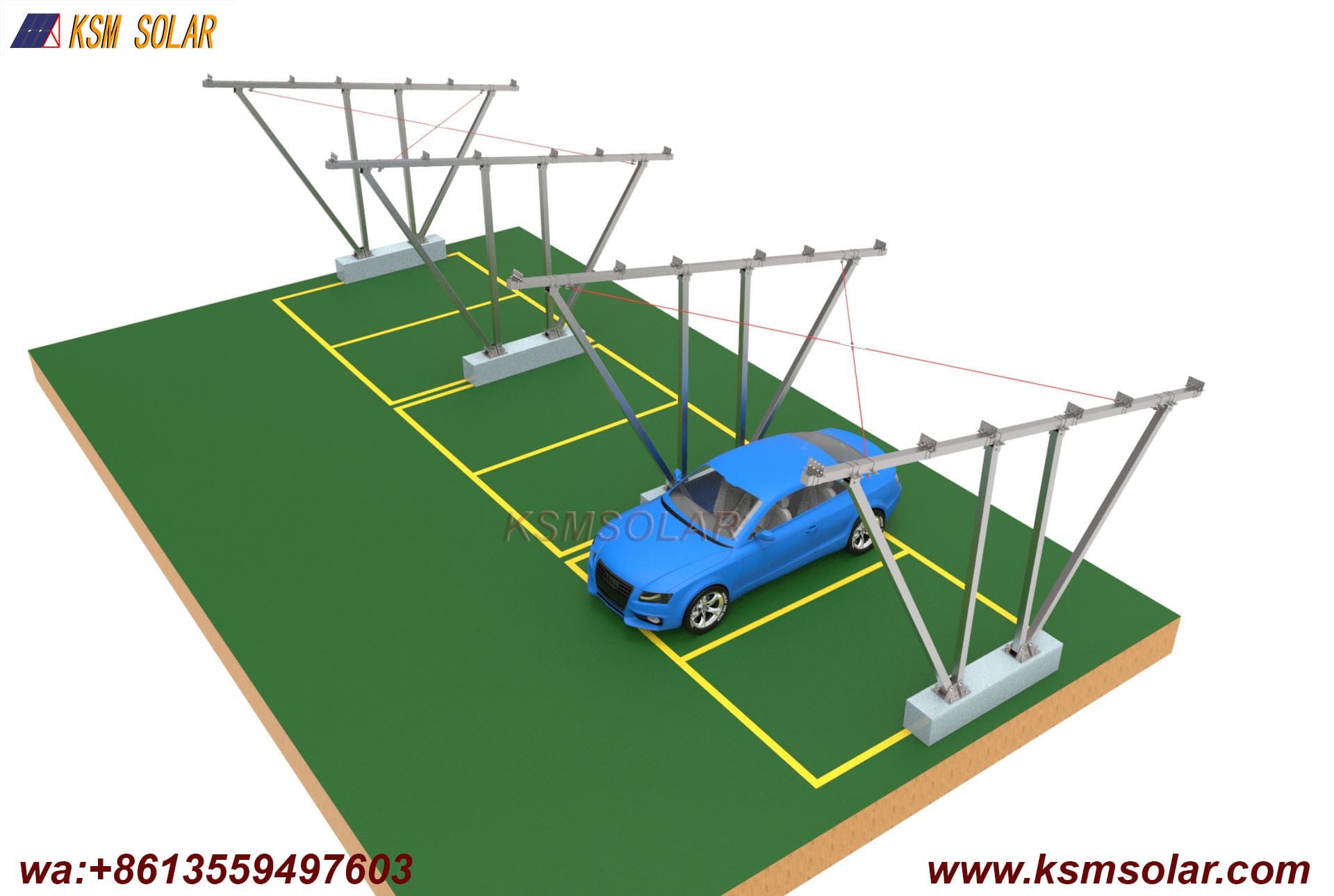

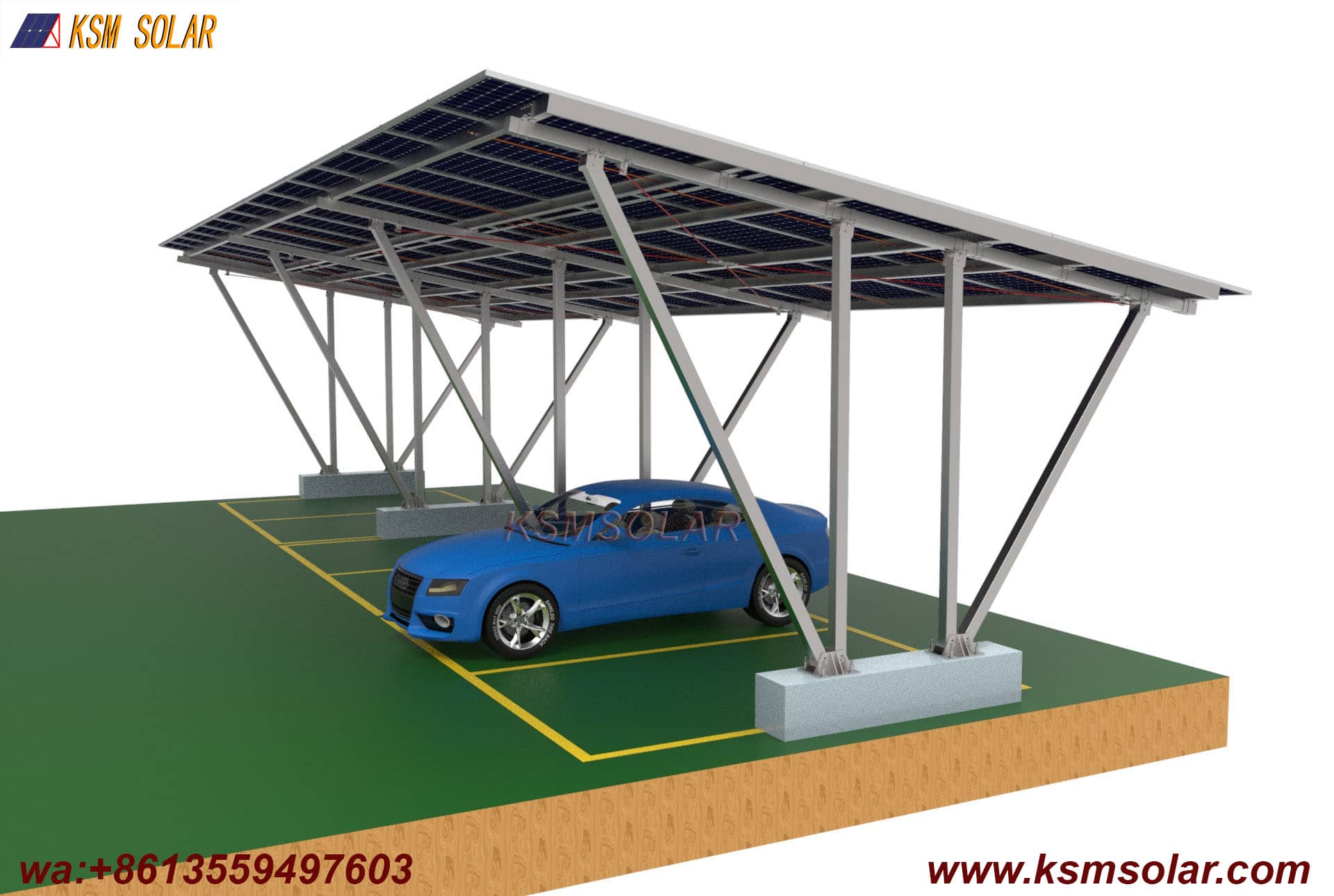

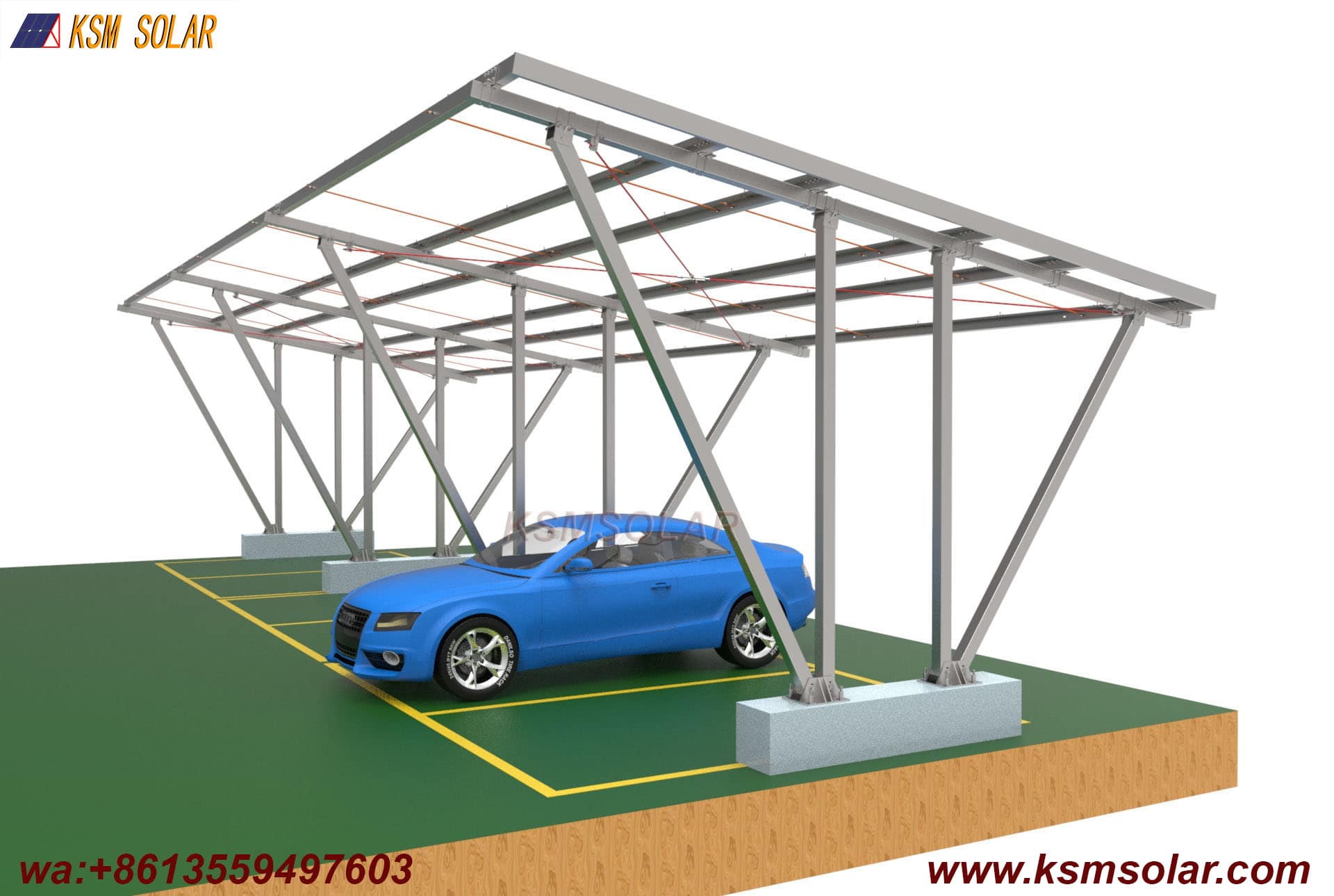

1. High-Stability Double-V Structural Design

• Enhanced Load Distribution: The interconnected double-V geometry forms a highly rigid triangular lattice system, effectively distributing vertical loads (snow, dead weight) and lateral forces (wind, seismic) across multiple support points. This results in exceptional structural stability even under extreme conditions.

• Maximum Span Capability: This design enables longer unsupported roof spans than traditional single-column or single-V structures, minimizing ground obstructions and maximizing usable parking space beneath the PV canopy. It is ideal for creating wide, column-free driving aisles.

• Superior Torsional Resistance: The redundant triangulation within the double-V framework provides outstanding resistance to twisting and deformation, ensuring long-term alignment and integrity of the solar panel array.

2. Premium Zinc-Aluminum-Magnesium Alloy Protection

• Comprehensive Anti-Corrosion Defense: Every structural member is fabricated from hot-dip ZAM-coated steel, offering superior protection—3 to 4 times greater than standard galvanization—against rust, atmospheric corrosion, and UV degradation. This guarantees a maintenance-free service life exceeding 30 years.

• Self-Healing Edge Protection: The ZAM coating's unique alloy composition provides active sacrificial protection at cut edges, drilled holes, and minor scratches, preventing rust creep and ensuring lasting performance in coastal or industrial environments.

3. Streamlined Prefabrication and Installation

• Modular Bolt-Together System: Despite its robust appearance, the structure is designed for efficient on-site assembly. Major double-V frame modules are prefabricated and pre-drilled, allowing for quick connection via high-strength bolts without extensive field welding.

• Optimized Foundation Layout: The efficient load transfer reduces the number of required foundations per unit area, lowering concrete volume and accelerating the construction timeline.

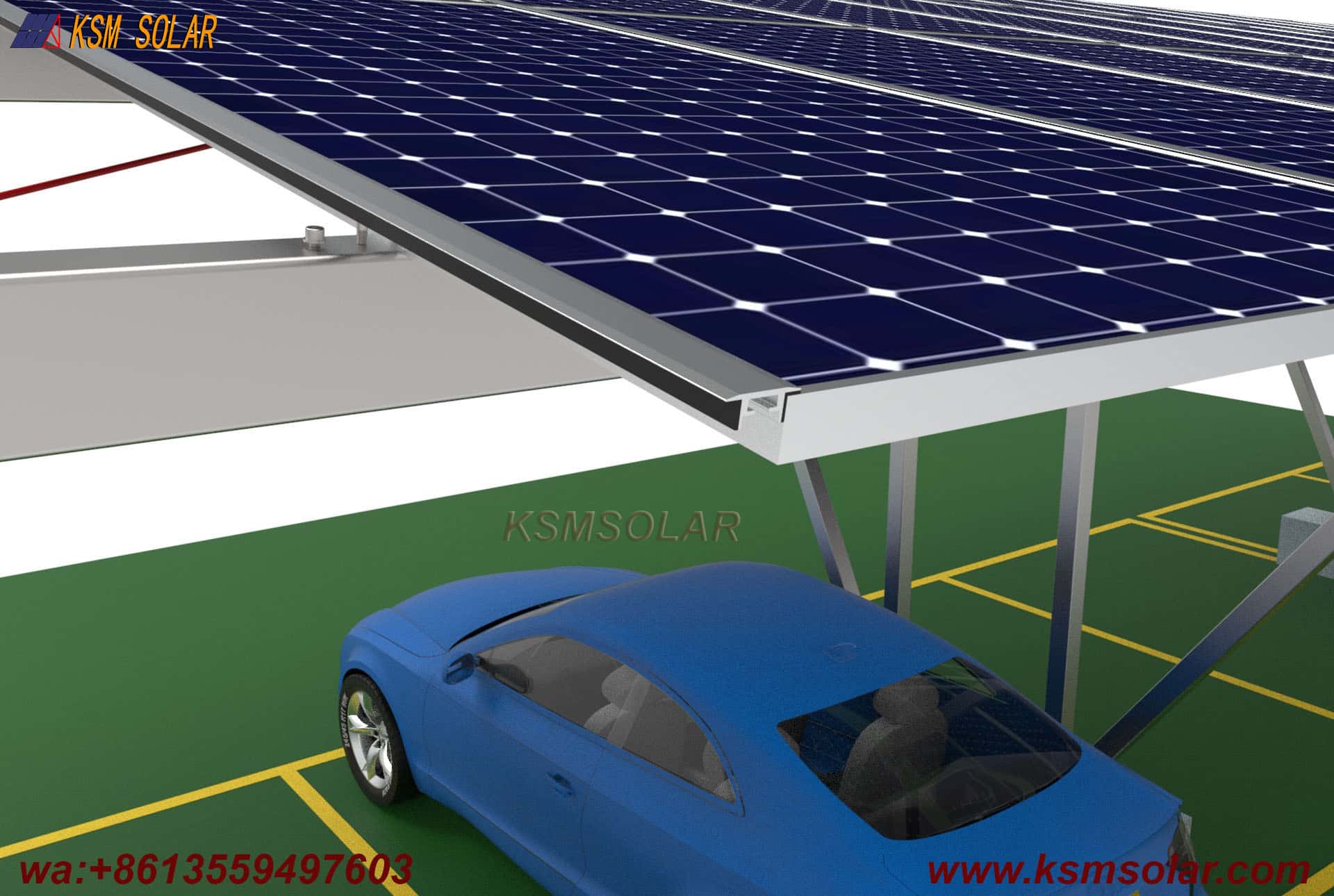

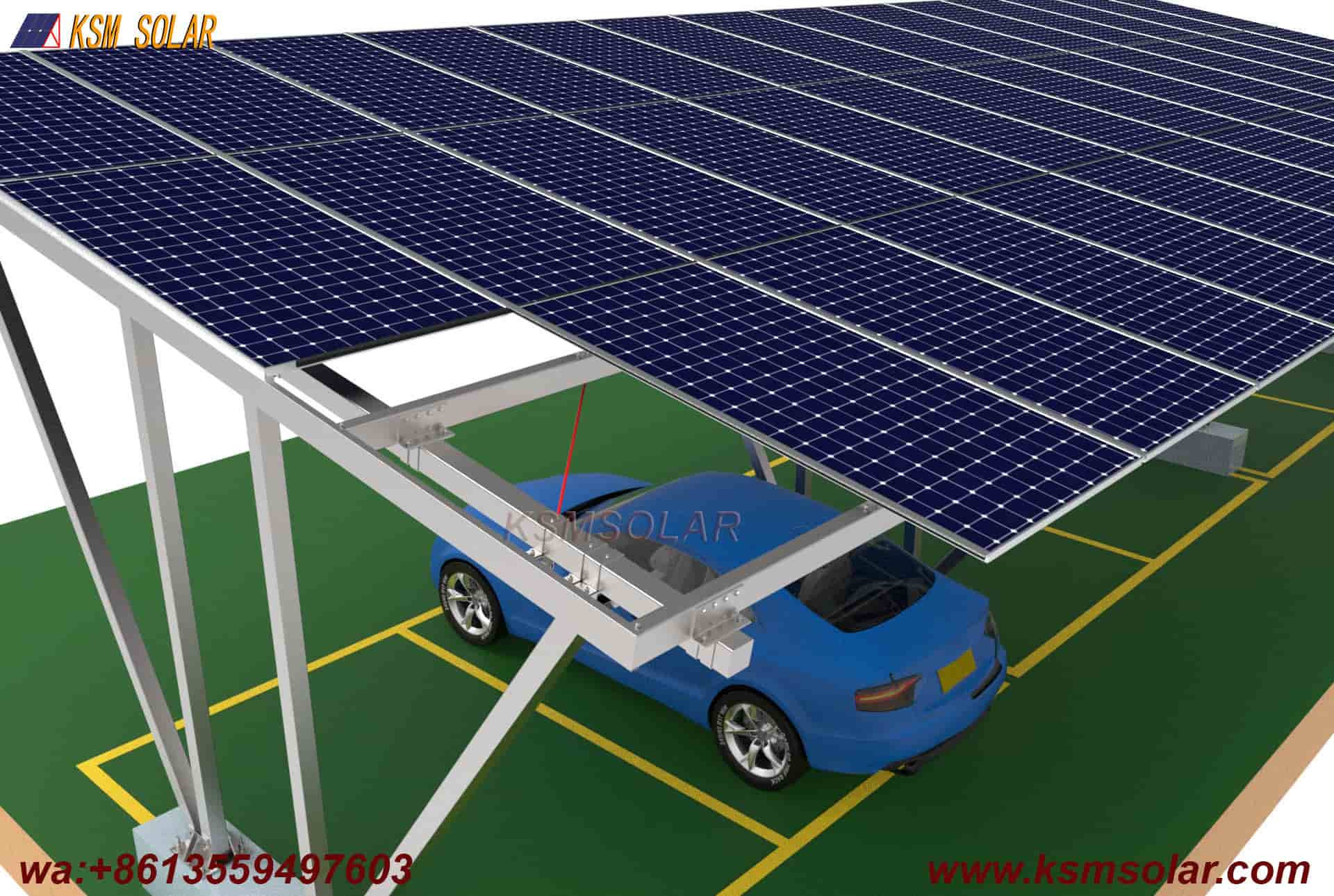

• Plug-and-Play PV Mounting: The robust horizontal purlins integrated into the double-V frames offer a secure, perfectly aligned base for mounting all types of solar panels, streamlining the electrical installation process.

4. Performance-Oriented and Aesthetic Benefits

• Increased Energy Yield Potential: The wide, unobstructed canopy layout allows for optimal panel arrangement and orientation, maximizing solar exposure. The open design also promotes natural airflow, reducing PV module operating temperatures and boosting efficiency.

• Architectural Distinction: The rhythmic, geometric pattern of the double-V structure presents a bold, modern, and technically advanced aesthetic, enhancing the visual identity of any commercial or public facility.

• Future-Ready Adaptability: The high load capacity easily accommodates heavier next-generation solar modules (e.g., bifacial panels) and integrated systems like EV charging stations or lighting.
