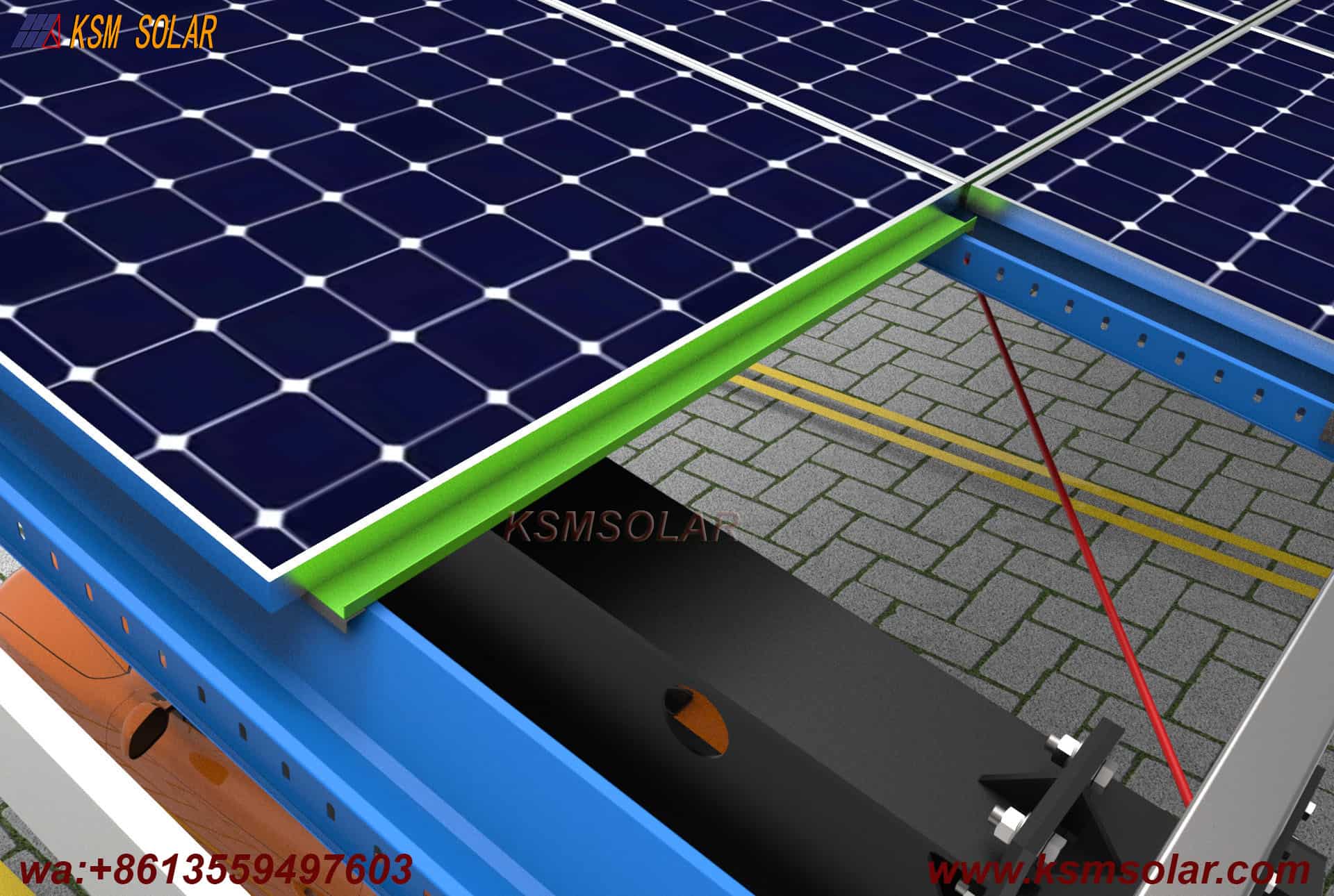

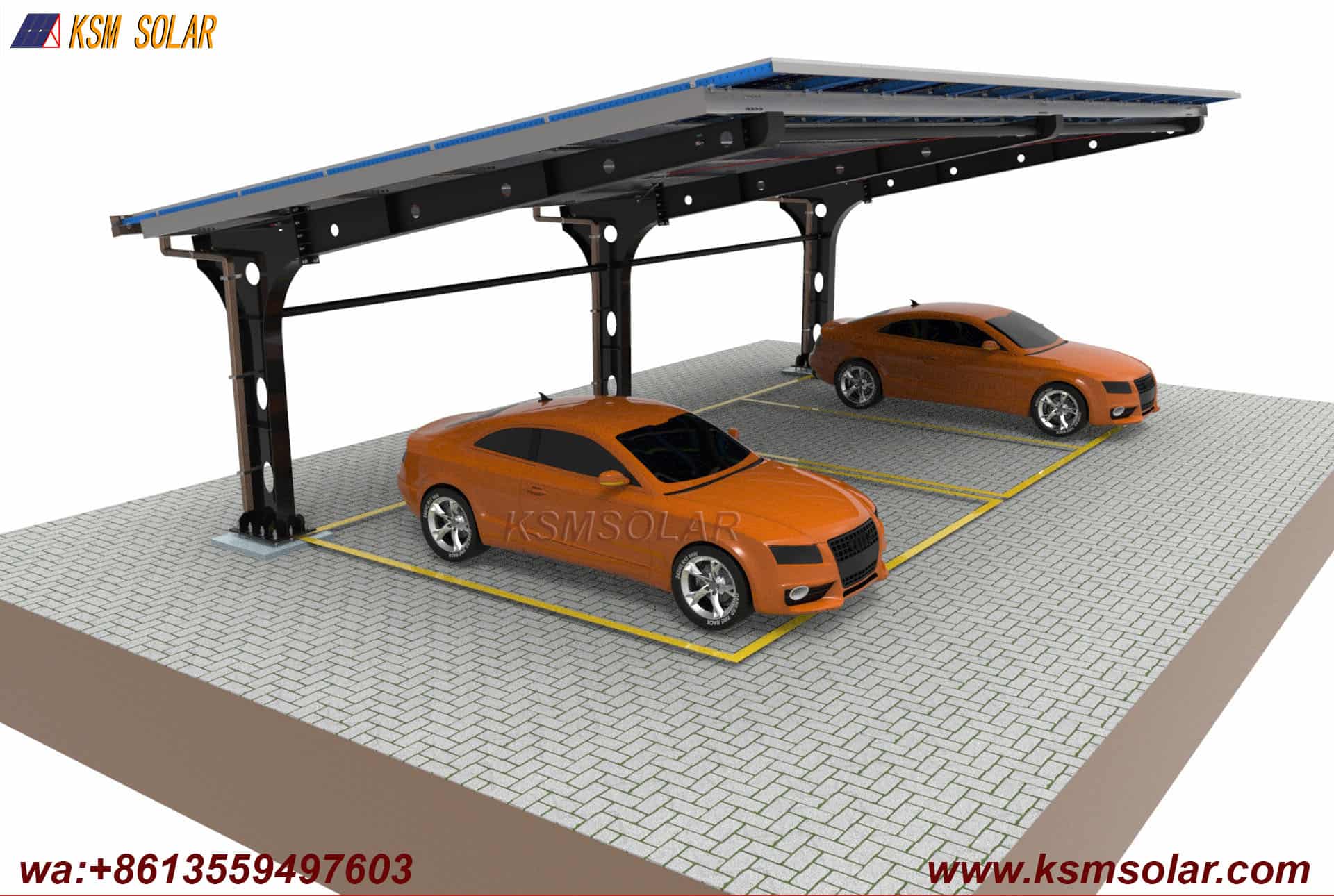

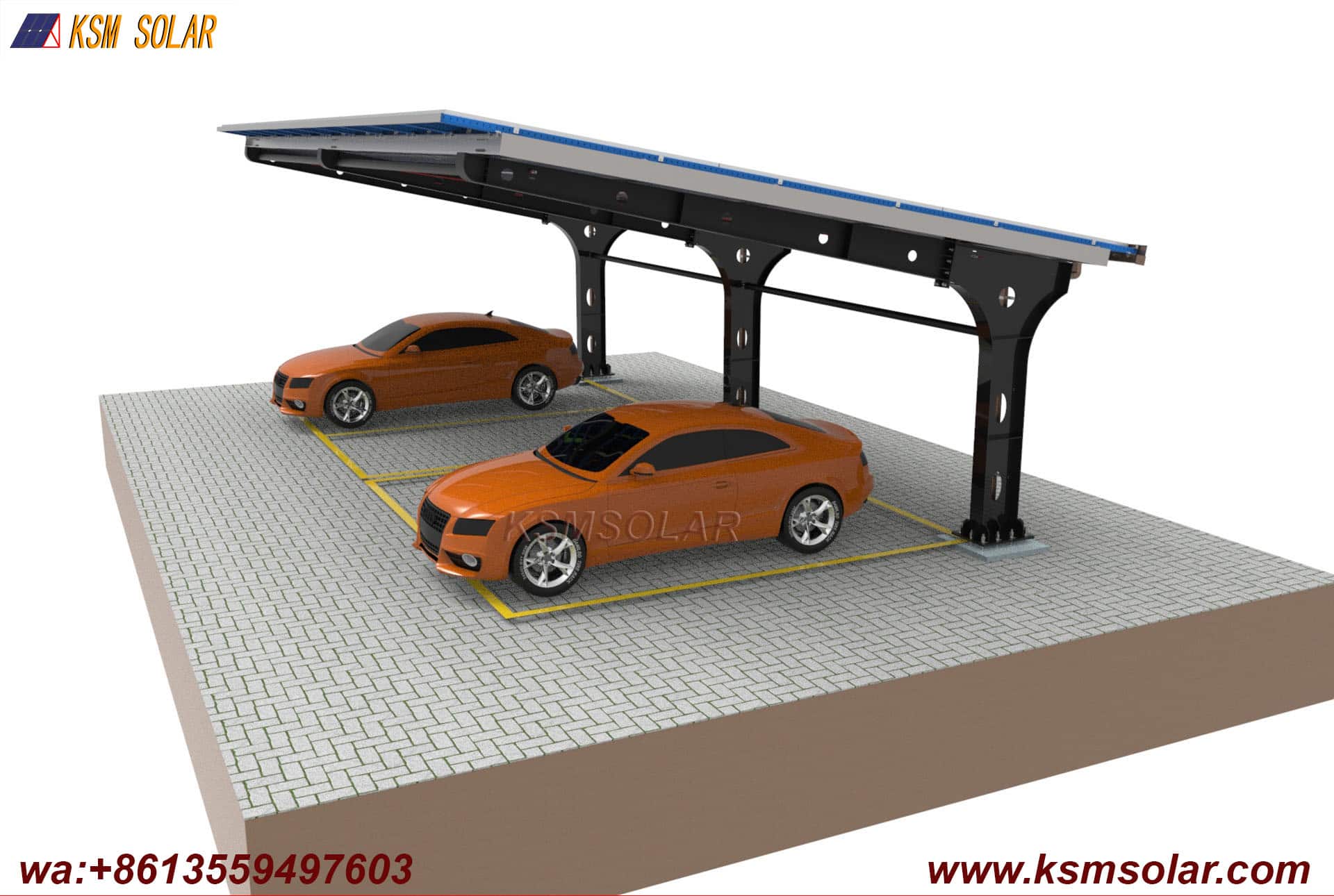

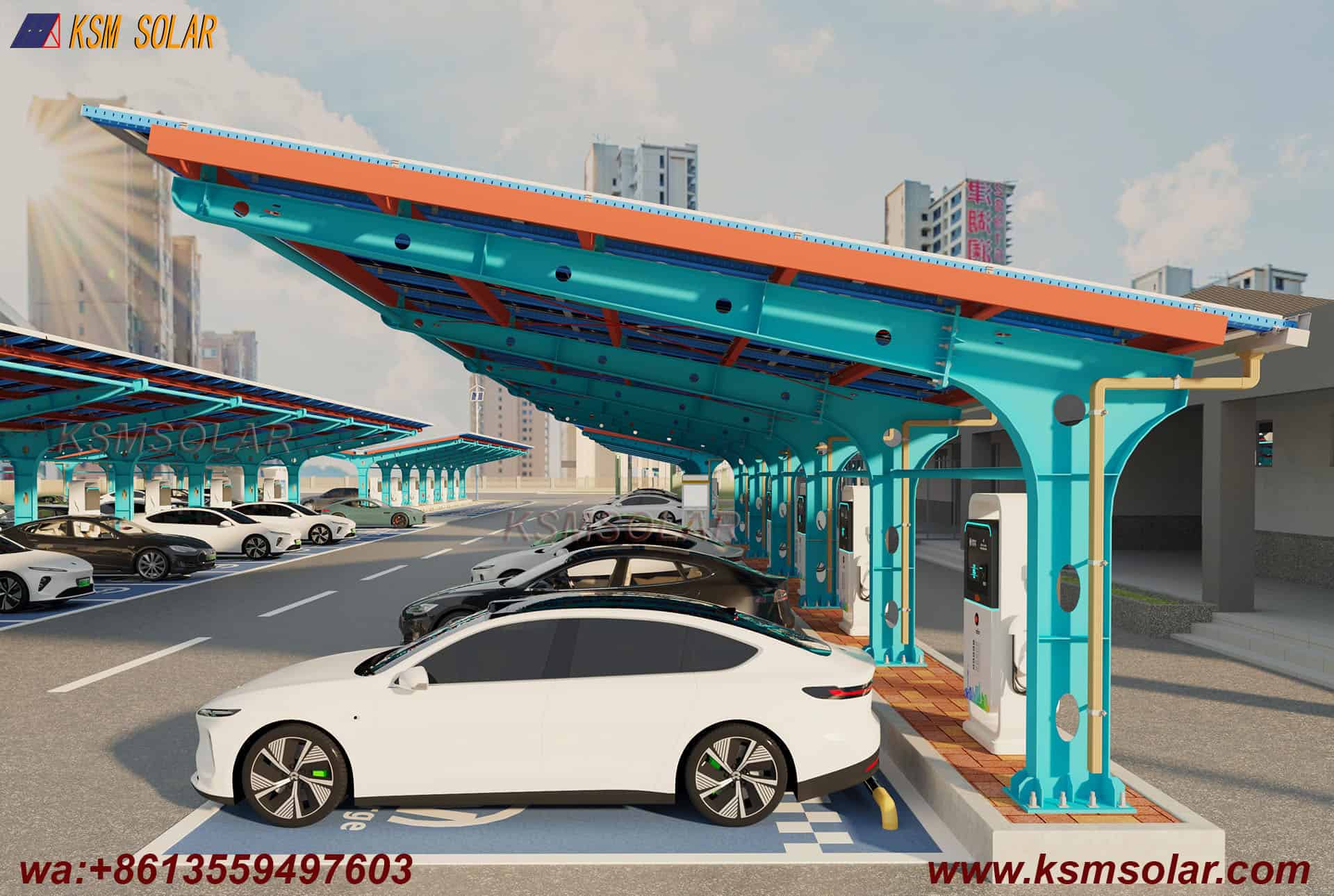

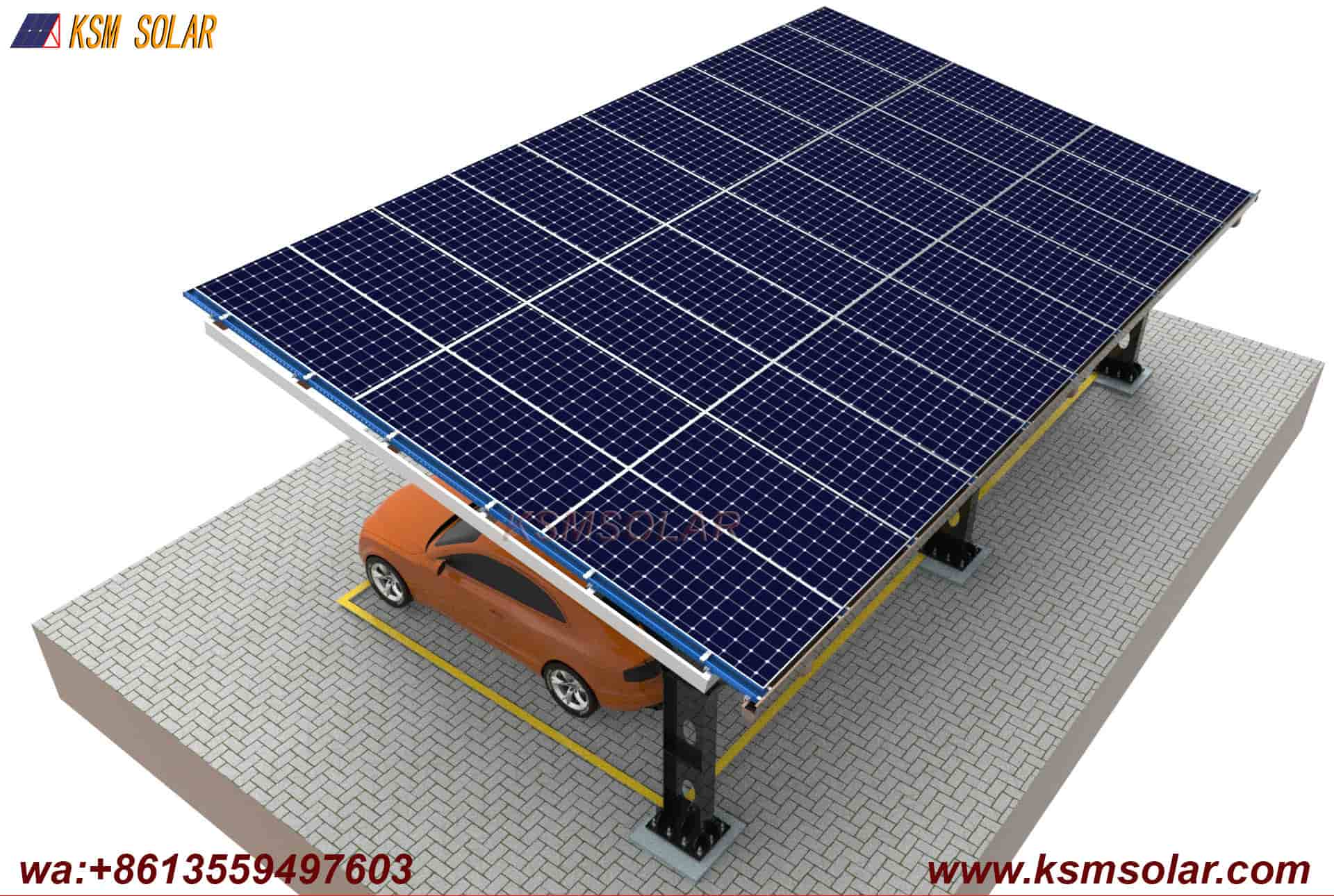

The Welded Segmented Carbon Steel Beam-Column Photovoltaic Waterproof Carport represents a high-integrity structural solution where advanced welding technology is employed to create precise, factory-fabricated segments that assemble into a rigid, continuous structural frame. This system bridges the gap between fully monolithic casting and field-bolted assembly, offering superior strength, dimensional accuracy, and seamless weather protection through controlled manufacturing processes.

Core Engineering & Manufacturing Features

1. Precision Welded Segmented Construction

• Factory-Controlled Welding: Primary structural members are fabricated as pre-engineered segments using submerged arc welding (SAW) and gas metal arc welding (GMAW) processes performed in controlled factory environments. Critical joints, including beam-to-column connections and segment splices, are full-penetration welds executed by certified welders following AWS D1.1 or EN 1090 standards.

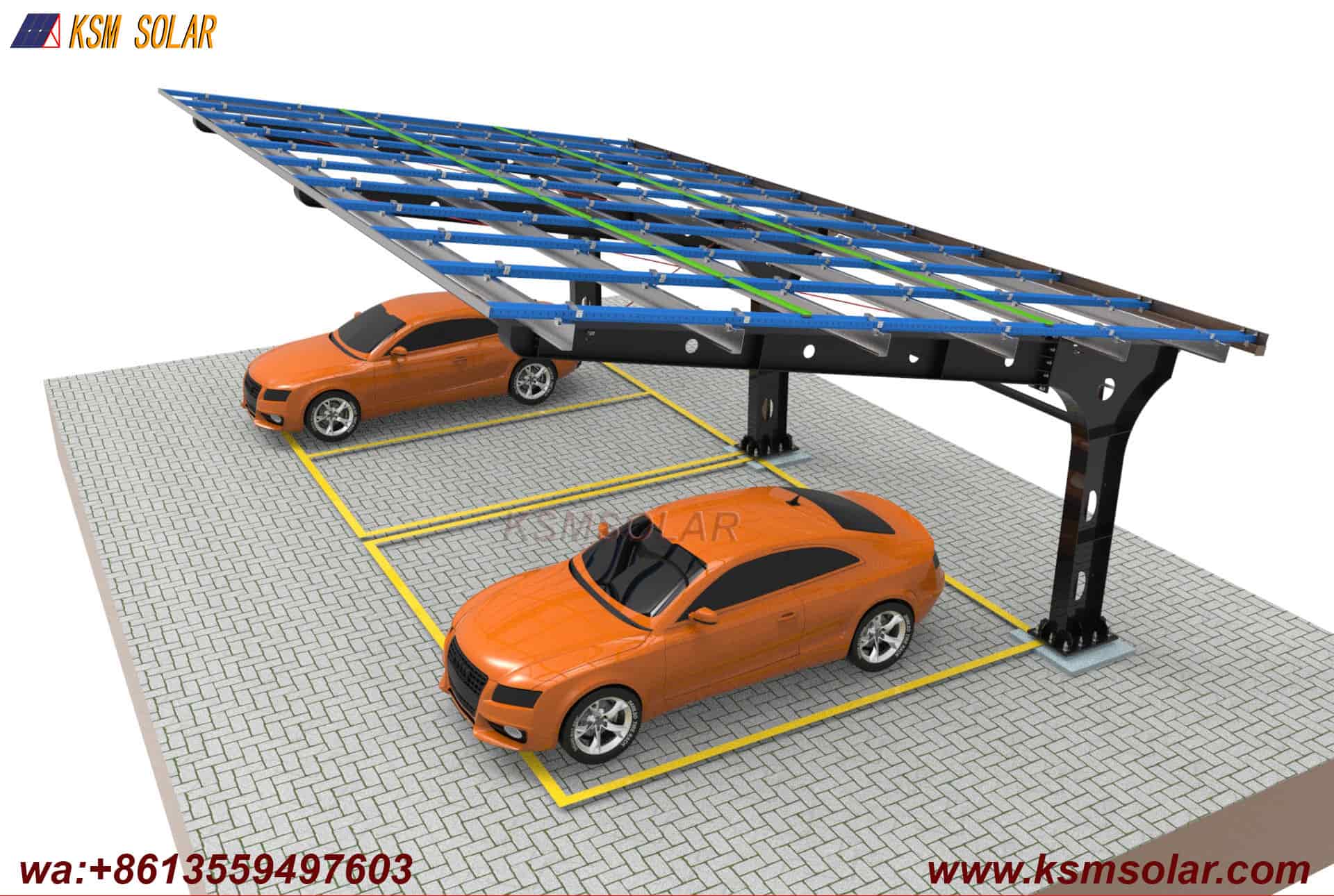

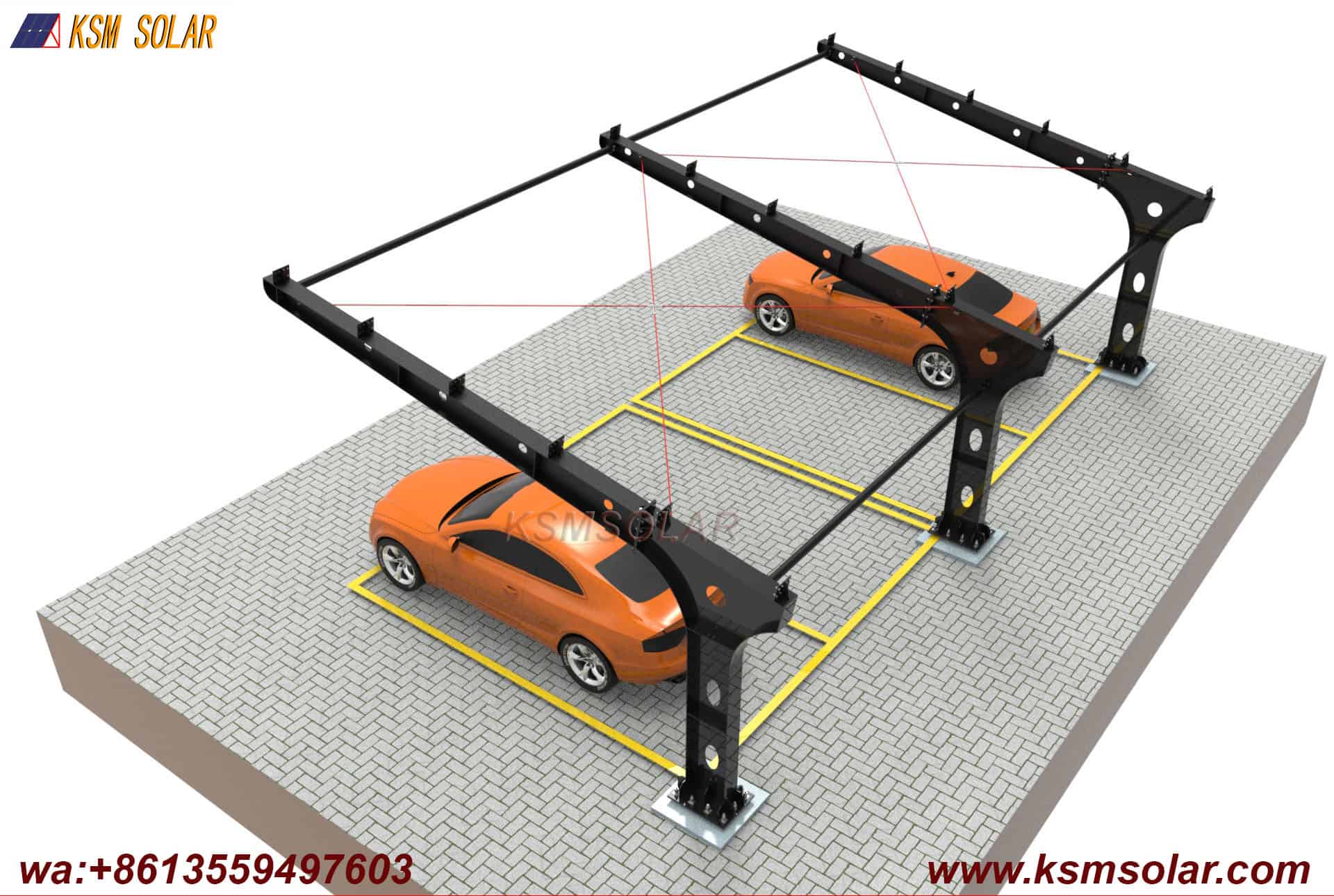

• Modular Segment Design: The system utilizes optimized segment lengths (typically 3-6 meters) determined by transport limitations and crane capacities. Each segment—whether a column section, beam cantilever, or nodal component—is designed with integrated connection plates and alignment guides for precise field assembly.

• Post-Weld Treatment: All welded components undergo stress relieving (where required) and non-destructive testing (NDT), including ultrasonic testing (UT) and magnetic particle inspection (MPI) of critical welds, to ensure internal integrity and dimensional stability.

2. High-Performance Structural System

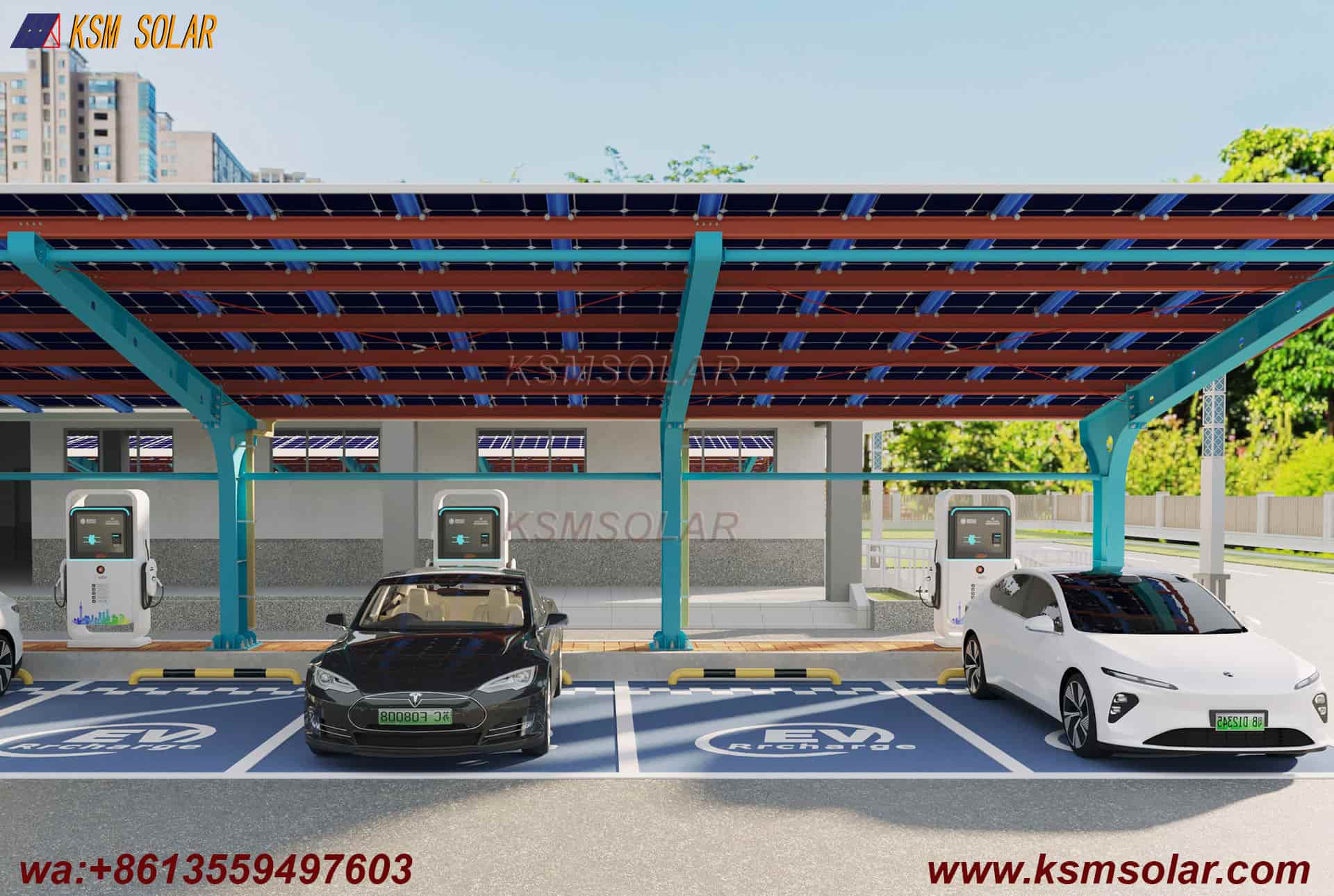

• Continuous Load Path Engineering: Through carefully detailed welded splices, the assembled structure performs as a continuous moment-resisting frame. The welded connections effectively transfer bending moments and shear forces between segments, creating stiffness comparable to a single-piece member.

• Material Optimization: Utilizes high-strength low-alloy (HSLA) carbon steel (e.g., ASTM A572 Grade 50 or S355ML) for primary segments, allowing for lighter sections while maintaining strength. Thickness and profiles are optimized via finite element analysis (FEA) to match stress distributions.

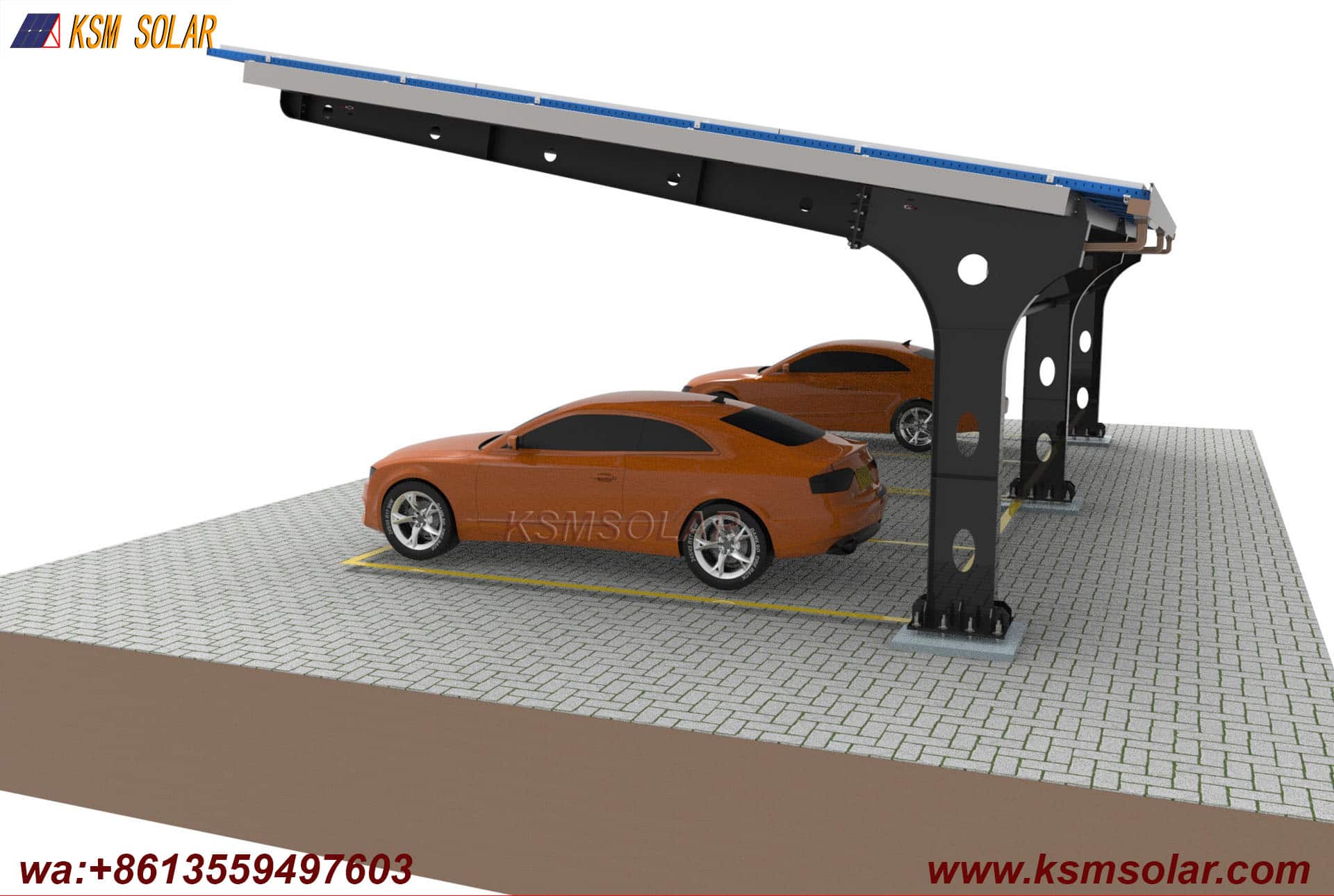

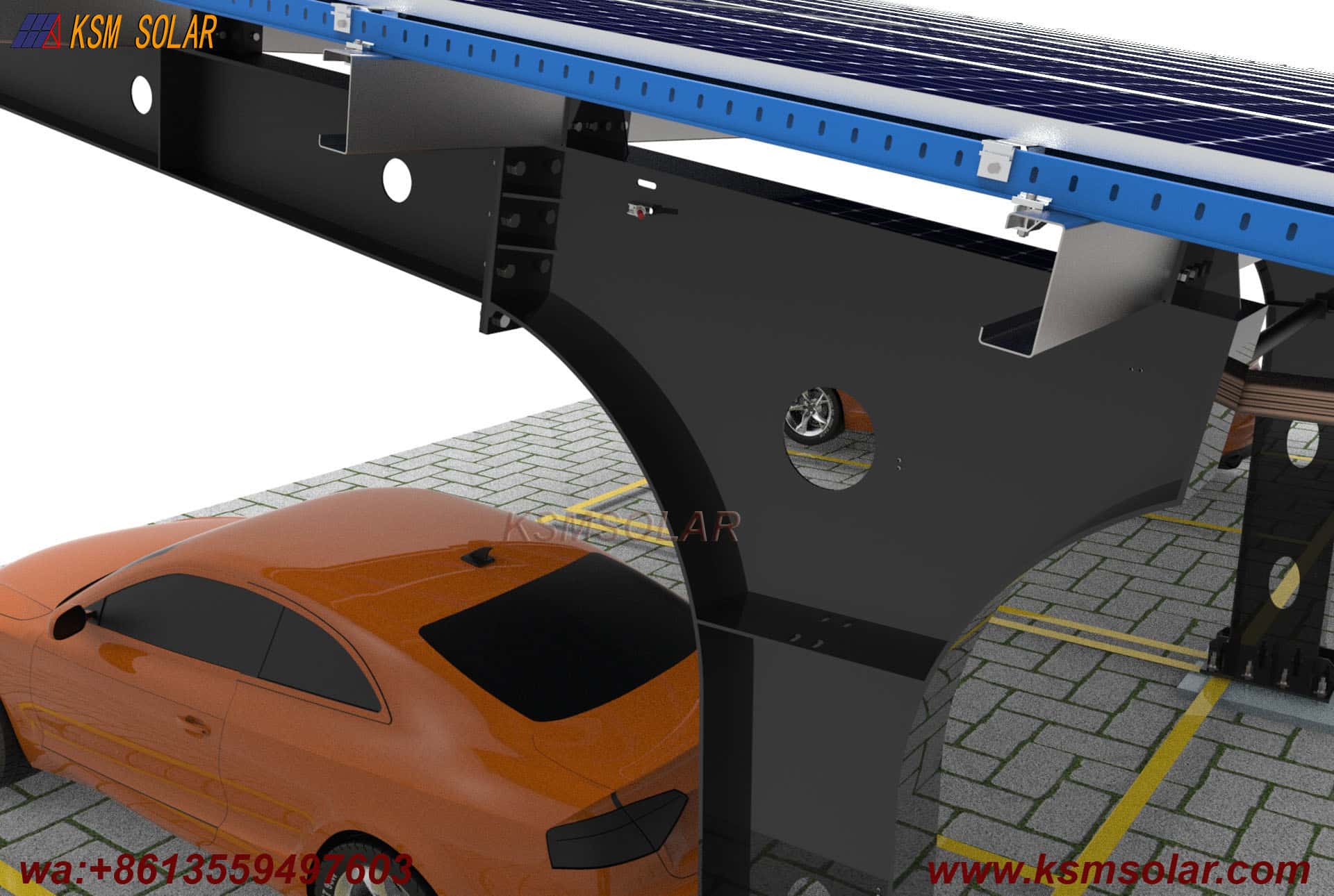

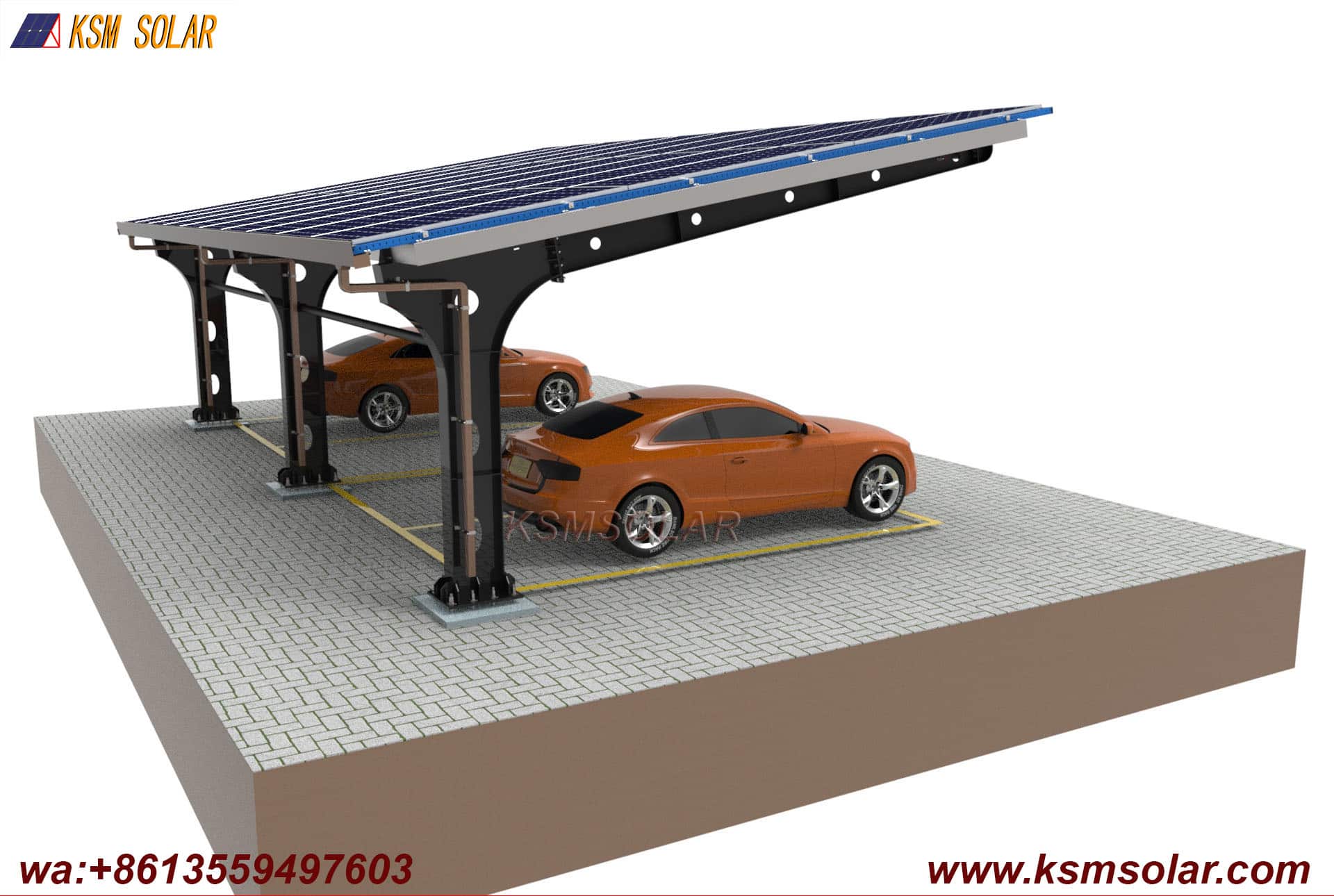

• Enhanced Joint Design: Critical intersections (e.g., where a horizontal beam segment meets a vertical column segment) are often fabricated as complete welded "node units" in the factory. These nodes may incorporate internal stiffeners, gusset plates, and tapered transitions to manage complex stress flows, which would be impractical to achieve with bolted connections.

3. Integrated Waterproof Canopy System

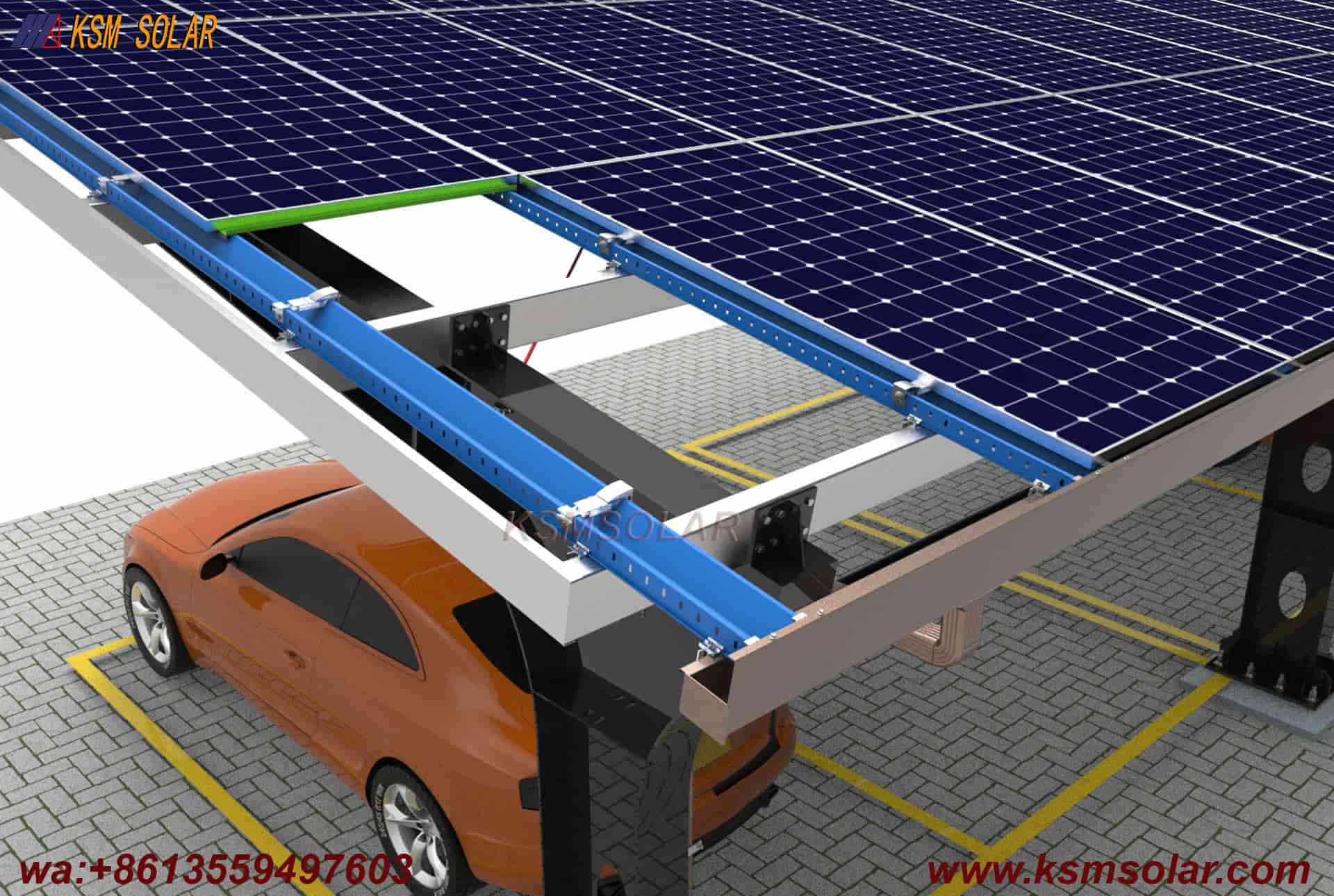

• Seamless Roof-to-Structure Interface: The welded steel framework supports a fully bonded, single-ply thermoplastic (TPO/PVC) roofing membrane. The membrane is mechanically fastened and/or adhered to a steel roof deck that is welded or bolted to the primary structure, creating a unified assembly.

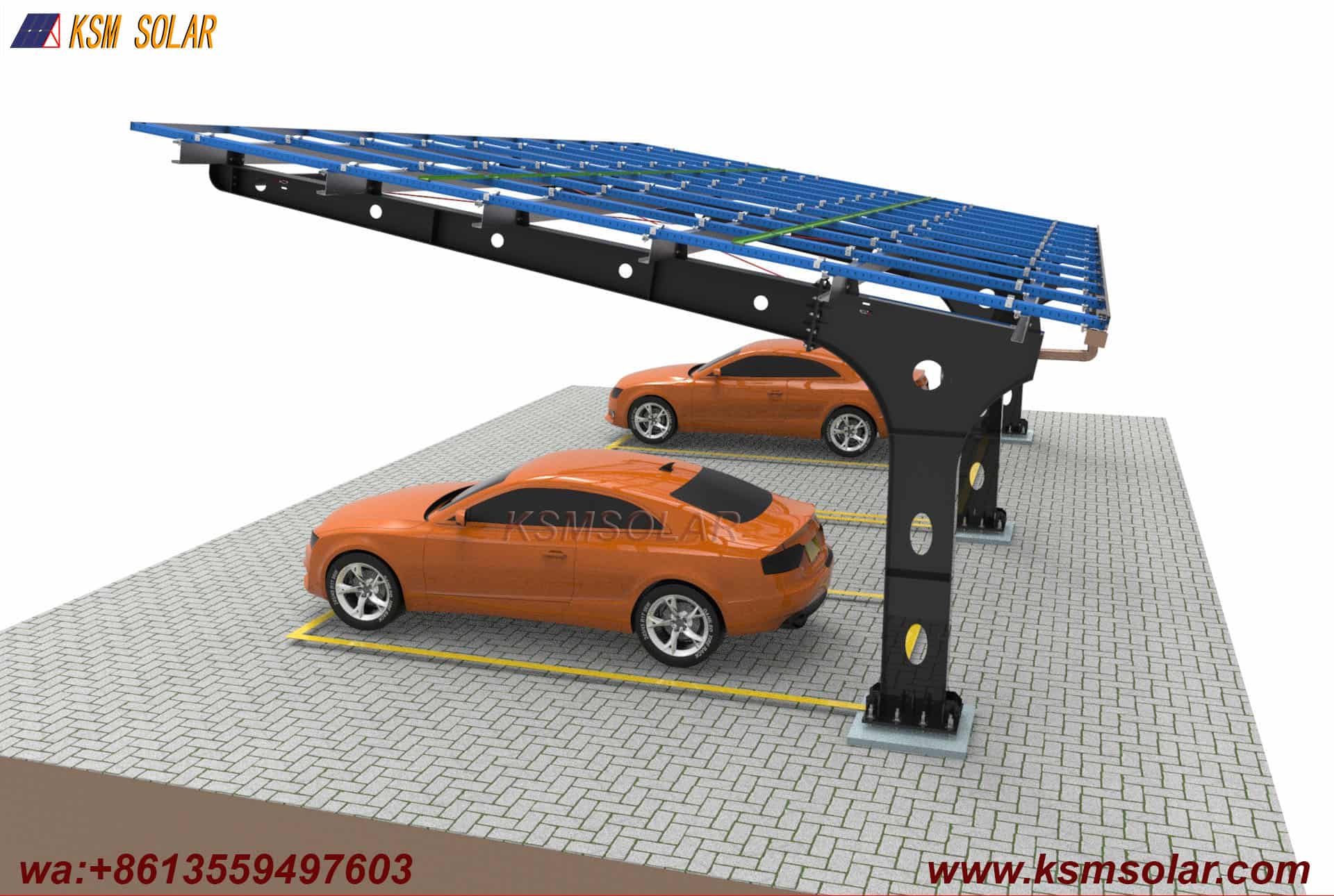

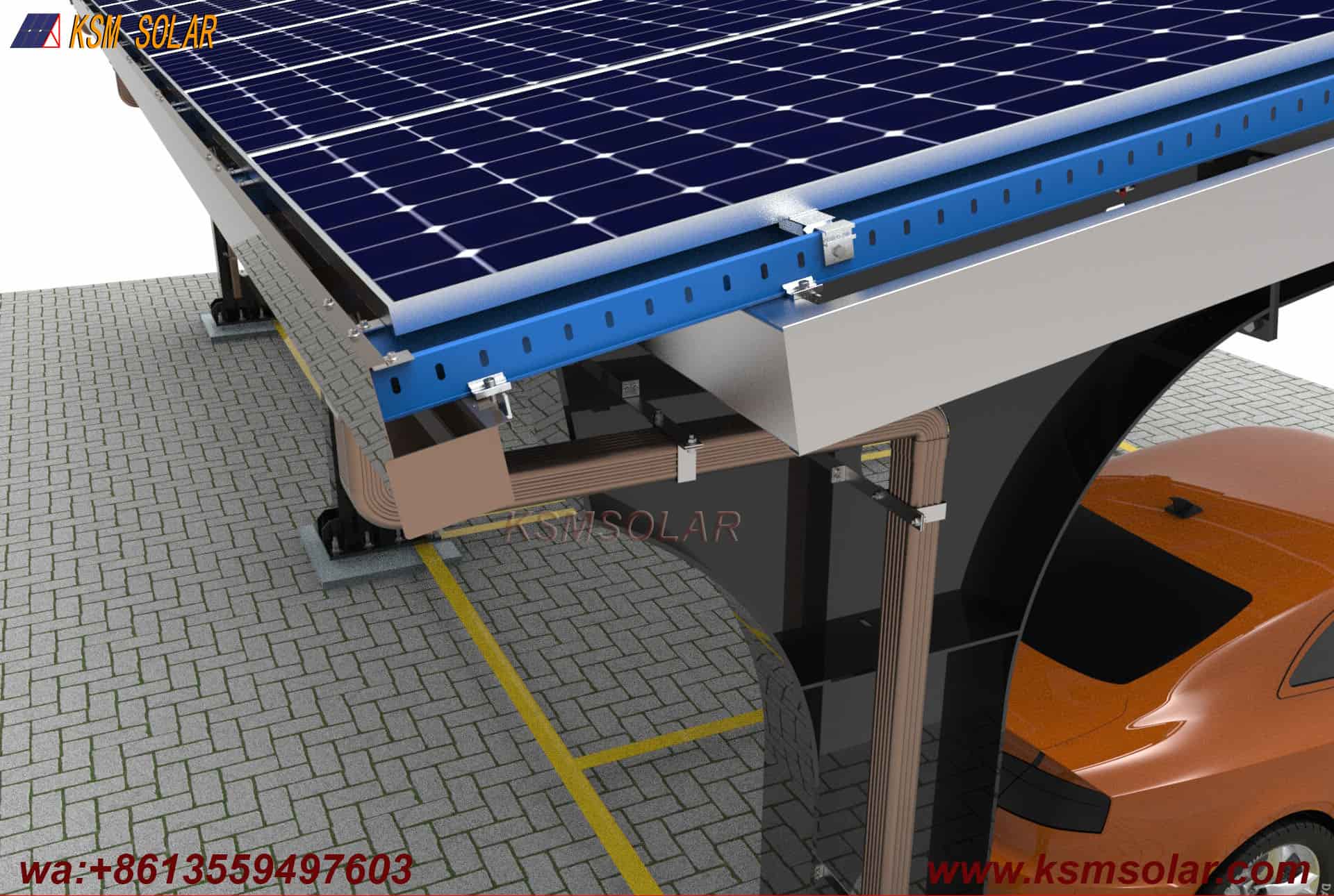

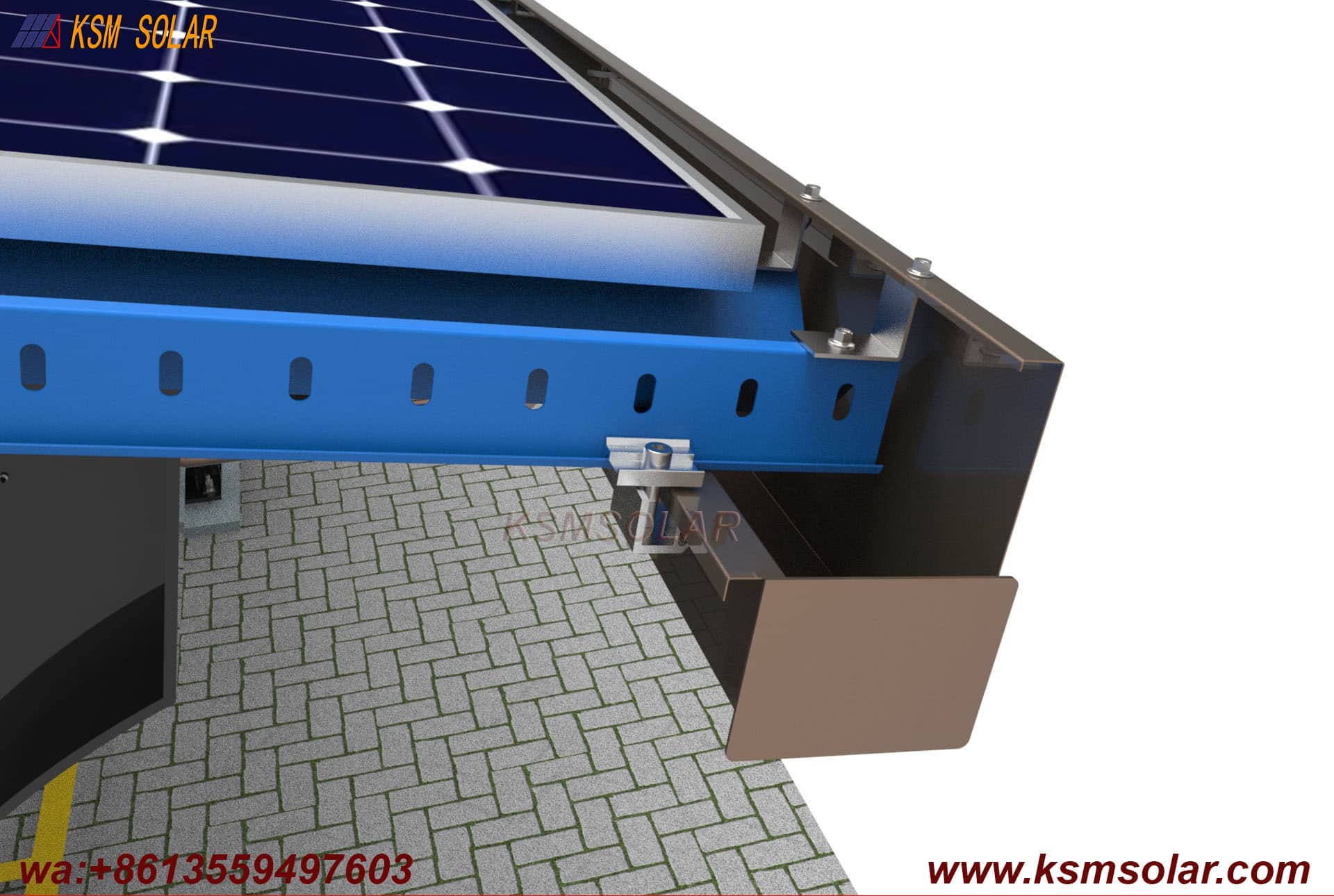

• Continuous Water Shedding Surface: The roof is designed as a continuous, sloped plane (typically 2% minimum slope) that directs all water to perimeter gutters or internal drains. All roof penetrations for PV mounts are sealed with custom-welded stainless steel flashing that is integrated into the roof membrane system.

• Secondary Containment Design: The system can incorporate a secondary drainage layer beneath the primary waterproofing membrane, providing redundancy. This layer is sloped to collection points, ensuring any incidental moisture is detected and drained.

4. Optimized for PV Integration & Durability

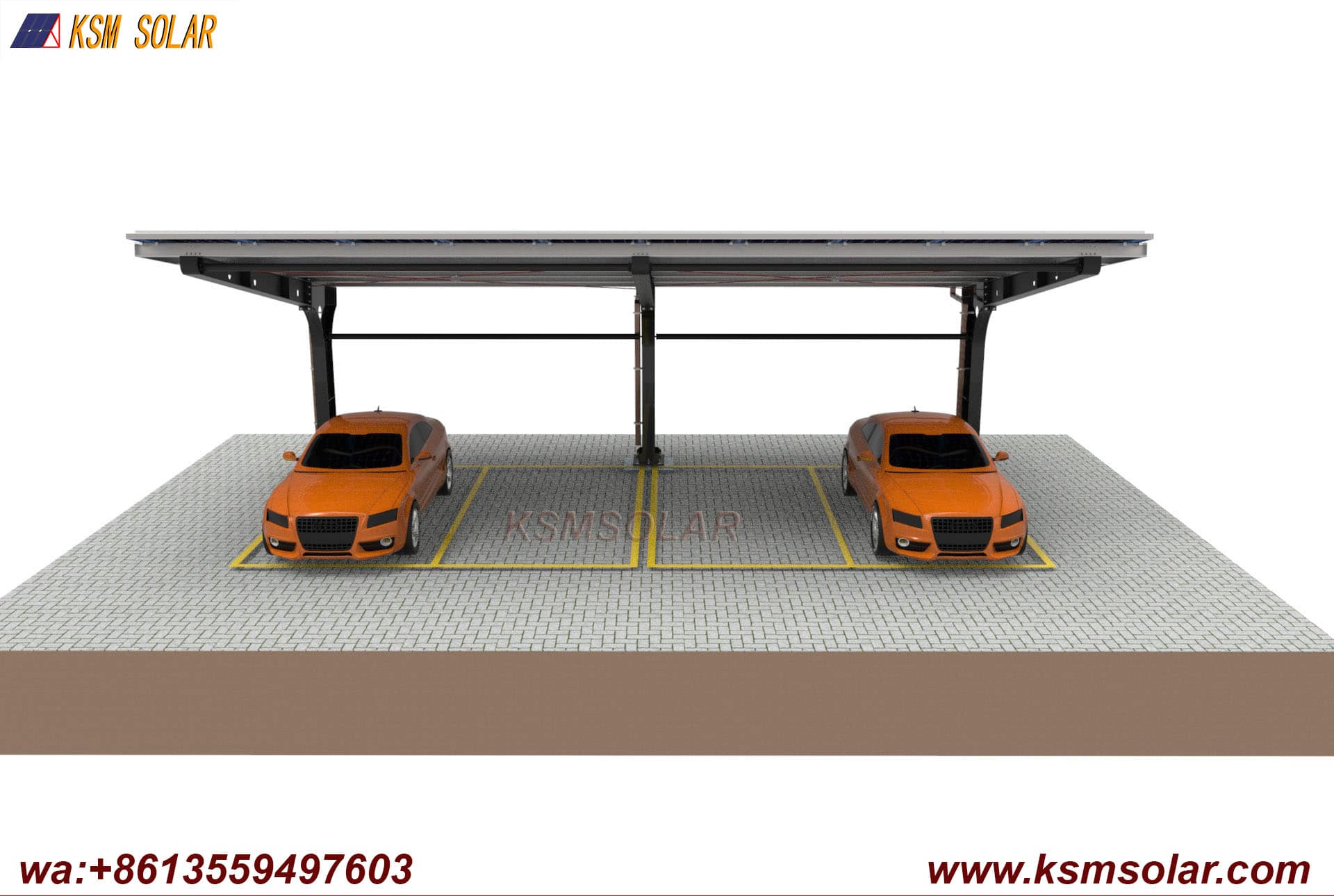

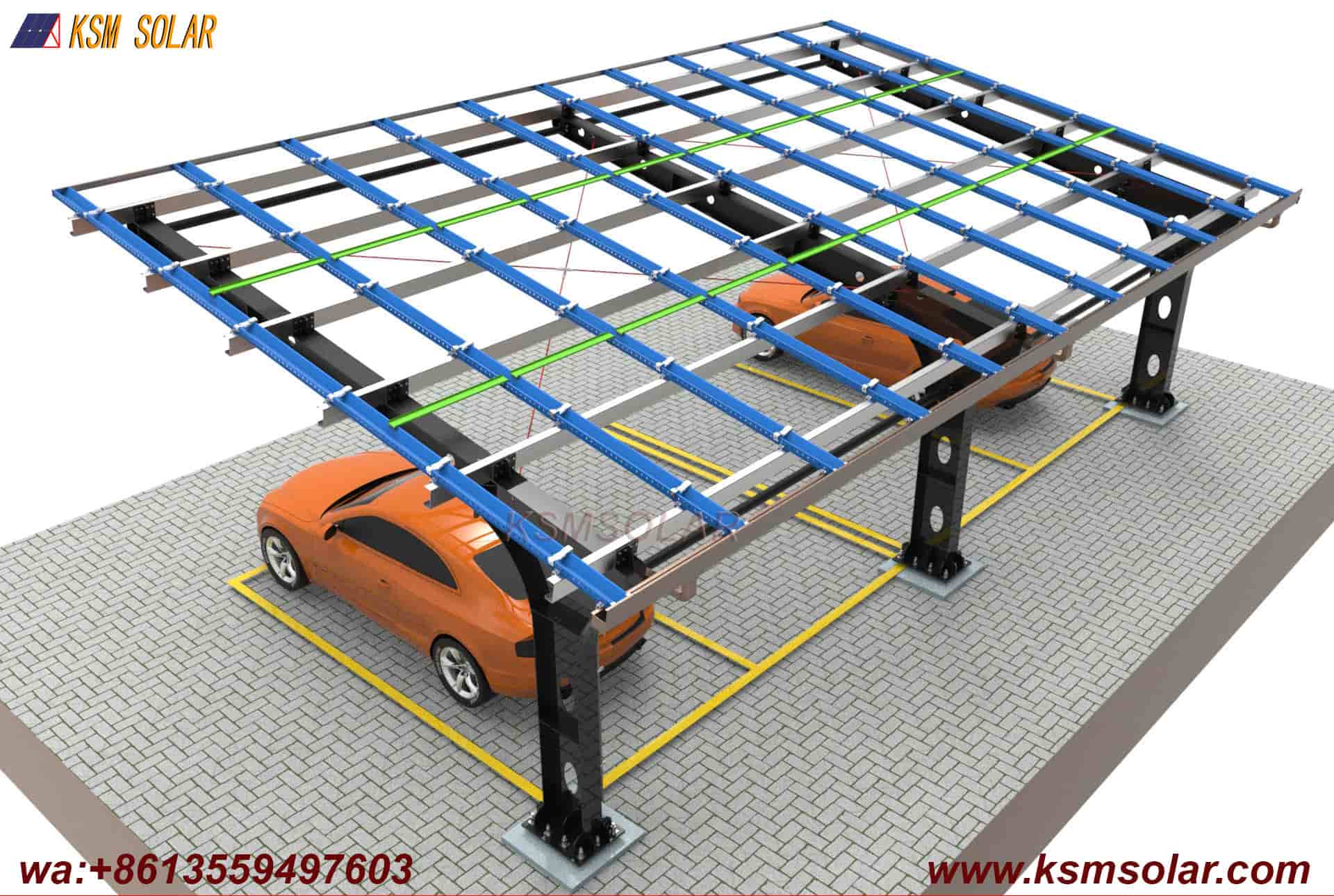

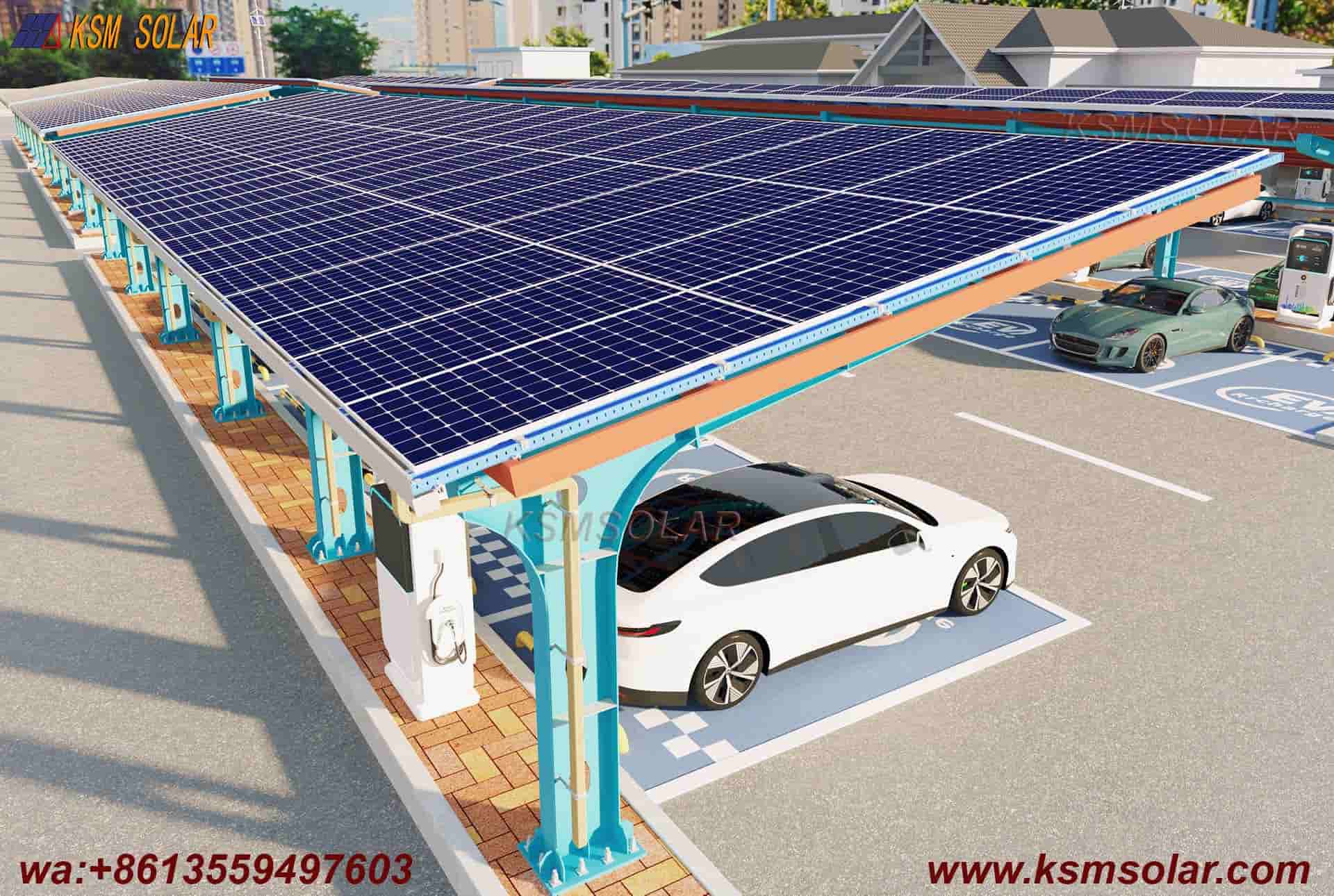

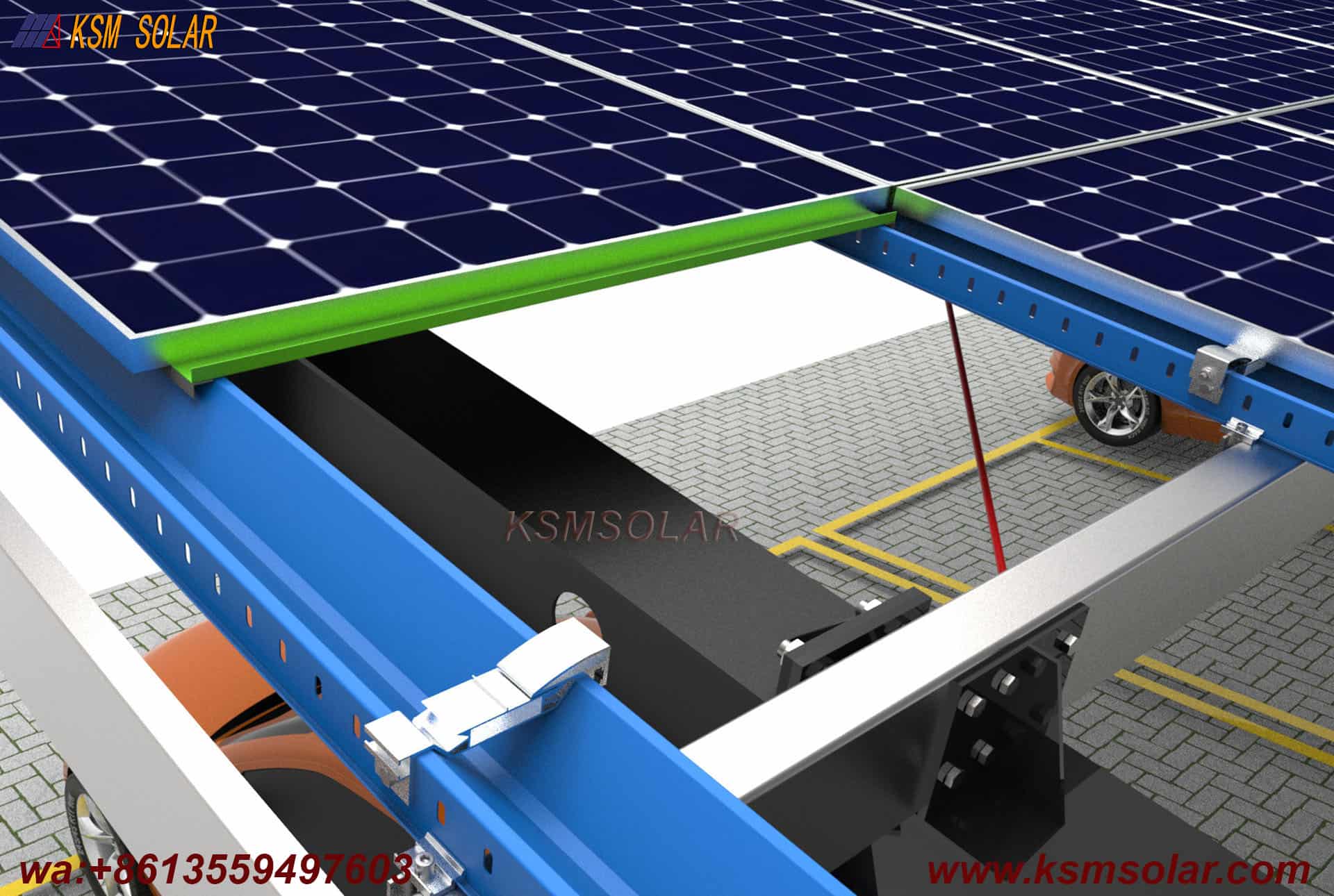

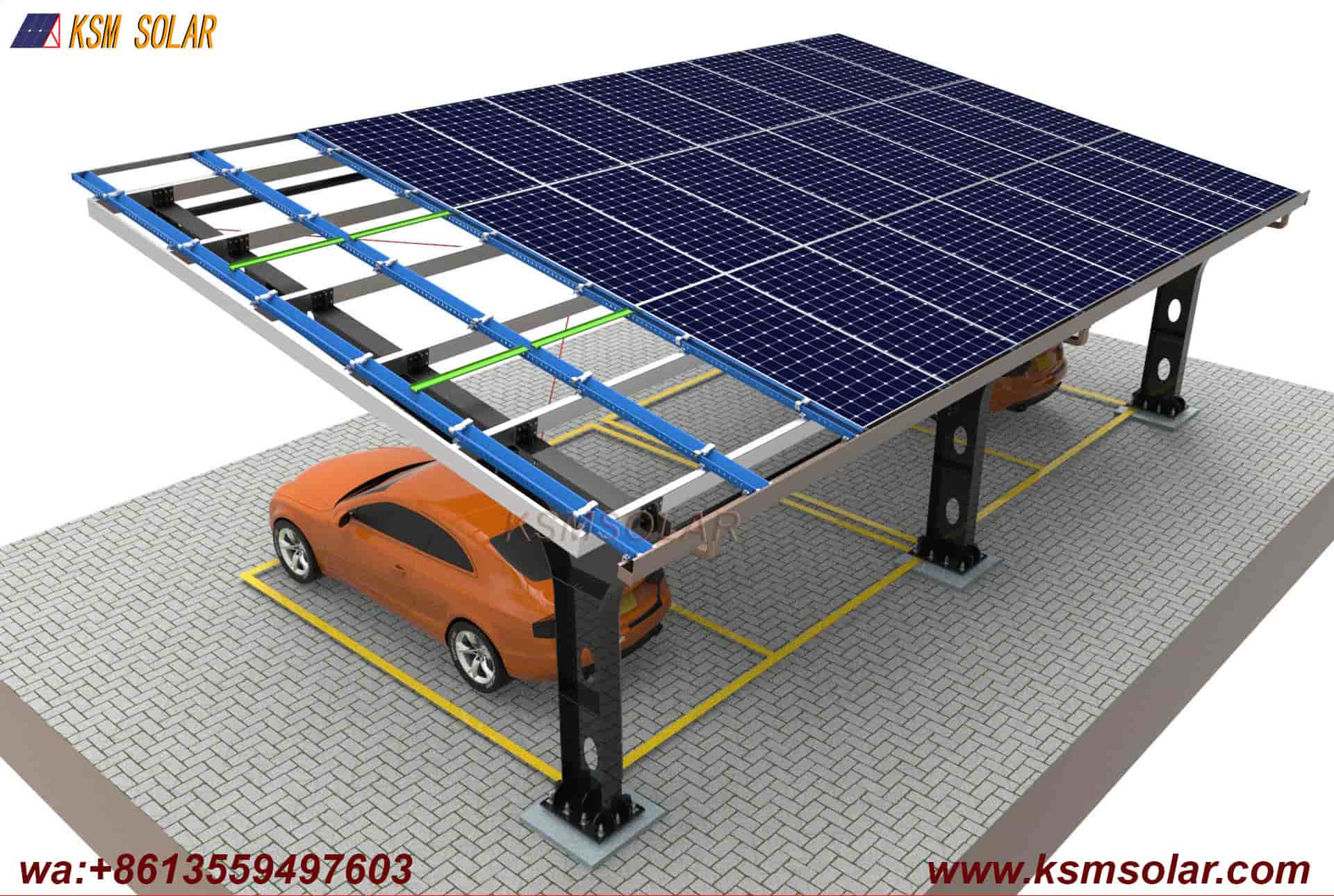

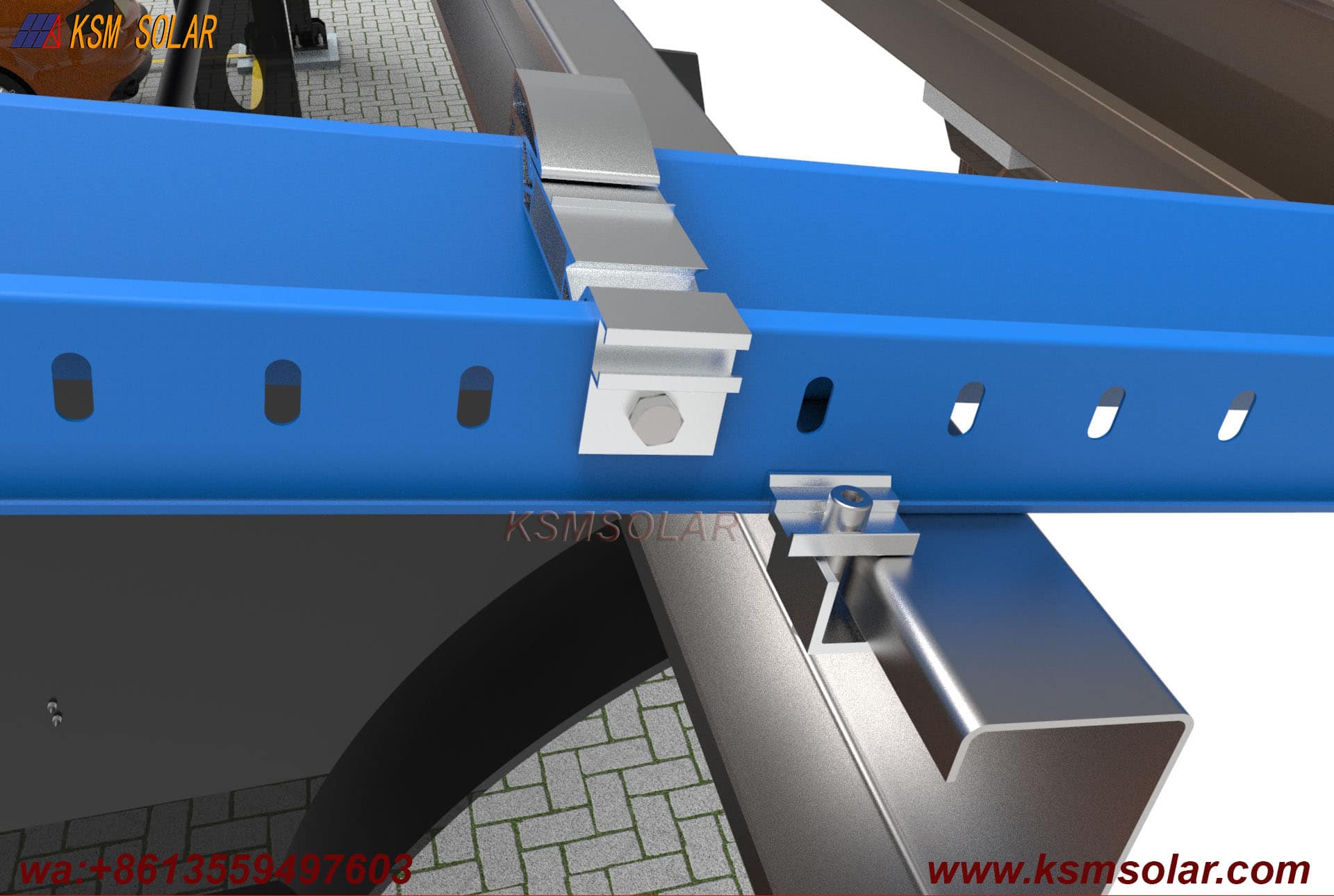

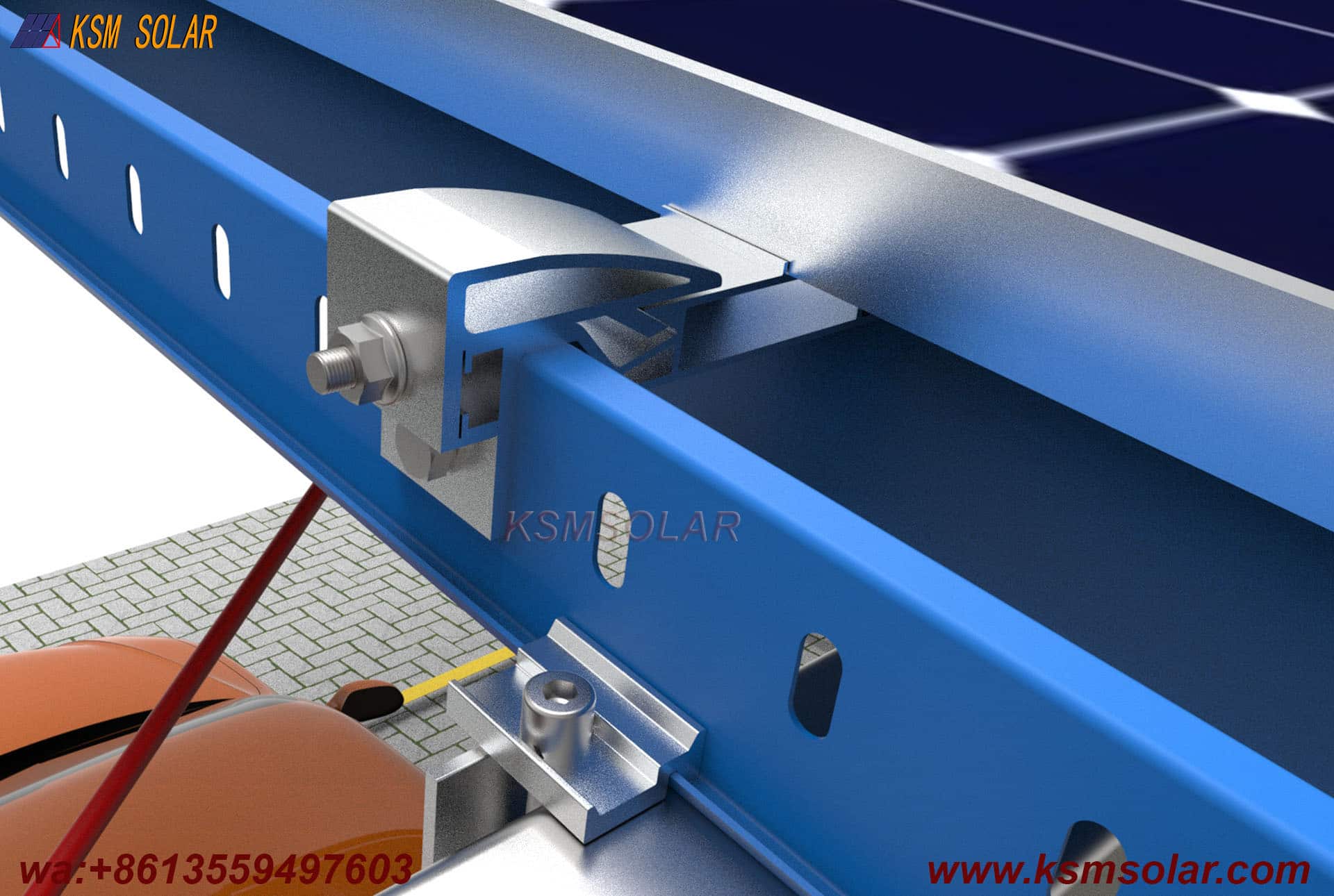

• Pre-Installed Mounting Infrastructure: PV mounting rails or embedded sockets are often welded directly to the structural roof supports during factory fabrication. This ensures perfect alignment, reduces field labor, and creates the most direct load path from panels to structure.

• Unified Corrosion Protection: After welding and inspection, the entire assembled segment is hot-dip galvanized as a complete unit or receives a multi-coat paint system (primer, intermediate, finish) in a controlled environment. This ensures complete coverage, even in recessed areas of complex welded joints, providing C4 or C5 corrosion protection.

• Protected Service Routing: Conduits and cable trays are supported by welded-on brackets or integrated channels within the structural sections. Access panels and junction box locations are pre-determined and reinforced in the design.

5. Quality-Assured Installation

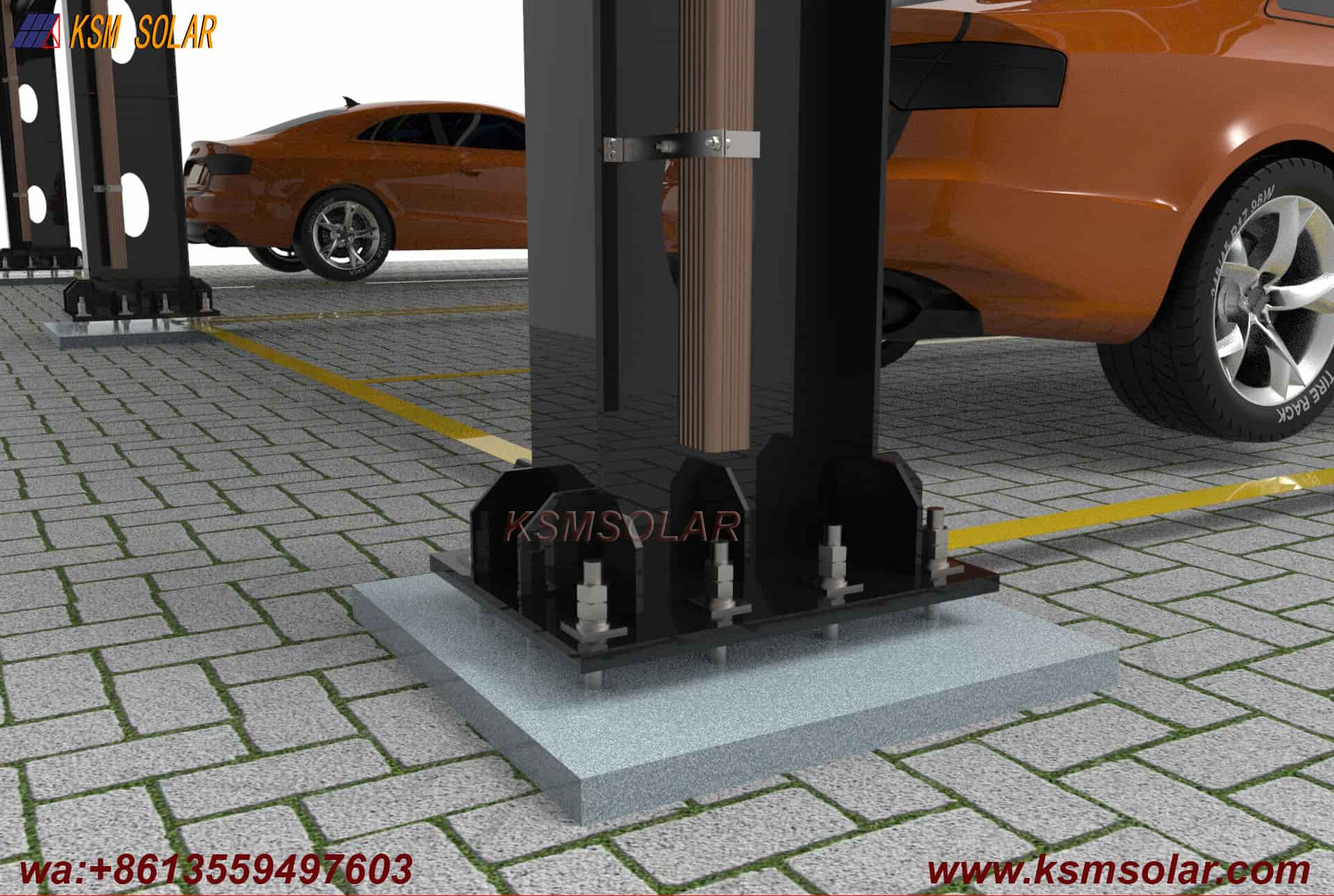

• Field Connection Method: While primary segments are welded in the factory, field connections between large segments are typically made using high-strength bolted splices. These splices use milled or ground contact surfaces and pre-tensioned bolts to ensure the connection behaves as a rigid continuation of the welded segments.

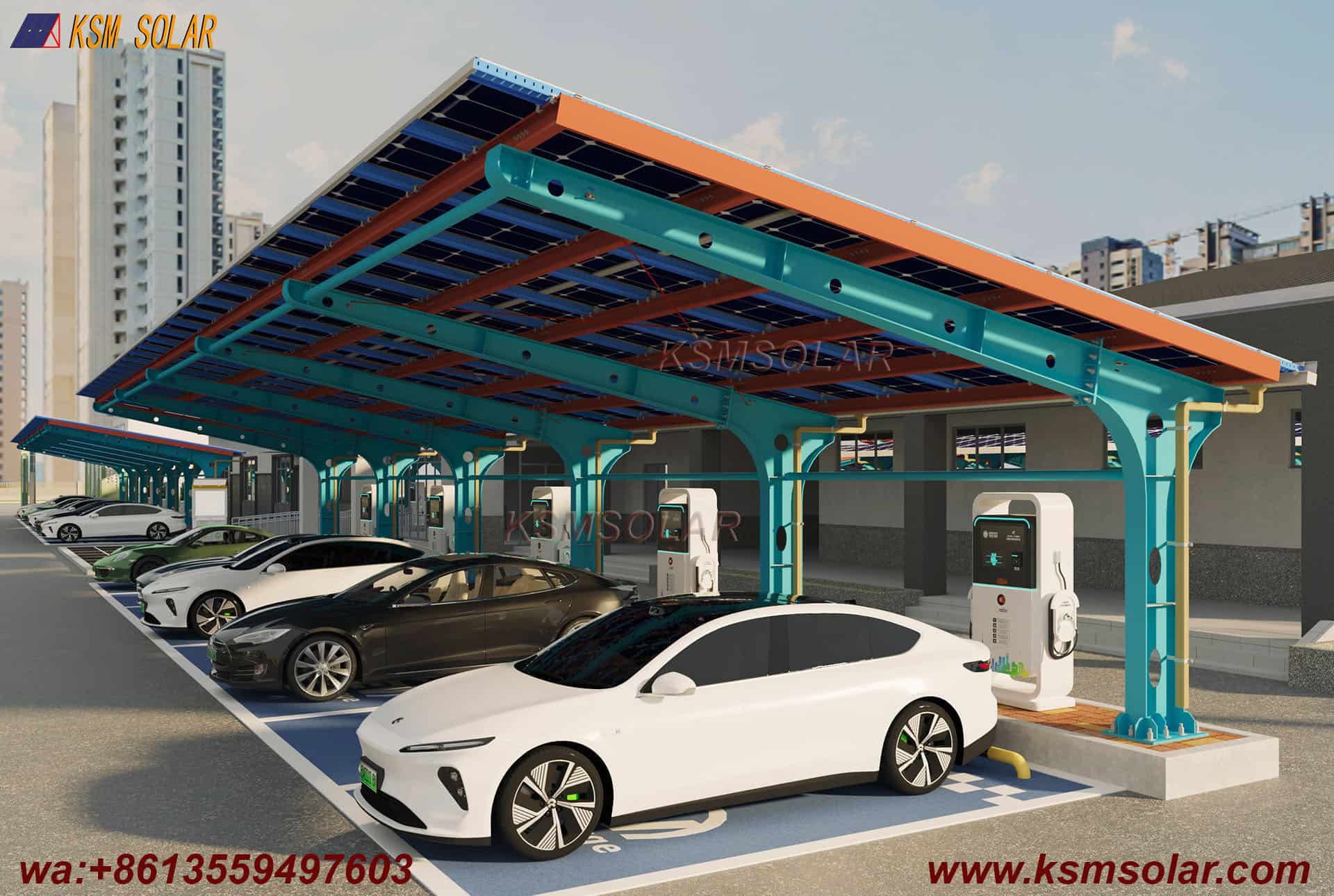

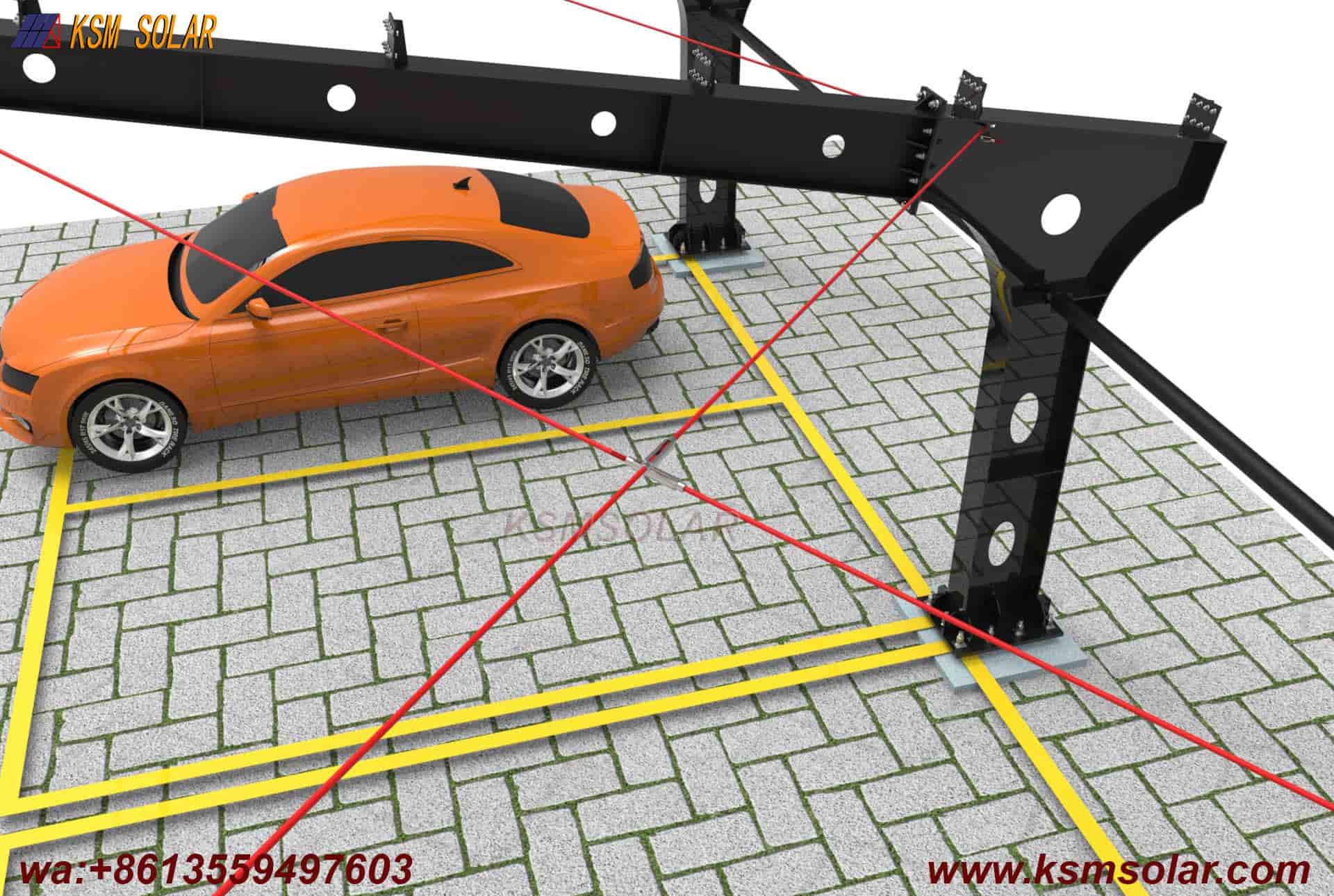

• Precision Alignment: Segments are fabricated with machined bearing surfaces and temporary alignment tabs to ensure rapid and accurate positioning in the field, minimizing adjustment time and ensuring the final geometry meets tight tolerances (e.g., ±3mm over 10m span).

• Reduced On-Site Work: By moving complex welding and finishing work off-site, the system drastically reduces weather-dependent activities, on-site skilled labor requirements, and construction schedule risk.
