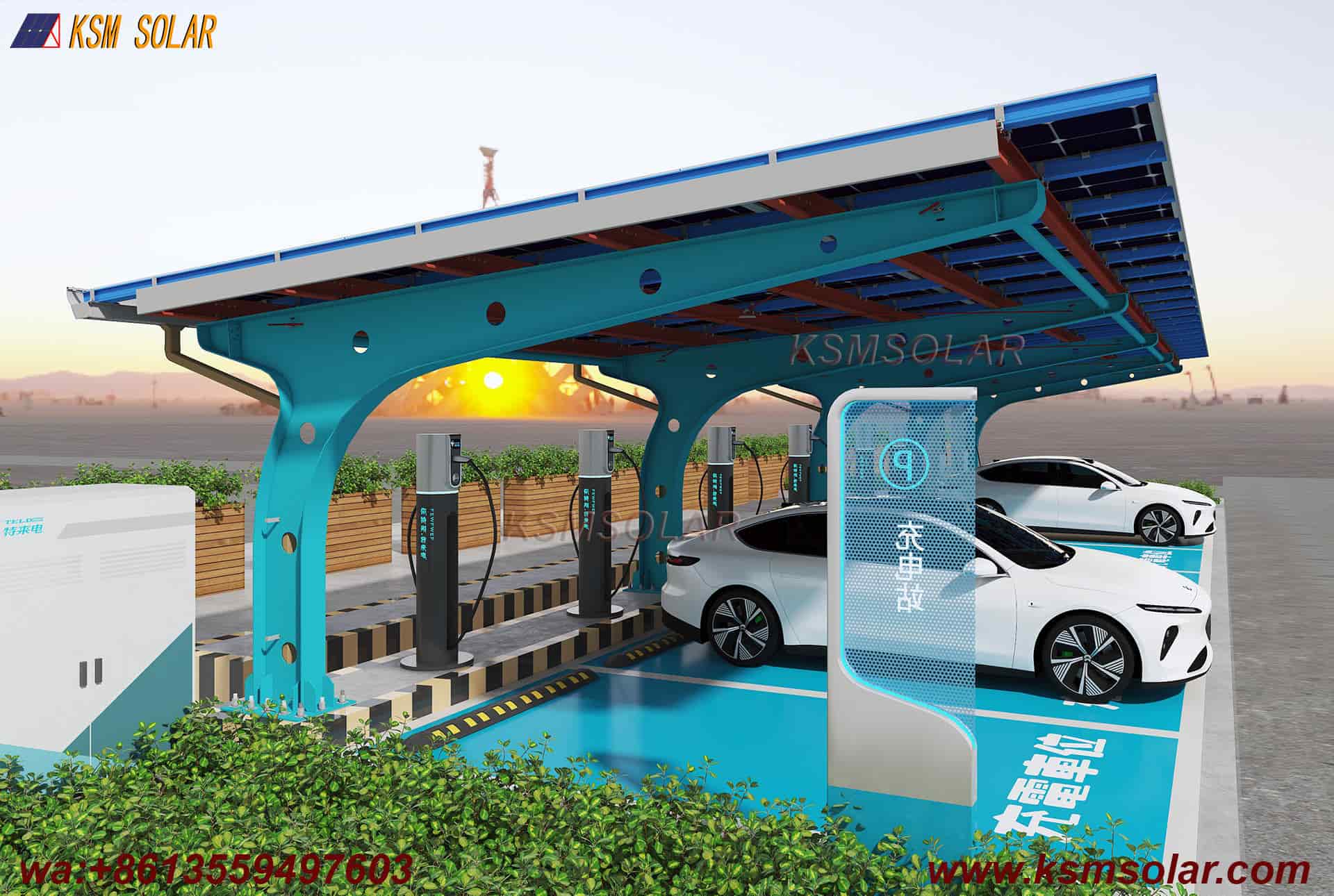

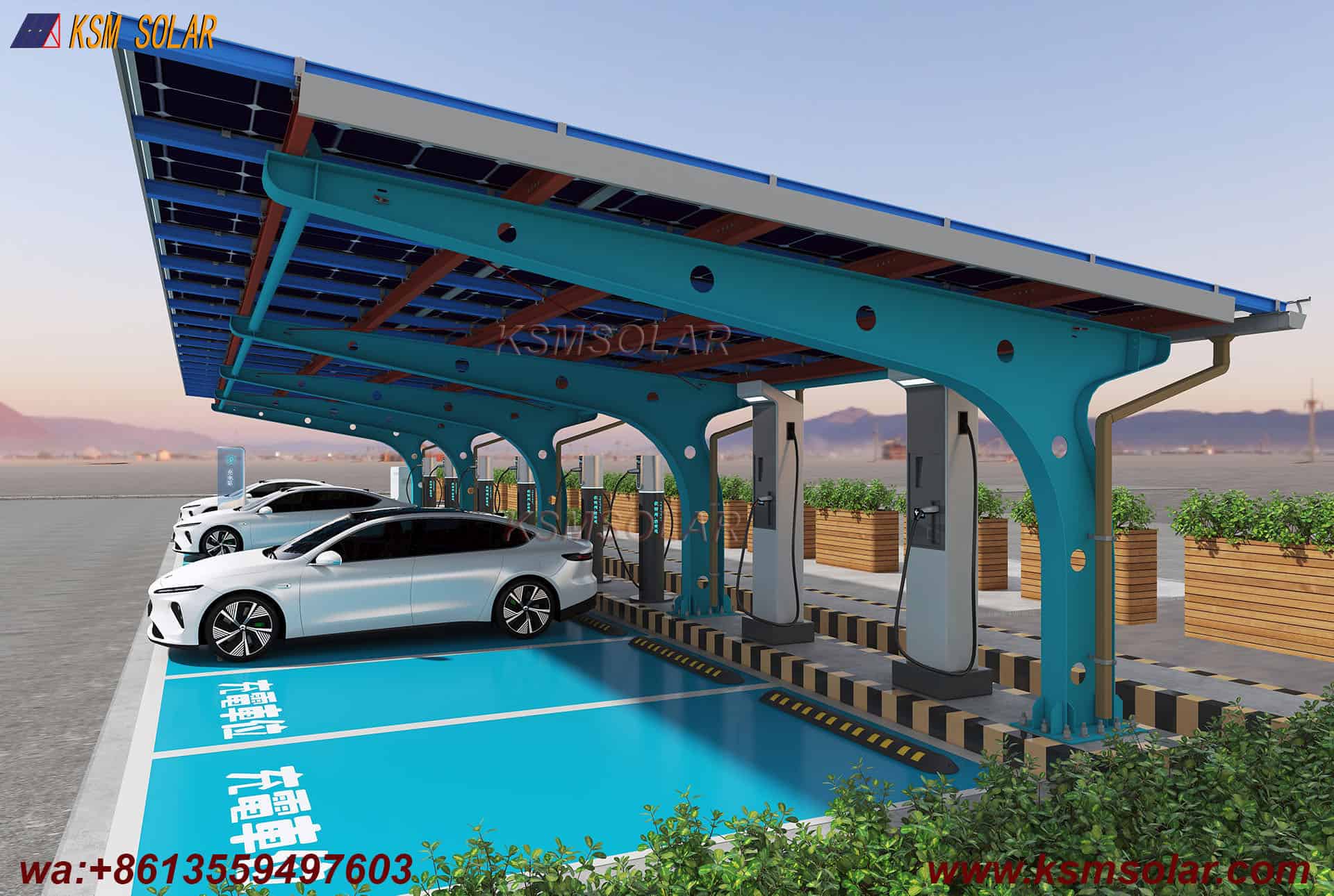

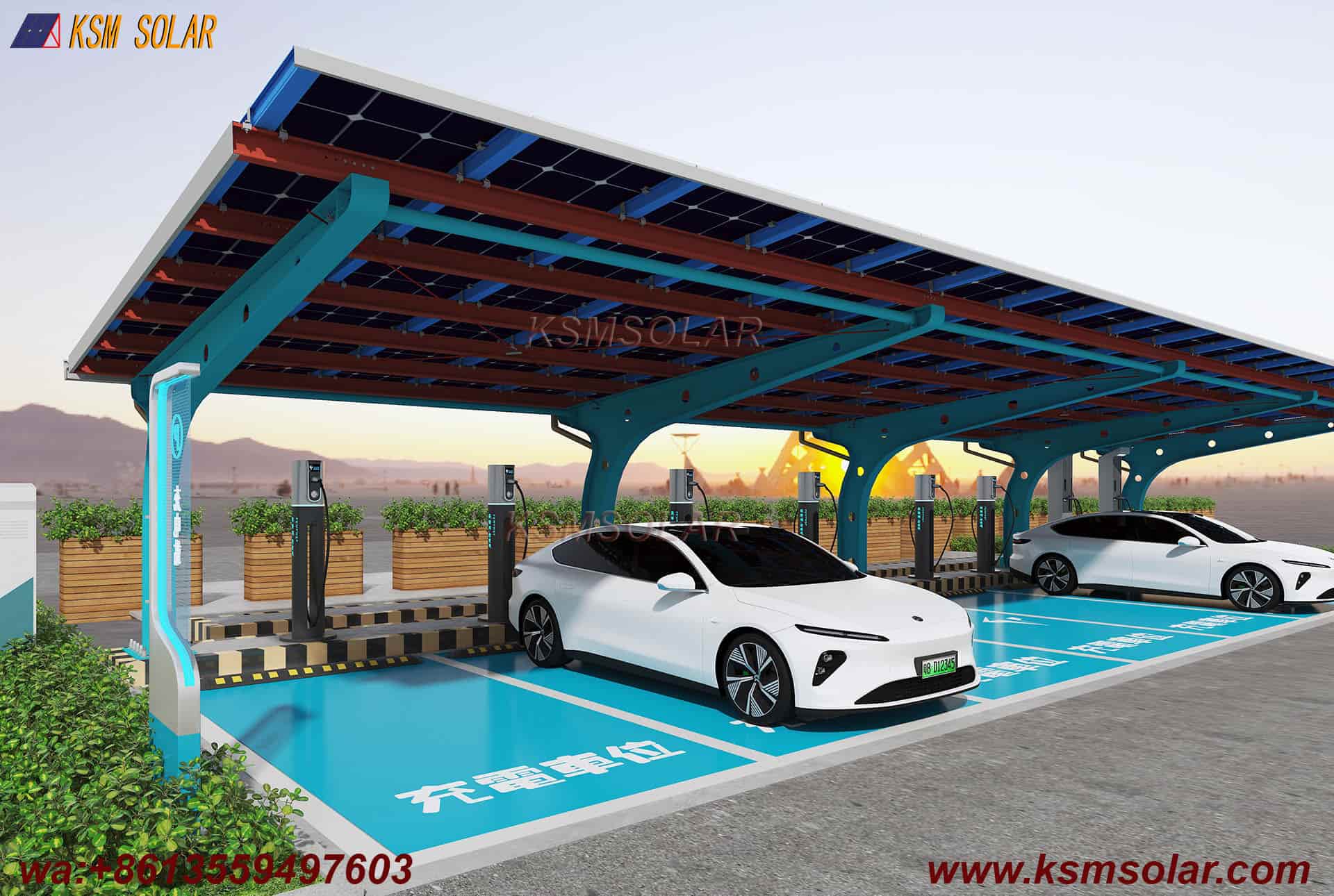

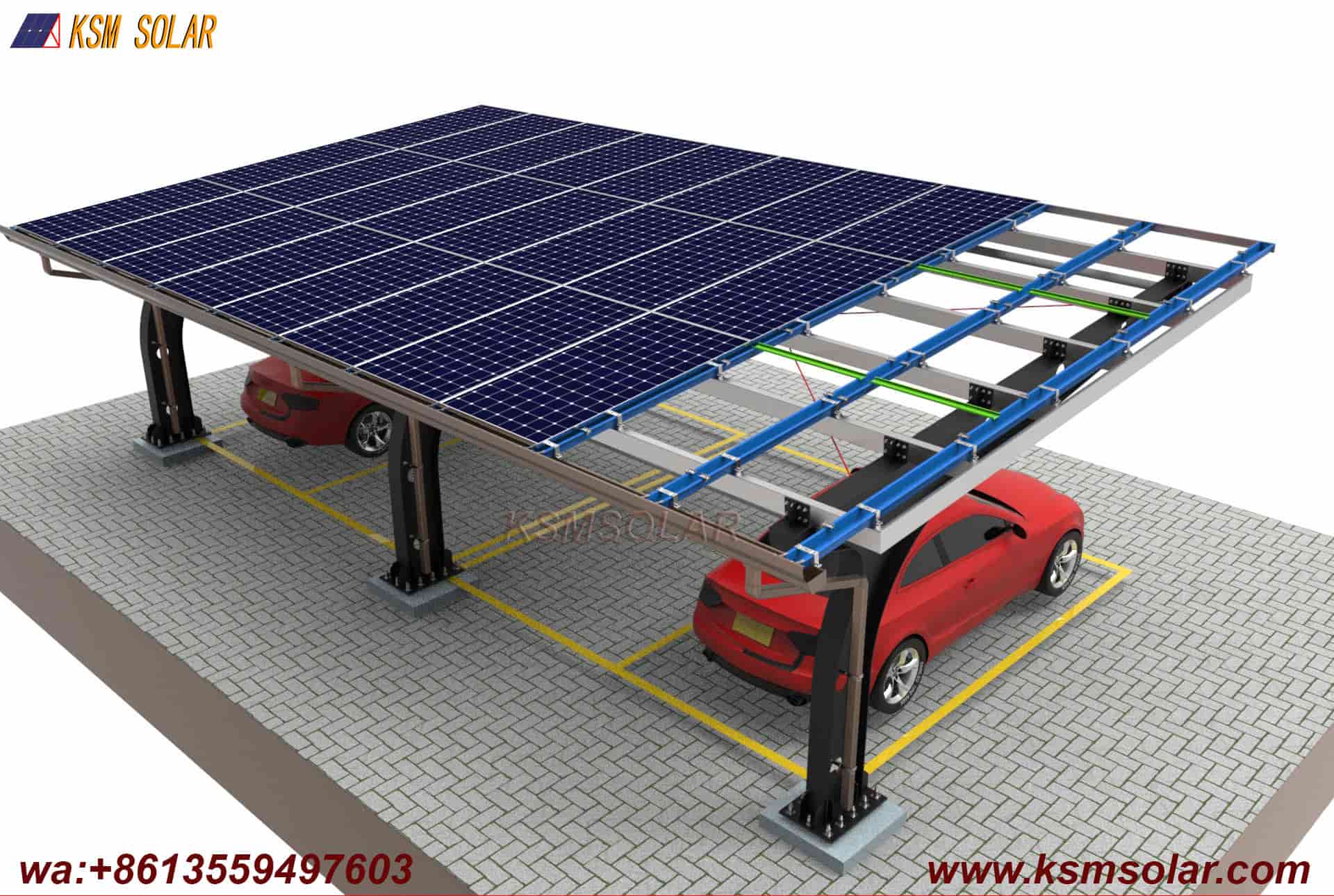

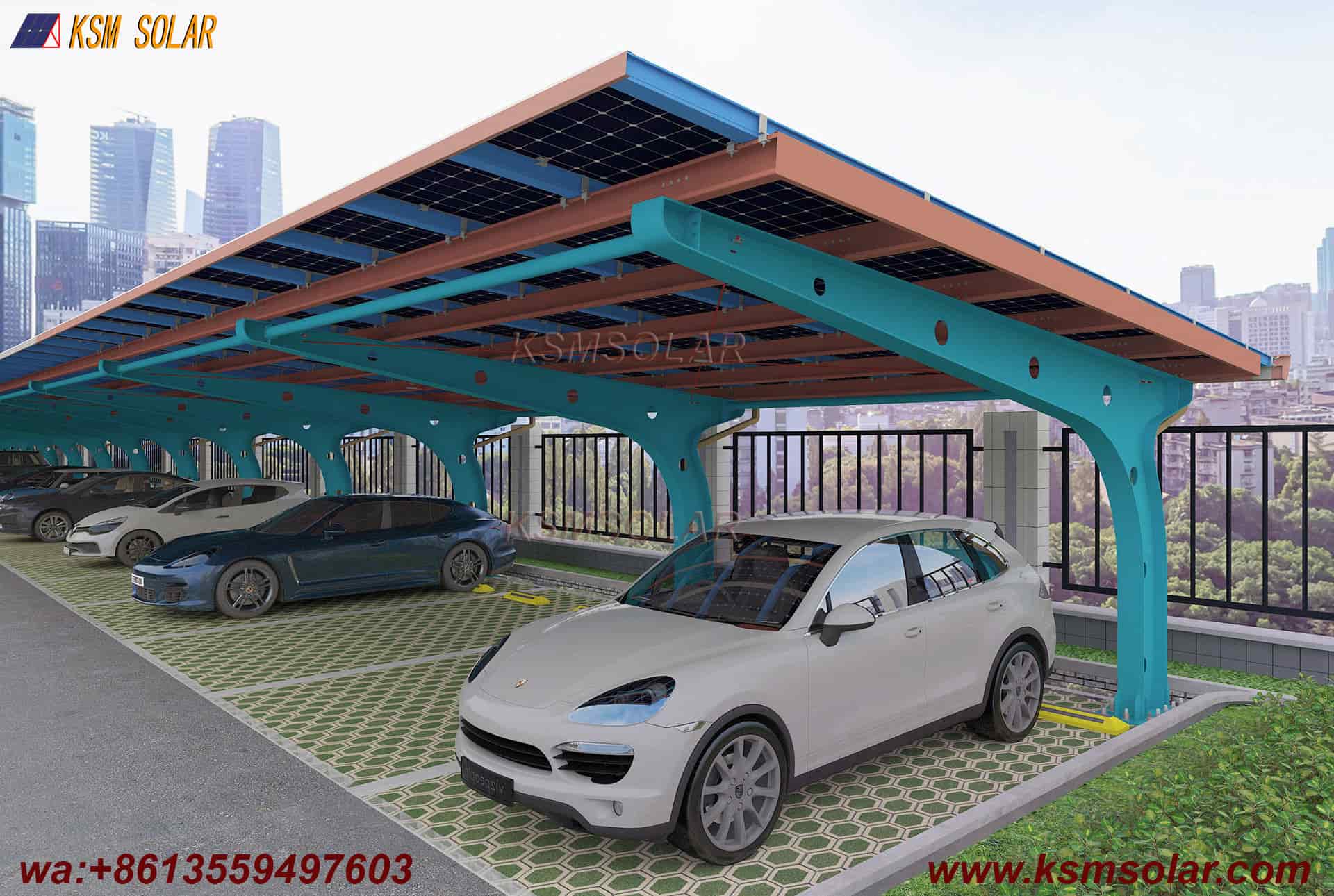

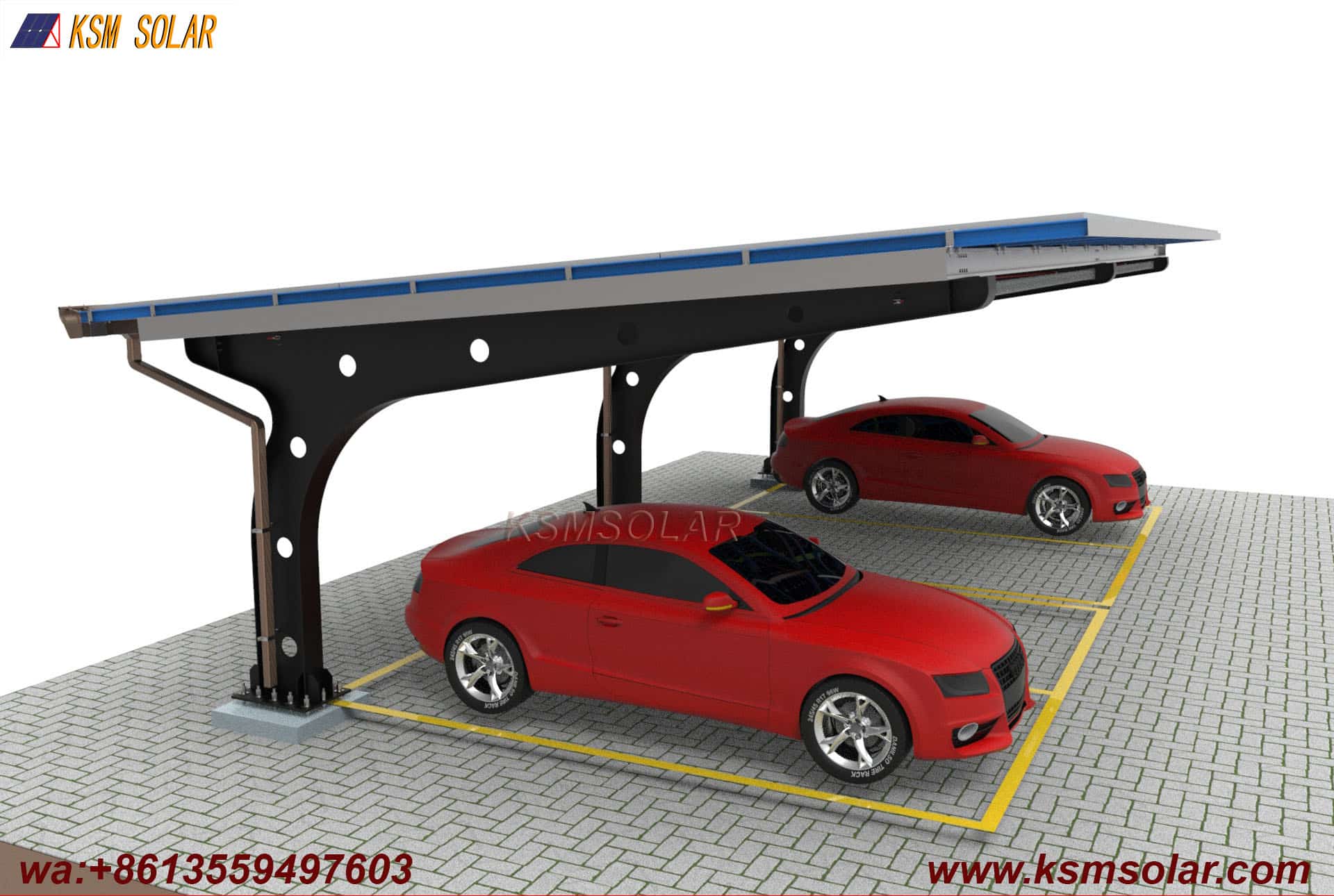

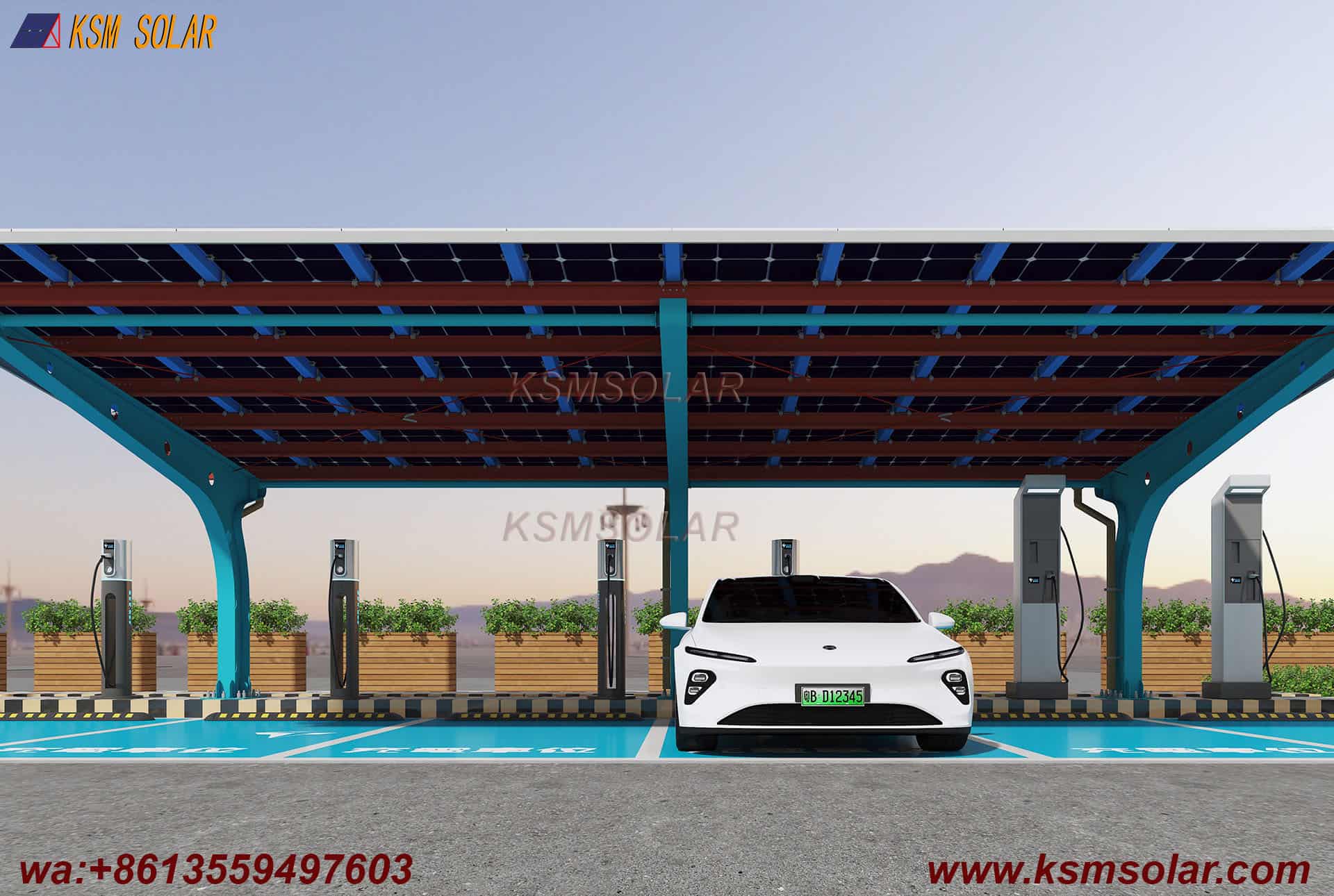

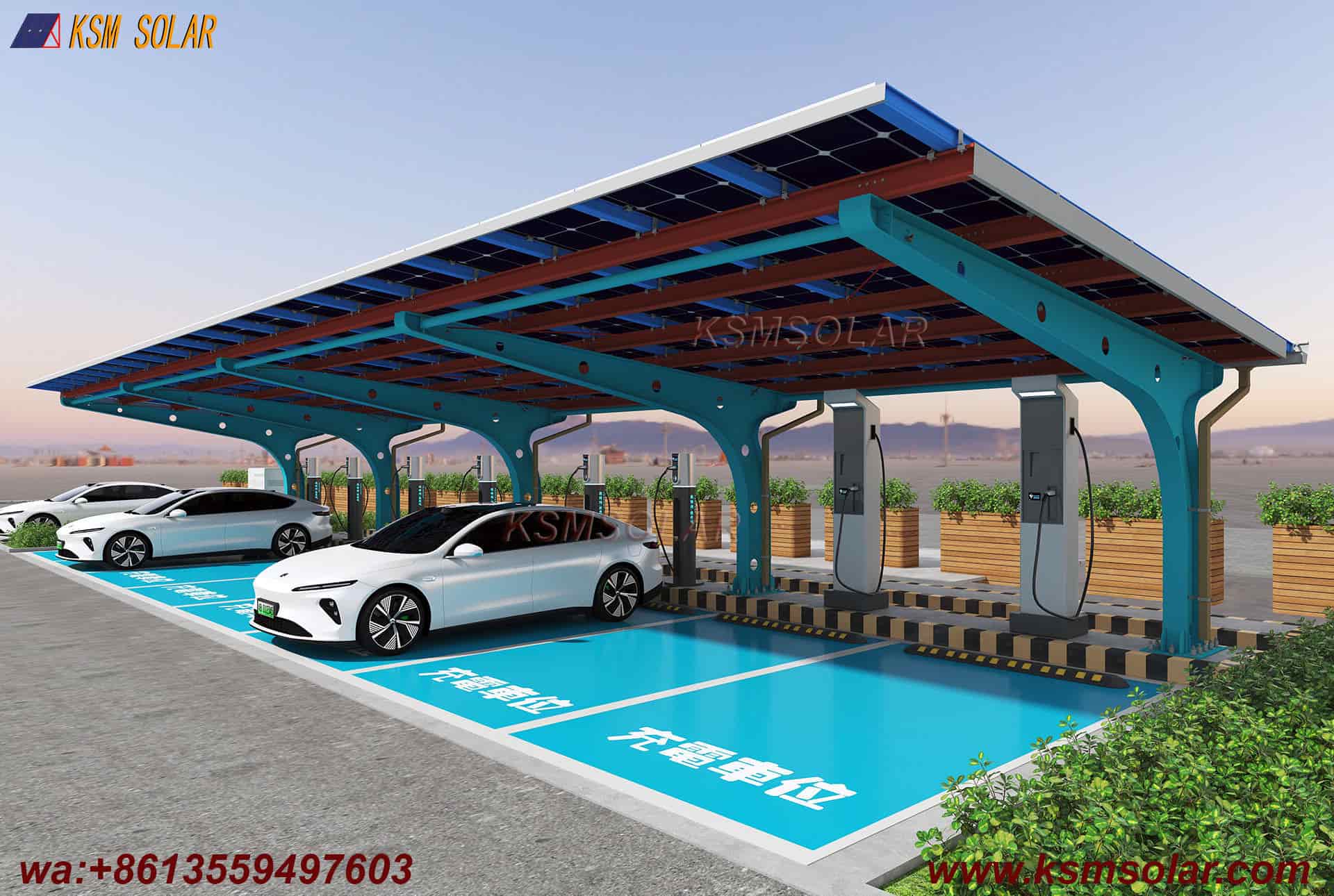

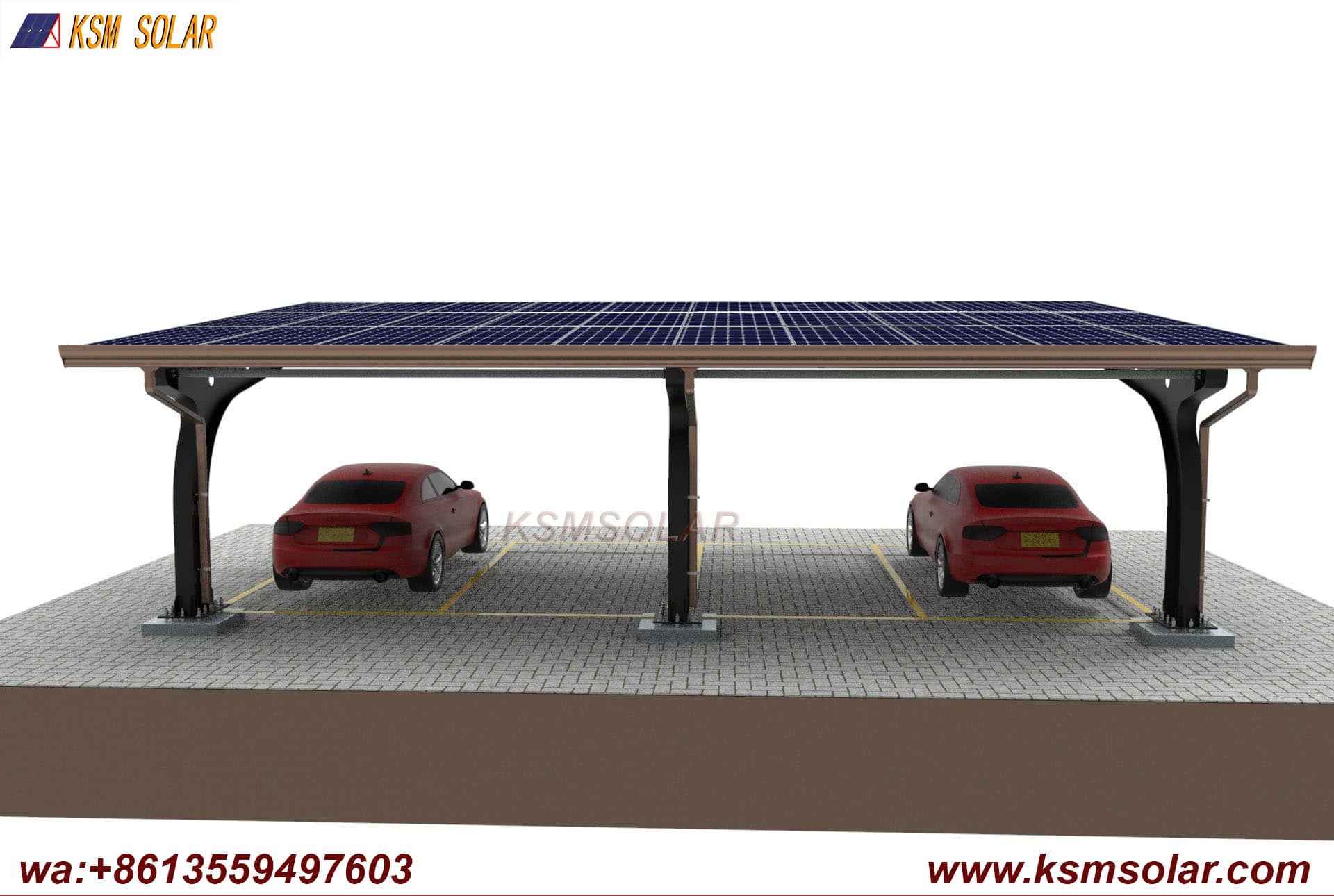

The Carbon Steel Single-Column Photovoltaic Carport with Integrated U-Shaped Water Gutter represents an advanced evolution in carport engineering, where robust structural performance is seamlessly unified with a highly efficient and durable rainwater management system. This design features a central single-column support system paired with a deep, continuous U-shaped gutter channel that functions as both a primary structural element and a high-capacity hydraulic conduit, delivering superior weather protection and long-term reliability in a streamlined architectural package.

Core Engineering Features & System Benefits

1. Integrated U-Shaped Structural Gutter System

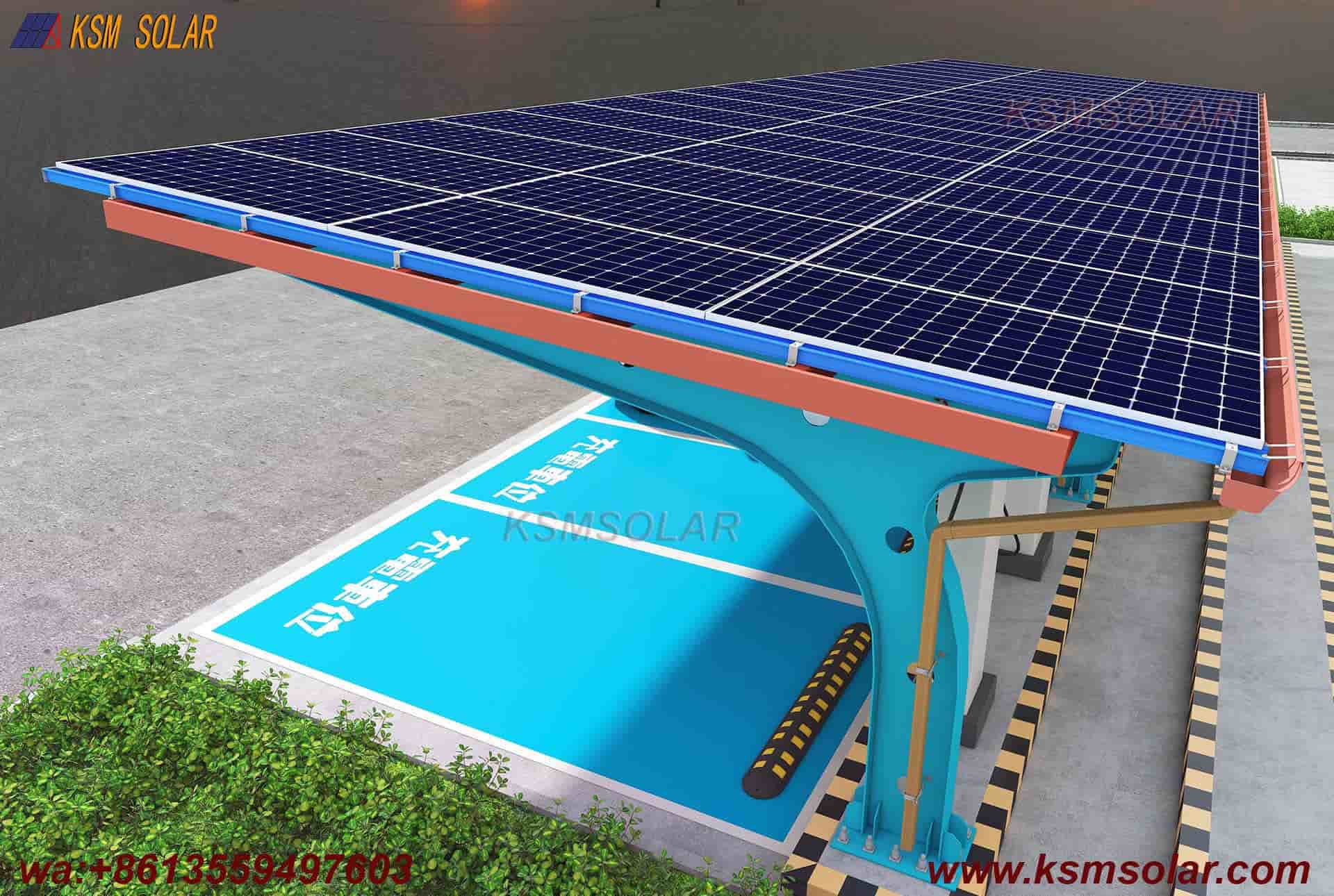

• Dual-Function Channel Design: The system incorporates a continuous, deep-drawn U-shaped carbon steel gutter that serves simultaneously as a structural purlin supporting the roof/PV array and as the main rainwater collection channel. Its geometry provides optimal hydraulic efficiency for high-flow drainage scenarios.

• Continuous Longitudinal Flow Path: The U-gutter runs uninterrupted along the entire length of each carport bay, collecting water from a wide roof catchment area with minimum 1.5% continuous slope toward designated downspout locations, ensuring zero ponding and rapid water evacuation.

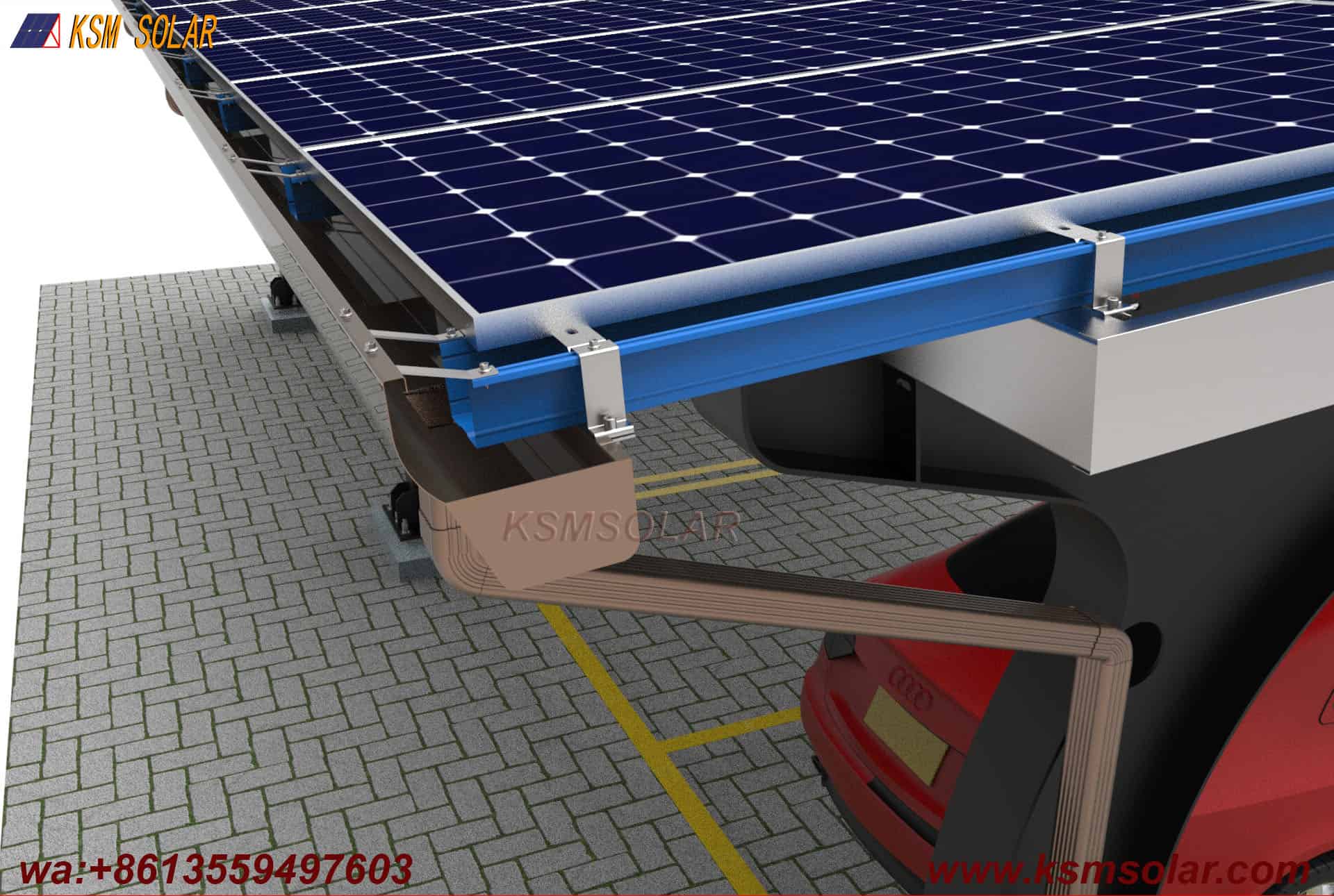

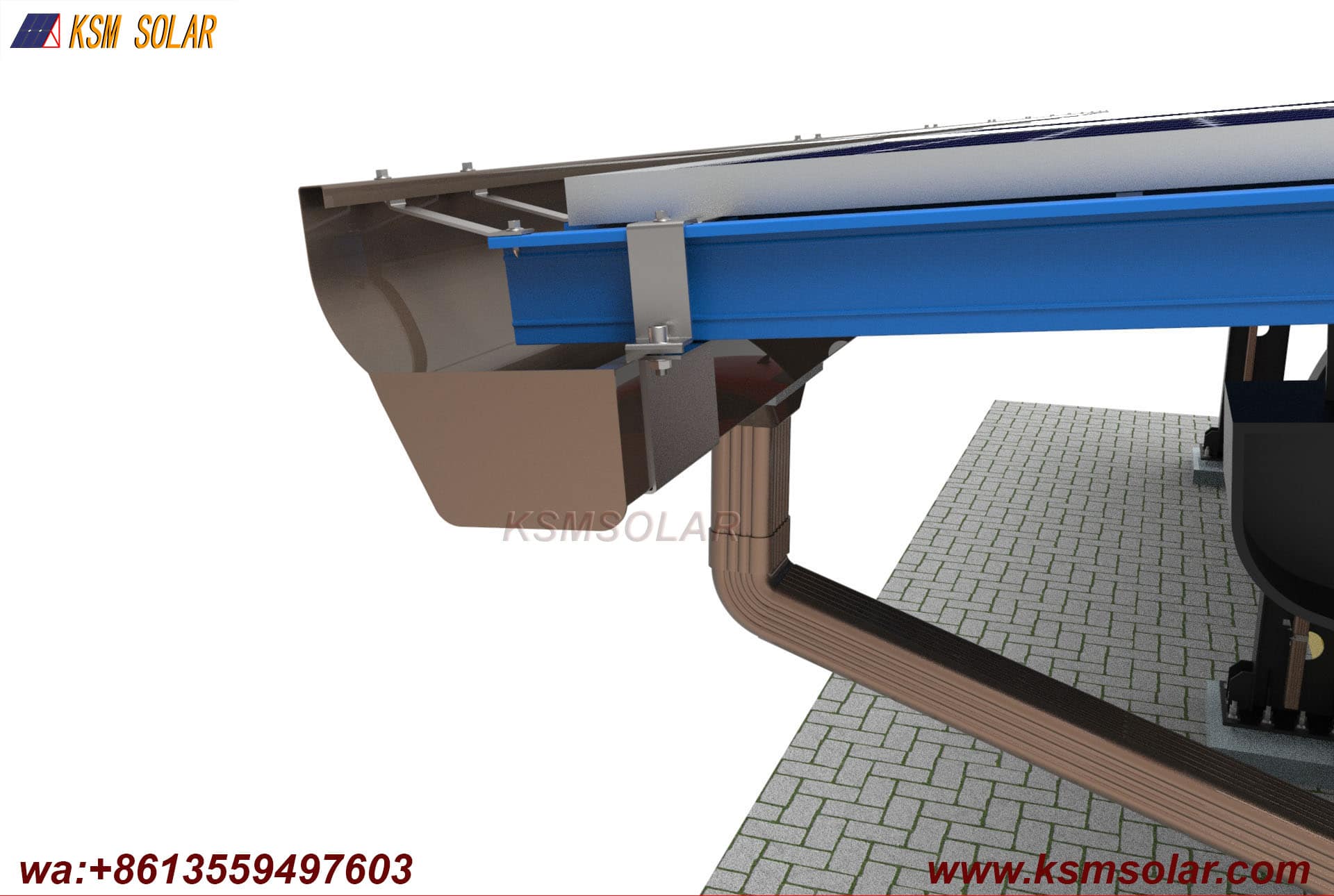

• Reinforced Connection Technology: Gutter sections are joined using sleeved mechanical connectors with EPDM gaskets or continuously welded seams, while downspout interfaces utilize press-formed transition fittings with integrated leaf guards to prevent clogging and leakage.

2. Optimized Single-Column Support Configuration

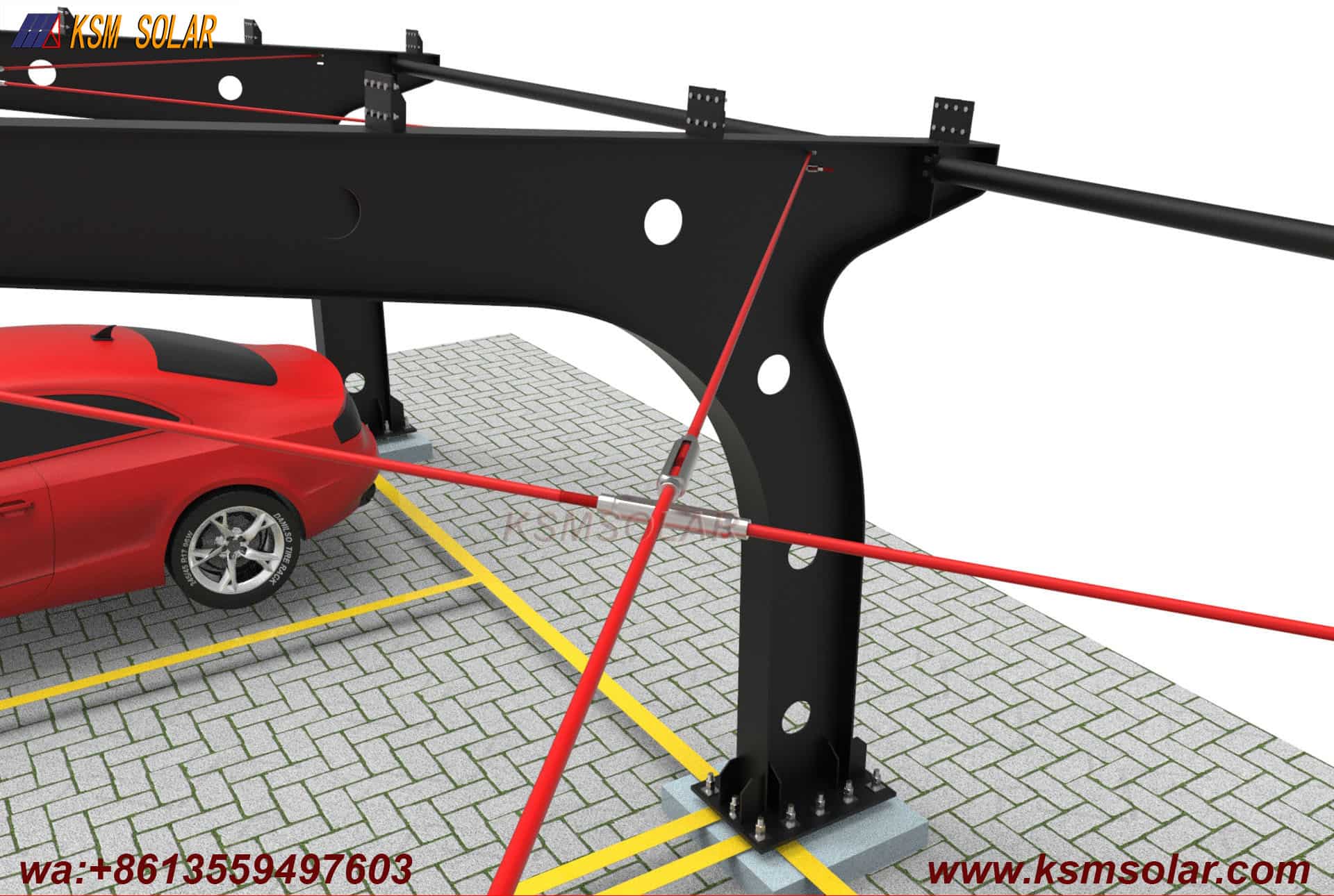

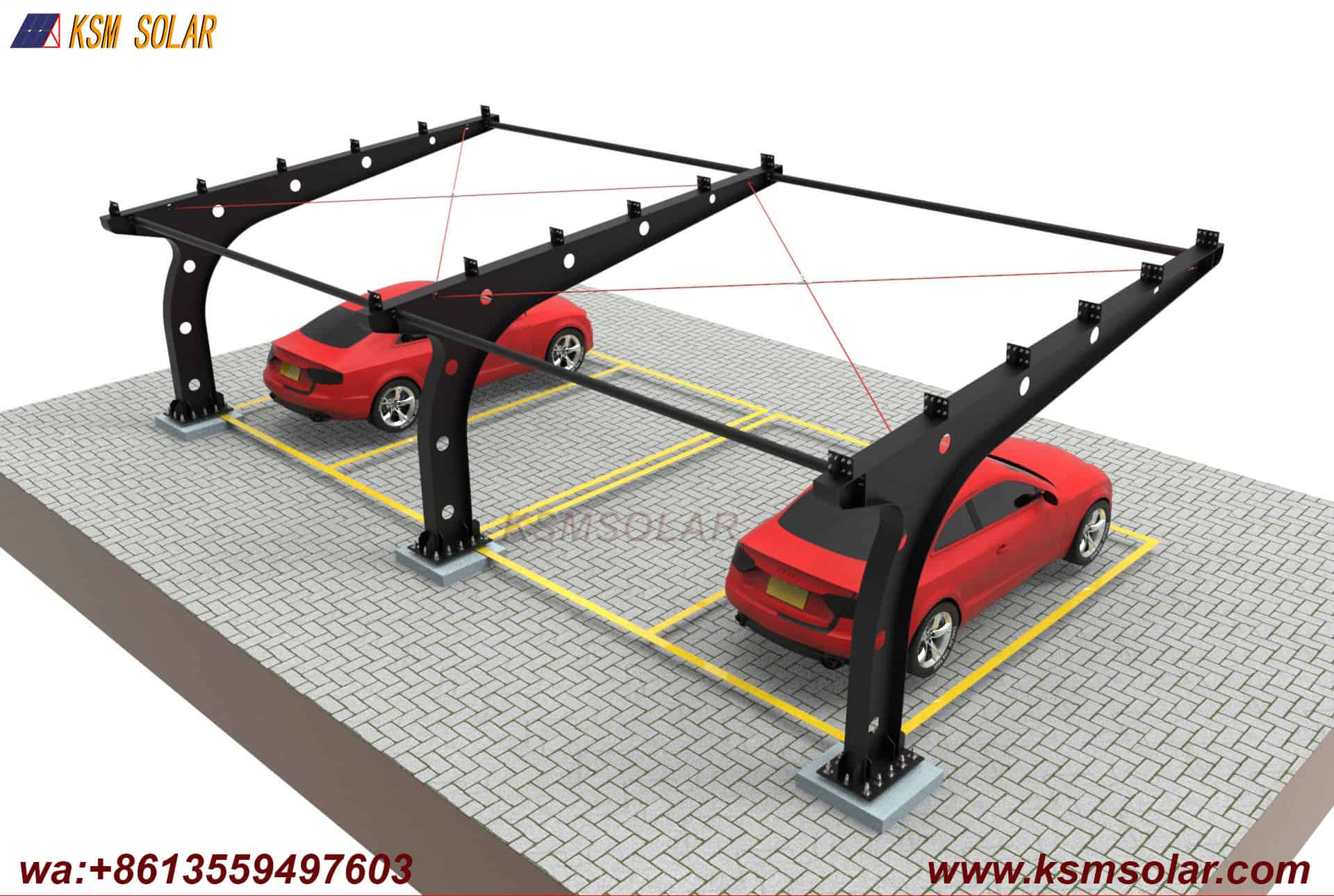

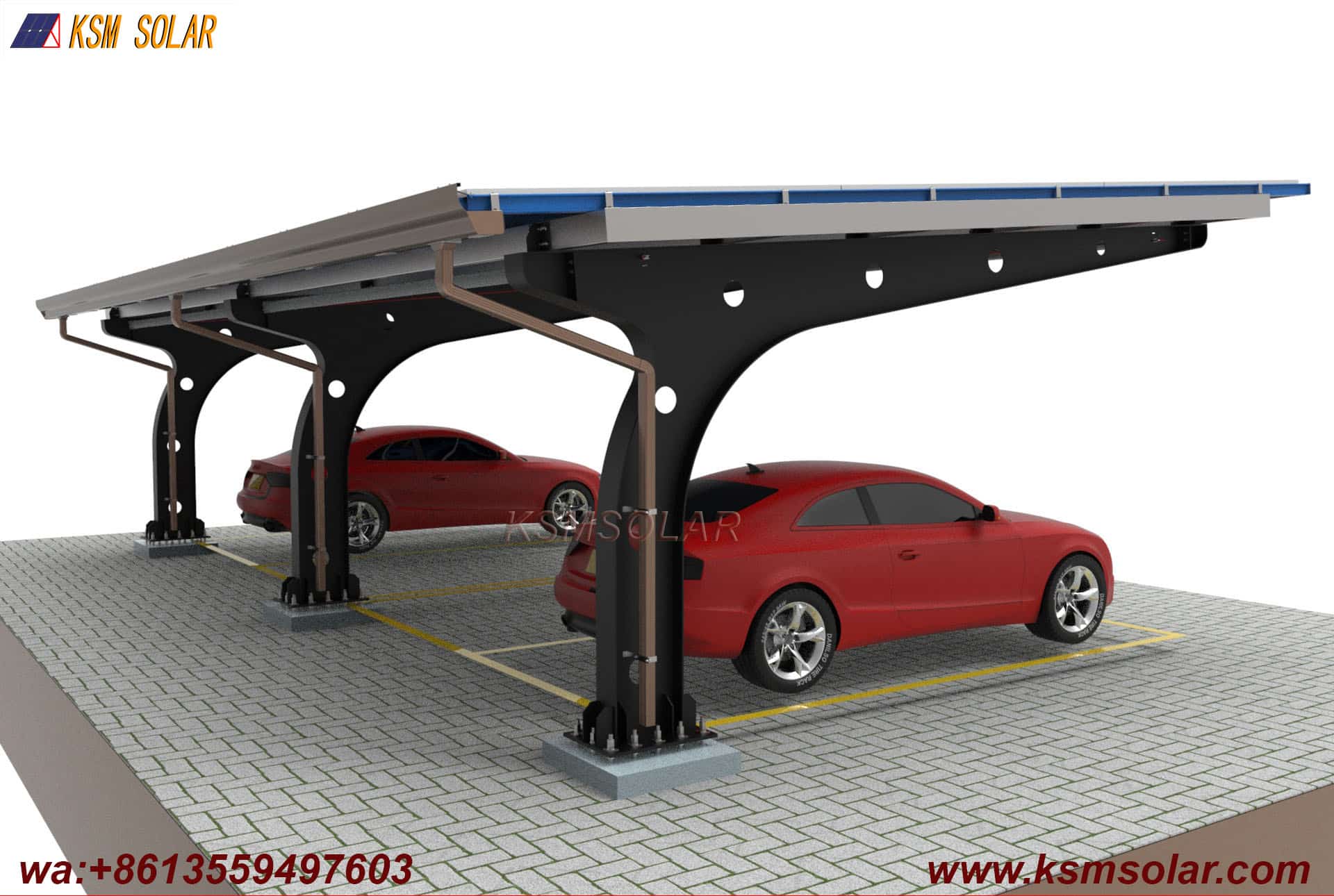

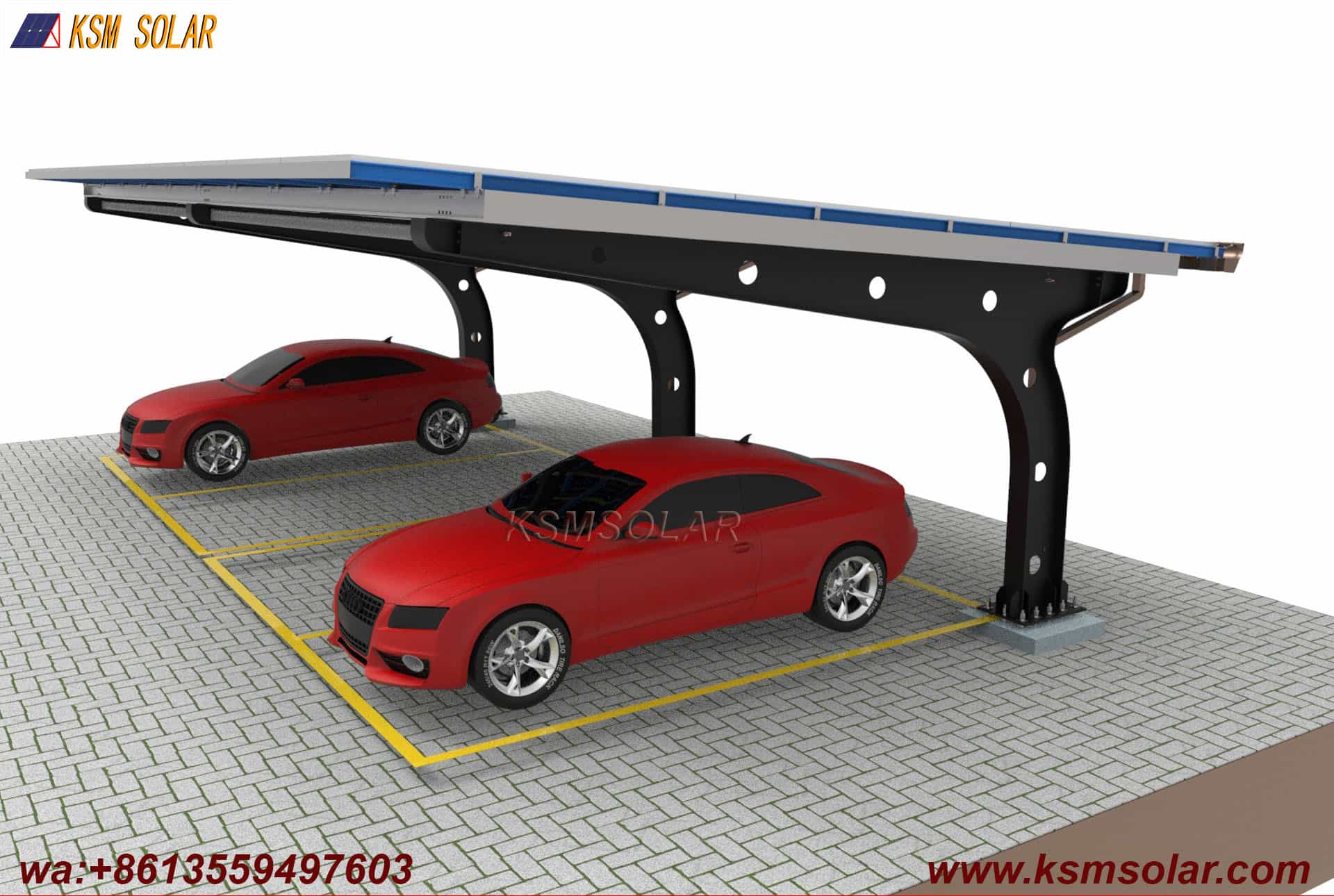

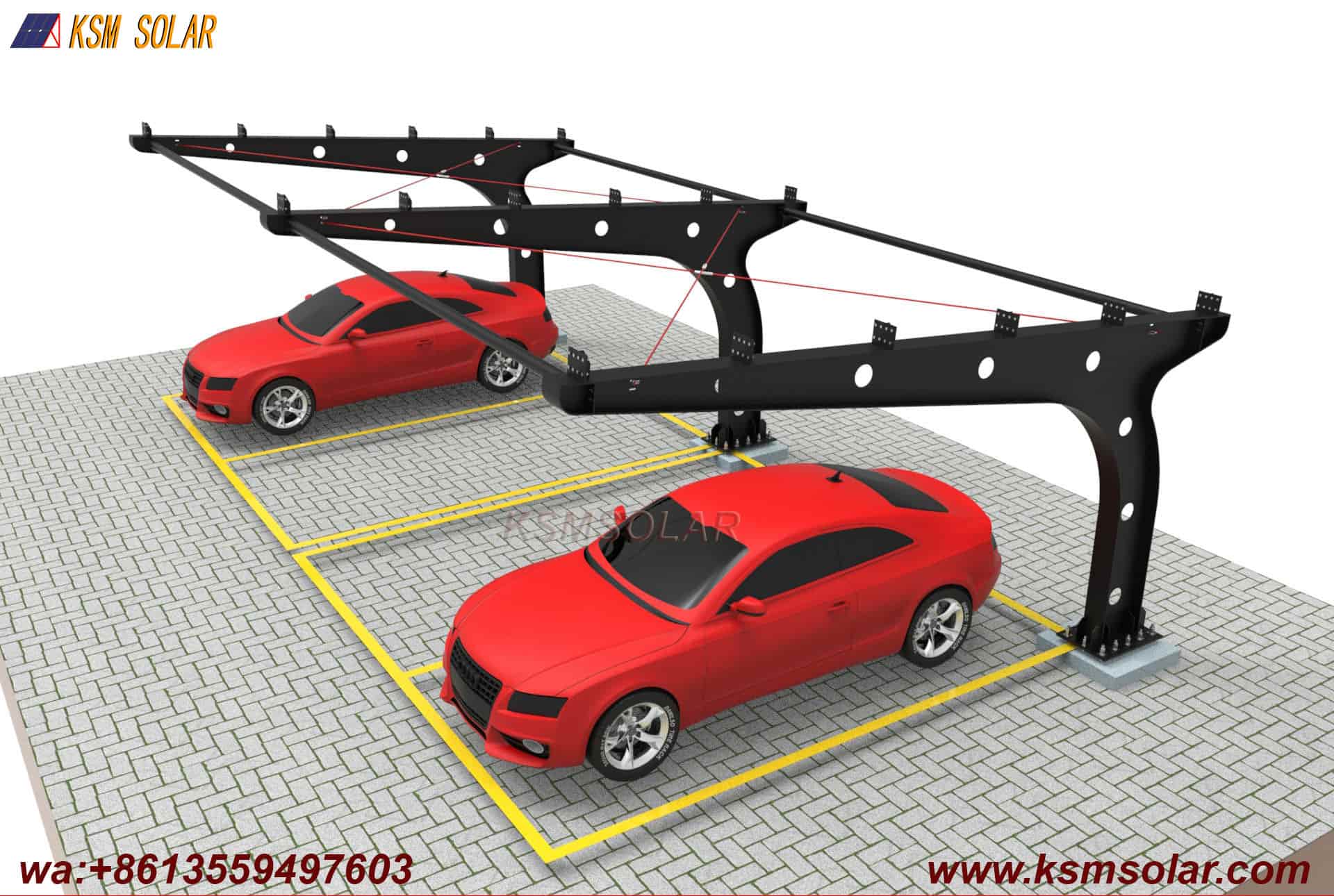

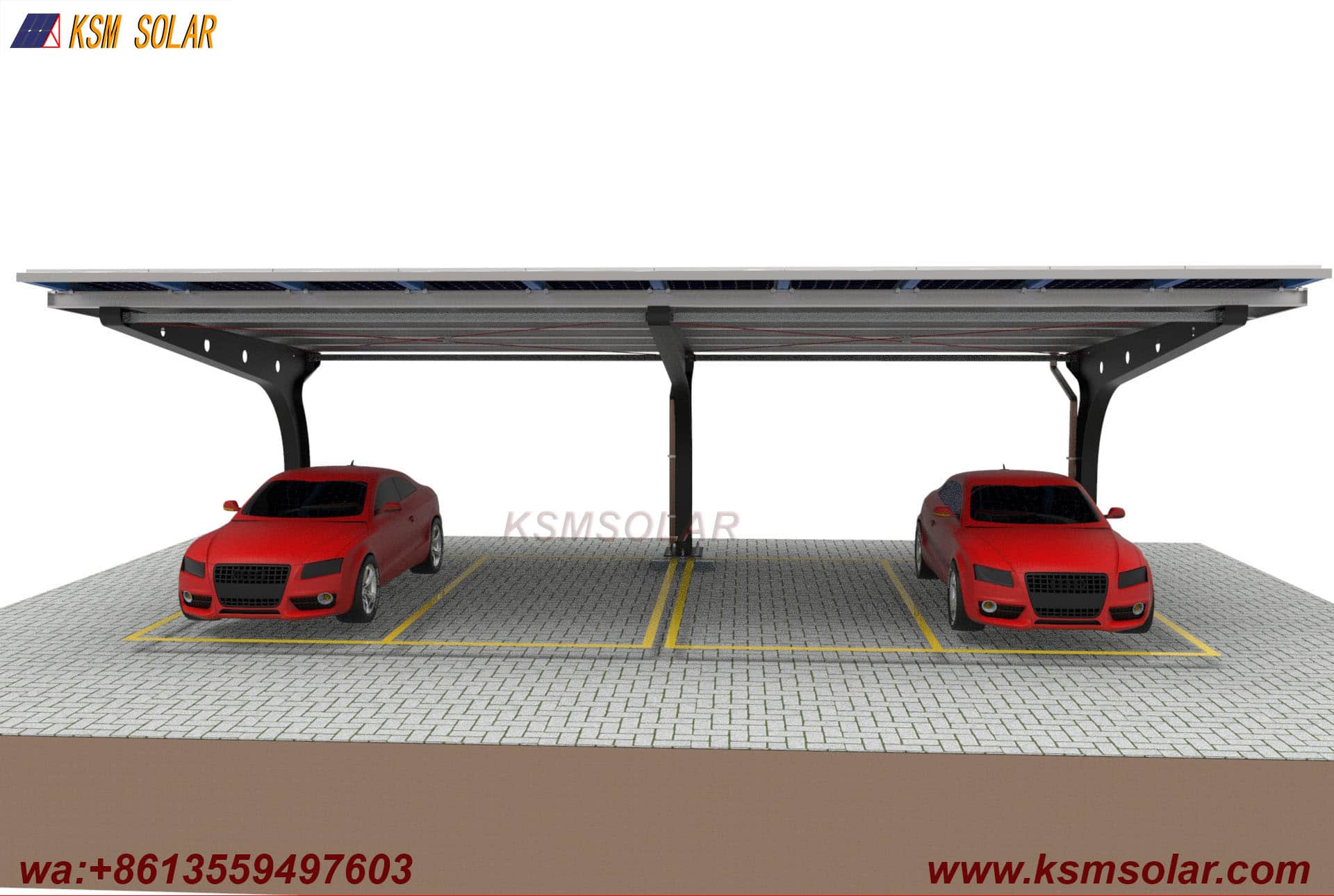

• Centralized Load-Bearing Structure: Each carport bay is supported by a single large-diameter circular hollow section (CHS) or rectangular hollow section (RHS) carbon steel column (typically Ø200-300mm), strategically positioned to maximize span efficiency while minimizing ground obstruction. This creates clear, unobstructed parking zones with optimal vehicle maneuverability.

• Moment-Resisting Gutter-Column Connection: The U-shaped gutter is connected to the central column through a custom-forged steel connector that transfers roof loads while maintaining perfect hydraulic continuity, eliminating weak joints where structural and drainage functions intersect.

3. Advanced Waterproofing & Protection Systems

• Three-Tier Water Management:

1. Primary Layer: Standing-seam metal roof with structural seam technology

2. Secondary Layer: 2mm thick EPDM membrane fully adhered to roof deck

3. Tertiary Layer: Integrated U-gutter with overflow weirs designed to handle 150% of 100-year storm event rainfall

• Corrosion Protection Specification: All carbon steel components receive 85μm minimum hot-dip galvanizing (ISO 1461) plus 280μm fluorocarbon paint system for C5-M marine/industrial environments, with gutter interiors receiving extra-thick 450μm epoxy coating for enhanced chemical resistance.

4. Photovoltaic Integration & Energy Optimization

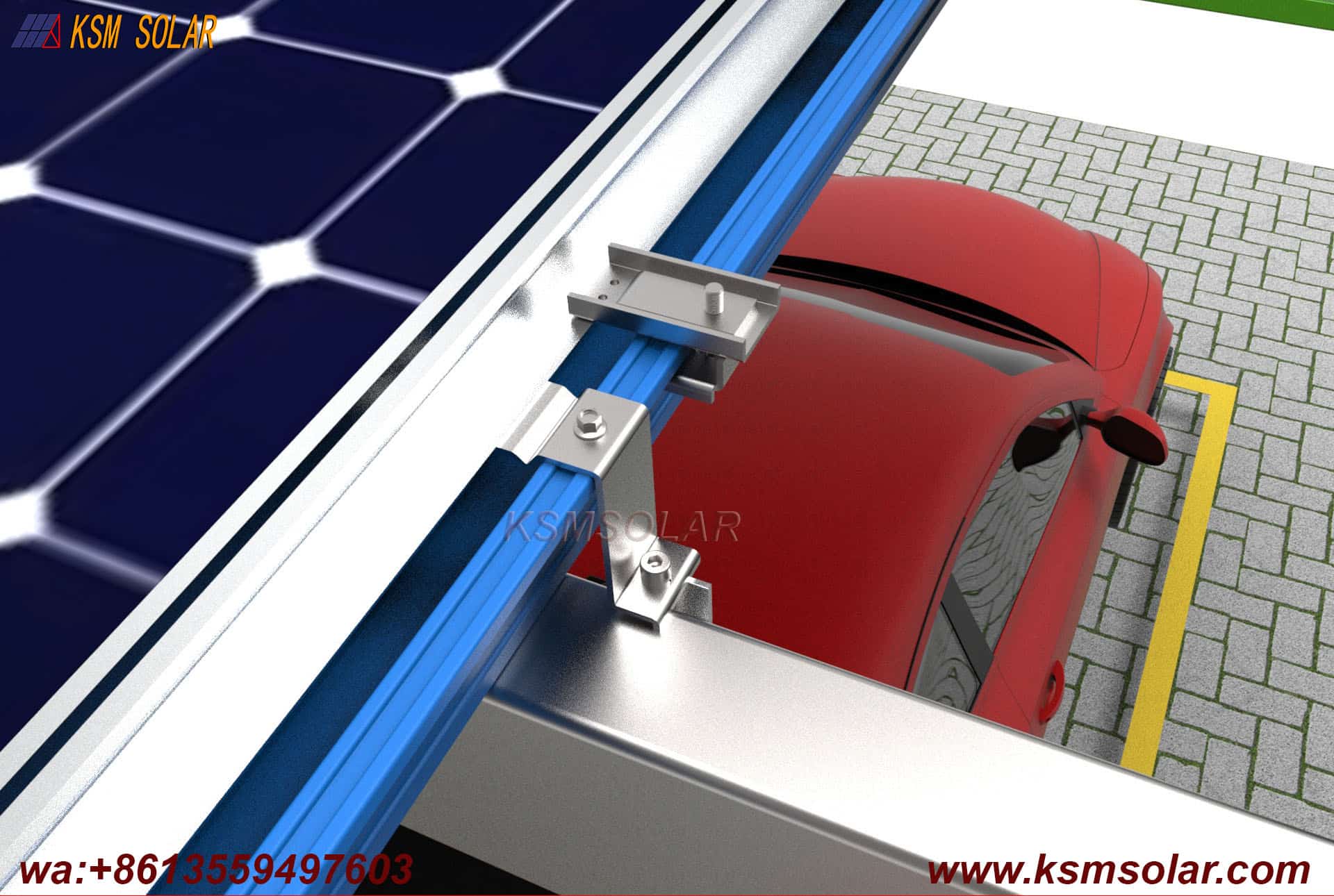

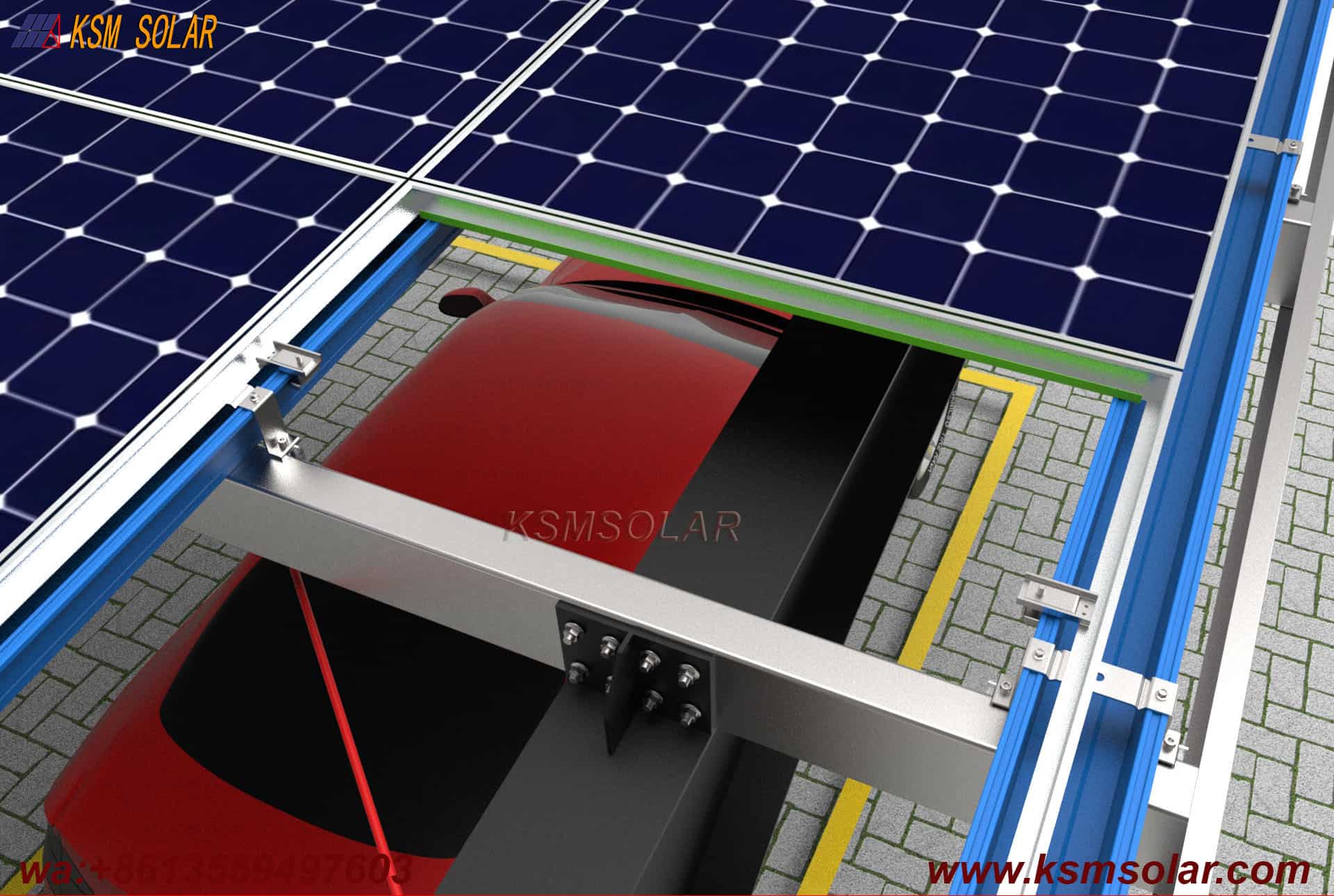

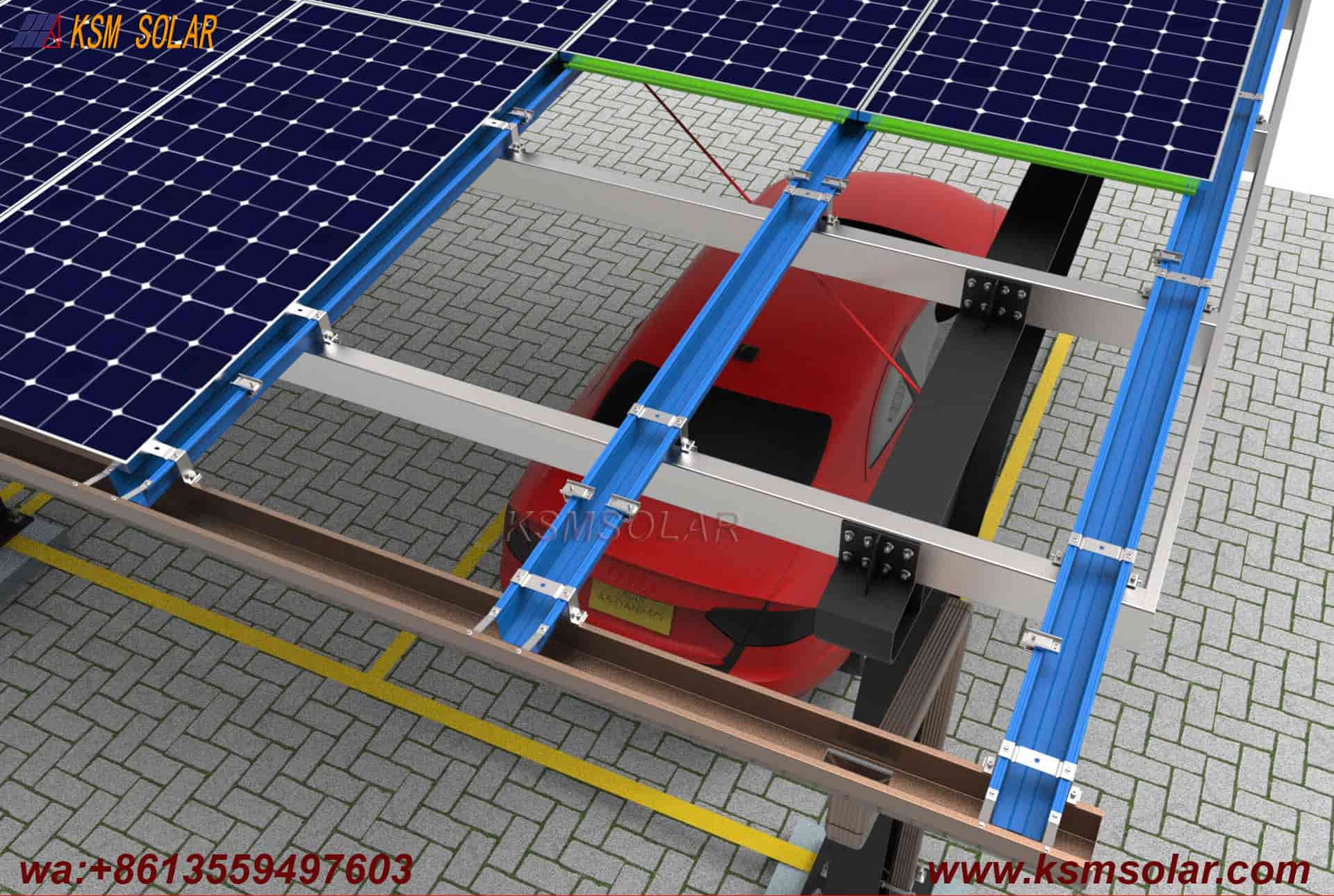

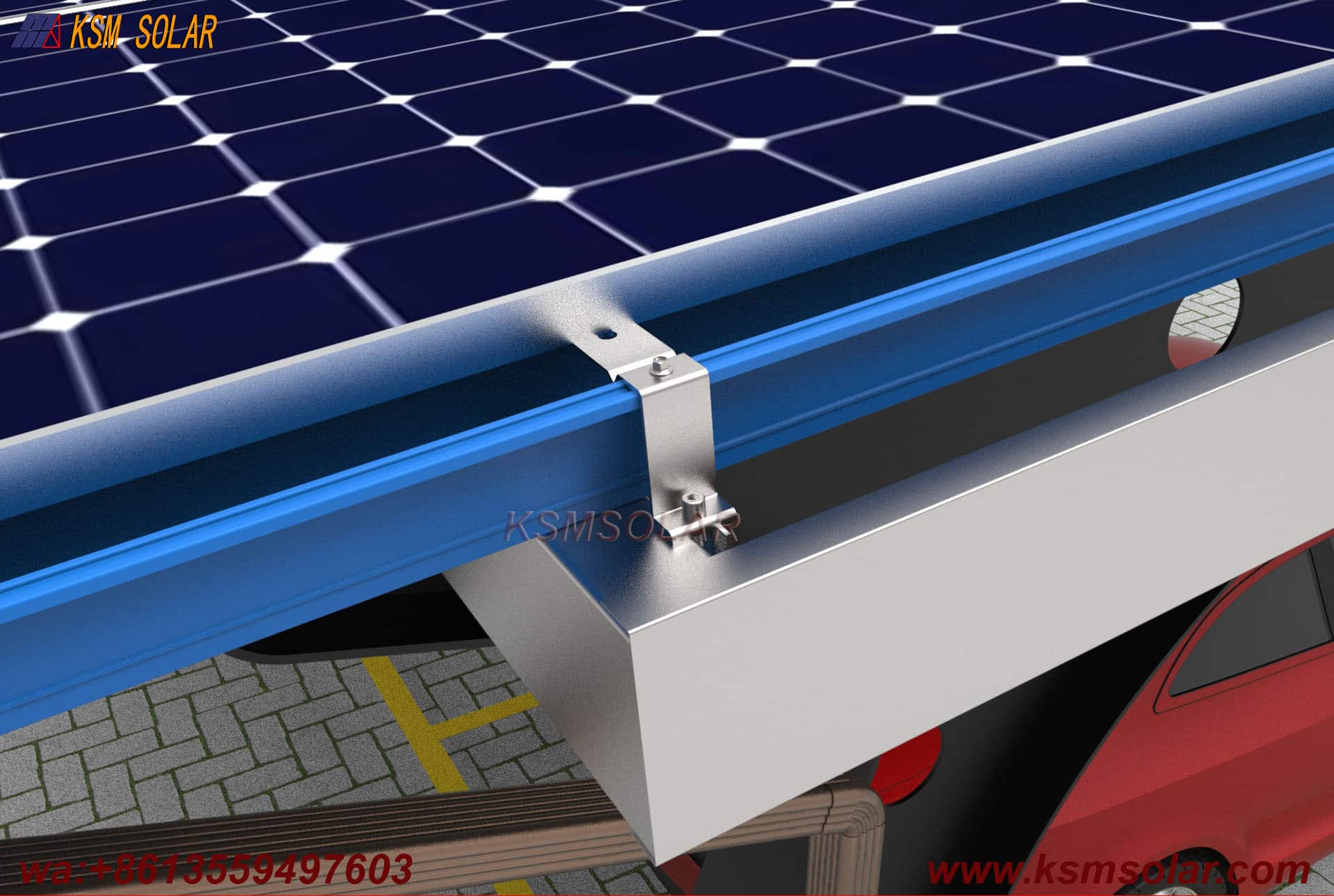

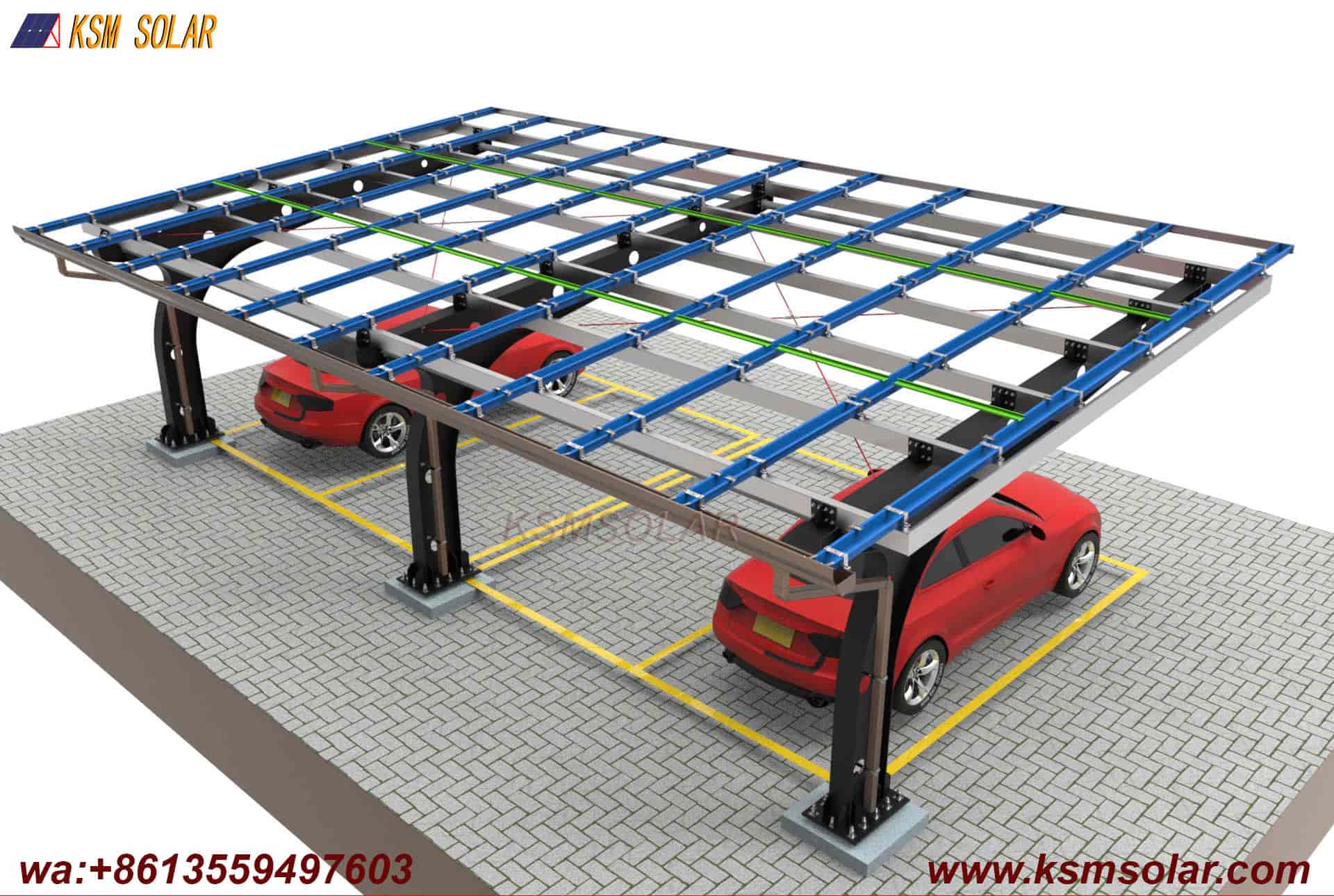

• Elevated Mounting Platform: Solar panels are mounted on aluminum rails fixed to raised stanchions above the U-gutter, creating a 150mm air gap for enhanced cooling and preventing debris accumulation. This configuration improves PV efficiency by 3-5% through reduced operating temperatures.

• Integrated Electrical Management: All DC wiring is routed through UV-resistant cable trays mounted within the U-gutter profile, protected from physical damage and weather exposure while maintaining optimal thermal conditions for cable performance.

• Snow Load Management: The U-gutter design incorporates heated cable channels (optional) along the gutter base to prevent ice dam formation in cold climates, ensuring year-round drainage functionality and PV exposure.

5. Technical Specifications & Performance Data

• Hydraulic Capacity: U-gutter dimensions of 300mm width × 200mm depth provide 45L/second flow capacity at 1.5% slope, exceeding DIN EN 12056-3 requirements for intensive rainfall regions

• Structural Performance: Single-column design supports 18m clear spans with ≤ L/180 deflection under full design load (1.5kN/m² snow + 0.7kN/m² wind)

• Material Specifications:

• Gutter: S350GD+Z275 carbon steel, 2.5mm thickness

• Columns: S355J2H carbon steel, 8-12mm wall thickness

• Fasteners: A4-80 stainless steel for all exposed connections

• Drainage Security: Includes dual-level overflow system with primary downspouts (Ø150mm) and emergency scuppers activated at 80% gutter capacity

6. Installation & Maintenance Advantages

• Pre-Engineered Modular System: Complete bay modules (column + gutter sections + roof panels) are factory-preassembled in 6m segments for rapid bolted installation, reducing on-site construction time by 40% compared to conventional systems

• Accessible Maintenance Design: Gutter inspection and cleaning access provided through removable grille sections every 12m, with downspout cleanouts featuring screw-type access ports for easy servicing

• Lifecycle Durability
