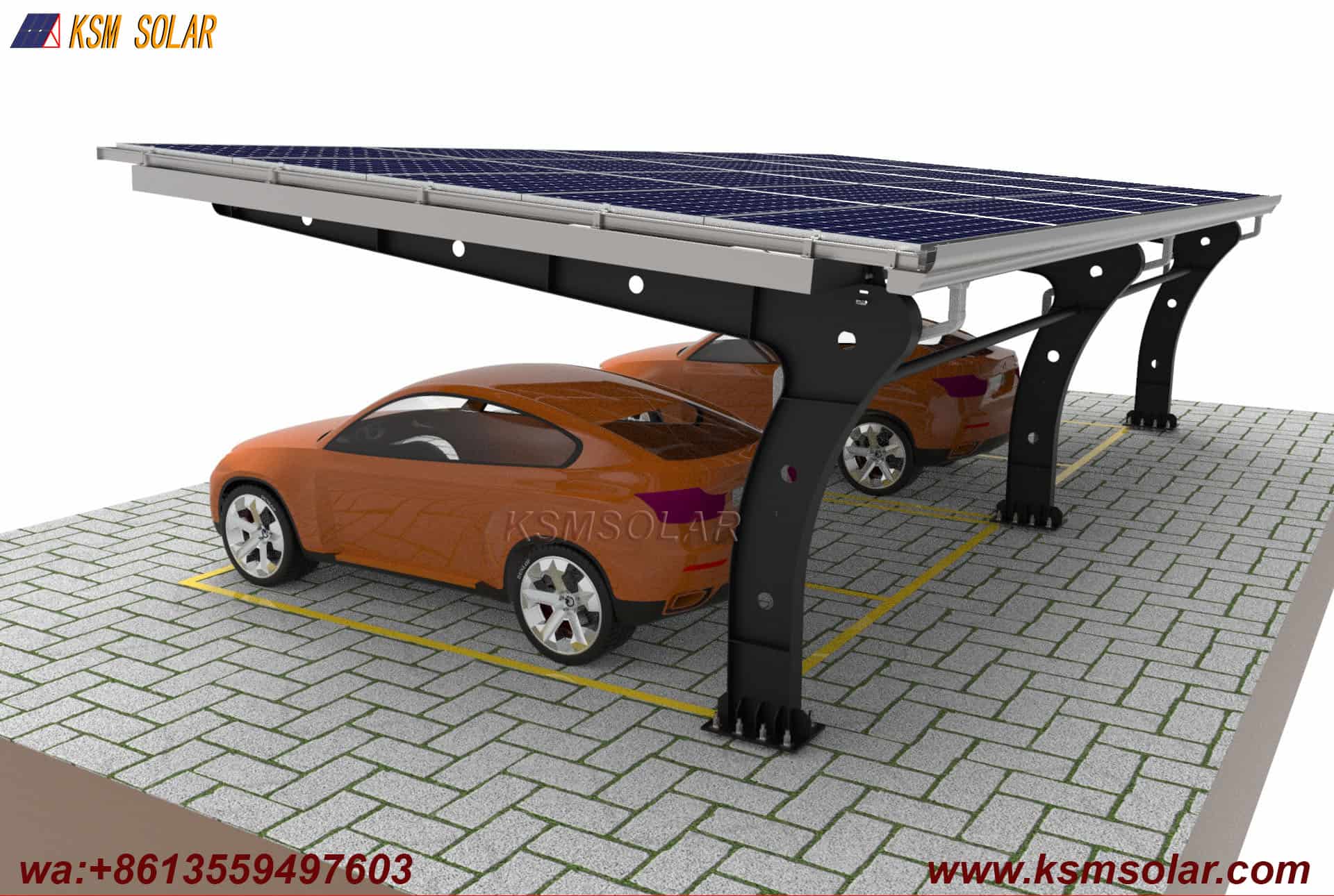

L-Shaped Beam-Column Integral Waterproof PV Carport represents a paradigm shift in carport engineering, where the traditional separation between vertical column and horizontal beam is eliminated. Fabricated from a single, continuous piece of steel bent or welded into a perfect 90-degree L-shape, this system offers a seamless, monolithic structure that delivers superior rigidity, simplified installation, and a striking minimalist aesthetic, all encapsulated within a fully waterproof solar canopy.

Core Design & Engineering Characteristics

1. Monolithic L-Shaped Structural Member

• Unibody Construction: The primary support is a single, continuous hot-rolled or welded steel section formed into a rigid L-shape. This eliminates the beam-to-column connection—typically the weakest point in a structure—resulting in exceptional moment resistance and torsional stability.

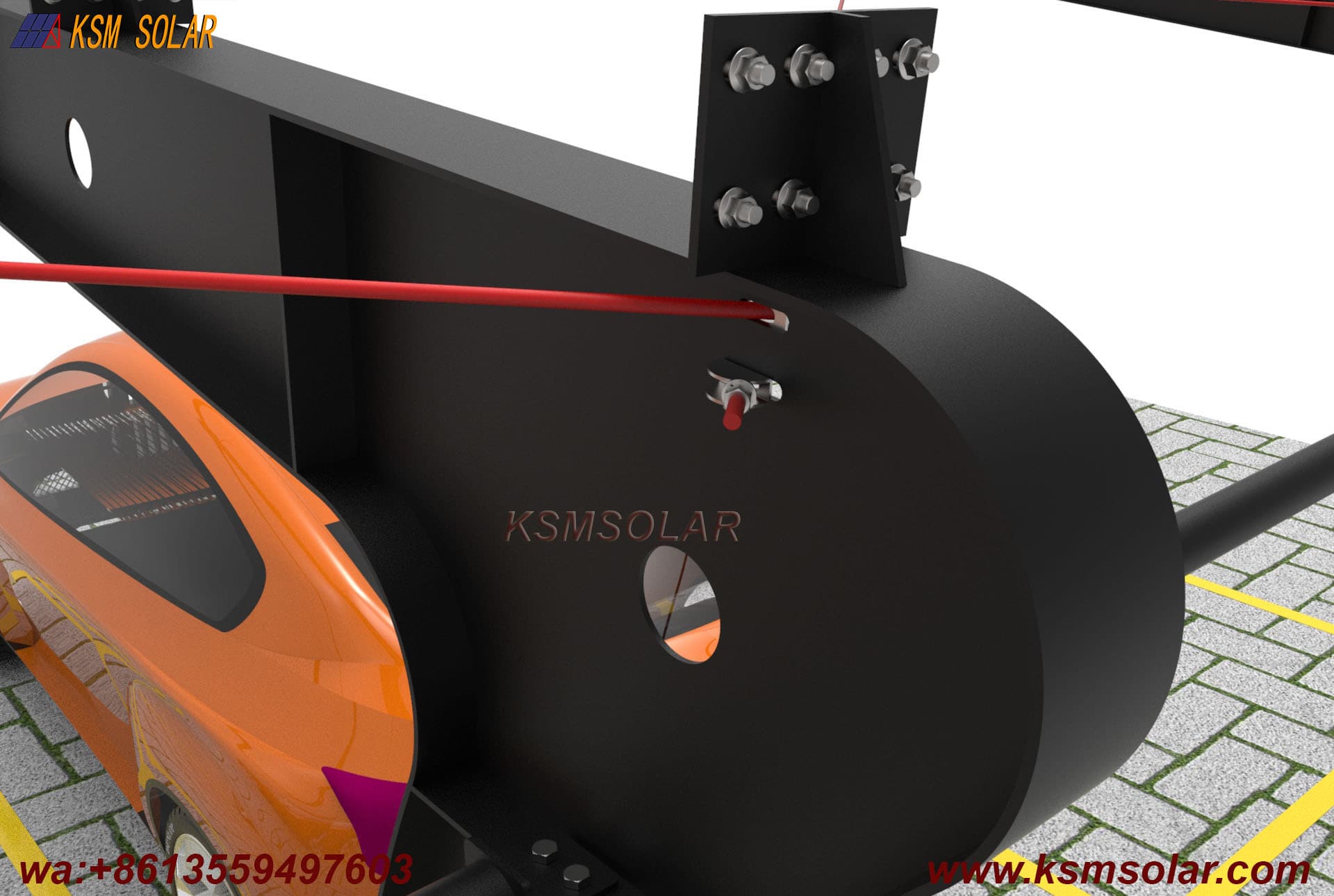

• Material & Fabrication Excellence: Members are crafted from high-strength steel (e.g., S355J2). They are either custom hot-rolled to profile or fabricated from two plates via full-penetration welding and post-weld heat treatment to ensure integrity at the critical corner. The interior corner is often reinforced with a radiused or gusseted detail to manage stress concentration.

• Inherent Load Path Efficiency: Loads from the roof are transferred directly down the vertical leg through a continuous, uninterrupted material path, minimizing deflection and creating a supremely robust support system.

2. Integrated Waterproof Canopy System

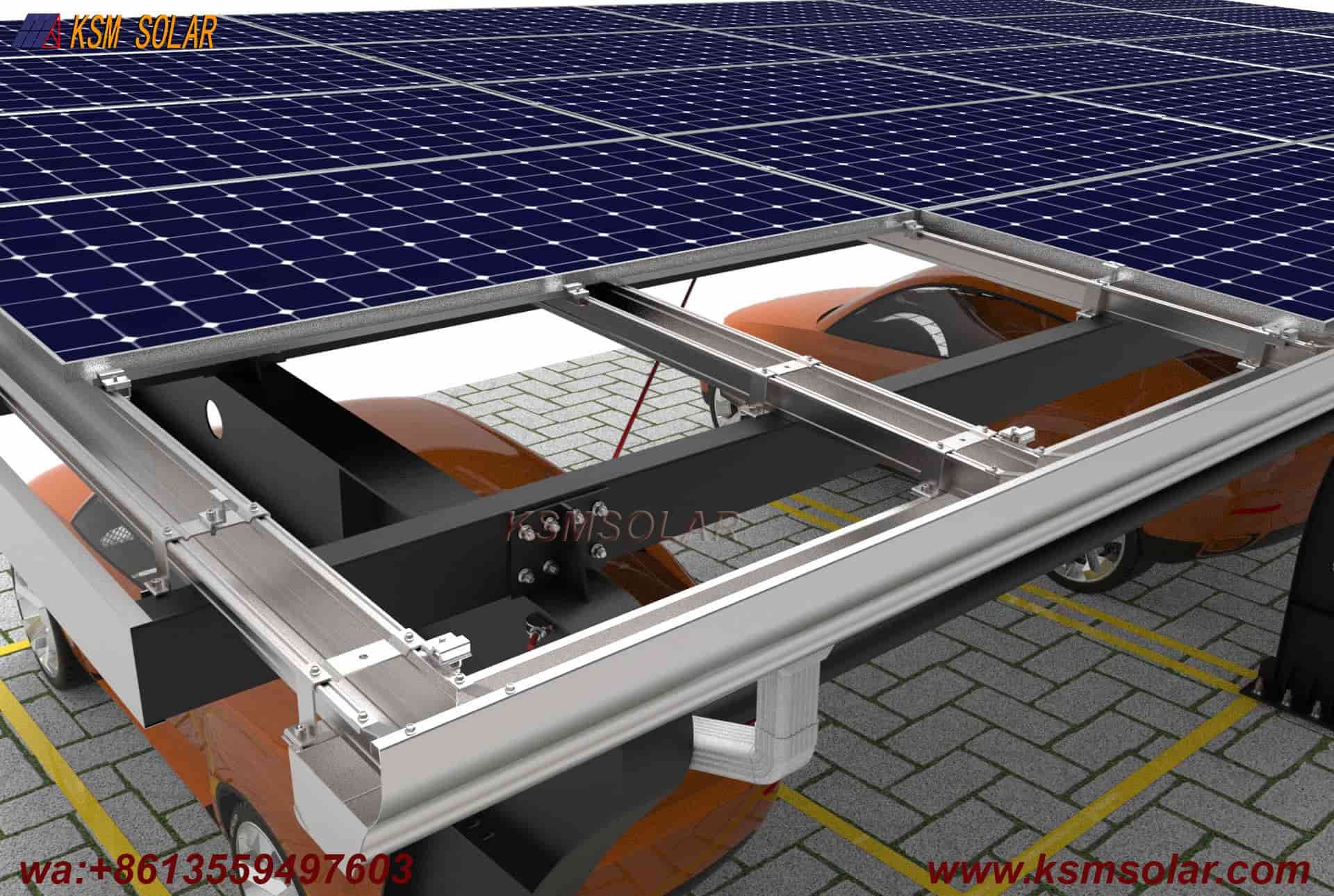

• Continuous Roof Plane Attachment: The horizontal leg of the L-shape acts as the primary roof support. A standing-seam metal roof or single-ply membrane system is installed directly onto it, with seams running perpendicular to the L-member. This allows for a longitudinal, uninterrupted waterproof surface from one end of the carport to the other.

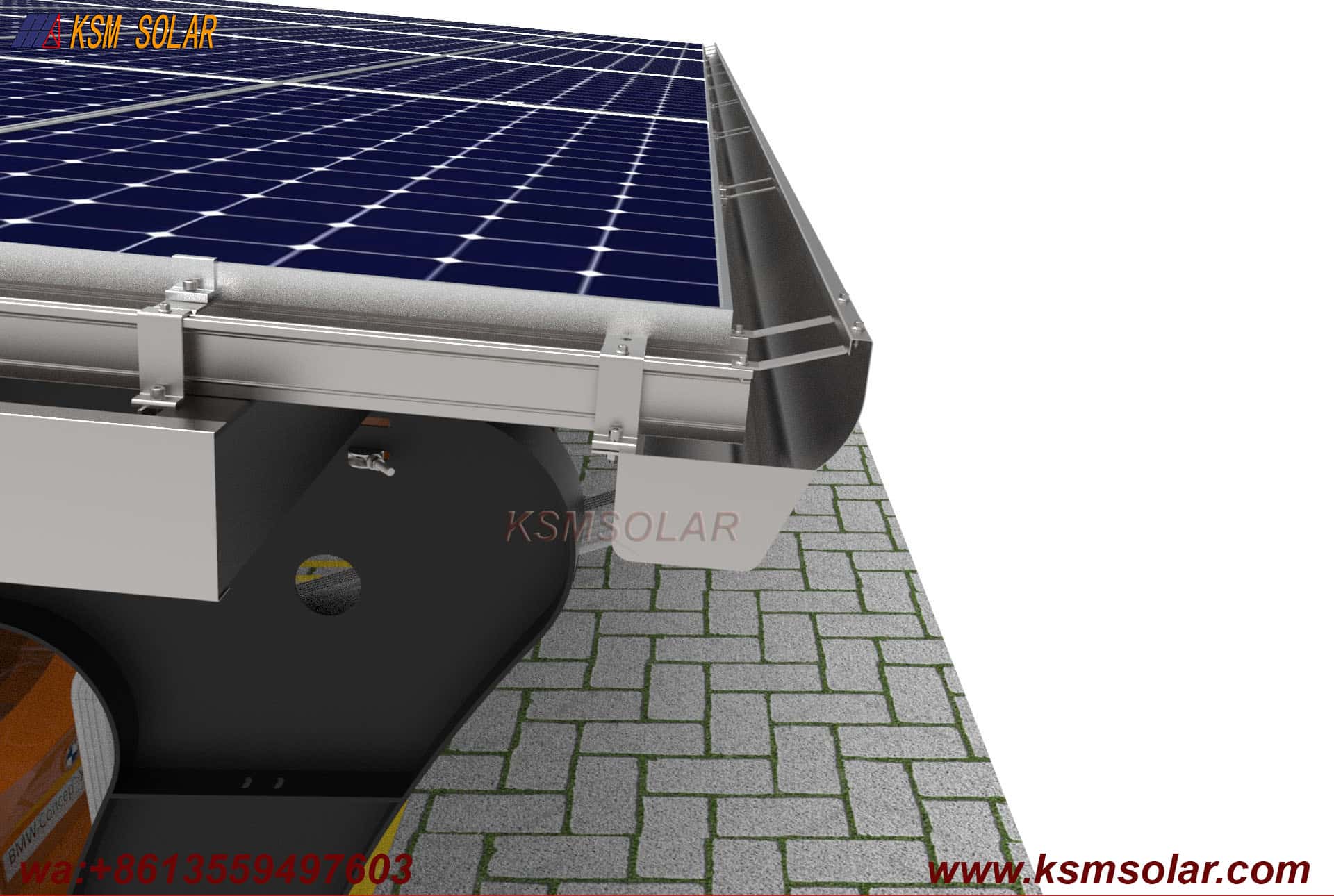

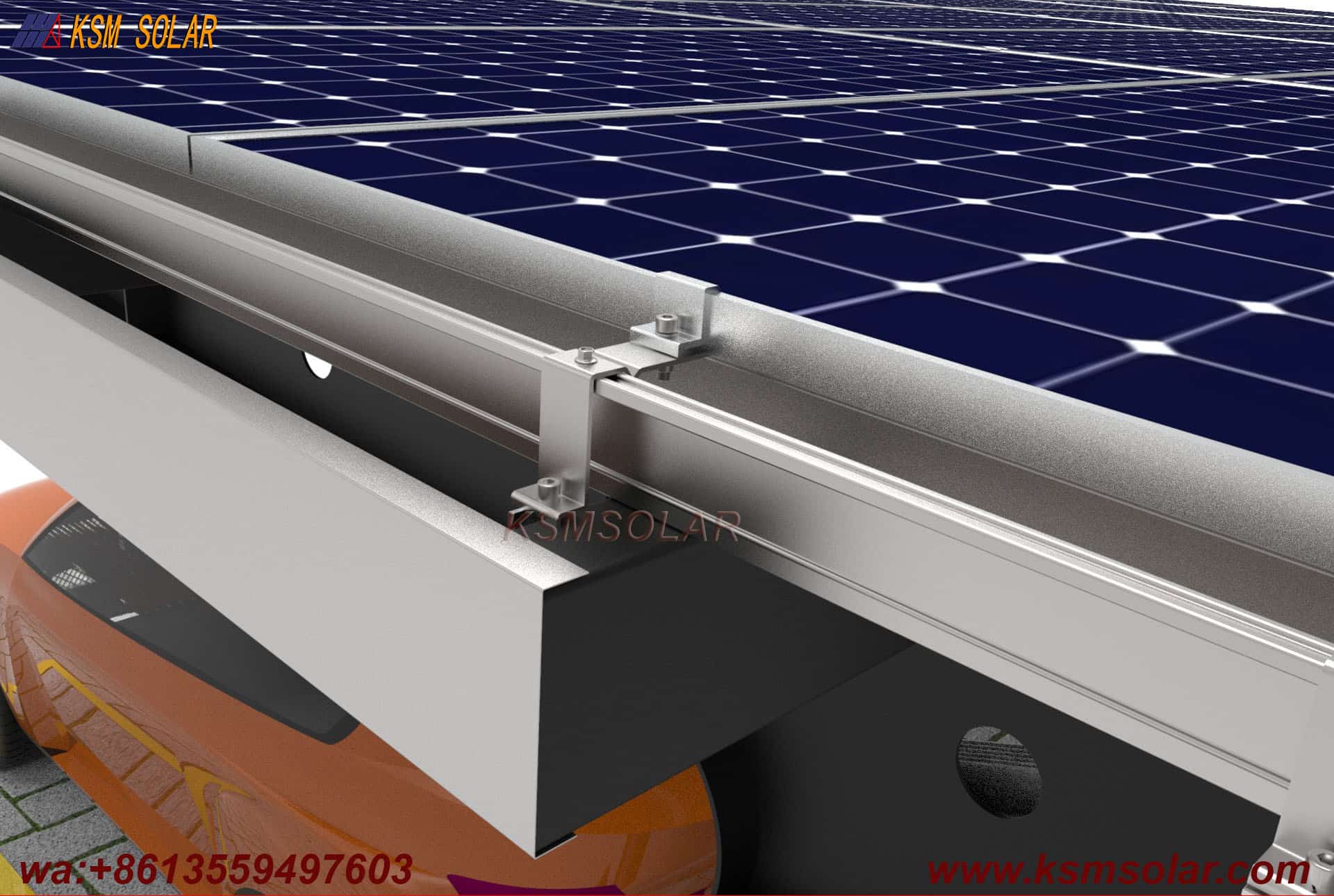

• Concealed Fastening & Edge Detail: The roof system utilizes concealed clip attachments to the horizontal leg, presenting a clean soffit. A custom continuous drip edge and gutter can be integrated along the outer edge of the horizontal leg, effectively hiding all drainage components.

• Perimeter Seal Integrity: Where multiple L-shaped units are placed side-by-side, the junction between adjacent roof planes is sealed with a continuous, field-applied waterproof flashing that bridges the gap, maintaining the monolithic weatherproof envelope.

3. Simplified Foundation & Erection

• Single-Point Foundation: Each L-shaped unit requires only one foundation point at the base of its vertical leg. This simplifies site work, reduces concrete volume, and allows for precise, independent leveling of each unit.

• Plug-and-Play Installation: Prefabricated L-units arrive on-site as complete, finished structural components. Erection involves setting the vertical leg onto its anchor bolts, plumbing it, and then connecting adjacent units via lateral bracing or perimeter purlins. This drastically reduces on-site labor and crane time.

• Modular Grid Flexibility: The system is inherently modular. L-units can be spaced at standard intervals to create bays of any length, adapting easily to different site dimensions and parking layouts.

4. Optimized for Solar Performance & Aesthetics

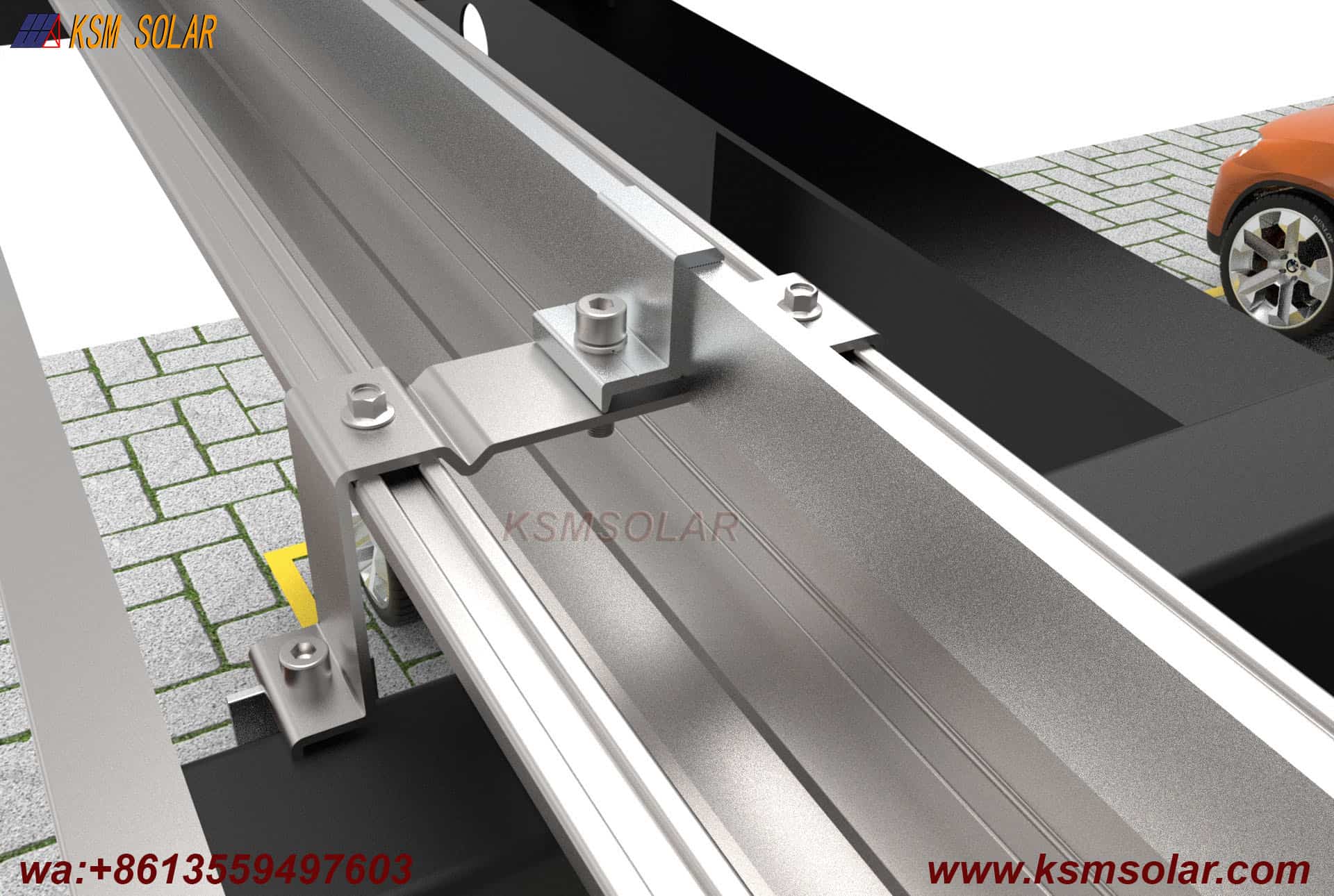

• Unobstructed Mounting Surface: The clean, continuous line of the horizontal leg provides an ideal, flush surface for mounting solar panel rail systems. The absence of protruding connection hardware simplifies installation and allows for optimal panel placement.

• Sleek, Modern Architecture: The minimalist L-profile, especially when finished in a uniform matte or metallic coating, creates a powerful, repetitive rhythm. It evokes the clean lines of modern architecture (reminiscent of Corbuseiran pilotis) and offers a highly photogenic, design-forward appearance.

• Efficient Service Integration: Conduits for electrical wiring can be discreetly routed inside the hollow section of the L-member (if using box sections) or along a dedicated channel on its underside, keeping all services neatly concealed and protected.

Technical Specifications & Advantages

• Typical Spans: The horizontal leg can cantilever 4-8 meters, with the vertical leg height customized from 3-6 meters. Multiple units in a row create clear spans limited only by the lateral support system.

• Structural Performance: Excellent performance in high seismic zones due to its monolithic, ductile form. The shape also provides inherent resistance to progressive collapse.

• Material Efficiency: While the individual L-member uses more steel per unit than a separated beam-and-column, the elimination of all connection hardware, simplification of fabrication, and drastic reduction in installation labor often result in a lower total installed cost for the structure.

• Long-Term Durability: With fewer bolted connections exposed to the elements, the system has fewer potential points for corrosion or maintenance.

Ideal Applications

• Modern Corporate & Institutional Campuses: Where architectural simplicity and bold structural expression are valued.

• High-Design Urban Infill Projects: For parking decks, rooftop parking, or lots where the structure itself is a visible design element.

• Public Transportation Stops & Shelters: Creating long, elegant, and robust covered pathways.

• Premium Automotive Dealerships or Showrooms: Where the carport structure should complement the design of the vehicles it shelters.

• Any project seeking a contemporary, structurally honest aesthetic combined with the practical benefits of simplified, rapid construction and a superior waterproof envelope.
