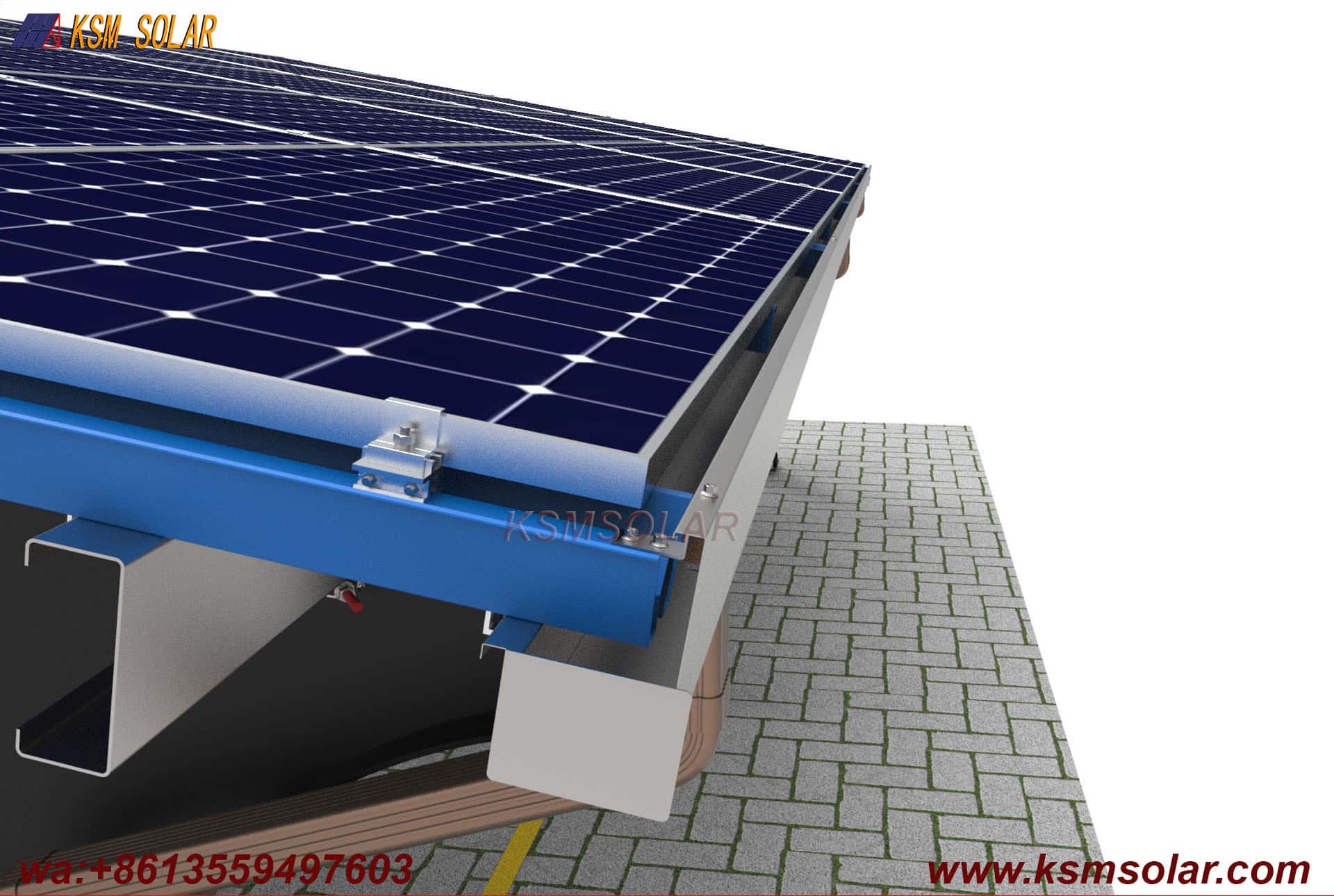

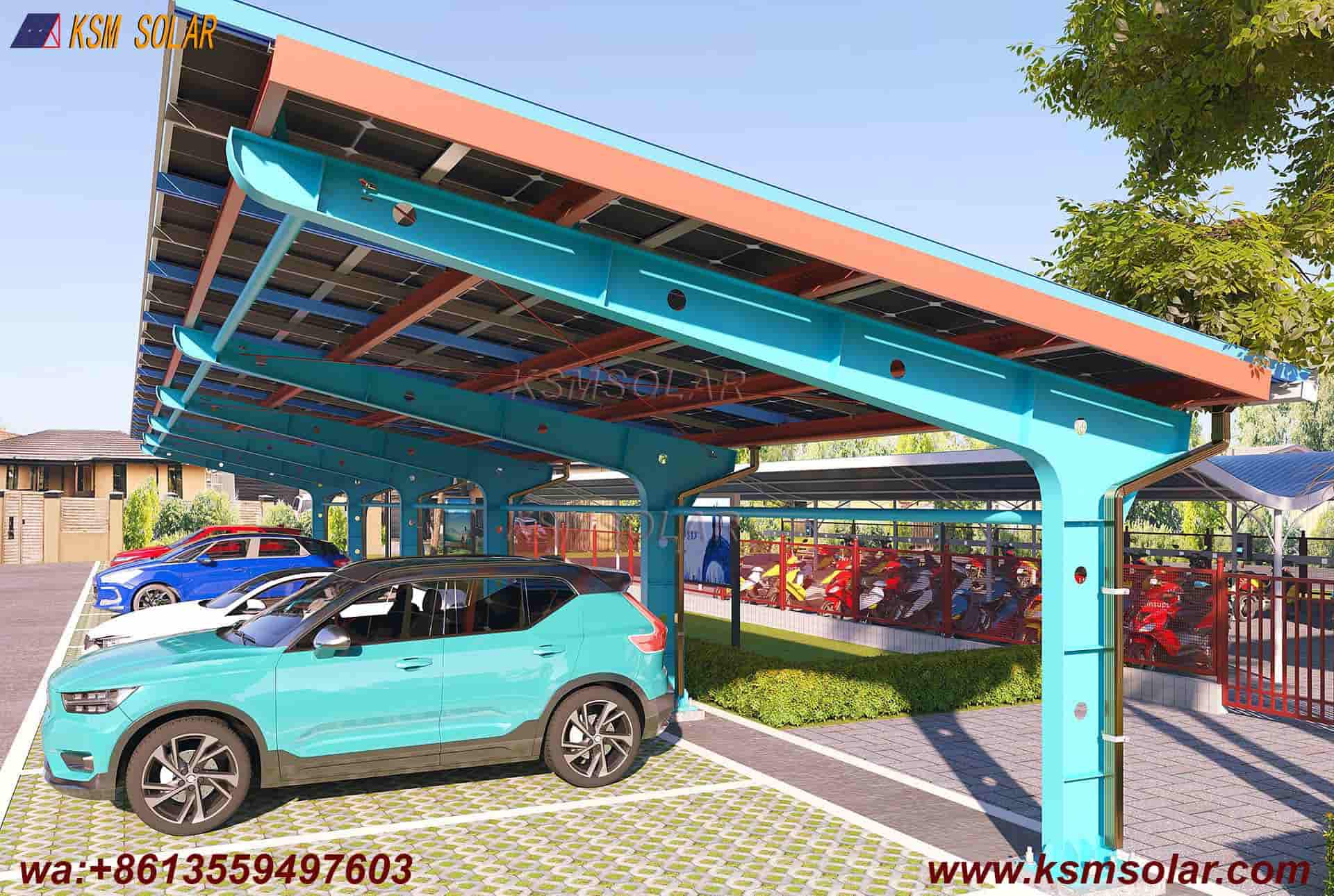

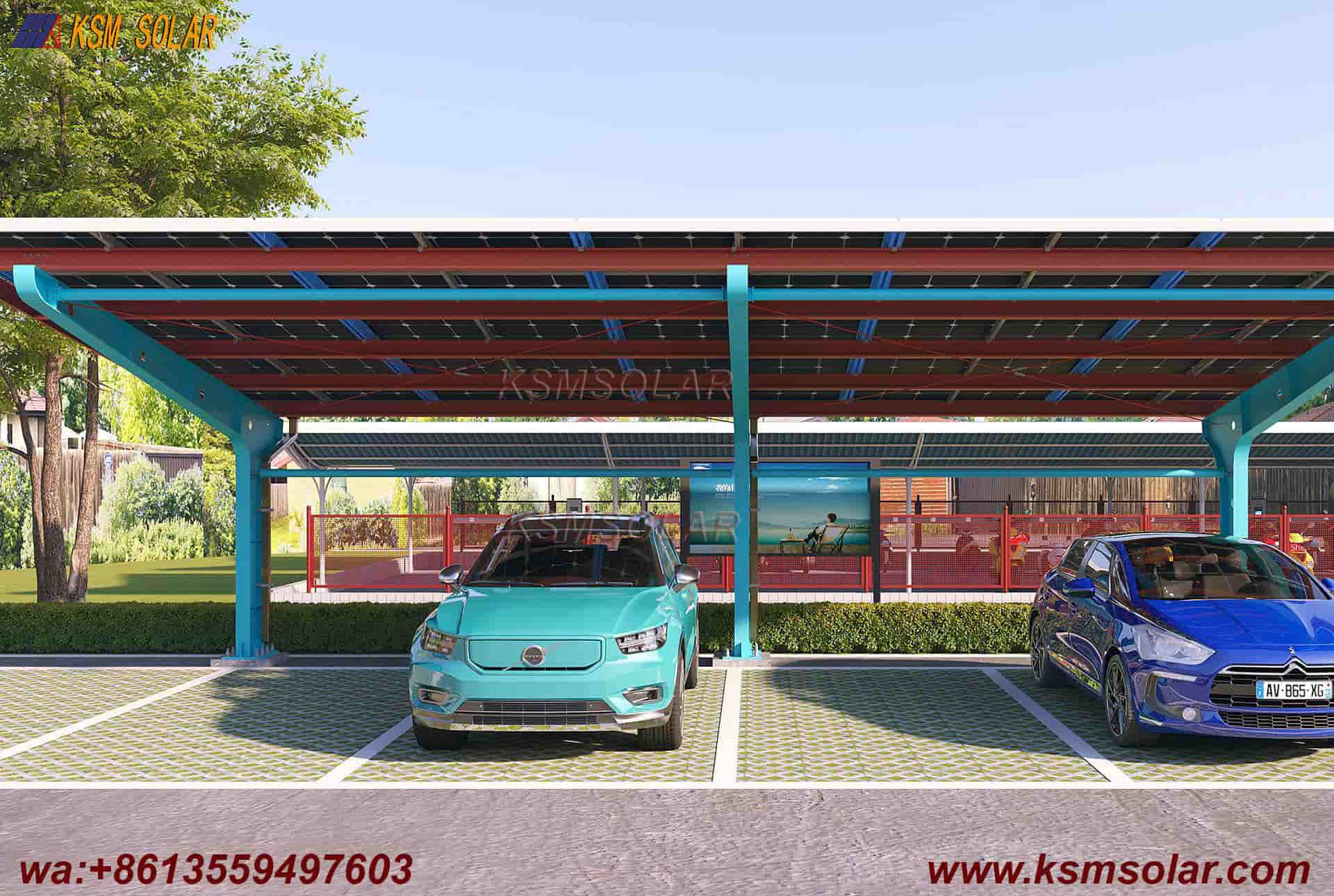

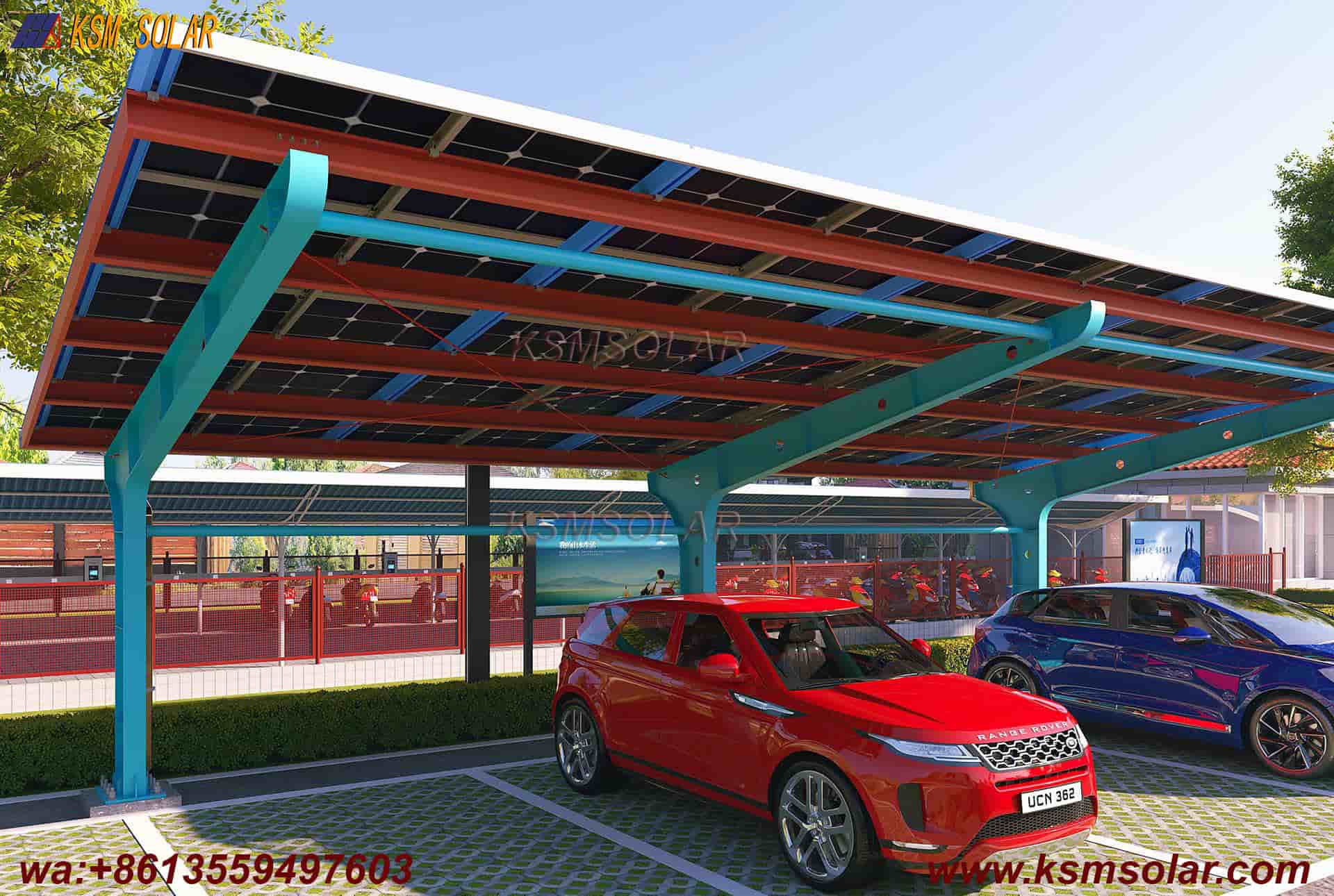

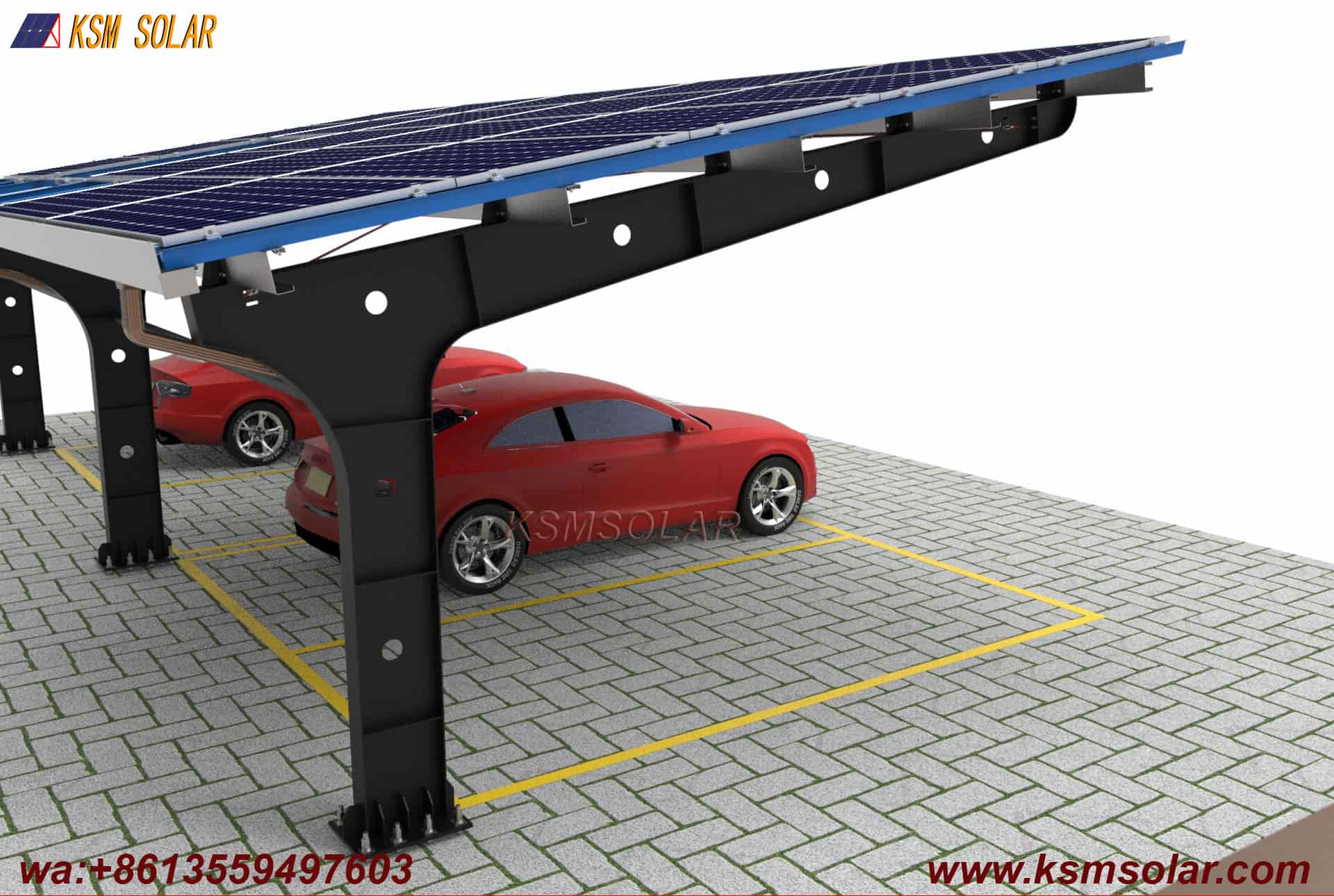

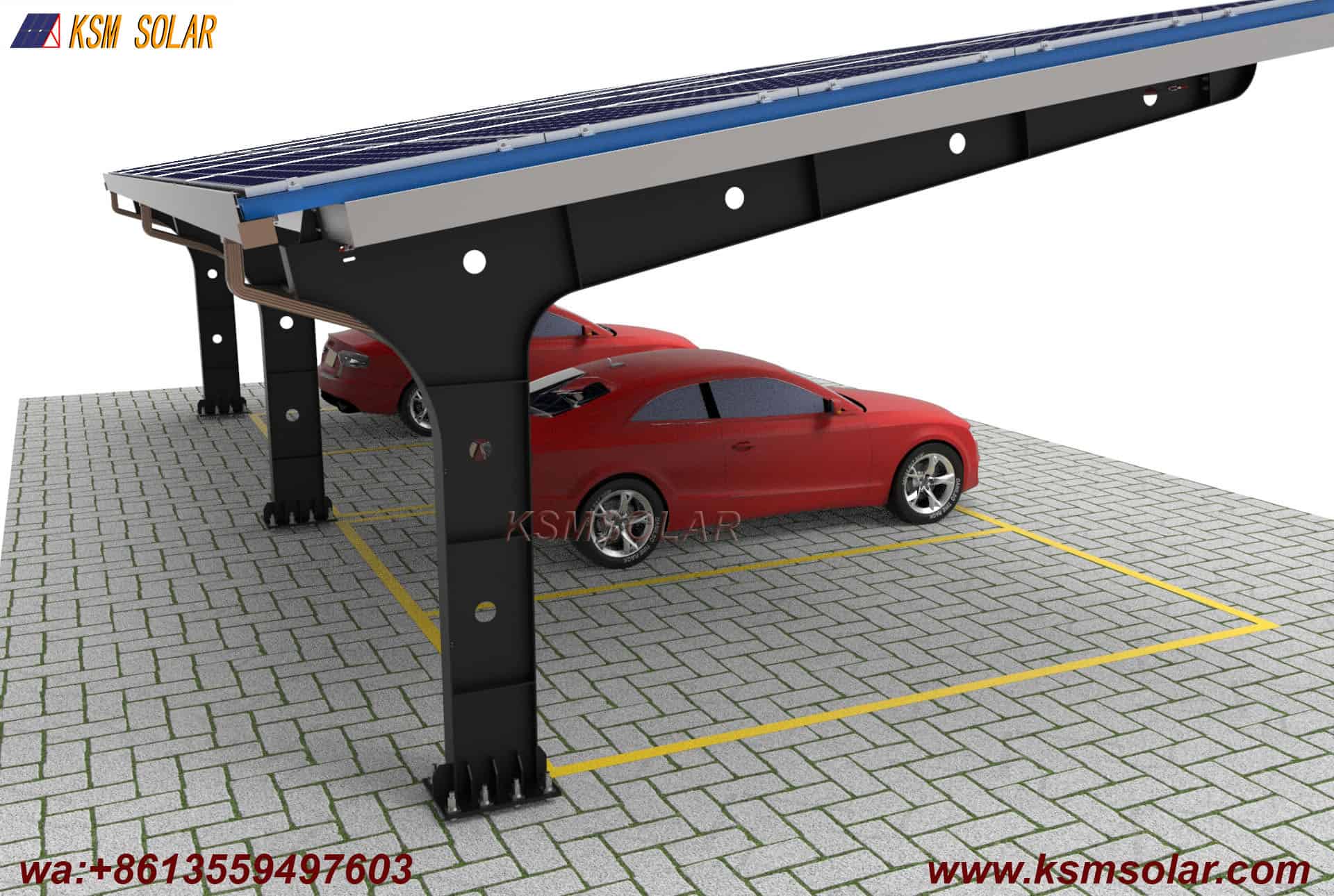

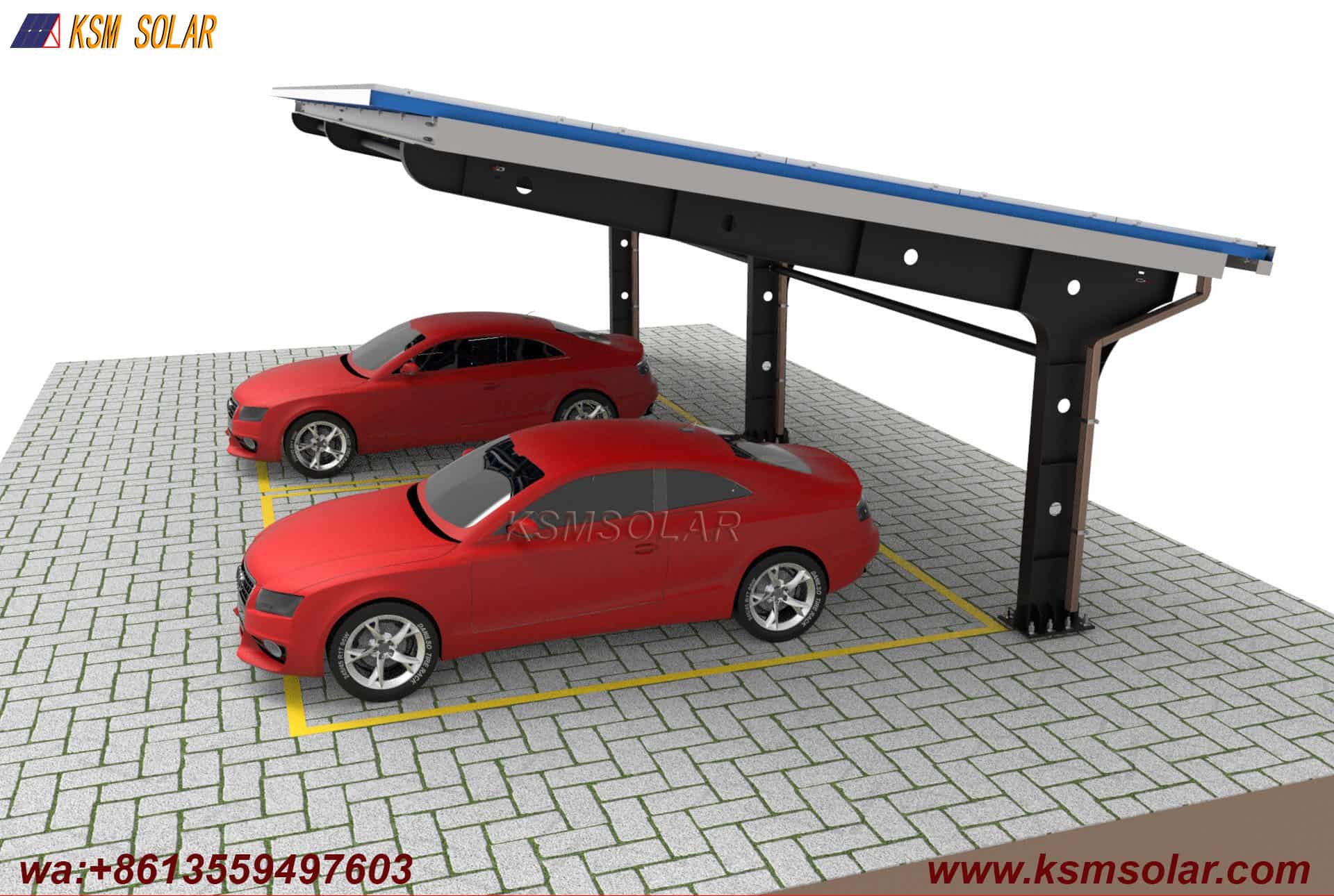

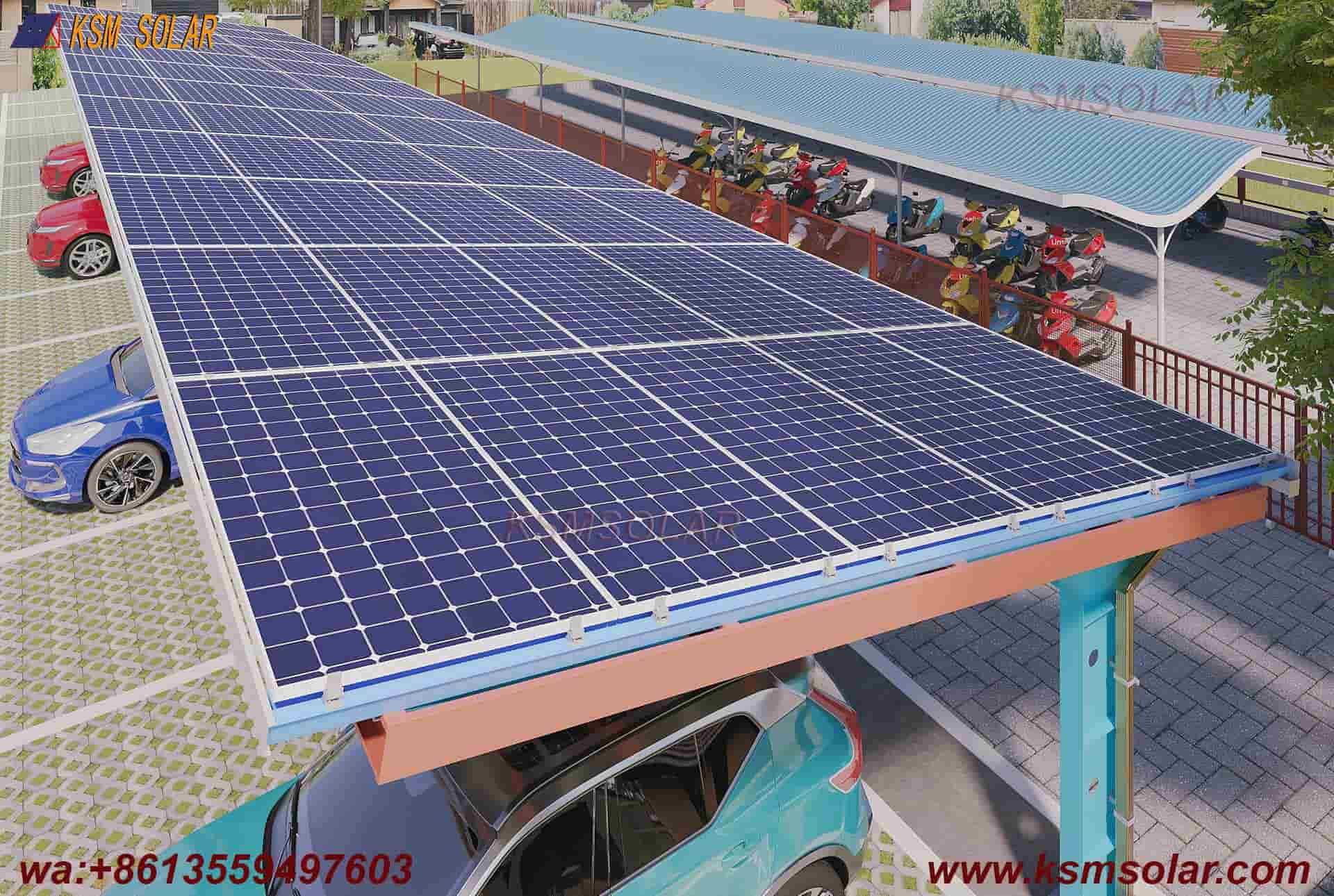

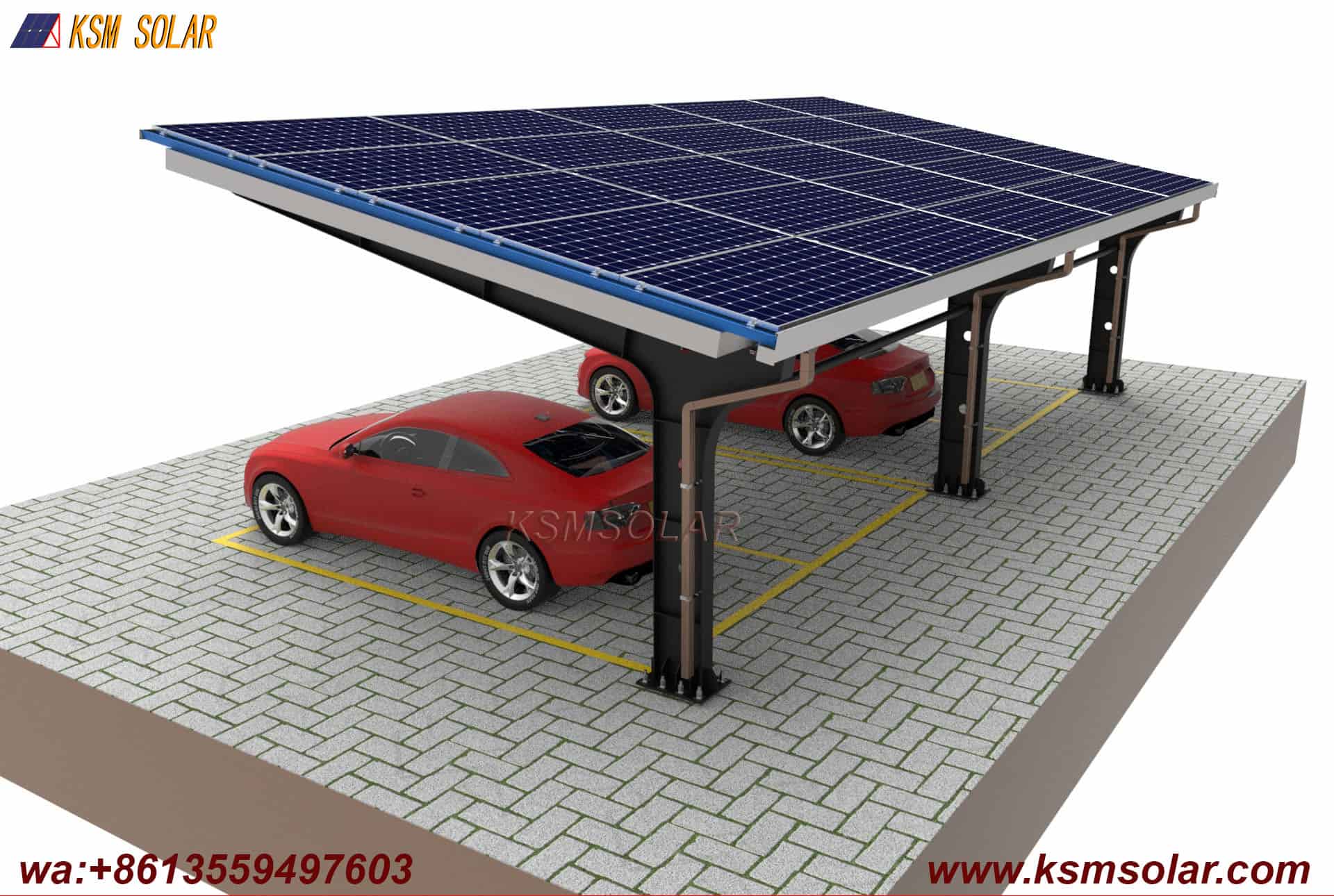

Carbon Steel Photovoltaic Carport with Integrated W-Shaped Water Gutter is a purpose-engineered system that combines robust structural performance with an advanced, high-capacity rainwater management solution. This design integrates a distinctive W-profile longitudinal gutter directly into the carport's structural framing, creating a seamless and highly efficient drainage pathway that protects the sheltered area, enhances system longevity, and maintains a clean architectural aesthetic.

Core Engineering and Feature Advantages

1. Integrated W-Shaped Structural Gutter System

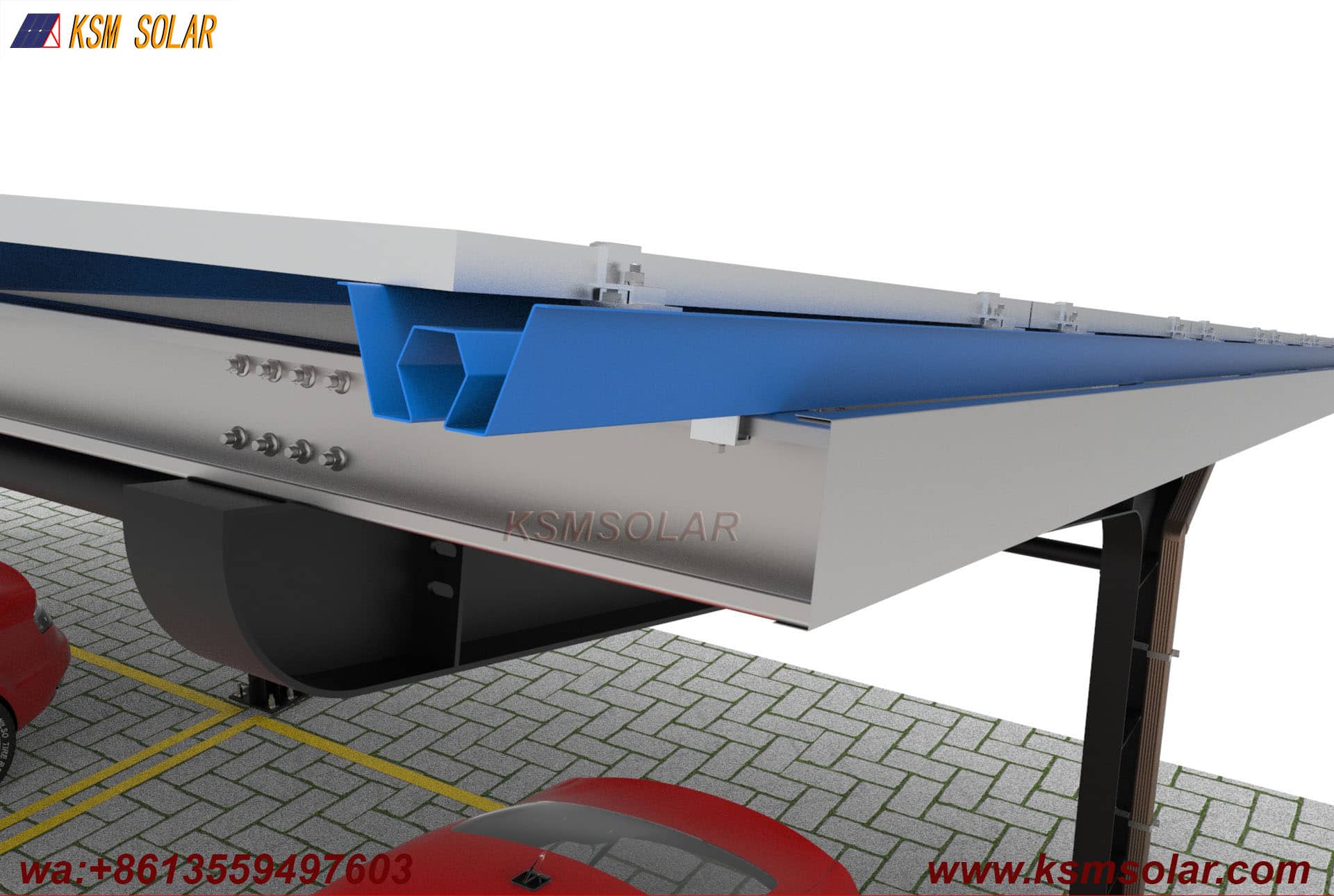

• High-Capacity Drainage Design: The W-shaped gutter profile is formed from heavy-gauge carbon steel and serves a dual role: as a primary structural purlin supporting the roof and as a deep, wide-channel rainwater conduit. Its shape provides exceptional hydraulic efficiency and debris-handling capacity, minimizing overflow risk even during torrential rainfall.

• Continuous Longitudinal Flow Path: Gutters run the full length of each carport bay, collecting water from a wide roof catchment area. They are typically sloped at a minimum 1-2% gradient towards downspout locations, ensuring positive drainage without ponding.

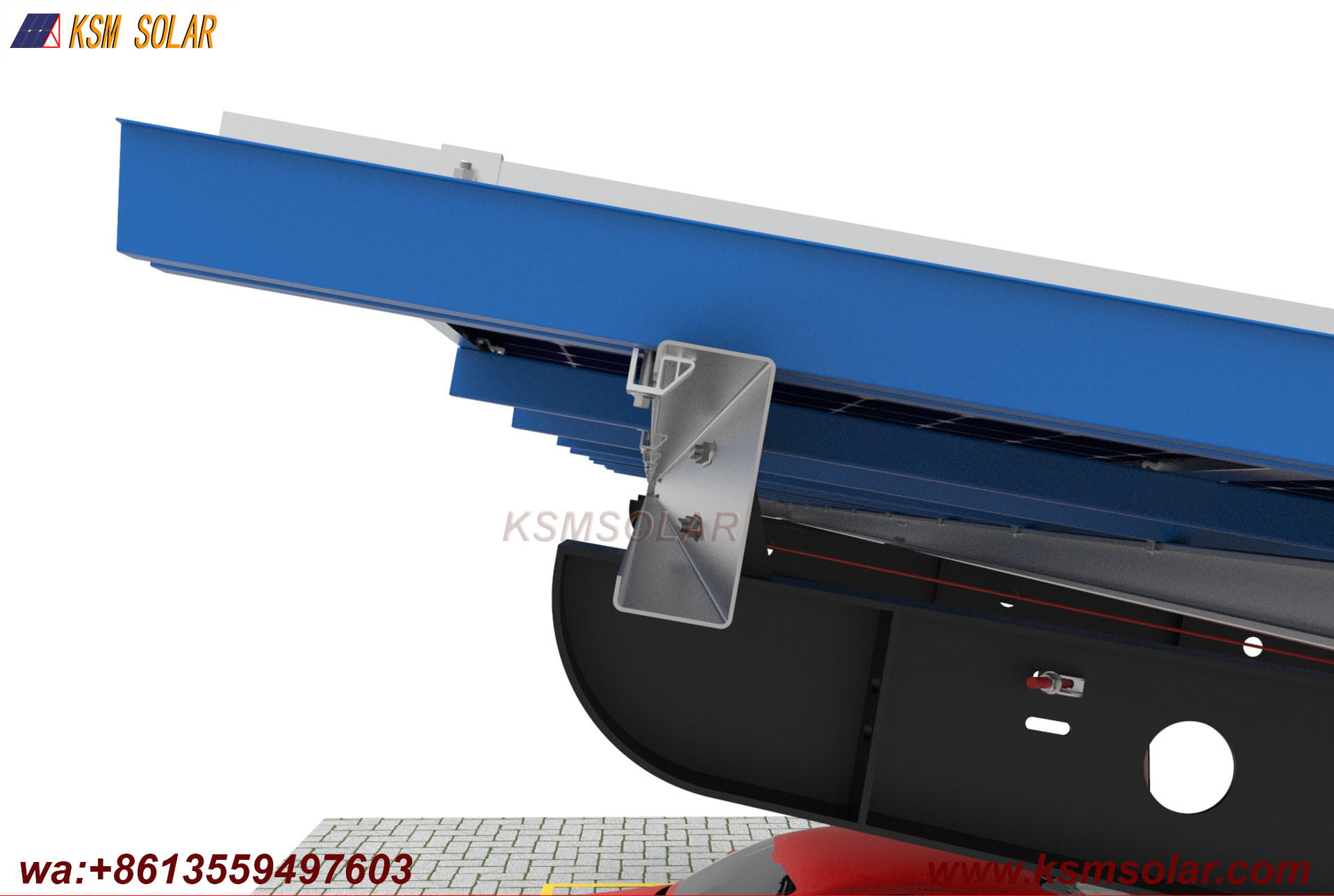

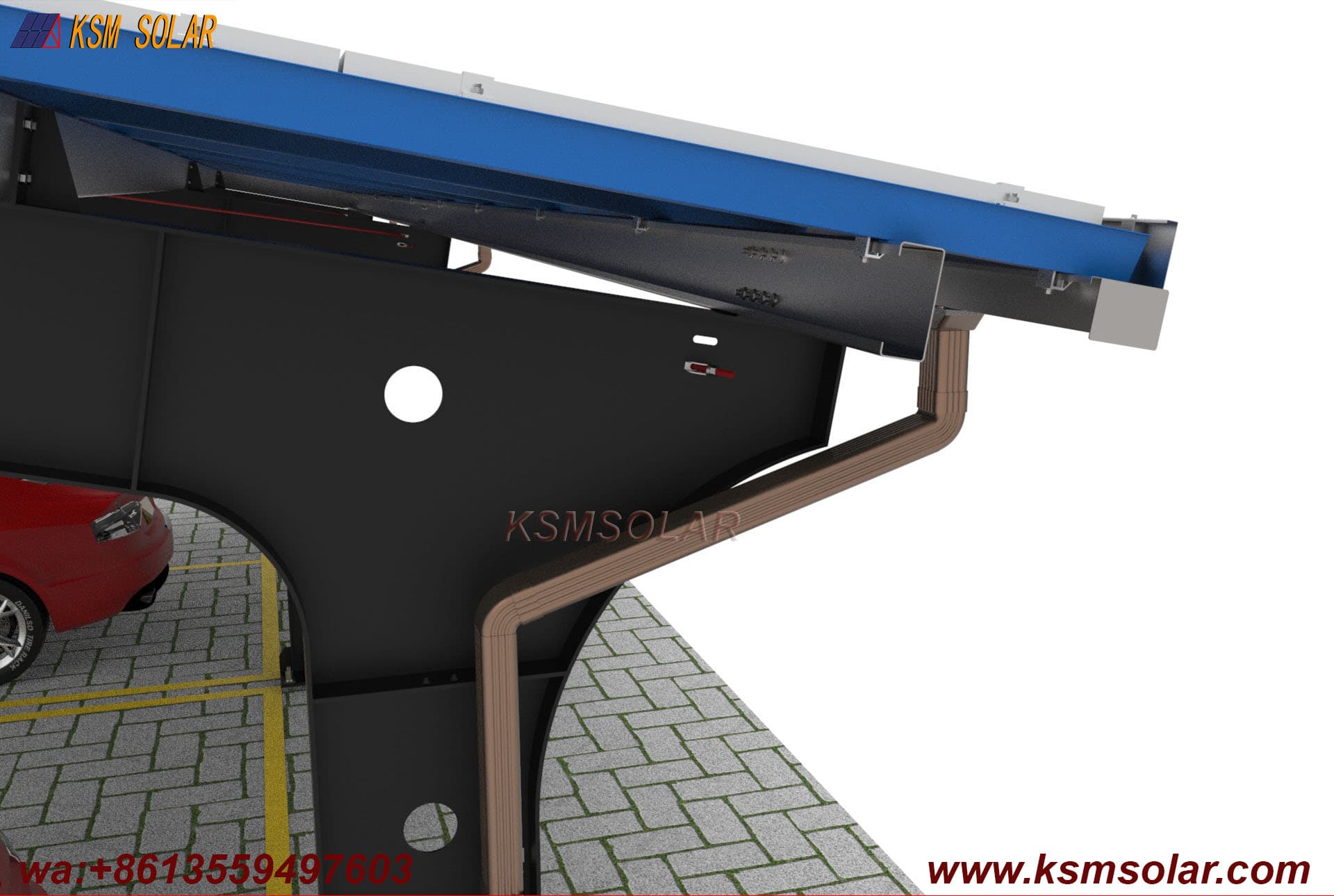

• Robust Connection Details: The gutter sections are joined with sleeved, sealed connections or continuously welded seams to prevent leaks at joints. End caps and outlet boots are precision-formed and sealed to direct water into downspouts.

2. Carbon Steel Structural Framework

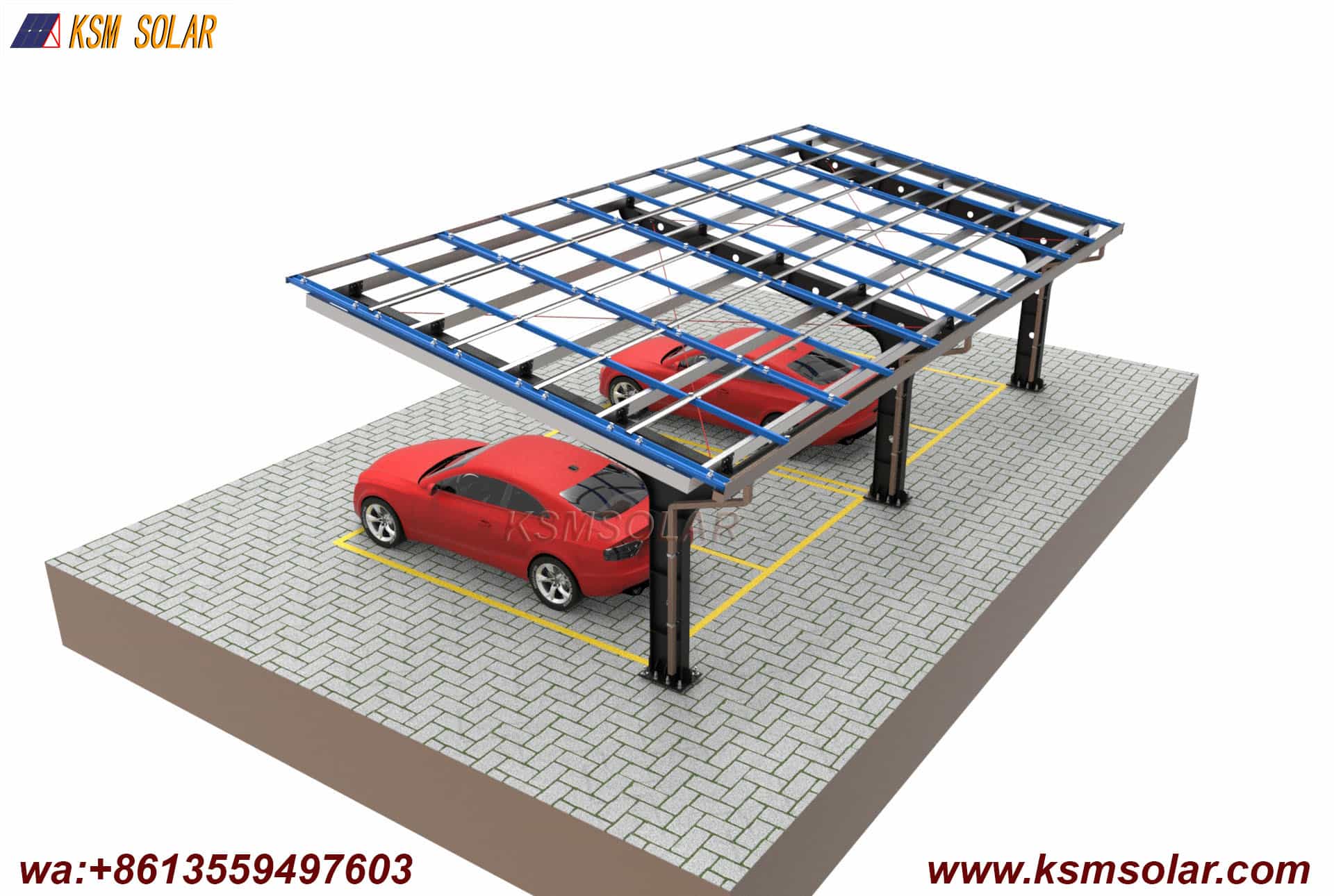

• Primary Frame: Utilizes hot-rolled carbon steel sections (H-beams, I-beams, or square tubes) for main columns and rafters, designed to support the combined loads of the roof, photovoltaic array, and integrated gutter system filled with water.

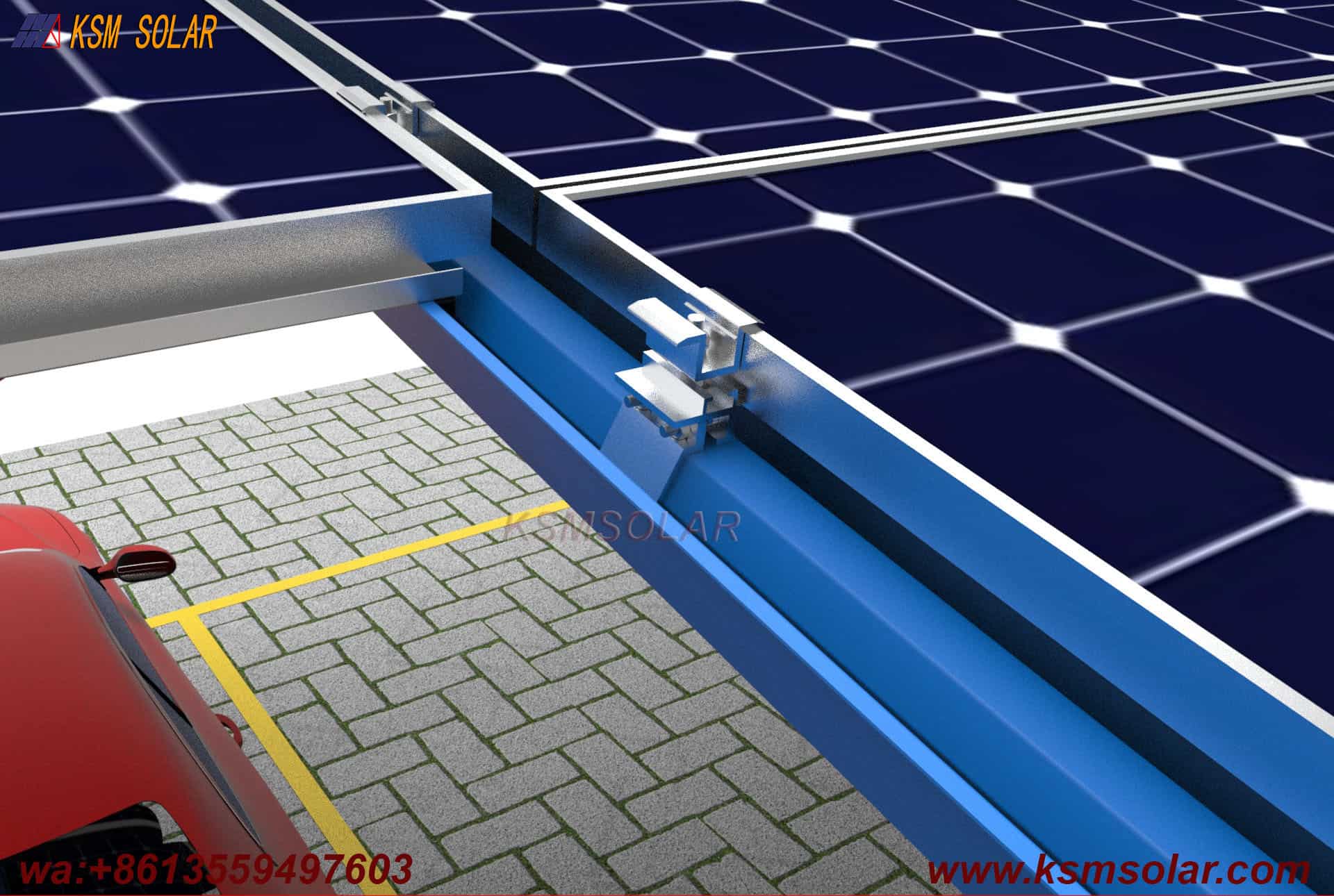

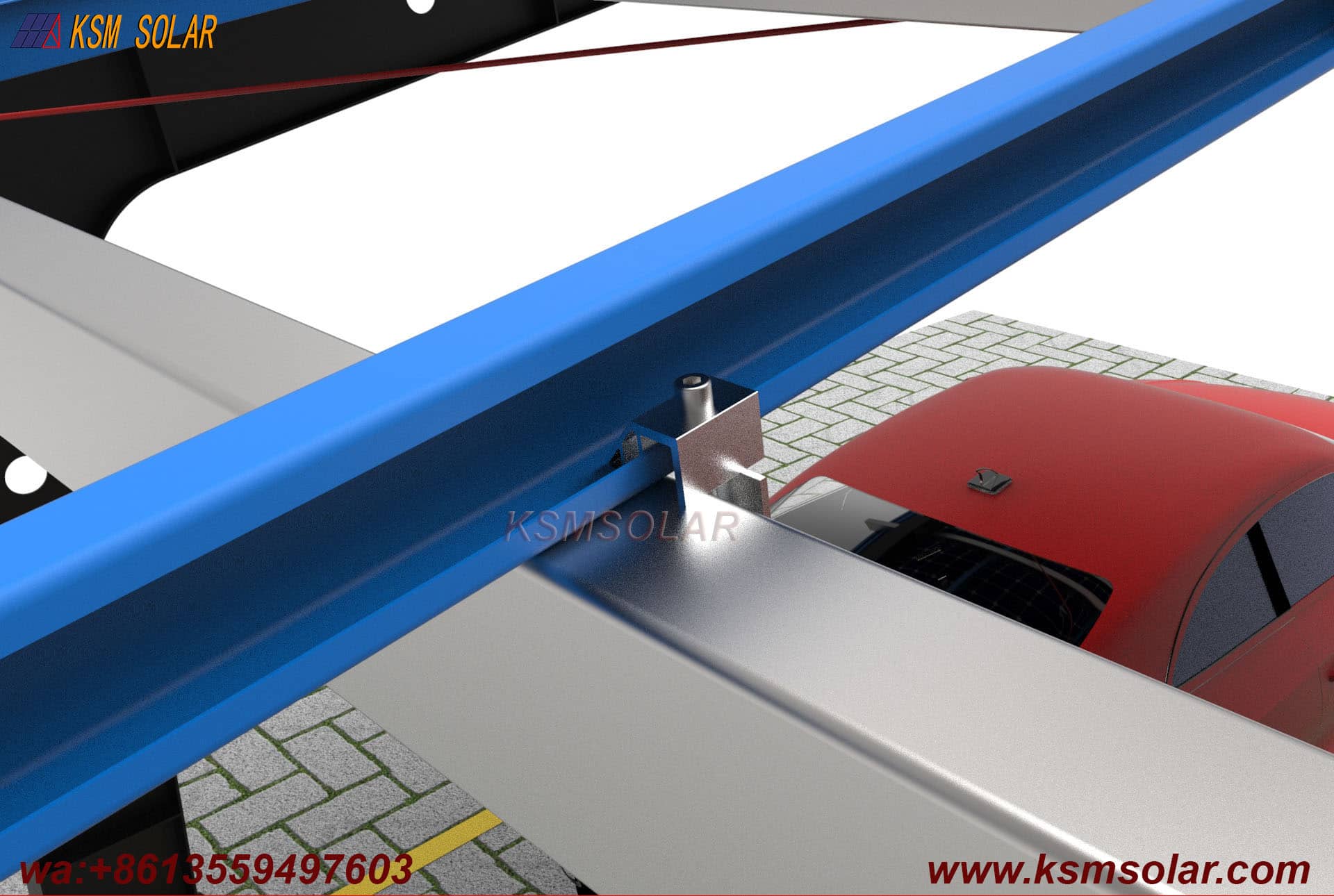

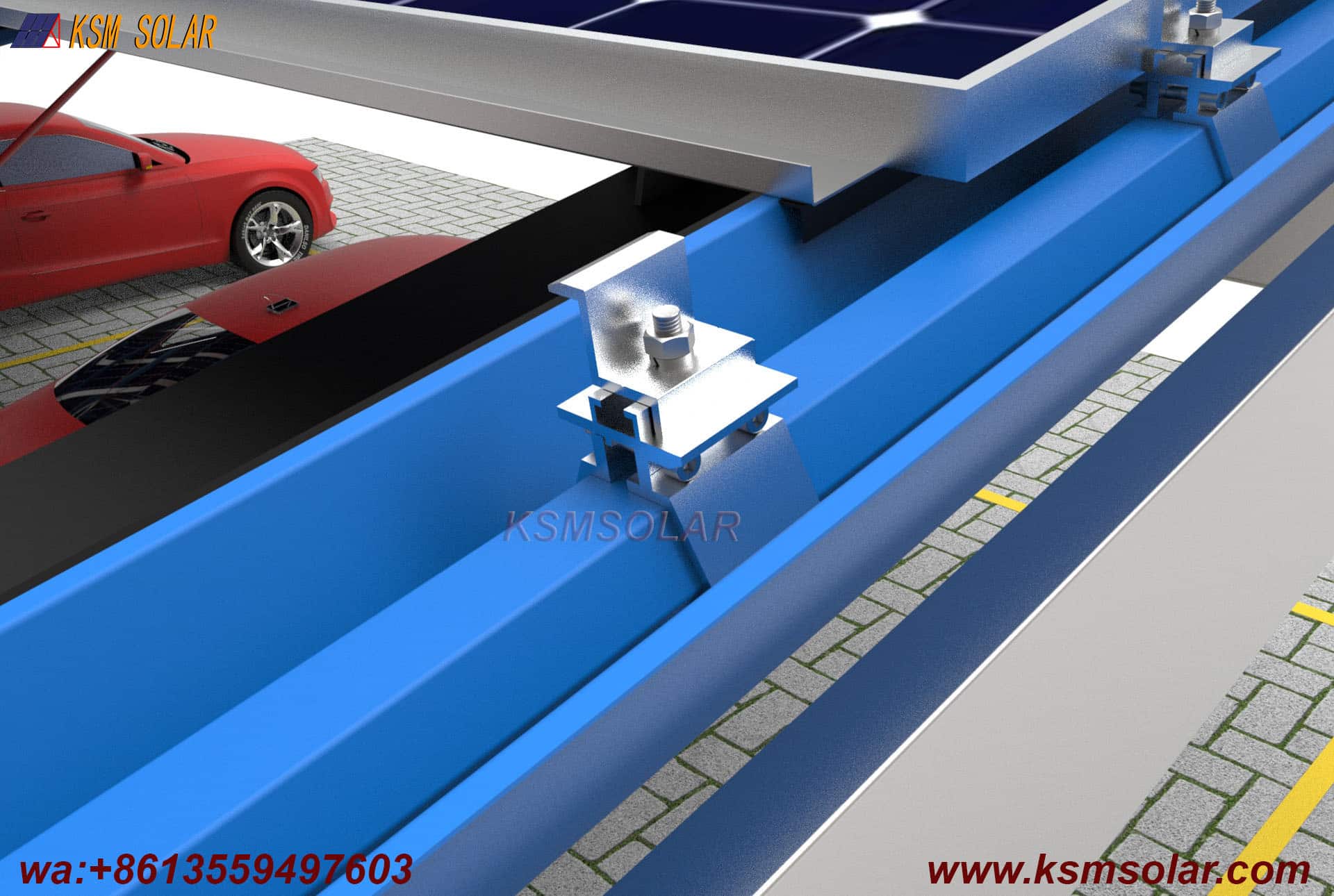

• Gutter-as-Purlin Integration: The W-shaped gutter acts as a secondary structural element, spanning between primary rafters to support the roof deck or PV mounting rails. This integration eliminates the need for separate gutter hangers and consolidates components.

• Corrosion Protection System: All carbon steel components, including gutters, receive a multi-stage protective coating: primer, intermediate coat, and a durable topcoat (e.g., polyurethane or fluorocarbon). Internal gutter surfaces may receive extra-thick coating or epoxy lining for enhanced water resistance.

3. Comprehensive Waterproof Roof Assembly

• Water-Shedding Roof Surface: The roof is constructed with standing-seam metal panels or a single-ply membrane, installed to direct all rainwater into the integrated W-gutters. Critical detailing at the roof-to-gutter interface uses custom-formed flashings and sealants to create a watertight transition.

• Overflow Protection: The design includes calculated overflow provisions, such as strategic scuppers or secondary overflow edges, to safely handle rainfall volumes exceeding the 100-year storm event capacity of the primary gutter system.

• Ice and Debris Management: In cold climates, options for gutter heating cables and debris guards at gutter inlets can be integrated to prevent ice dams and clogging.

4. Photovoltaic System Integration

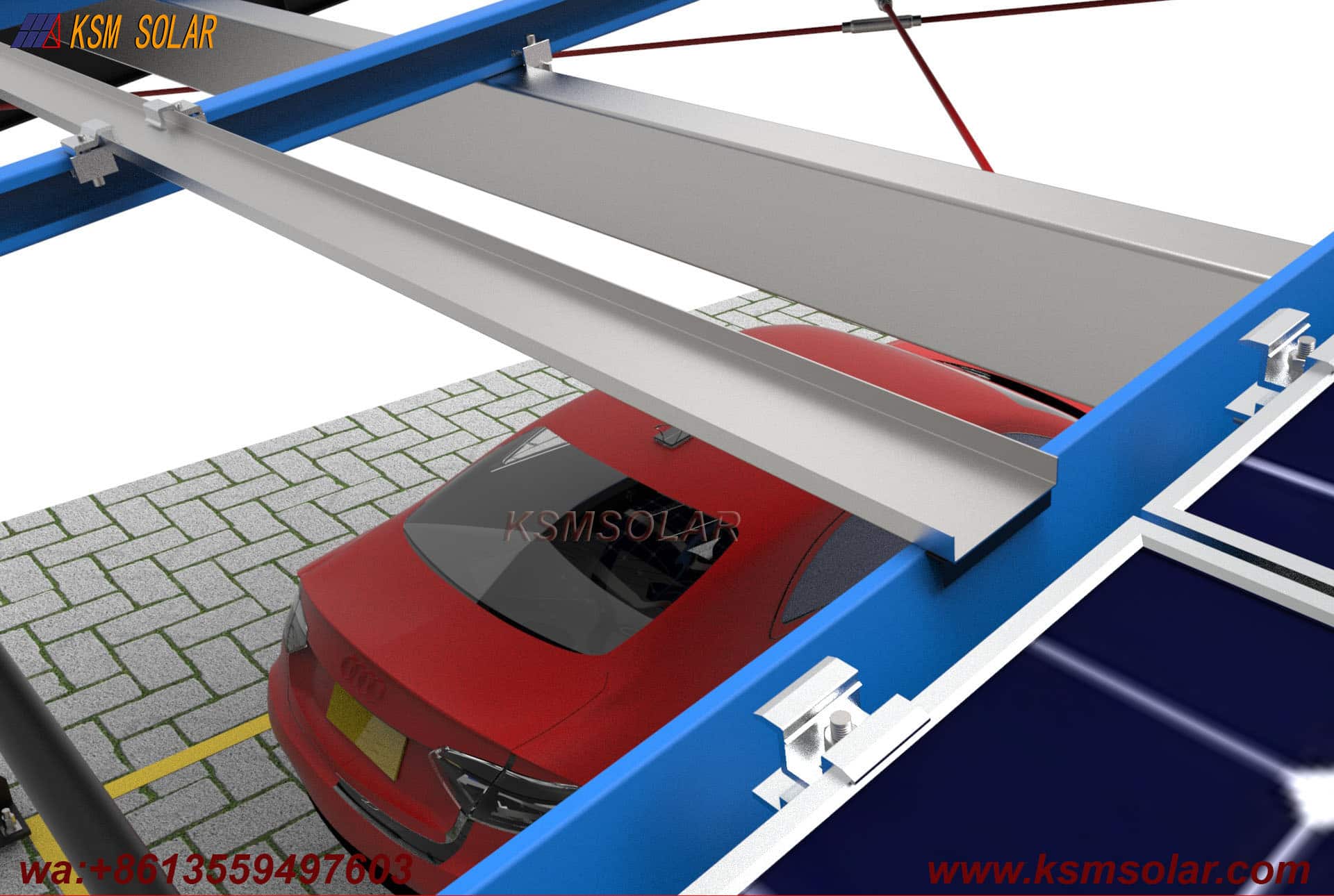

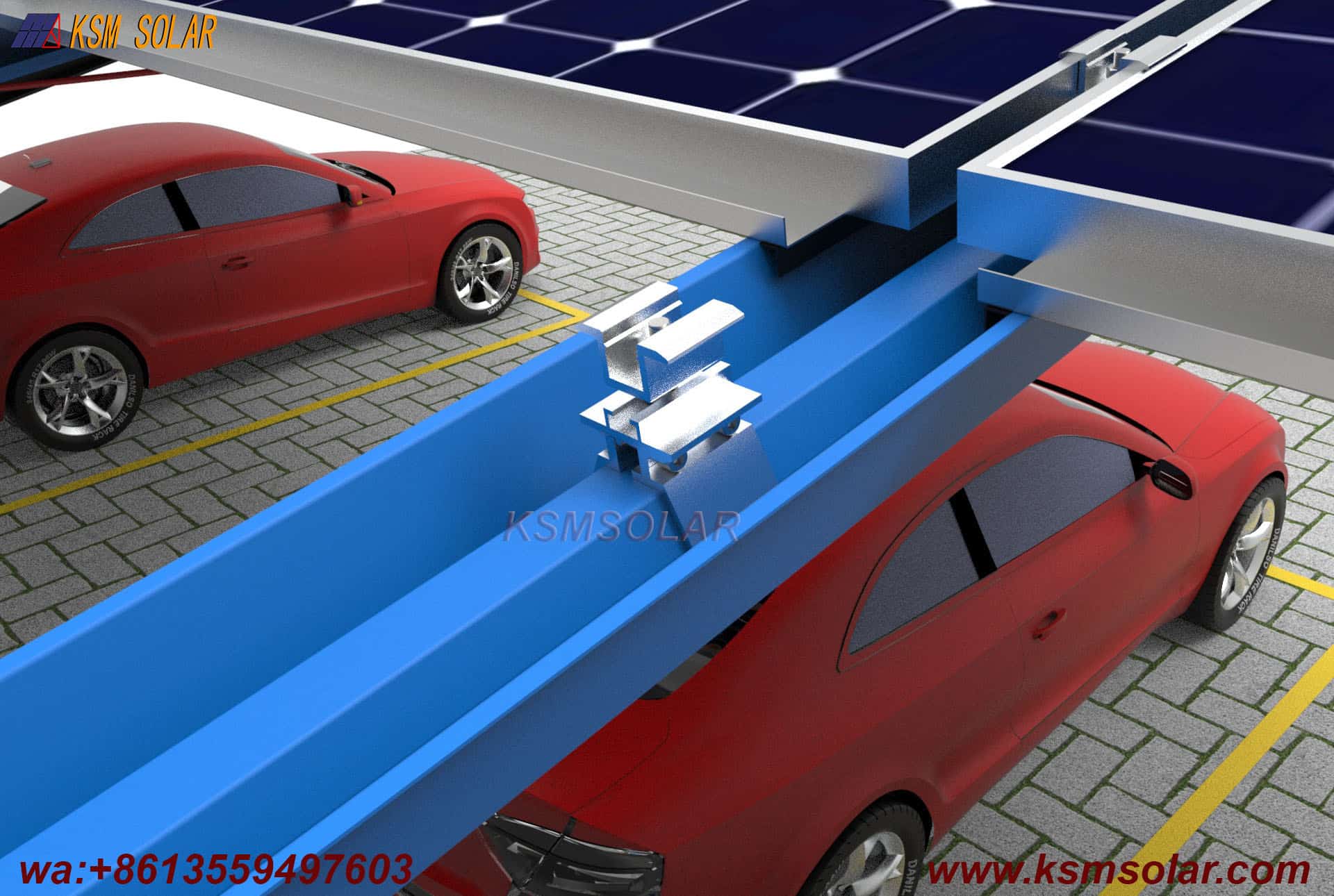

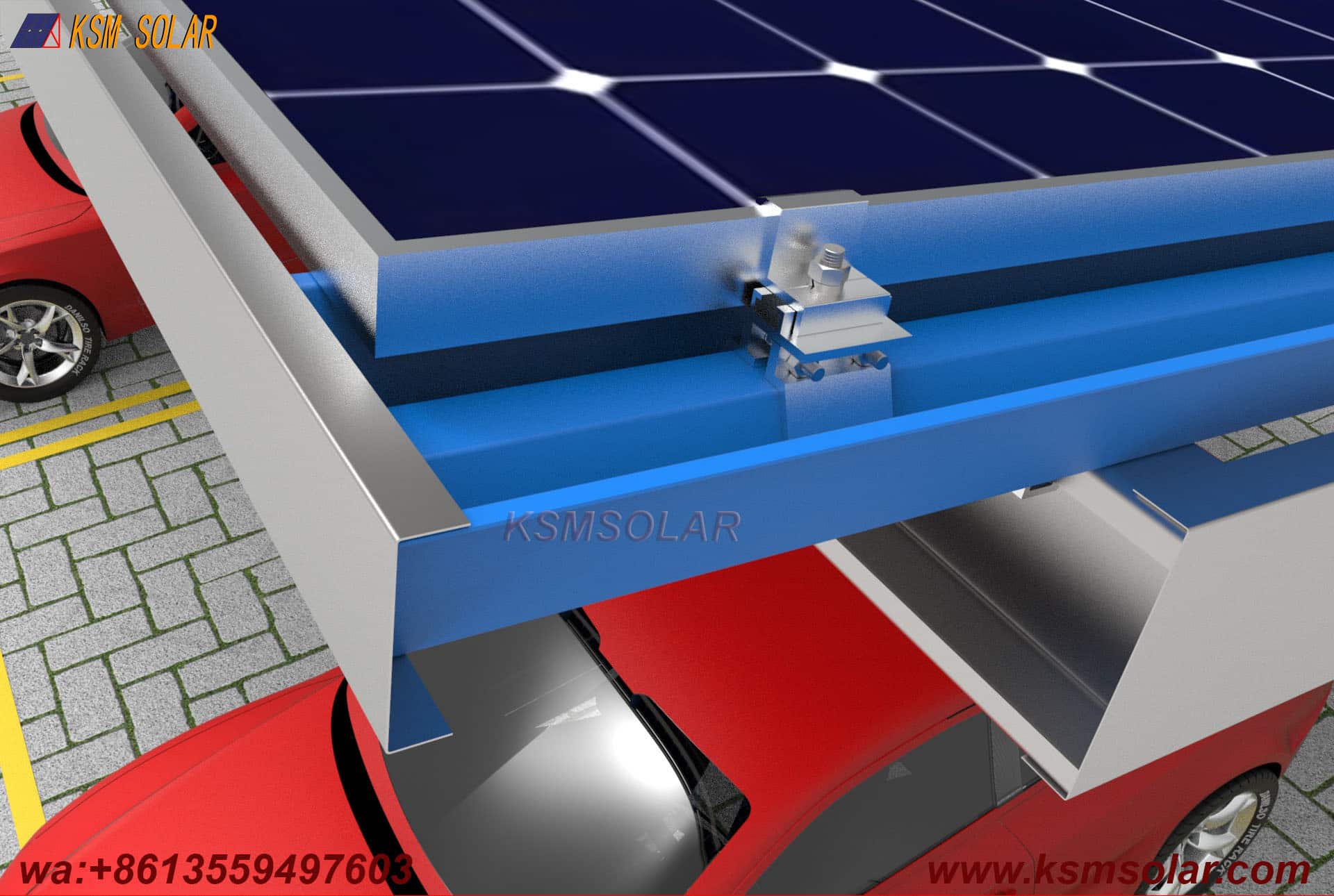

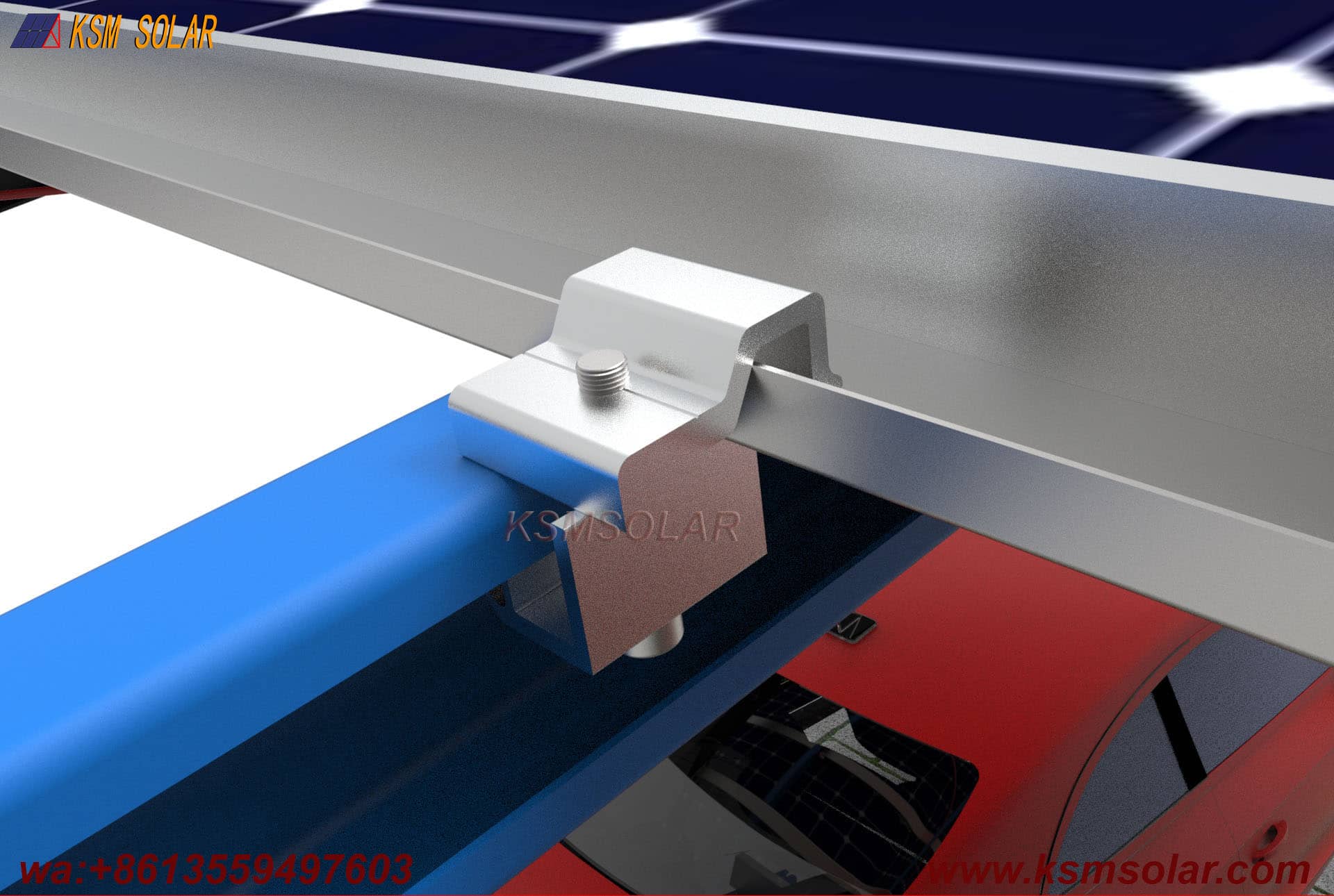

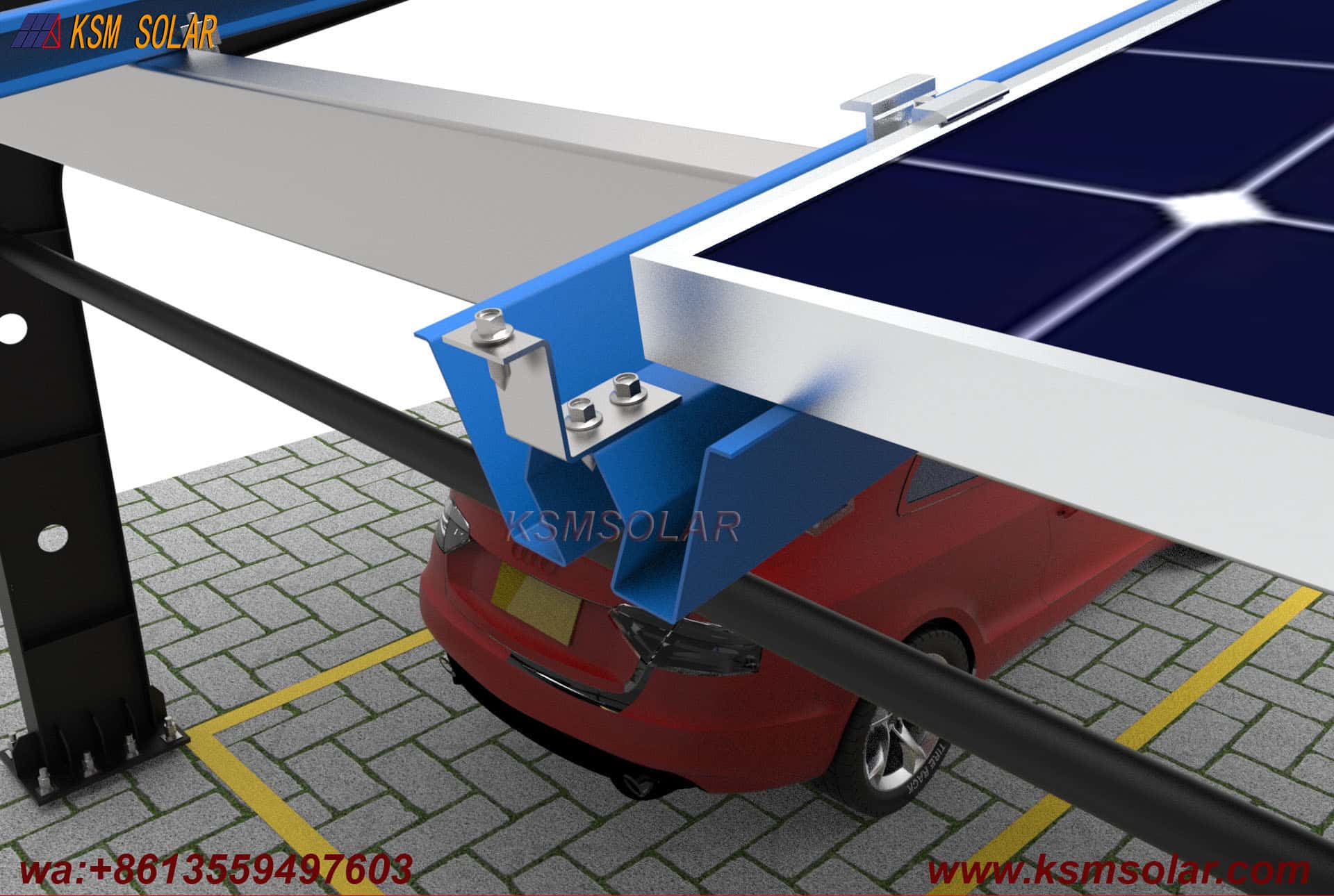

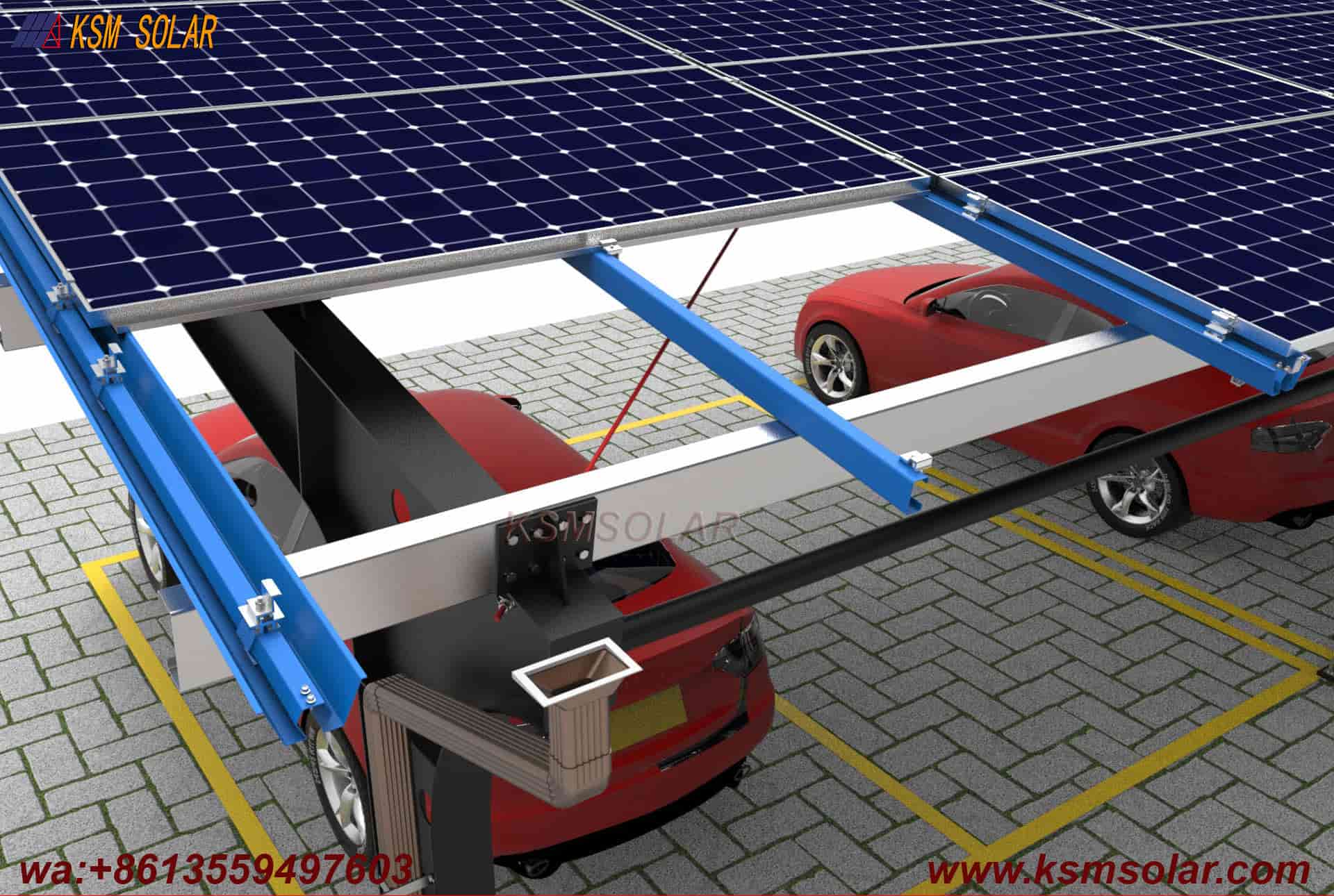

• Unobstructed Mounting Plane: The roof structure provides a clear, uninterrupted area for PV panel installation. Mounting rails are attached directly to the structural purlins or roof deck above the gutter lines.

• Protected Electrical Pathways: Conduits and junction boxes are routed to avoid interference with the gutter system. Where cables must cross gutters, they are run in protected, waterproof conduits mounted on raised saddles.

• Maintenance Accessibility: The integrated gutter design positions all major drainage components within easy reach for inspection and cleaning, facilitating regular maintenance without requiring special access to the PV array.
