The Carbon Steel Integrated Beam-Column Photovoltaic Carport represents a paradigm shift in carport construction through its monolithic structural design. By fabricating the primary vertical column and horizontal support beam as a single, continuous unit from carbon steel, this system eliminates traditional connection points, creating a seamless, inherently rigid framework that delivers superior performance, accelerated installation, and a distinctive architectural aesthetic.

Core Engineering Features & Technical Advantages

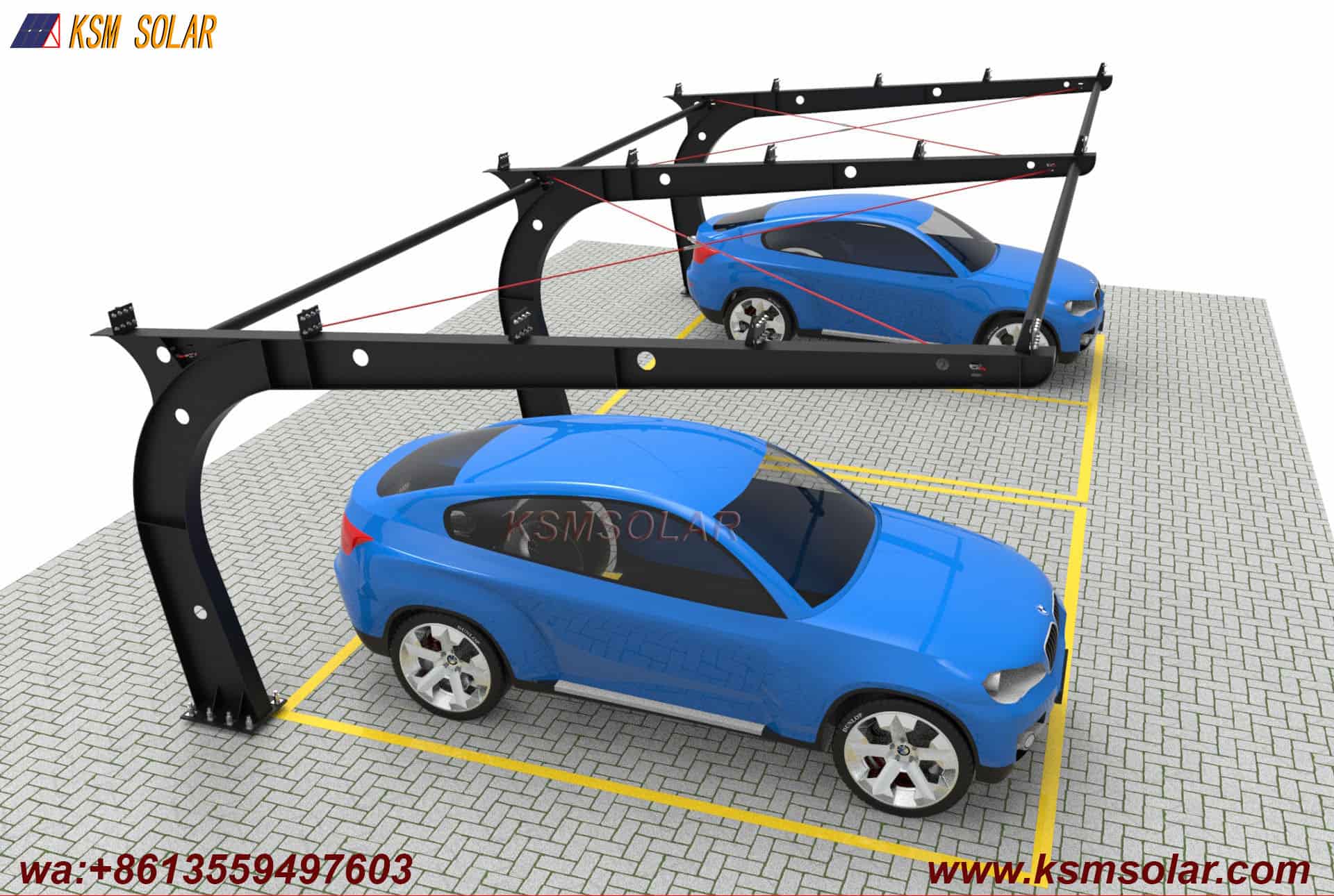

1. Unibody Beam-Column Fabrication

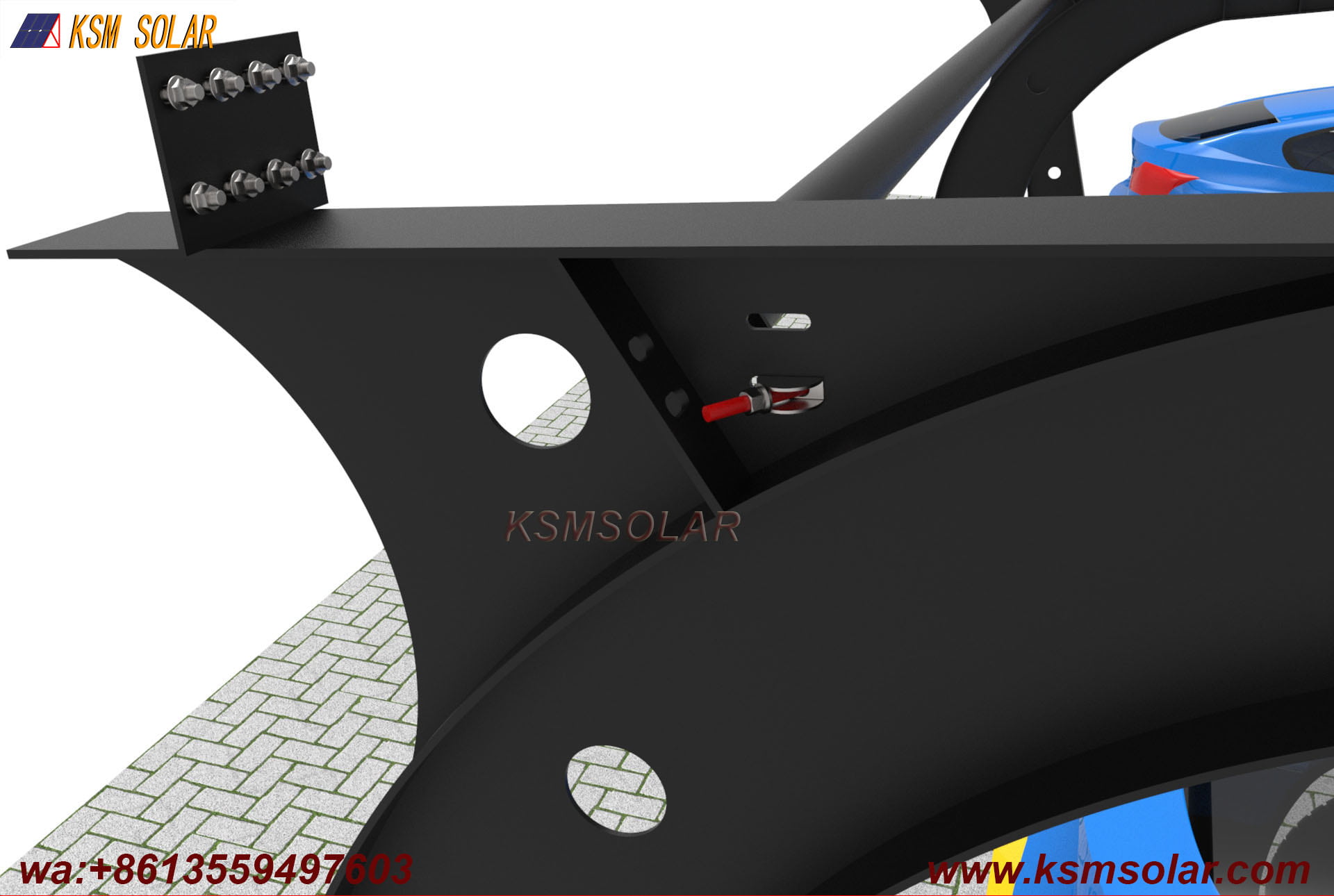

• Continuous Structural Member: The core innovation is a single-piece carbon steel section, hot-rolled or fabricated via advanced welding, that forms both the vertical column and the cantilevered roof-supporting beam in one uninterrupted element. The critical 90-degree junction is internally reinforced through material thickening or ribbing, eliminating the traditional weak point of bolted or welded beam-to-column connections.

• Material & Manufacturing Excellence: Utilizes high-grade structural carbon steel (e.g., Q355B/S355JR), formed through CNC-controlled bending or custom die processes to ensure precise geometry and consistent material properties. The interior corner undergoes stress-relieving heat treatment to guarantee long-term integrity.

• Optimal Load Path: Creates the most direct and efficient load transfer path possible. Roof loads travel straight down the monolithic member to the foundation, minimizing deflection, vibration, and stress concentrations.

2. Enhanced Structural Performance

• Exceptional Rigidity & Stability: The absence of a pinned or semi-rigid connection results in inherently high moment resistance and torsional stiffness. This makes the structure exceptionally resistant to wind uplift, seismic forces, and asymmetric loading (e.g., snow drift).

• Simplified Force Analysis: The monolithic design reduces the number of structural components and complex connection details, leading to more straightforward engineering calculations, predictable behavior, and enhanced overall safety factors.

• Long-Span Capability: The integrated design allows for impressive cantilever lengths (typically 5-9 meters) from a single foundation point, maximizing clear space underneath for unobstructed vehicle movement and flexible parking layouts.

3. Streamlined Corrosion Protection & Durability

• Uninterrupted Coating Surface: With no bolted connections at the critical joint, the entire member can receive a continuous, uniform protective coating. This is applied post-fabrication via automatic spray or immersion processes, ensuring complete coverage—especially at the high-stress corner—with a hot-dip galvanized or multi-layer paint system (e.g., epoxy primer + polyurethane topcoat).

• Reduced Maintenance Points: Eliminating connection bolts, gusset plates, and weld seams at the primary joint removes the most common sites for coating breakdown, moisture traps, and corrosion initiation, significantly reducing long-term maintenance needs.

4. Rapid, Simplified Installation

• Plug-and-Play Erection: Each integrated unit is a complete, finished structural component. Installation involves simply setting the base plate onto pre-installed anchor bolts, plumbing the column, and securing it. This can reduce on-site assembly time by 40-50% compared to traditional multi-part systems.

• Minimized On-Site Labor: Requires no field welding or complex bolting of primary members. The only connections needed are lateral bracing between units and the attachment of secondary roof purlins, dramatically lowering skilled labor requirements and potential installation errors.

• Precision & Consistency: Factory-controlled fabrication ensures every unit is identical, guaranteeing a perfectly aligned, level roof plane once all units are installed, which is critical for the subsequent mounting of the PV array.

5. Optimized for Photovoltaic Integration

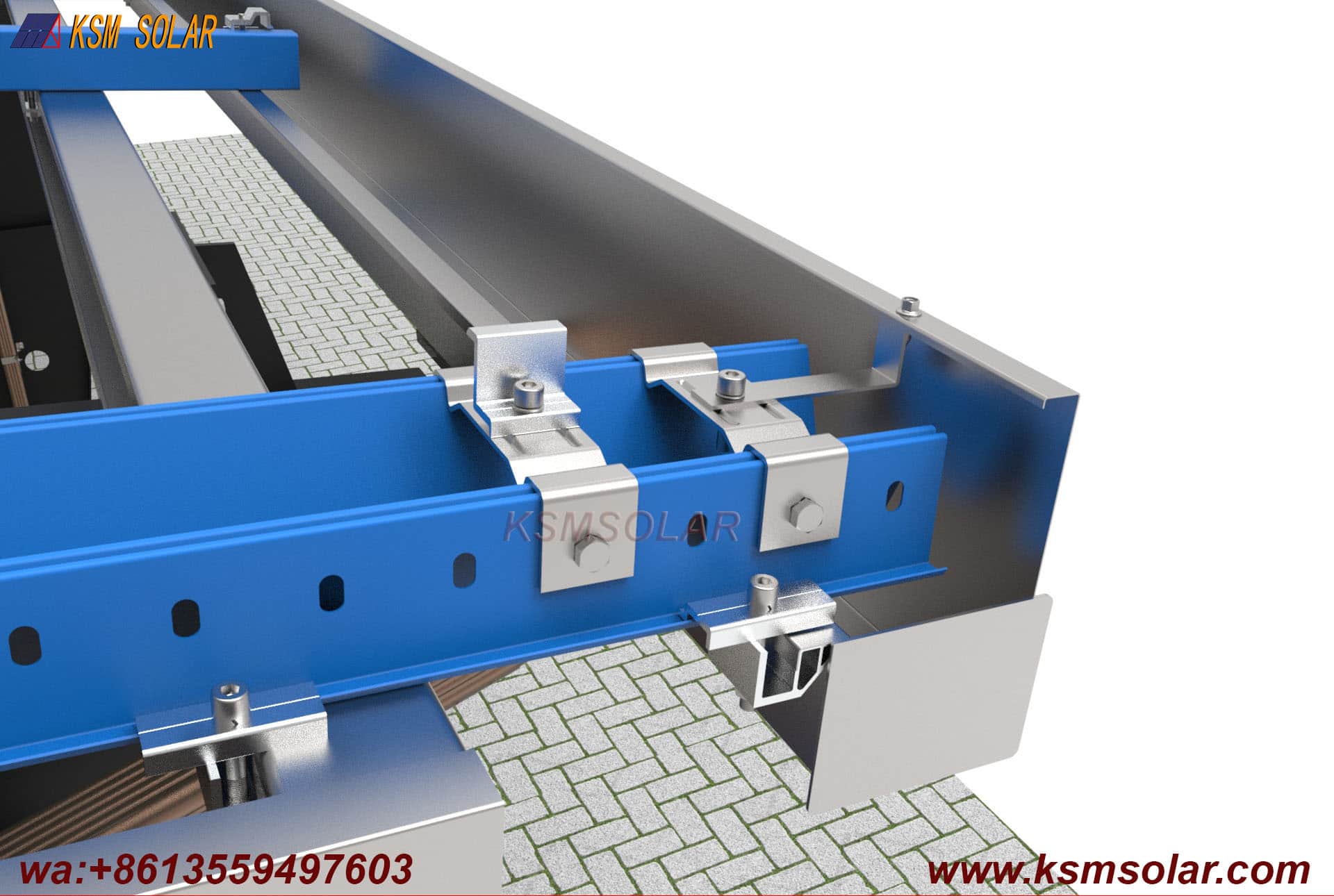

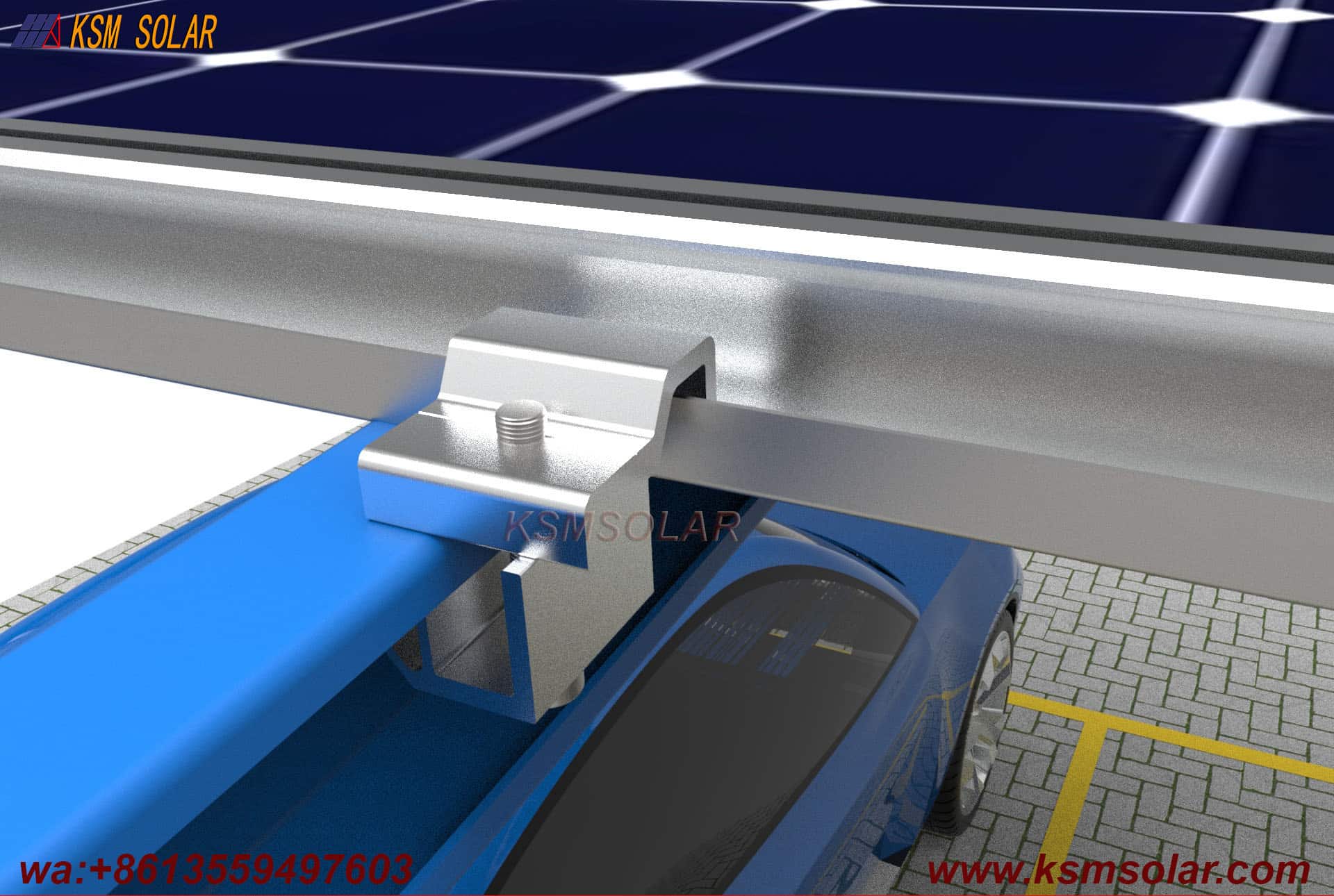

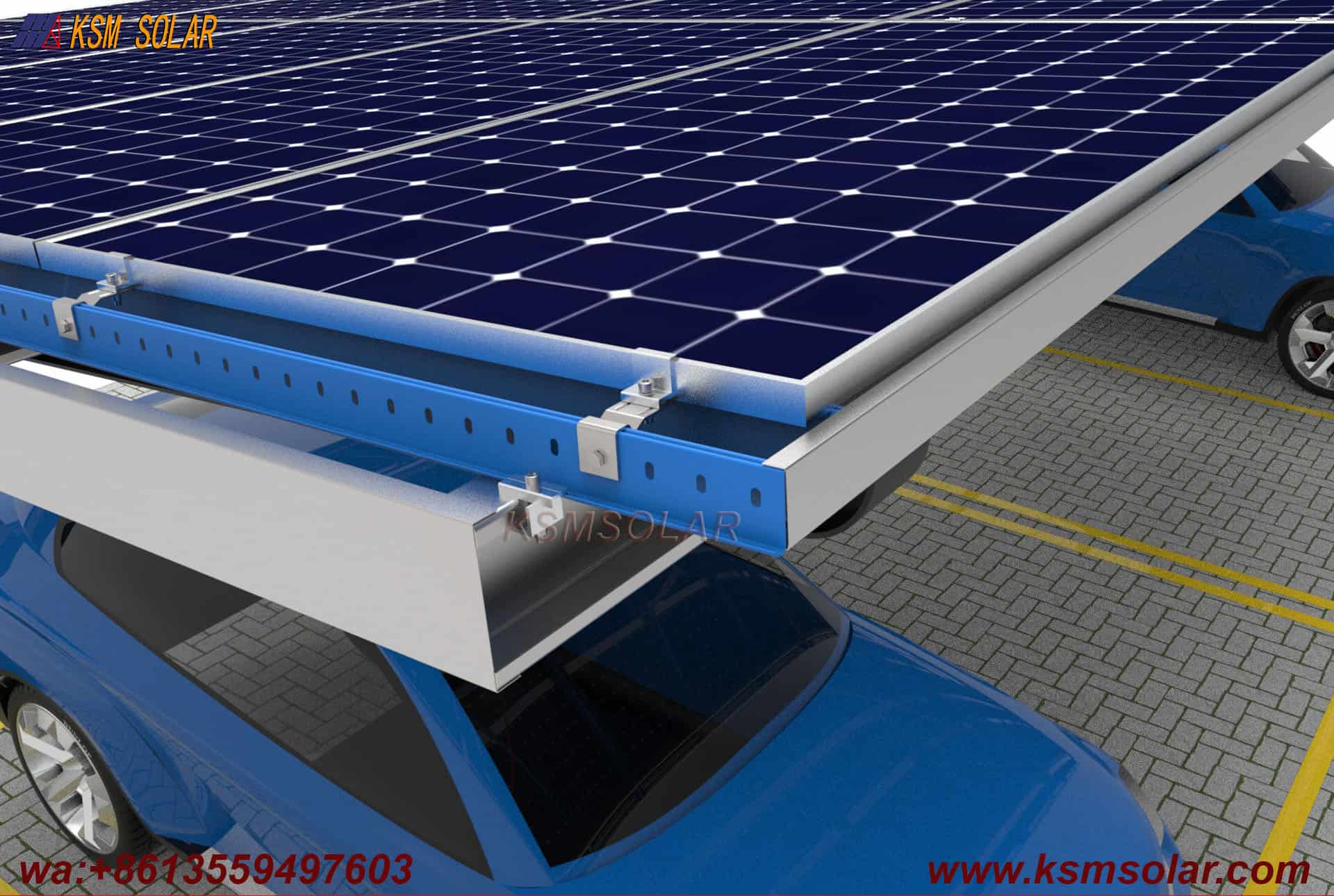

• Clean Mounting Surface: The top flange of the horizontal beam provides a perfectly straight, uninterrupted surface for attaching PV mounting rails. The absence of protruding connection hardware allows for simple, direct rail attachment.

• Integrated Cable Management: Conduits for PV wiring can be neatly secured along the underside of the beam, protected and out of sight. The design facilitates straightforward routing to centralized inverters.

• Architectural Cohesion: The repetitive, clean lines of the monolithic units create a strong, orderly visual rhythm. The structure makes a bold architectural statement of strength and simplicity, suitable for modern commercial, institutional, and high-design residential applications.
