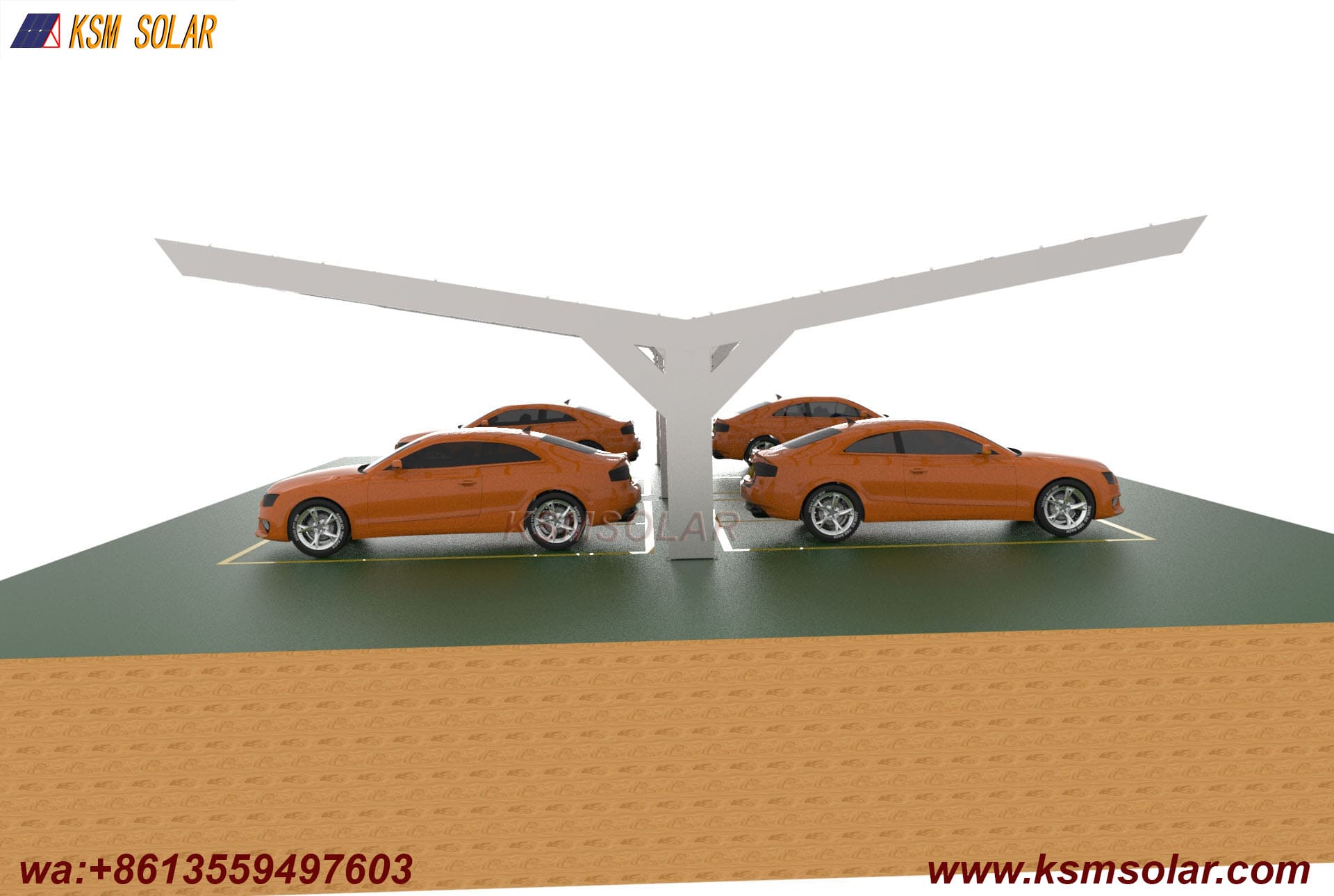

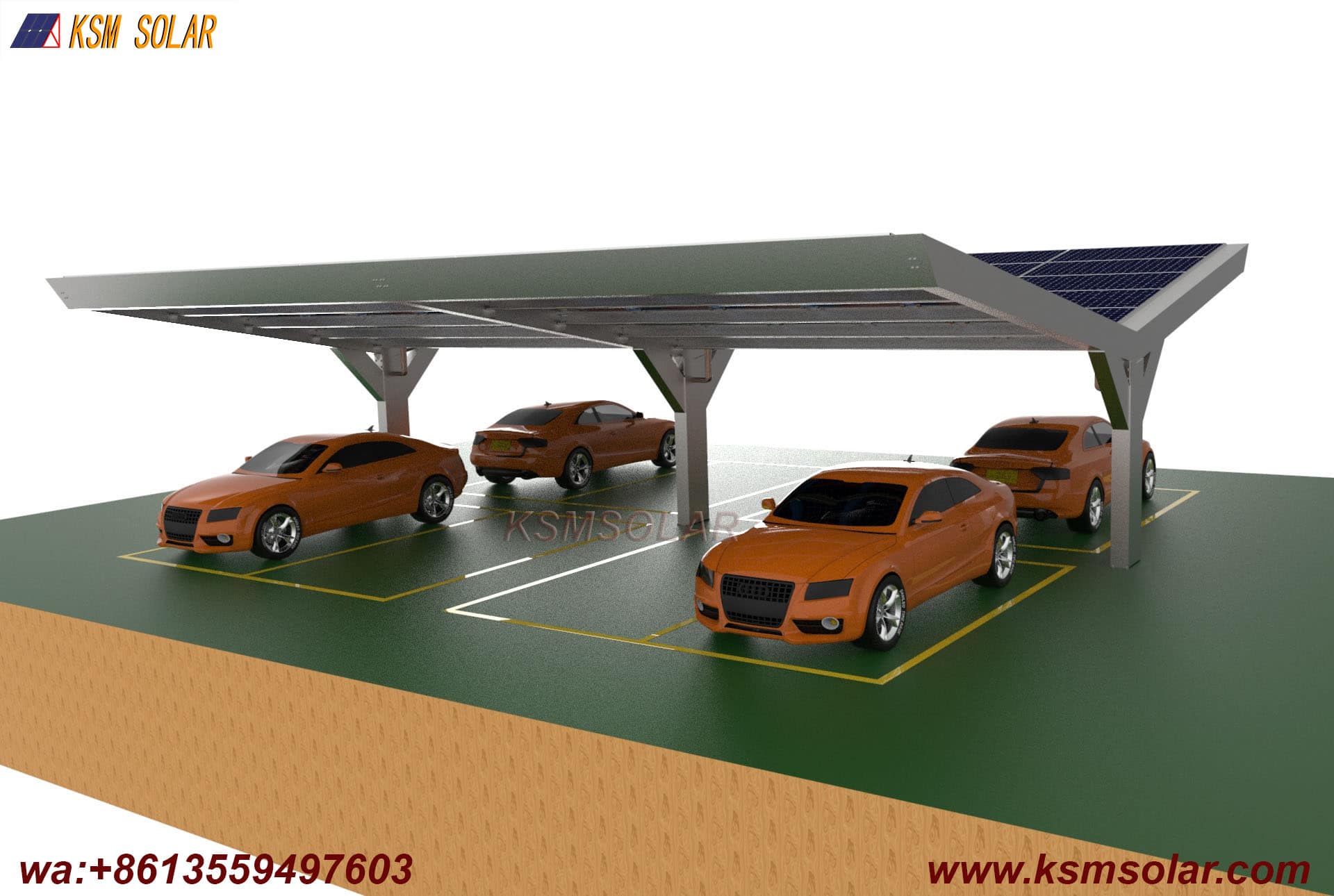

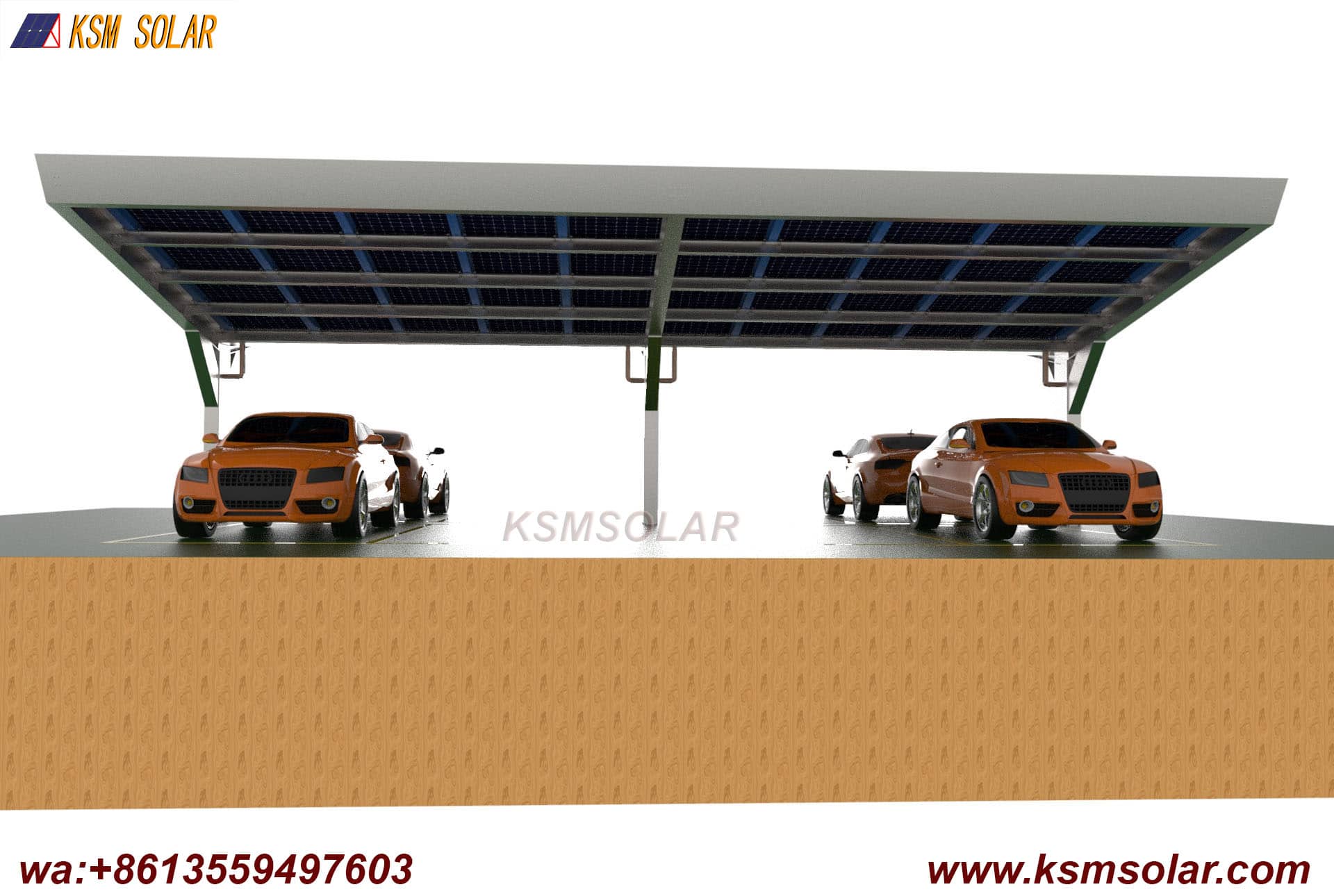

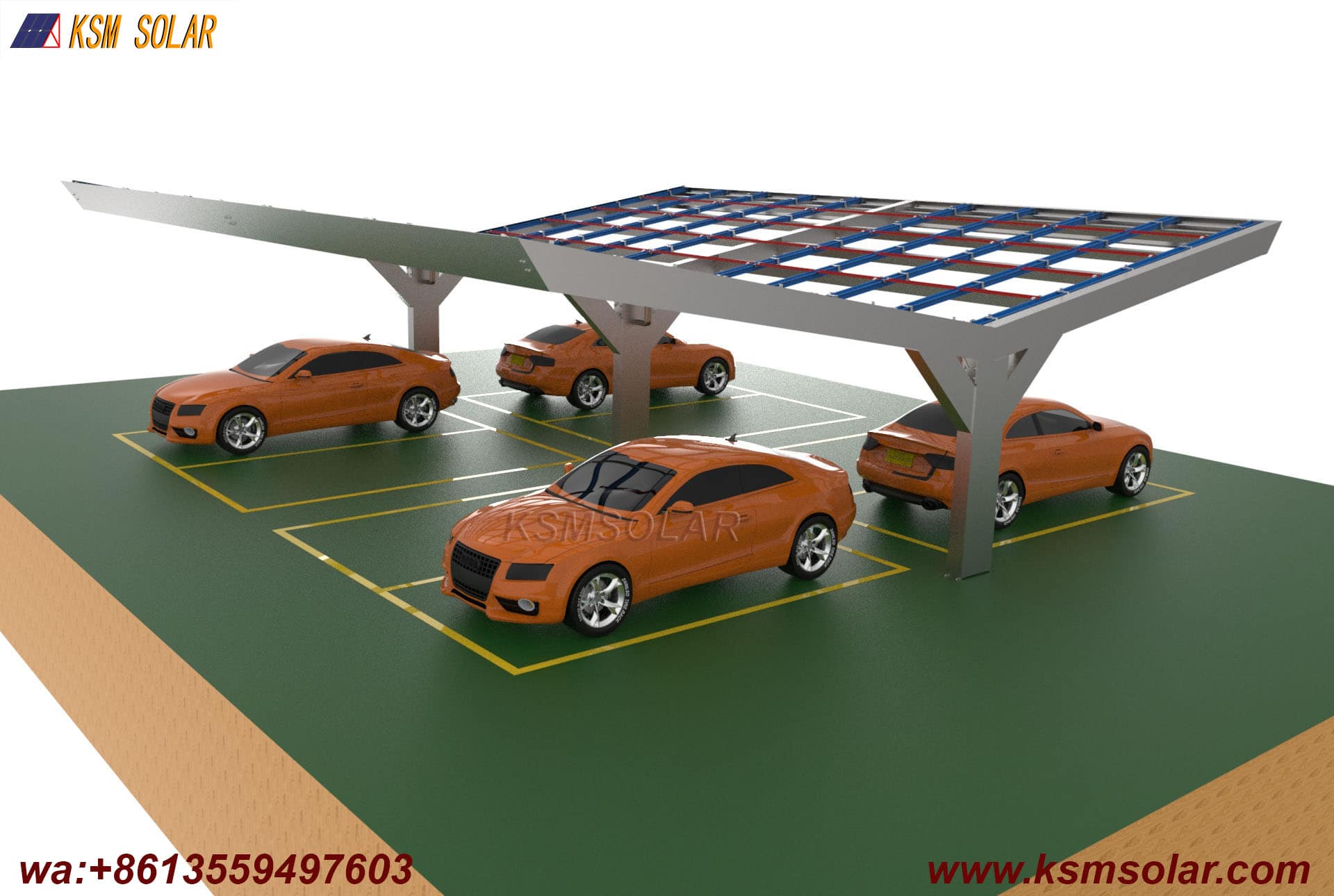

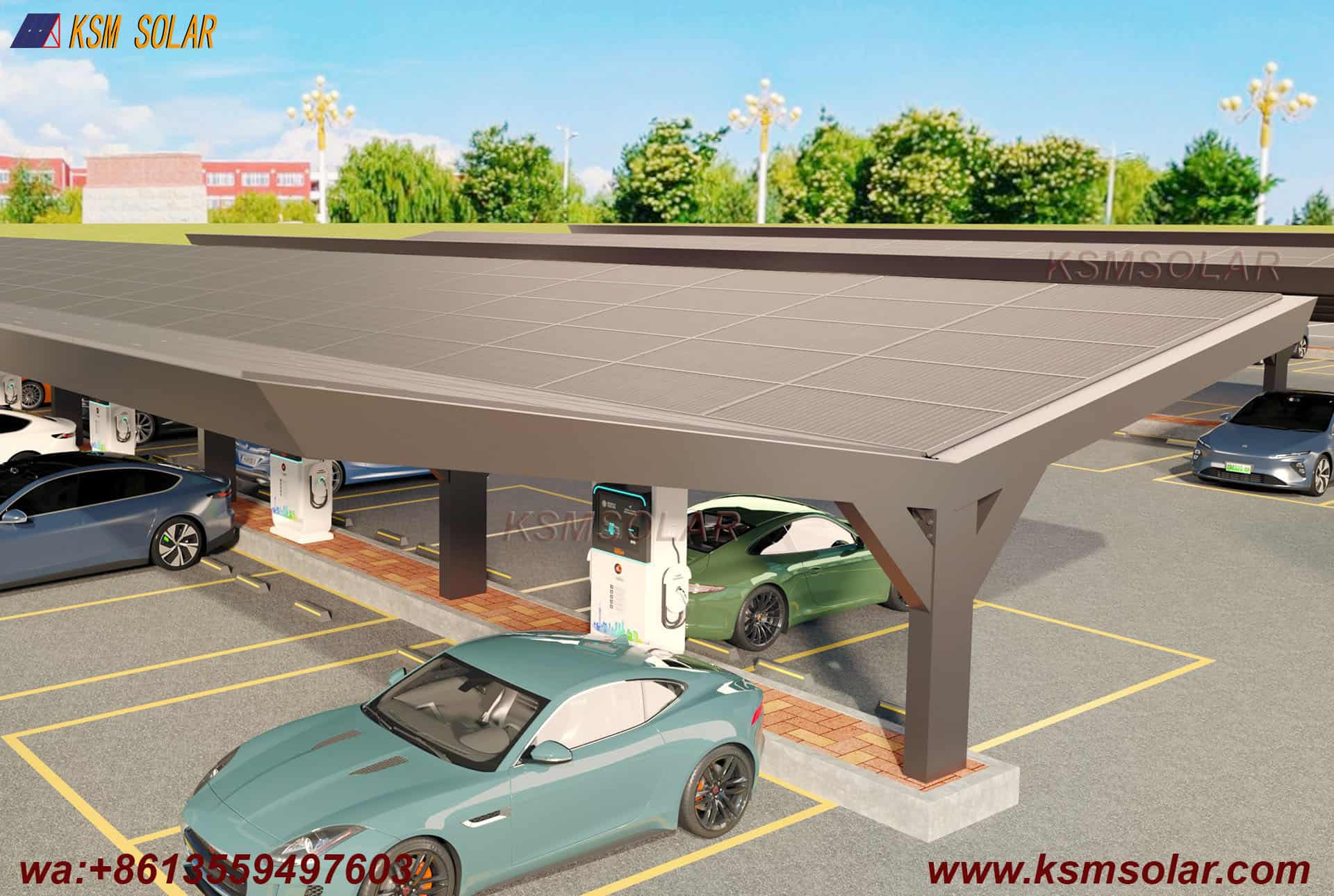

Custom Y-Shape Single-Column Dual-Incline Waterproof PV Carport represents a sophisticated departure from conventional carport geometry, engineered to deliver expanded coverage, enhanced visual impact, and optimal structural performance through a singular support point. The distinctive Y-shaped configuration, emanating from a single central column and branching into two inclined roof planes, creates a harmonious balance between functional shelter, efficient rainwater management, and architectural presence for high-design applications.

Core Engineering and Performance Characteristics

1. Strategic Y-Shape Structural Configuration

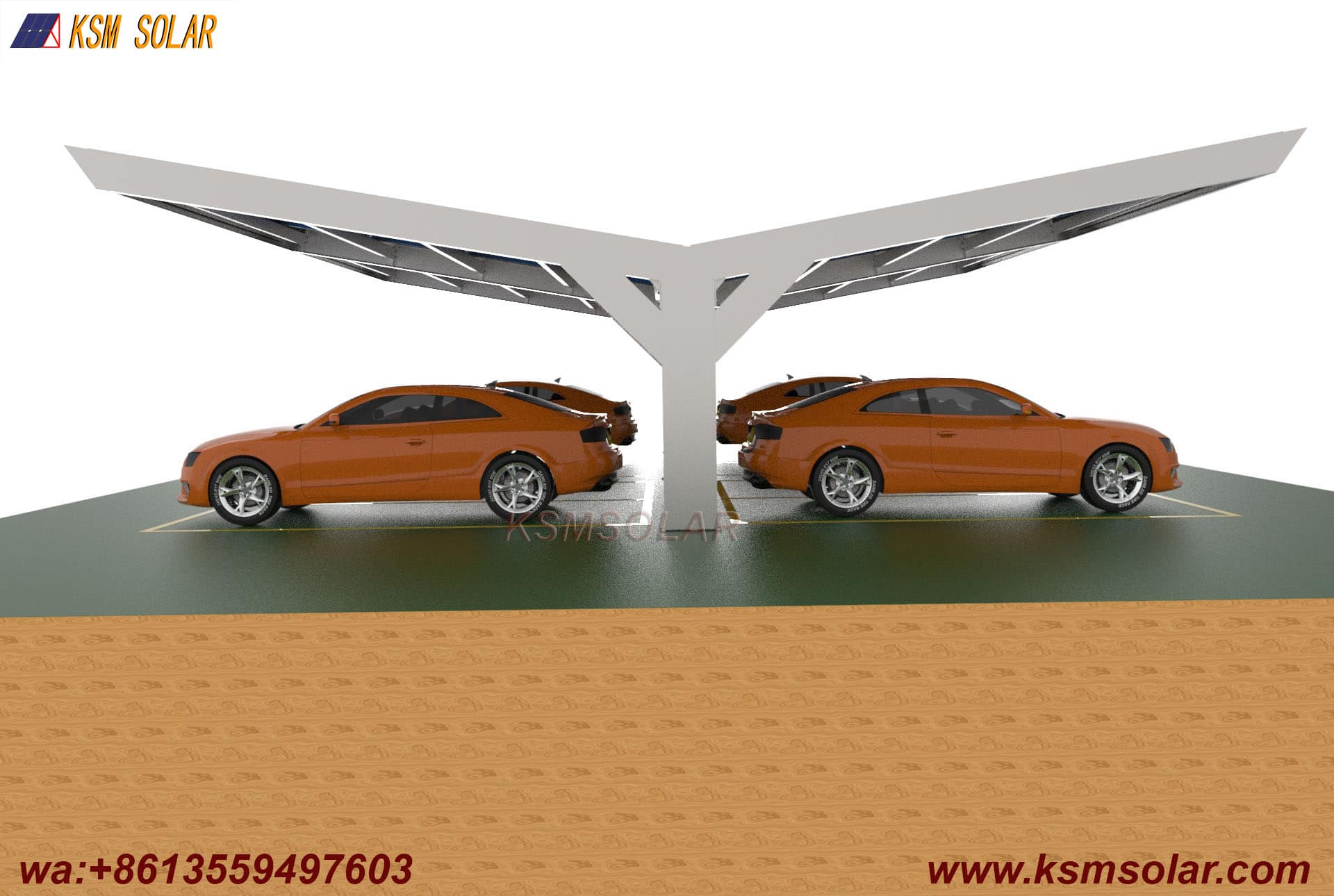

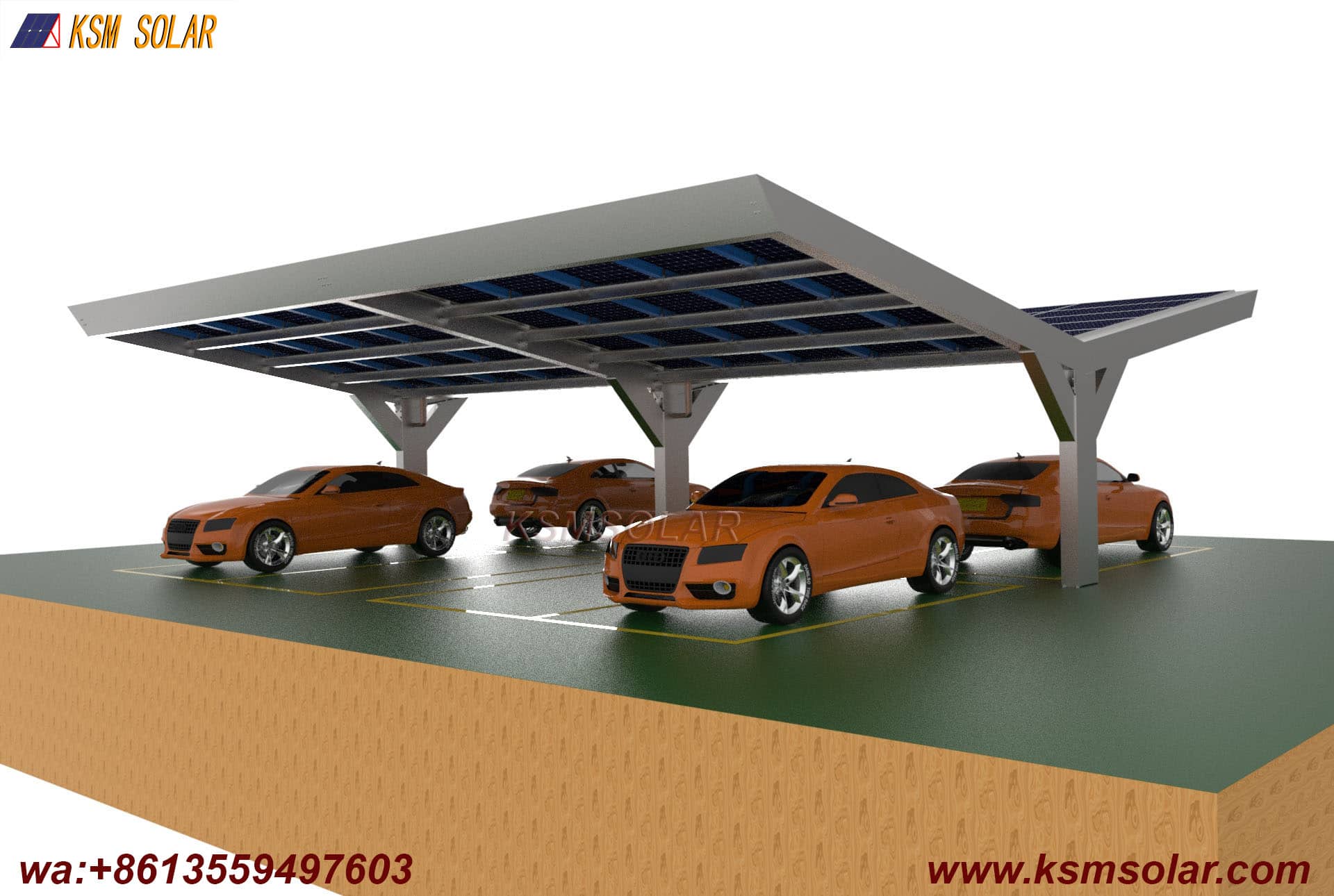

• Centralized Support Philosophy: A single, robust central column—typically utilizing large-diameter, thick-walled round or polygonal steel tubing—acts as the structural nucleus. This column is engineered with a multi-planar flange or cast steel node at its top to facilitate the secure branching of the primary roof beams.

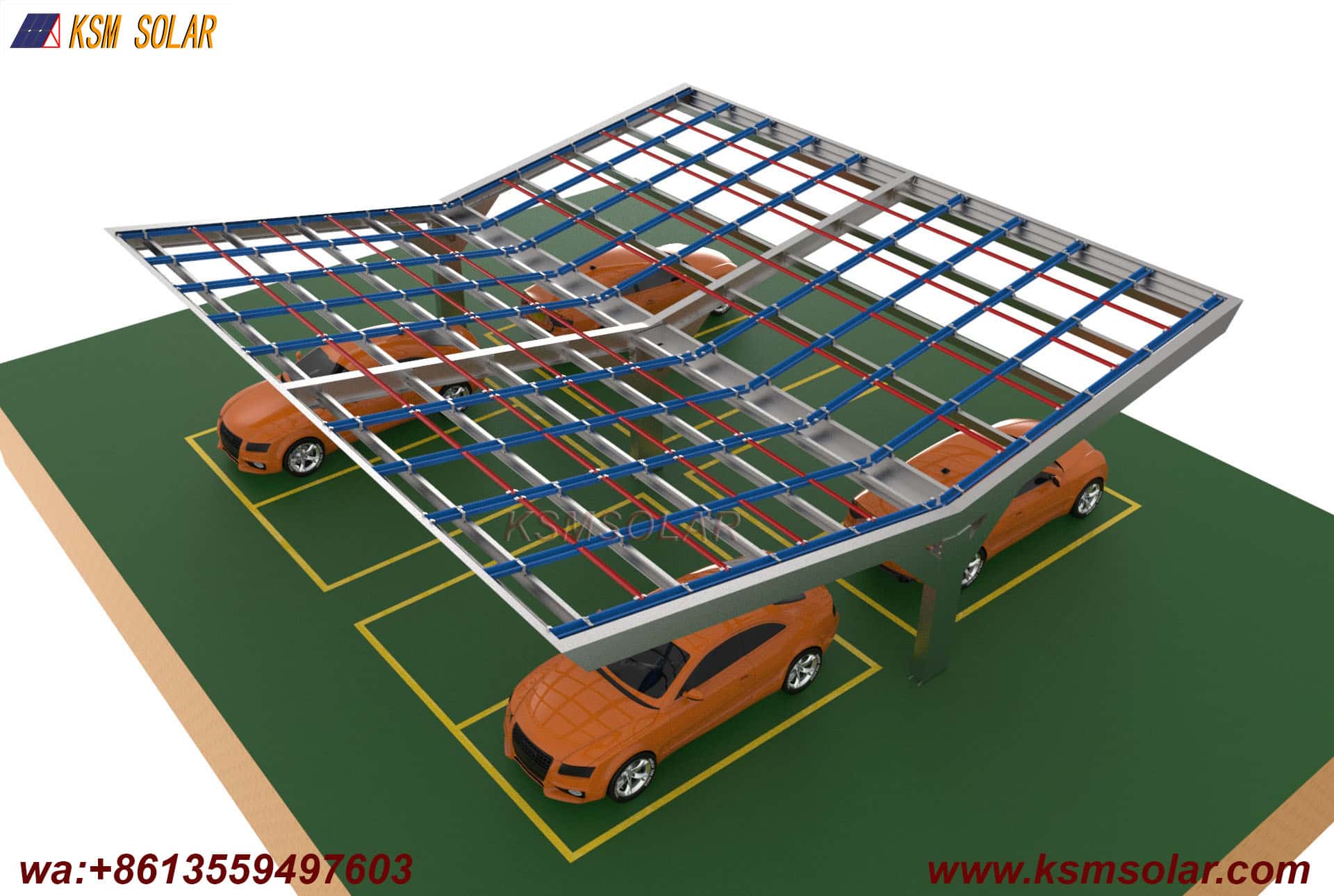

• Dual-Branch Beam Architecture: Two primary load-bearing beams extend from the central node at a calculated angle (typically 90-120 degrees apart), forming the arms of the "Y." This bifurcation effectively triples the sheltered perimeter compared to a standard single-column circular design, while maintaining structural coherence.

• Asymmetric Load Management: The design inherently manages differential loading between the two roof arms through the rigidity of the central node and potential integration of a subtle tension ring or tie system within the roof plane.

2. Dual-Incline Waterproof Roof System

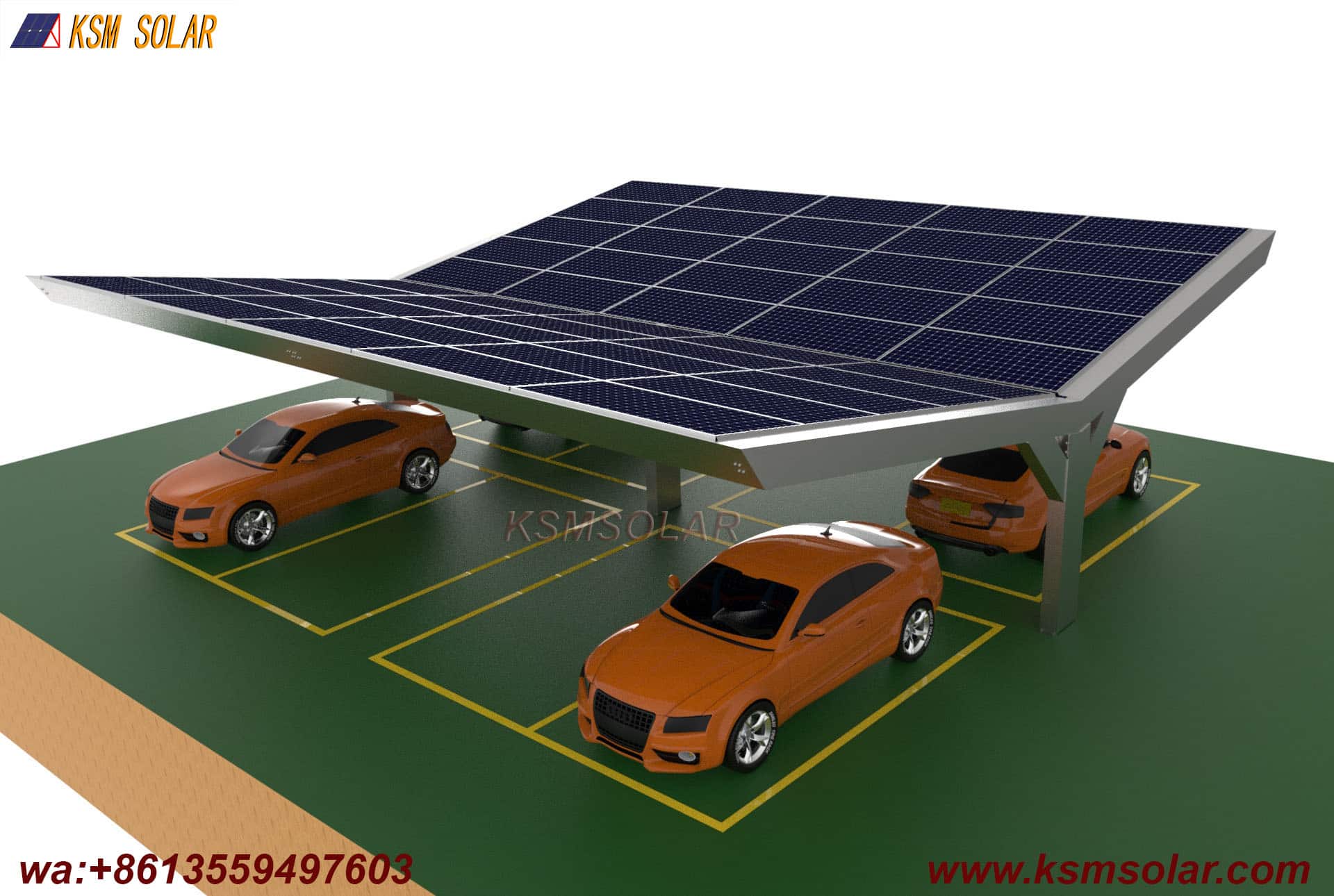

• Independent Yet Integrated Roof Planes: Each arm of the "Y" supports its own single-slope roof section. The two planes can be designed with identical or differing pitches and orientations, allowing for site-specific optimization of solar gain, water runoff, and aesthetic proportion.

• High-Performance Waterproof Envelope: Each roof plane is finished with a continuous, reinforced single-ply membrane (e.g., TPO, PVC, or EPDM). The critical seam where the two planes meet at the central column is executed with a custom-fabricated, field-welded flashing detail to guarantee absolute water integrity at this complex junction.

• Diversified Drainage Pathways: Rainwater is shed efficiently along two primary directions. Gutters can be integrated along the lower edges of each roof arm, or water can be directed toward scuppers at the column base, offering flexible drainage strategies.

3. Advanced Frame Engineering and Materials

• Cantilevered Structural Dynamics: The primary beams function as tapered cantilevers, with cross-sections potentially transitioning from deeper profiles at the column to shallower ones at the extremities to optimize material use and visual lightness.

• Node Engineering Excellence: The central connection node is the project's structural and fabrication keystone. It is often a CNC-machined or cast steel component pre-welded to the column, with precisely angled and reinforced sockets for the primary beams, ensuring moment resistance and long-term durability.

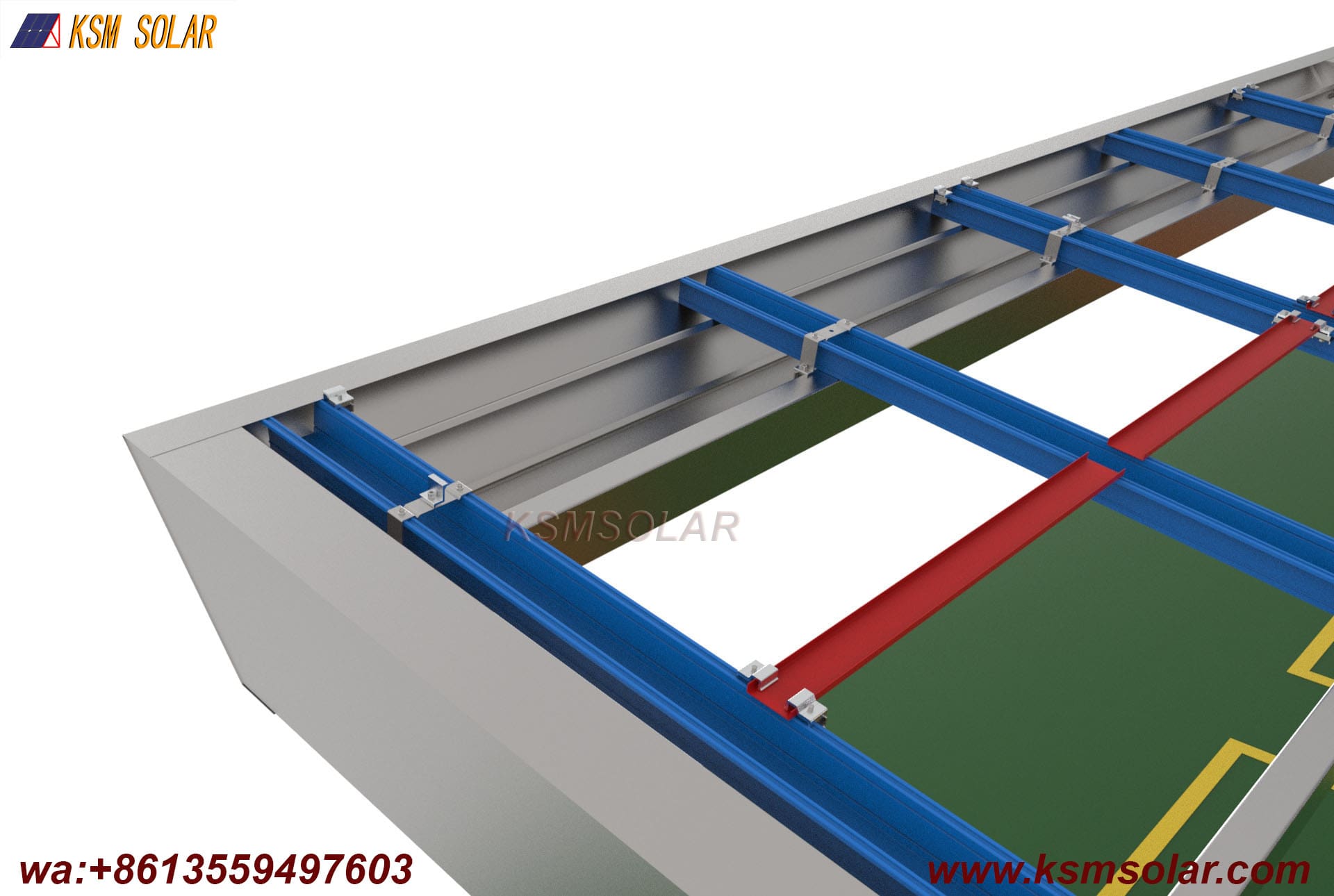

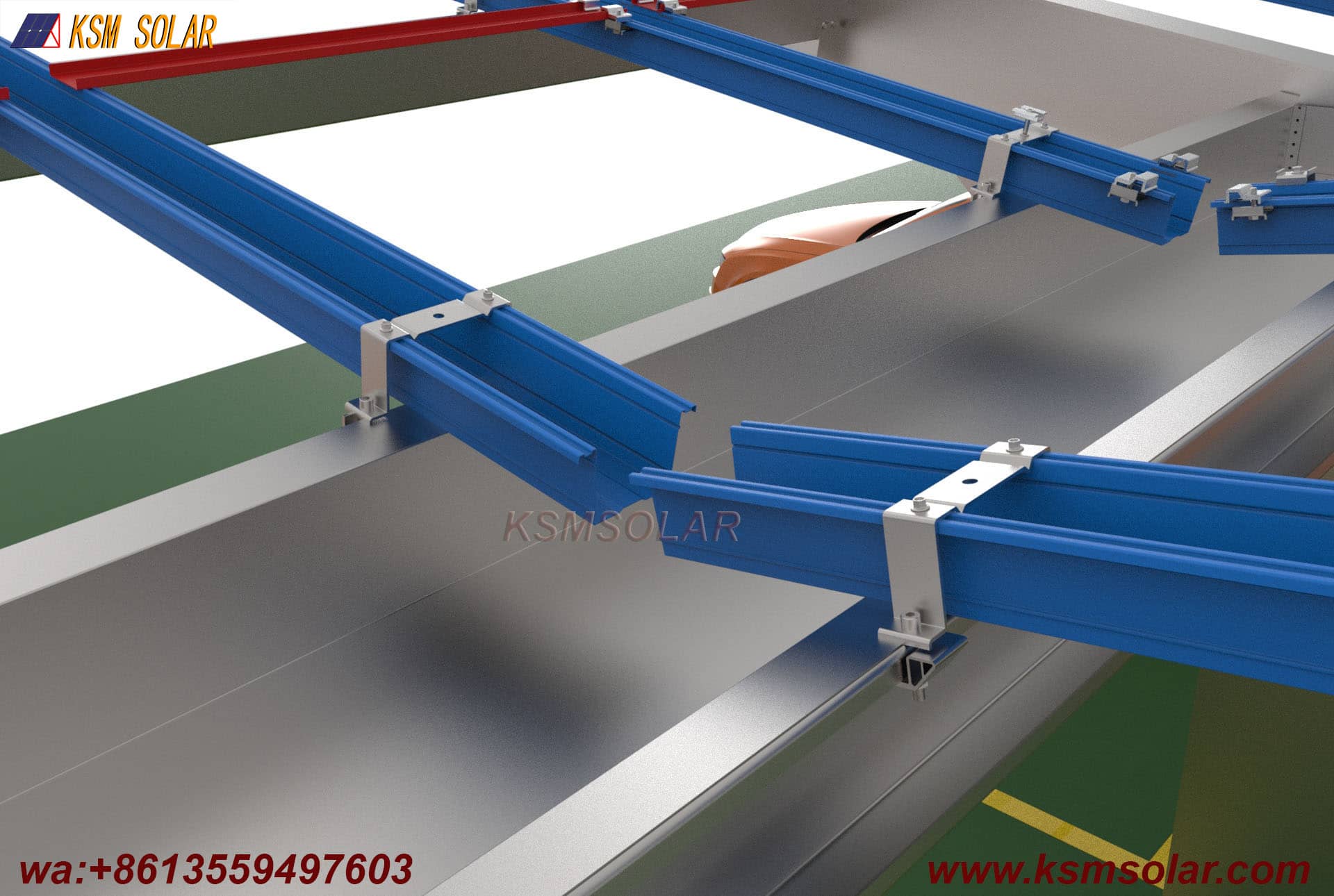

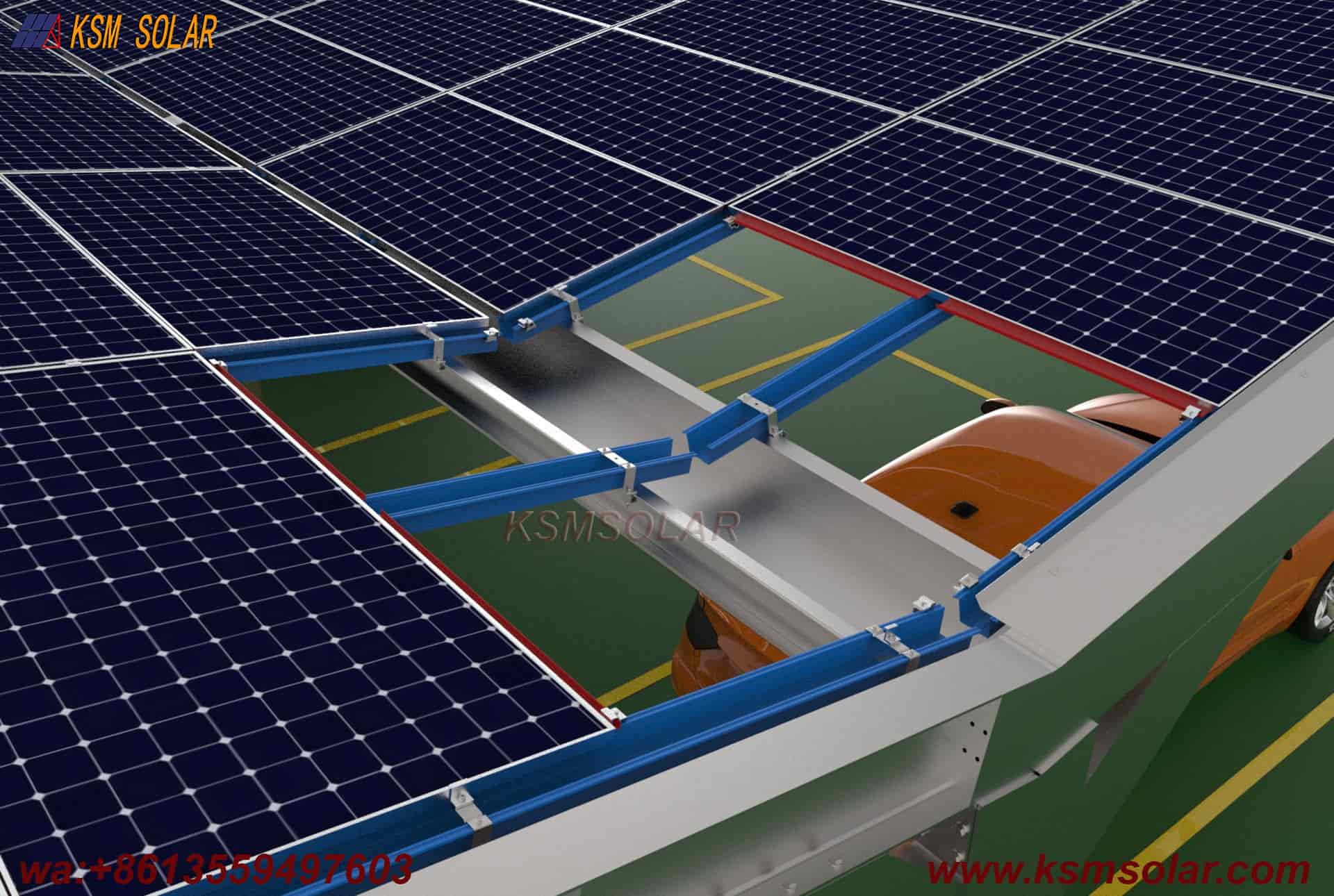

• Secondary Framing Sophistication: A system of purins or light-gauge steel framing spans between the primary beams, providing support for the roof deck and waterproofing membrane. This system is designed for rigidity to prevent "oil-canning" of the roof membrane.

4. Optimized Photovoltaic and Electrical Integration

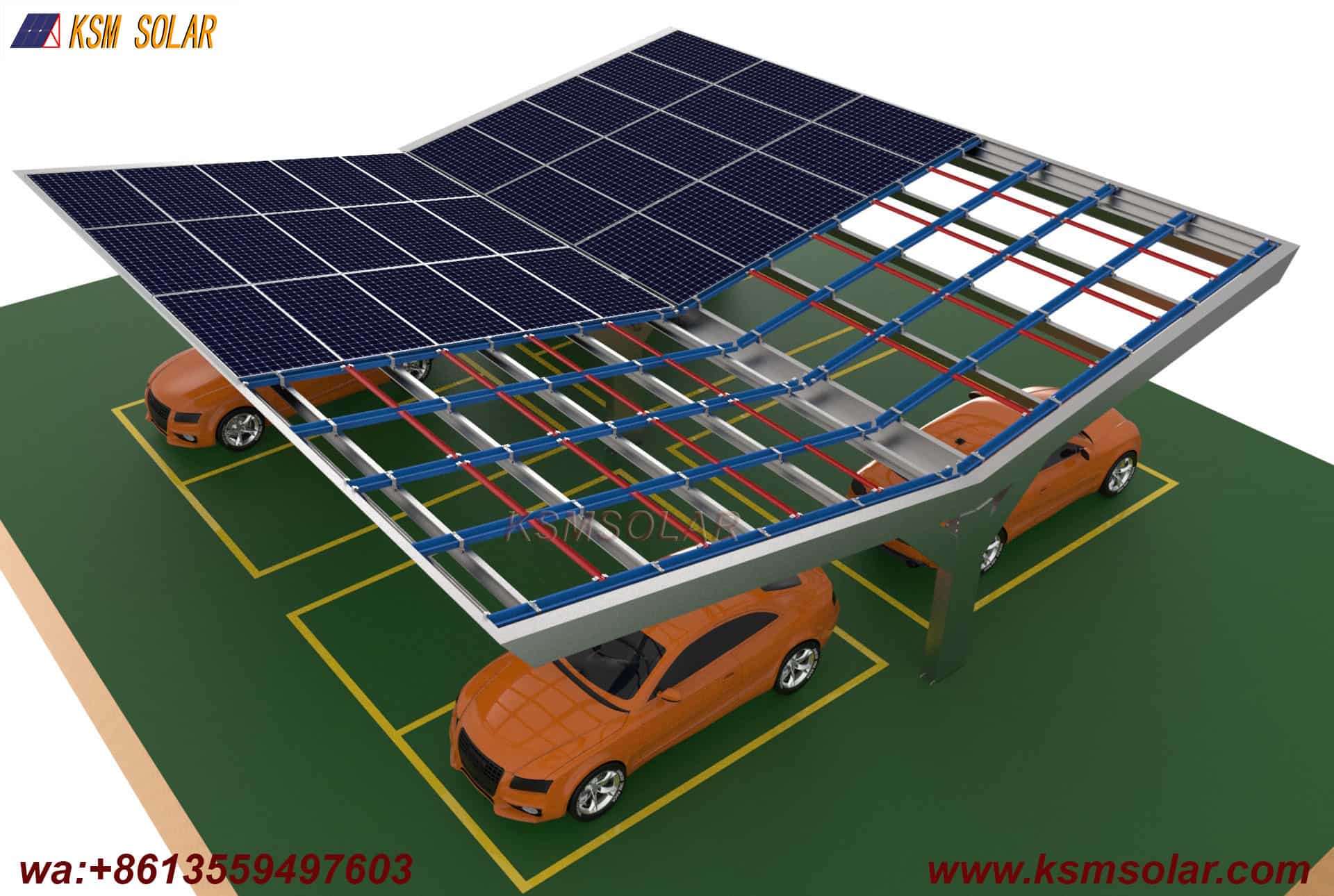

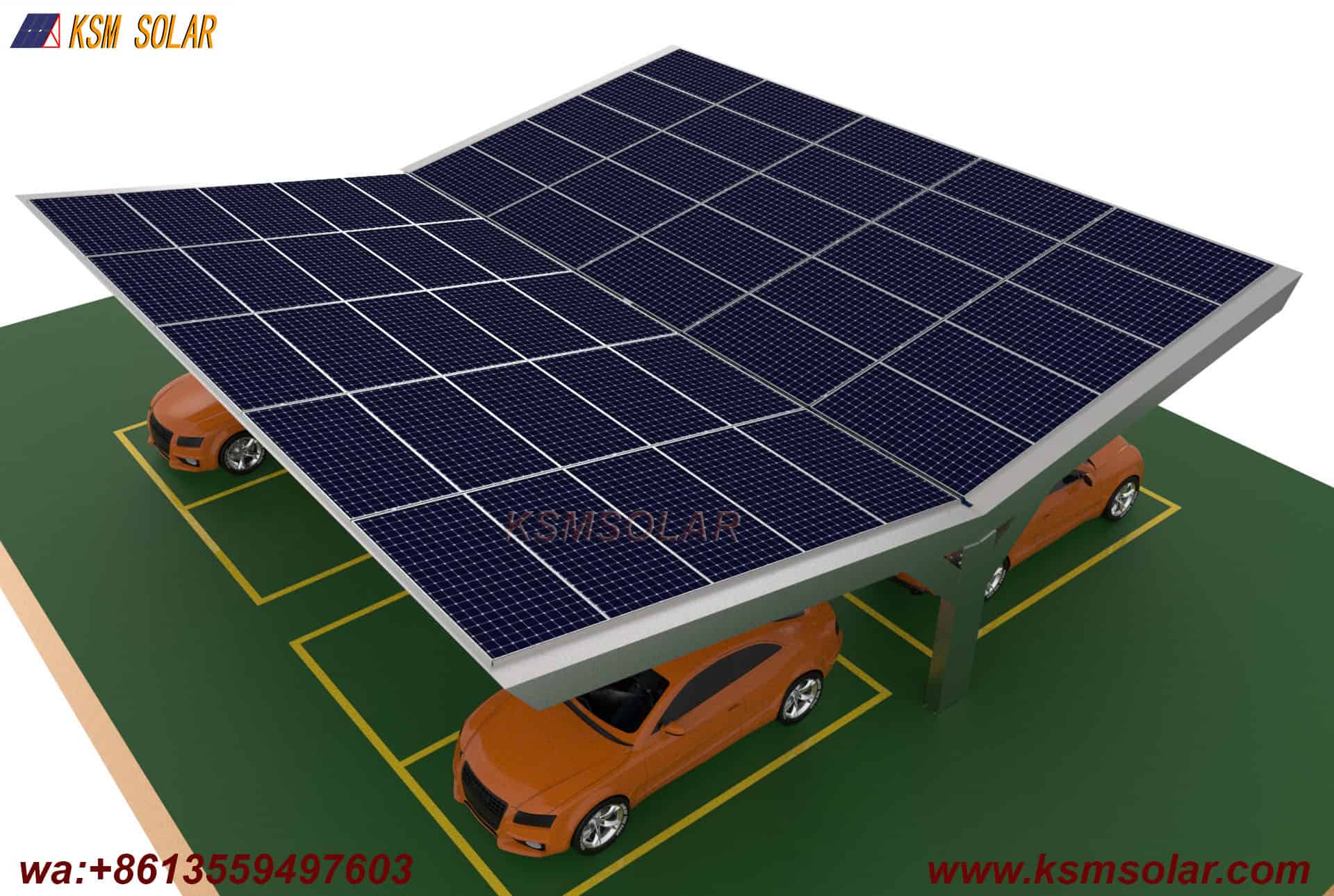

• Dual-Axis Solar Harvesting Potential: The two inclined planes can be oriented to capture sunlight from complementary angles (e.g., east-west or southeast-southwest), effectively extending the daily peak production period and increasing total energy yield compared to a single plane.

• Centralized Power Hub: All electrical conduits from both roof arrays converge neatly at the central column. This column can be designed with an internal chase or an attached enlarged base cabinet to house inverters, combiners, and monitoring systems, centralizing maintenance and protecting equipment.

• Integrated Lighting and Services: The design naturally creates a focal point for architectural downlighting from the central area. Conduits for future EV charging stations can be easily routed along the undersides of the primary beams to parking spots within the shelter's broad footprint.
