A PV trapezoidal metal roof clamp is a mechanical fastening device designed to secure solar mounting systems to the raised ribs of trapezoidal profile metal roofing. Its defining characteristic is its profile-specific base, which matches the geometry of the trapezoidal rib's top surface, providing a stable, load-distributing platform for solar attachments while maintaining weather integrity.

Core Functional Principle: Rib-Top Attachment

• Rib-Centric Engagement: Unlike standing seam clamps that grip vertical seams, trapezoidal clamps are engineered to attach to the flat, horizontal, or gently sloped top surface of the trapezoidal rib .

• Non-Penetrating or Minimally Penetrating Options:

• Clamp-Only (Non-Penetrating): Some designs use compression and friction to grip the rib without penetrating the metal .

• Screw-Down (Penetrating): Most trapezoidal clamps utilize thread-forming screws that penetrate the rib's top surface and secure into the metal, often with integrated sealing washers to maintain waterproofing .

• Load Transfer: The clamp transfers solar array loads (gravity, wind uplift, snow) directly into the roof's structural ribs, which are the primary load-bearing elements of trapezoidal roofing .

Profile-Specific Base Geometry

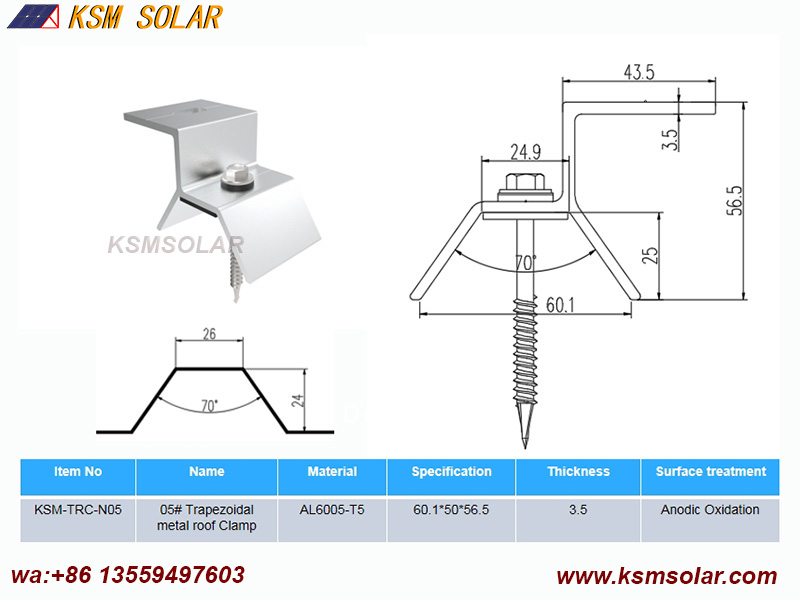

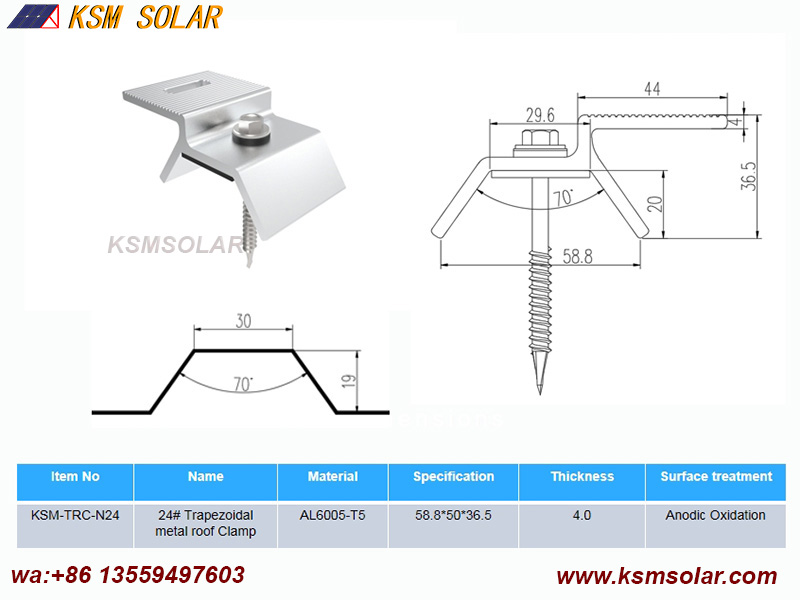

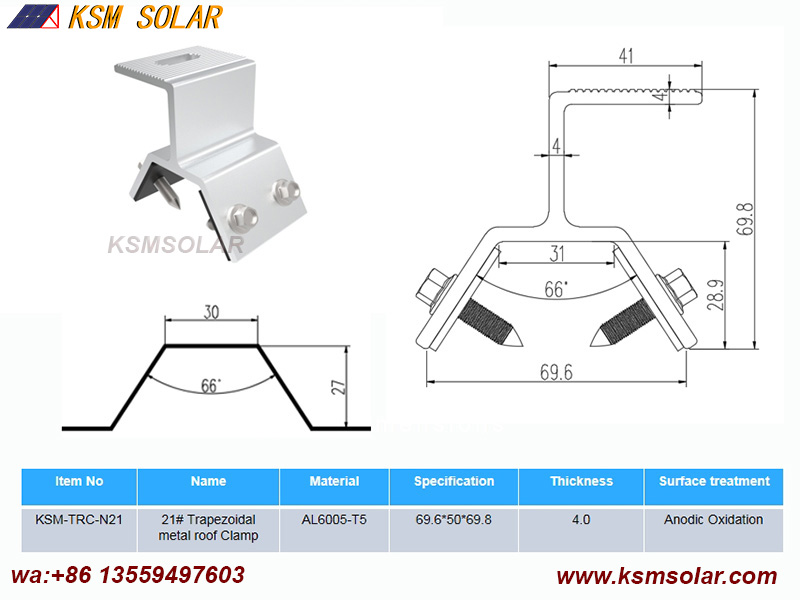

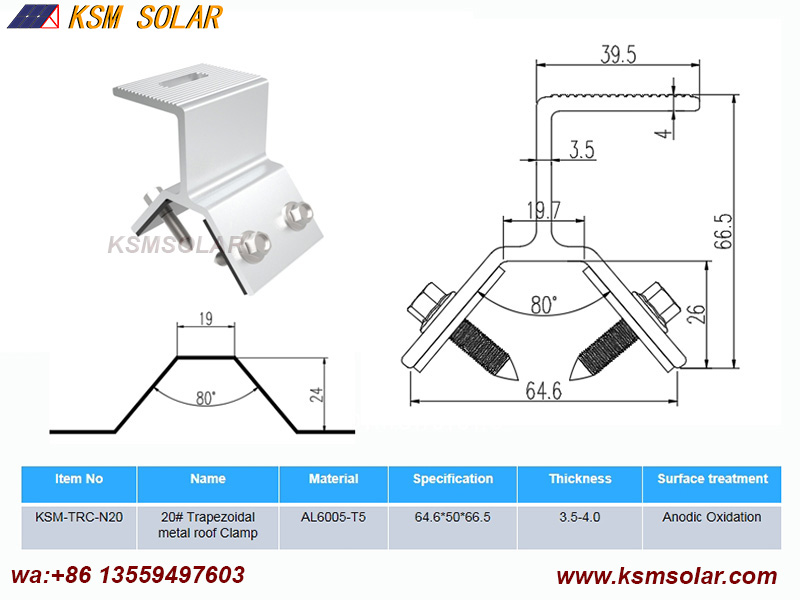

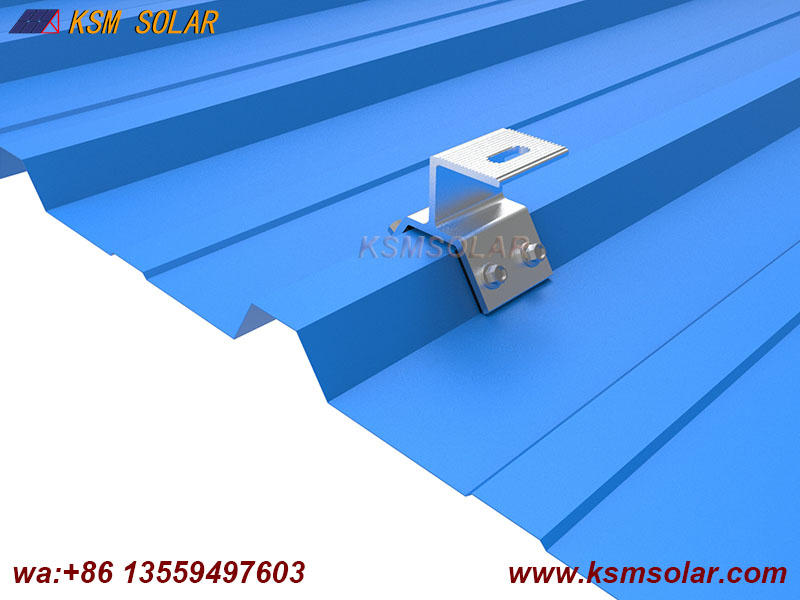

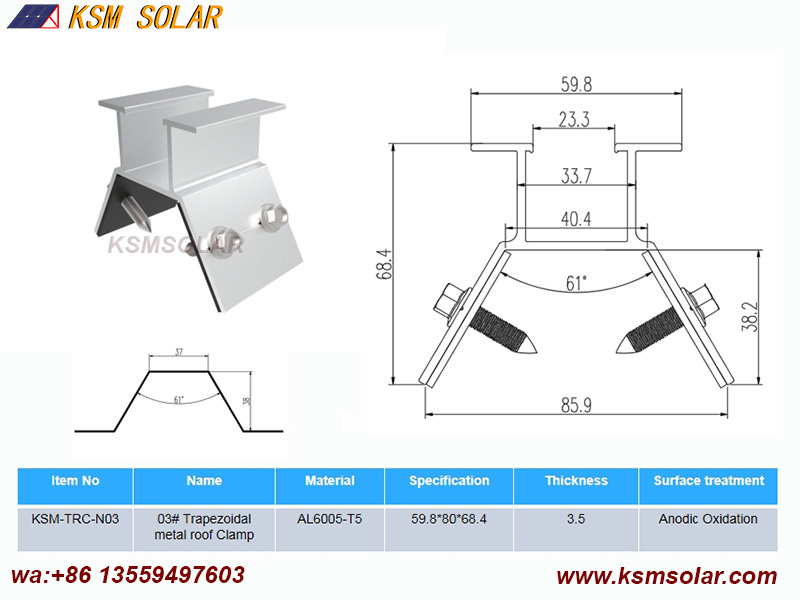

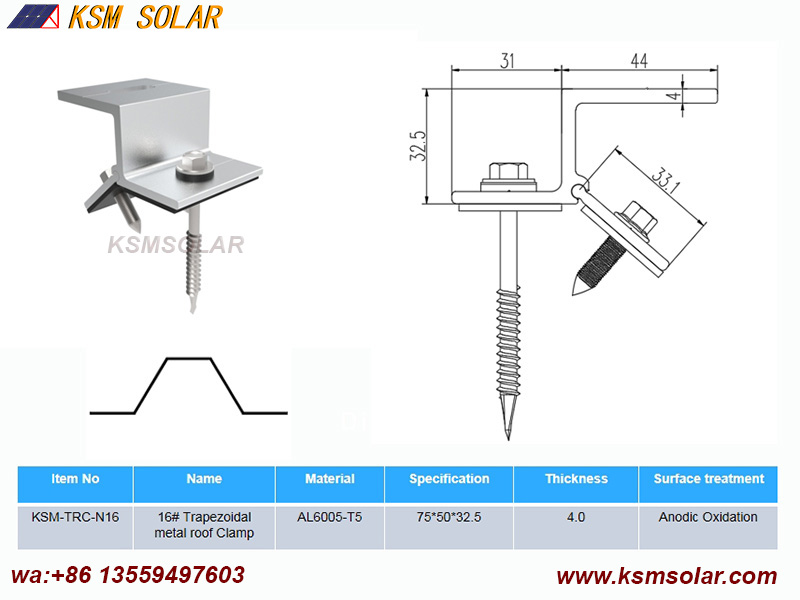

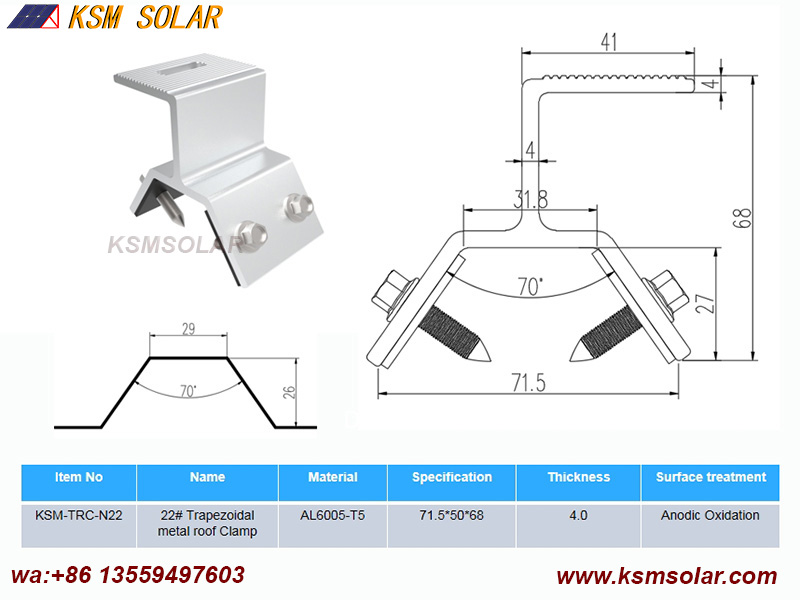

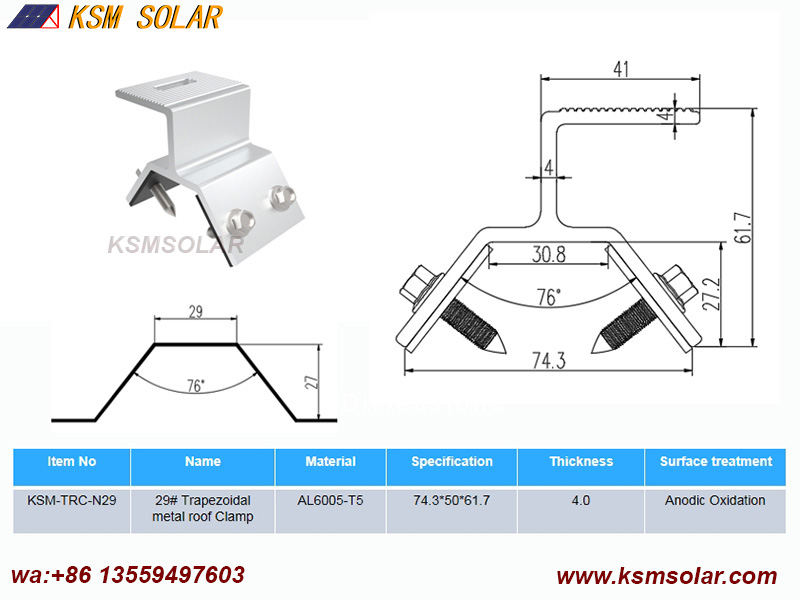

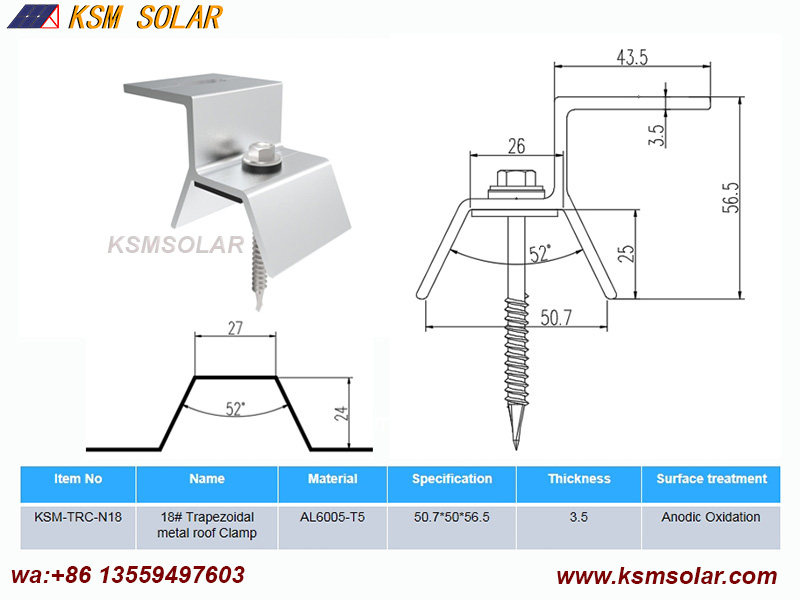

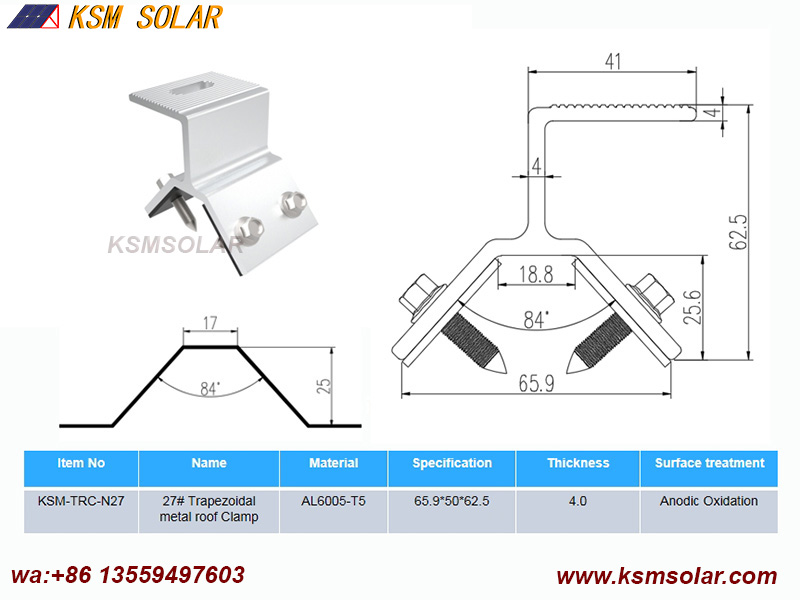

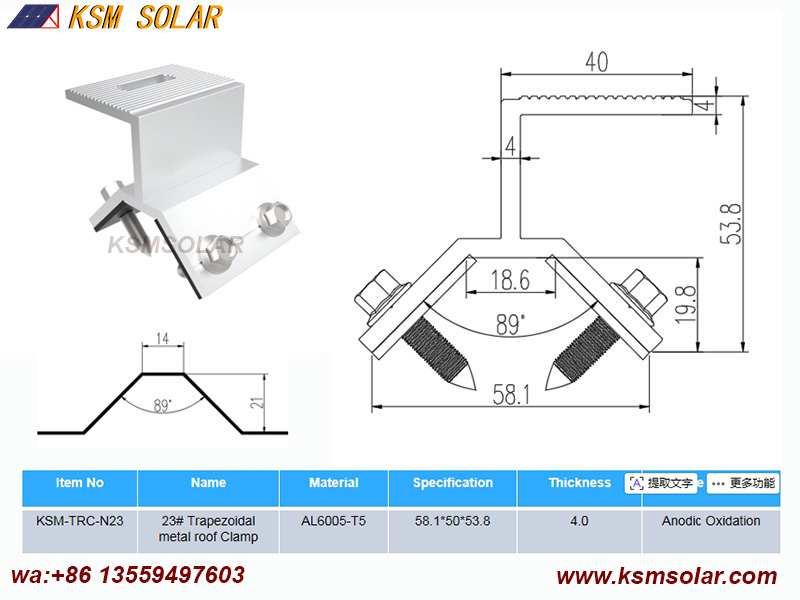

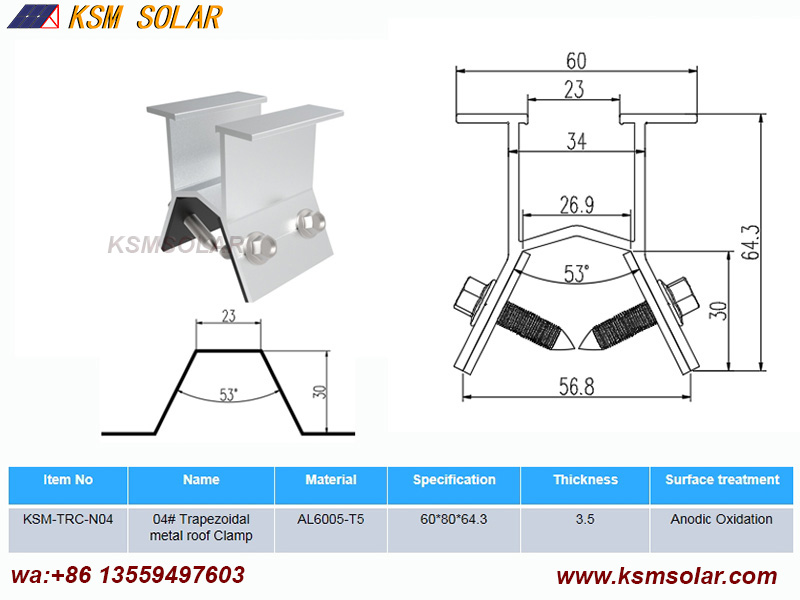

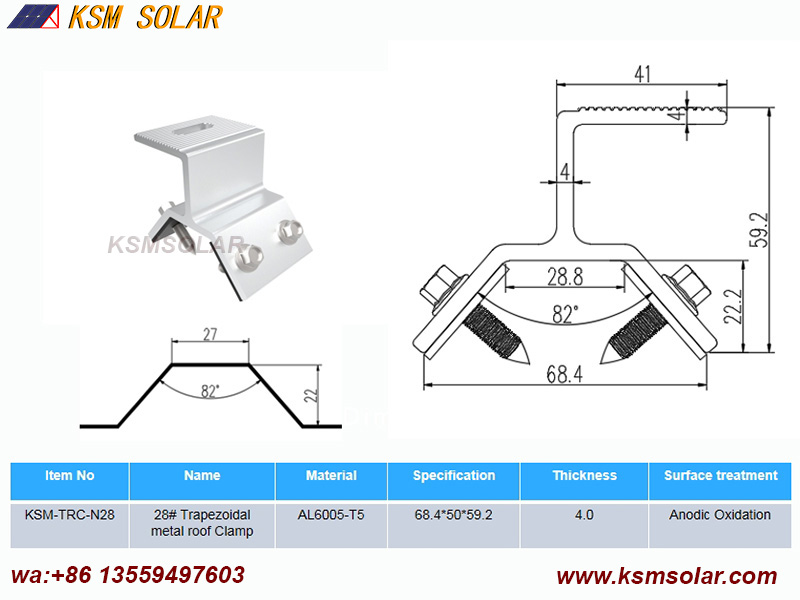

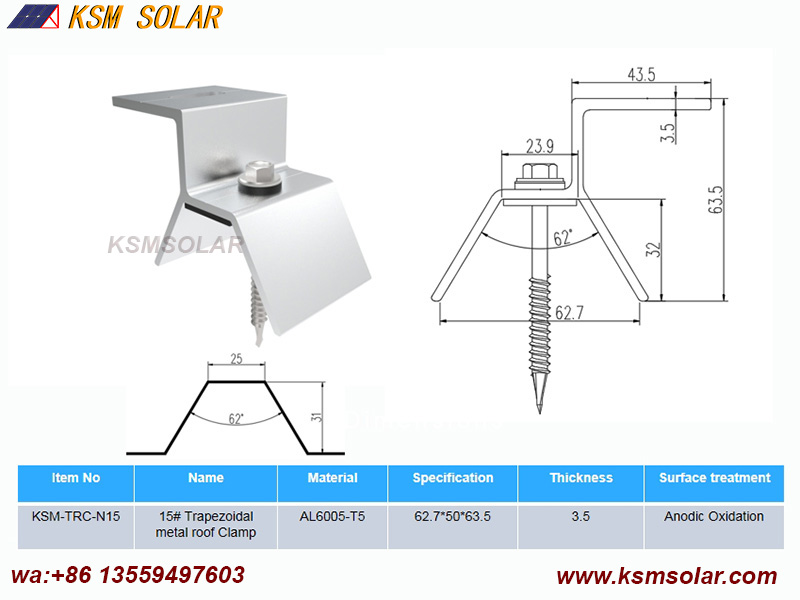

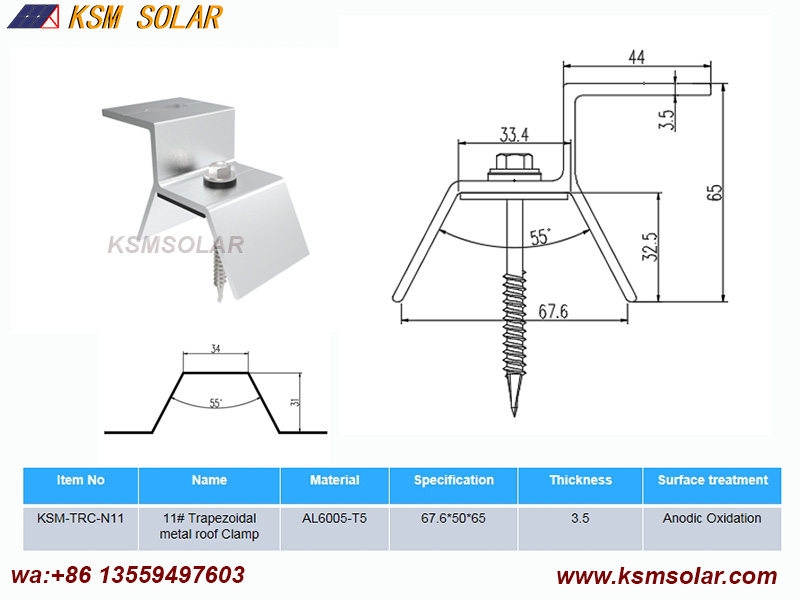

The defining feature of a trapezoidal clamp is its base contour, which is precisely matched to the rib profile:

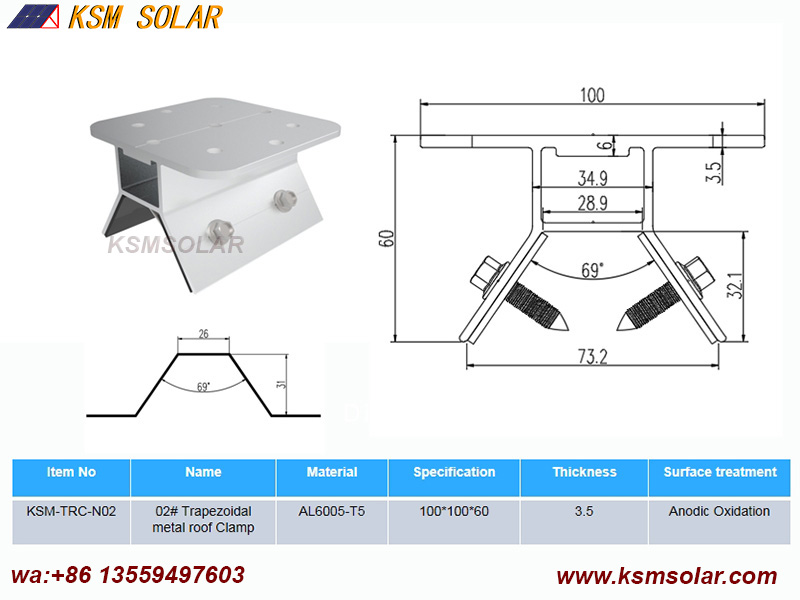

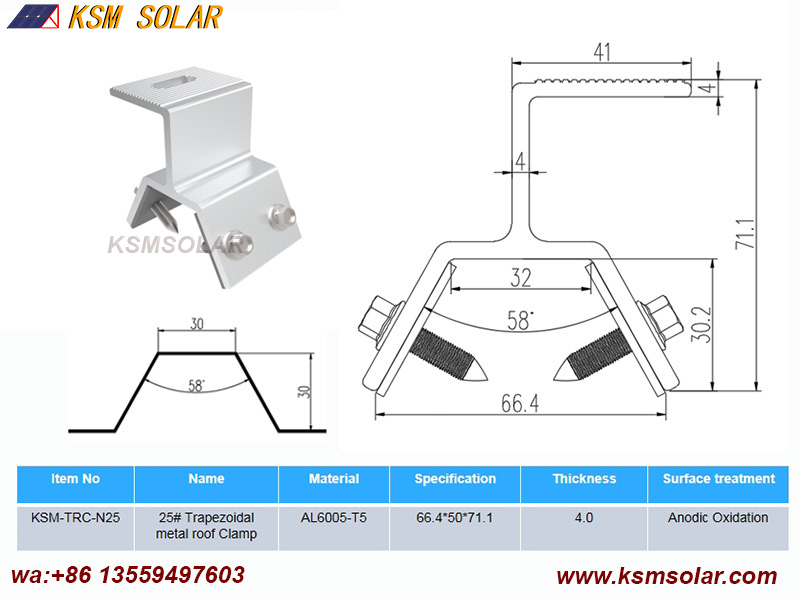

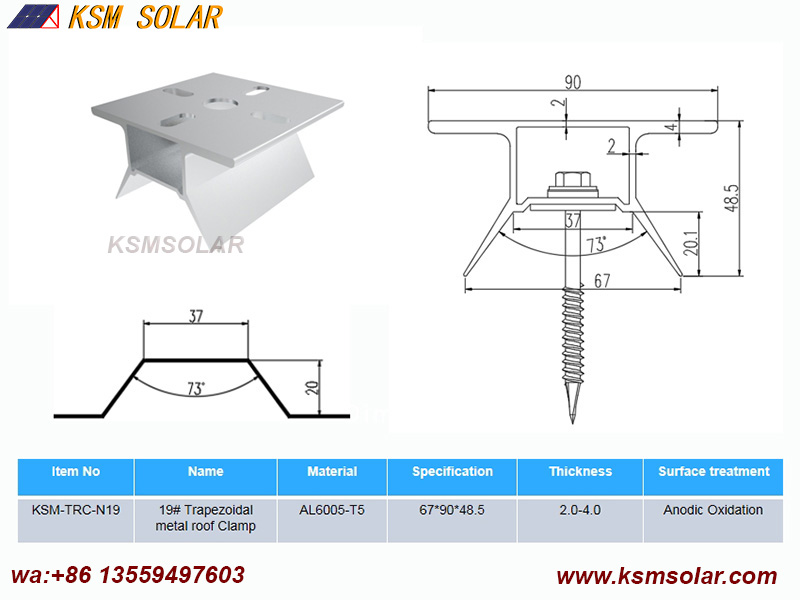

• Flat Top Clamps: For ribs with a flat, horizontal top surface, the clamp base features a matching flat contact area .

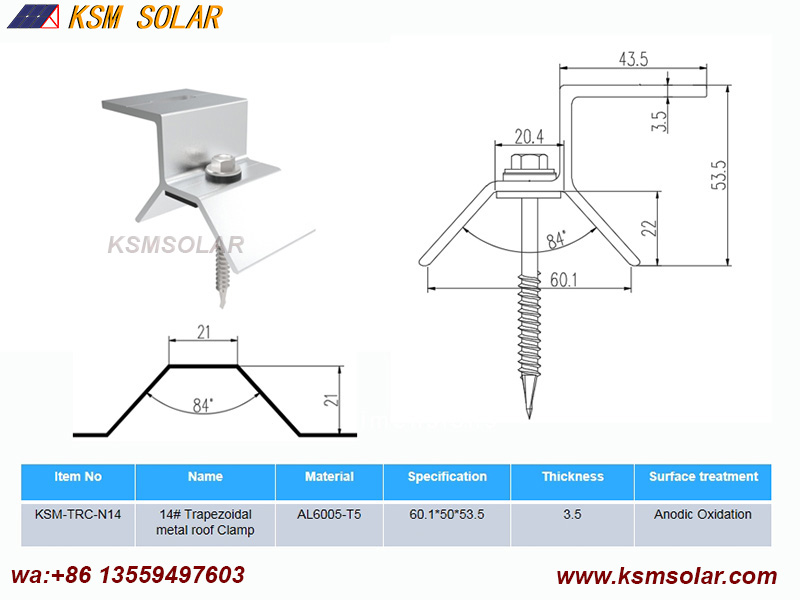

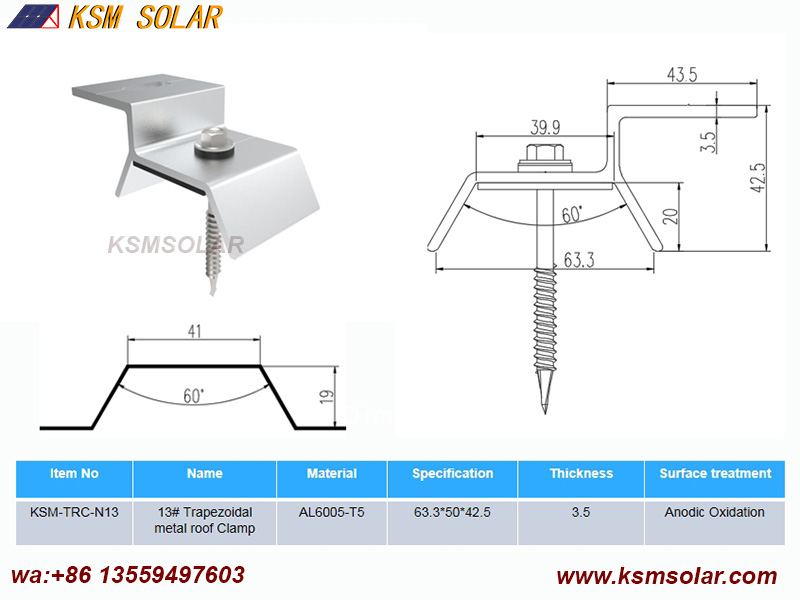

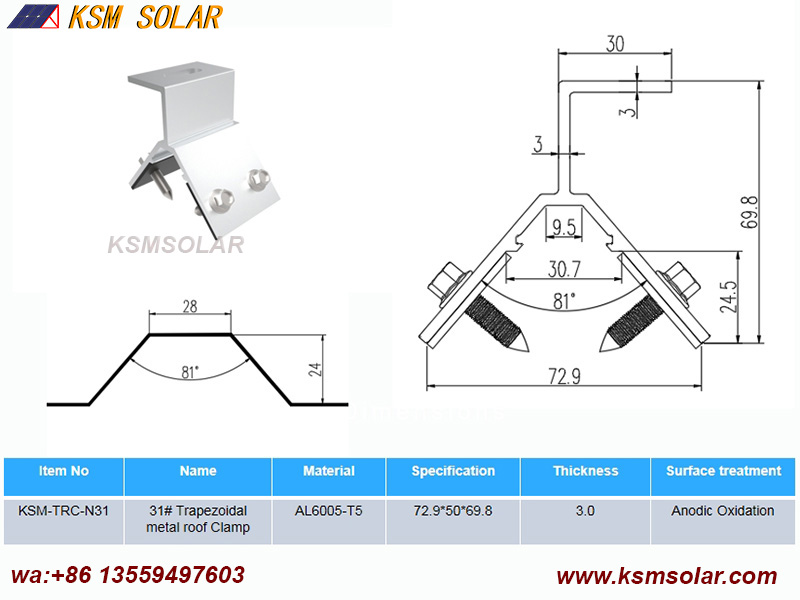

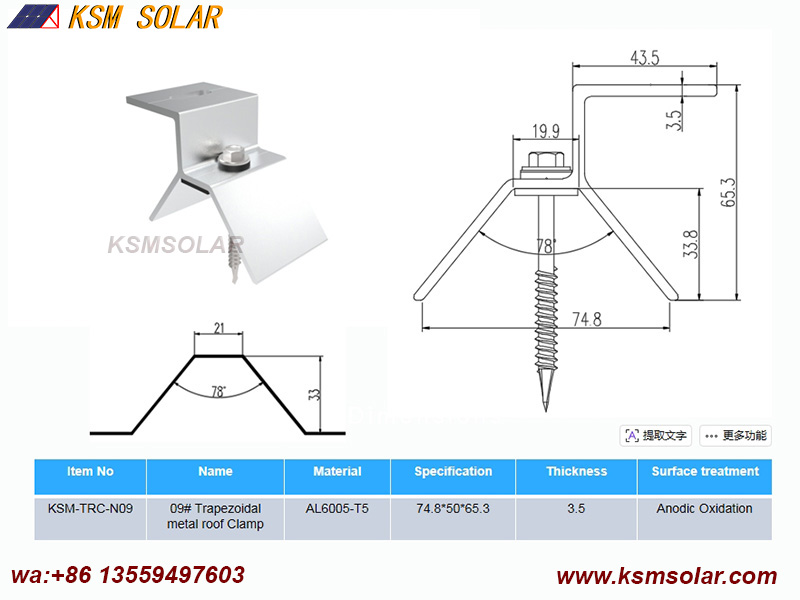

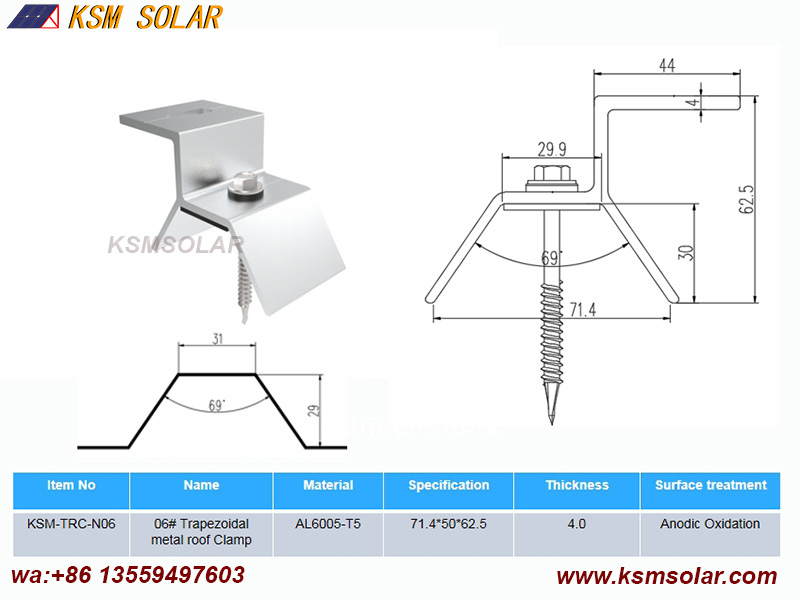

• Angled or Tapered Clamps: For ribs with slightly sloping tops (common in some profiles), the clamp base incorporates a matching angle to ensure full surface contact and prevent point-loading .

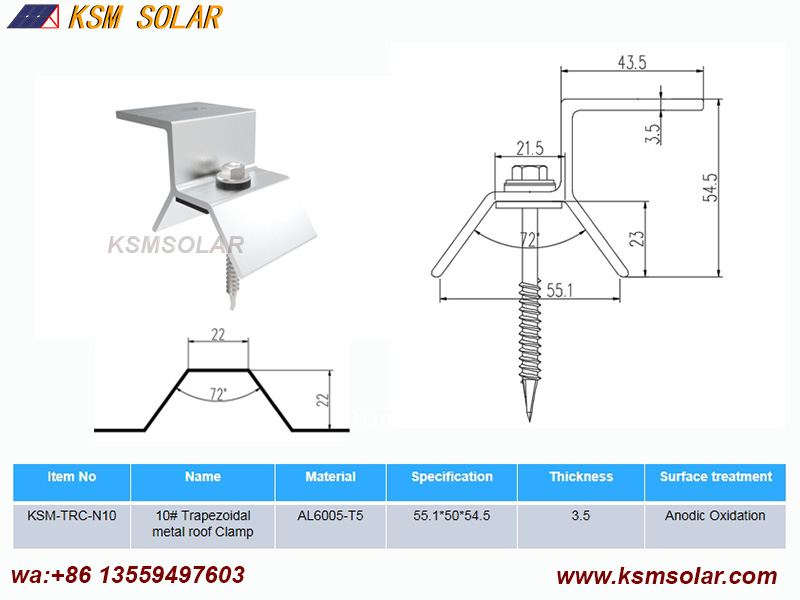

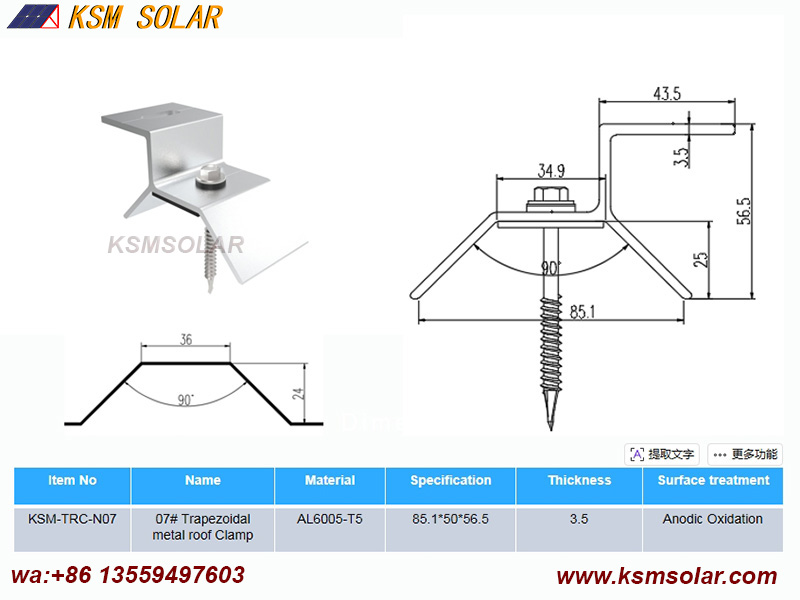

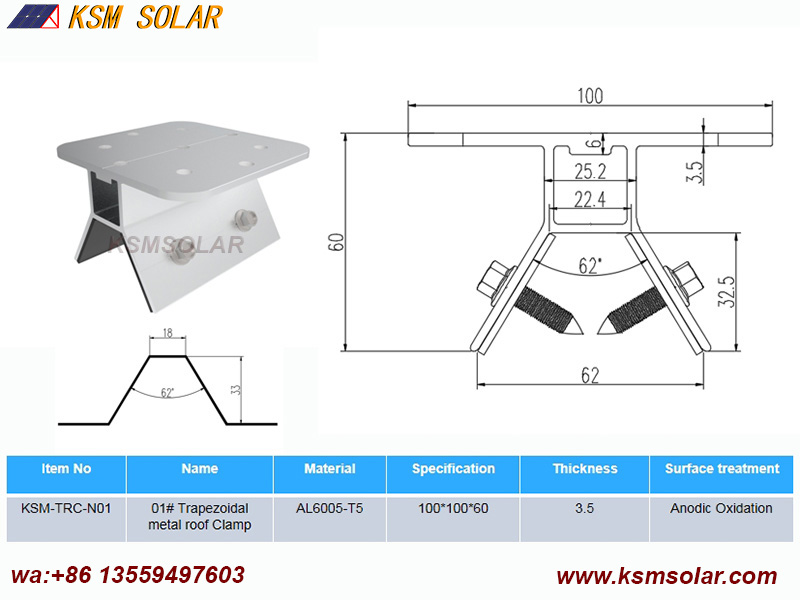

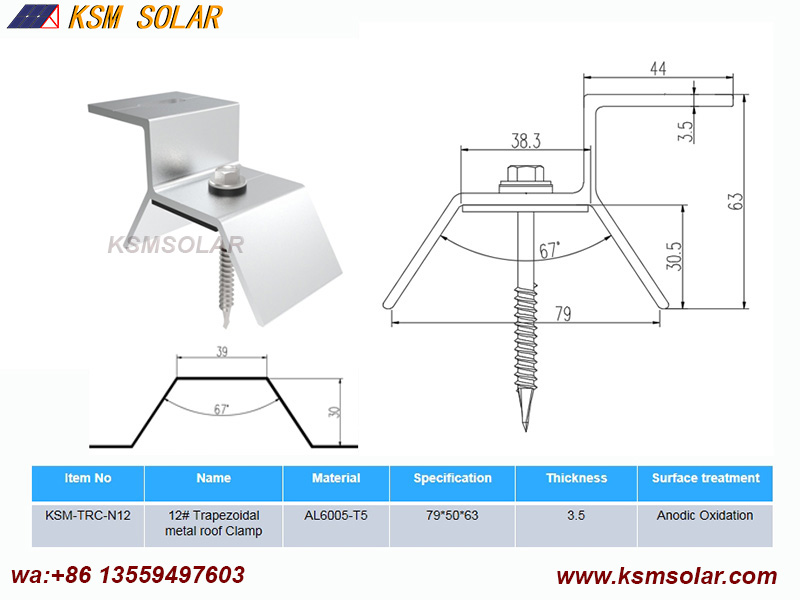

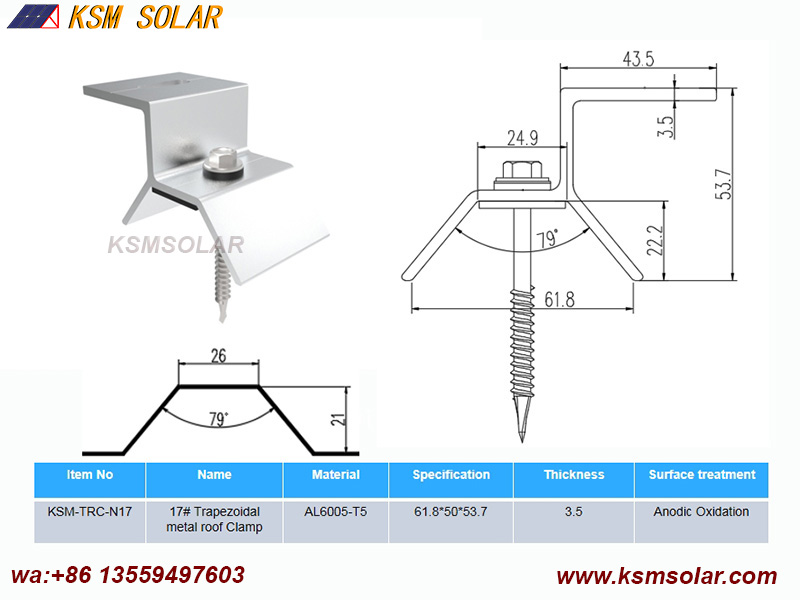

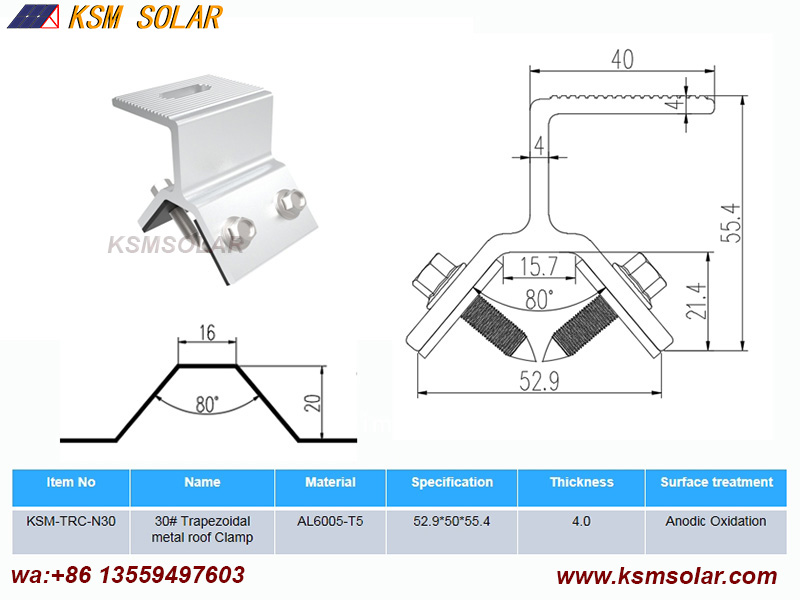

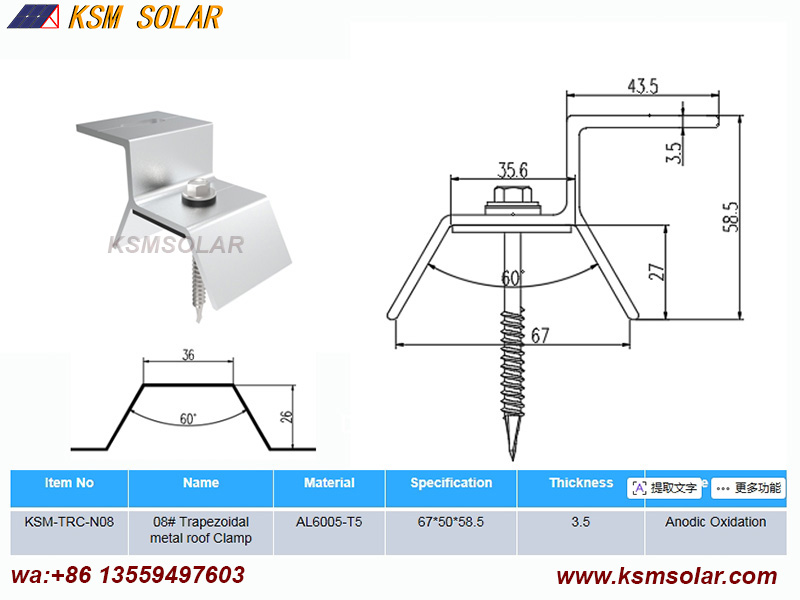

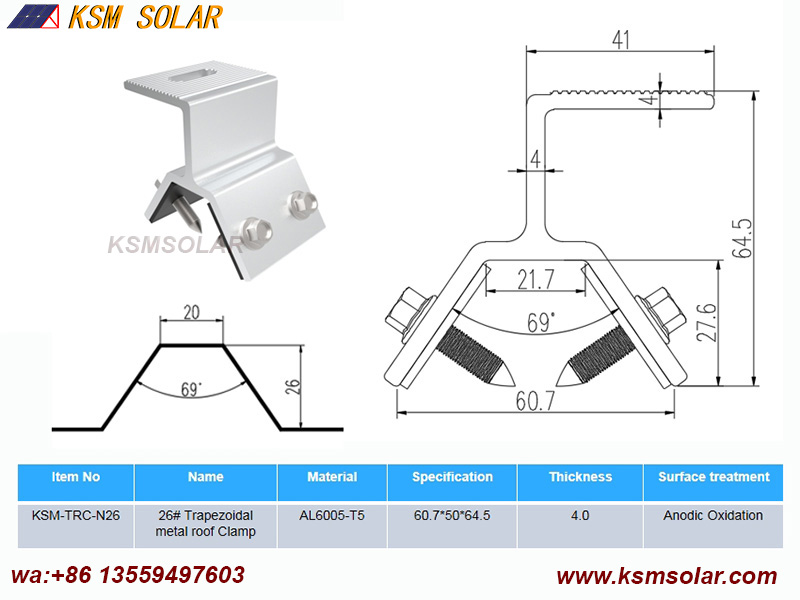

• Rib Width Compatibility: Clamps are sized to match specific rib widths (typically ranging from 40mm to 300mm depending on the profile) to ensure maximum contact and stability .

• Curved Variants: Some trapezoidal profiles feature a slight radius at the rib crown; clamps for these profiles incorporate a matching curved base .

• EPDM Protective and Sealing Elements: The underside of the clamp (contacting the roof) is fully lined with or incorporates EPDM (Ethylene Propylene Diene Monomer) rubber components. These serve multiple critical functions:

• Weatherproof sealing: Creates a watertight barrier around any screw penetrations .

• Roof protection: Prevents abrasion and damage to the roof's paint or coating.

• Friction enhancement: Provides a high-friction surface to resist movement .

• Vibration dampening: Reduces mechanical noise and wear .
