A PV standing seam roof clamp is a non-penetrating mechanical device engineered to attach solar mounting components—such as rails, modules, or other hardware—directly to the raised vertical seams of a standing seam metal roof. Its defining characteristic is its ability to grip the roof seam securely without drilling or piercing the roof surface, thereby preserving the roof's weathertight warranty and structural integrity.

Core Functional Principle: Non-Penetrating Mechanical Grip

• Zero Roof Penetration: The primary and most critical function is to attach to the roof without any fasteners penetrating the metal panels. This eliminates the primary source of potential leaks and maintains the roof manufacturer's warranty.

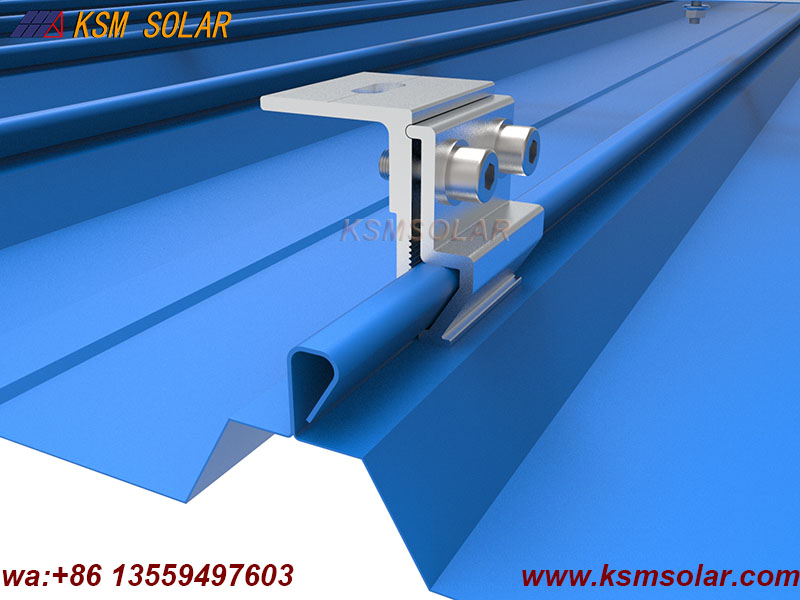

• External Clamping Action: The clamp works by compressing onto the raised vertical seam or rib of the standing seam roof. It does not rely on adhesives or friction alone but uses a positive mechanical grip.

• Load Transfer: The clamp transfers the structural loads of the solar array (gravity, wind uplift, snow) directly into the roof's standing seams, which are integral to the building's structural support system.

Design and Mechanical Configuration

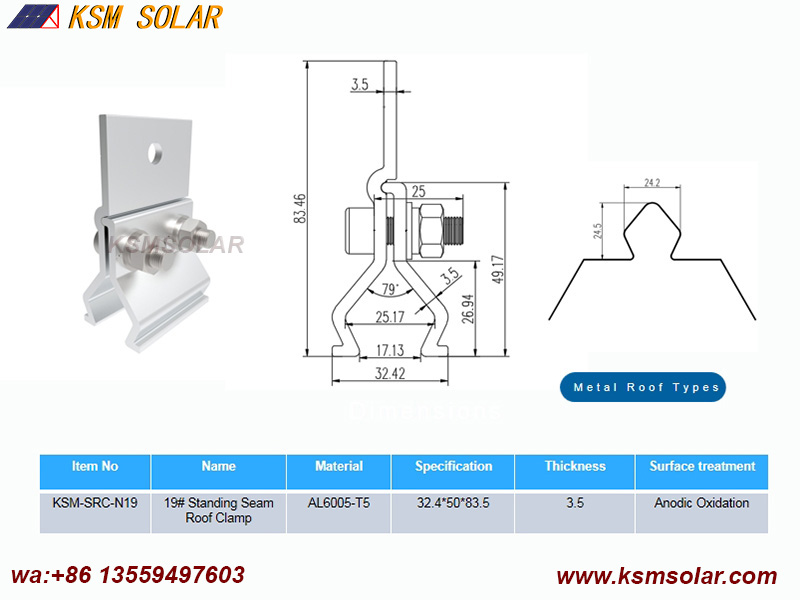

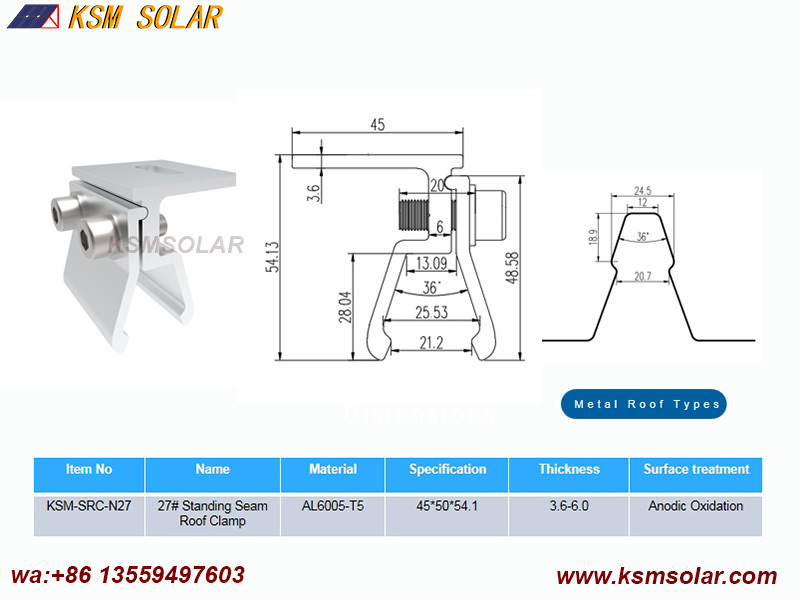

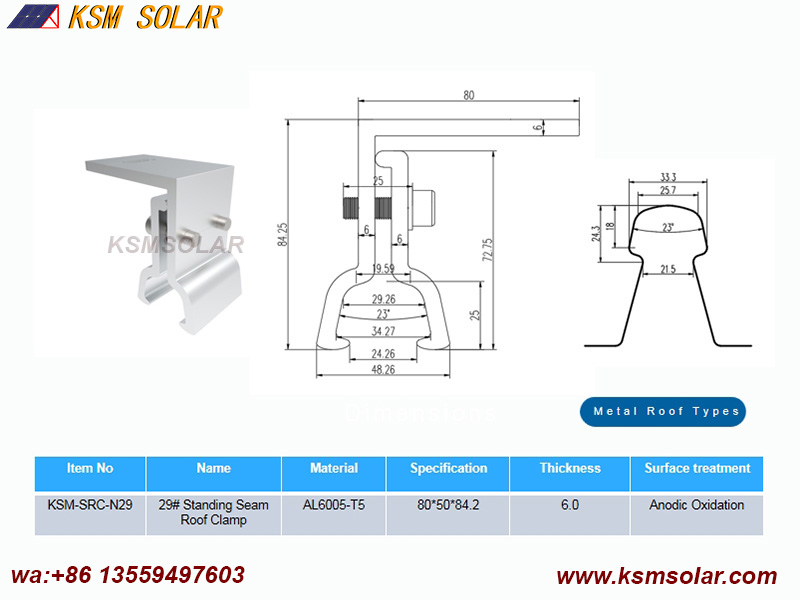

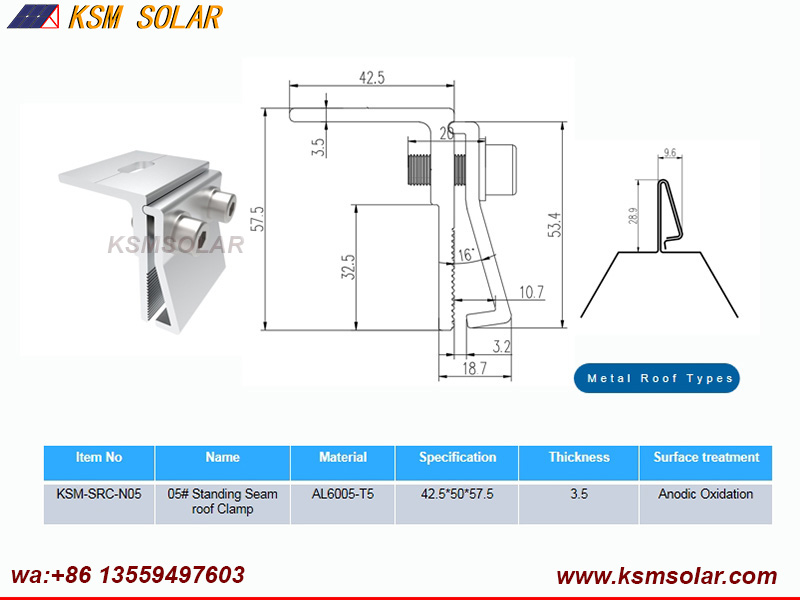

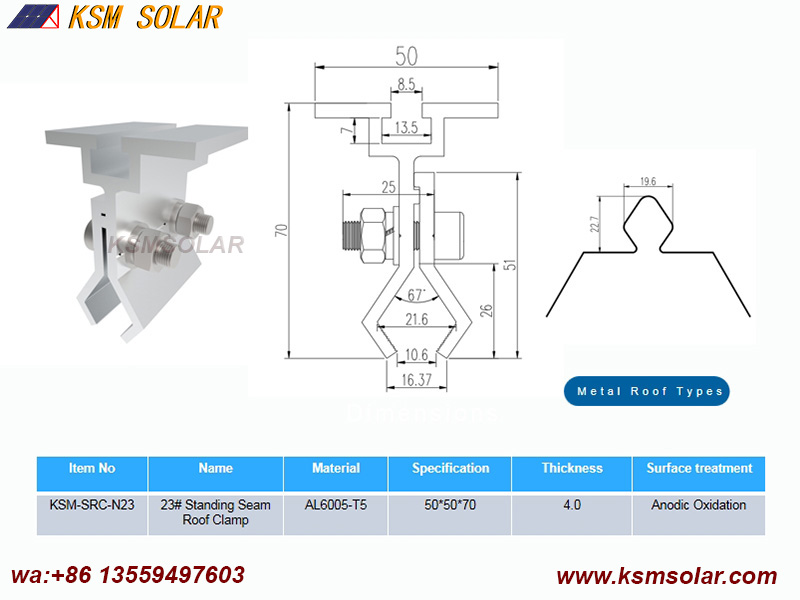

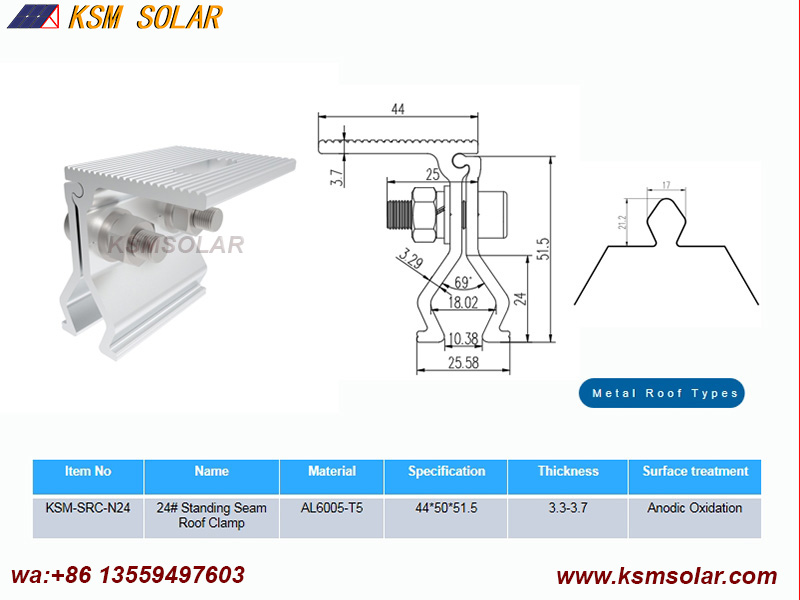

• Two-Piece or Multi-Component Jaw Design: Most standing seam clamps consist of two or more interlocking pieces that fit around the seam. When the fastener is tightened, these jaws draw together, clamping the seam between them

• Top-Mounted Bolt: A key design feature for ease of installation is a top-mounted bolt or set screw. This allows installers to access and torque the clamp from above after positioning, rather than reaching underneath.

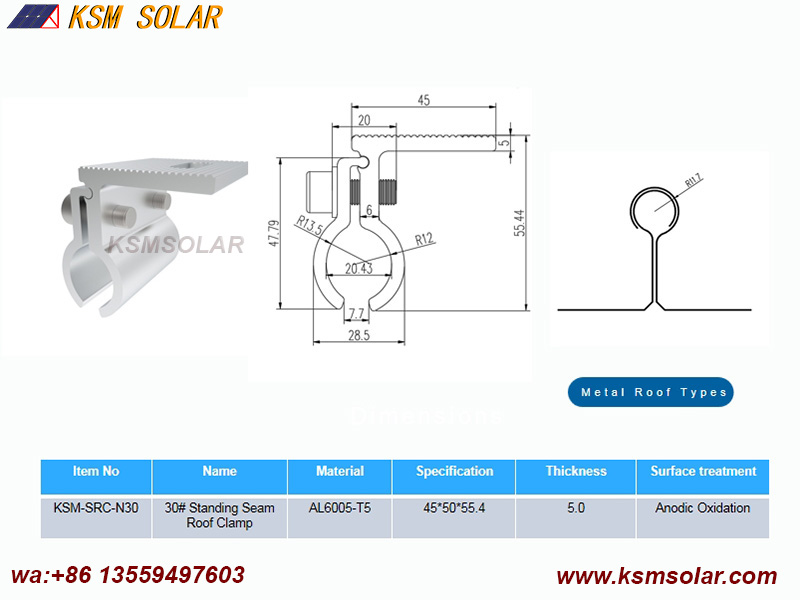

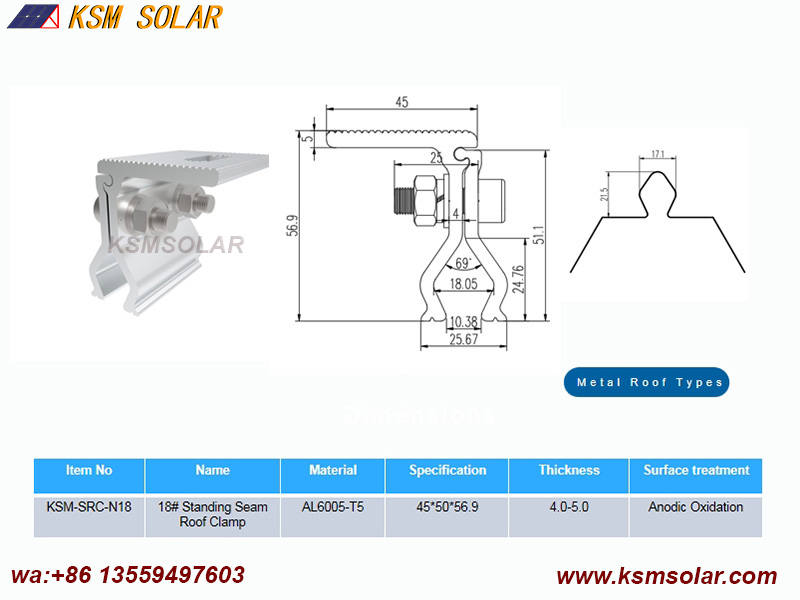

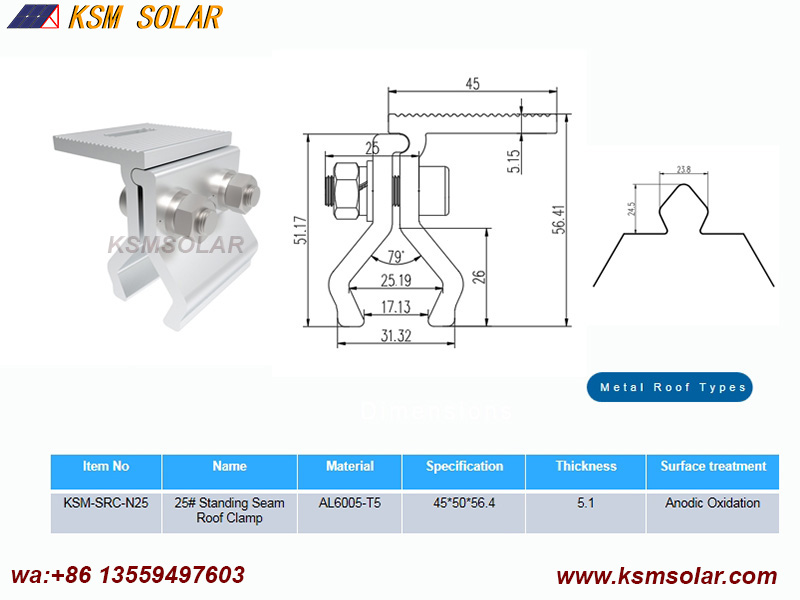

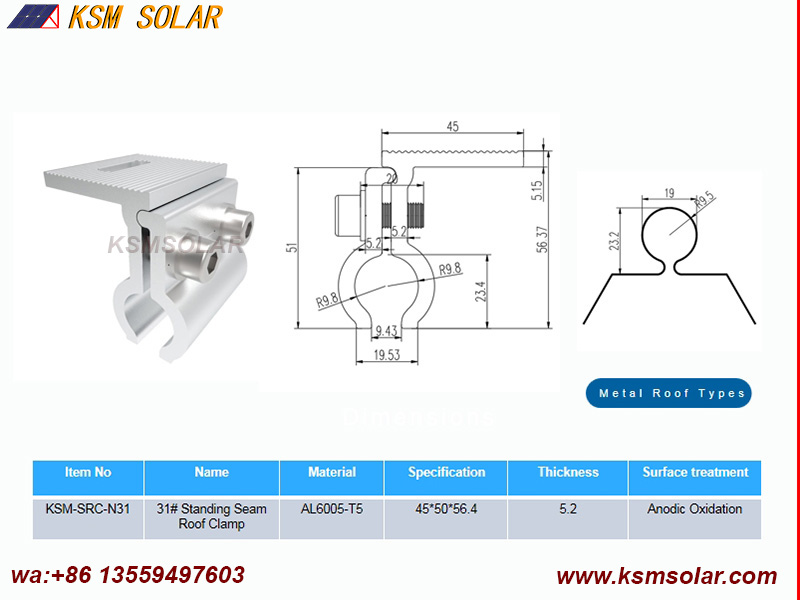

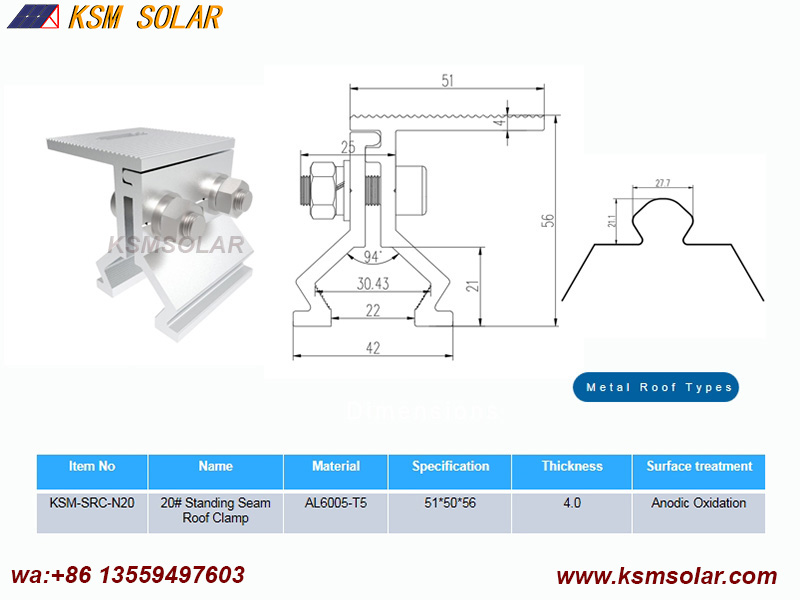

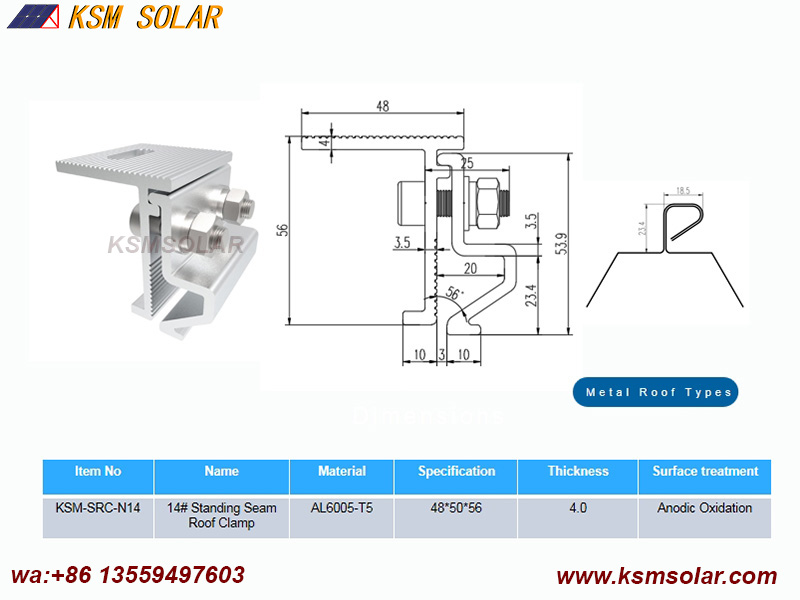

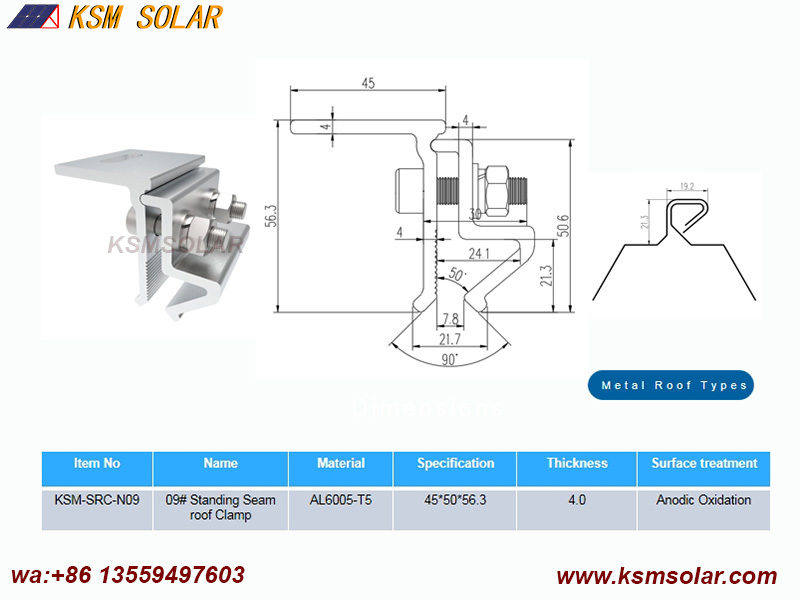

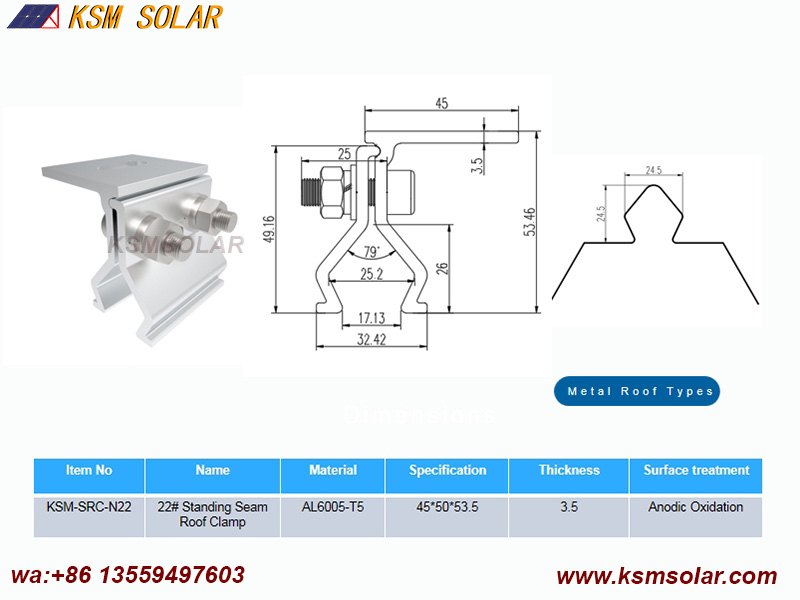

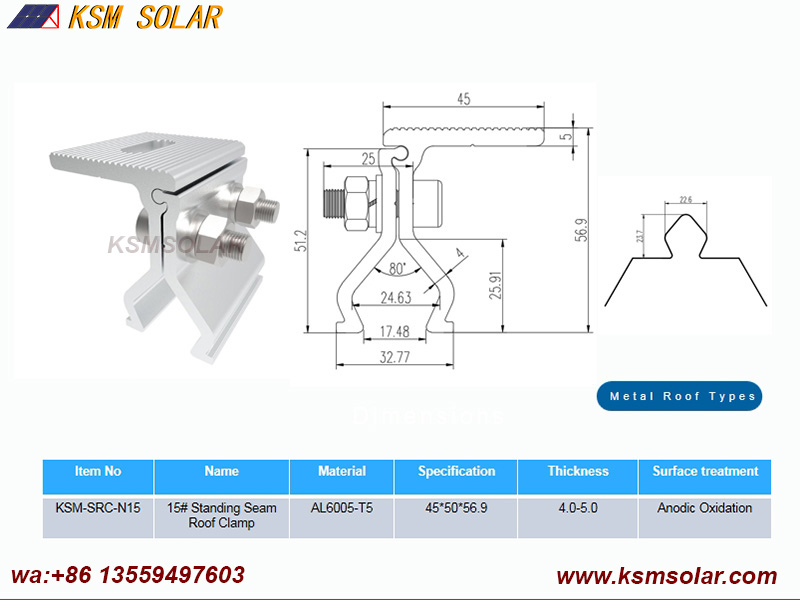

• Versatility in Profile Compatibility: Clamps are available to fit a wide variety of specific standing seam profiles, including T-shaped, bulb, snap-lock, mechanically seamed, and circular seams.Some universal designs can adapt to over 90% of global profiles.
