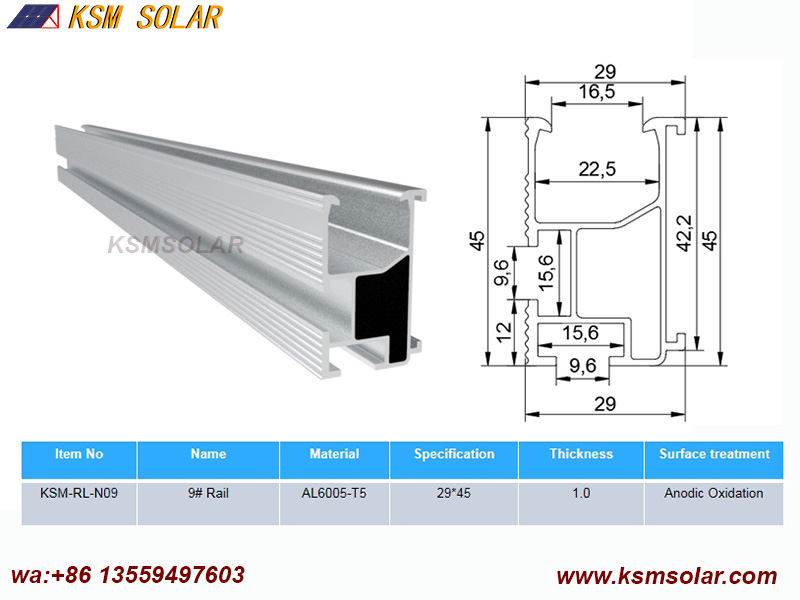

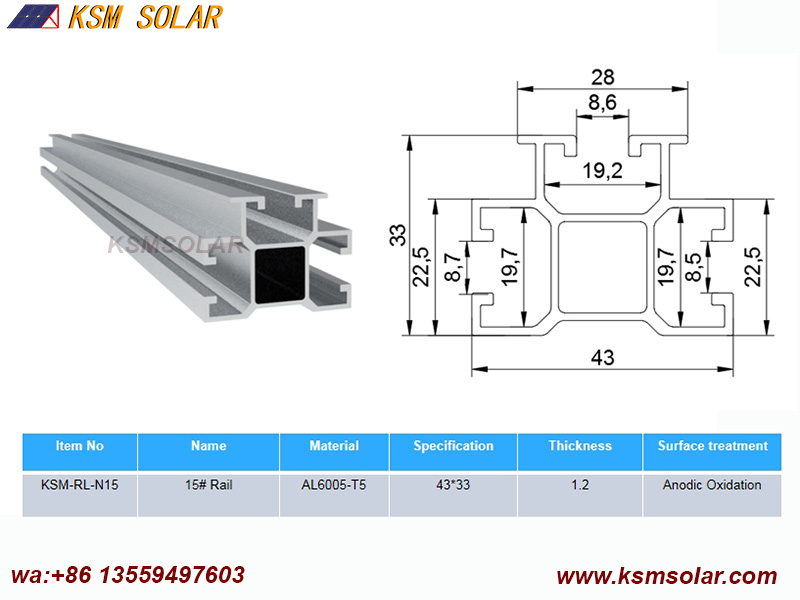

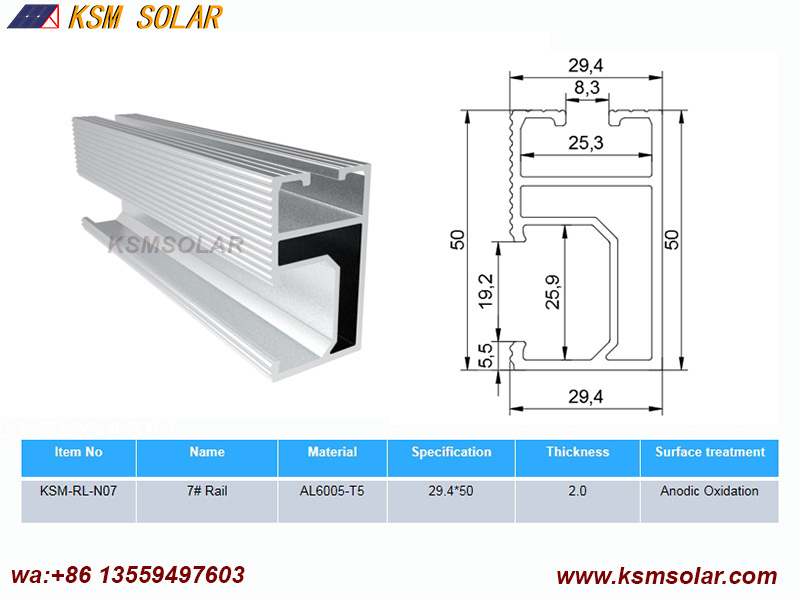

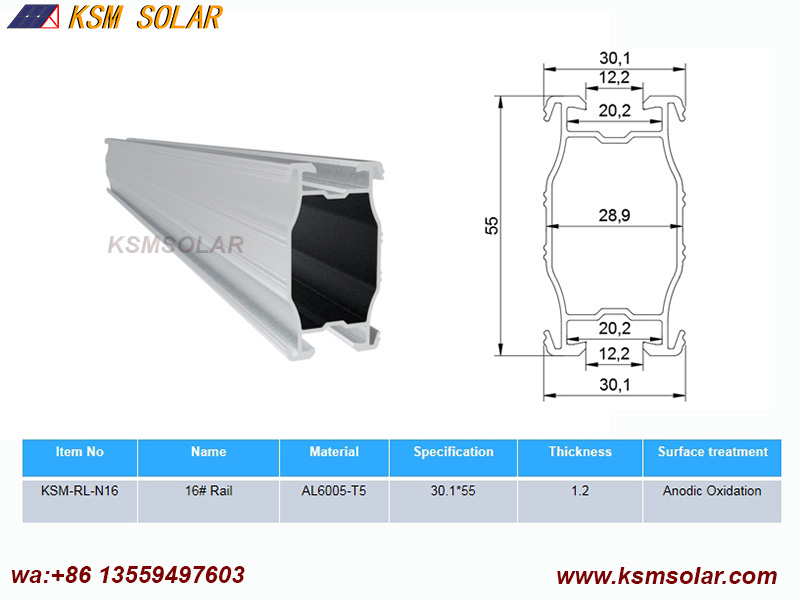

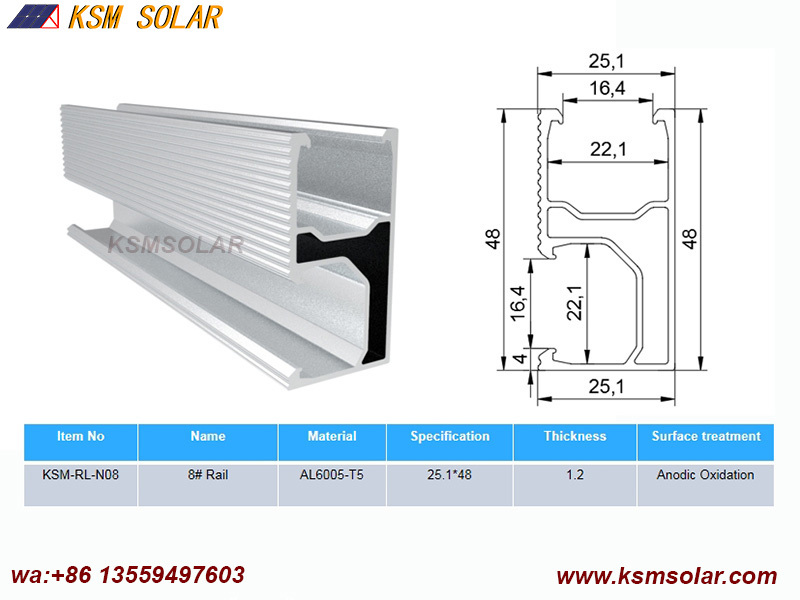

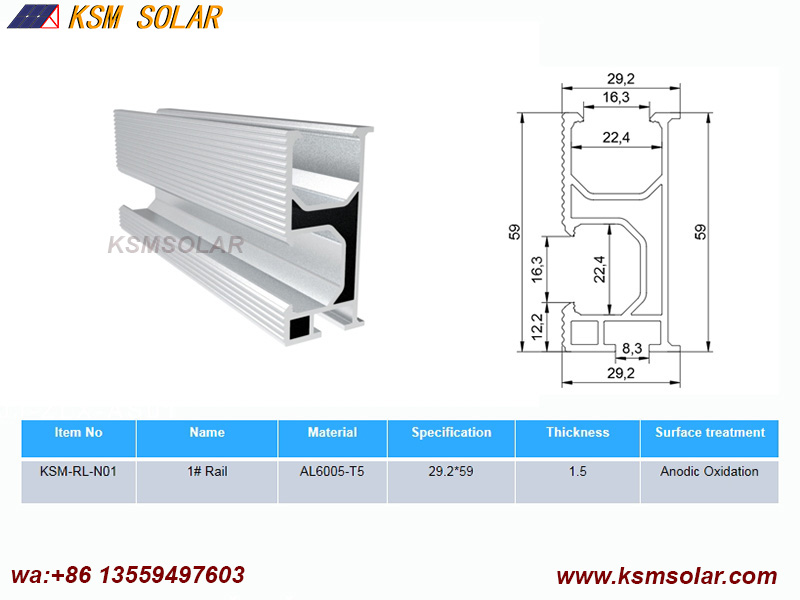

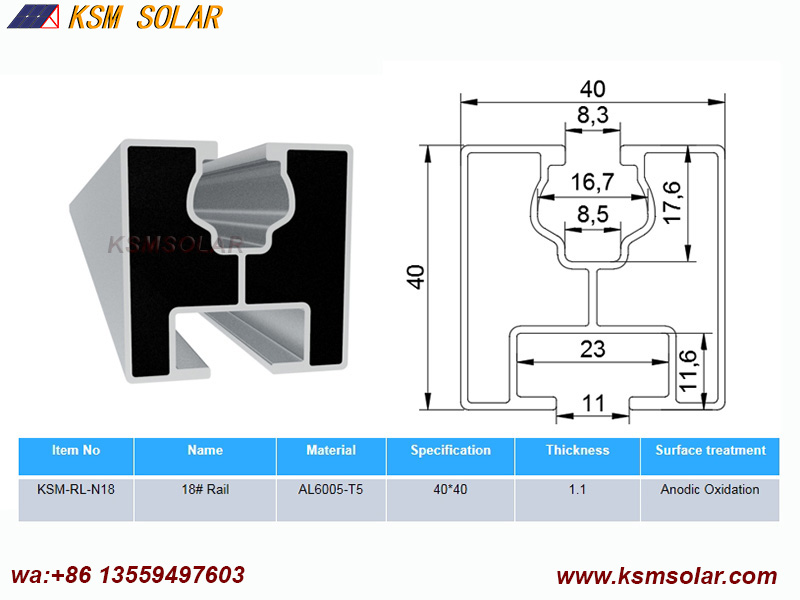

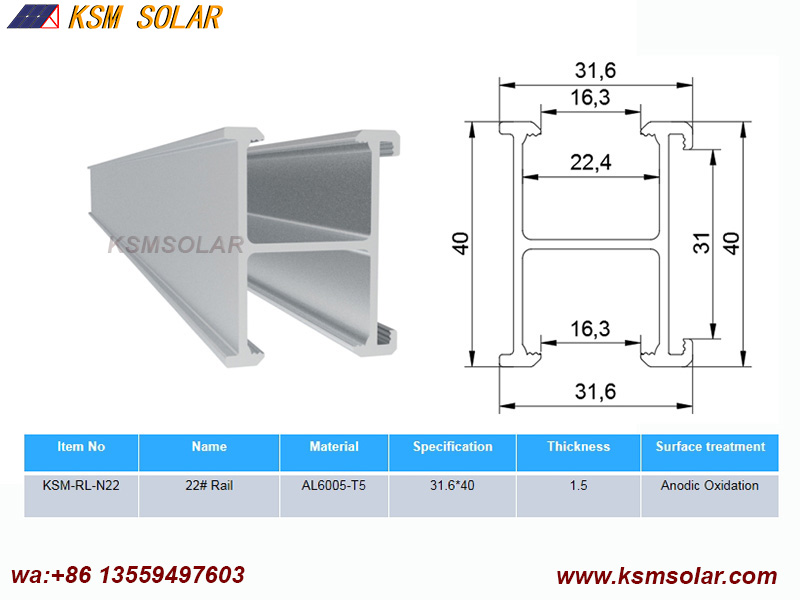

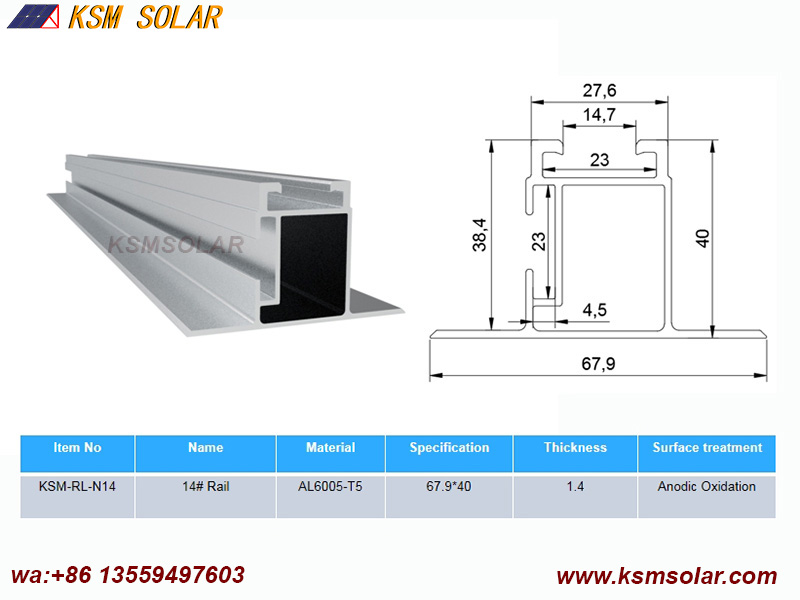

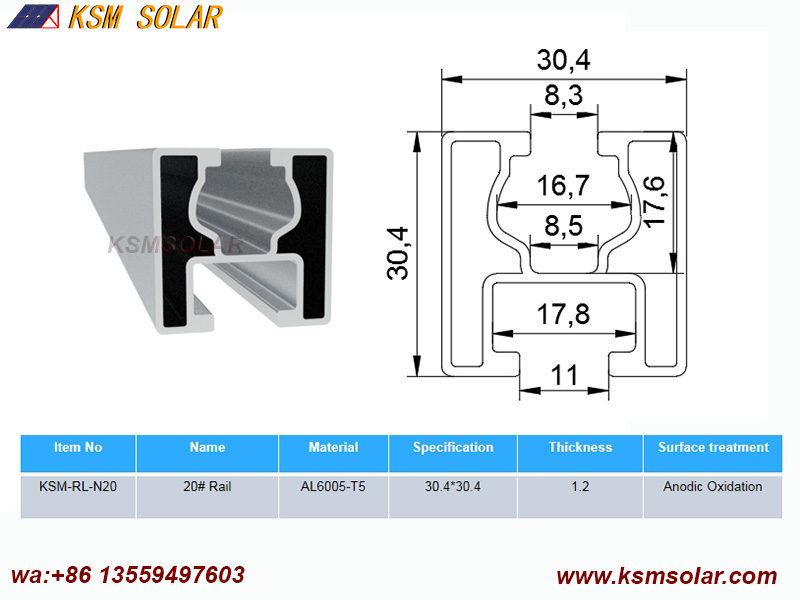

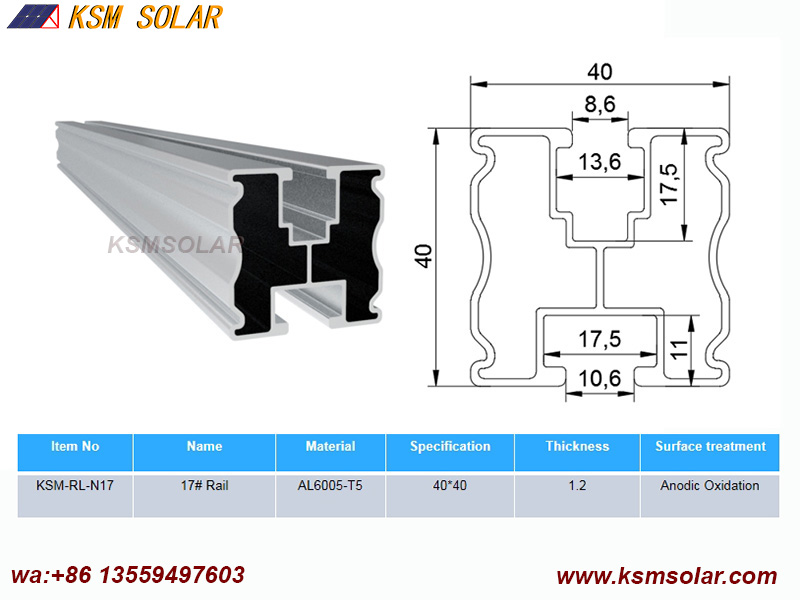

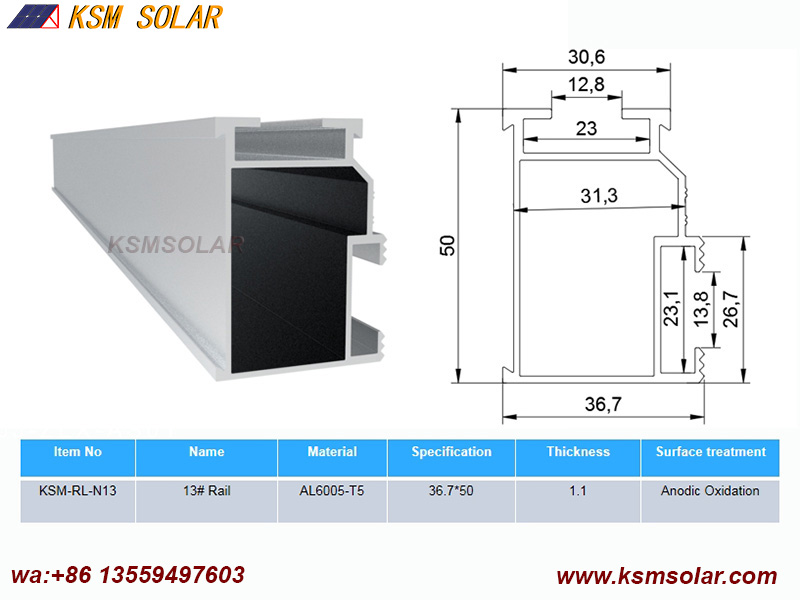

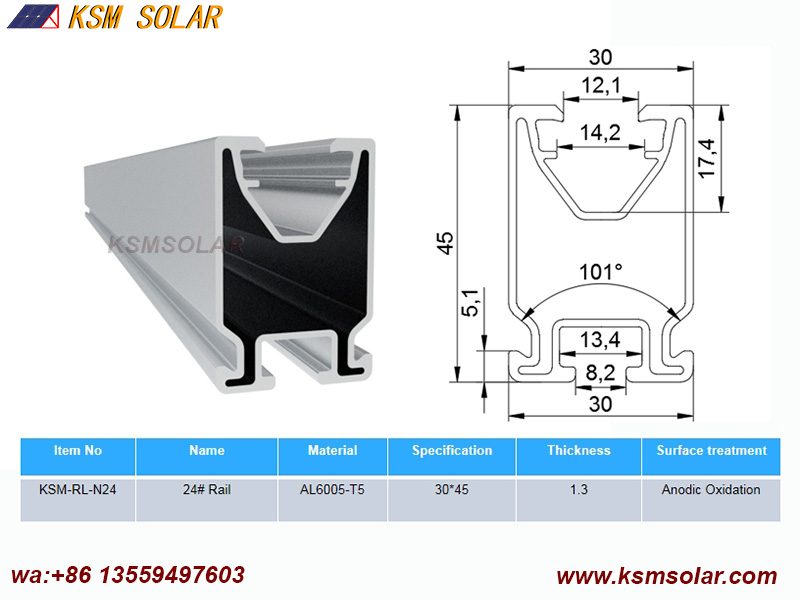

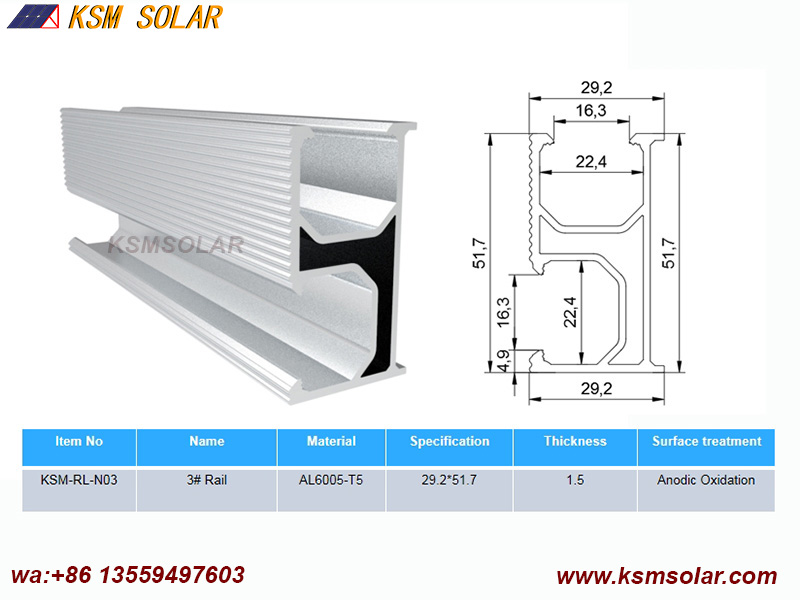

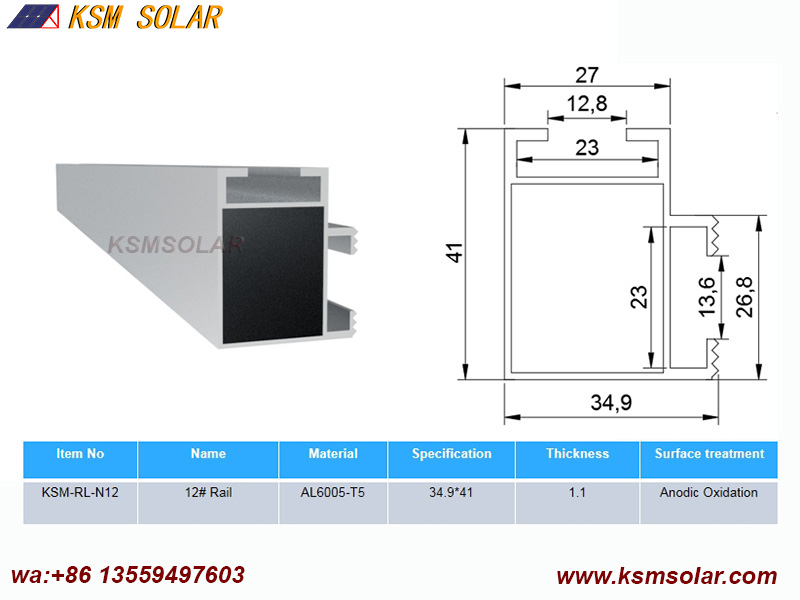

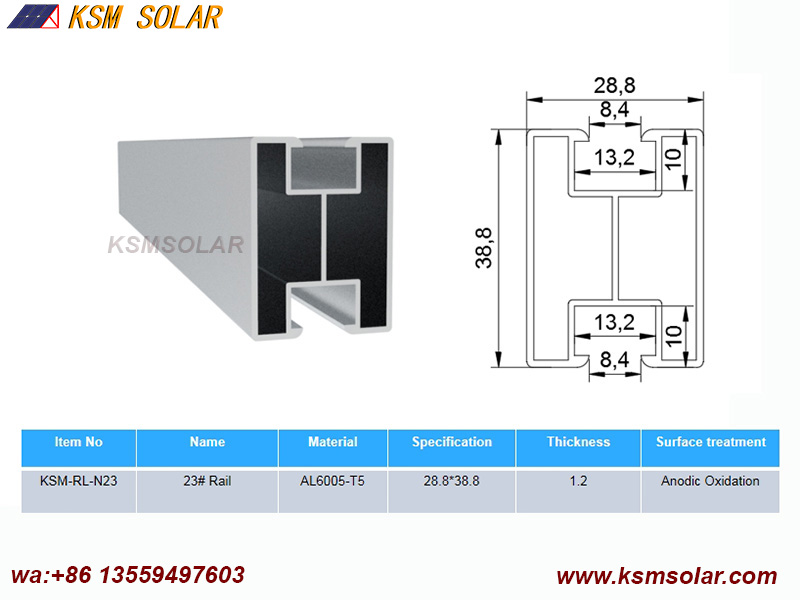

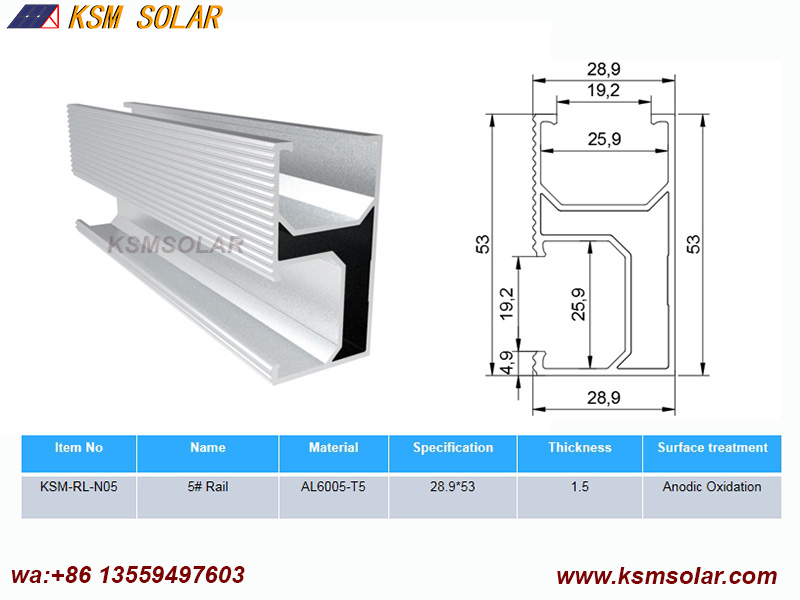

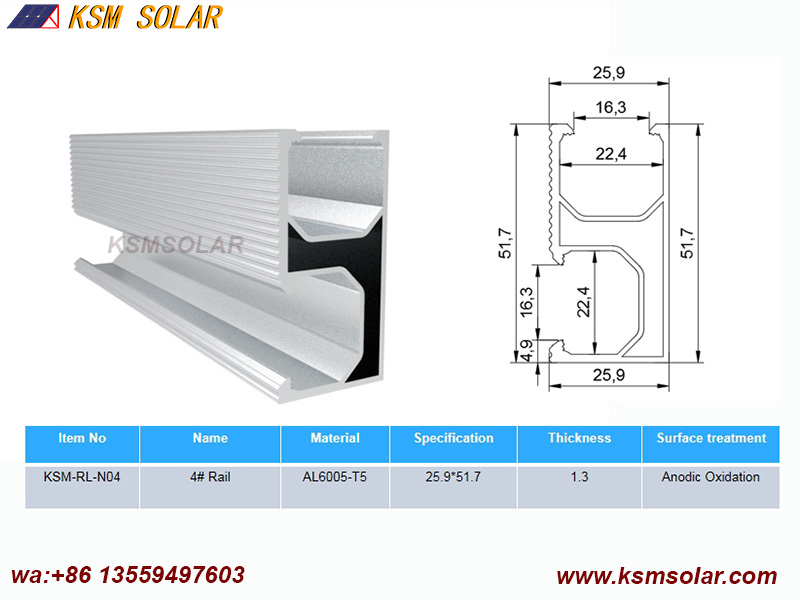

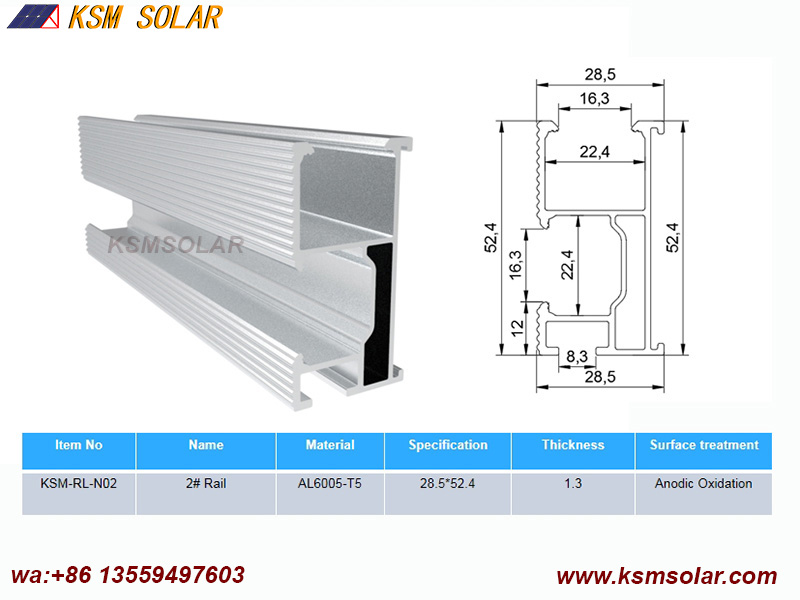

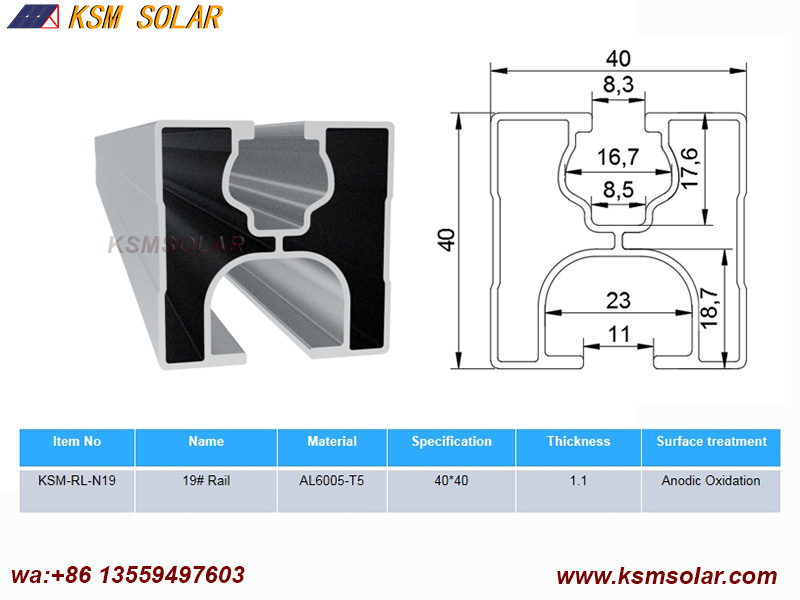

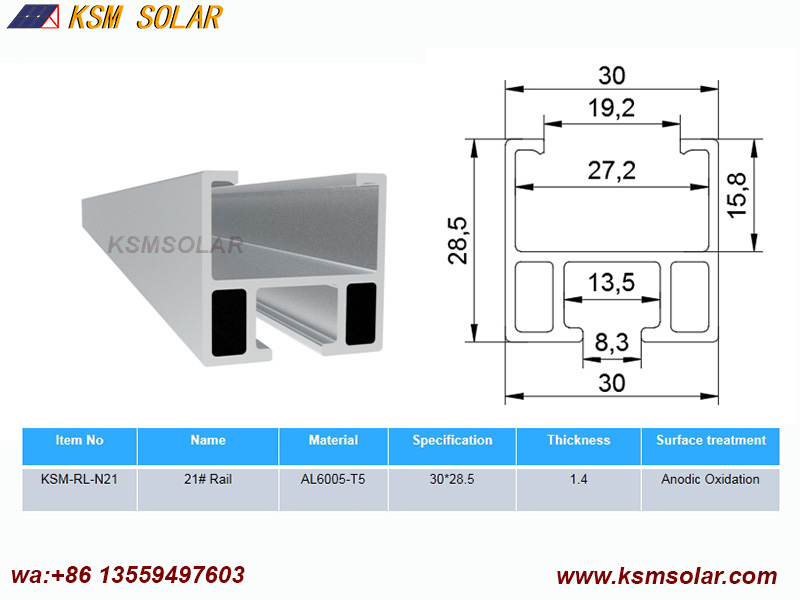

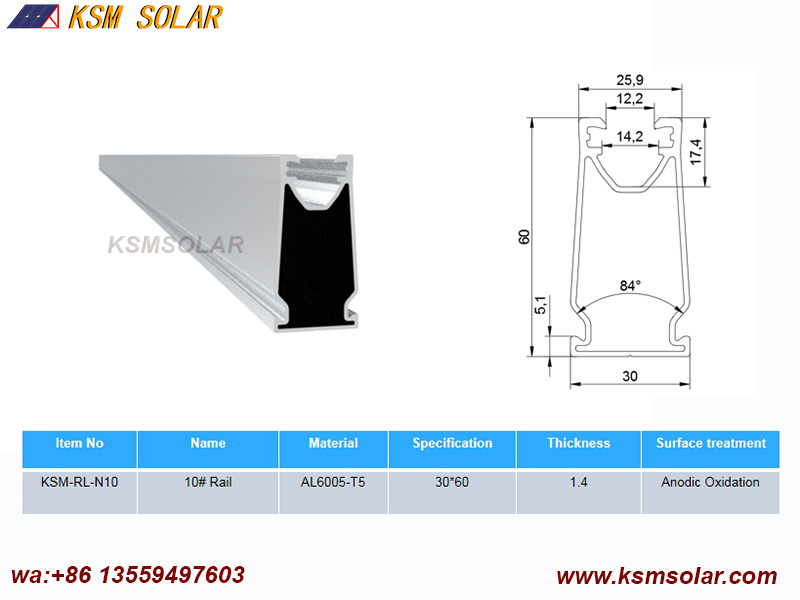

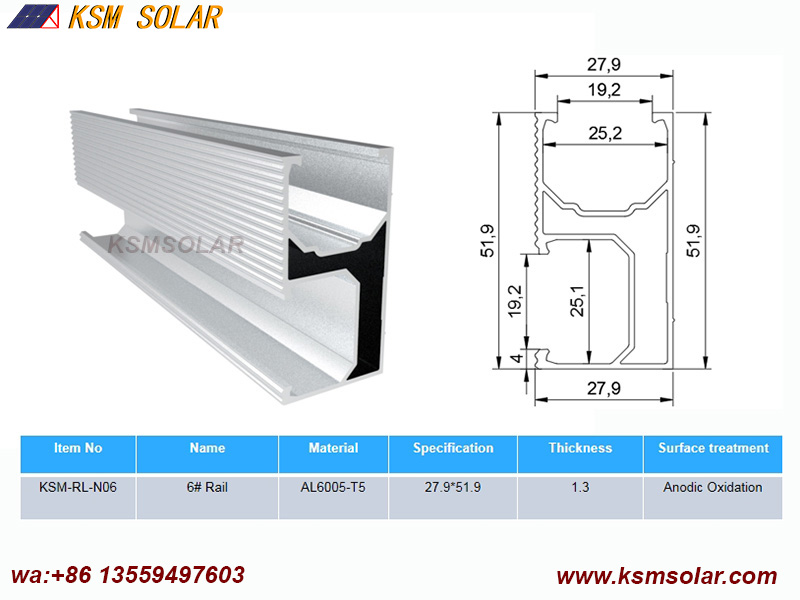

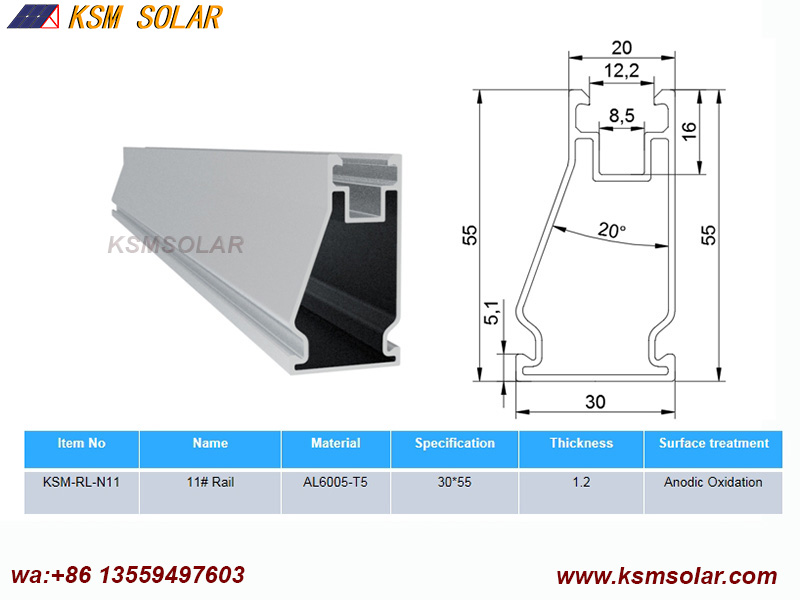

A PV solar aluminum rail is a long, extruded structural component designed to form the primary support framework for solar panel arrays. Its defining characteristic is its precision-engineered cross-section, which typically incorporates features like T-slots for versatile attachment, internal webbing for strength, and a design optimized for high strength-to-weight ratio and corrosion resistance.

Core Functional Principles

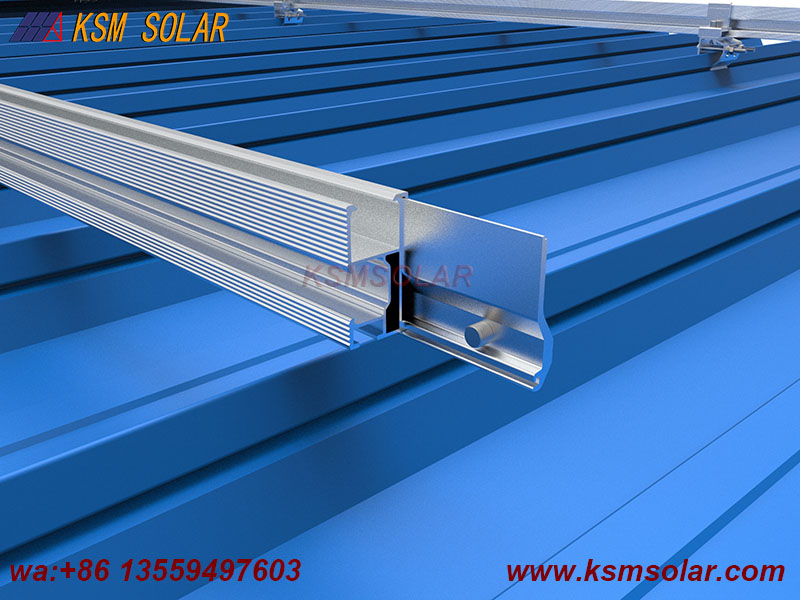

• Structural Support: The rail serves as the backbone of the array, spanning between roof attachments or ground-mount supports and transferring the weight of the panels and environmental loads (wind, snow) to the mounting structure .

• Universal Mounting Interface: It provides a standardized mounting surface (typically via integrated channels or slots) that accepts a wide range of clamps, bolts, and grounding accessories, allowing for flexible panel positioning .

• Span and Load Distribution: Rails are engineered to span specific distances between supports while resisting deflection (bending) under load, ensuring the panels remain flat and stress-free .

Material Composition and Alloy Engineering

• High-Strength Aluminum Alloys: Rails are manufactured from structural aluminum alloys, most commonly AL6005-T5

• 6005-T5: Offers higher strength (yield strength ~215 MPa) and is often preferred for longer spans and heavy-duty commercial applications where maximum load capacity is required.

• Strength-to-Weight Ratio: Aluminum's density (2.7 g/cm³) is approximately one-third that of steel, providing exceptional load-bearing capacity without excessive weight, simplifying handling and reducing roof dead loads.
