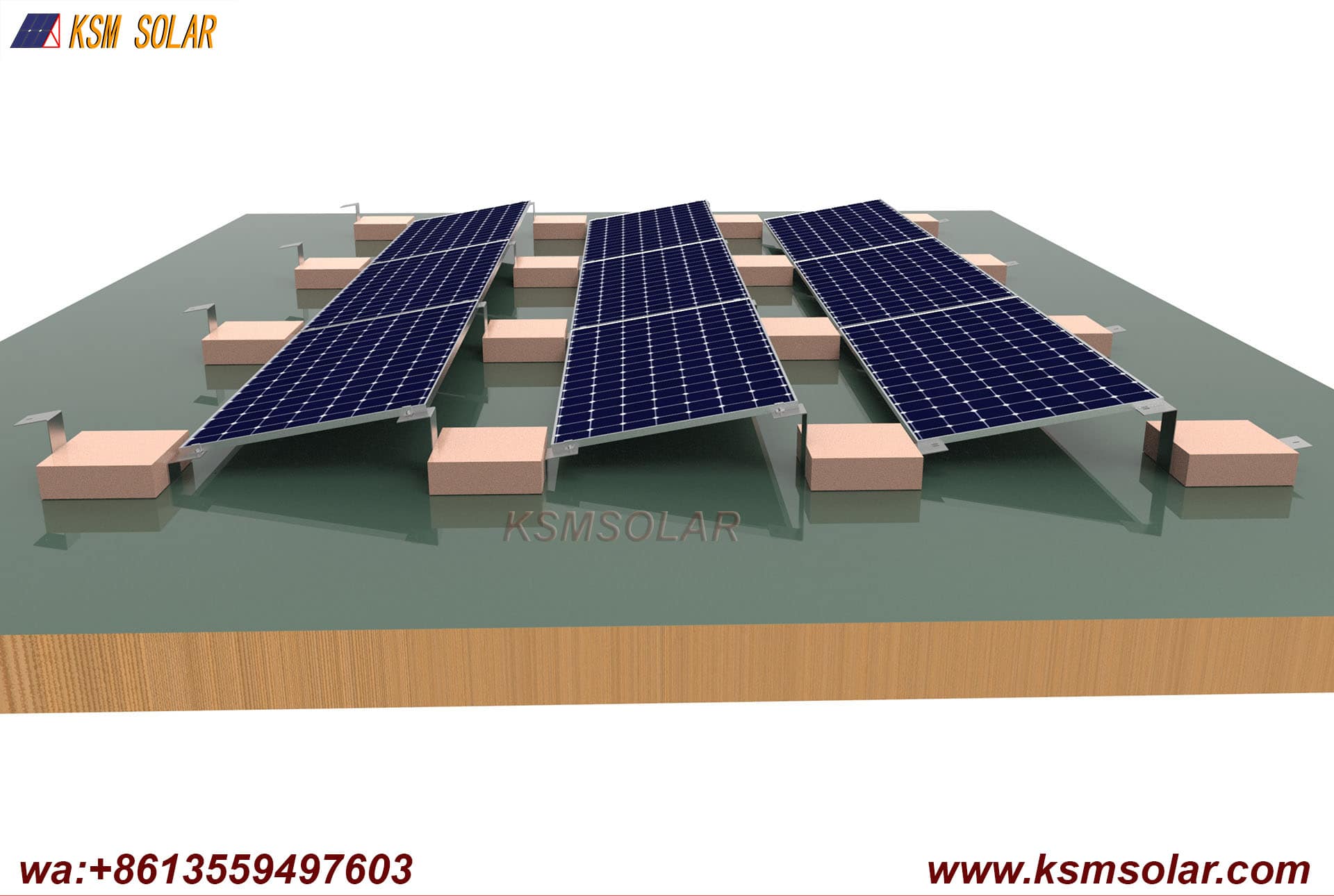

A Z-shaped steel folded plate ballast system is a non-penetrating mounting solution designed for flat roofs. Its defining feature is the Z-profile cross-section of its primary structural members—a cold-formed steel shape consisting of a horizontal top flange, a diagonal or vertical web, and a horizontal bottom flange—which creates an integrated structure that supports solar modules while containing and distributing ballast weight efficiently .

Core Functional Principles

• Non-Penetrating Attachment: The system relies entirely on gravitational ballast to resist wind uplift and overturning forces, eliminating roof penetrations and preserving the integrity of the waterproofing membrane .

• Z-Profile Structural Efficiency: The Z-shaped cross-section provides excellent structural performance. The geometry inherently resists bending and torsion, allowing for longer spans between support points with less material .

• Integrated Ballast Containment: The shape of the Z-profile—particularly the lower horizontal flange and the web—creates natural pockets or channels that retain ballast materials (typically concrete pavers or blocks), integrating the weight-holding function directly into the structural member .

• Load Distribution: The wide bottom flange distributes the combined weight of modules and ballast evenly across the roof surface through protective pads, preventing concentrated point loads that could damage the roofing membrane .
