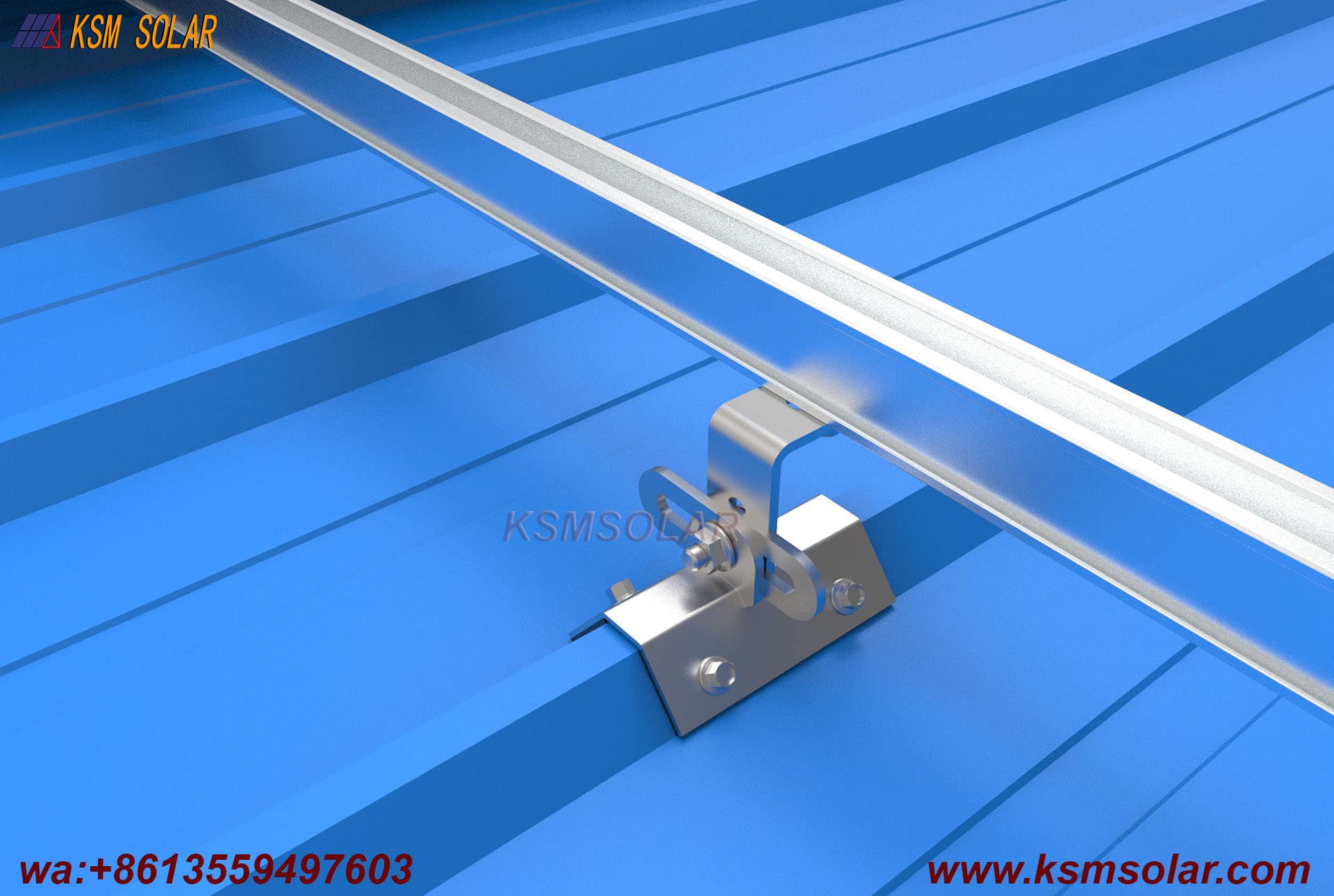

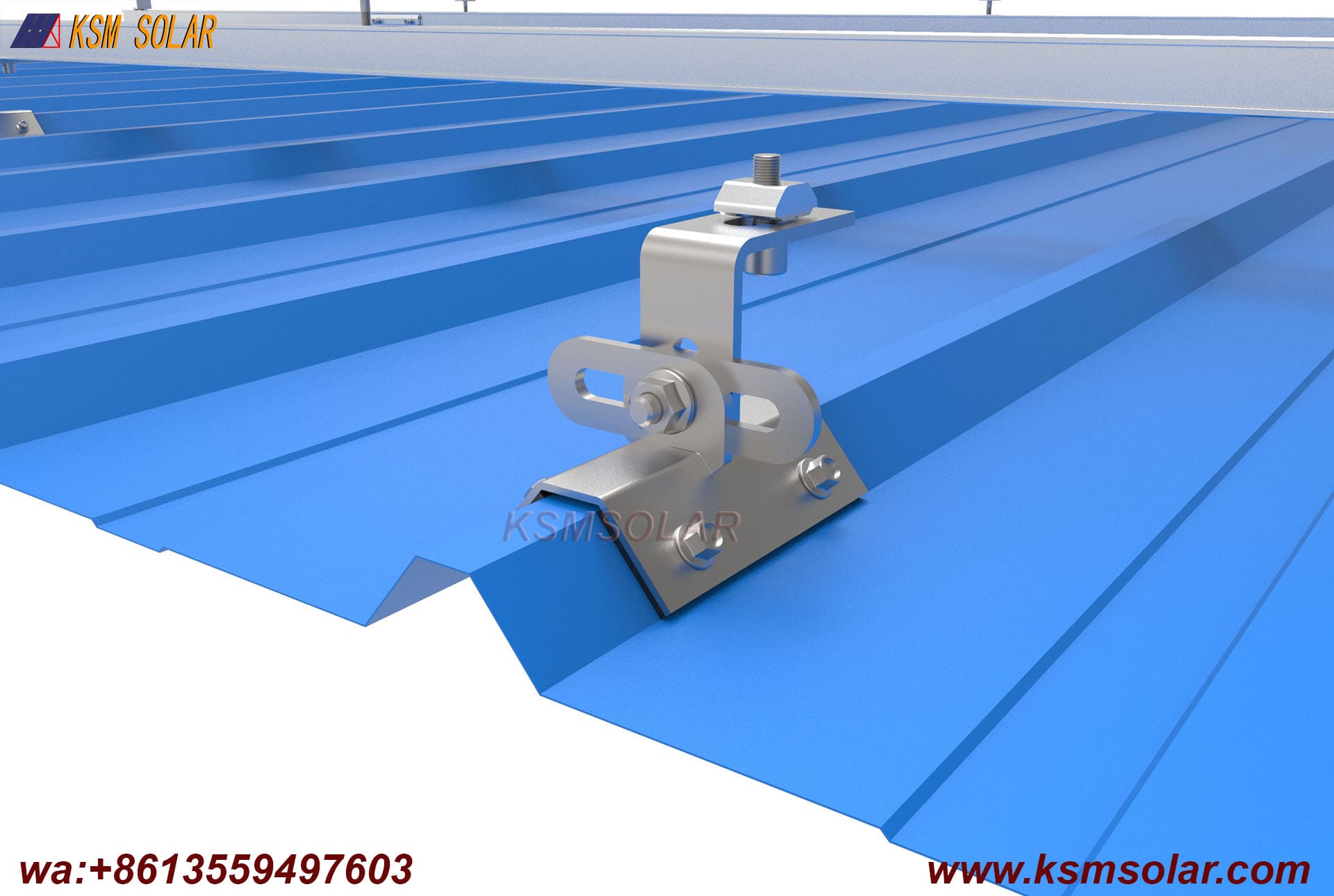

The Universal Stainless Steel Trapezoidal Metal Roof Clamp is a highly versatile, adjustable mounting solution engineered for securing solar PV systems, pipes, or collectors to trapezoidal sheet metal roofs.Unlike standard fixed clamps that are designed for a specific profile, this universal variant features an adjustable mechanism that allows it to adapt to a wide range of rib geometries. This makes it the ideal choice for installers who need to carry less inventory while maintaining a secure, corrosion-resistant attachment on various commercial and industrial metal roofs.

Key Features:

• Fully Adjustable Design: The clamp incorporates a sliding or pivoting mechanism that allows the gripping jaws to be widened or narrowed. This adjustability ensures a perfect fit on trapezoidal ribs of varying widths, heights, and angles, accommodating most profiles on the market.

• Premium Stainless Steel Construction: Manufactured from high-grade stainless steel (typically SUS304 or V2A, with V4A/316 options for coastal environments).This ensures maximum strength and lifetime corrosion resistance, even in harsh industrial or marine atmospheres.

• Dual Waterproofing Protection:

• Integrated EPDM Seals: High-quality EPDM rubber pads are bonded to the contact surfaces of the clamp feet. These compress against the roof paint to create a watertight seal and prevent galvanic corrosion

• Sealed Fastener Points: When used with self-drilling screws for enhanced pull-out resistance, the screws feature integrated EPDM washers to ensure the penetration point remains leak-proof.

• Multi-Point Grip: The clamp is designed to distribute pressure evenly across the crest of the trapezoidal rib, providing a secure hold without deforming or crushing the metal sheet.

• Universal Top Connection: The top of the clamp features a versatile mounting interface (often a threaded stud, a slotted plate, or pre-drilled holes) compatible with various solar hardware, including L-feet, mini rails, square tube adapters, or directly mounted module rails.

Technical Specifications:

• Material: Stainless Steel (SUS304 / V2A / SS316)

• Gasket Material: EPDM (Ethylene Propylene Diene Monomer) Rubber / 3M Adhesive Rubber Pads.

• Adjustability: Variable width and height adjustment to fit multiple rib profiles.

• Compatible Profiles: Universal fit for most trapezoidal metal roof sheets (e.g., 20mm to 40mm+ rib height)

• Hardware: Includes stainless steel self-drilling screws (TEK screws) with EPDM washers for optional structural fastening

• Corrosion Resistance: High (Suitable for coastal and industrial environments)
