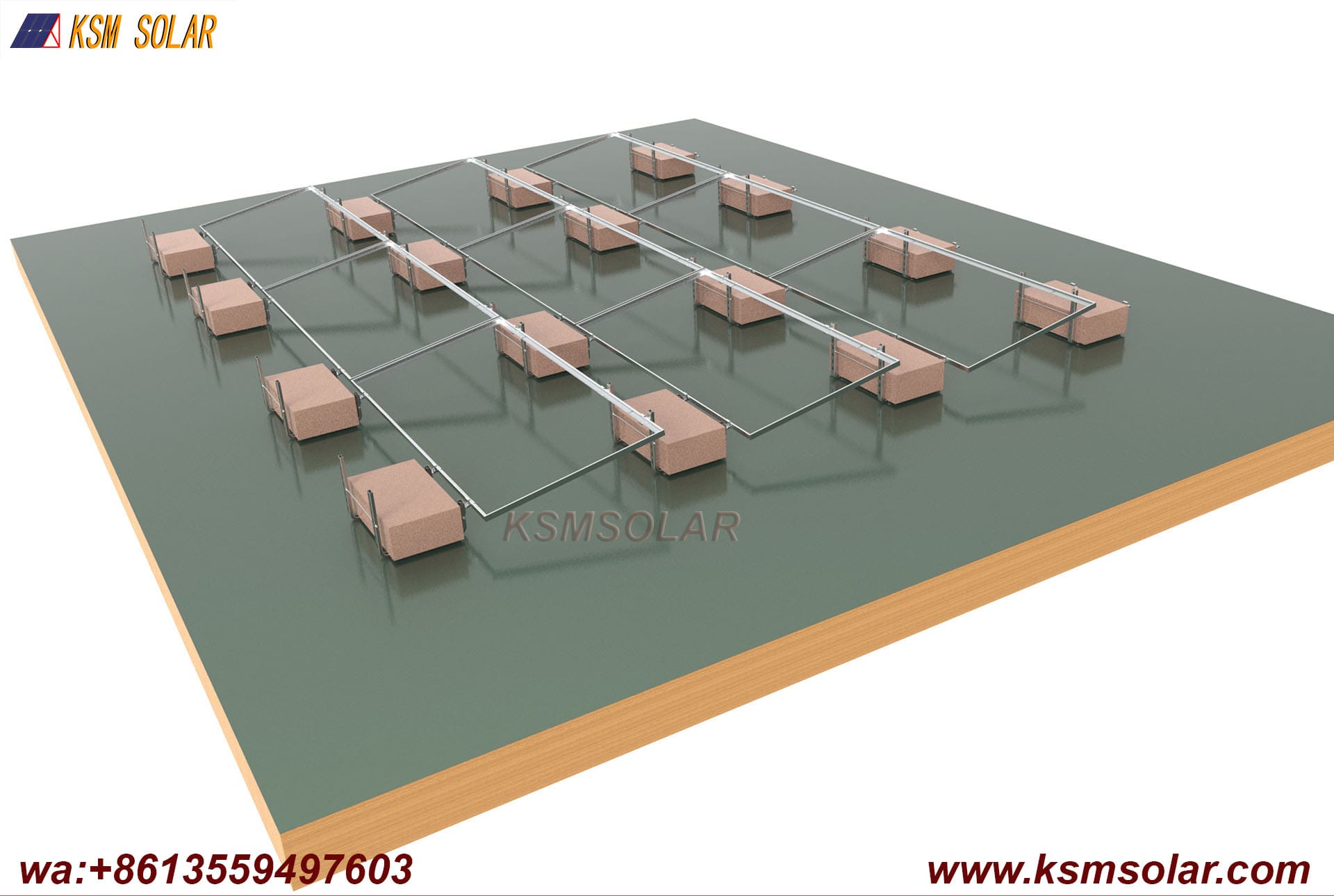

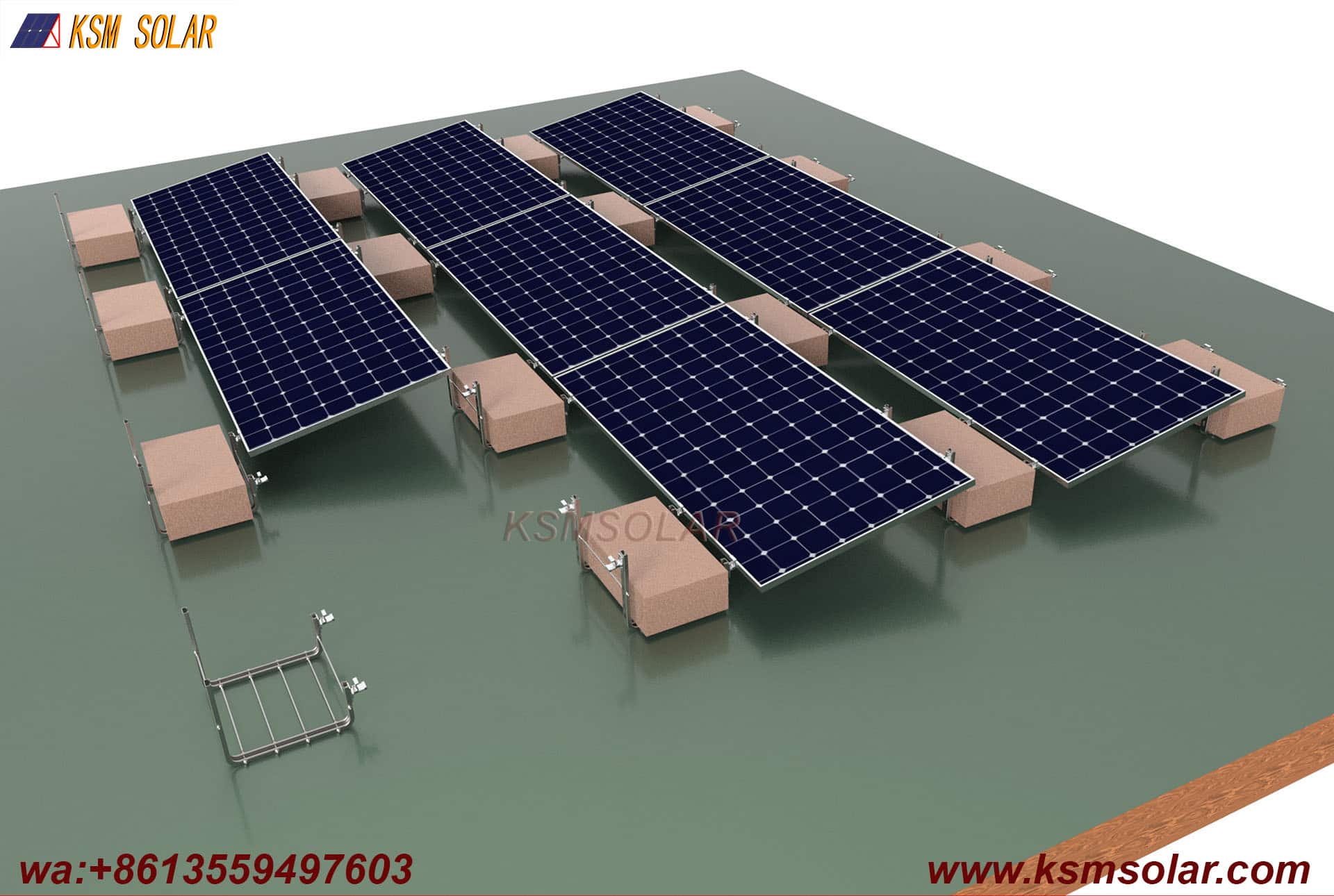

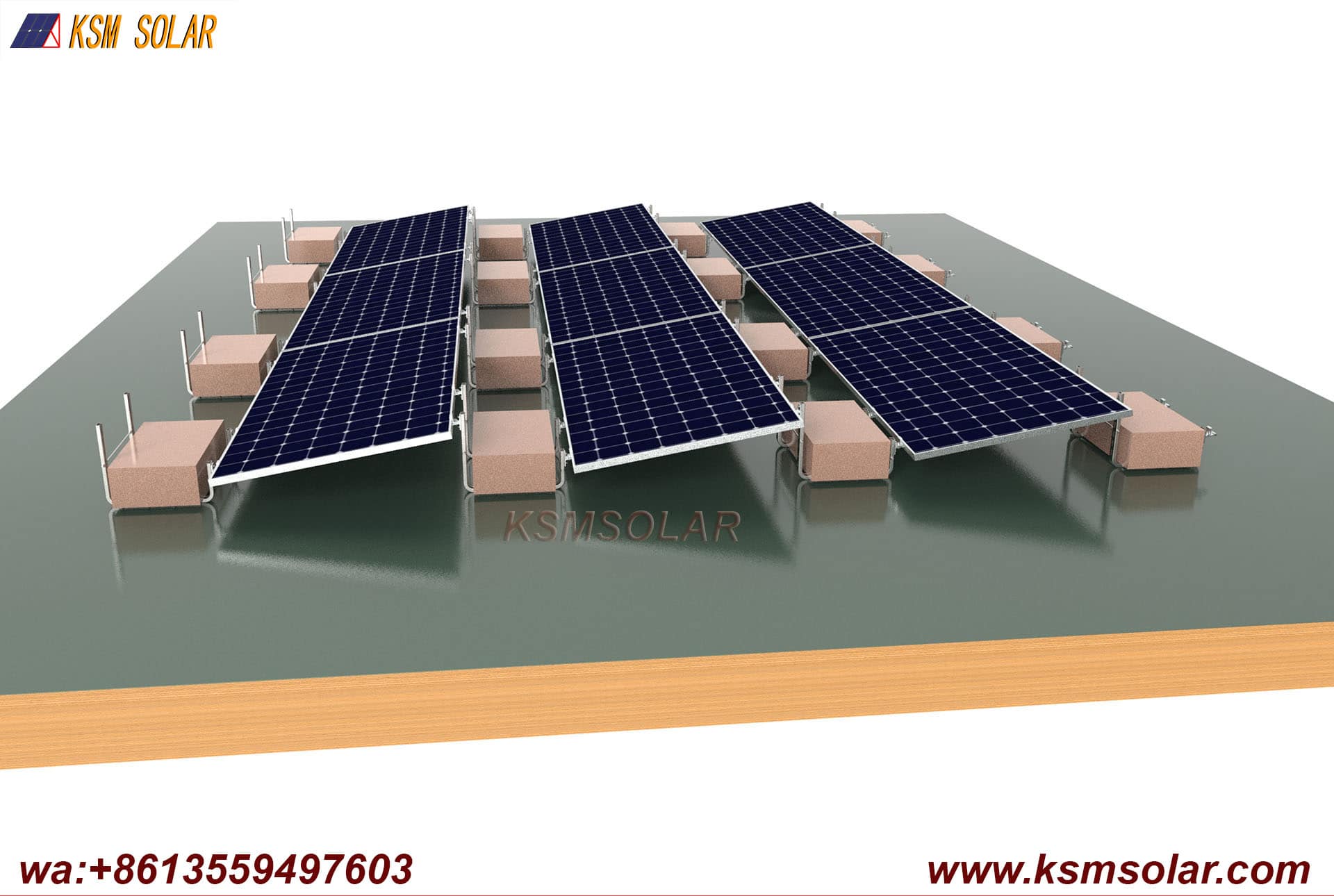

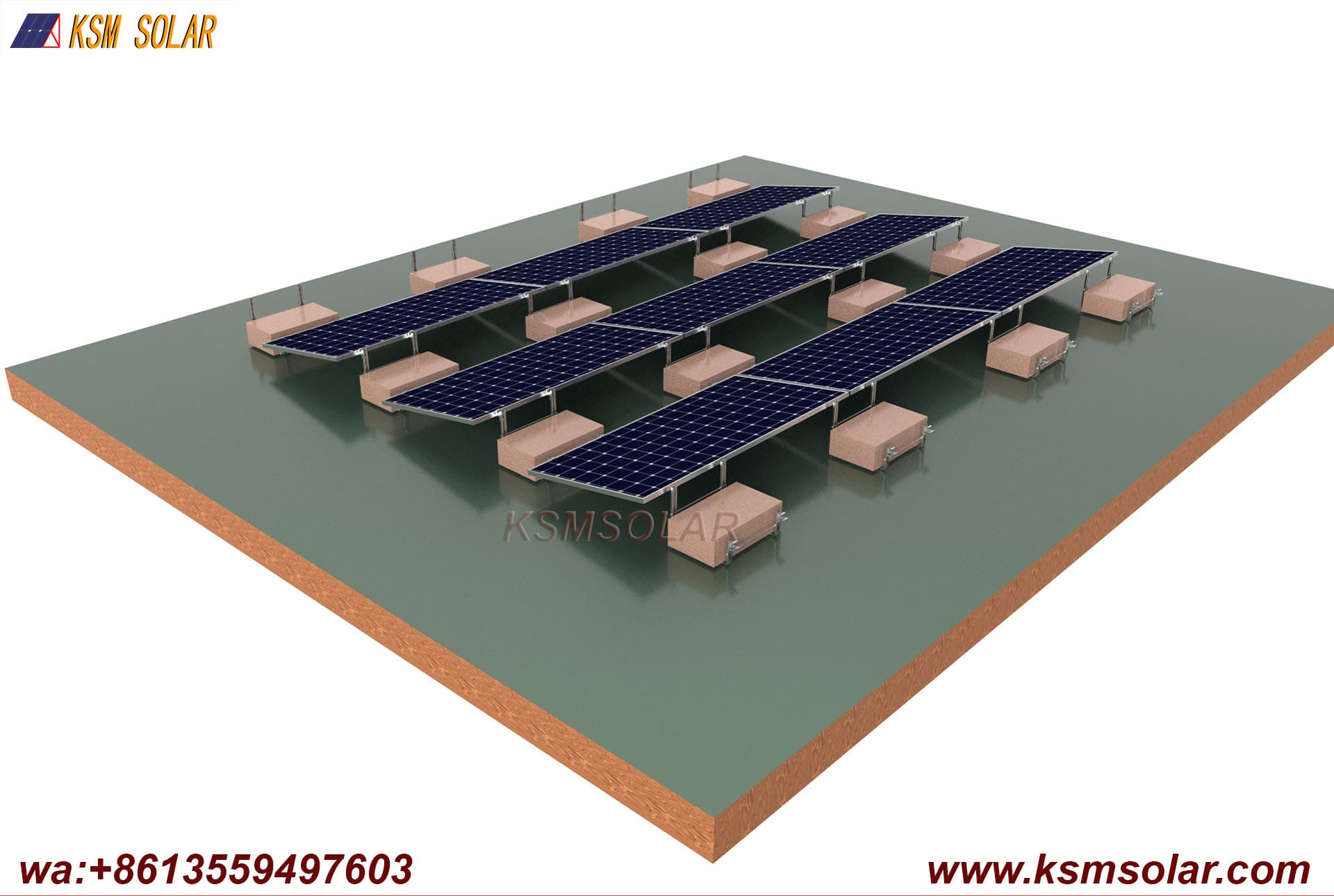

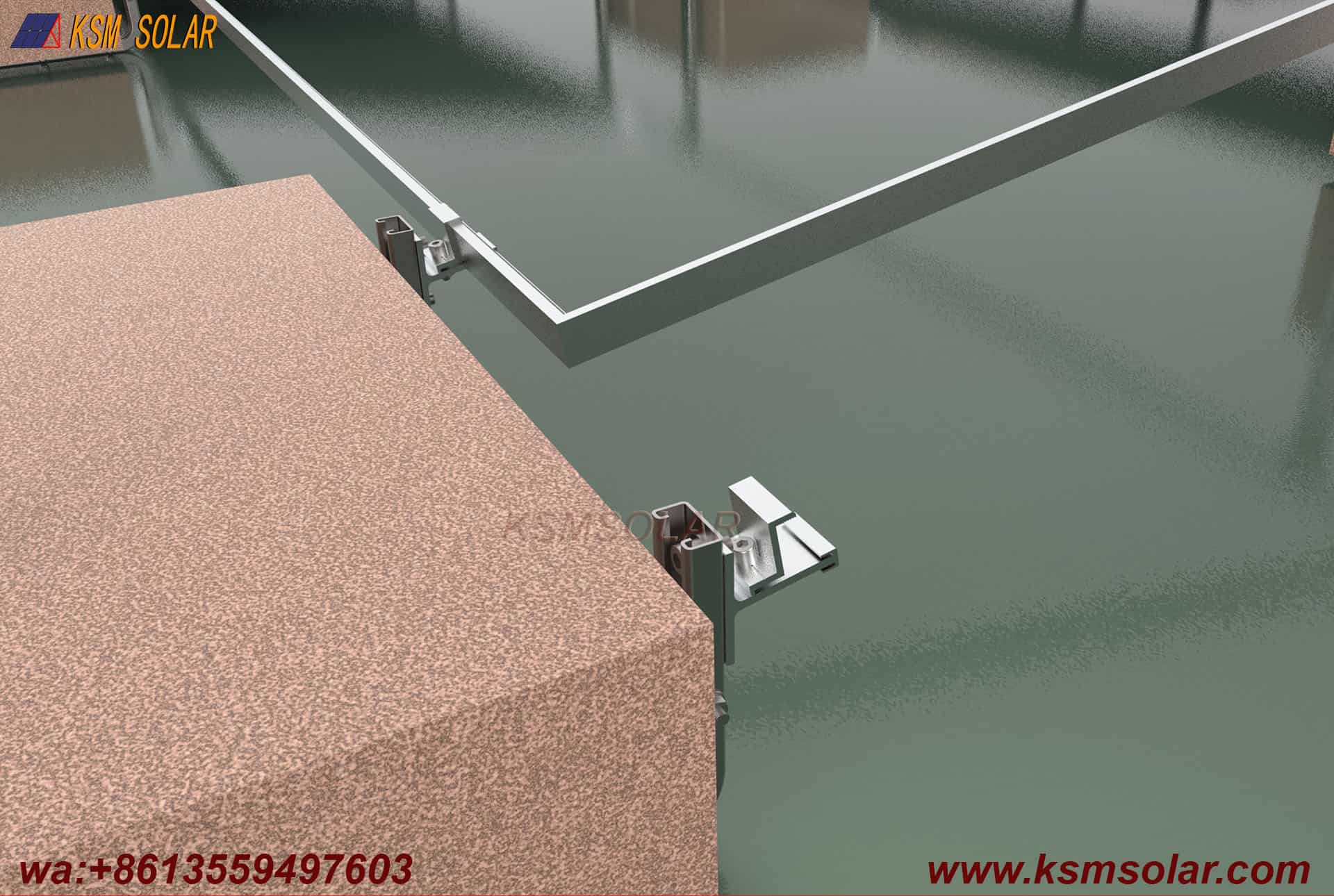

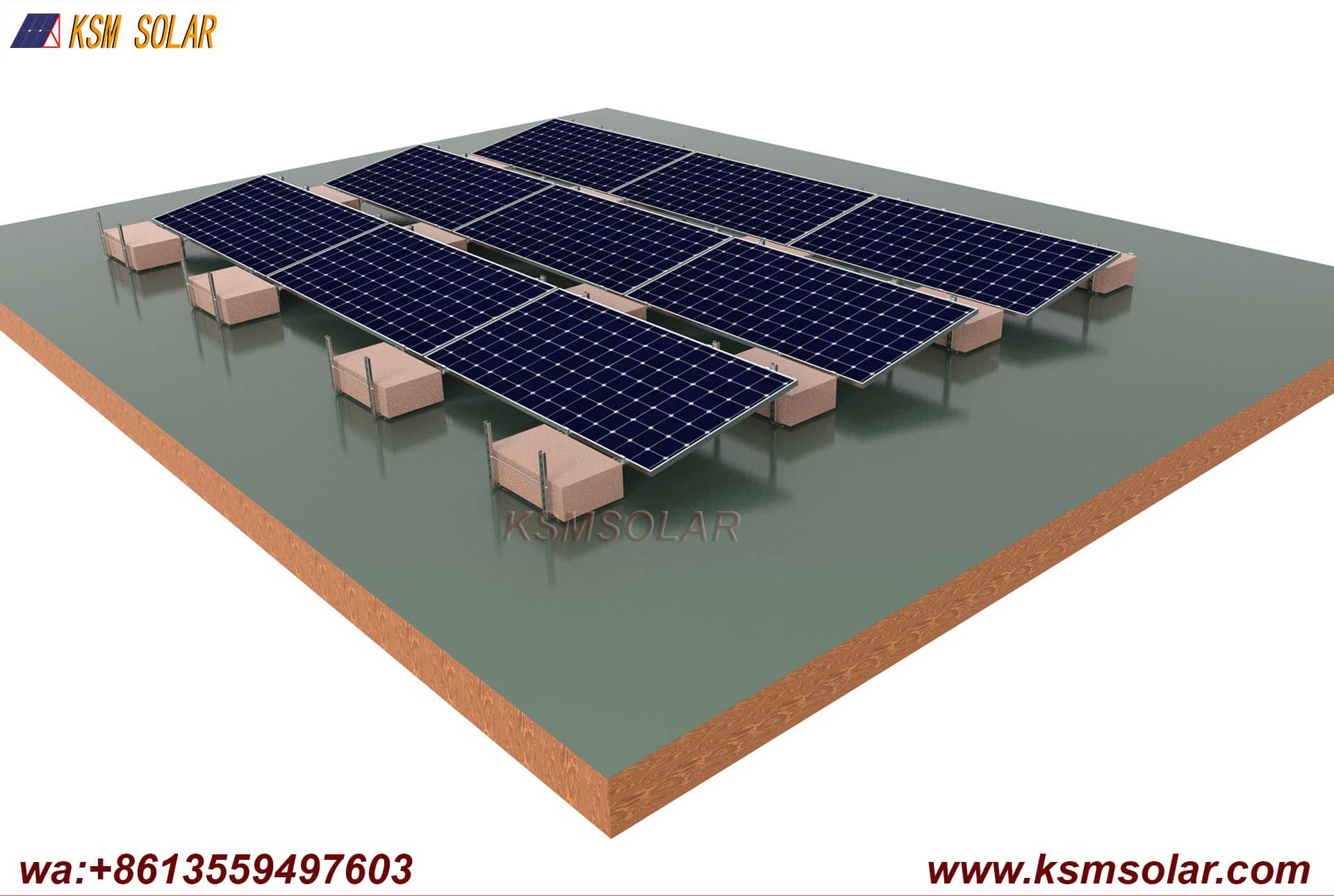

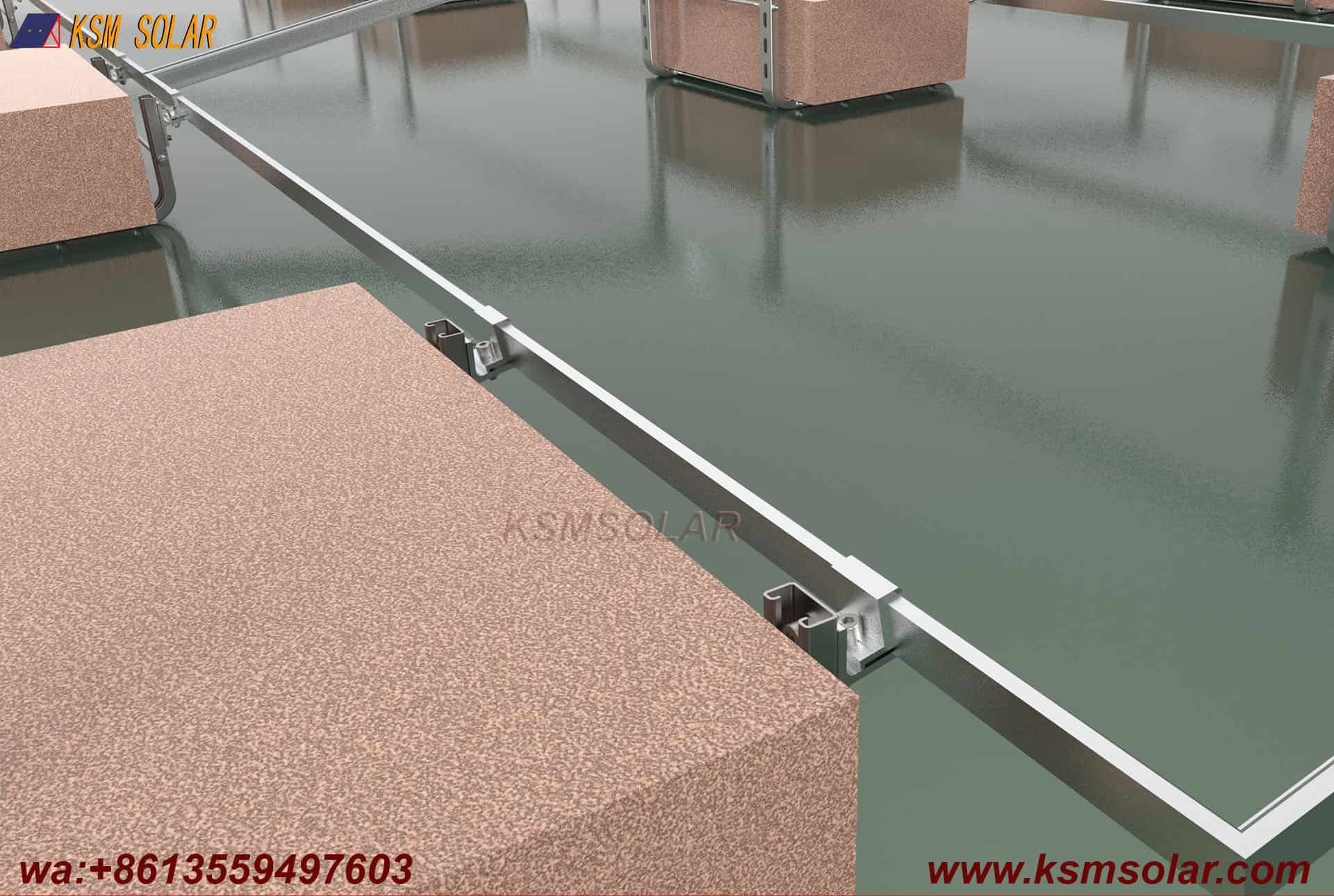

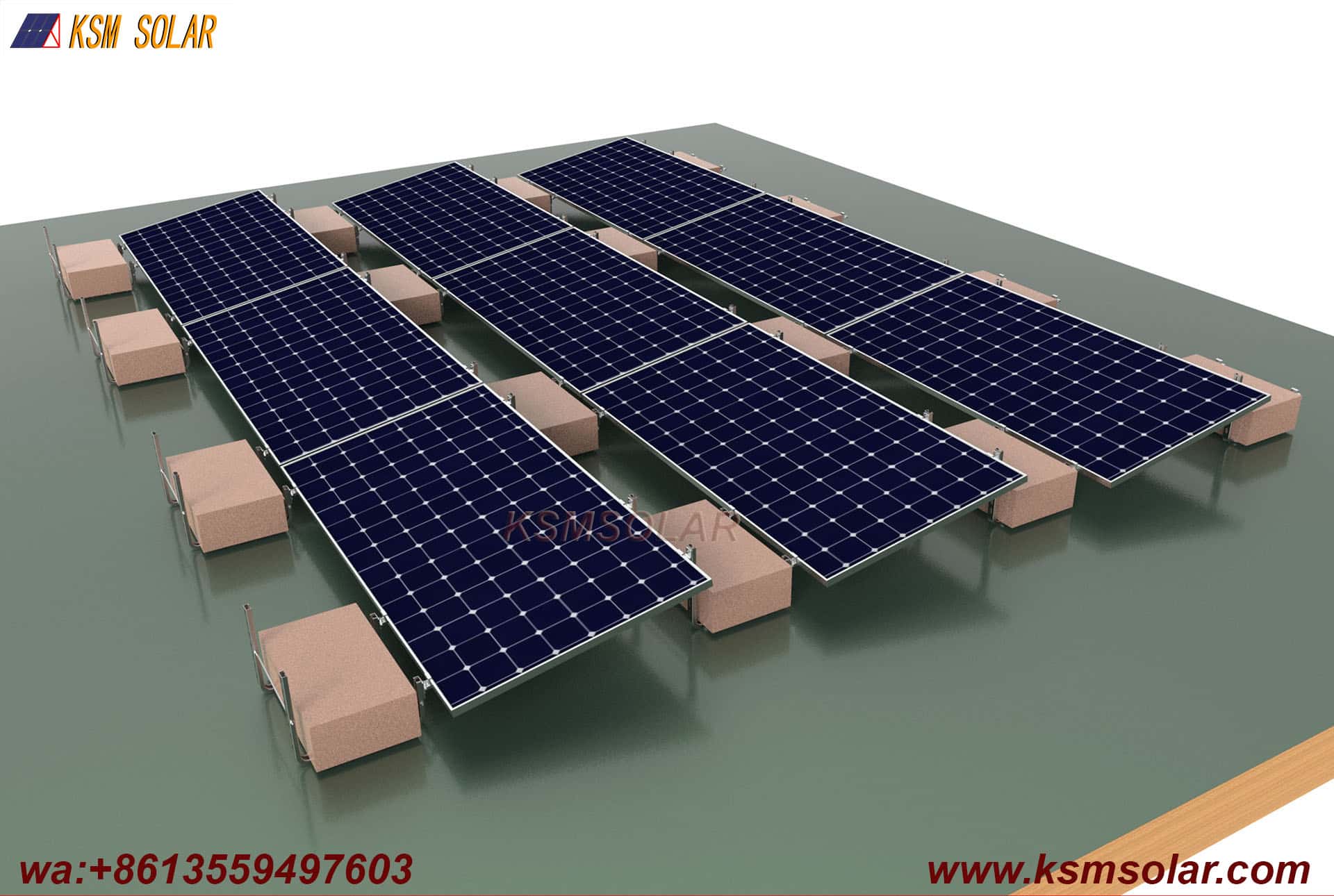

A U-shaped steel ballast frame system is a mechanical mounting solution designed to secure solar panels to flat roofs or ground surfaces without penetrating the underlying membrane or soil. Its defining feature is the use of formed steel channels with a U-shaped cross-section that both support the solar modules and provide a contained cavity for holding ballast materials (such as concrete pavers, stone, or ballast trays) to resist wind uplift .

Core Functional Principles

• Non-Penetrating Attachment: The primary advantage is the complete absence of roof penetrations. The system relies entirely on the weight of ballast materials to resist wind uplift and overturning forces, preserving the integrity and warranty of the roofing membrane .

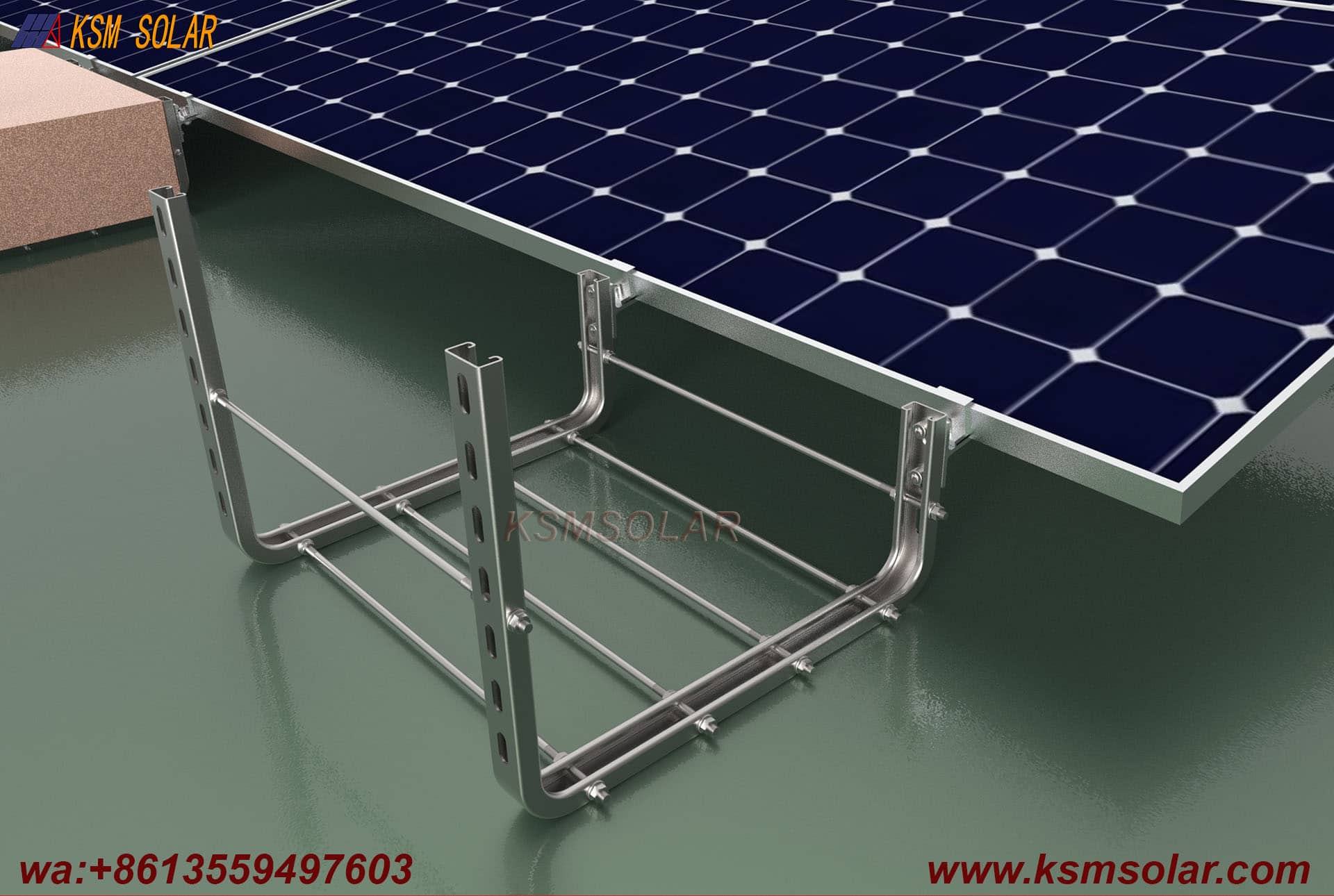

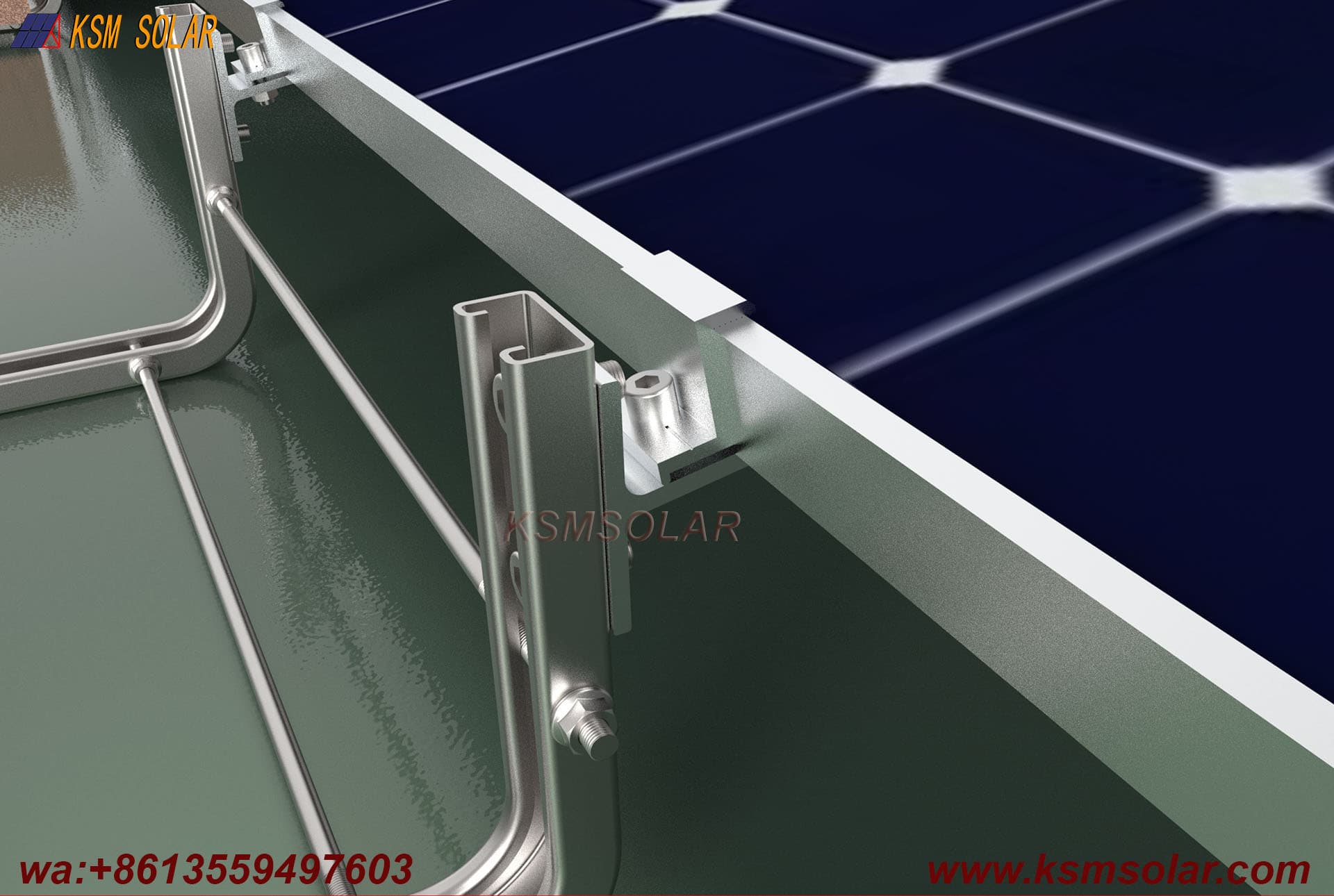

• Dual-Function U-Channel Design: The U-shaped steel profiles serve two purposes simultaneously:

• Structural Support: The channel acts as the primary load-bearing member, supporting the weight of the solar modules and transferring loads to the roof surface .

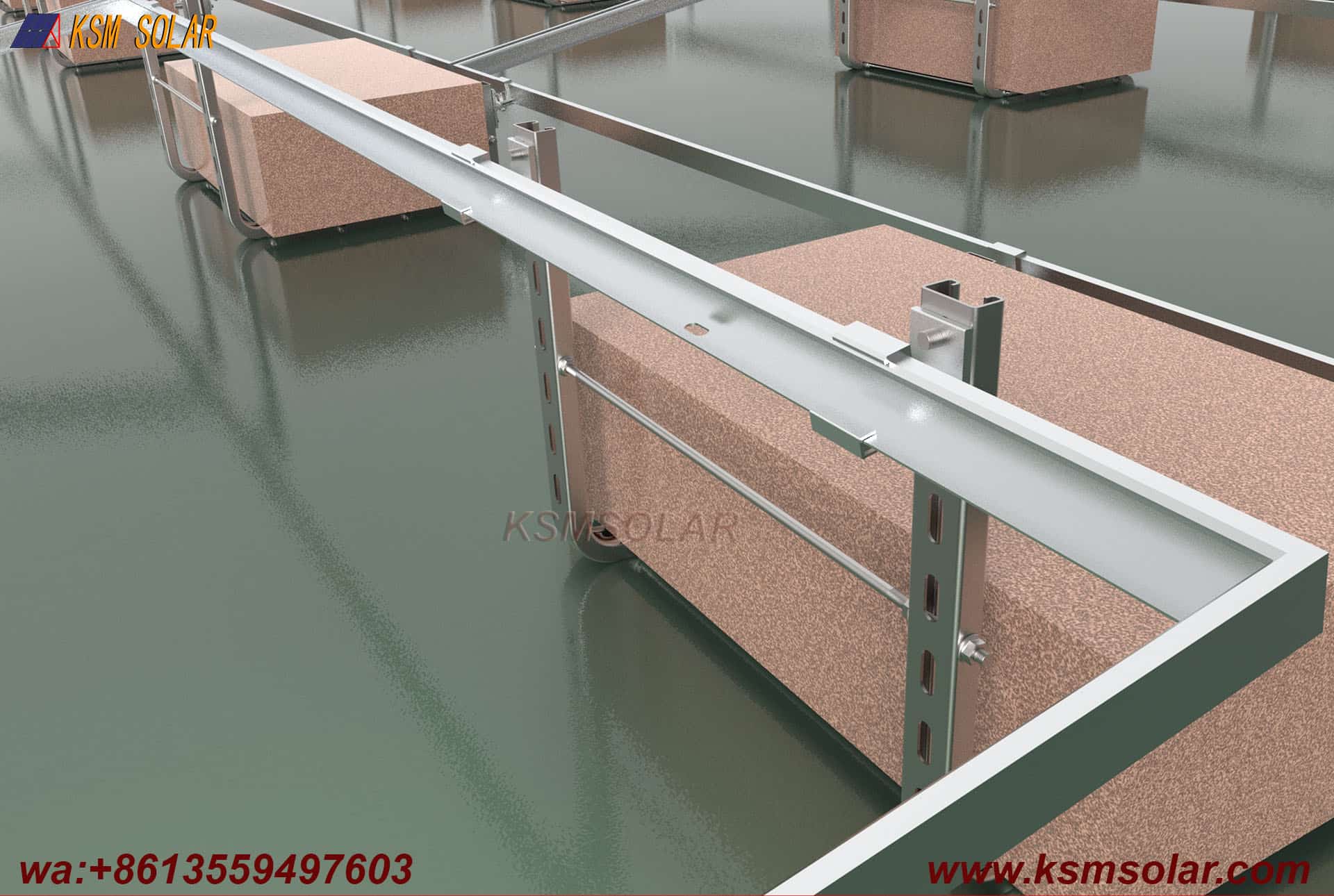

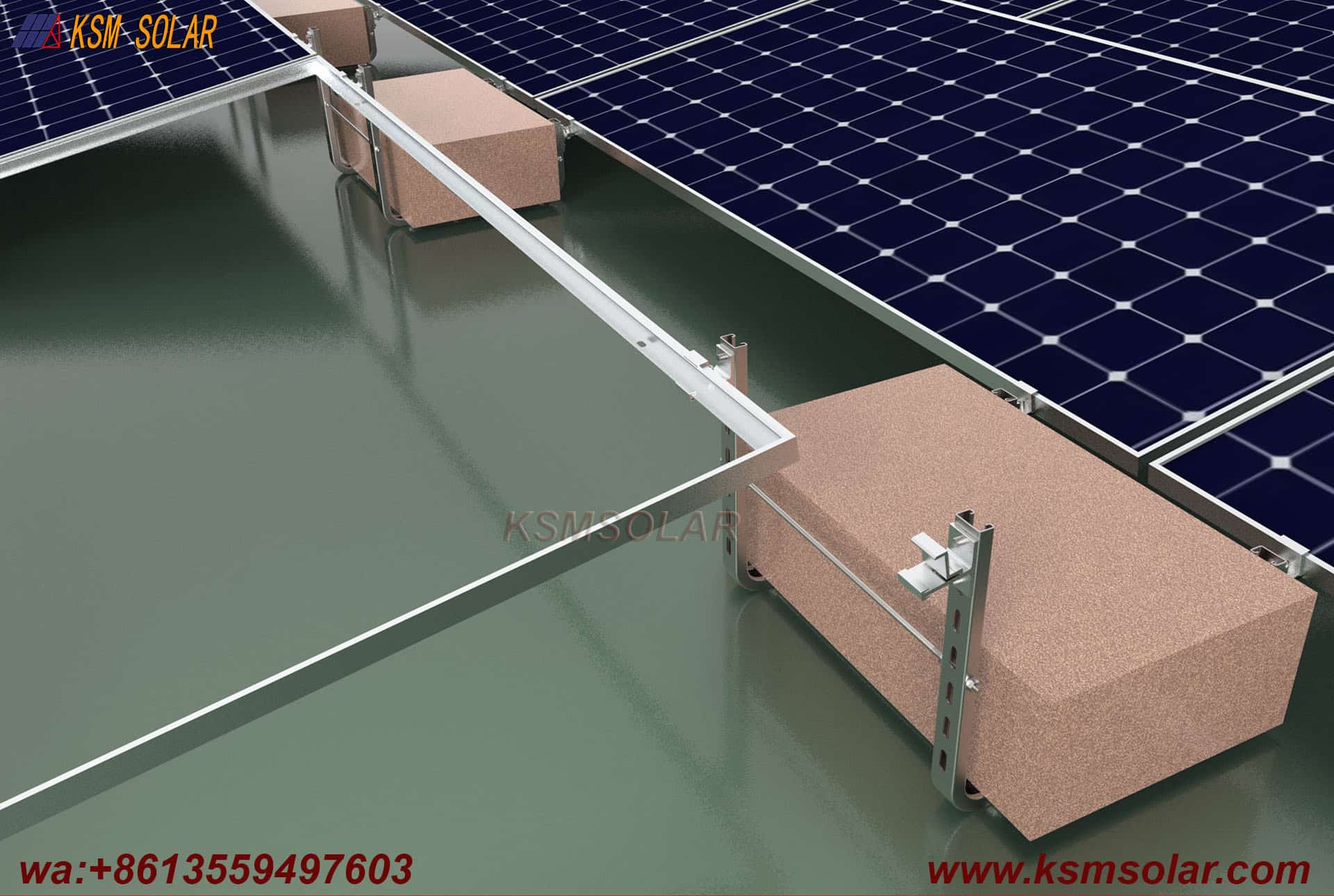

• Ballast Containment: The open top and interior cavity of the U-channel accept and retain ballast materials, integrating the weight-holding function directly into the frame .

• Gravity-Based Stability: The system achieves stability through the gravitational force of the ballast, which counteracts wind uplift and sliding forces. This eliminates the need for mechanical fasteners to the building structure .

Material Composition and Fabrication

• Light-Gauge Galvanized Steel: The primary material is typically formed from relatively light-gauge galvanized sheet metal.This offers:

• Strength: Adequate structural capacity for module support and ballast containment.

• Corrosion Resistance: Galvanized coating (zinc) protects against rust and extends service life in outdoor environments .

• Formability: The material can be easily roll-formed or bent into precise U-shaped profiles .
