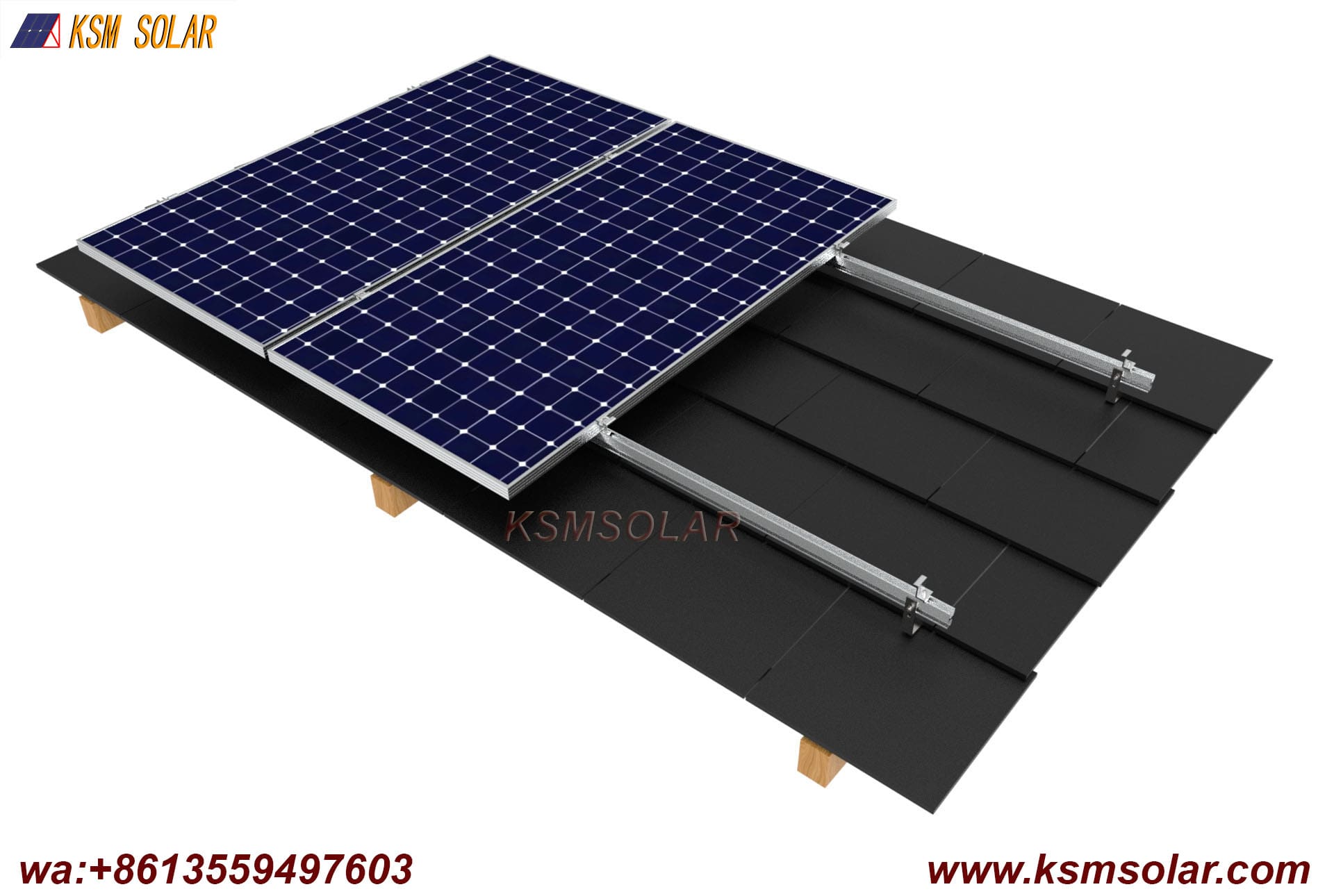

Stainless Steel Hook Mounting System for Slate Tile Roofs

A stainless steel hook system for slate roofs is a mechanical fastening solution designed to secure solar panels to pitched roofs covered with natural or artificial slate tiles. Its defining features include a low-profile, precision-formed stainless steel hook, designed to slide discreetly under thin slate tiles, and a direct fastening mechanism to the roof's structural rafters or battens, all while preserving the integrity and weatherproofing of the delicate slate covering.

Core Functional Principles

Delicate Tile Preservation: The primary engineering challenge is to attach to the roof without cracking or lifting the brittle slate tiles. The hook is designed with a very low vertical profile and minimal thickness to slide under the slate with minimal disturbance, often eliminating the need for tile cutting or grinding.

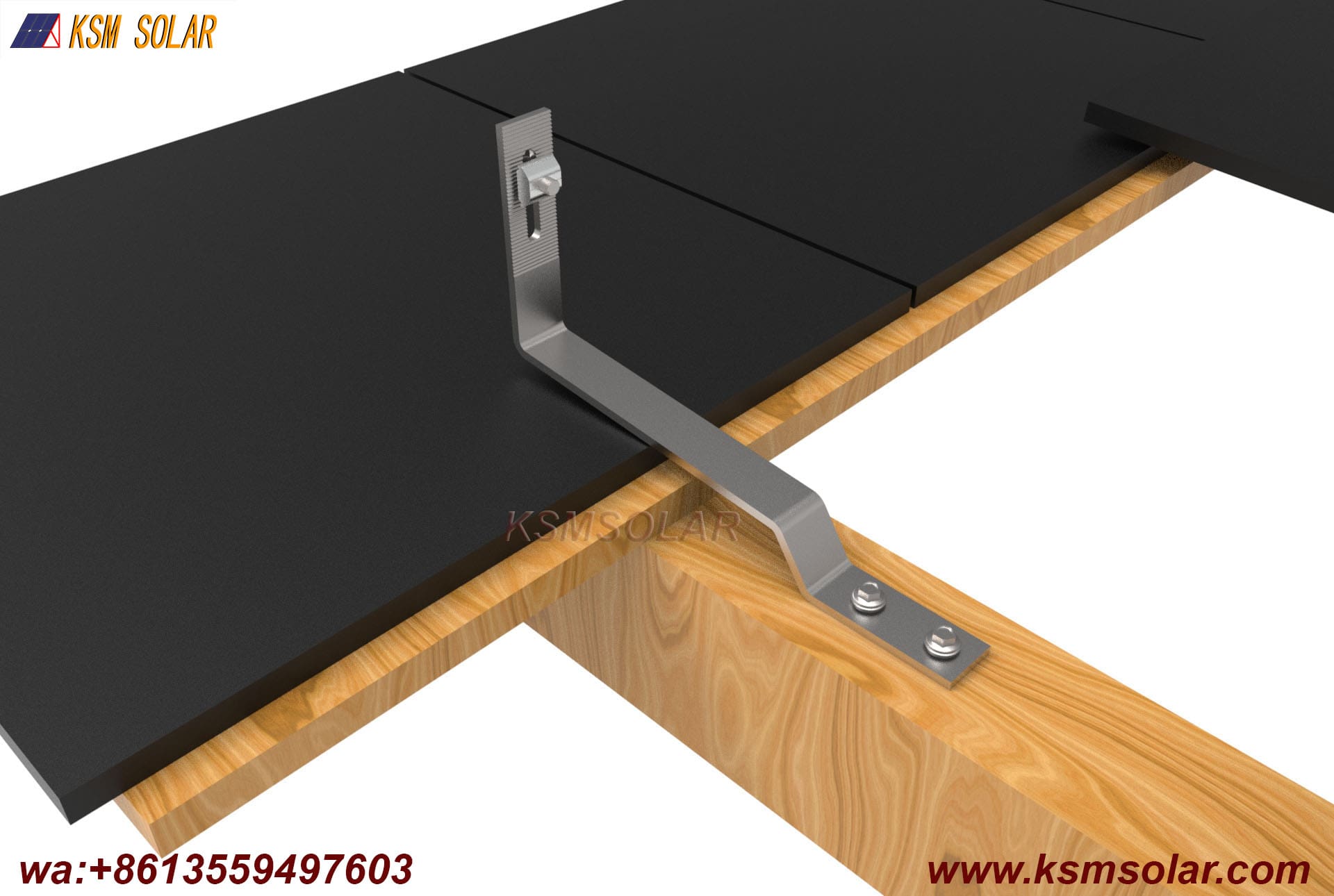

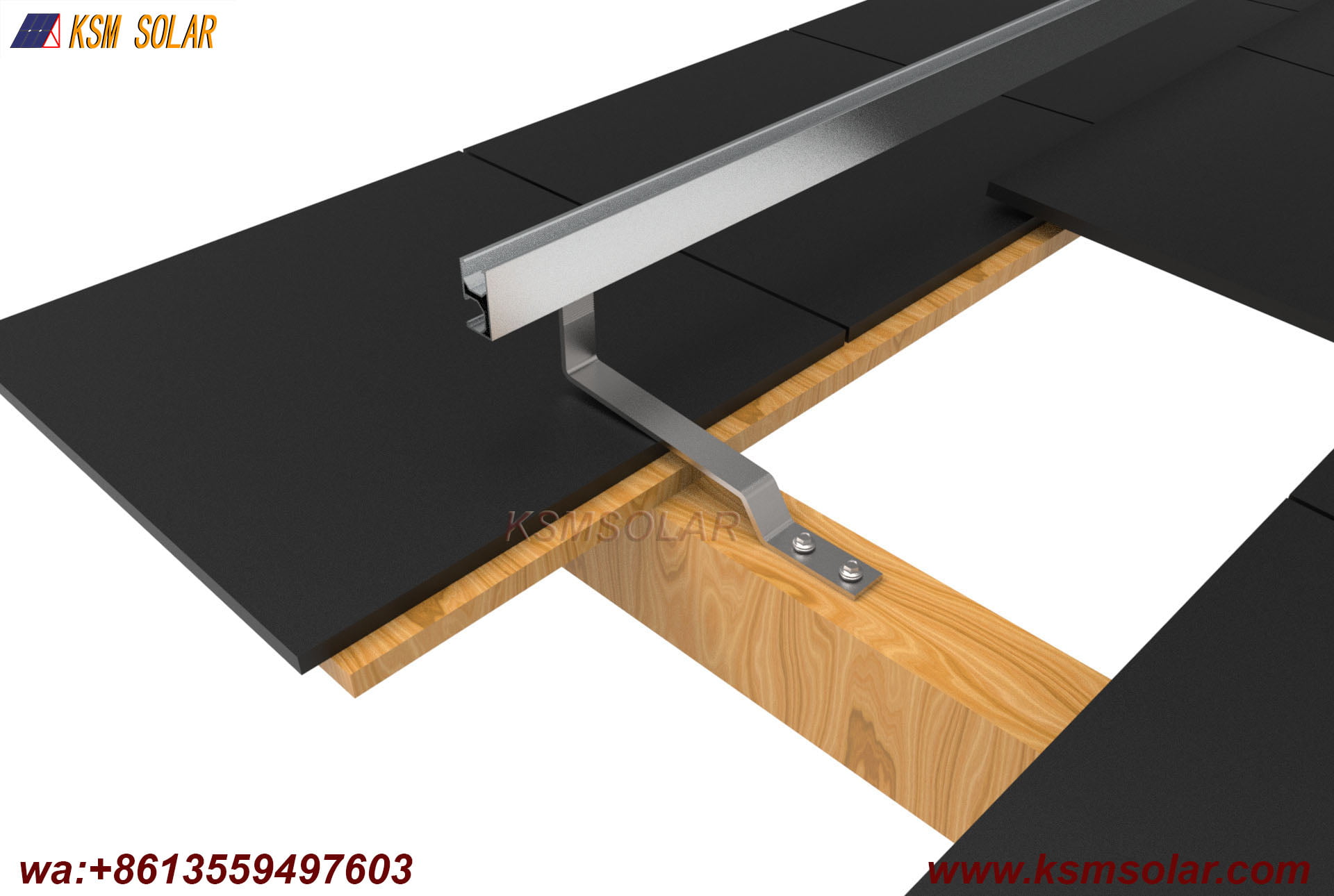

Structural Rafter Attachment: The hook is mechanically fastened directly to the roof's structural rafters or counter-battens using stainless steel wood screws, ensuring solar array loads are transferred safely into the building's primary structure.
Weatherproofing Integrity: Because slate roofs are inherently fragile and prone to leakage if disturbed, these systems often require additional flashing components to guarantee a watertight seal around the hook penetration.

Material Composition

Premium Stainless Steel: The hook body is manufactured from high-grade, corrosion-resistant stainless steel.
Common Grades: AISI 304 (1.4301) is standard for most environments.For coastal or highly corrosive atmospheres, AISI 316 (marine grade) may be specified.
Surface Finish: Often features a sandblasted or bright, treated finish to enhance corrosion resistance and provide a consistent appearance
Stainless Steel Hardware: All accompanying fasteners—wood screws, bolts, and nuts—are stainless steel (typically A2-70) to prevent galvanic corrosion and ensure long-term clamping force.
Flashing Components: Complementary flashing kits (e.g., lead, aluminum, or coated steel) are used to create a watertight seal between the hook and the slates.
