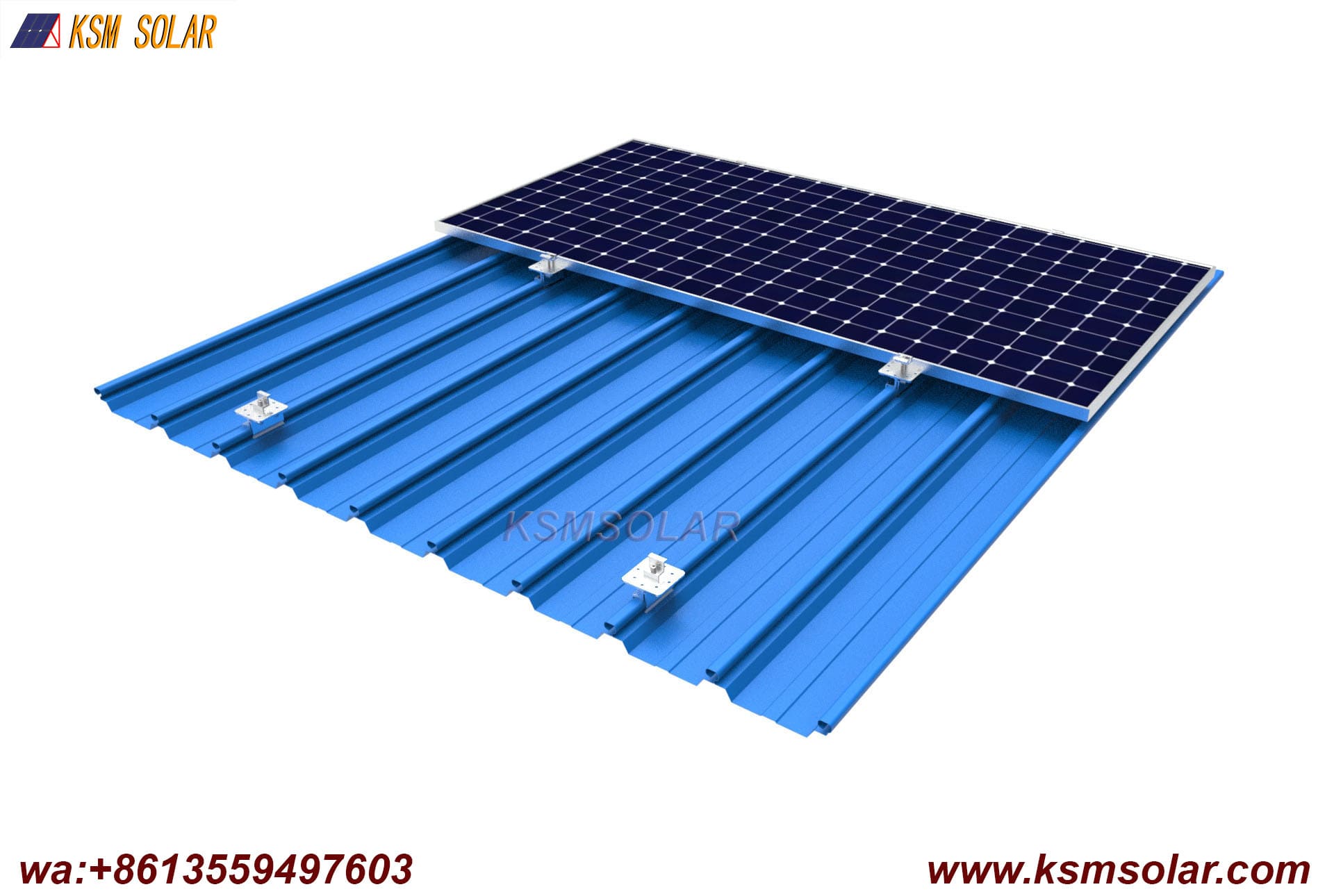

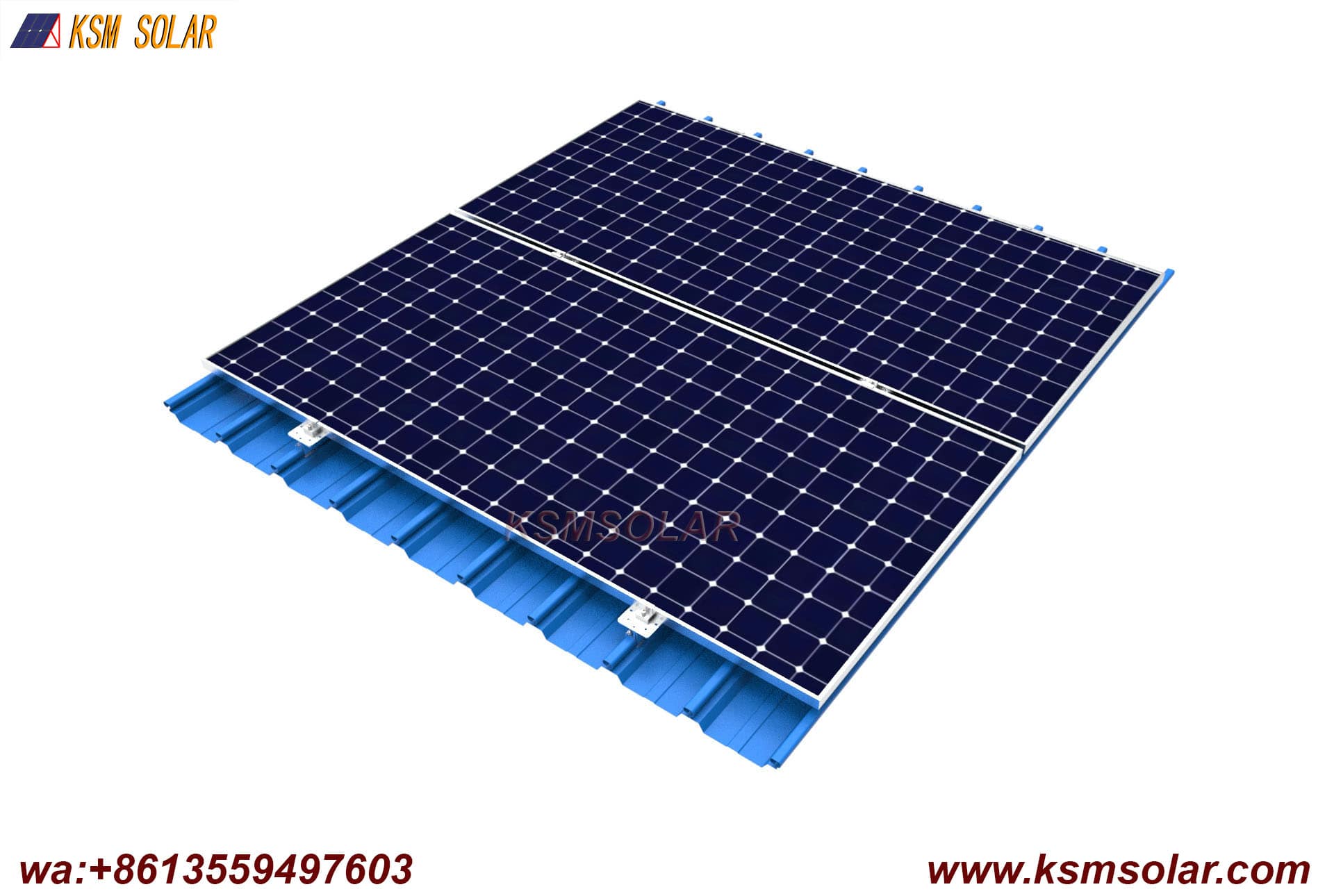

This mounting solution is engineered for metal roofs (specifically standing seam and some trapezoidal profiles) where the structural integrity of the roof sheet allows for point-loading. It functions by attaching dedicated clamps directly to the module frames, bypassing the need for intermediary aluminum rails.

Core Philosophy: The Elimination of the Rail

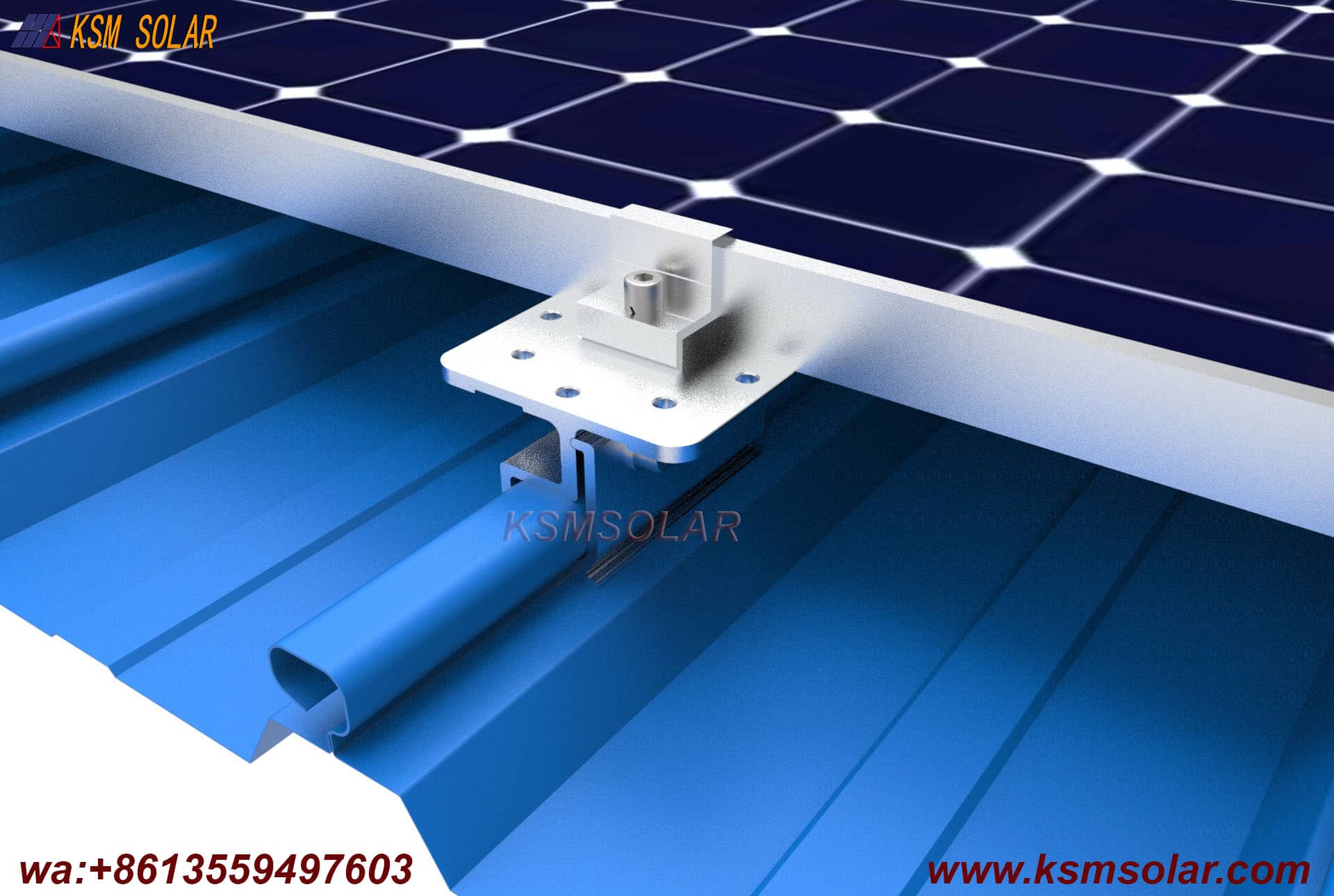

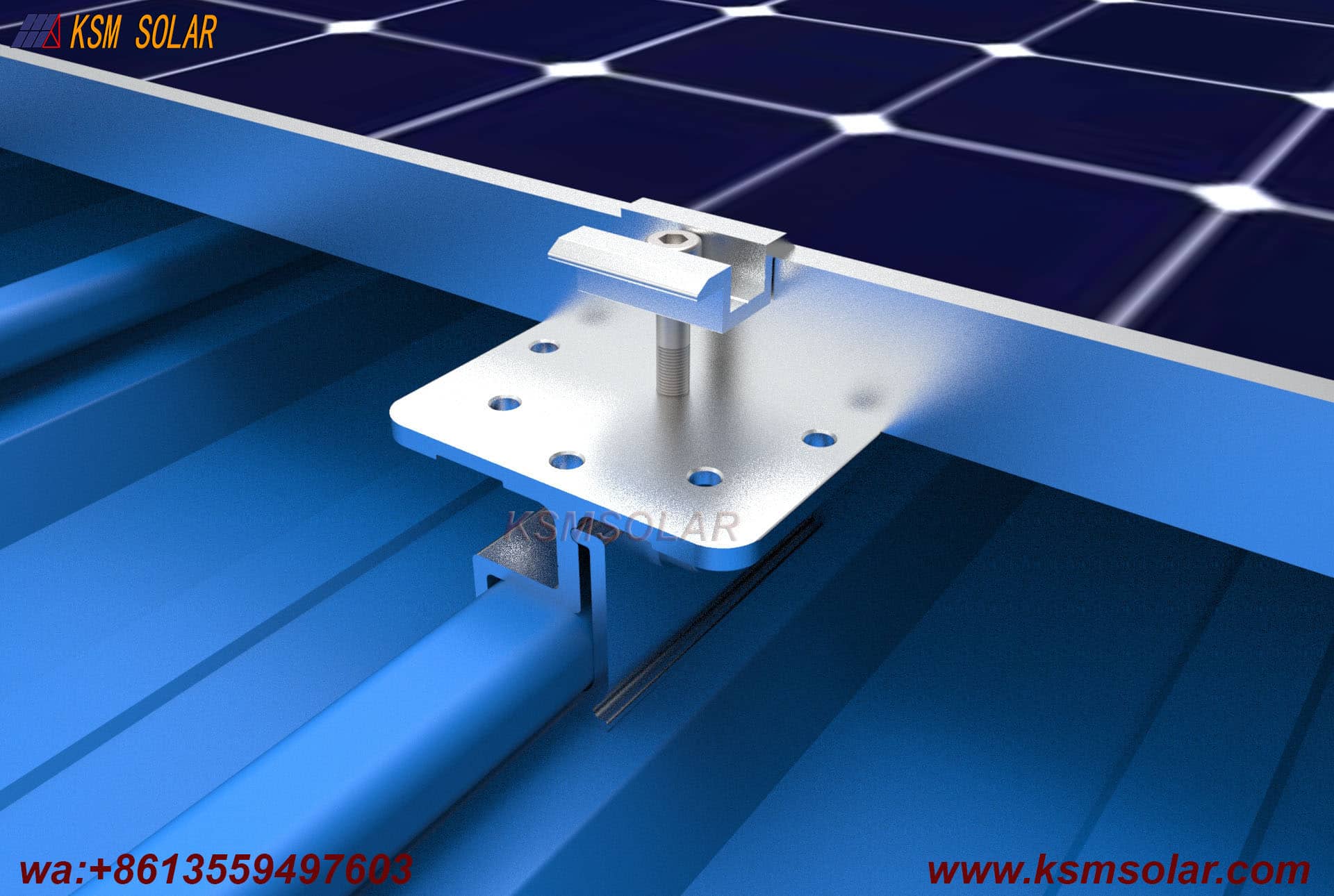

• Direct Connection: Unlike L-foot or standard clamp systems that require mounting rails to be placed on top of the clamps, rail-free systems integrate the module attachment point into the clamp itself. The solar panel frame sits directly on (or clips directly into) the roof clamp.

• Material Optimization: By removing the long-span aluminum rails, this system significantly reduces the bill of materials, lowering both the cost and the carbon footprint of the mounting structure.

• Weight Reduction: The system weight per module is substantially lower, reducing the dead load on the roof structure.

2. Structural Mechanics: Point Loading and Module Integrity

• Leveraging the Module Frame: In a traditional system, the rail is the primary structural beam. In a rail-free system, the solar module's own frame becomes the primary structural beam. The clamps act as supports, and the module frame must span the distance between them.

• Increased Attachment Points: To compensate for the lack of a rail, rail-free systems typically require more attachment points per module. A standard module might use 4 clamps (2 per long side), whereas a rail-free system often uses 6 or 8 clamps to support the module adequately against wind uplift and snow loads.

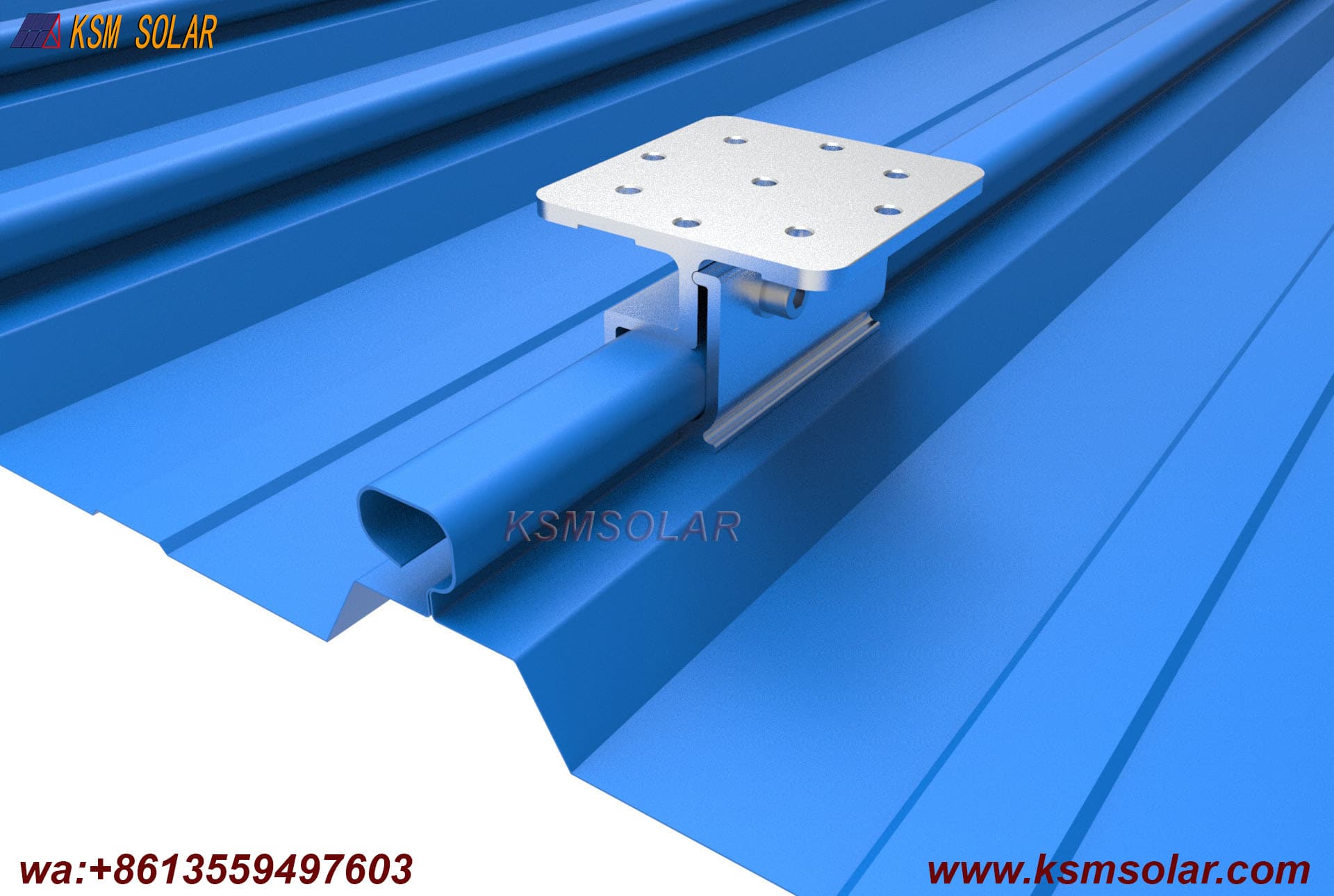

• Load Distribution: The clamps are designed with wide, reinforced seats that cradle the module frame, distributing the point loads from the clamp into the module frame to prevent deformation.
