A metal roof mounting U-shaped mini rail photovoltaic system represents a highly optimized, cost-effective solar racking solution specifically engineered for trapezoidal, corrugated, and other profiled metal roofing types.This system combines the structural simplicity of short U-shaped aluminum rails with integrated clamping technology to create a secure, minimalist foundation for solar panel installations on residential, commercial, and industrial buildings.Often described as a "railless" or "short rail" system, it eliminates the need for long continuous rails and traditional L-foot brackets, significantly reducing material costs and installation time

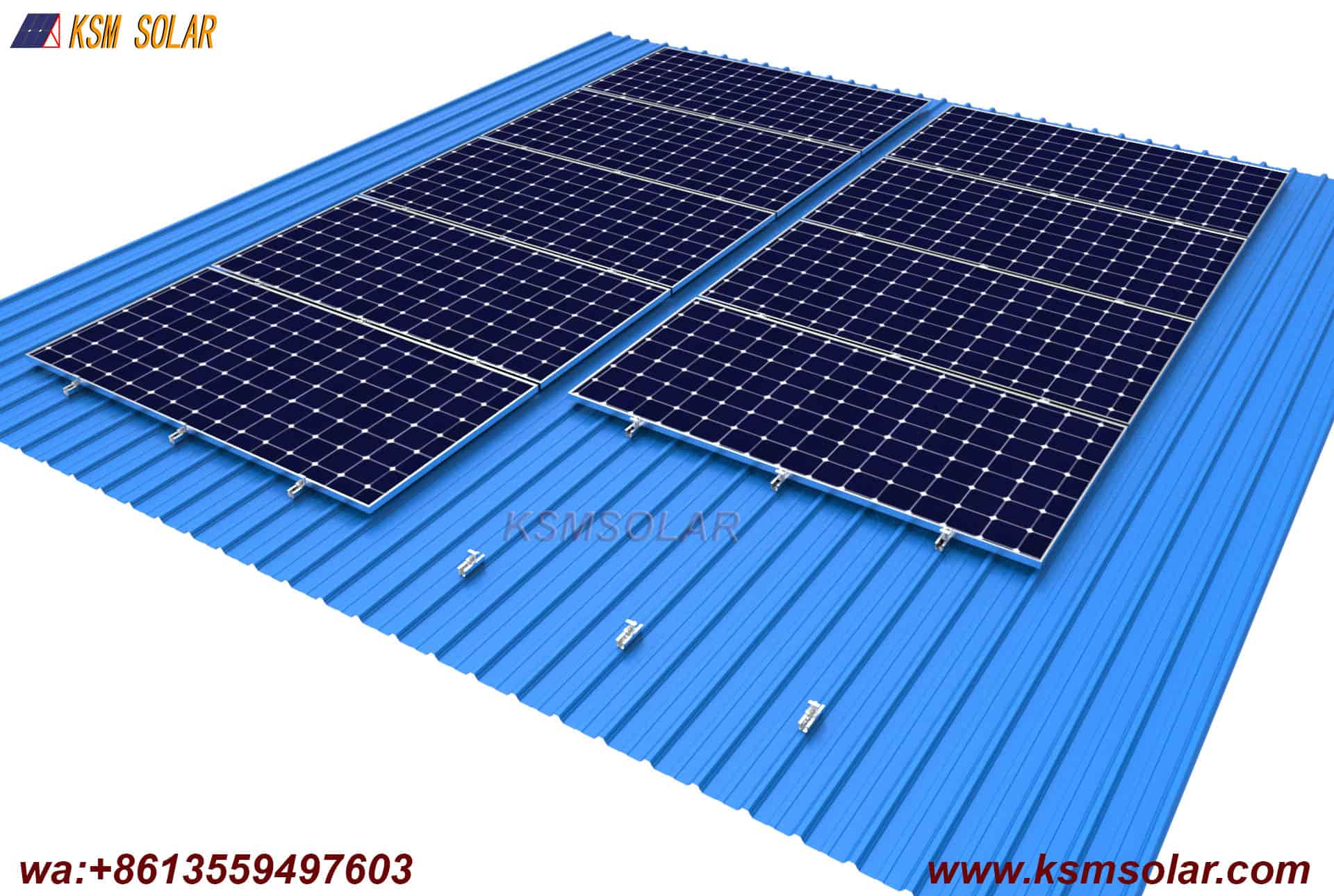

Core Structural Component: U-Shaped Mini Rail Design

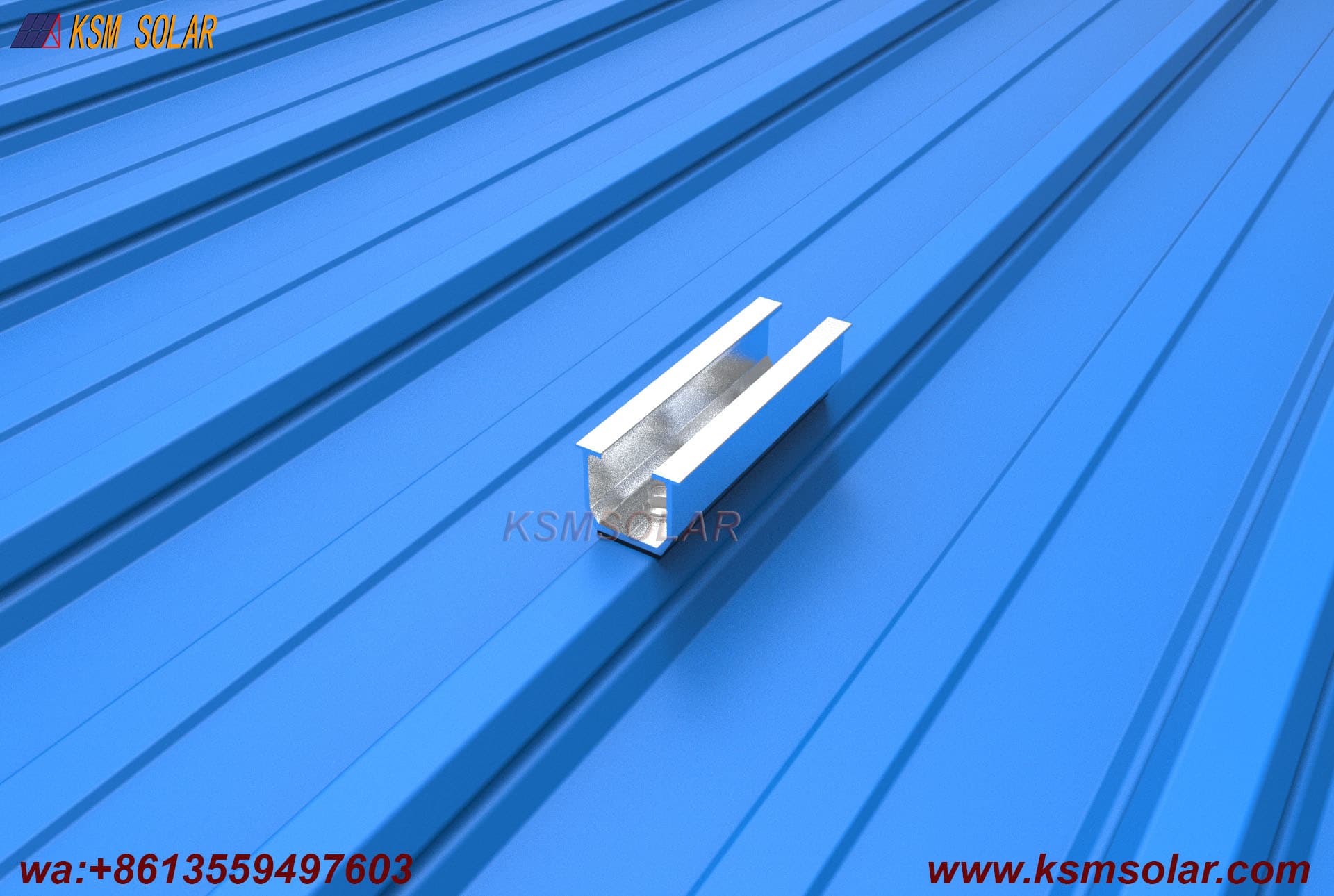

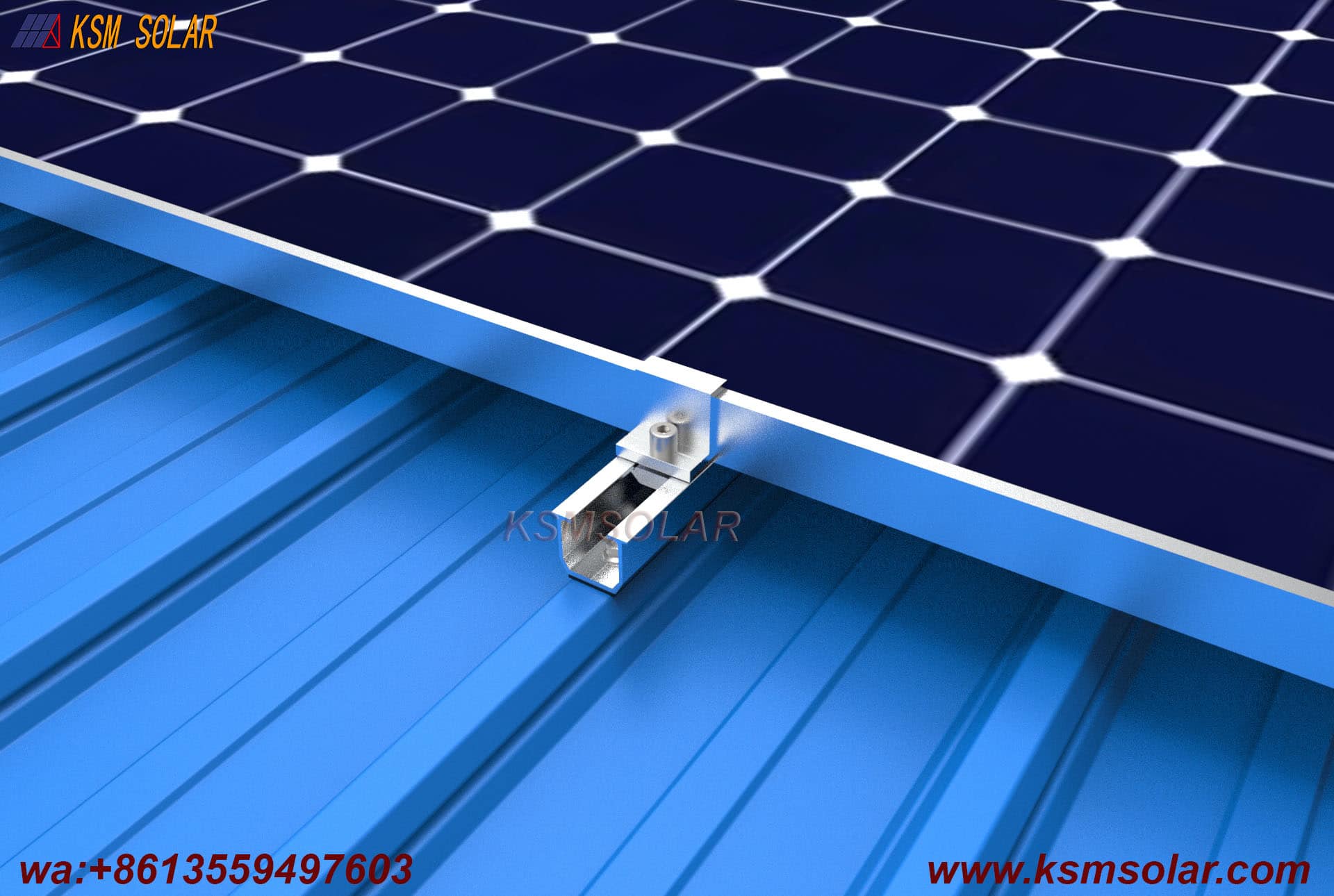

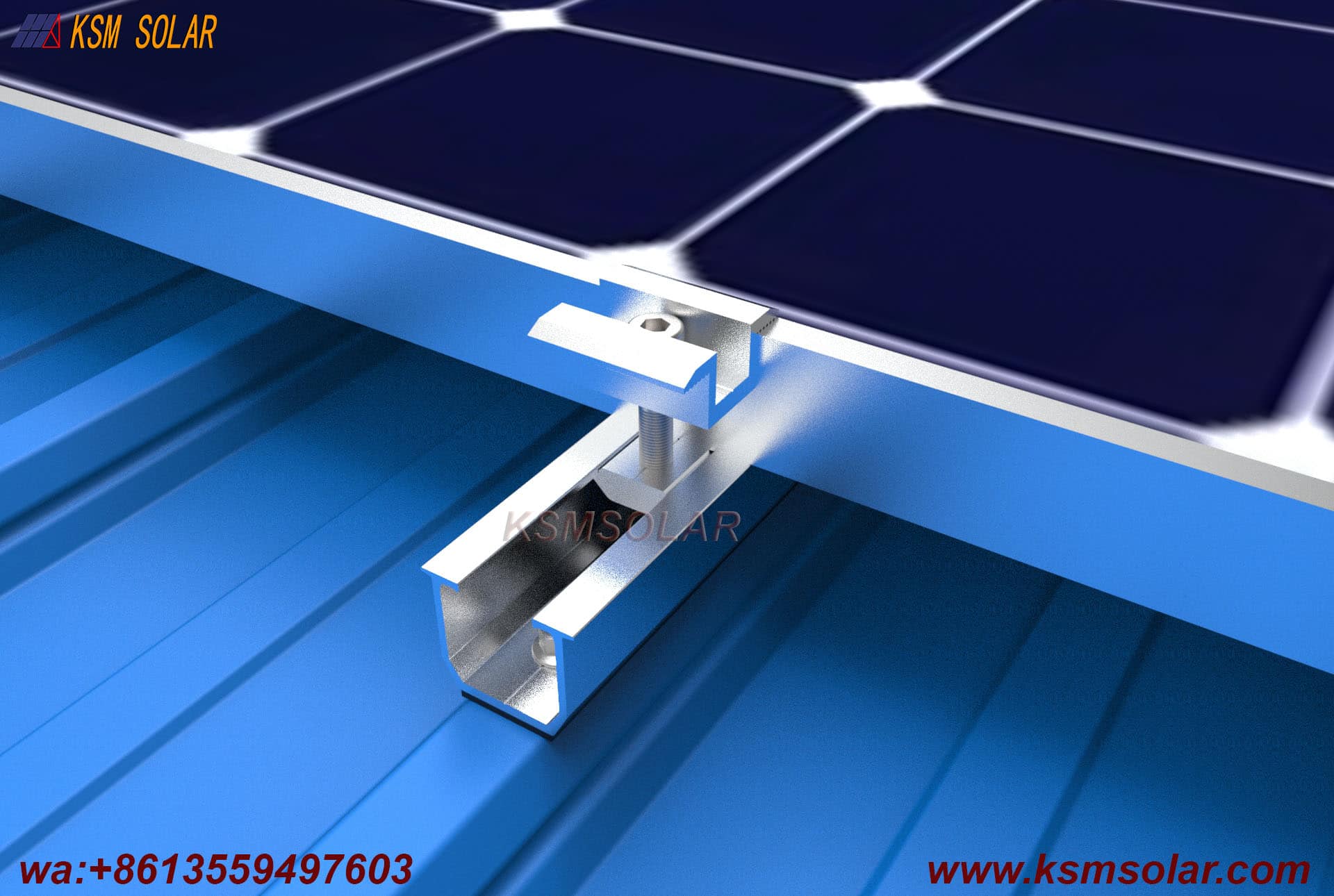

Distinctive U-Shaped Profile Geometry: The system's defining component is a short, U-shaped rail typically fabricated from high-strength aluminum alloy. This compact profile features:

• A U-shaped channel that provides inherent structural rigidity

• A low-profile height (typically 35-50mm) for minimal visual impact

• Precision-punched mounting holes at standardized intervals for accessory attachment

• A compact length (typically 100-300mm) that covers only 2-3 roof ribs or profiles


Material Excellence: U-shaped mini rails are manufactured from Aluminum Alloy 6005-T5, which offers:

• Excellent strength-to-weight ratio for structural integrity without excess weight

• Natural corrosion resistance enhanced through anodized surface treatment

• Long-term durability in outdoor environments with minimal maintenance

• Lightweight properties simplifying handling and installation
