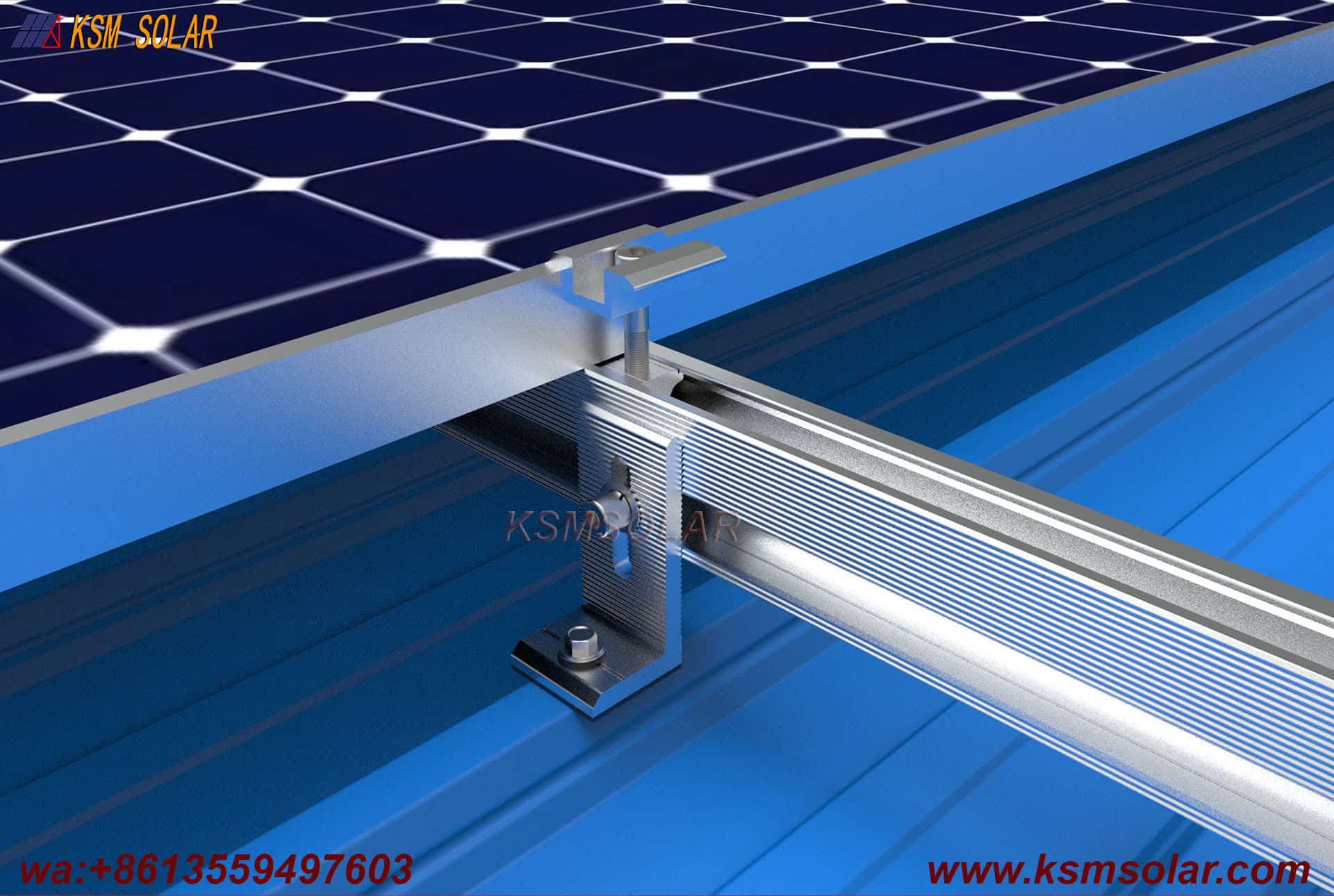

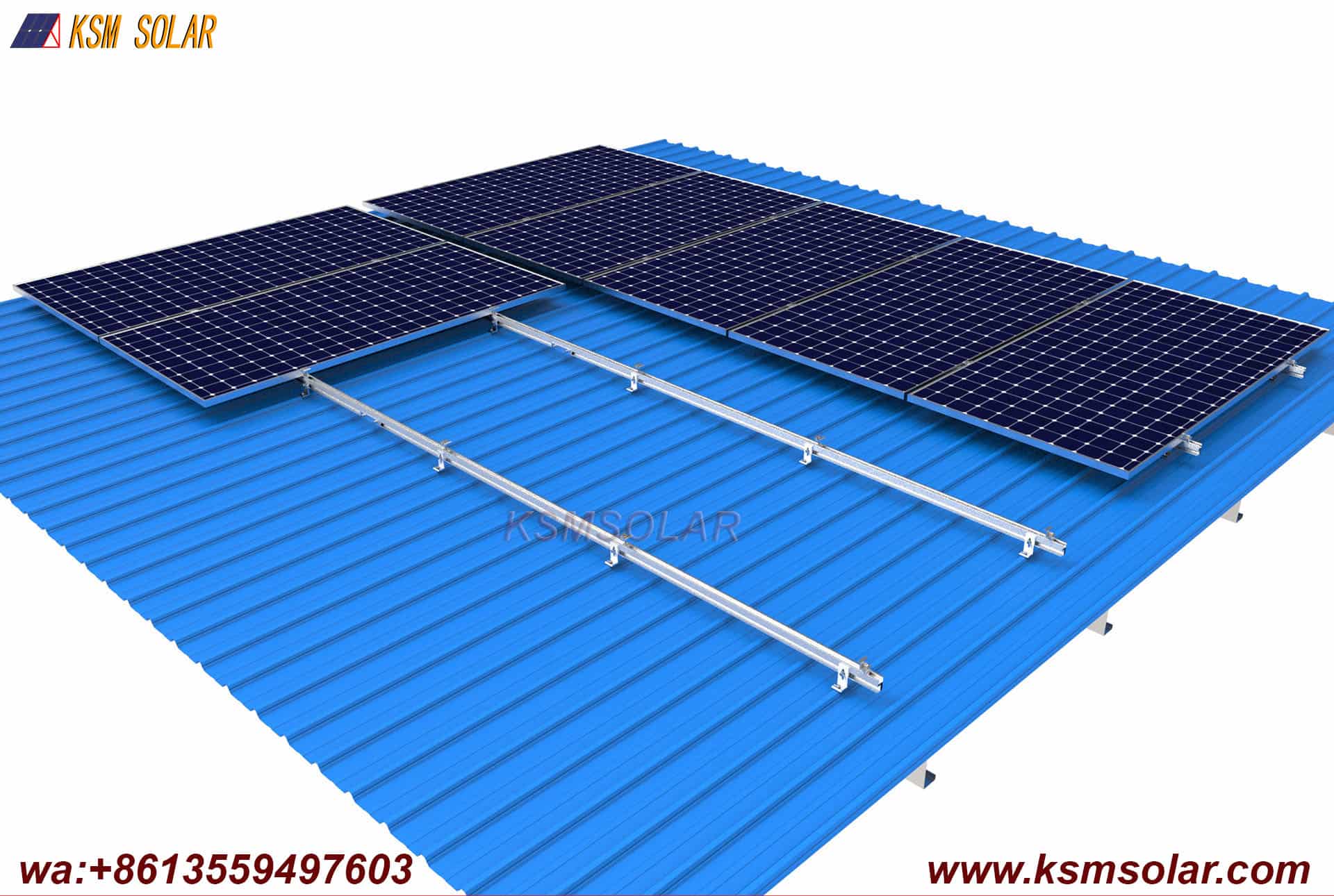

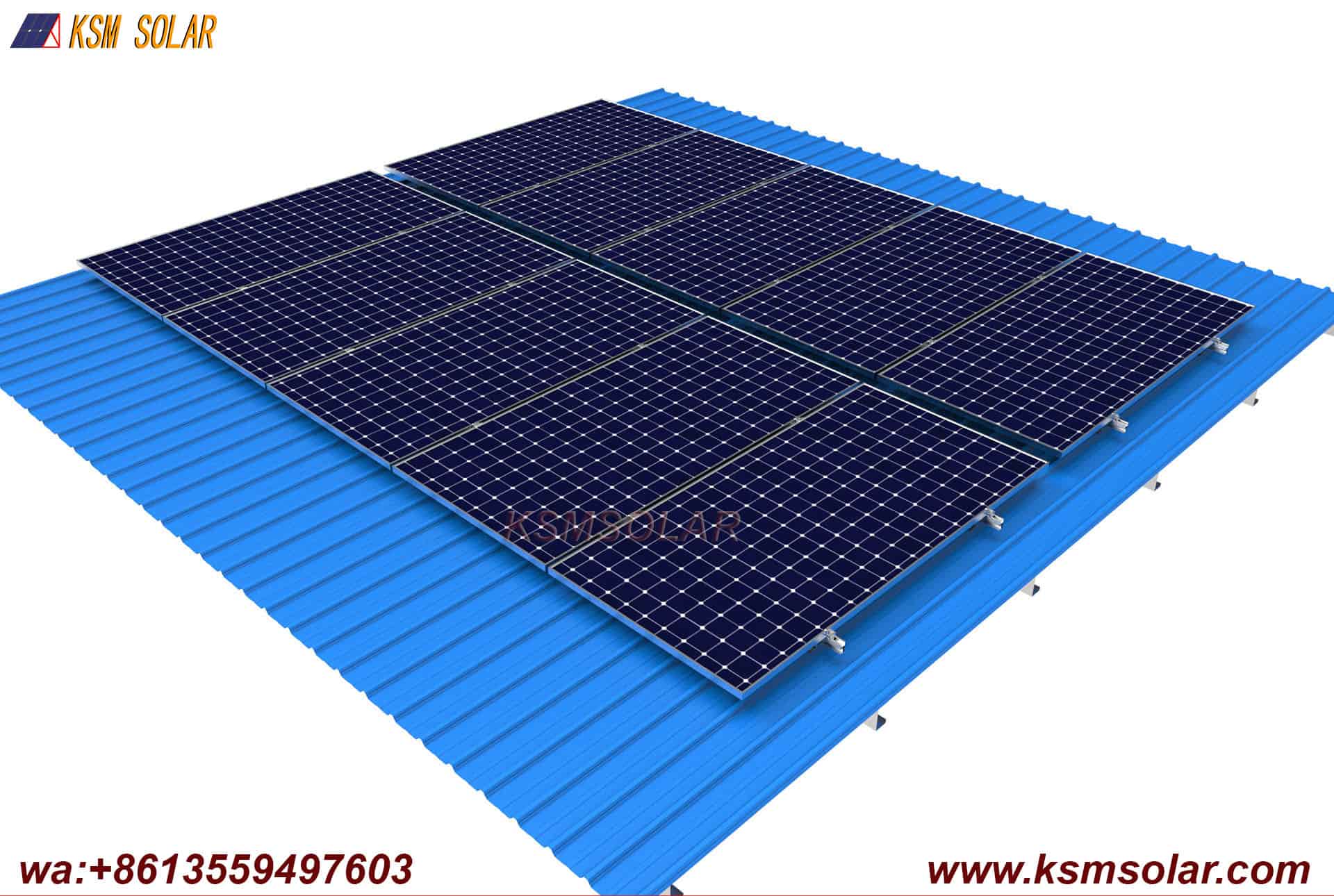

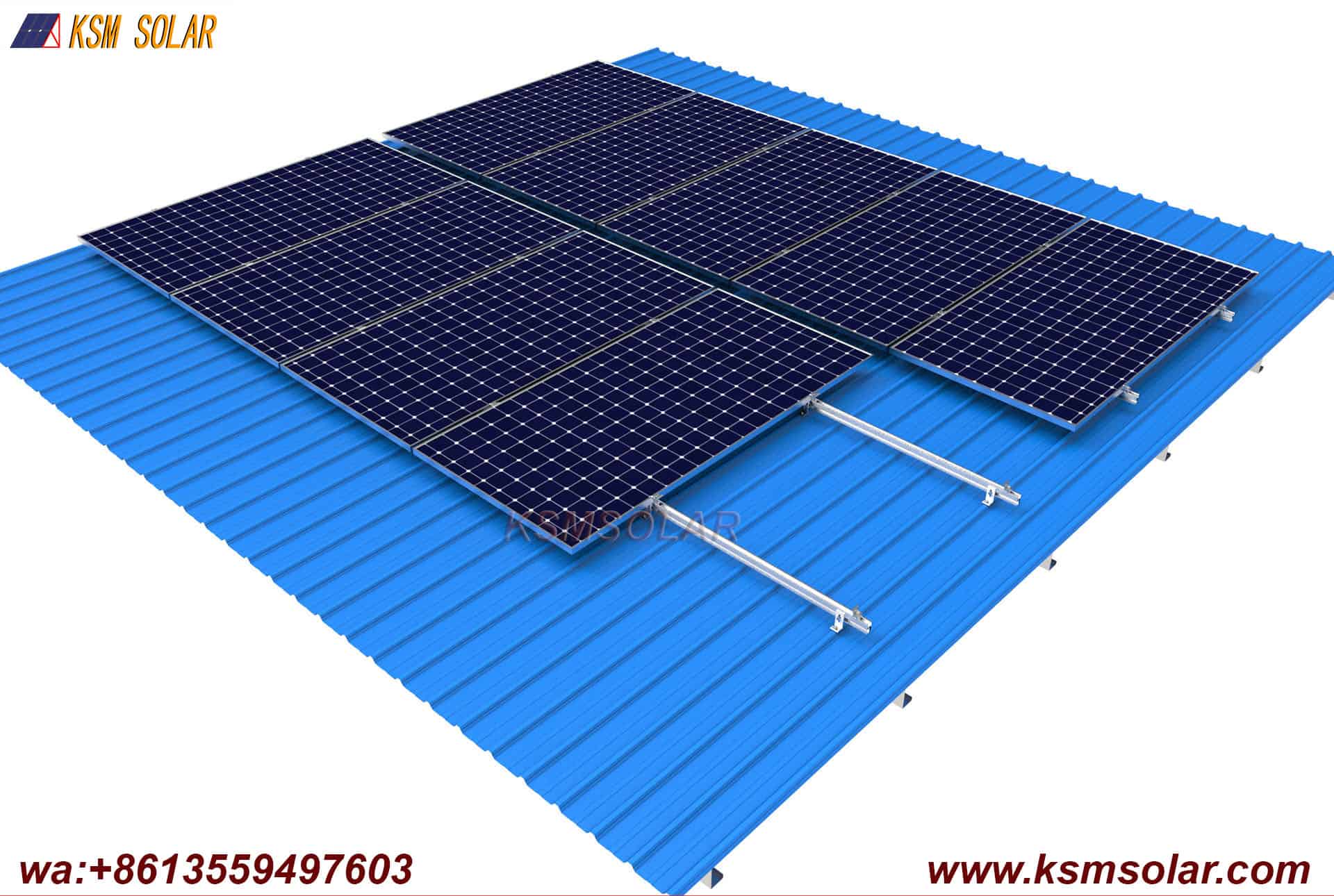

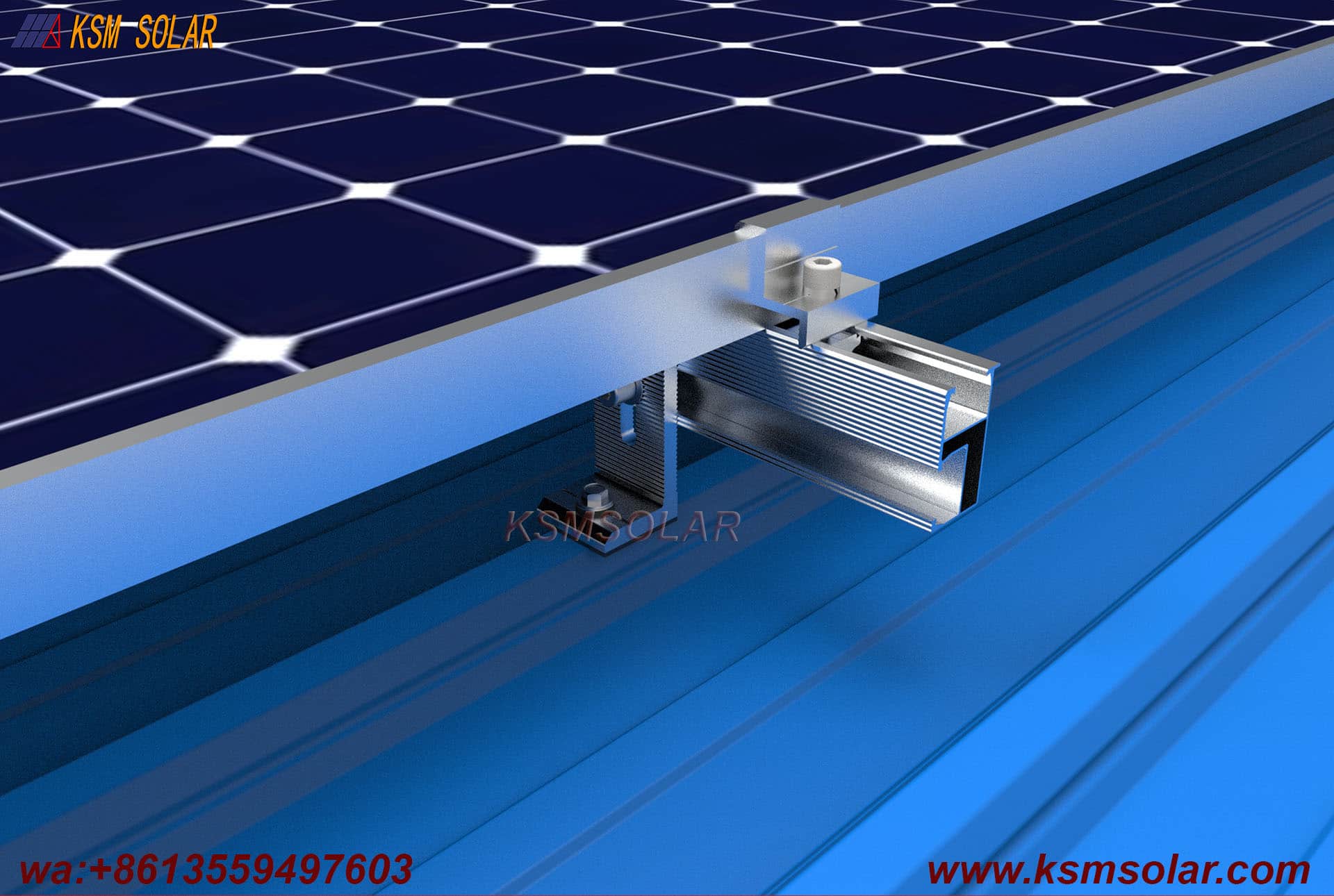

A metal roof mounting L-foot with EPDM photovoltaic system represents a fundamental, highly engineered solar racking solution specifically designed for corrugated, trapezoidal, and other profiled metal roofing types.This system combines the structural simplicity of an L-shaped aluminum bracket with advanced sealing technology to create a secure, weatherproof foundation for solar panel installations on residential, commercial, and industrial buildings

Core Structural Component: L-Foot Design

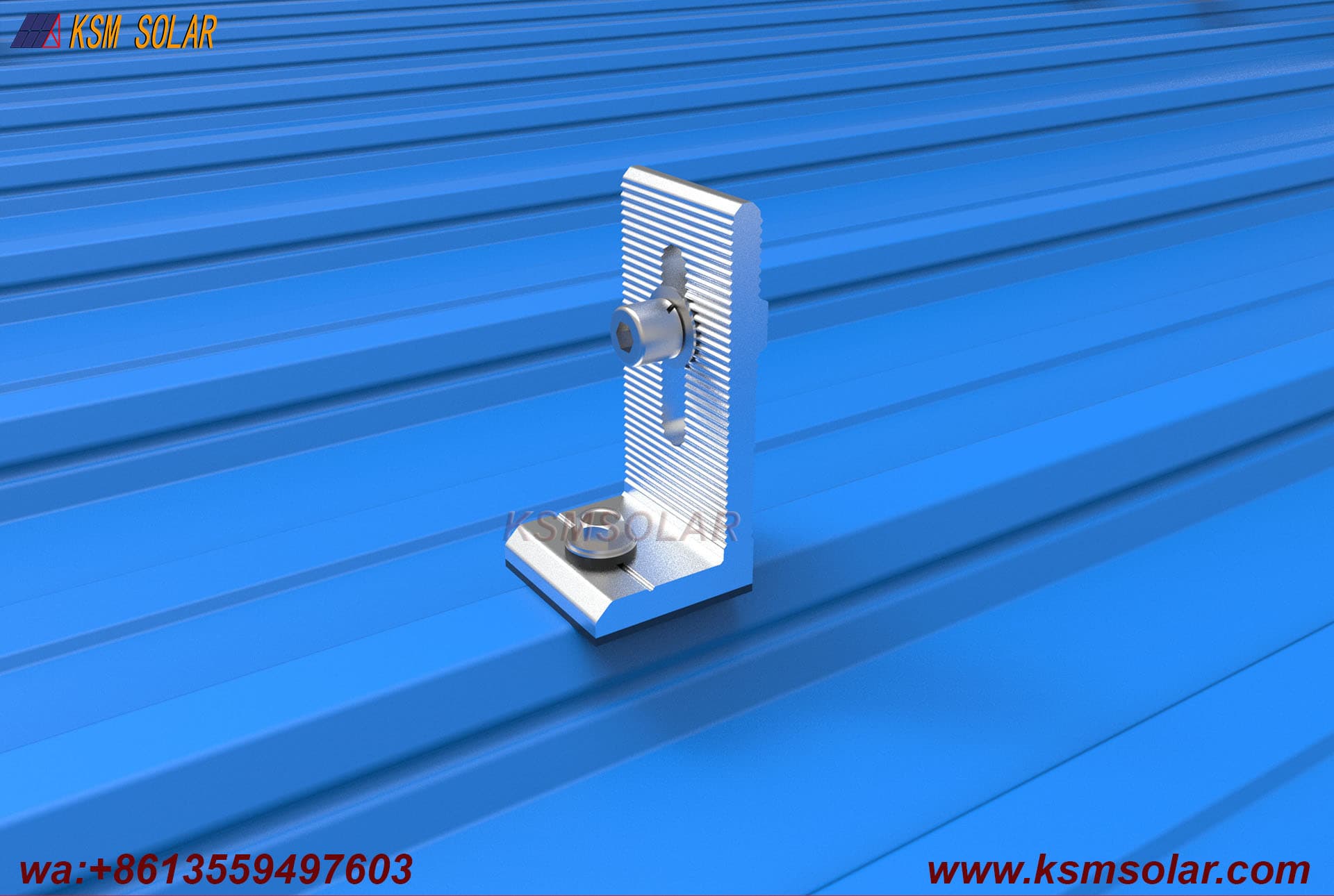

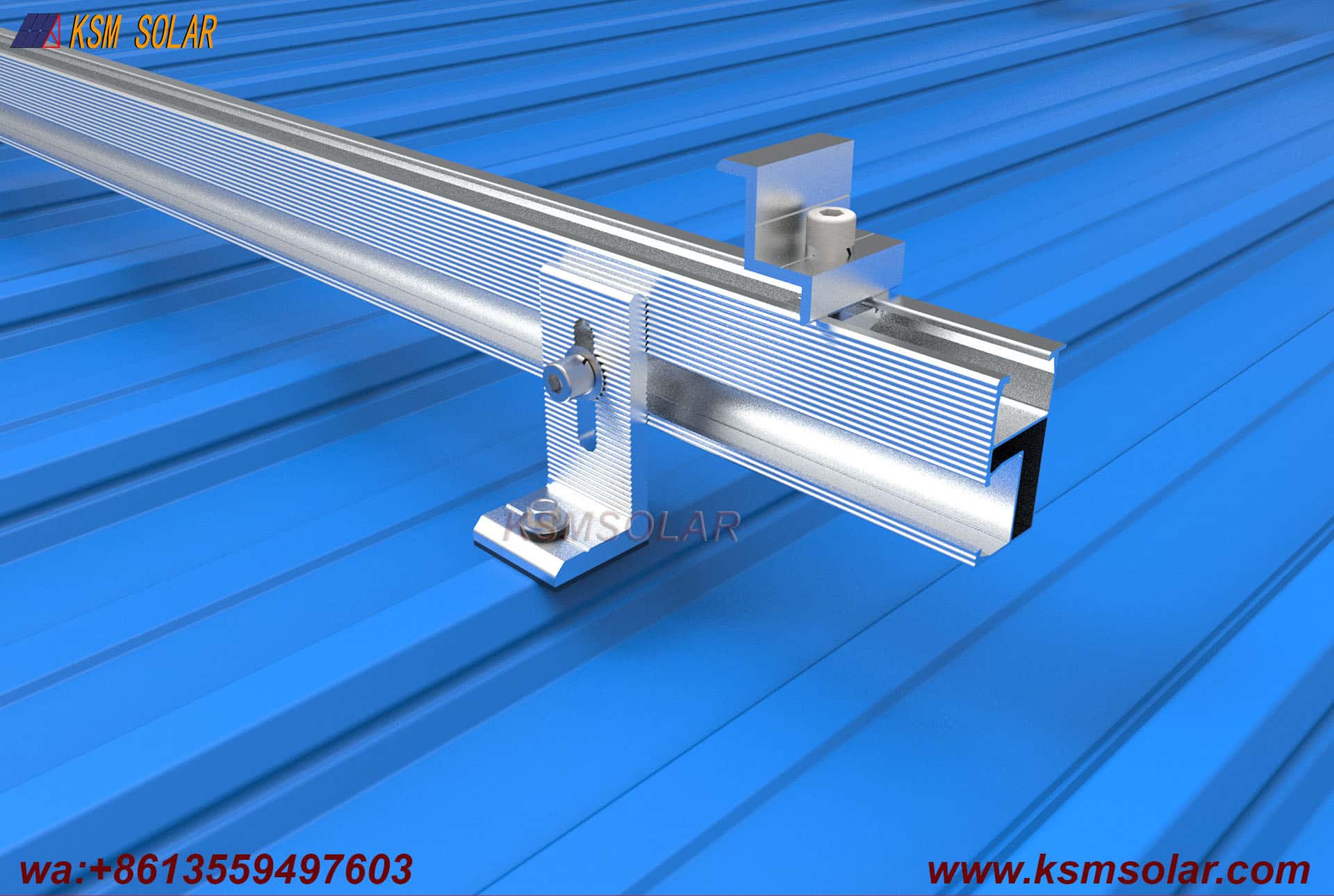

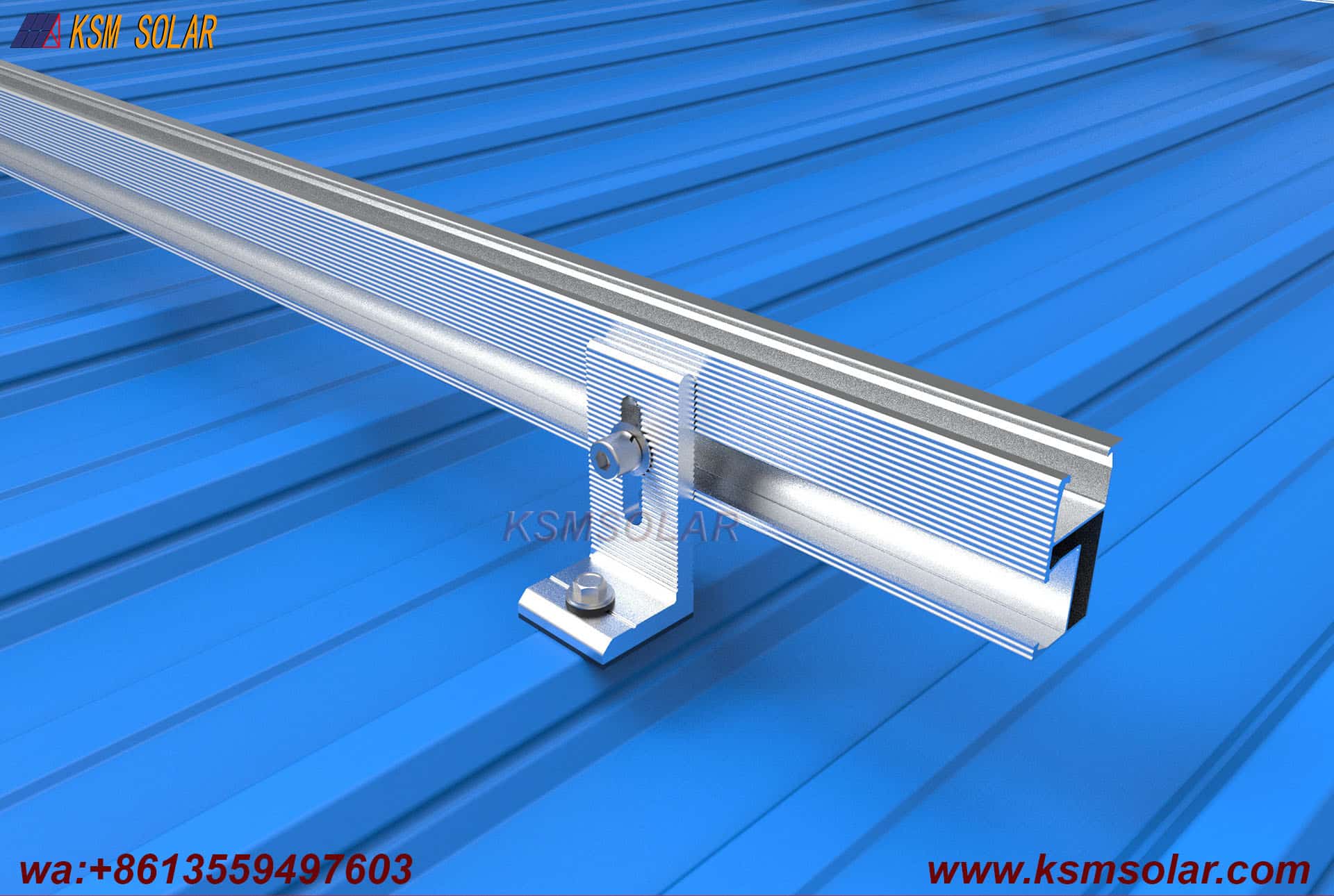

Fundamental L-Shaped Geometry: The system's namesake component is an L-shaped bracket typically fabricated from high-strength aluminum alloy .This simple yet effective geometry provides:

• A horizontal base for roof attachment with pre-drilled mounting holes

• A vertical leg (typically 40-180mm height) that supports the solar rail system

• Optimized load transfer from the solar array to the roof structure

Material Excellence: L-feet are manufactured from Aluminum Alloy 6005-T5, which offers:

• Excellent strength-to-weight ratio for structural integrity without excess weight

• Natural corrosion resistance enhanced through anodized surface treatment

• Long-term durability in outdoor environments with minimal maintenance

• Lightweight properties simplifying handling and installation
