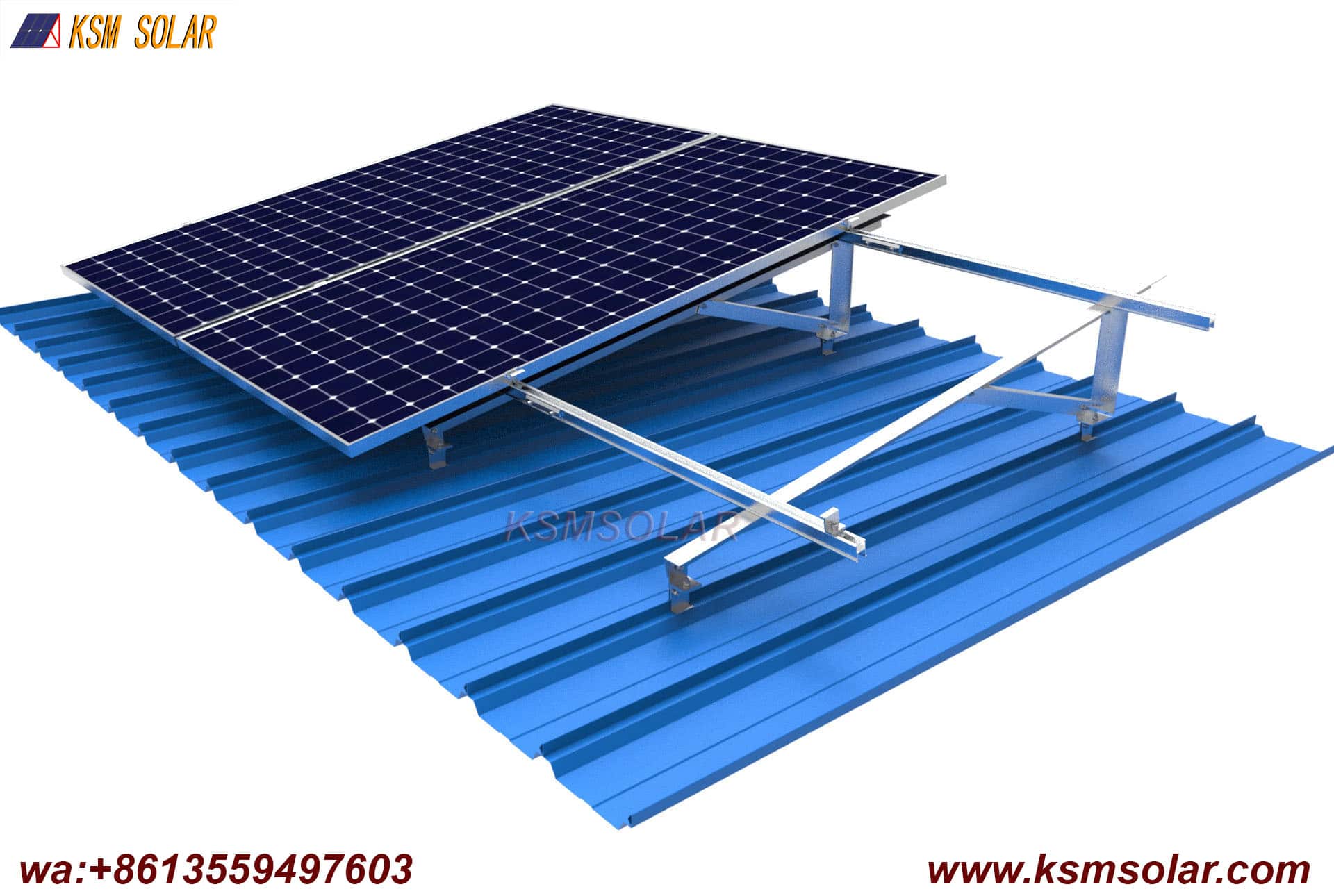

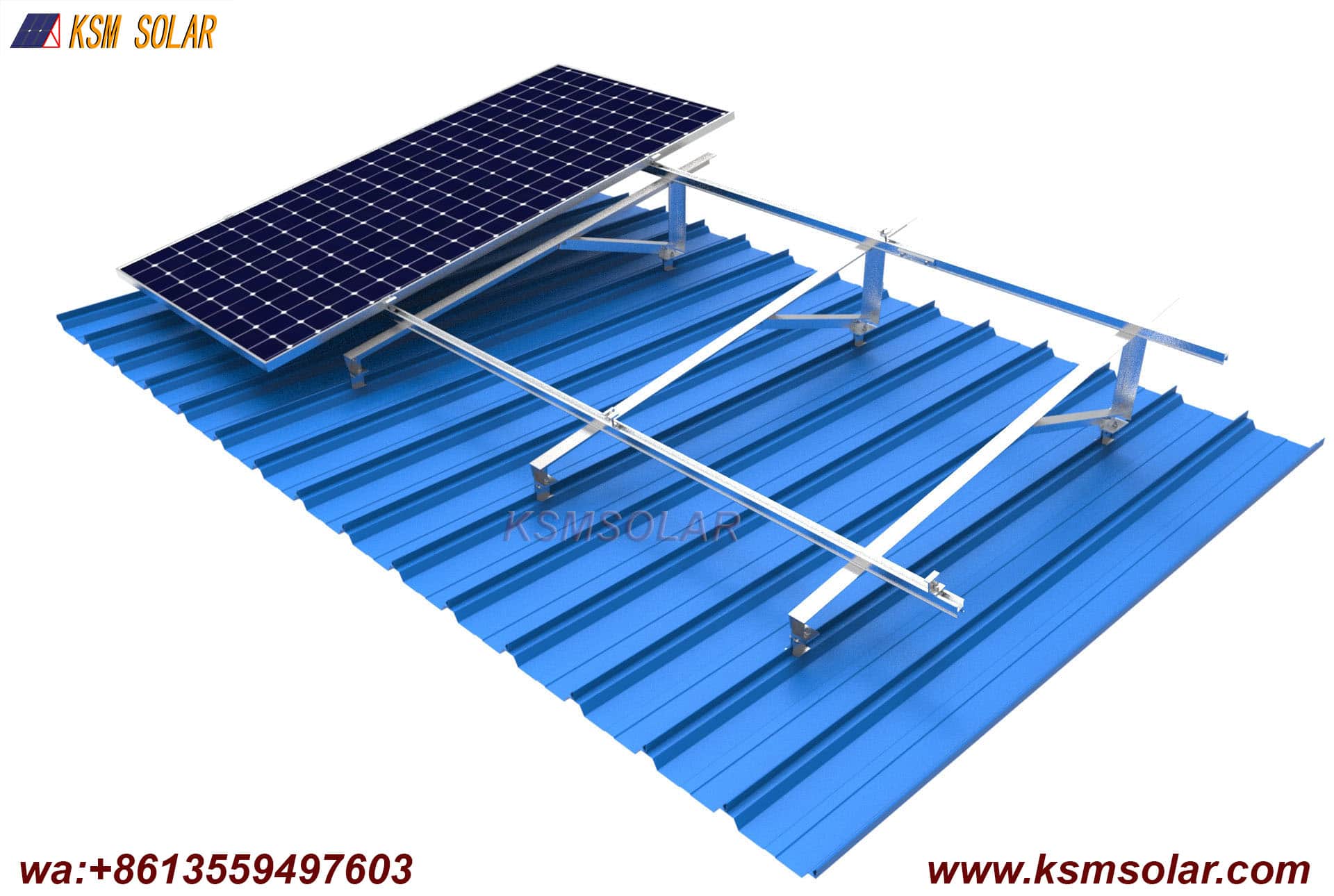

A non-penetrating metal roof clamp with tripod mounting system is a dual-component solar mounting solution. Its defining characteristic is the combination of profile-specific, zero-penetration roof clamps (which attach to the standing seams or ribs of a metal roof) with an elevated, triangular support structure (tripod) that lifts the solar panels off the roof surface to an optimized tilt angle.

Core Functional Principles

• Dual-Stage Load Transfer: The system operates in two stages. First, the non-penetrating clamps transfer loads to the roof's structural seams. Second, the tripod legs, attached to these clamps, transfer the panel loads (gravity, wind, snow) down to the clamps and into the roof structure.

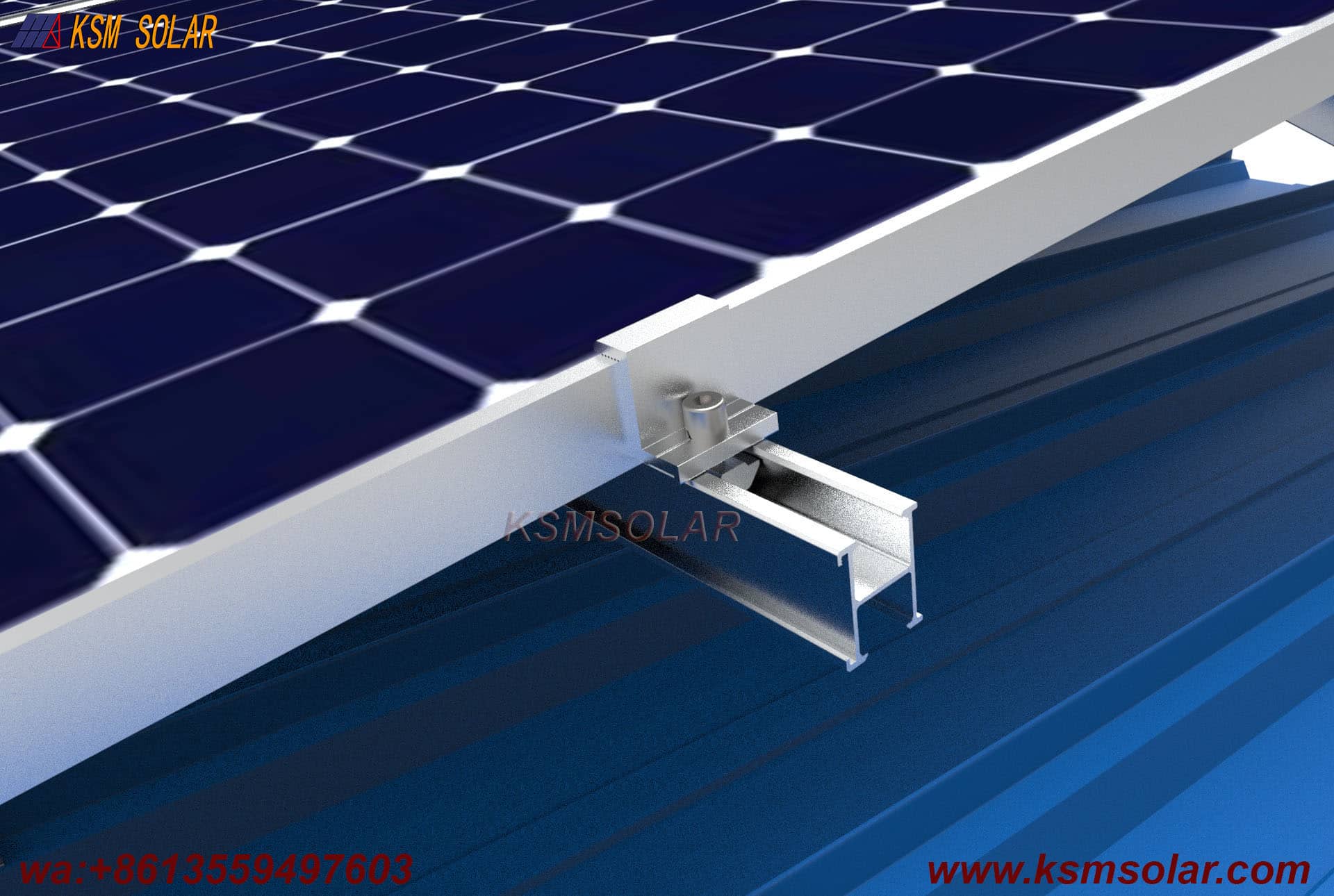

• Zero Roof Penetration: The defining advantage is that all attachments to the roof are made using mechanical clamps that grip the raised seams or ribs. No drilling or penetration occurs, preserving the roof's integrity, warranty, and waterproofing.

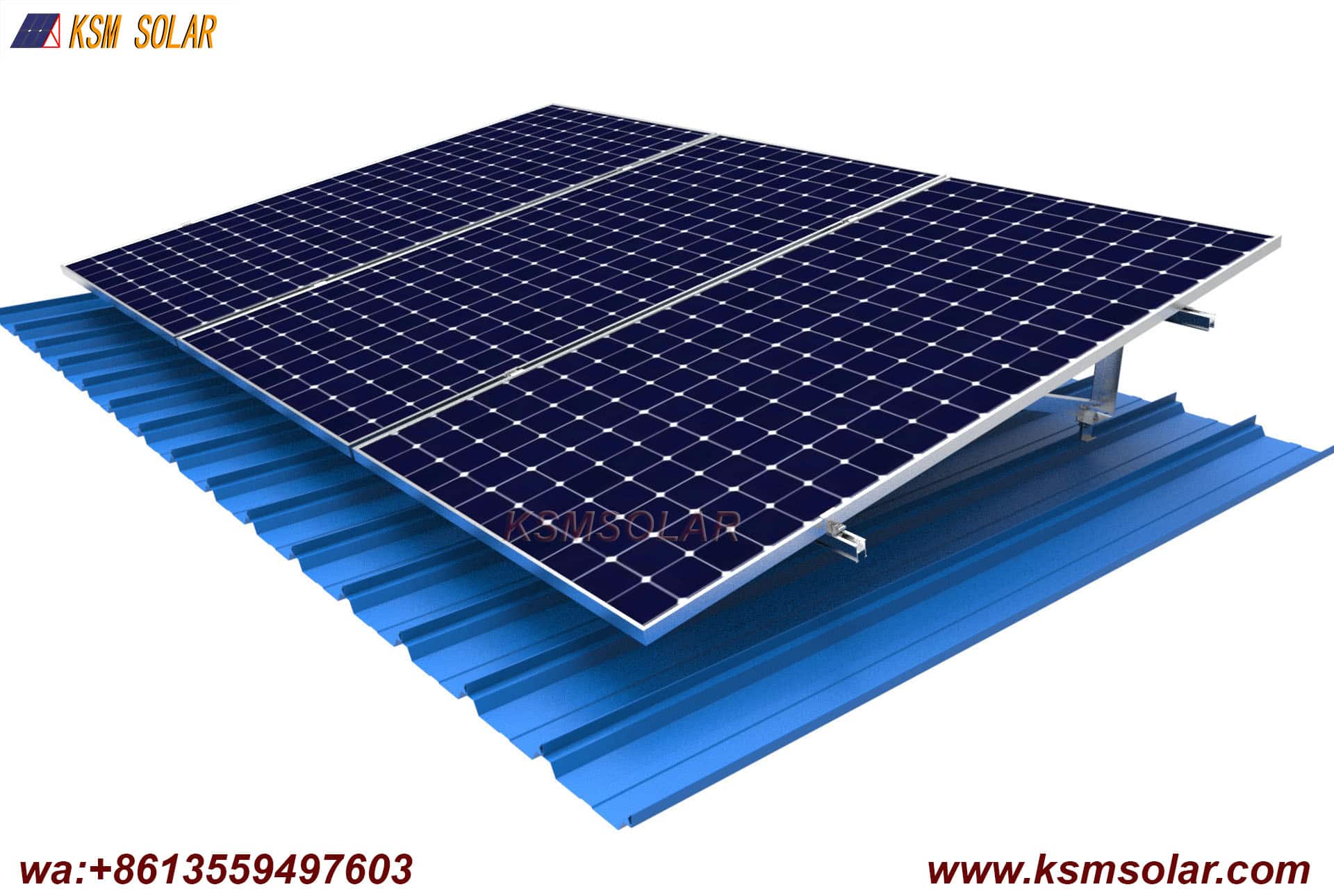

• Tilt Angle Optimization: Unlike flush-mount systems that follow the roof's natural pitch (often low or flat on commercial buildings), the tripod elevates the panels and allows for an optimized tilt angle. This significantly increases solar energy yield, particularly in winter months or at higher latitudes.

Key Design Features of the Integrated System

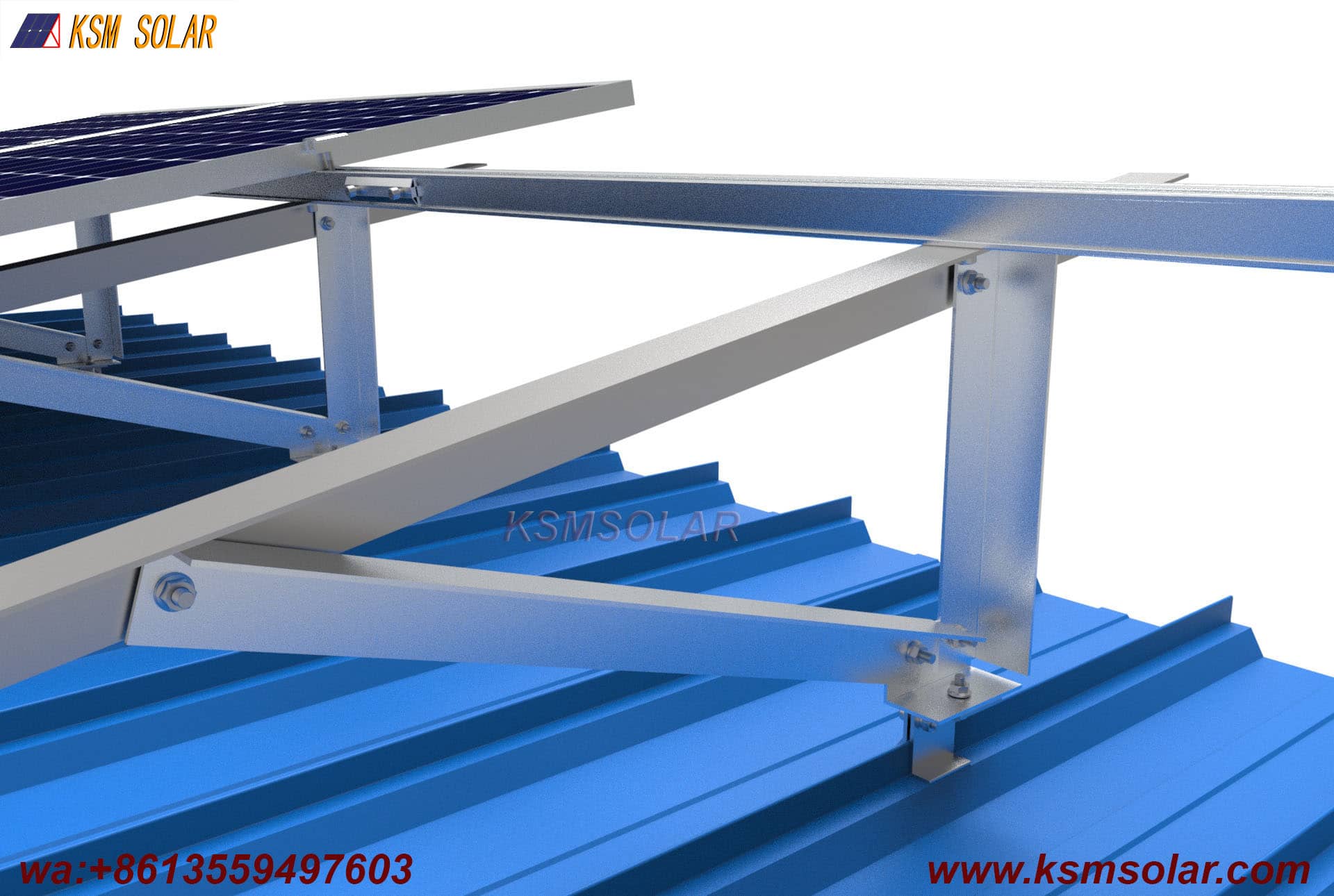

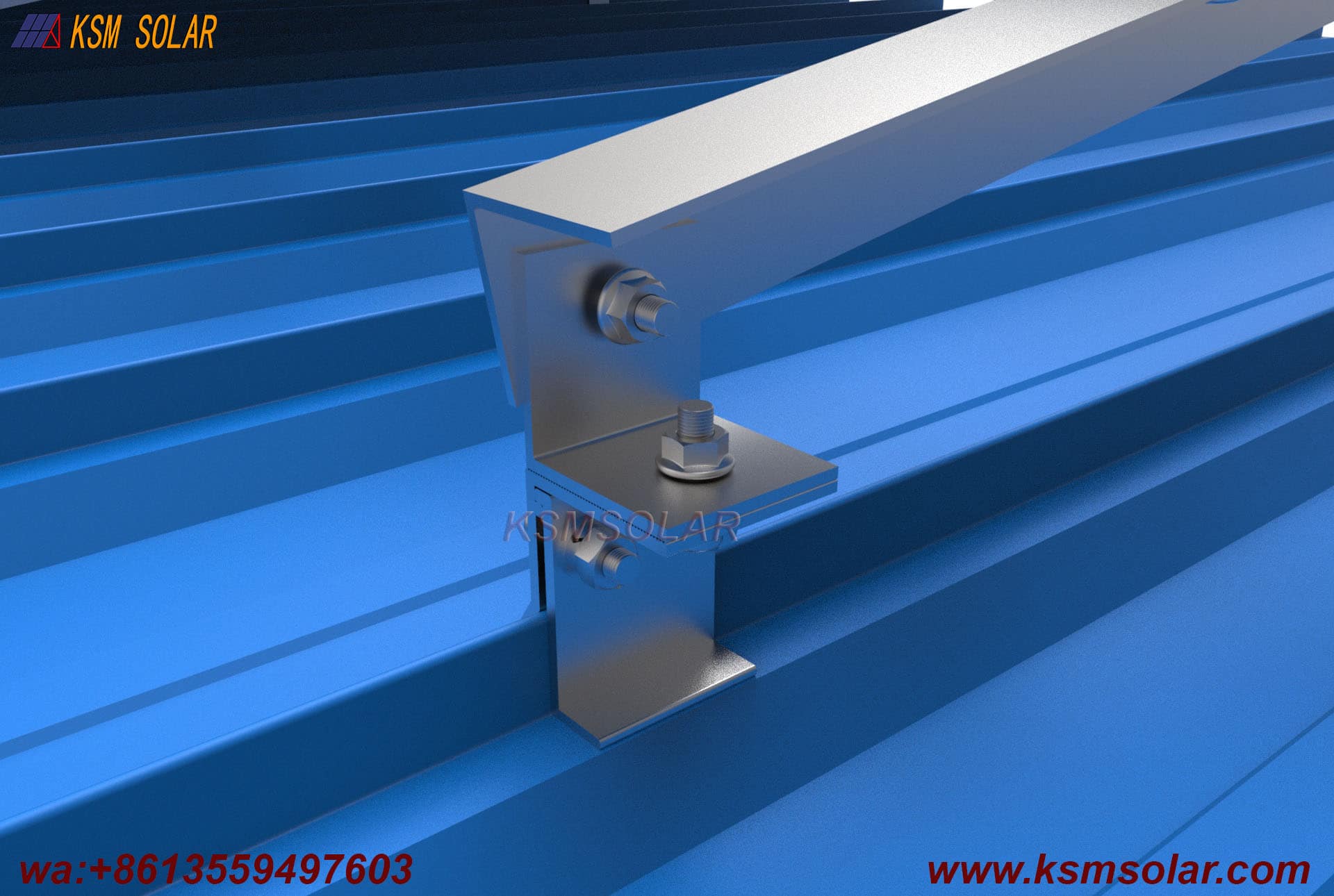

• Non-Penetrating Tripod Attachment: The tripod legs are bolted directly to the non-penetrating clamps, ensuring that the entire system—from panel to roof seam—is attached without a single roof penetration.

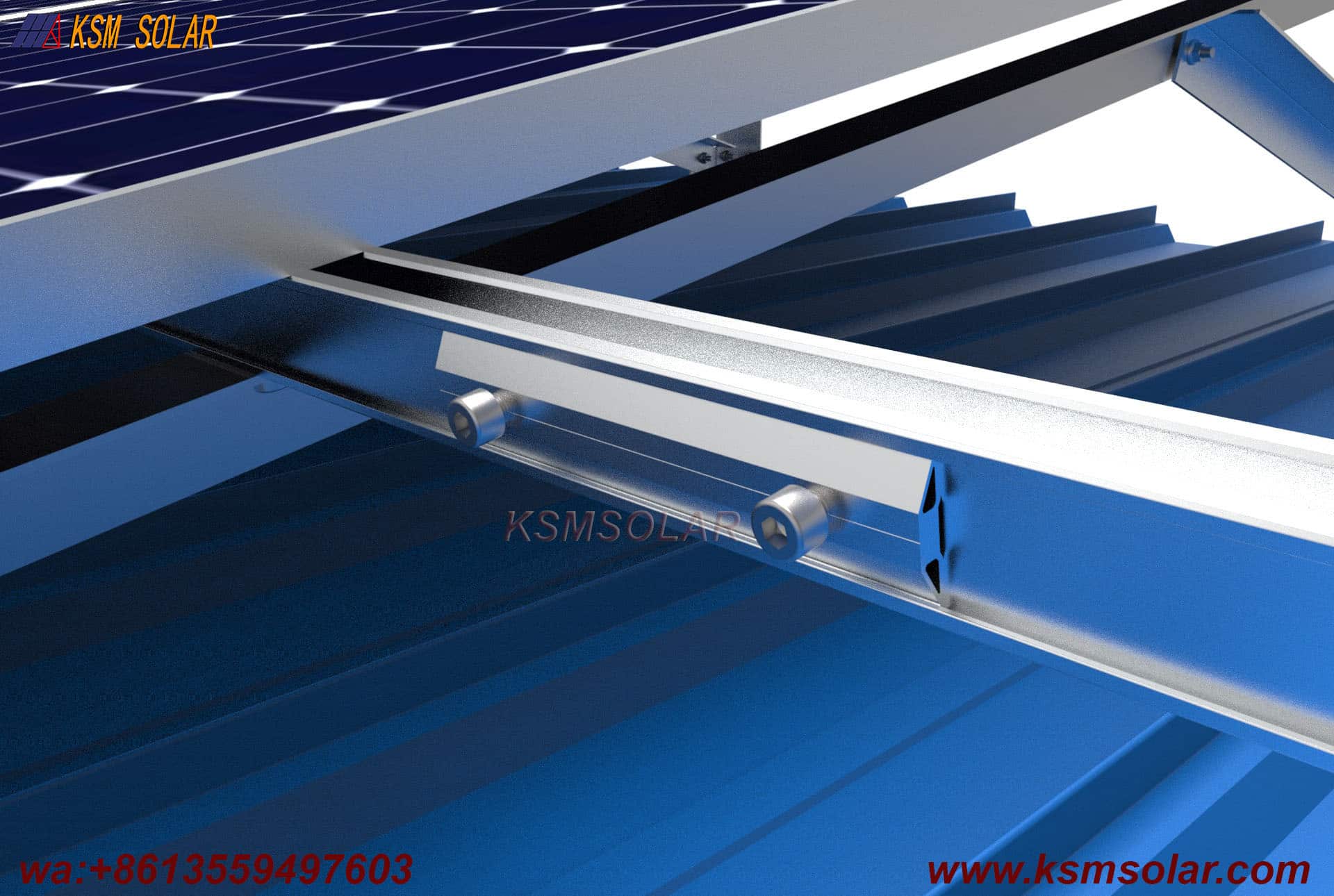

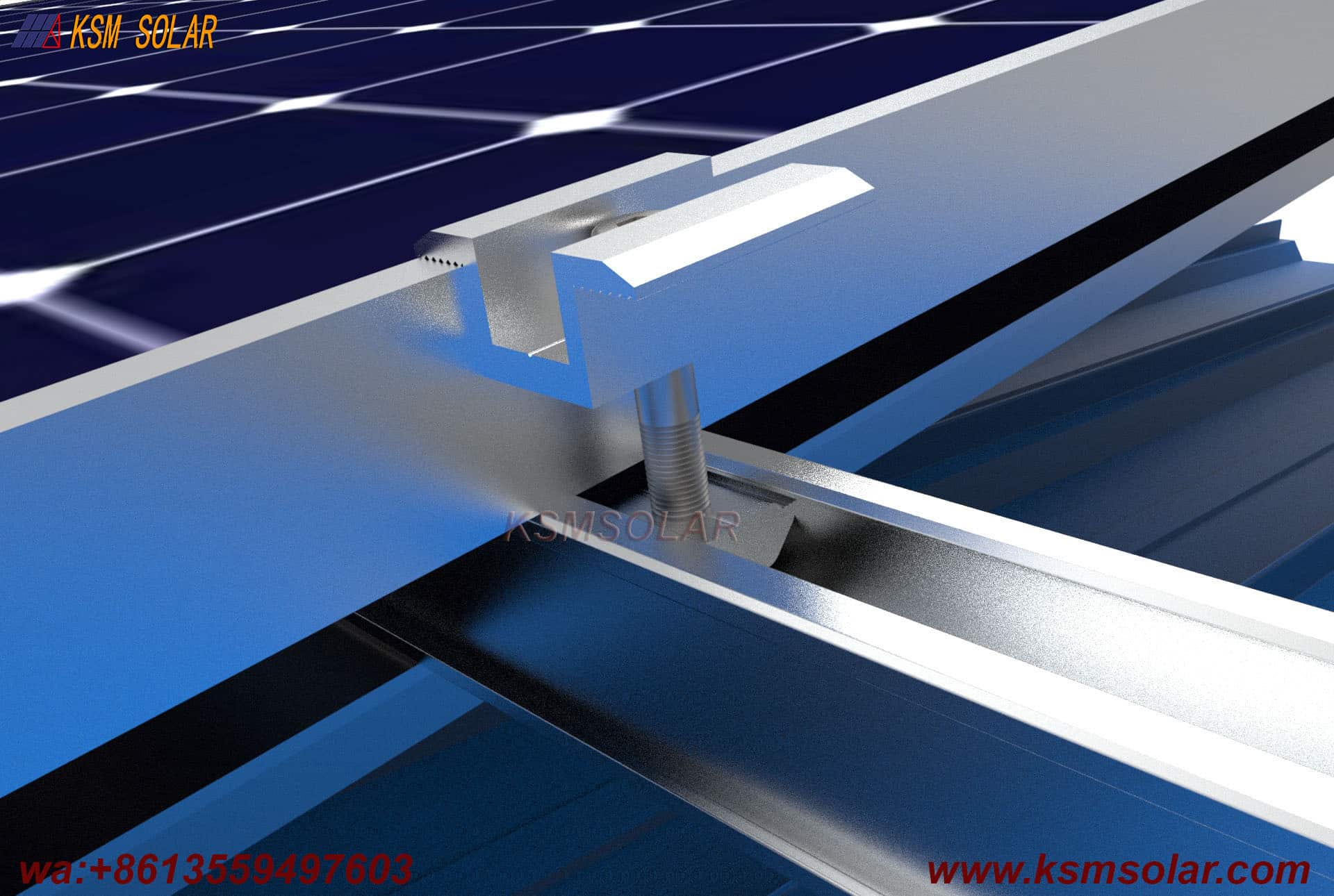

• Versatile Mounting Options: The system supports both rail-based (where the tripod supports standard mounting rails) and rail-less (where modules attach directly to the tripod structure) configurations, offering flexibility in design and installation.

• Wind Load Engineering: A critical design consideration is wind management. The elevated panels create a gap that allows wind to pass underneath, reducing uplift pressure. However, the system is engineered to ensure that this does not increase stress on the clamps. Properly designed systems are tested to meet wind load requirements without increasing roof stress.
