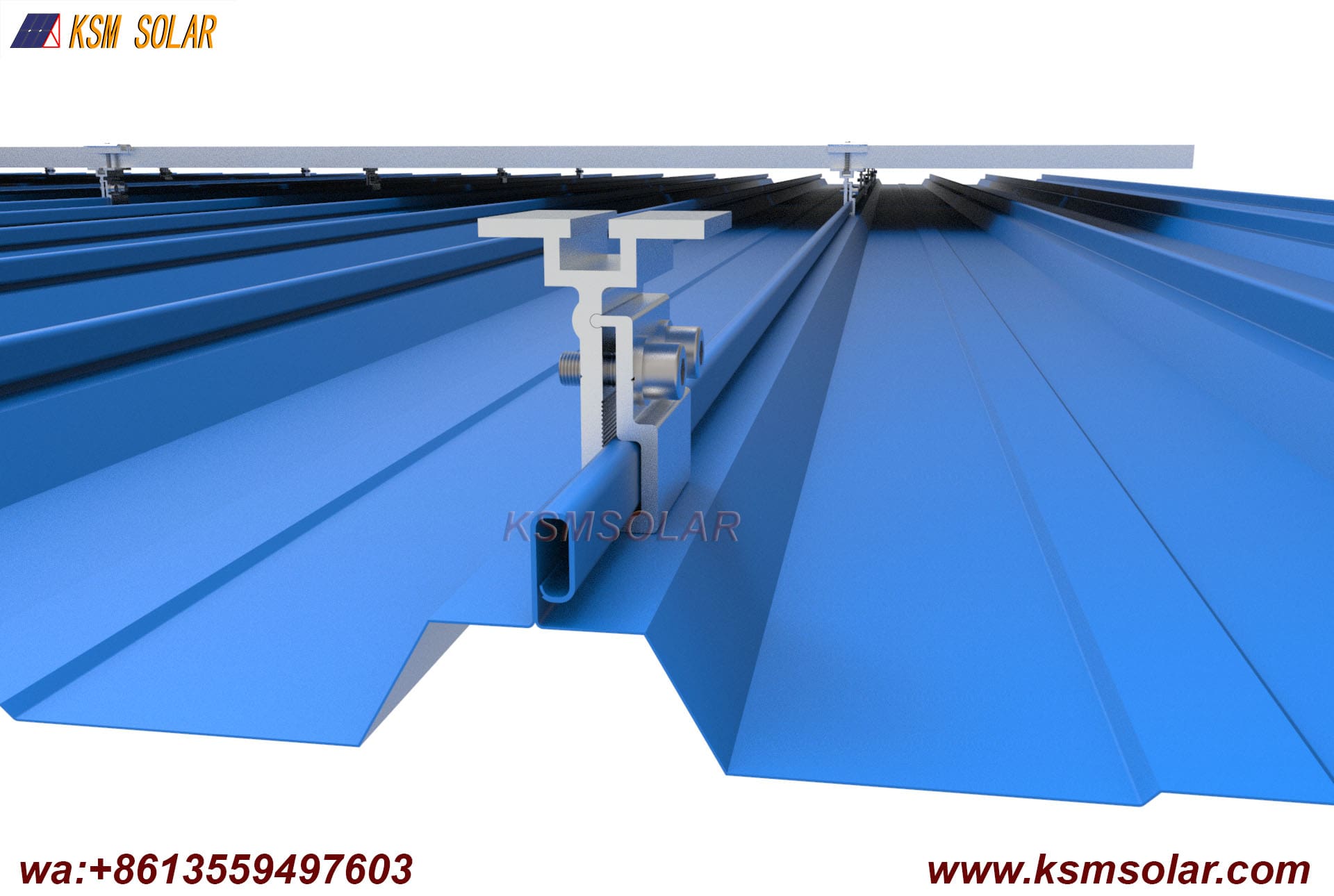

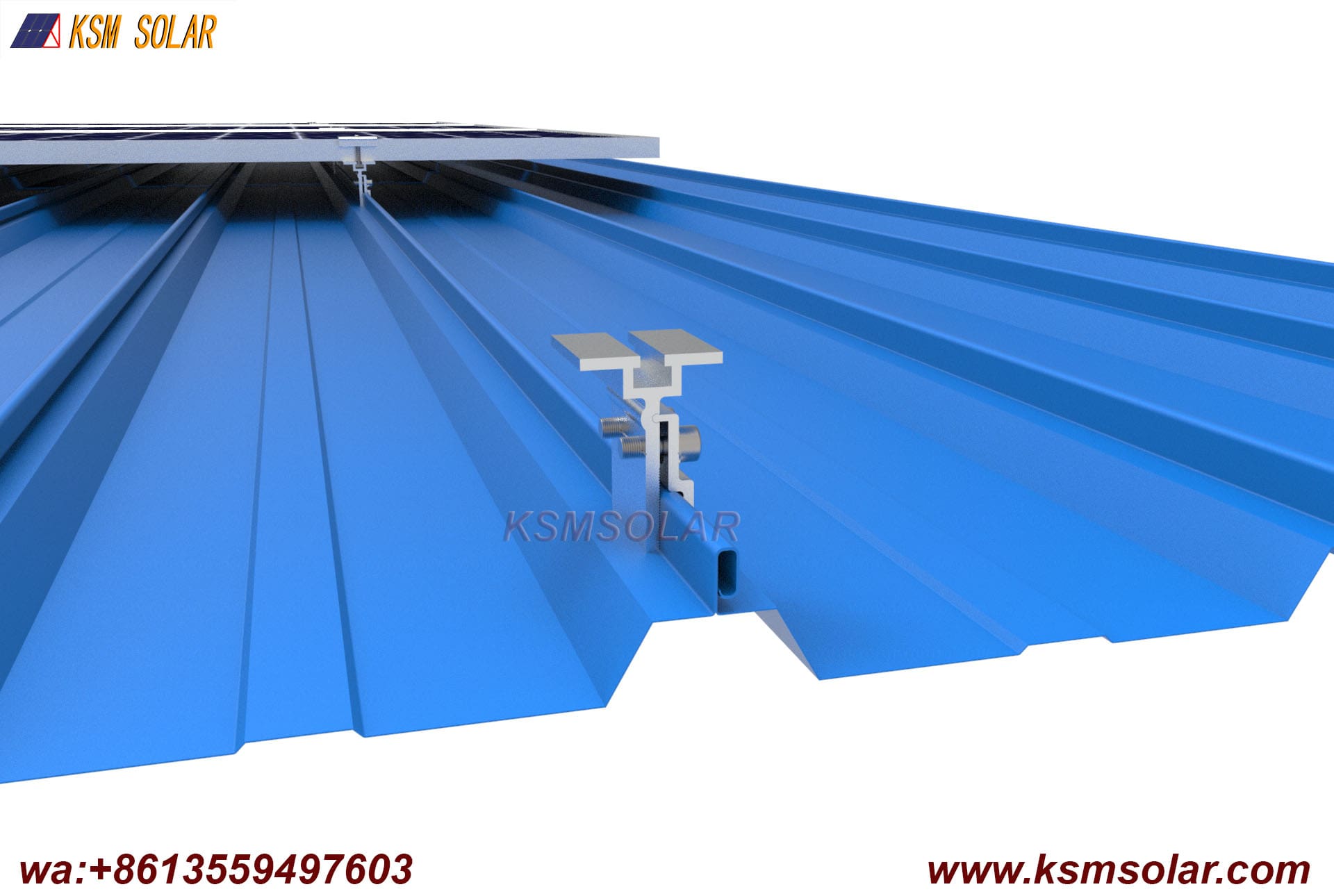

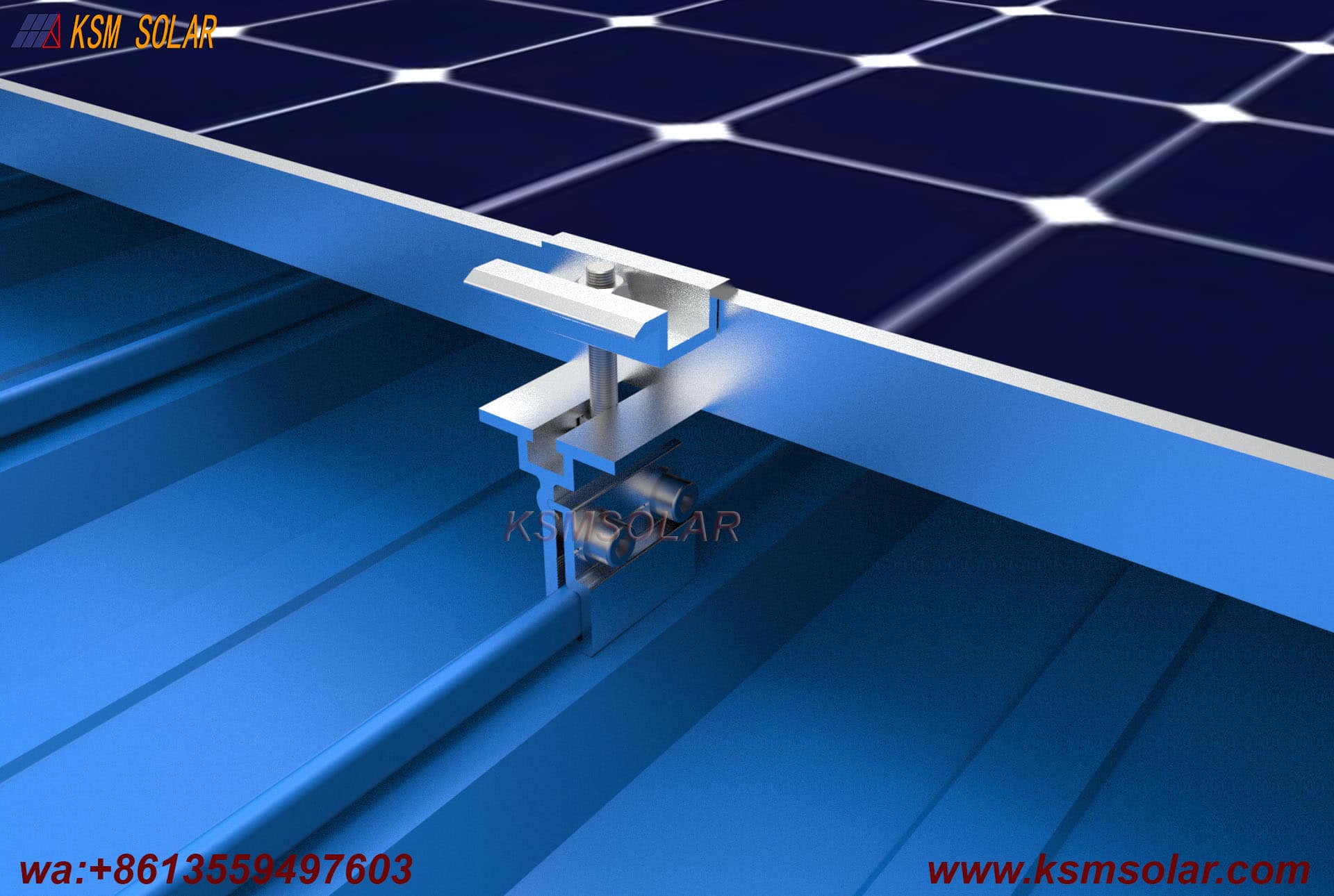

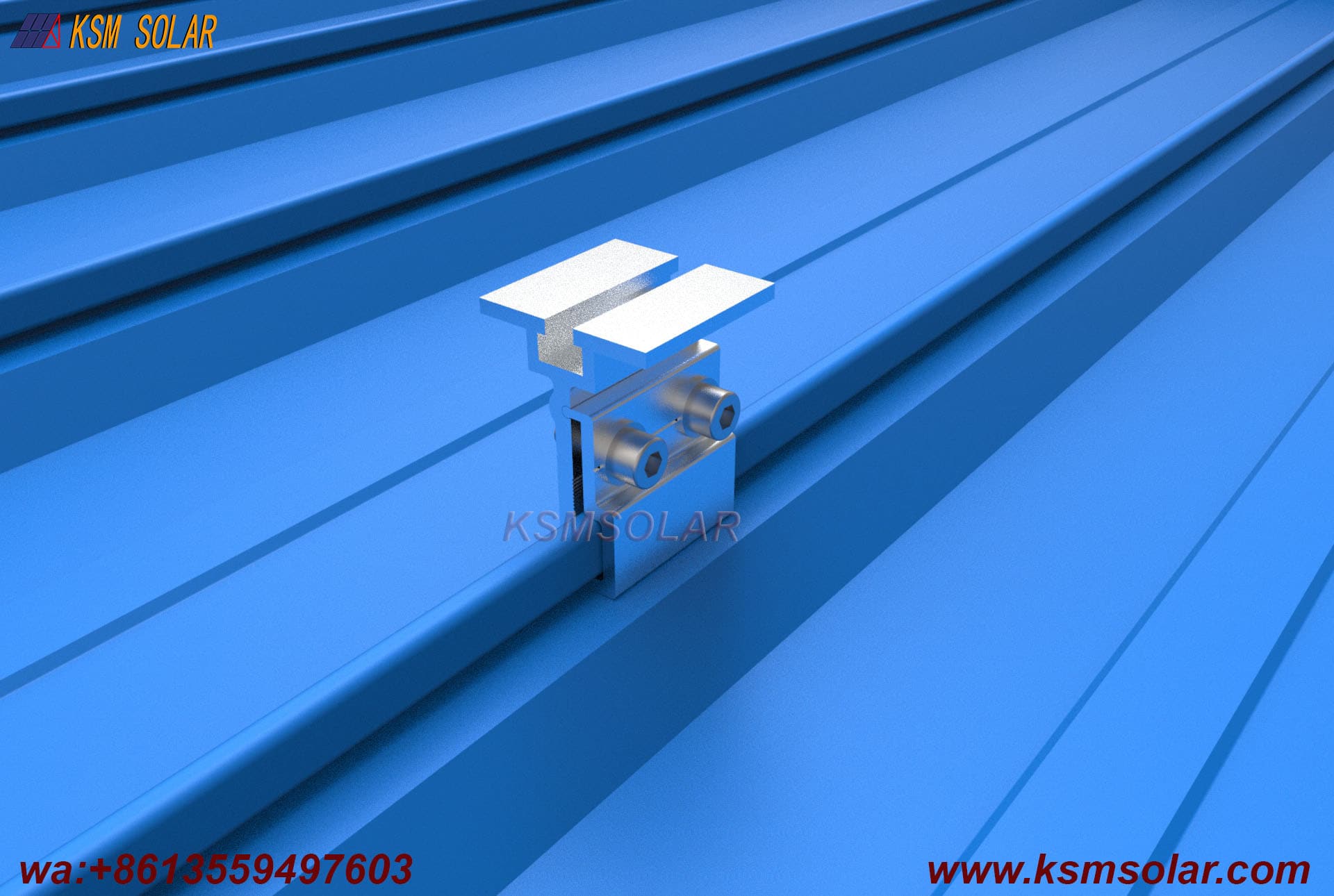

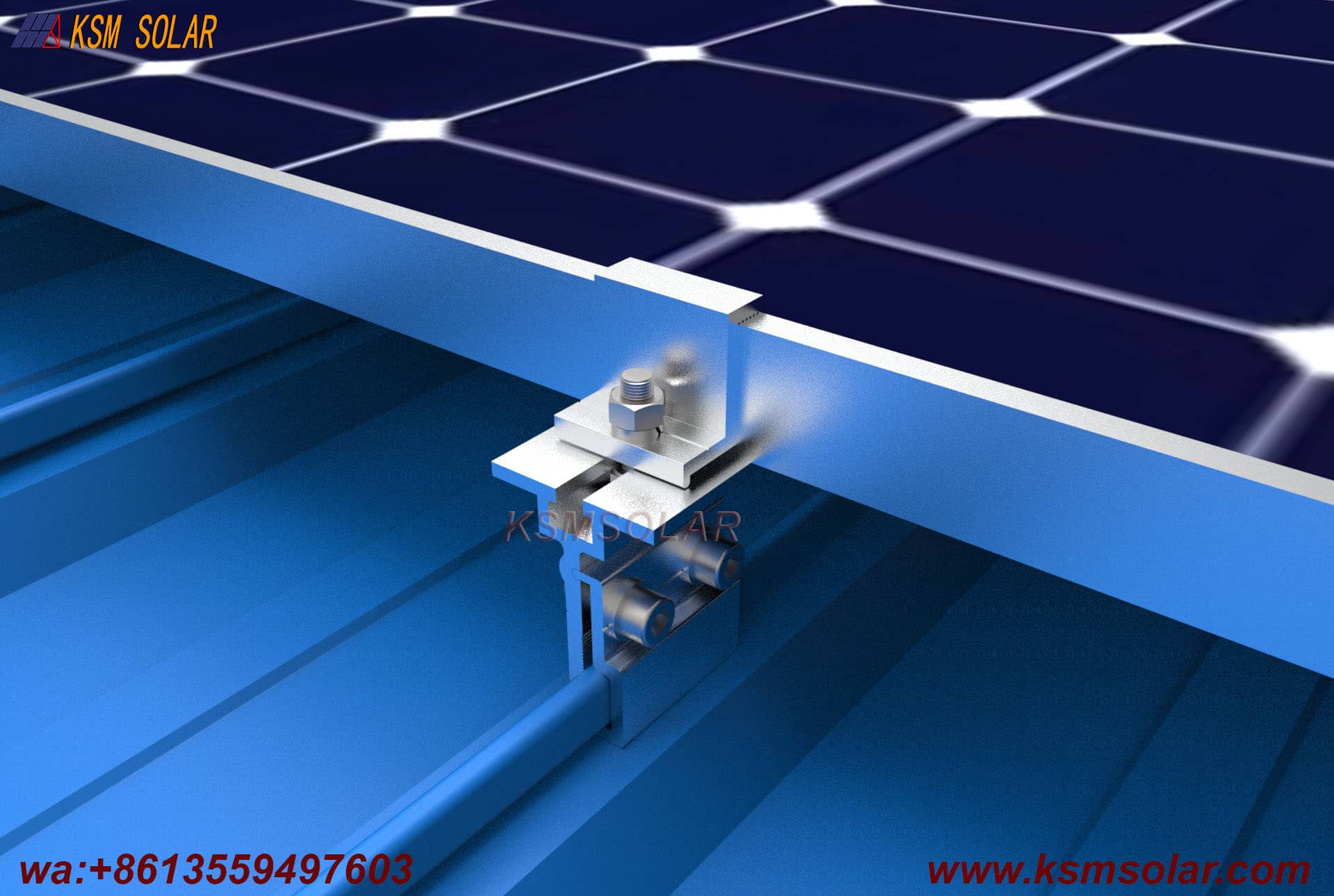

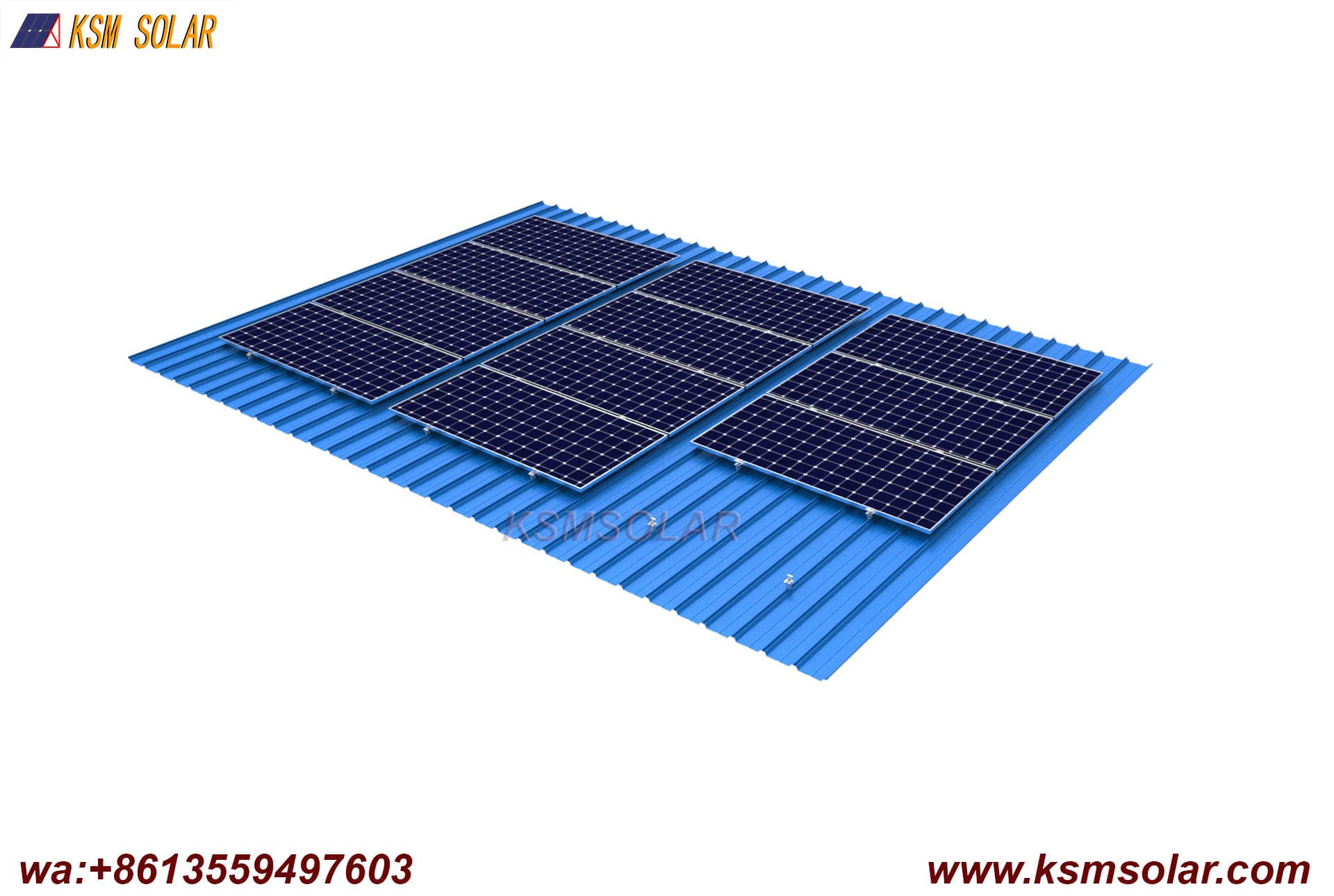

This advanced mounting solution combines the roof-attachment function of a traditional clamp with the interface function of a mounting rail. The clamp features a built-in channel—typically a standardized T-slot—that accepts rail hardware directly, streamlining the connection between the roof and the solar array.

Core Functional Principle: Integrated Interface

• Dual-Function Design: The defining feature is the incorporation of a mounting channel (often referred to as a "T-slot" or "top channel") into the top surface of the roof clamp. This eliminates the need for separate L-feet or adapters, allowing rails or module clamps to attach directly to the clamp.

• Streamlined Load Transfer: By integrating the channel, the load path from the panel, through the rail, and into the roof clamp is shortened and simplified. There are fewer mechanical junctions, reducing potential points of failure and installation complexity.

• Universal Compatibility: The channels are typically designed to industry-standard dimensions (e.g., for M8 or M10 T-bolts), ensuring compatibility with a wide range of rail systems and module clamps from various manufacturers.

Clamp Body and Channel Architecture

• Extruded or Cast Construction:

• Extruded Clamps: Often manufactured via aluminum extrusion, resulting in a long, continuous profile that can be cut to custom lengths. These feature a consistent channel running the entire length of the clamp, allowing for infinite adjustability along the seam.

• Cast Clamps: Often die-cast for complex geometries, these feature a precision-machined channel pocket at the top, designed to accept a rail splice or T-bolt in a fixed position.

• Channel Profiles:

• T-Slot: The most common profile. It features a wide bottom and narrow top, allowing a T-bolt to be inserted and twisted to lock into place. This allows for sliding adjustment along the length of the clamp (in extruded versions).

• C-Channel: A simpler rectangular slot with inward-turned lips, designed for spring nuts or slide nuts.

• Top-of-Clamp vs. Side-of-Clamp: While most channels are on the top for vertical rail attachment, some designs feature side channels for mounting accessories like wire management clips or microinverters directly onto the clamp body.

Material and Structural Integrity

• High-Grade Aluminum: The clamp body is constructed from structural aluminum alloys (typically 6005-T5 or 6061-T6) to ensure the channel walls are robust enough to withstand the tensile forces exerted by tightened T-bolts without deforming or stripping.

• Reinforced Channel Edges: In high-strength applications, the lips of the channel are reinforced to prevent "spreading" under heavy torque or uplift loads, which could allow the T-bolt to pull through.

• Integrated Stainless Steel Threads: In some cast designs, the channel might feature a stainless steel threaded insert at a specific point, providing a durable, corrosion-resistant point for bolting down rails, rather than relying on the aluminum threads.

Parameters

Details
