The Metal Roof Solar Mounting System is a specialized, non-penetrating solar attachment solution engineered . This system is designed to securely mount photovoltaic panels on industrial and commercial buildings without compromising the integrity of the existing roof structure. the system provides a robust, watertight, and durable foundation for solar installations.

Key Features:

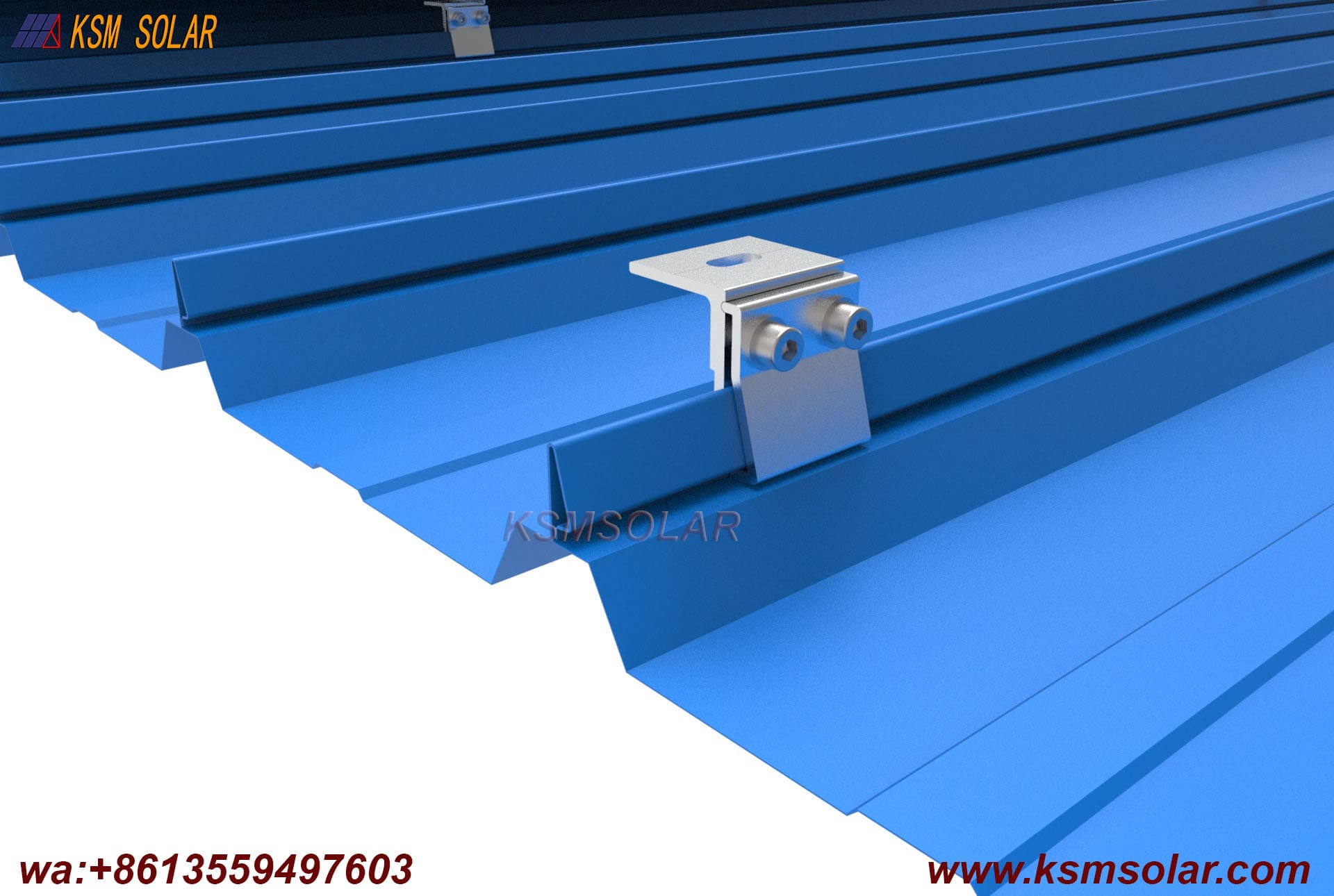

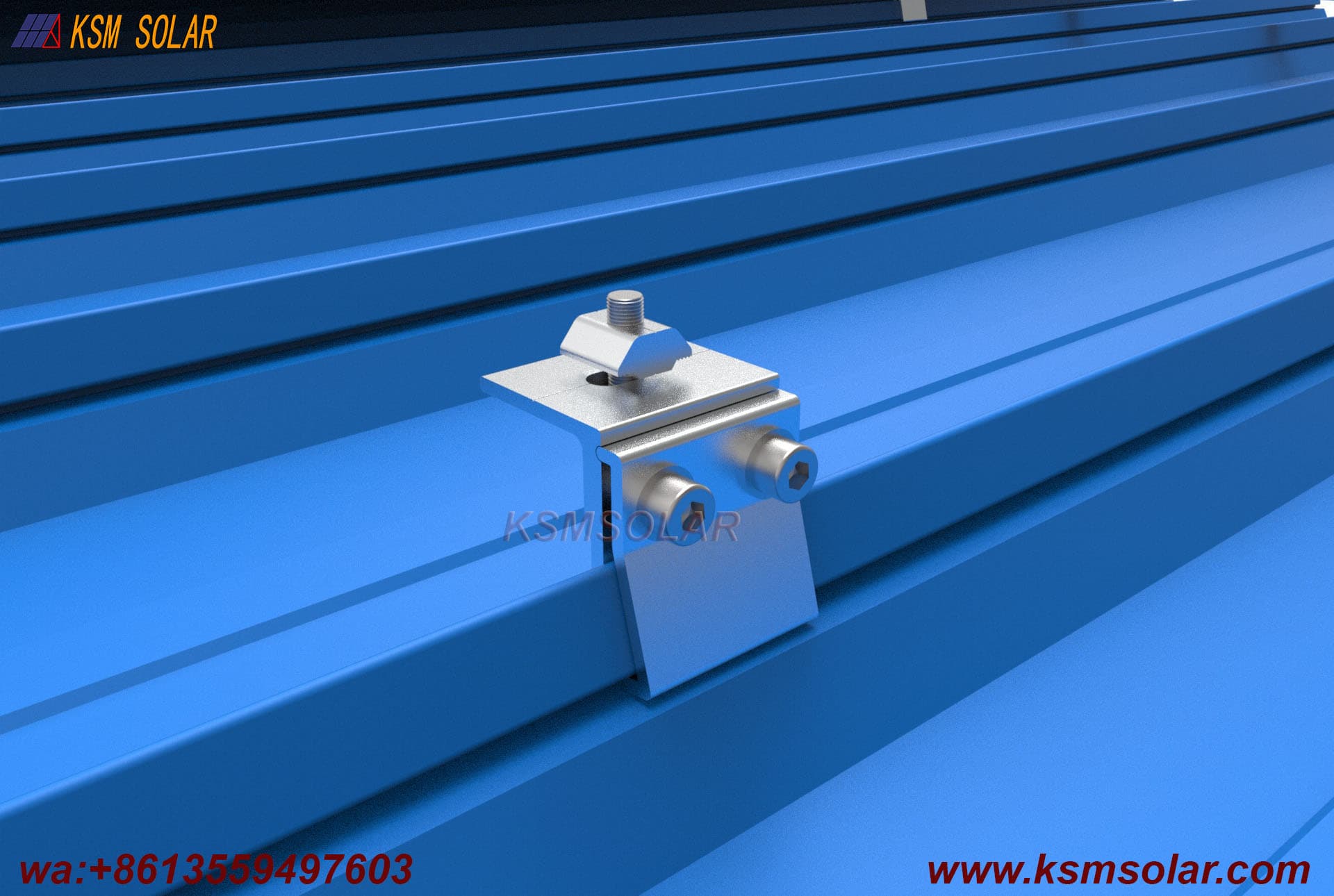

• Non-Penetrating Clamp Design: The system secures PV modules using specialized clamps that attach directly to the raised ribs.This eliminates the need for drilling or penetrating the roof surface, thereby preserving the original waterproofing and preventing potential leaks.

• Material & Durability: Constructed from high-strength aluminum alloy (typically AL6005-T5) with surface anodizing for superior corrosion and oxidation resistance. All fasteners and critical components are made from stainless steel (SUS304), ensuring long-term durability against harsh environmental conditions such as rain, UV radiation, and industrial pollutants.

• High Load Resistance: Engineered to withstand extreme weather conditions. The system is rigorously tested to endure high wind loads (up to 60 m/s) and significant snow loads (up to 1.6 KN/m²), ensuring the stability and safety of the solar array.

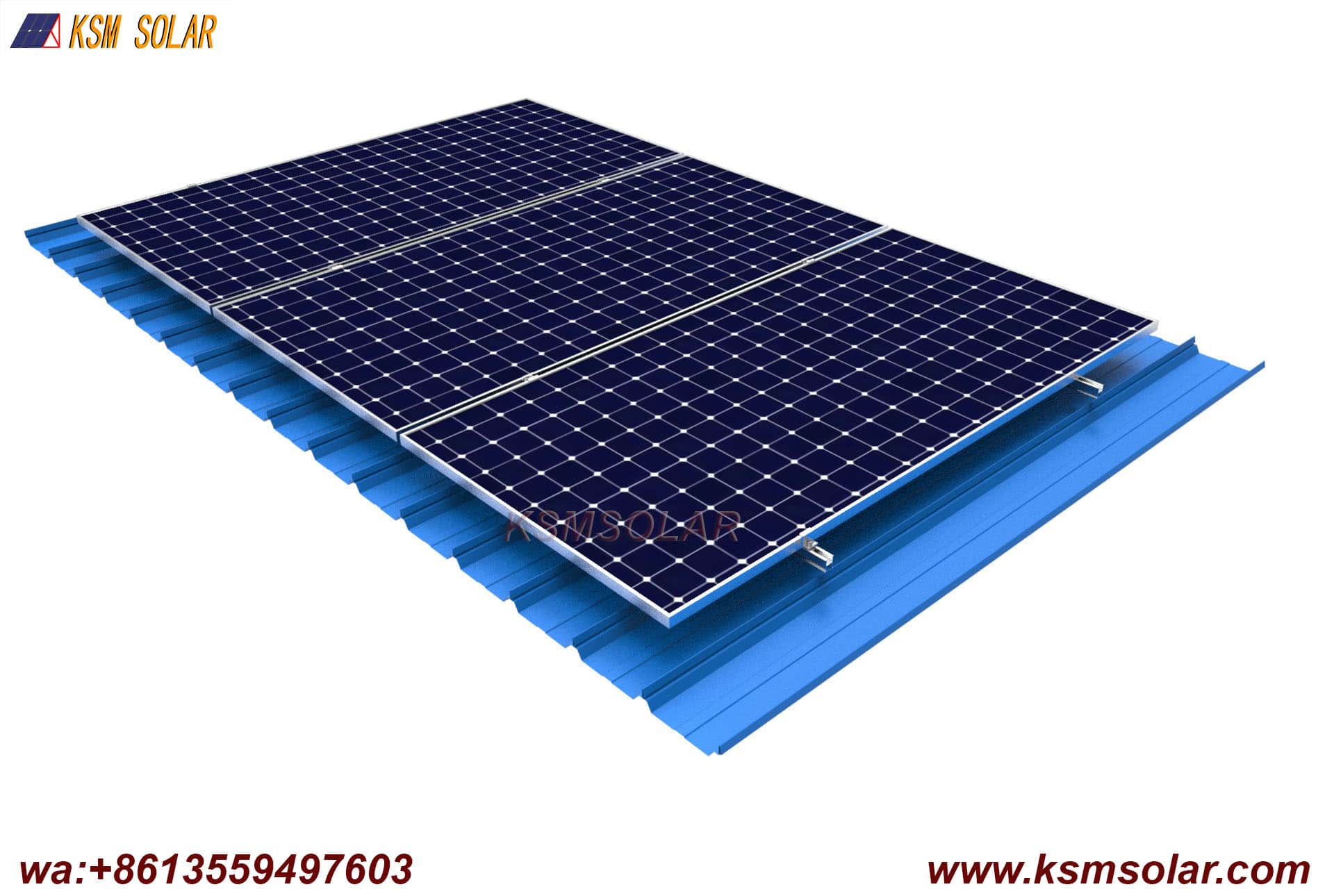

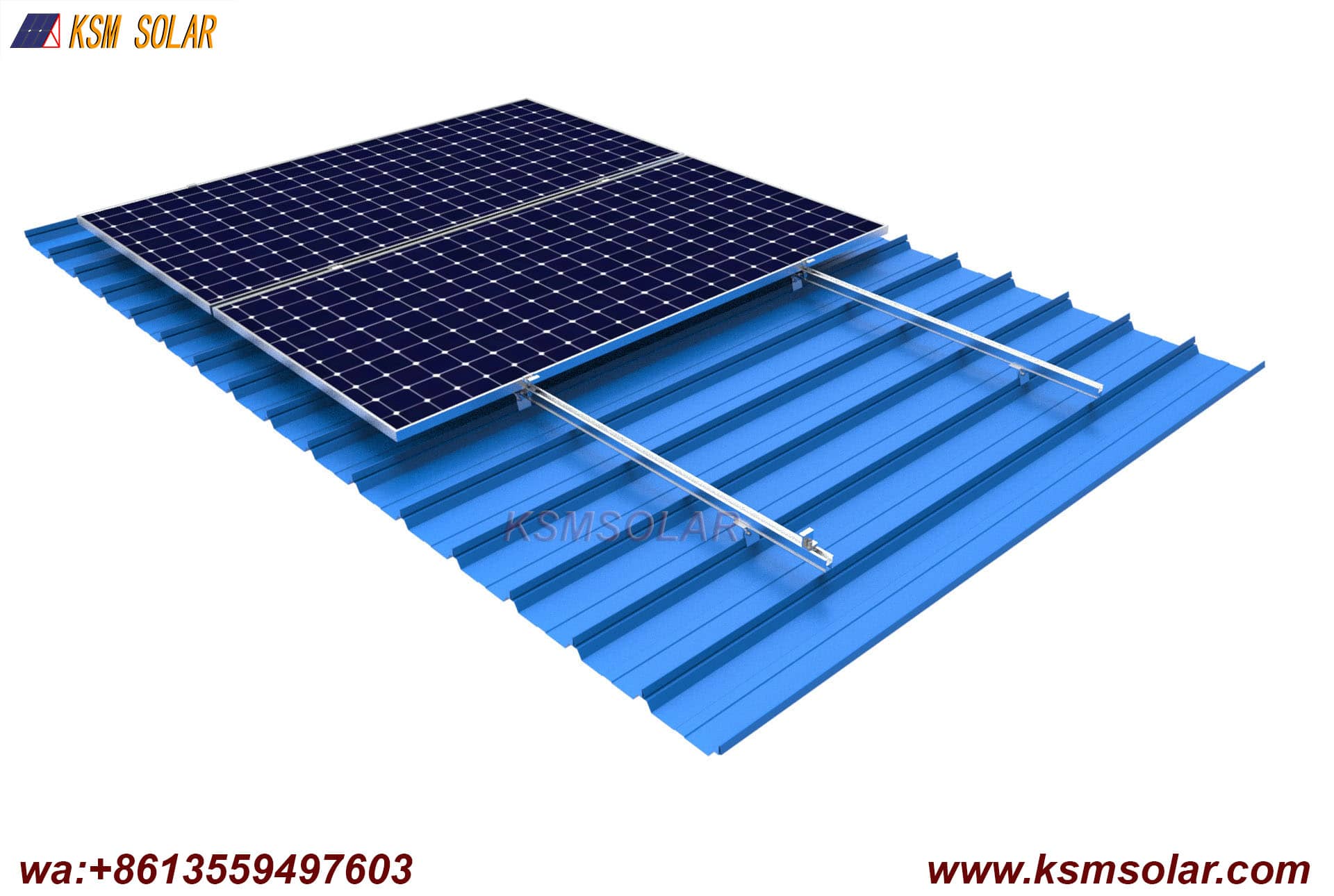

• Versatile Compatibility: Designed to accommodate a wide range of framed or unframed PV modules. The system allows for flexible module layout, supporting both portrait and landscape orientations.

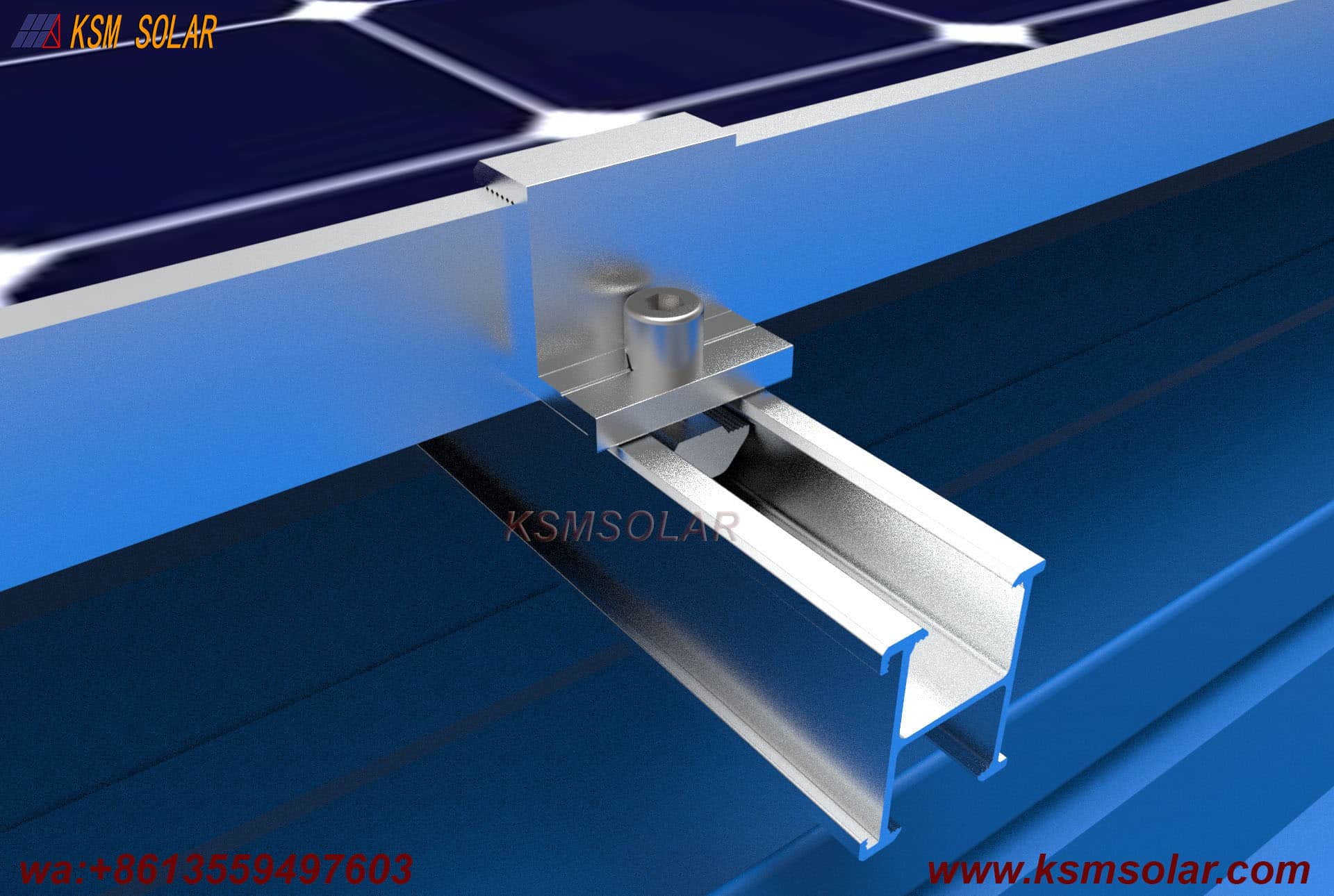

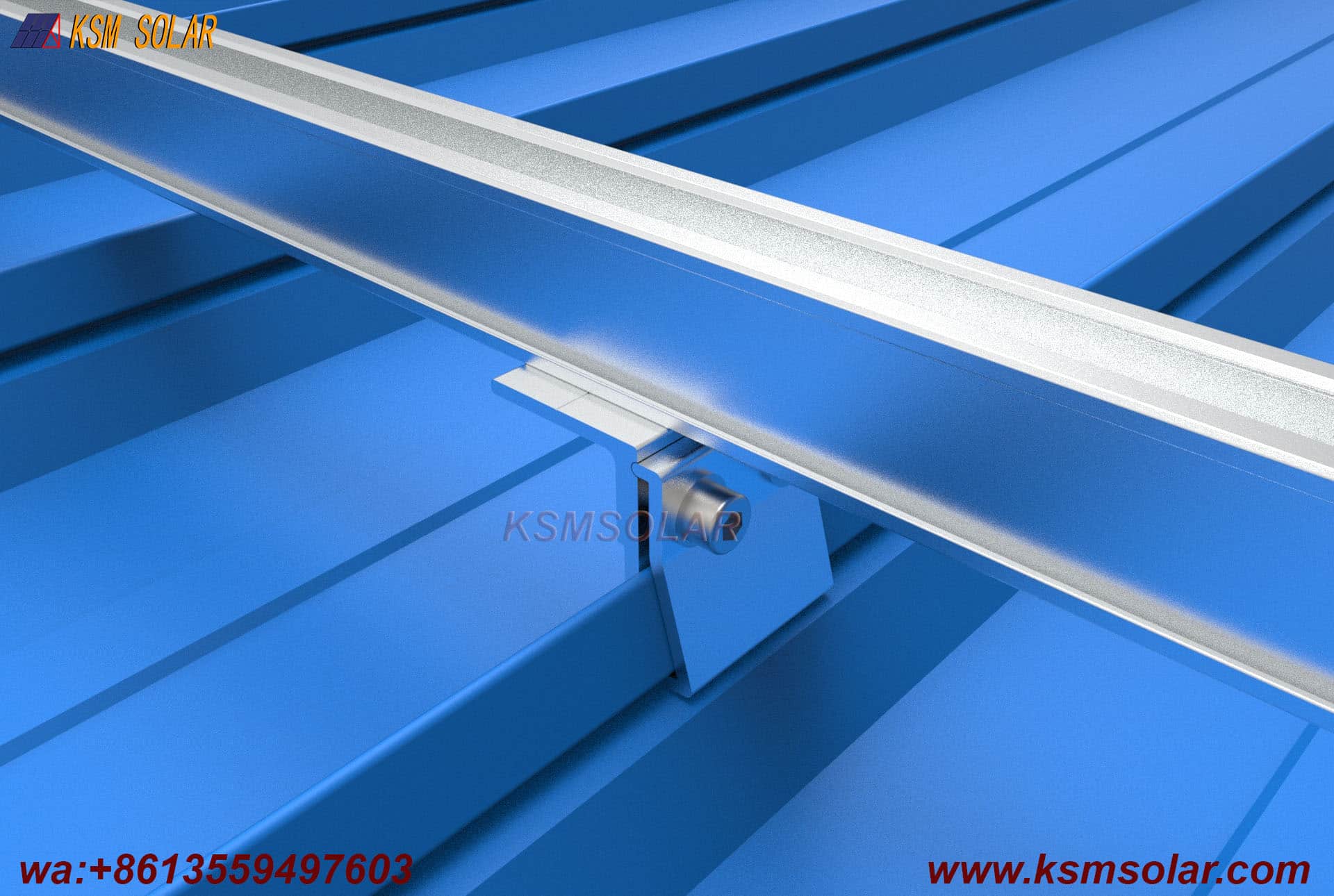

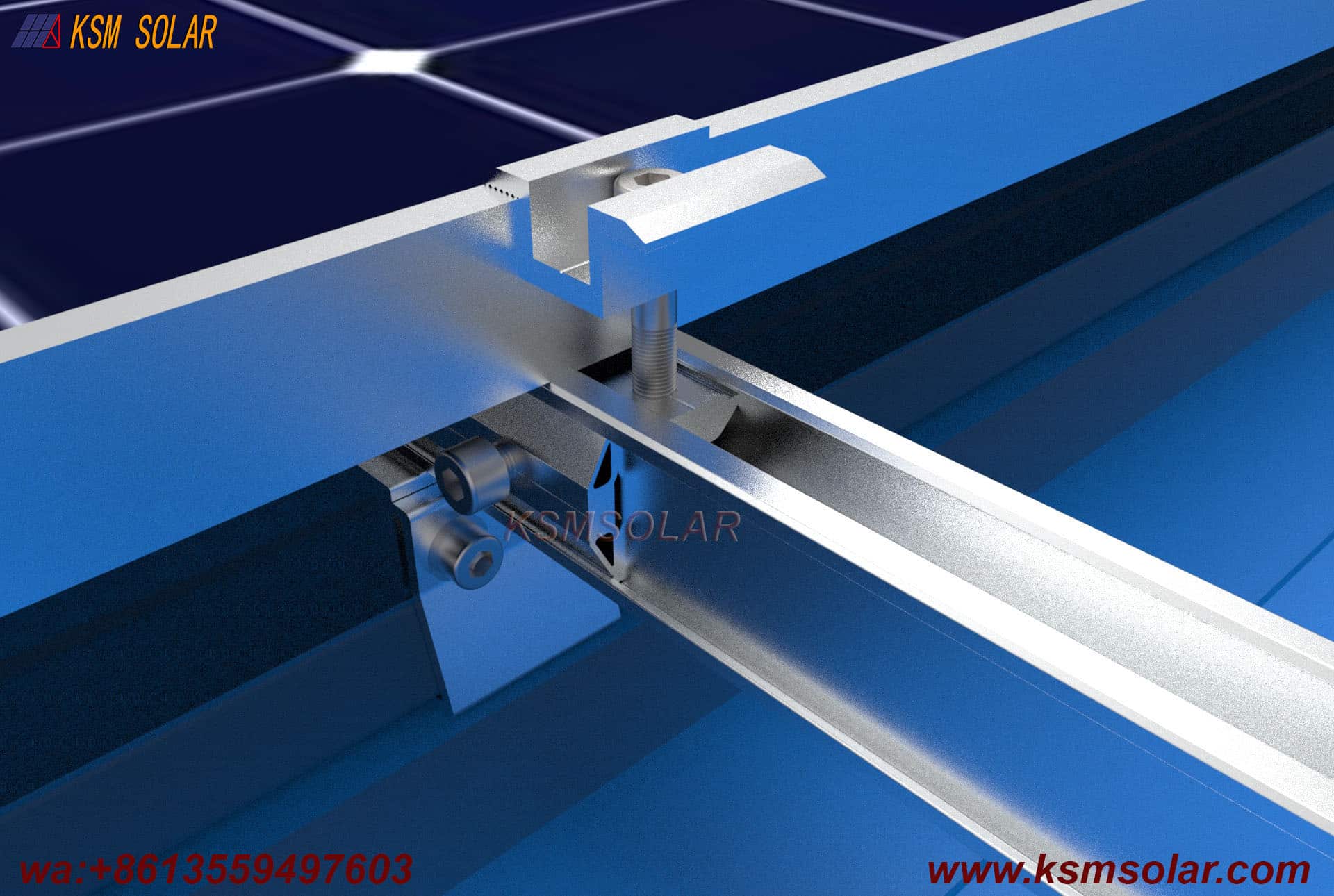

• Simplified Installation: The system features pre-assembled components and a straightforward mechanical attachment. The clamps typically feature one or two top bolts for easy attachment of rails or modules, significantly reducing on-site installation time and labor costs.
