Adjustable Stainless Steel Hook with Rail Mounting System

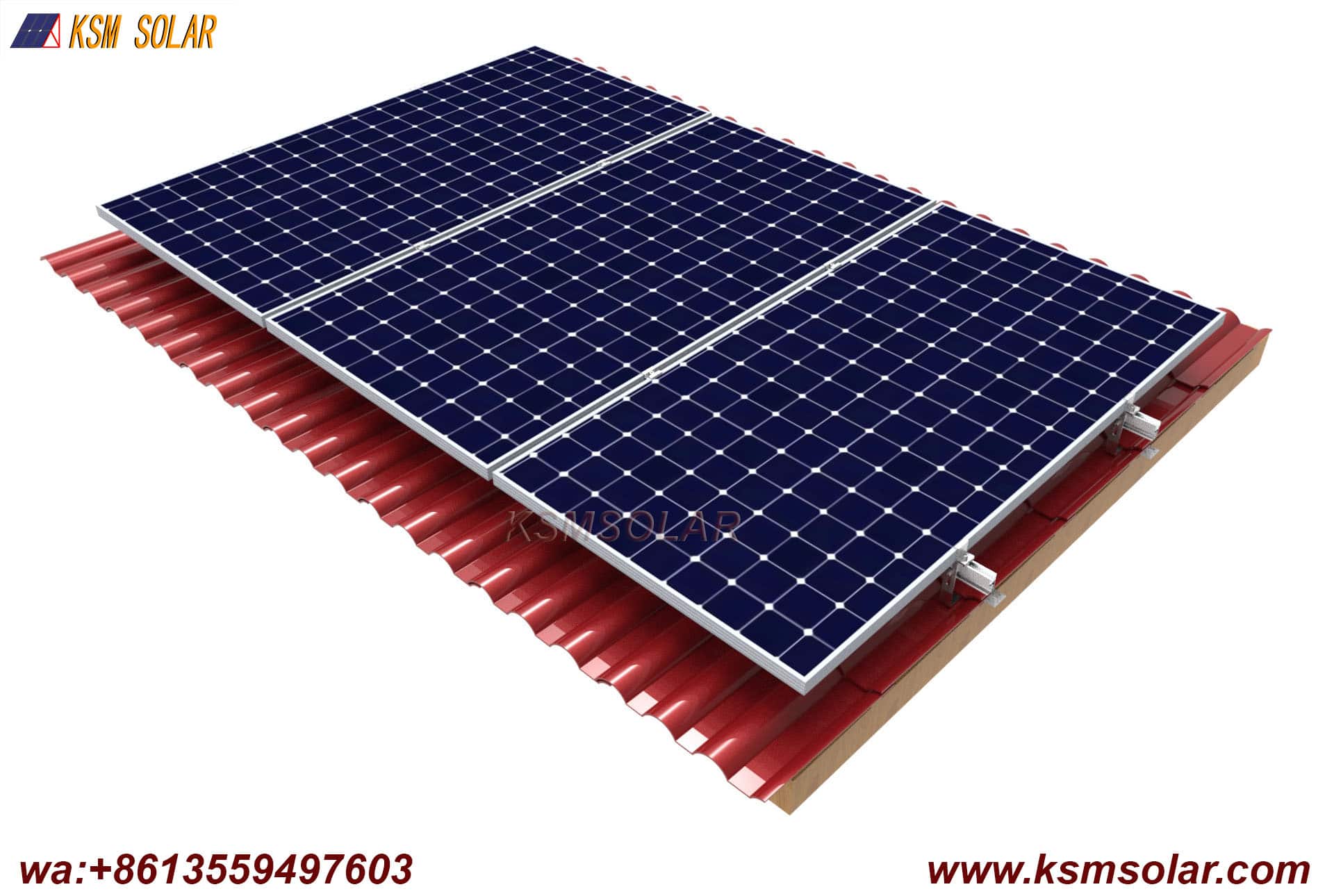

An adjustable stainless steel hook with rail mounting system is a comprehensive mechanical fastening solution designed to secure solar panels to pitched tile roofs. Its defining feature is the integrated two-component design: a multi-axis adjustable stainless steel hook that attaches to the roof rafters, paired with a high-strength aluminum mounting rail that provides the continuous support structure for the solar modules

Core Functional Principles

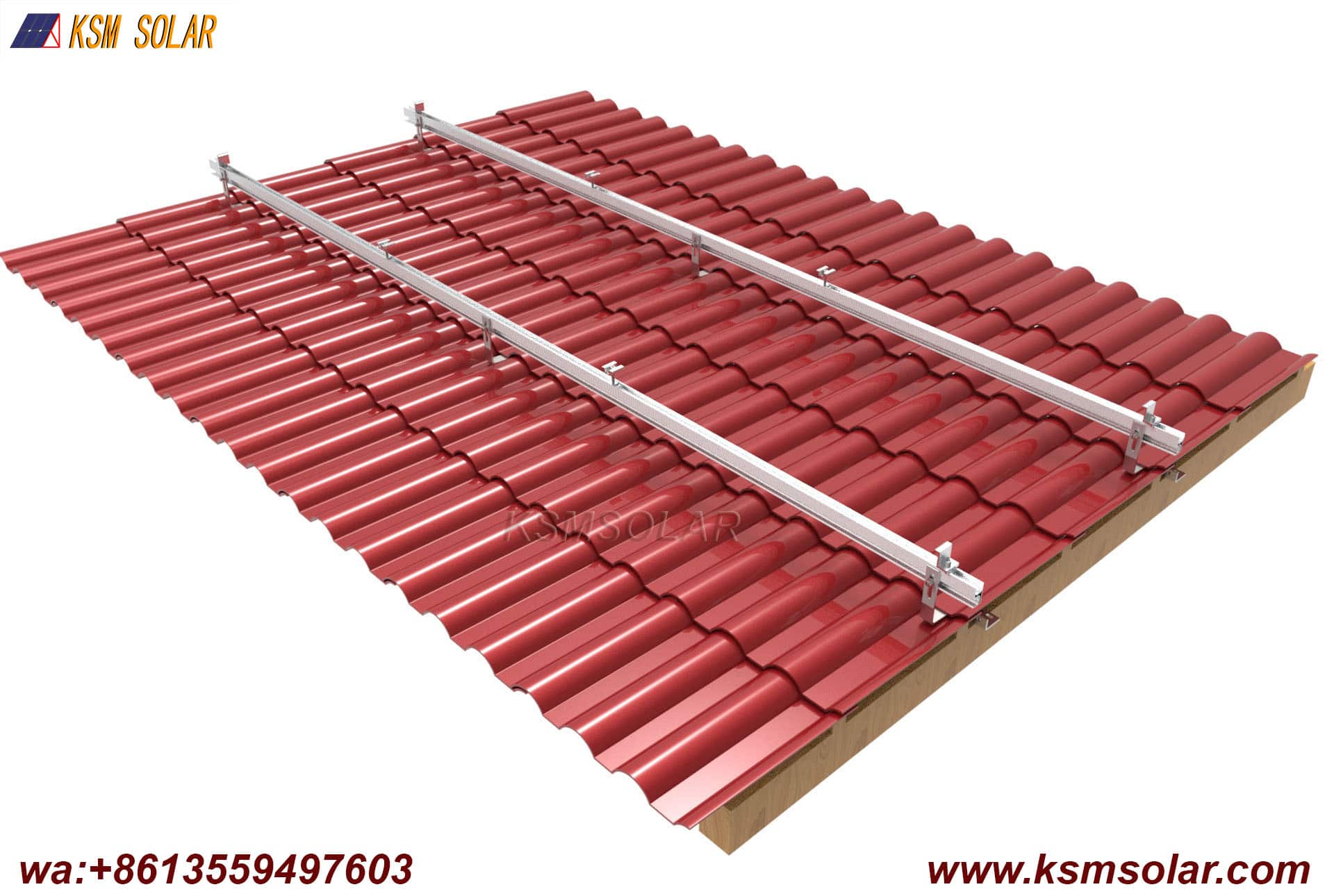

Dual-Component Load Transfer: The system works through two distinct but integrated components. The stainless steel hook transfers loads from the array directly into the roof's structural rafters via mechanical fasteners.The aluminum rail, attached to the hook, spans multiple attachment points and distributes module loads evenly across the system.

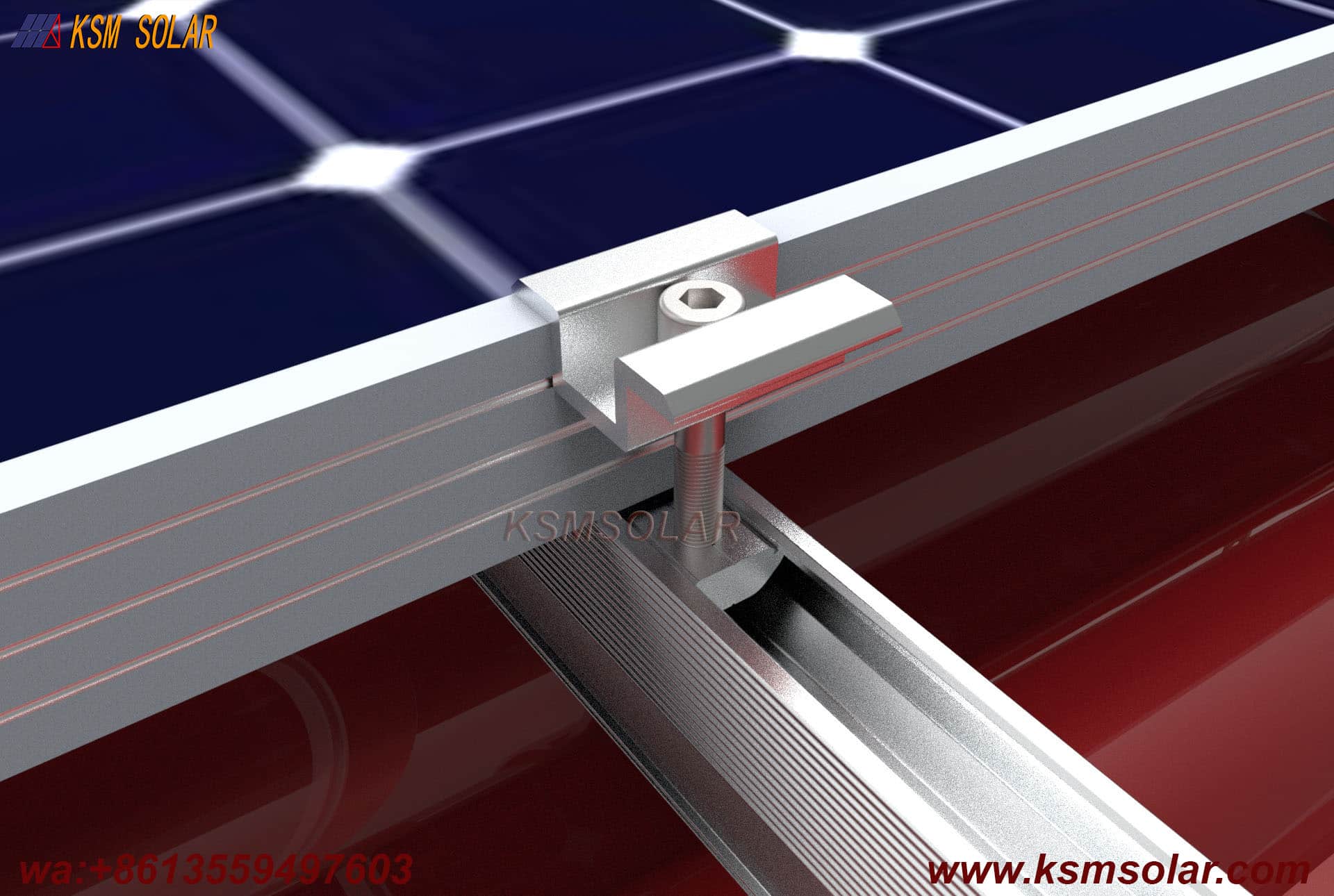

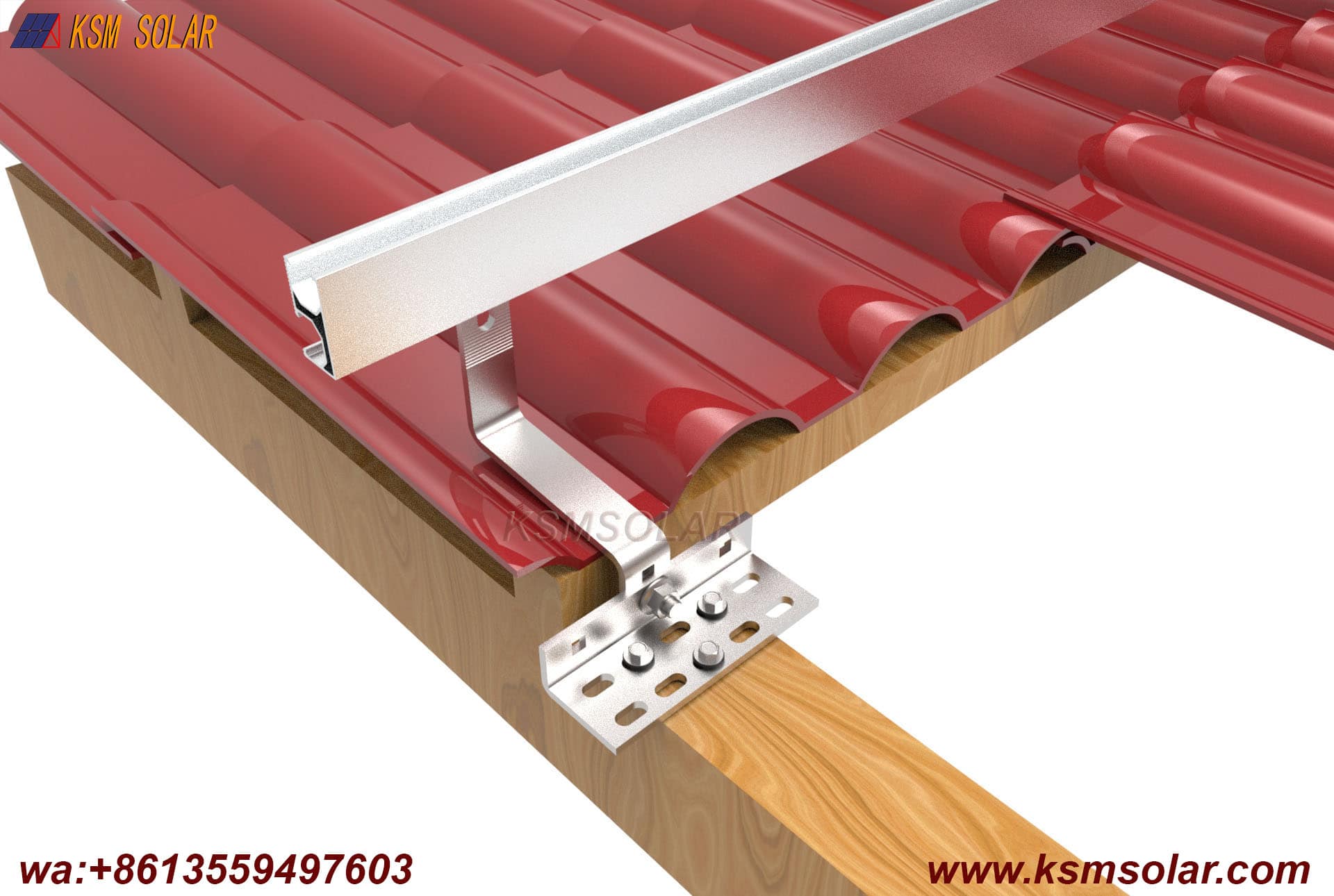

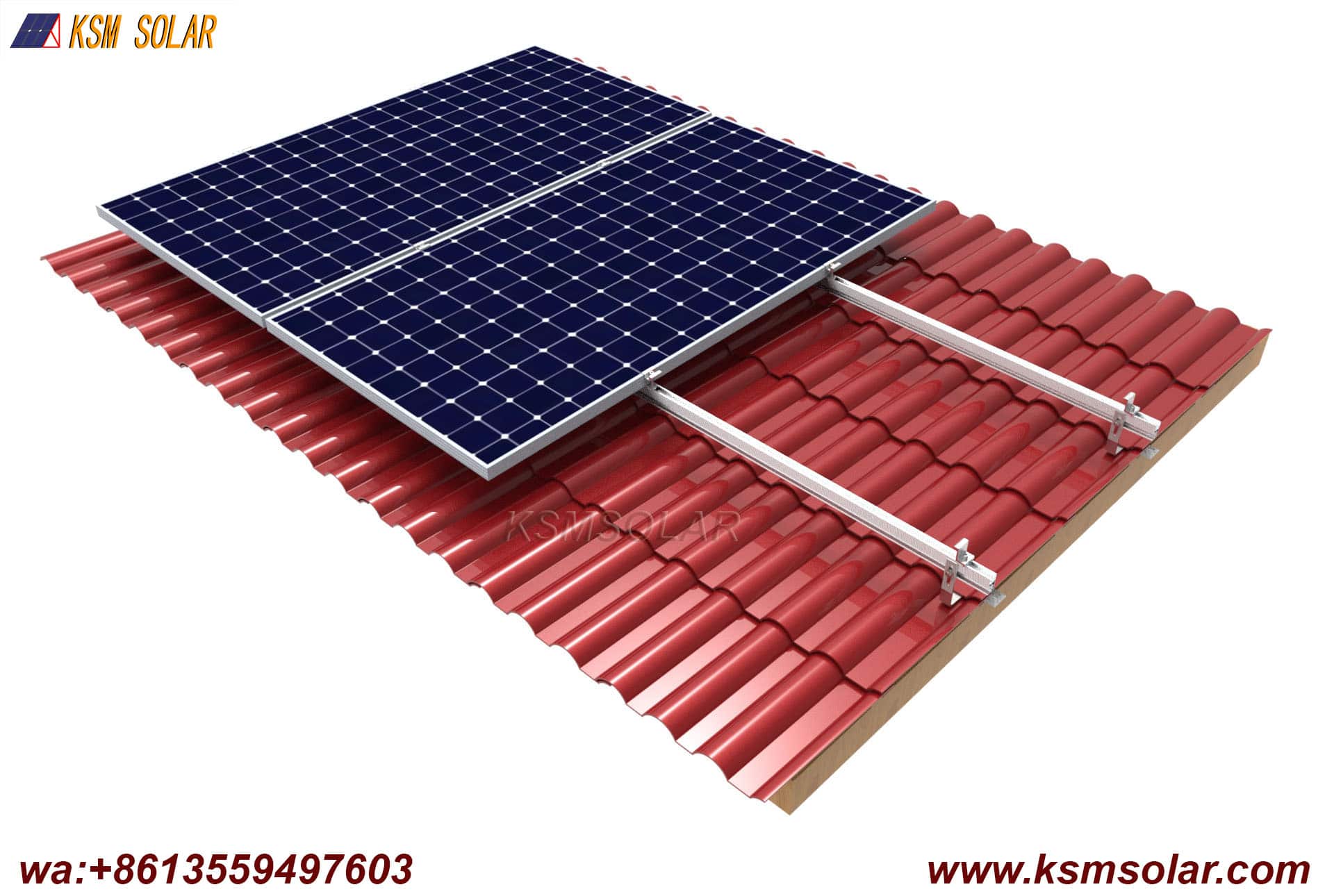

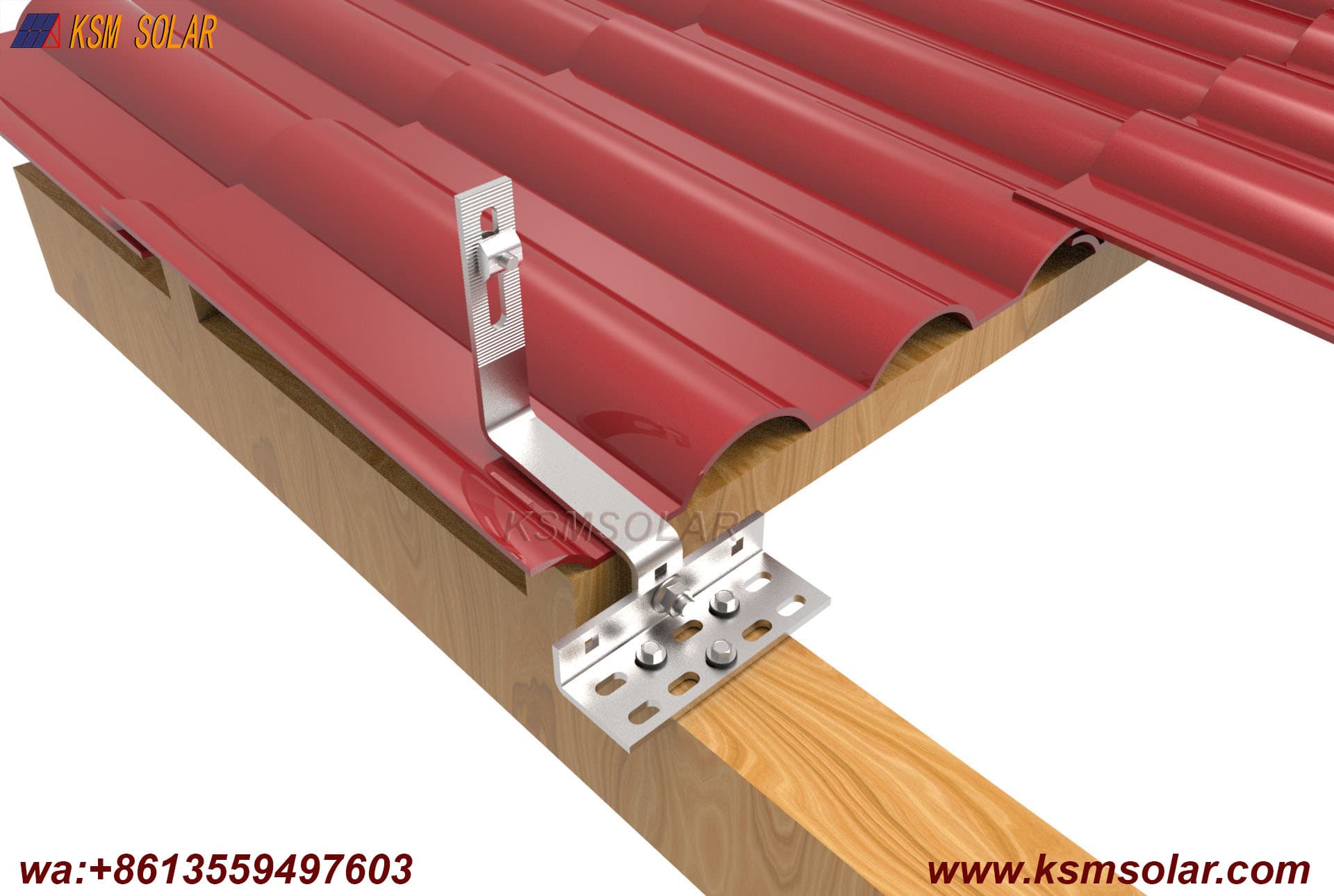

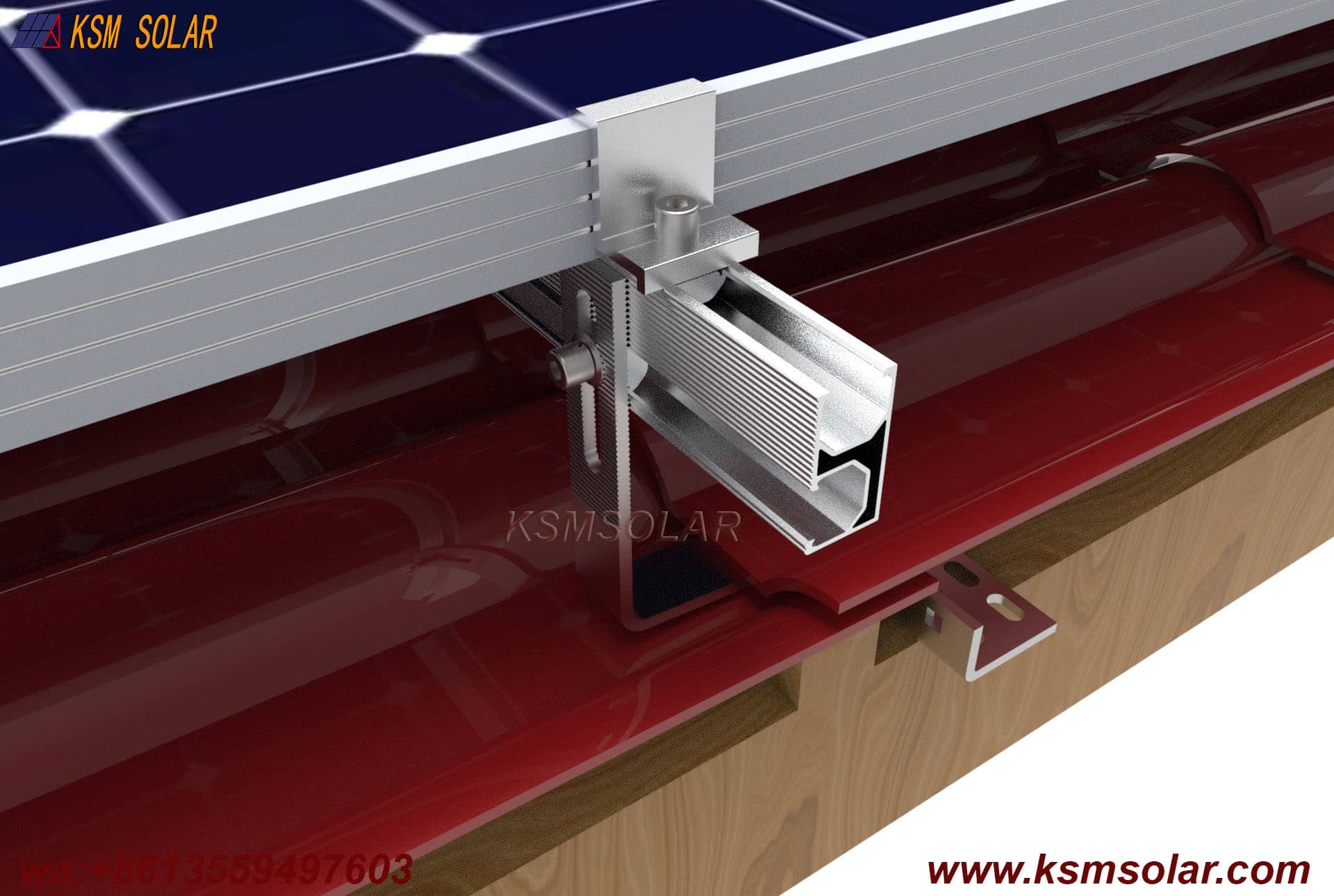

Tile Preservation and Weatherproofing: The hook slides under existing roof tiles, allowing them to remain intact and undisturbed. The 5mm material thickness of quality hooks minimizes the need for tile grinding.This preserves the roof's weatherproofing and aesthetic appearance.
Multi-Axis Installation Tolerance: The system provides comprehensive on-site adjustability, allowing installers to correct for minor misalignments in rafter spacing, variations in tile height, and uneven roof surfaces.

Hook Component: Material and Design

Marine-Grade Stainless Steel: The hook body is manufactured from corrosion-resistant stainless steel, typically AISI 304 (SUS304/A2) for standard environments.This provides:
Structural Strength: Withstands significant tensile and shear loads from wind and snow.
Corrosion Resistance: Ensures 25+ year service life in outdoor exposure.
Material Thickness: High-quality hooks feature 5mm thickness, balancing strength with minimal tile interference.Heavy-duty versions (8mm) are available for high snow load regions.
