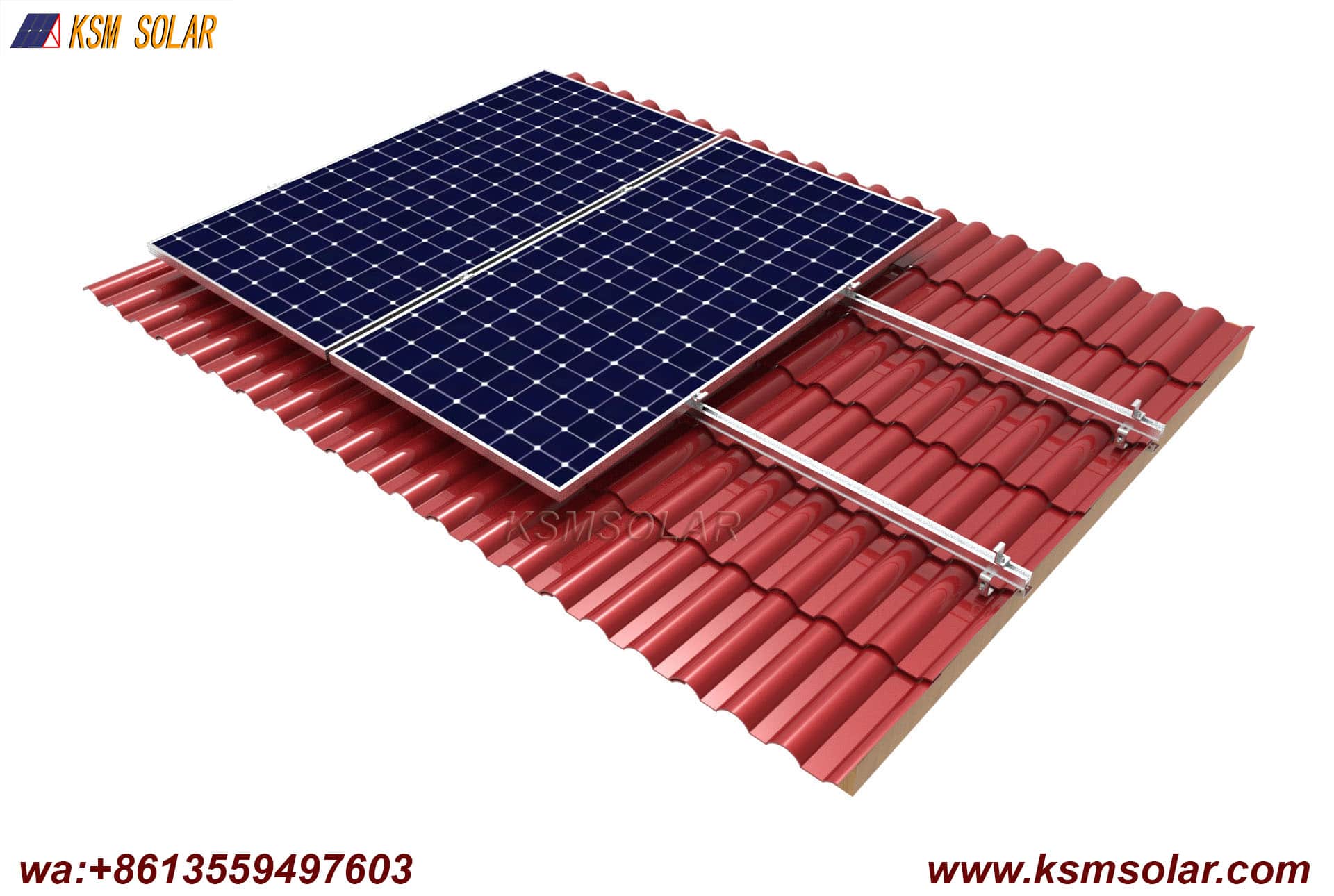

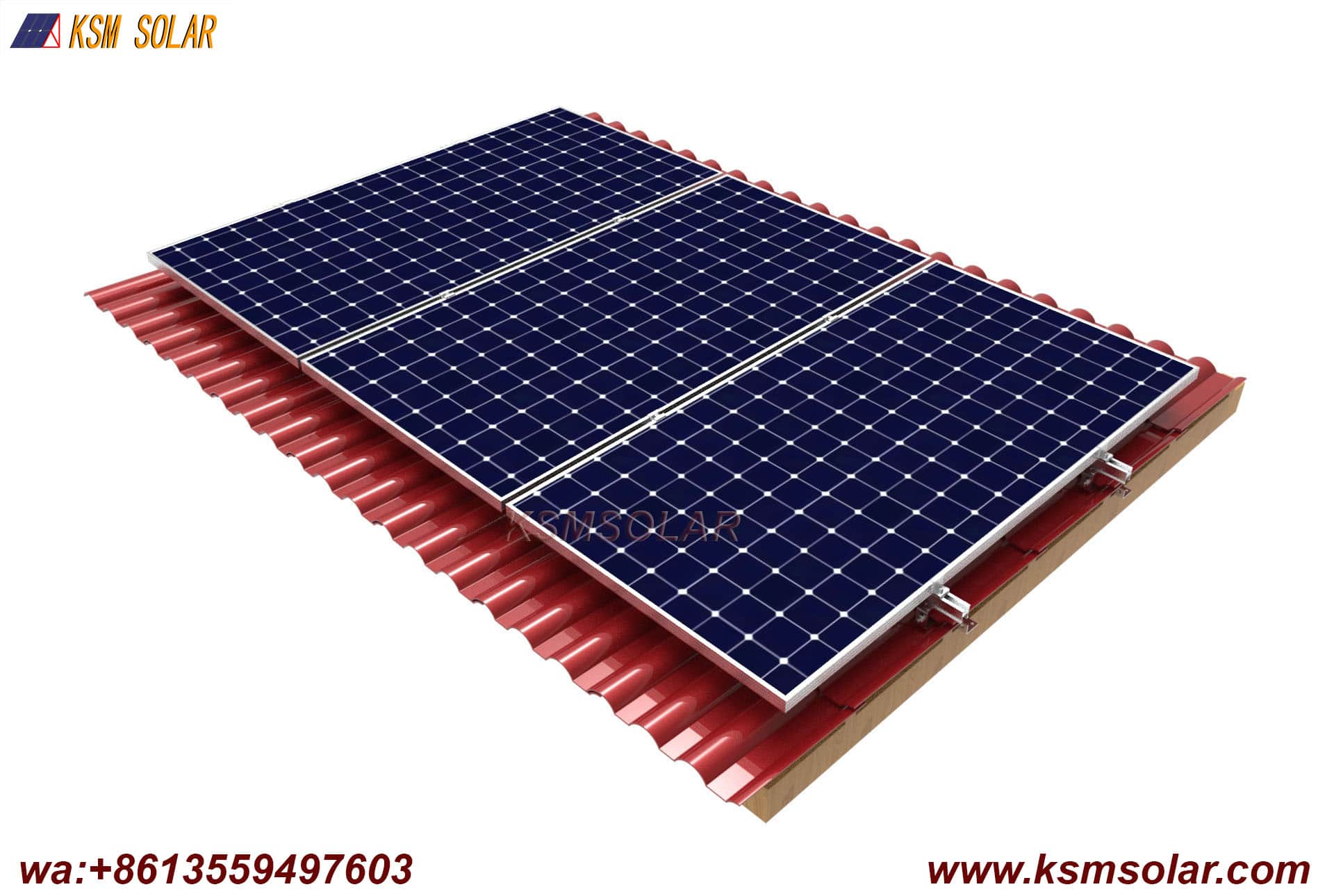

An adjustable stainless steel hook system is a mechanical fastening solution designed to secure solar mounting rails to pitched tile roofs. Its defining feature is the integrated adjustability mechanisms—typically slotted holes, telescoping sections, or multi-piece assemblies—that allow for precise positioning of the hook after the base has been fixed to the roof structure.

Core Functional Principles

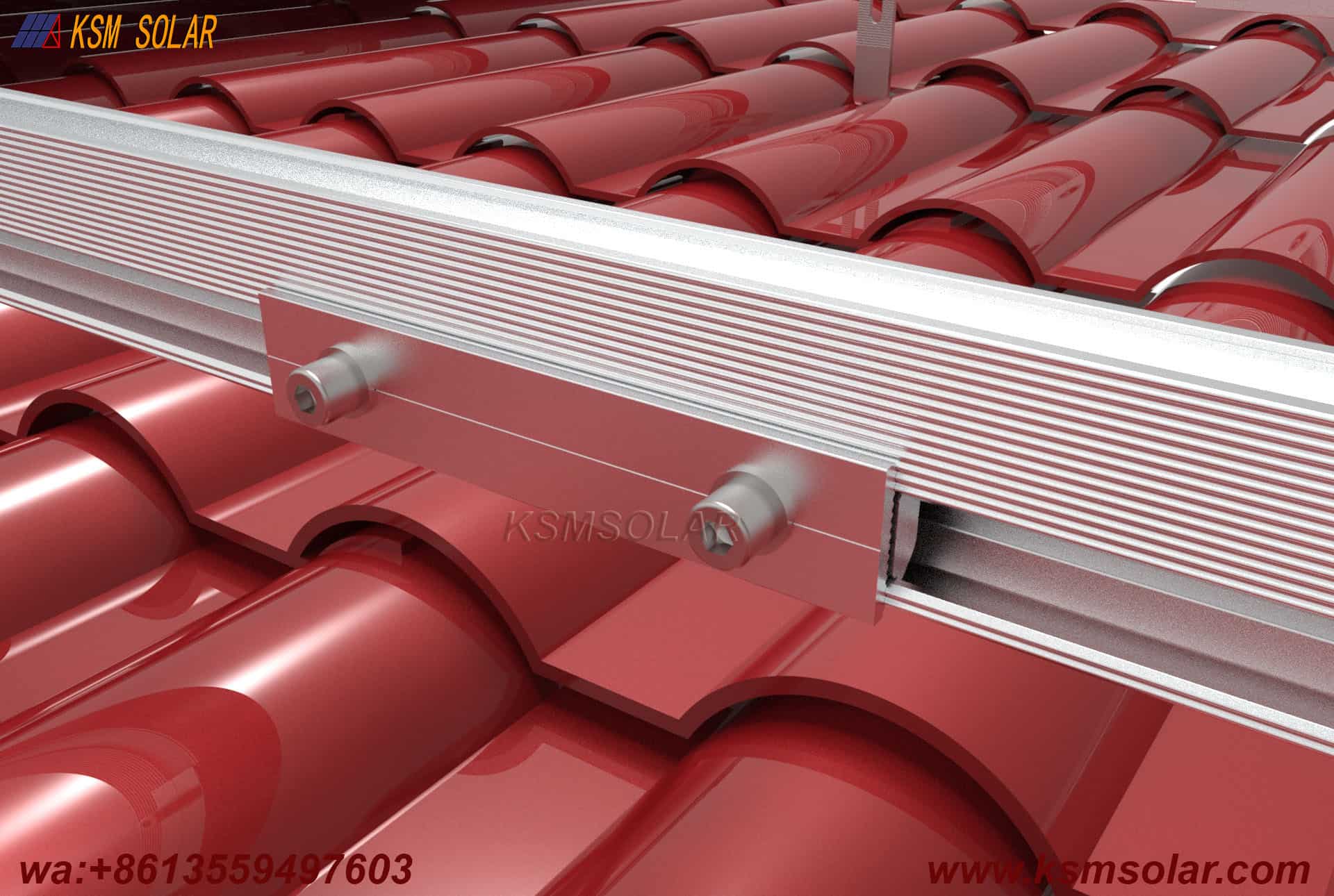

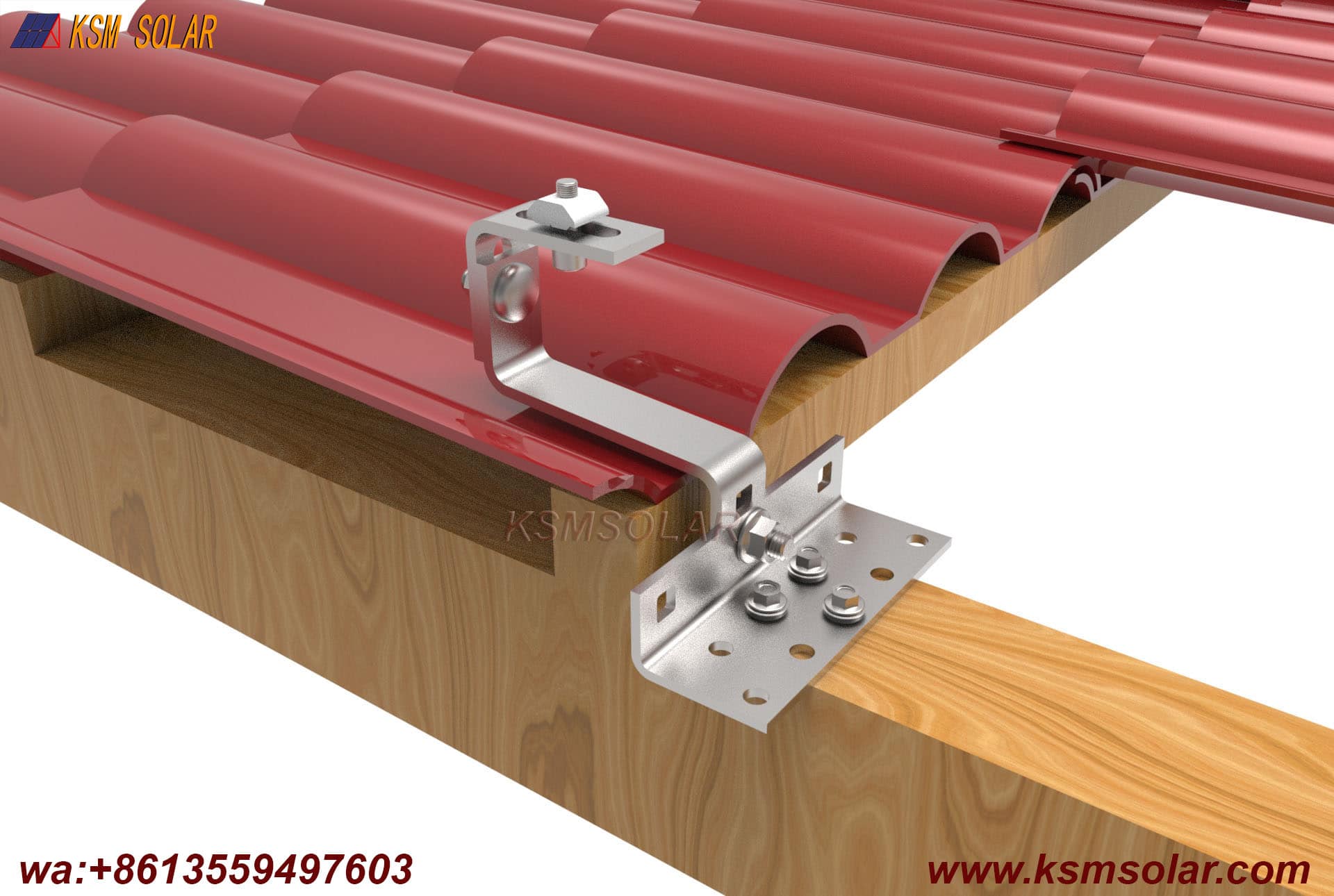

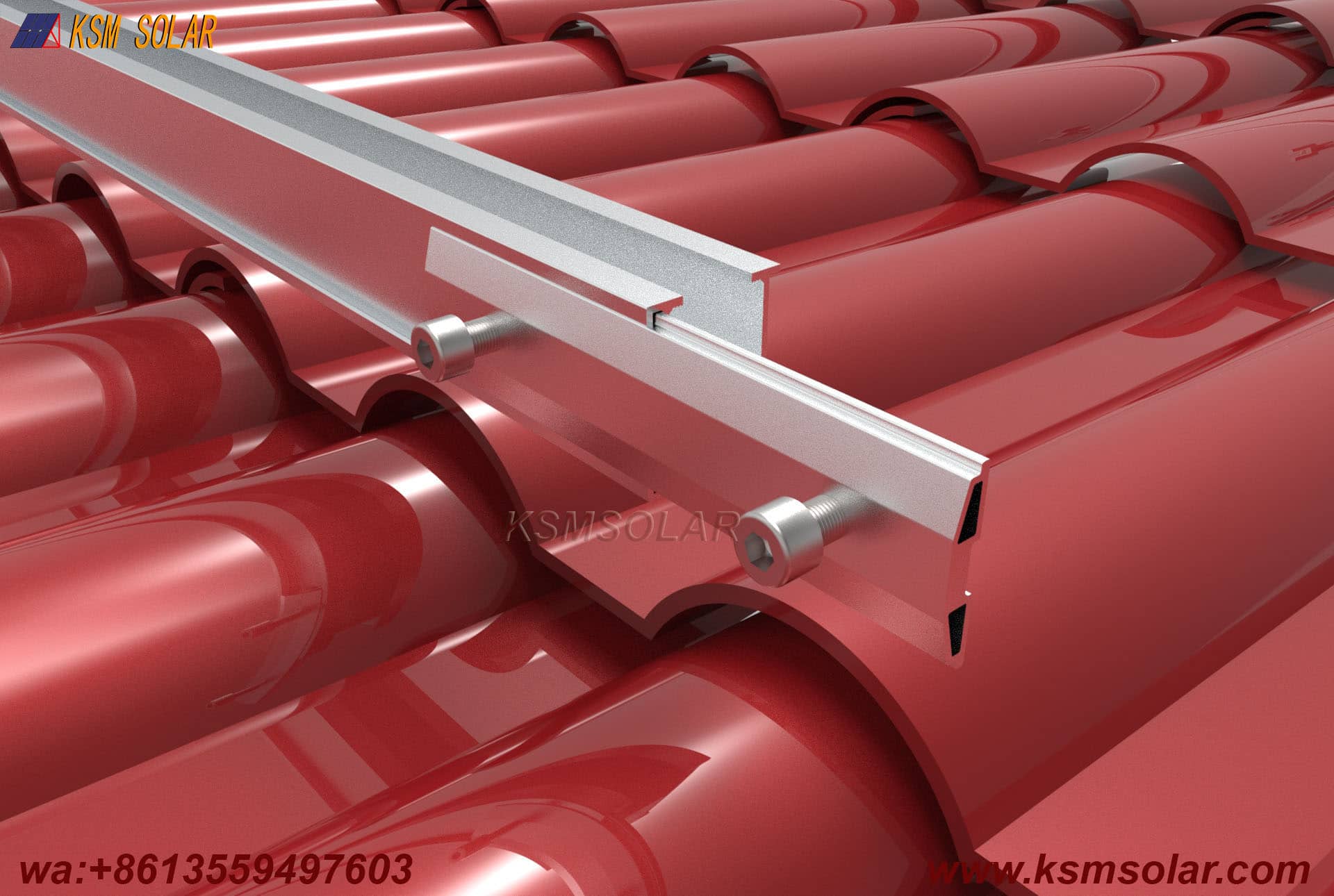

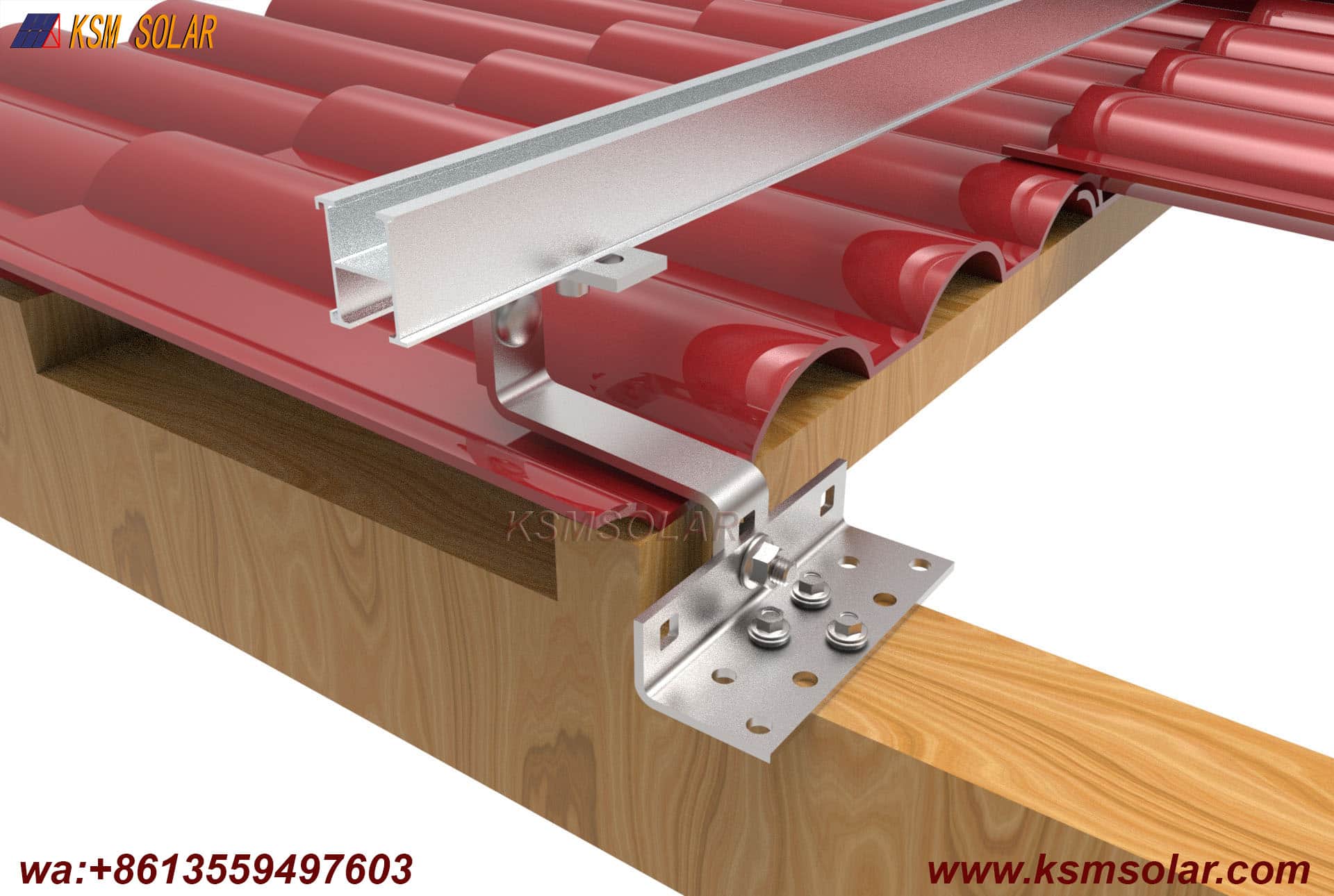

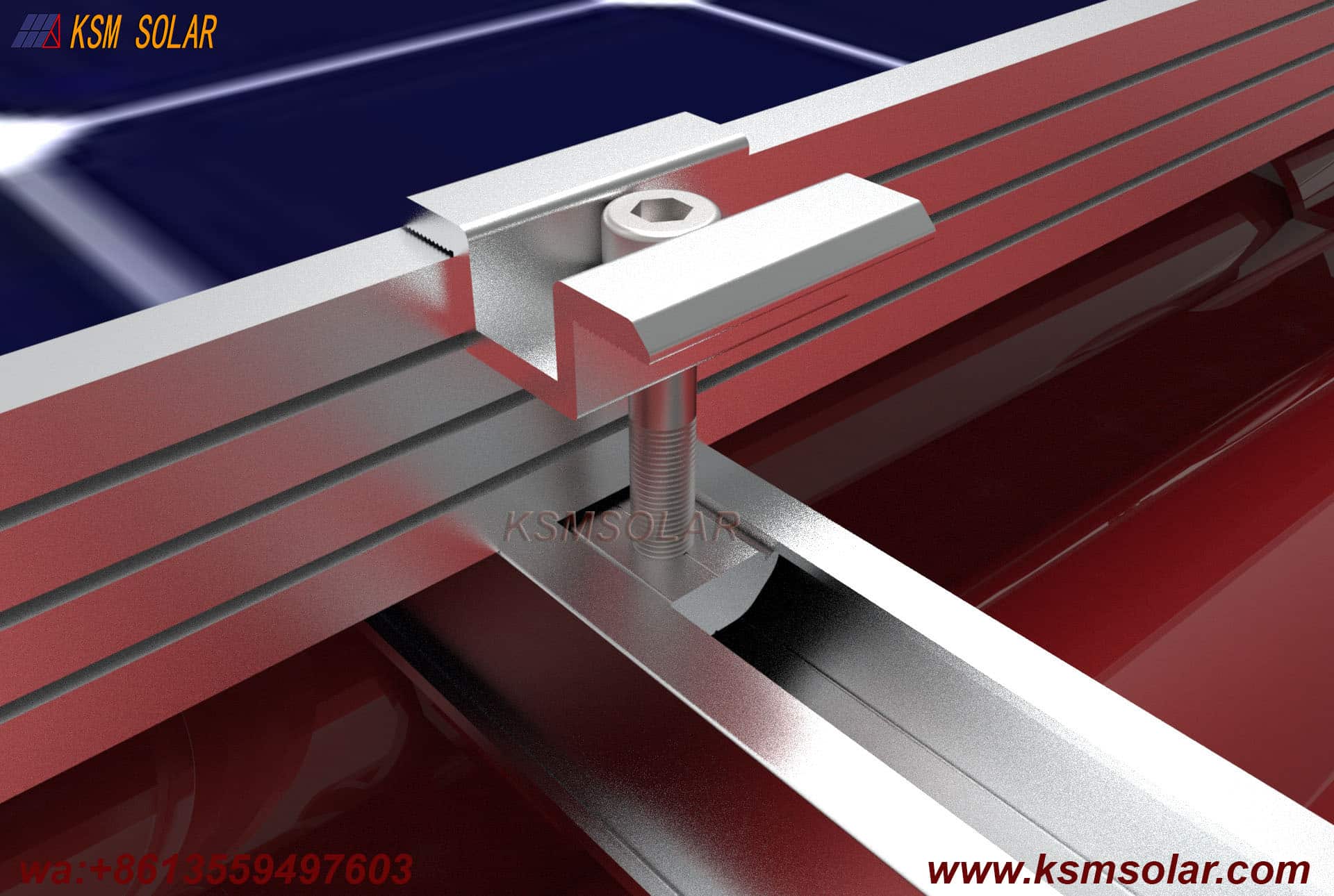

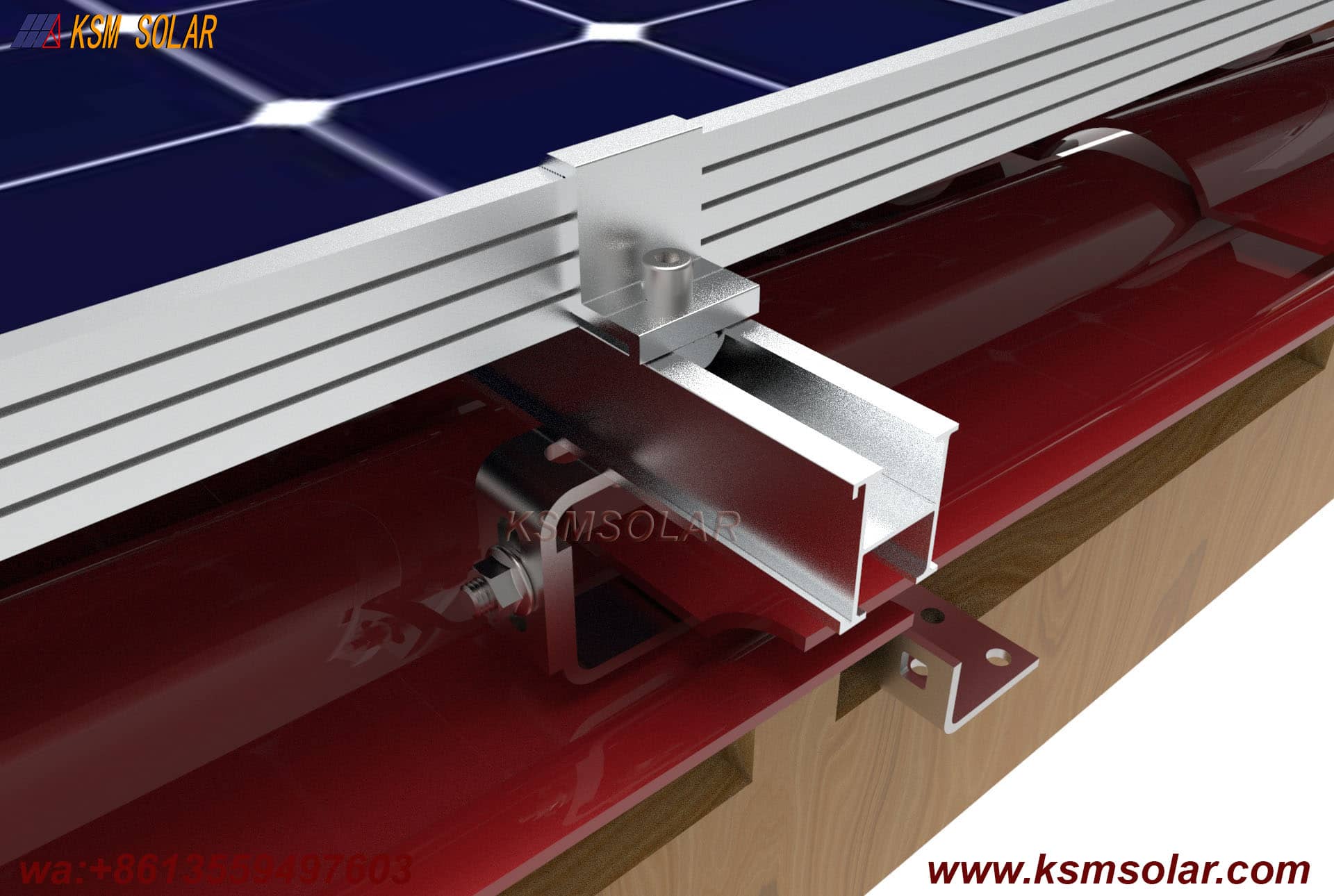

• Structural Rafter Attachment: The hook is mechanically fastened directly to the roof's structural elements—rafters, roof boarding, or battens—using lag screws or bolts, ensuring the solar array loads are transferred safely into the building structure.

• Tile Preservation: The hook slides under existing roof tiles, allowing them to remain intact and undisturbed. This preserves the roof's weatherproofing and aesthetic appearance without requiring tiles to be cut around the attachment point (though minimal grinding may be needed for some profiles).

• Multi-Axis Installation Tolerance: The primary purpose of adjustability is to provide on-site flexibility. It allows installers to correct for minor misalignments in rafter spacing, variations in tile height, and uneven roof surfaces, ensuring the mounting rails are perfectly parallel and coplanar.

Adjustability Mechanisms

Adjustable hooks offer one, two, or three axes of adjustment.

Vertical Adjustment (Height): This compensates for the thickness of the tiles and any ventilation layer beneath. It is typically achieved through:

• Slotted Rafter Foot: The vertical leg of the hook has a slotted hole, allowing the base plate to be positioned higher or lower relative to the rafter.

• Telescoping Sections: The hook consists of two overlapping sections that can slide relative to each other and be locked with bolts.
