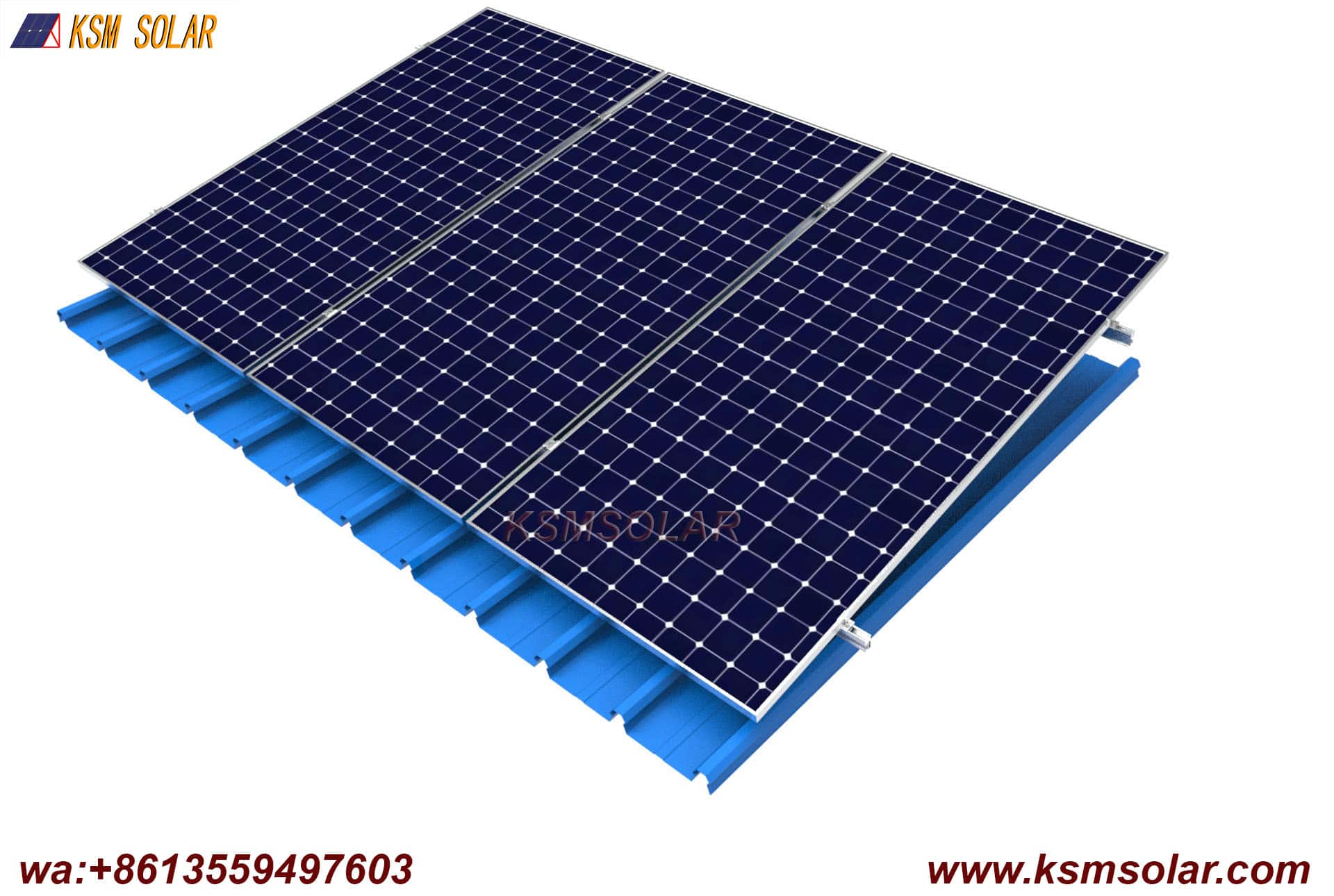

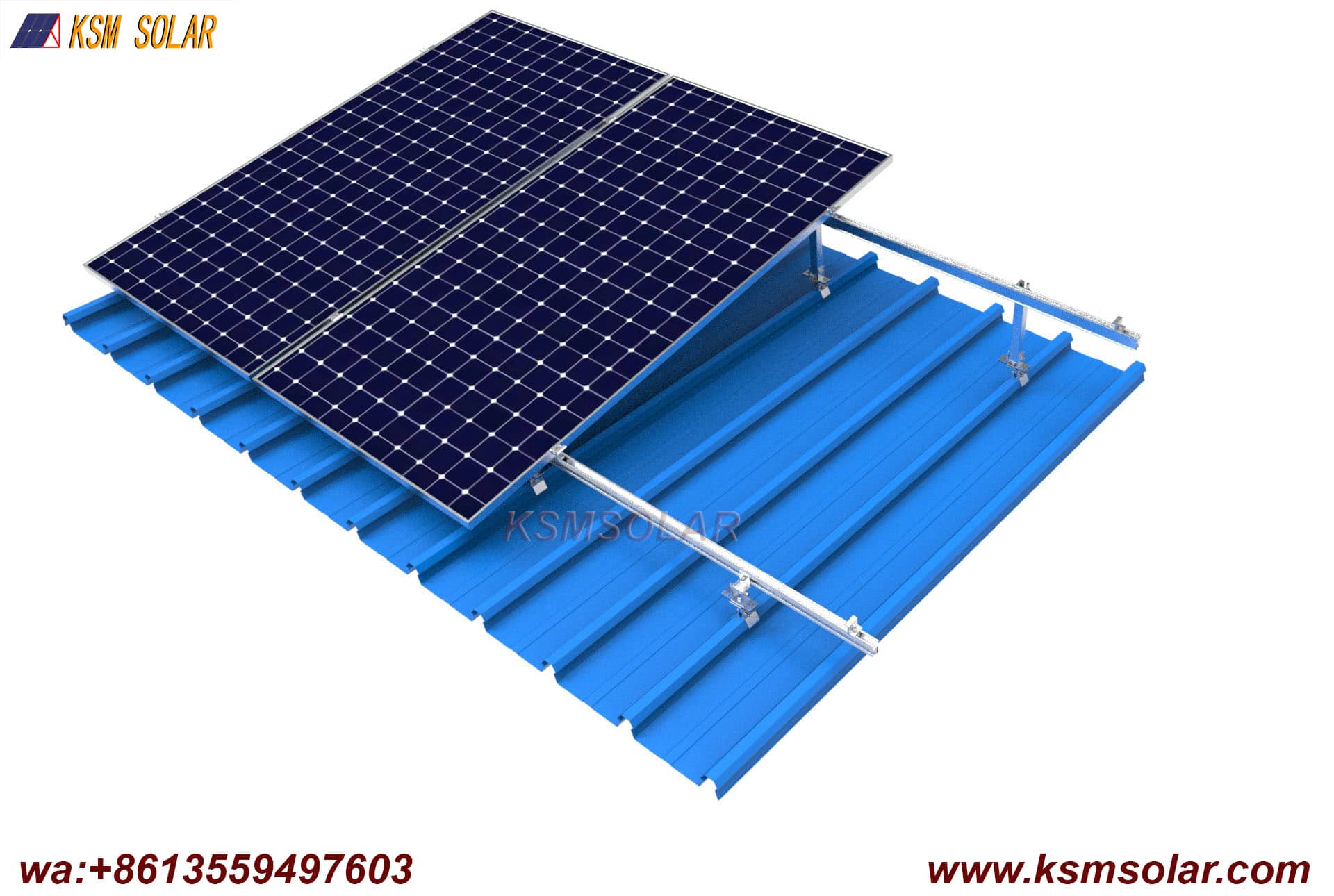

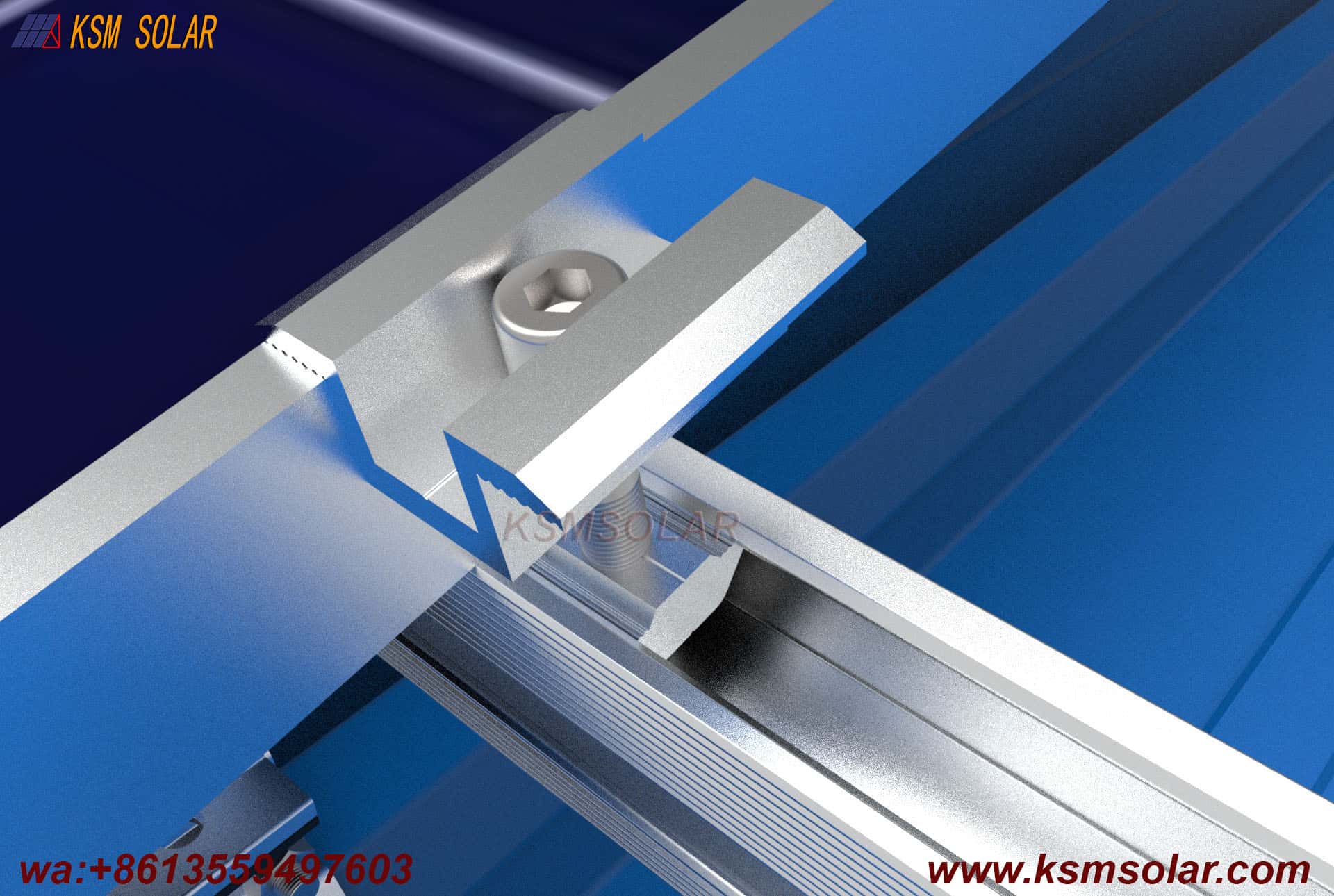

An adjustable front and rear leg mounting system is a dual-component solar support structure designed for installation on metal roofs with minimal slope. Its defining feature is the independent, multi-point height adjustment of the front (lower) and rear (higher) support legs, which enables precise tilt angle optimization for maximum solar energy yield while securely anchoring to the roof's structural members.

Core Functional Principles

• Tilt Angle Optimization: The primary function is to elevate solar panels off a flat or low-slope metal roof to an optimal tilt angle (typically 5° to 60°).This significantly increases energy production compared to flush-mount systems, particularly in winter months or at higher latitudes.

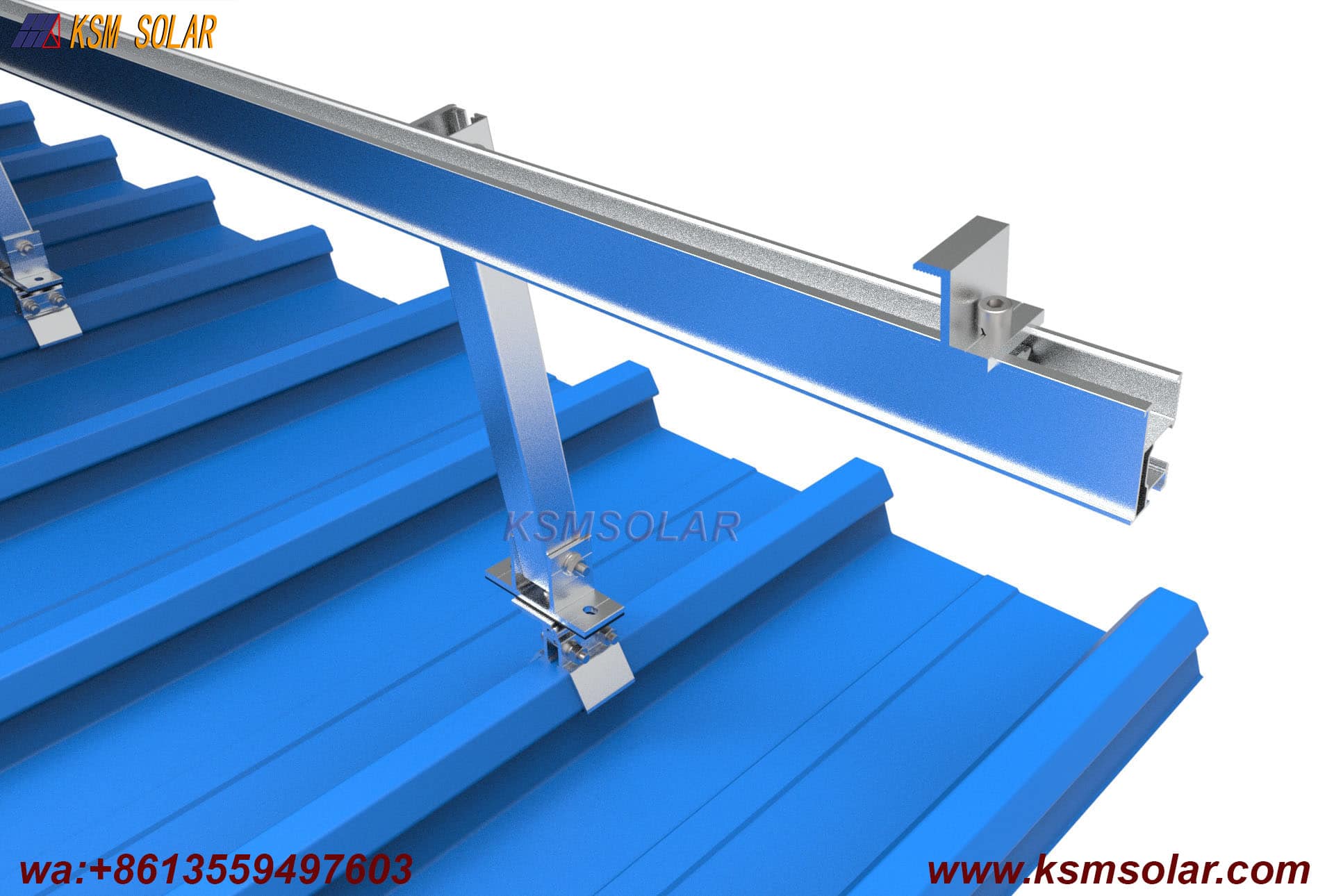

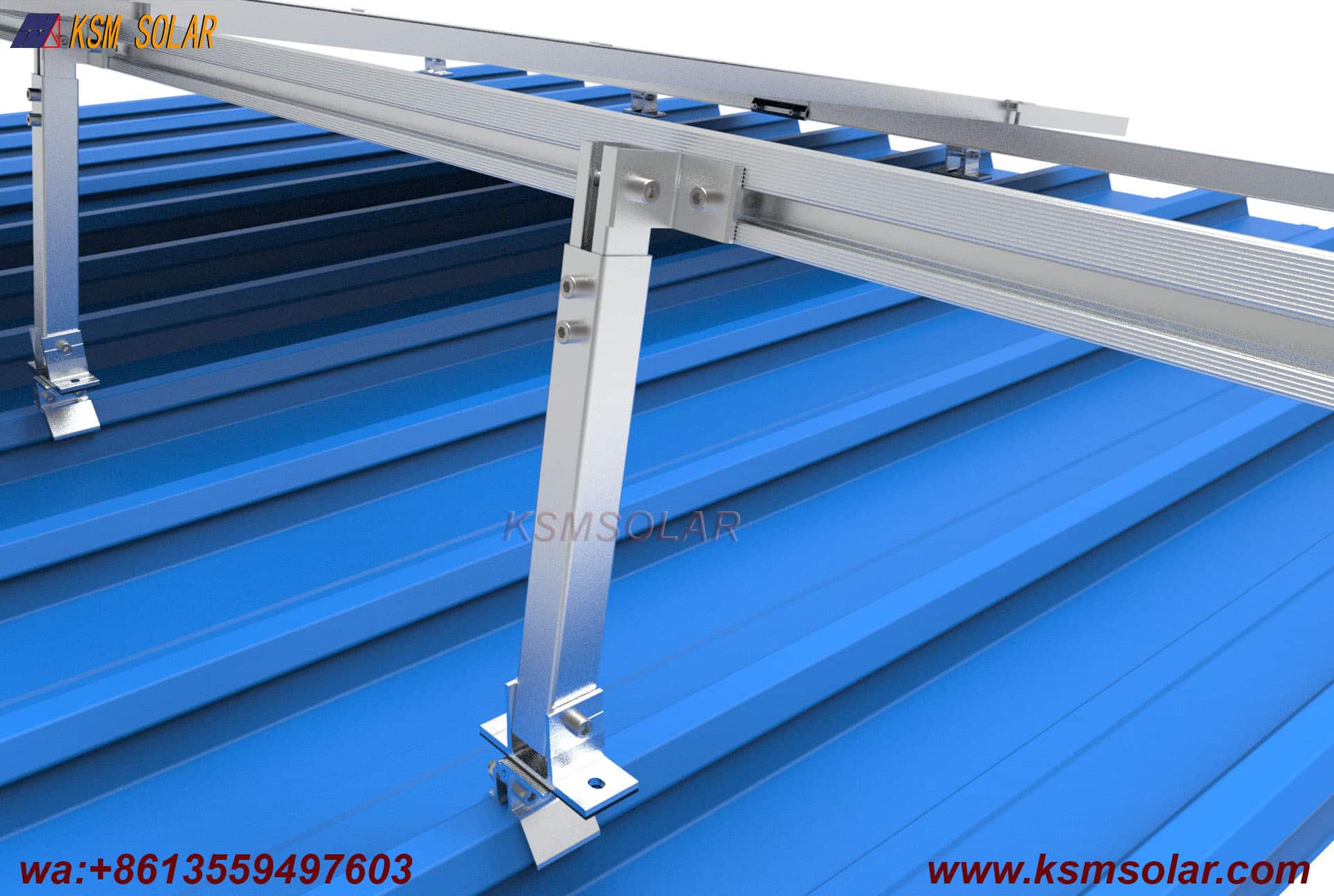

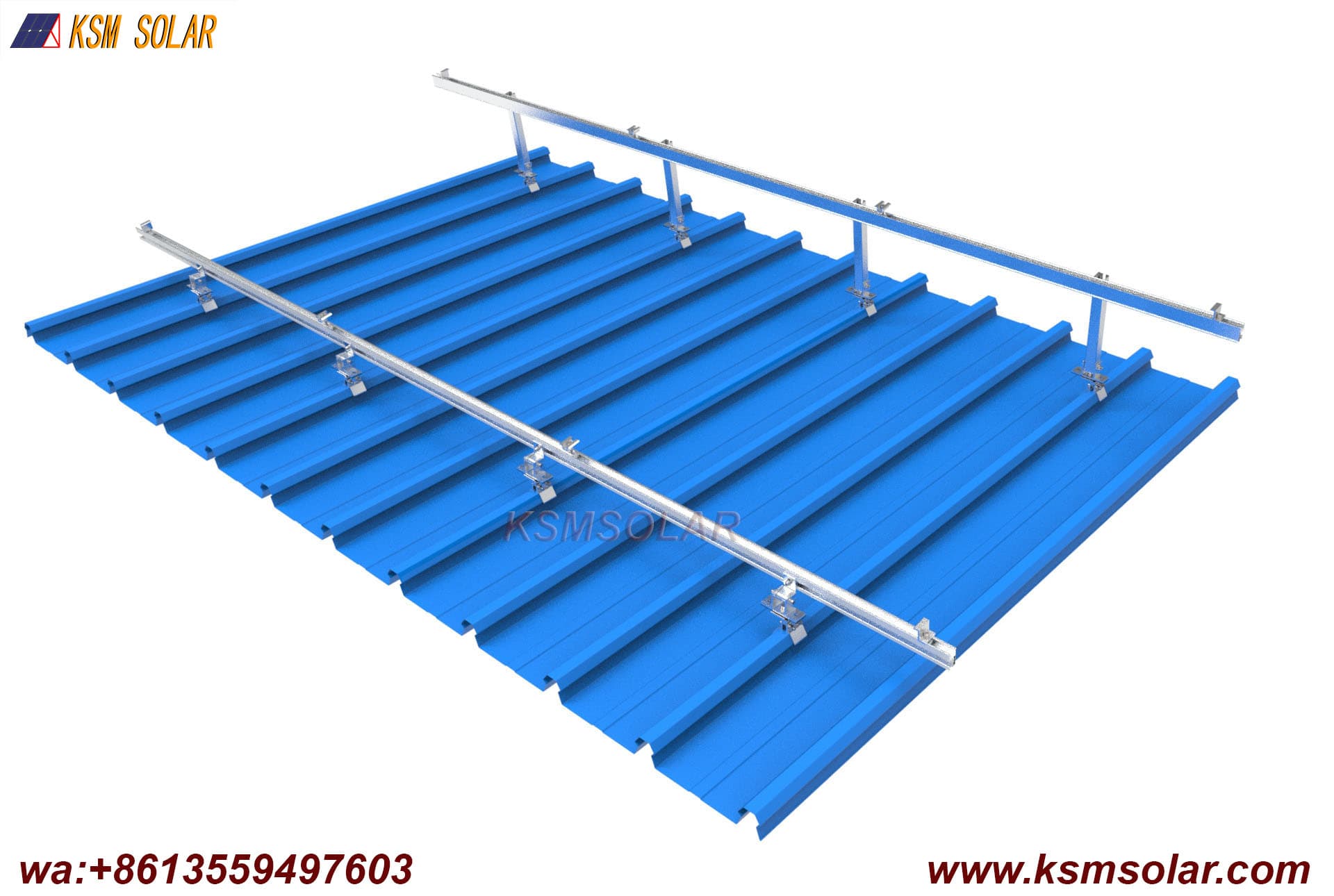

• Independent Leg Height Adjustment: The system features two distinct sets of legs—front (lower) and rear (higher)—that can be adjusted independently. The height differential between them determines the final panel tilt angle.

• Load Transfer to Roof Structure: The legs are designed to attach securely to the metal roof, typically through non-penetrating clamps (for standing seam roofs) or direct fastening with sealed screws (for trapezoidal/corrugated profiles). All loads are transferred safely into the roof's structural purlins.

Roof Attachment Options

The adjustable leg system offers flexibility in how it attaches to the metal roof:

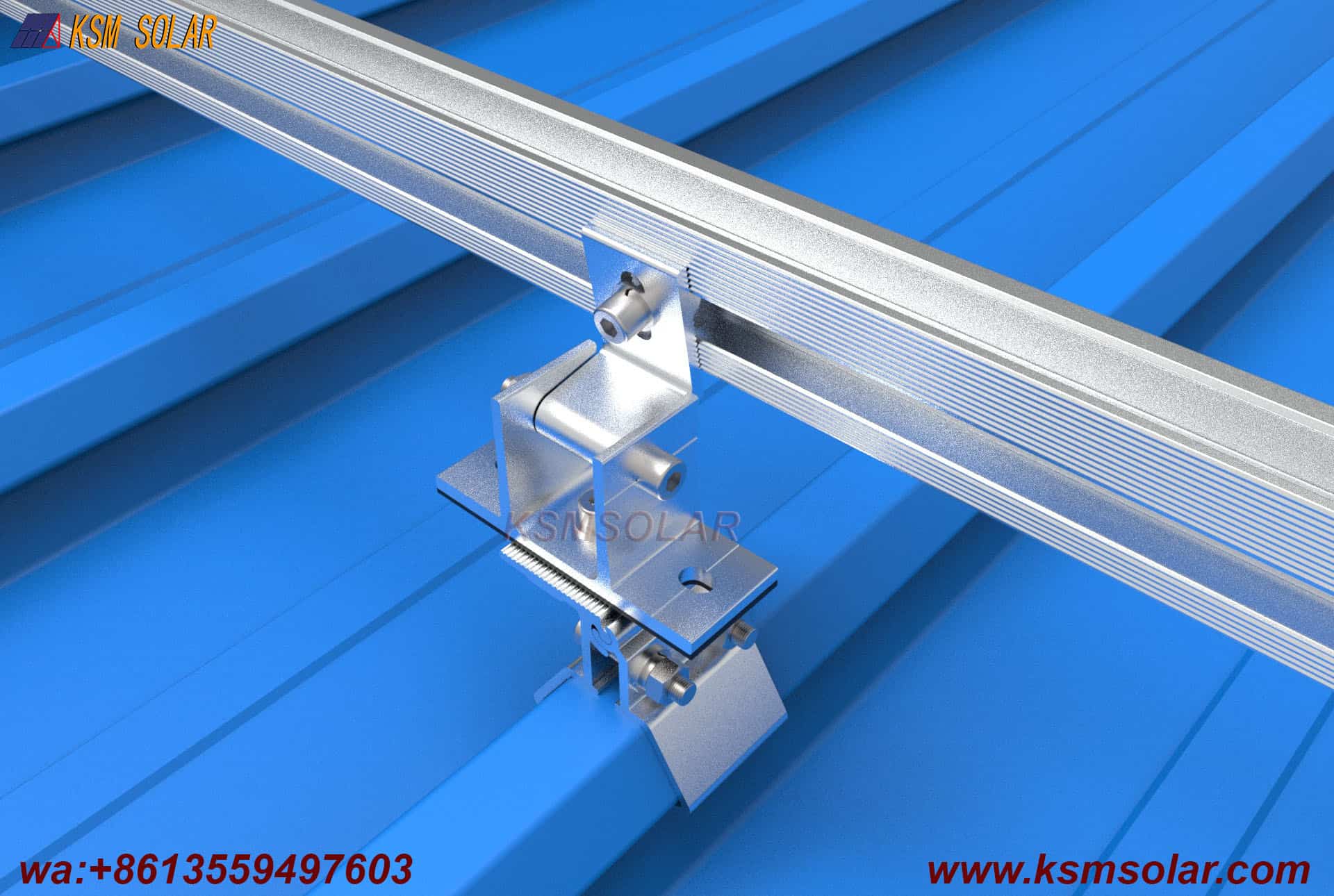

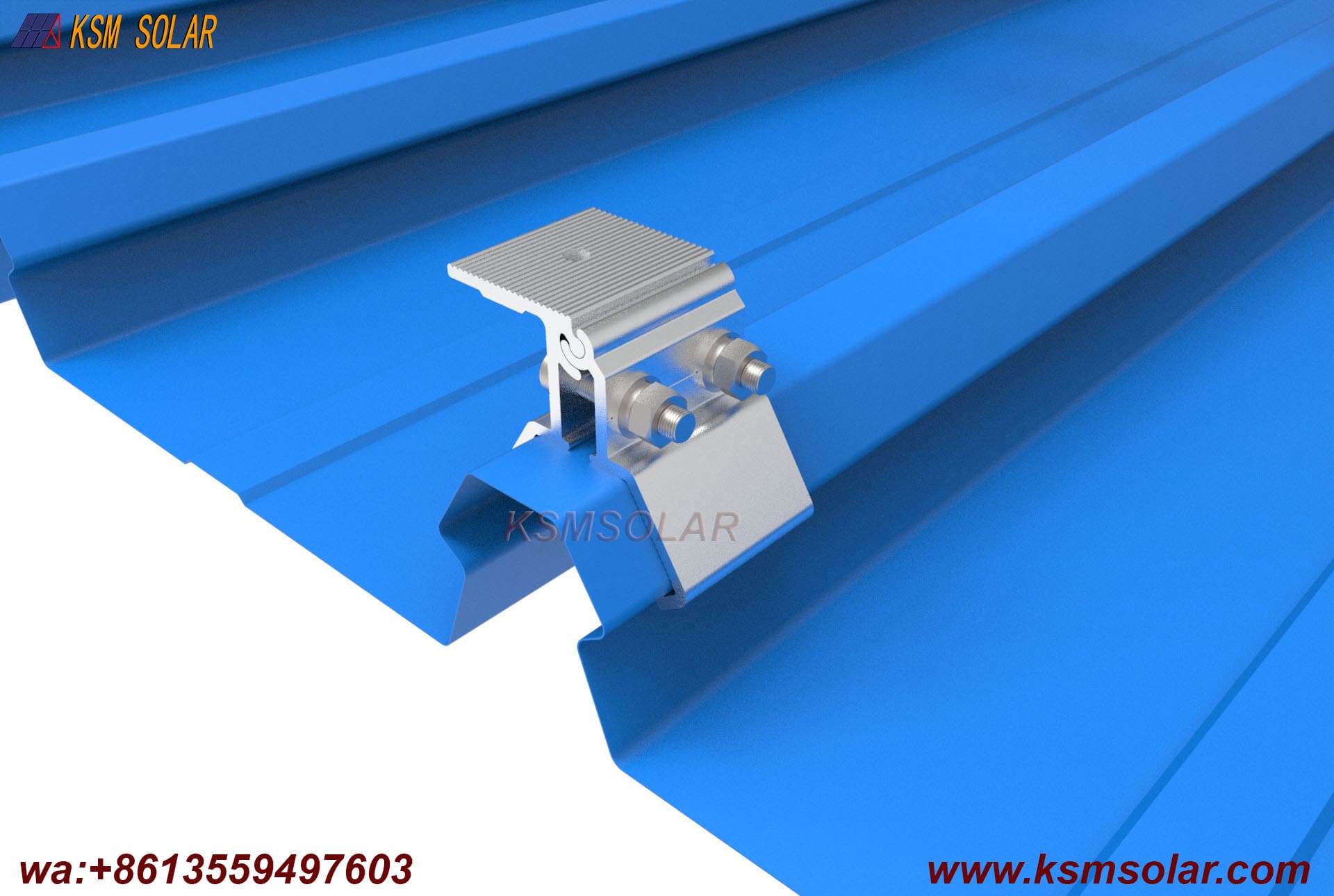

Non-Penetrating Attachment (for Standing Seam): For standing seam metal roofs, the legs can be mounted using profile-specific clamps that grip the raised seams without any roof penetration.

Direct Fastening (for Trapezoidal/Corrugated): For trapezoidal or corrugated profiles, the leg bases are designed to accept thread-forming screws with integrated sealing washers that penetrate the roof rib and secure into the underlying purlins.

Adjustable Base Plates: Some systems feature base plates with slotted holes, allowing for fine-tuning of leg placement relative to roof penetrations or obstructions.
