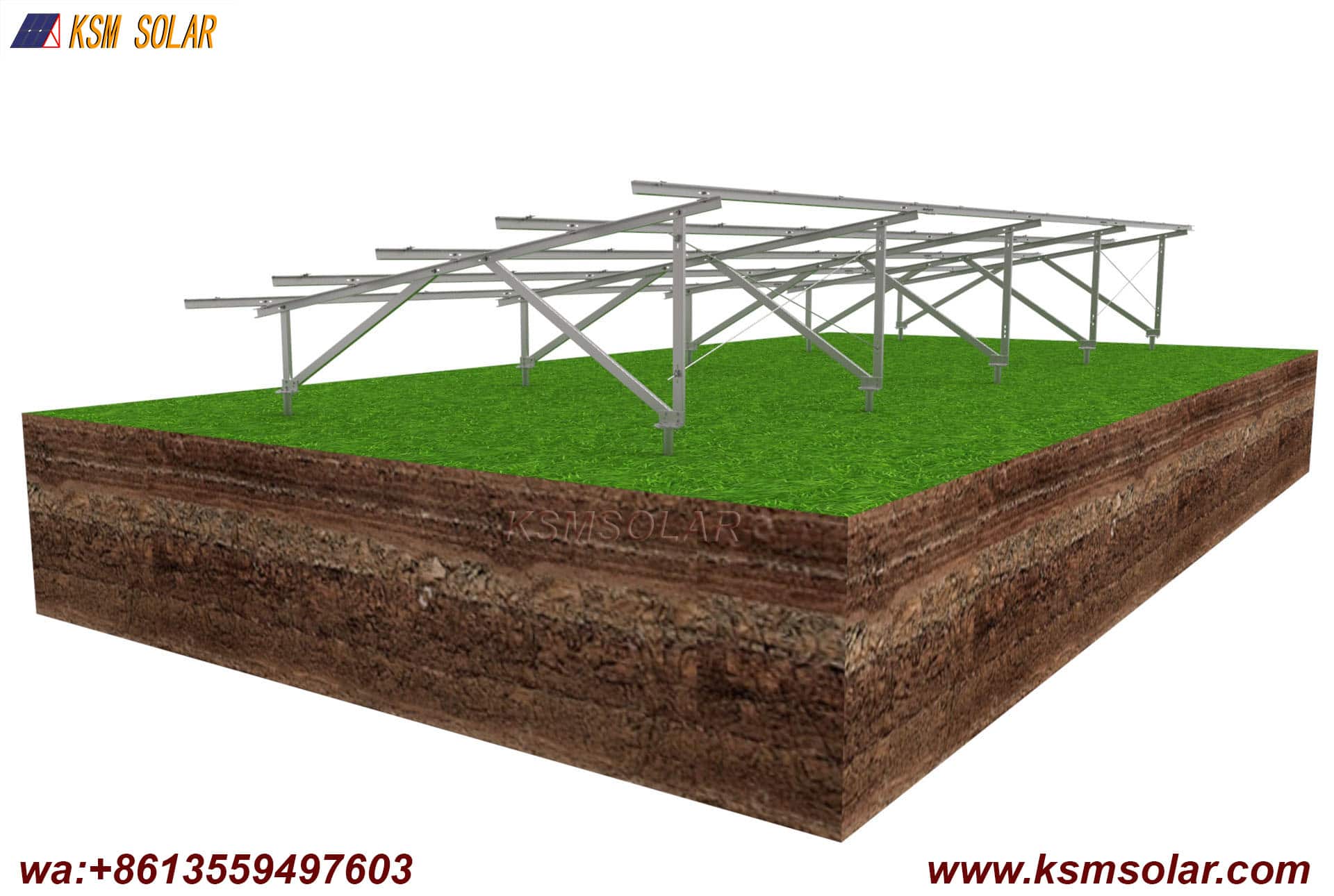

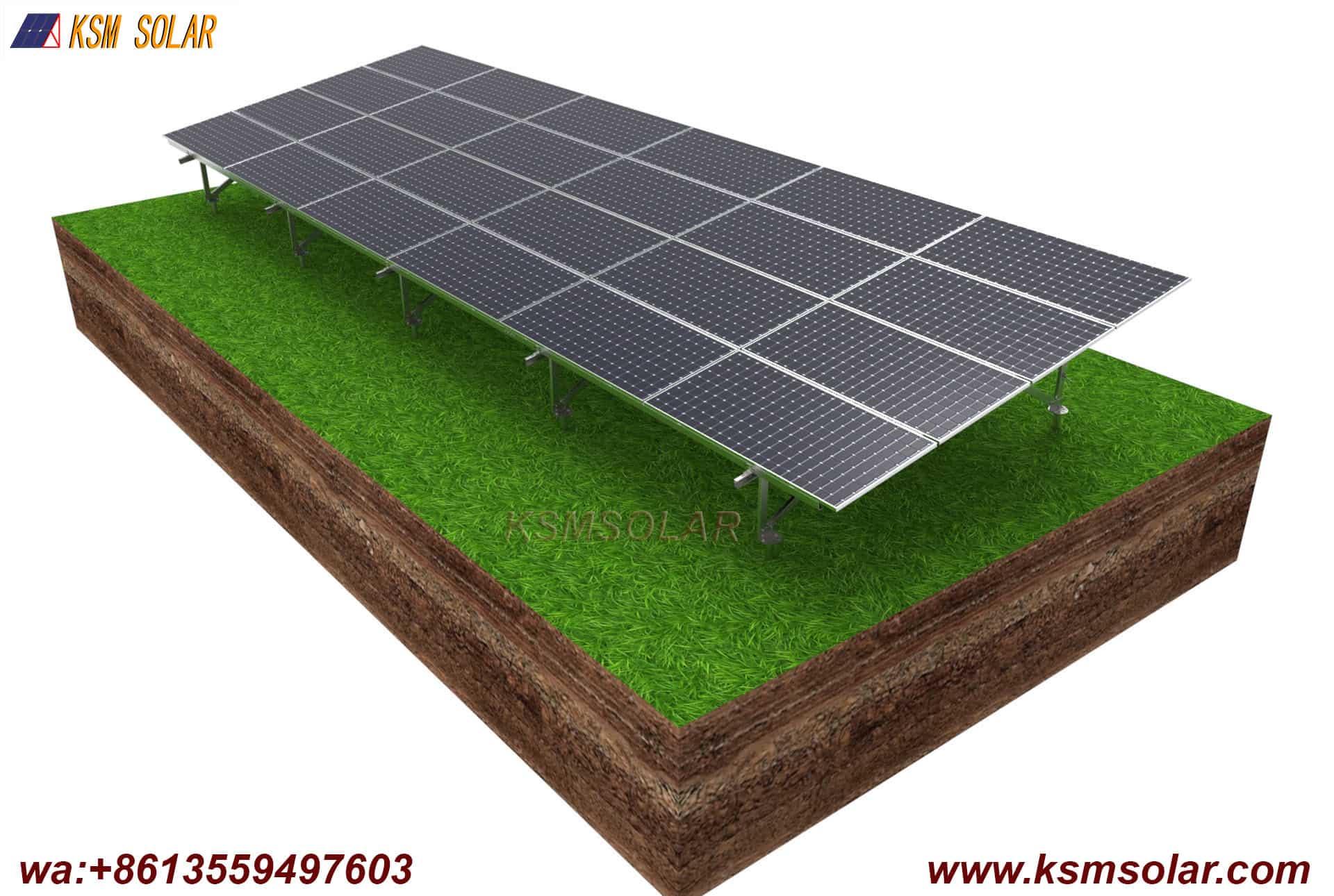

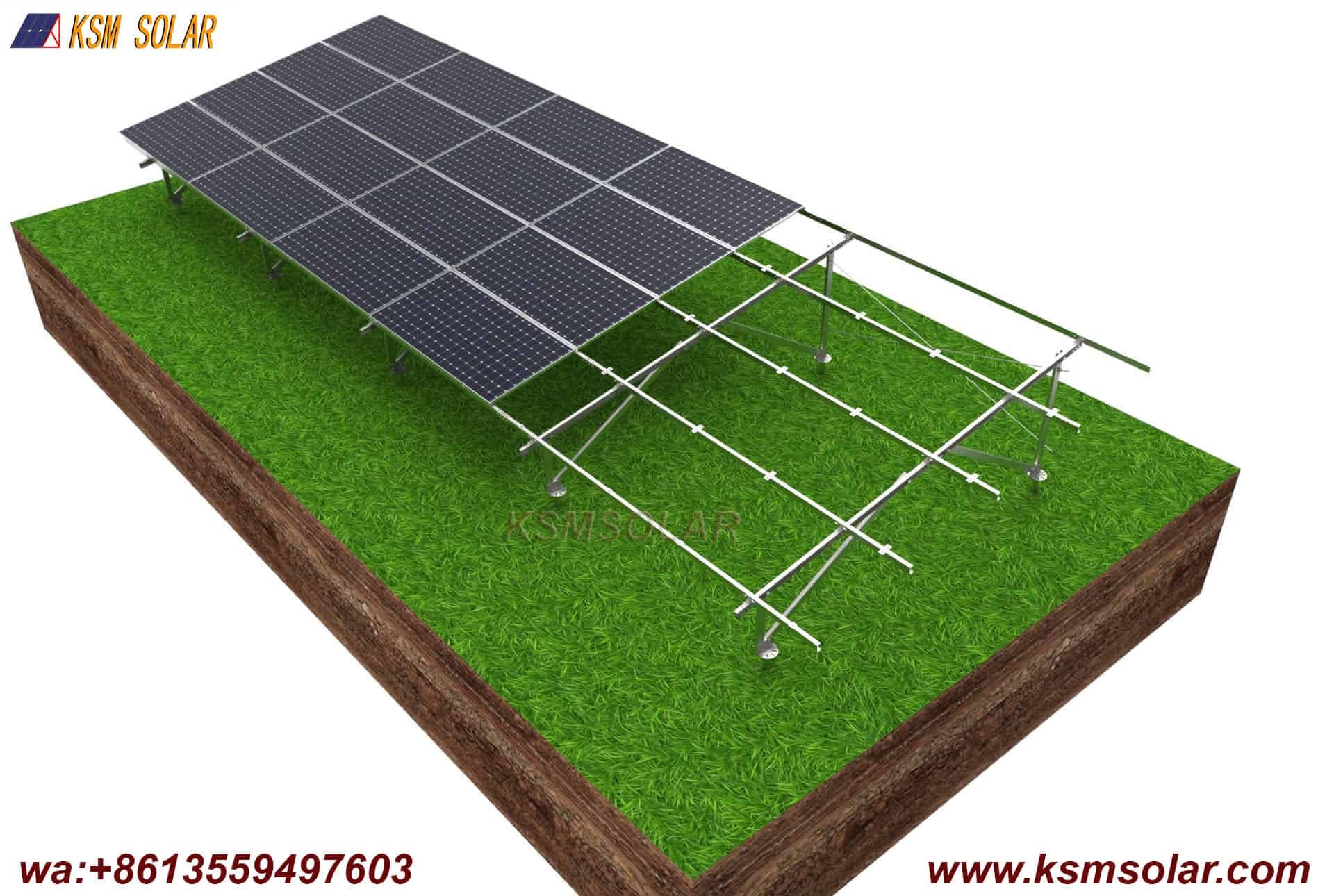

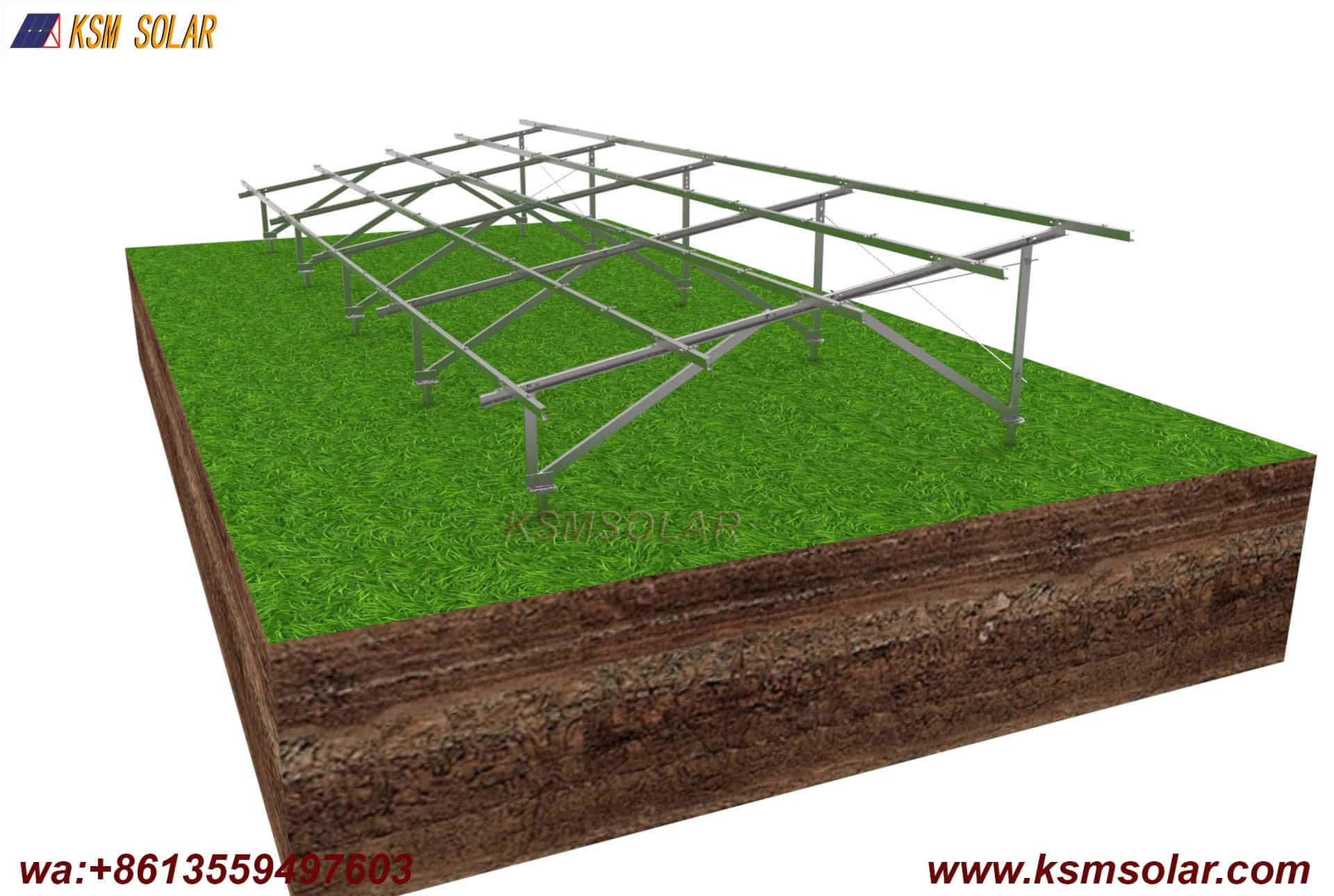

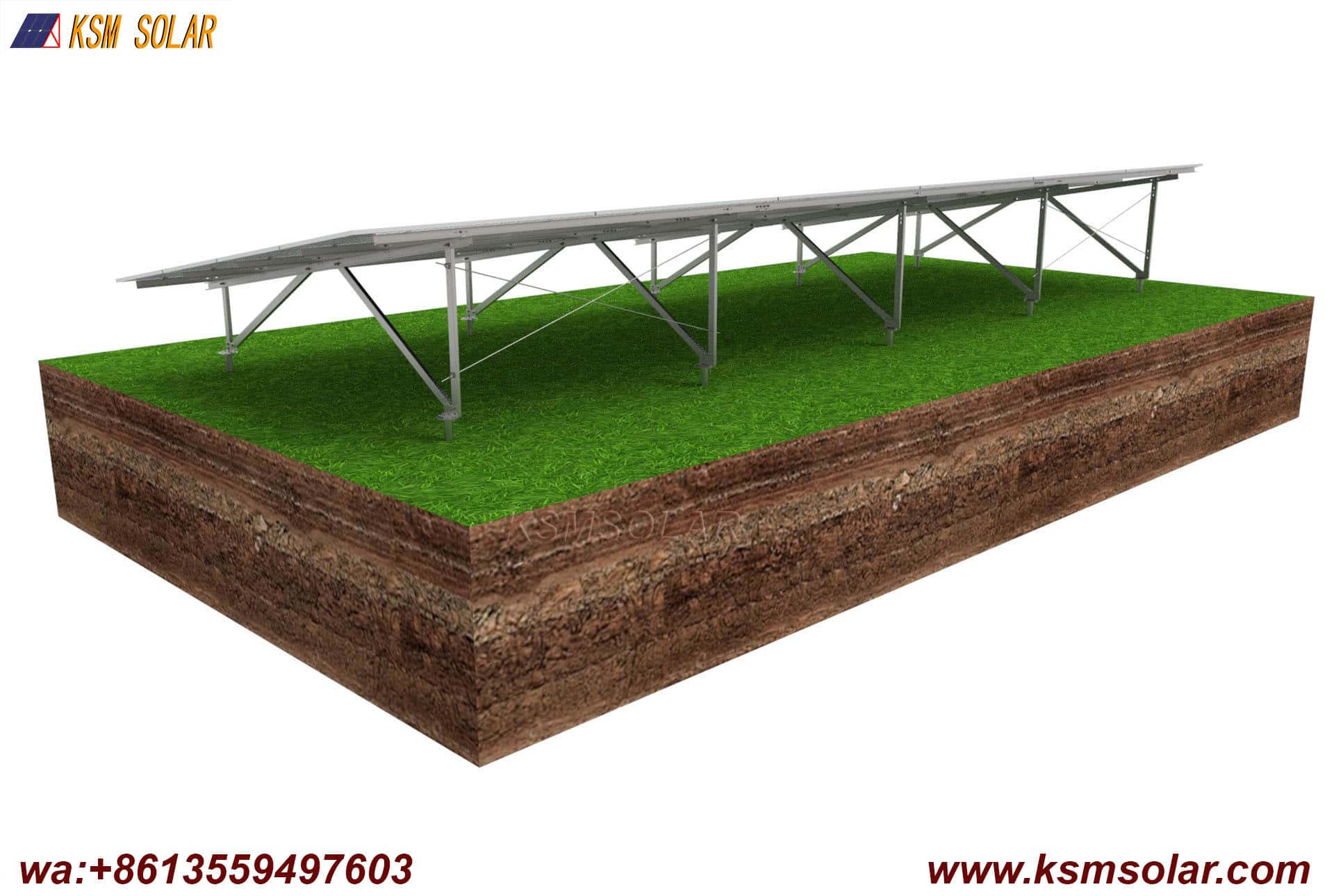

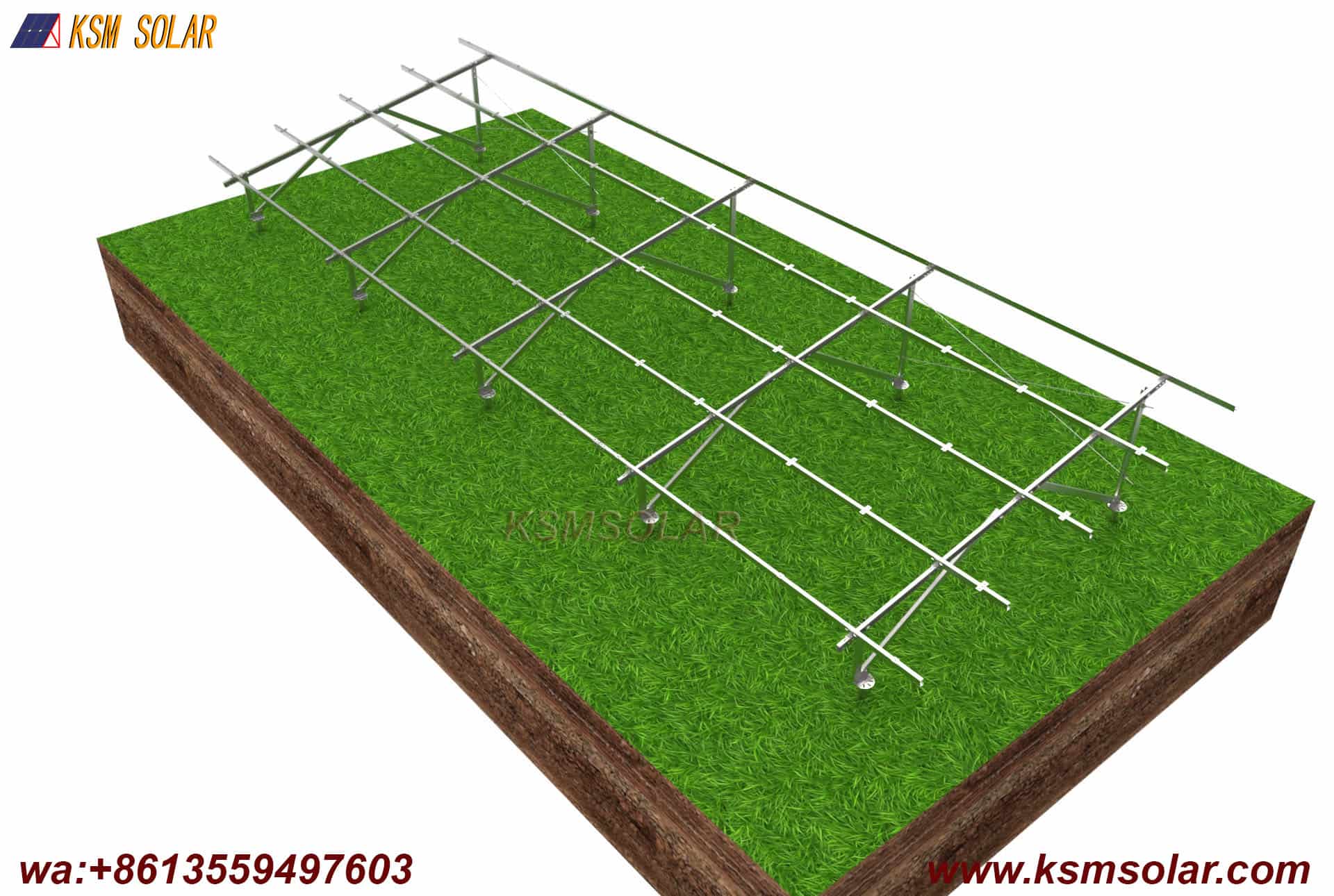

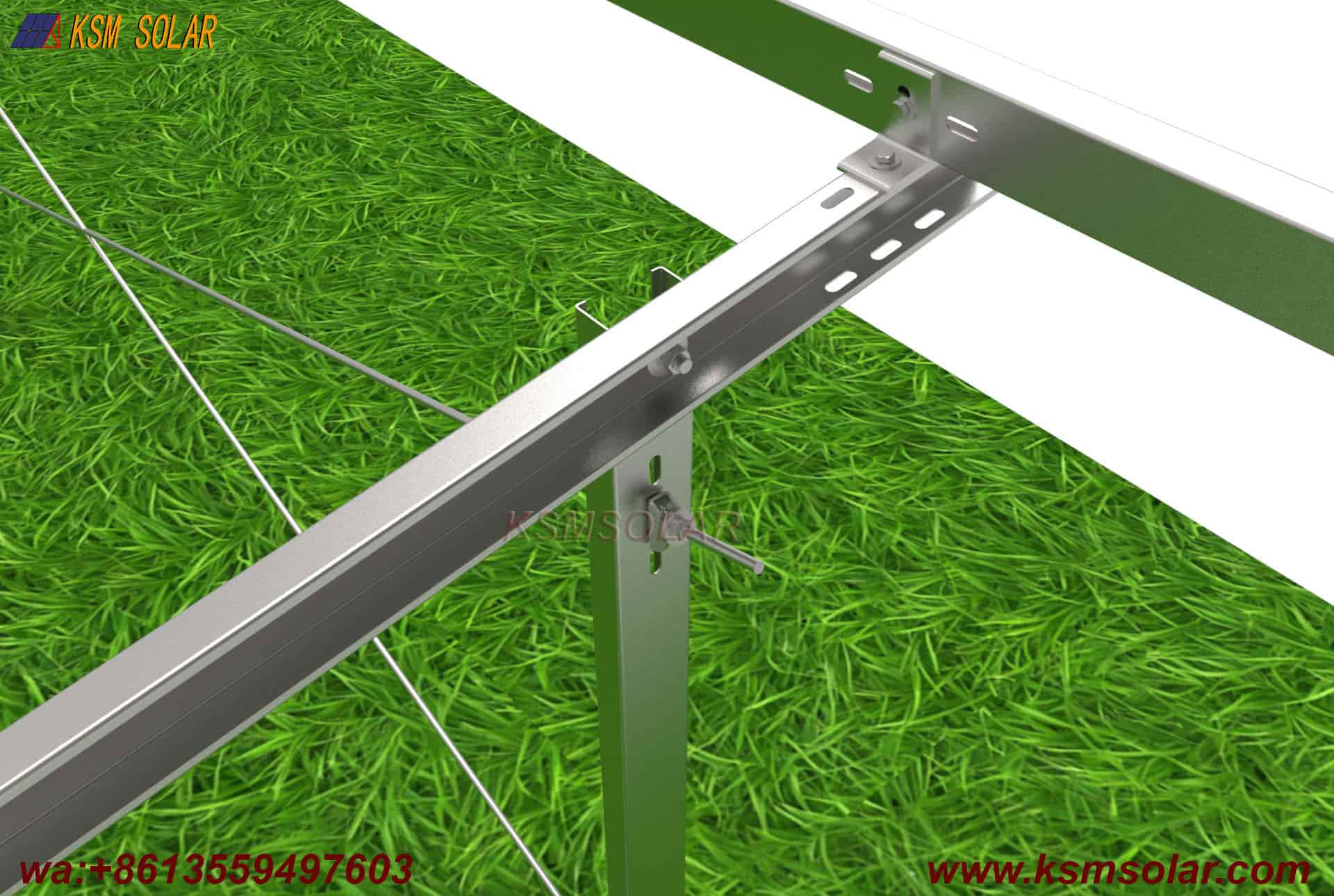

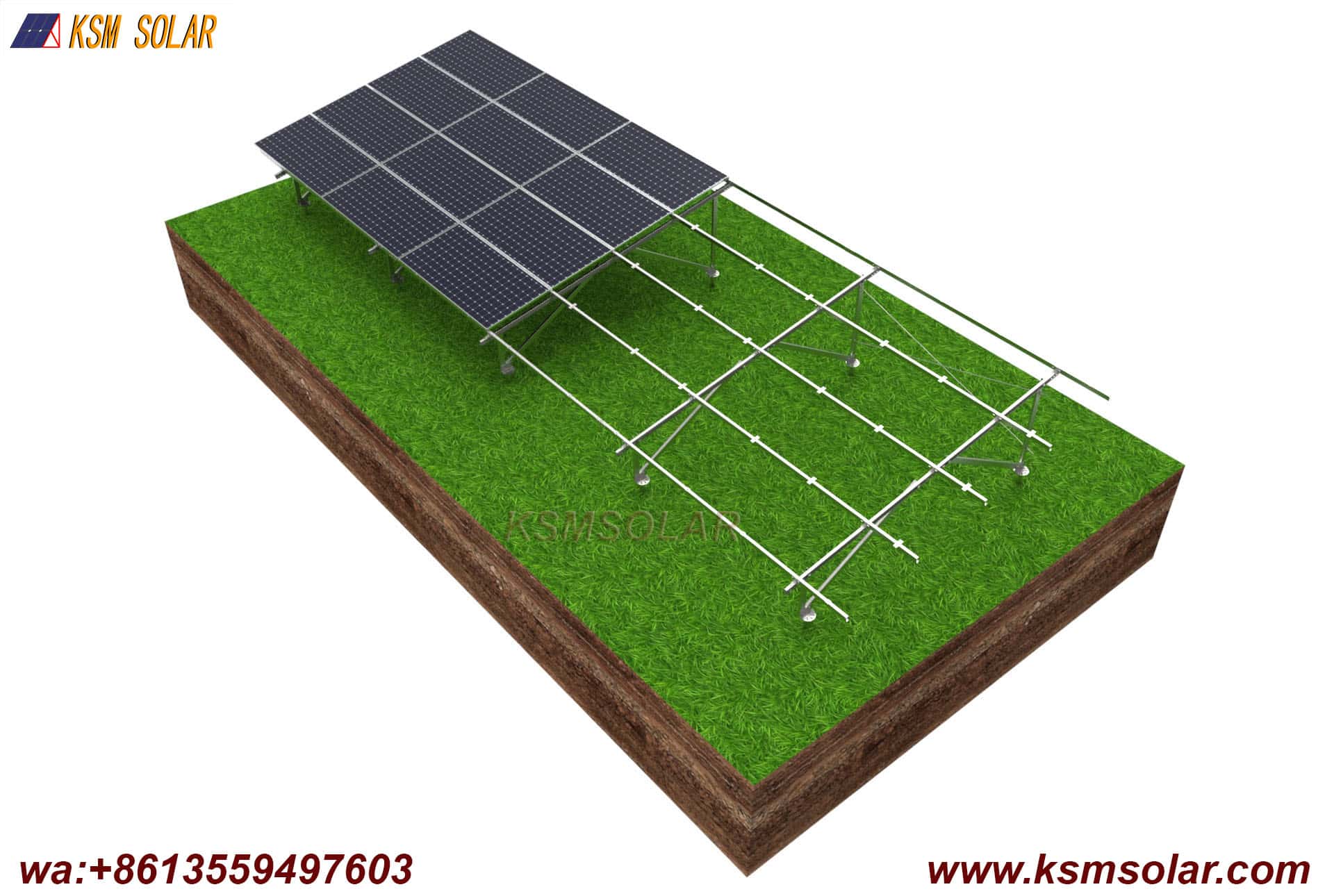

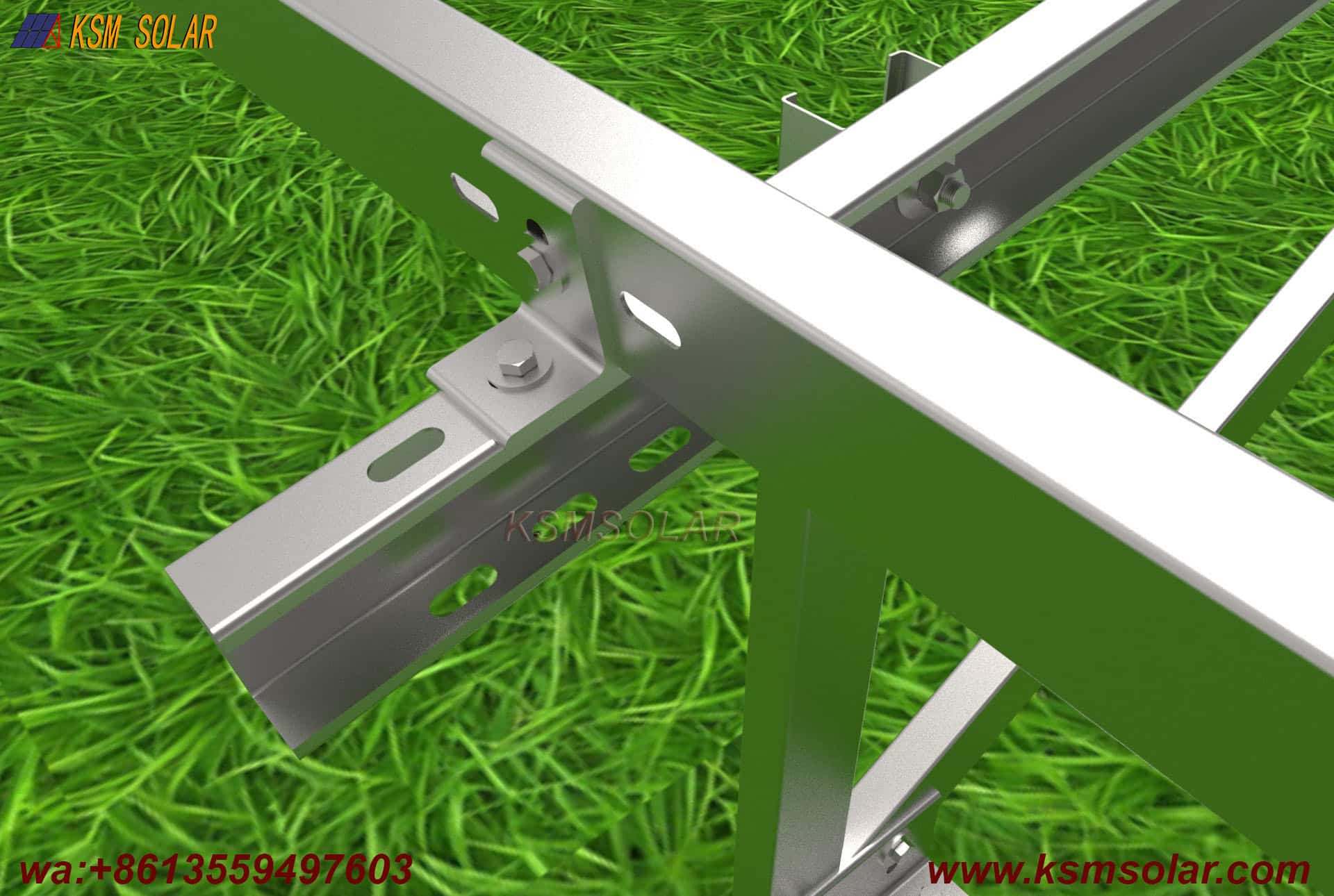

A ground-mounted C-section steel photovoltaic system with Zinc-Aluminum-Magnesium (ZnAlMg) coating and helical pile foundation represents a state-of-the-art solar racking solution optimized for utility-scale and commercial solar projects. This system combines the structural efficiency of cold-formed C-section steel profiles with next-generation metallic coating technology and the installation speed and adaptability of helical screw piles, delivering exceptional durability, rapid deployment, and cost-effectiveness across diverse ground conditions

Foundation System: Helical (Screw) Pile Integration

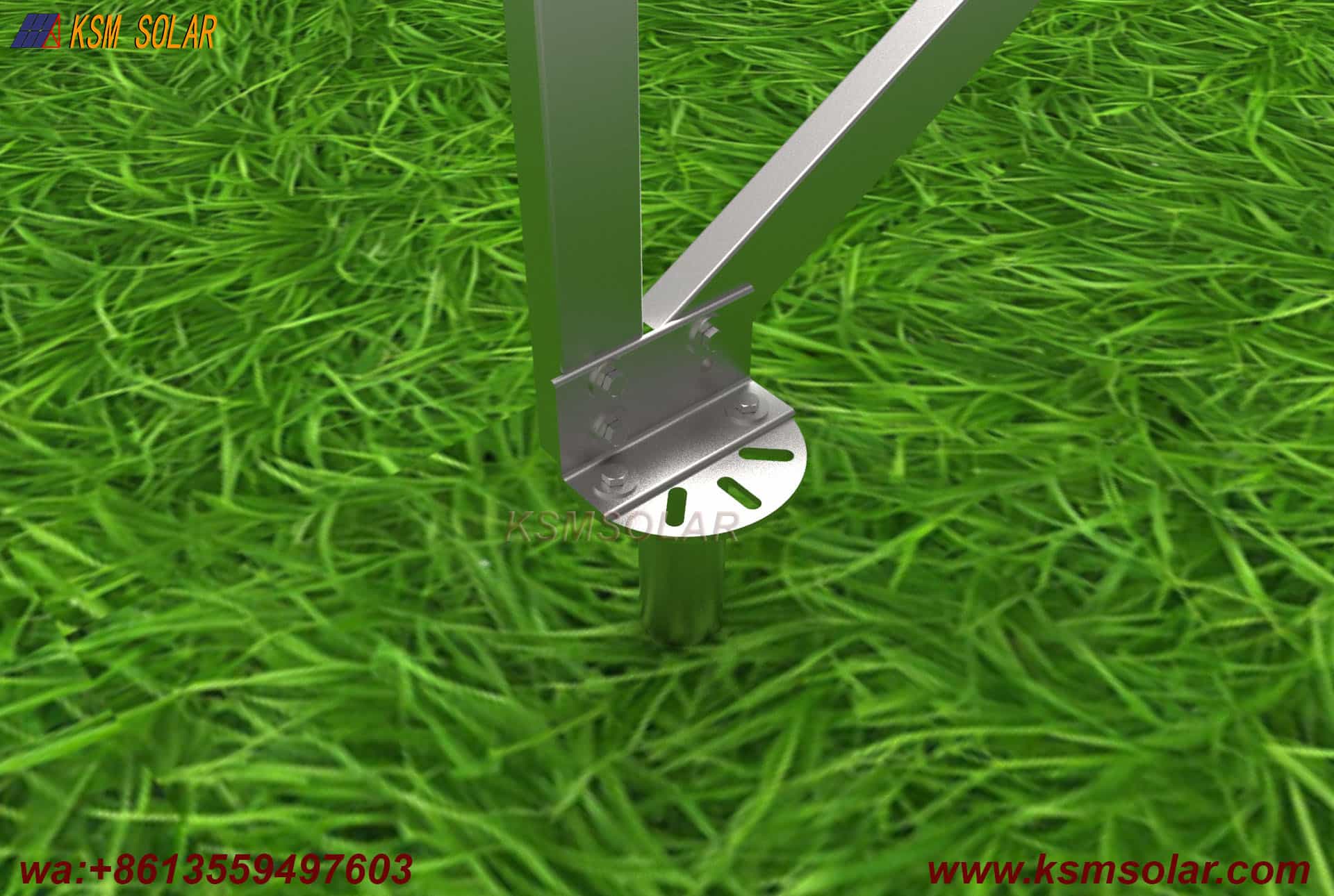

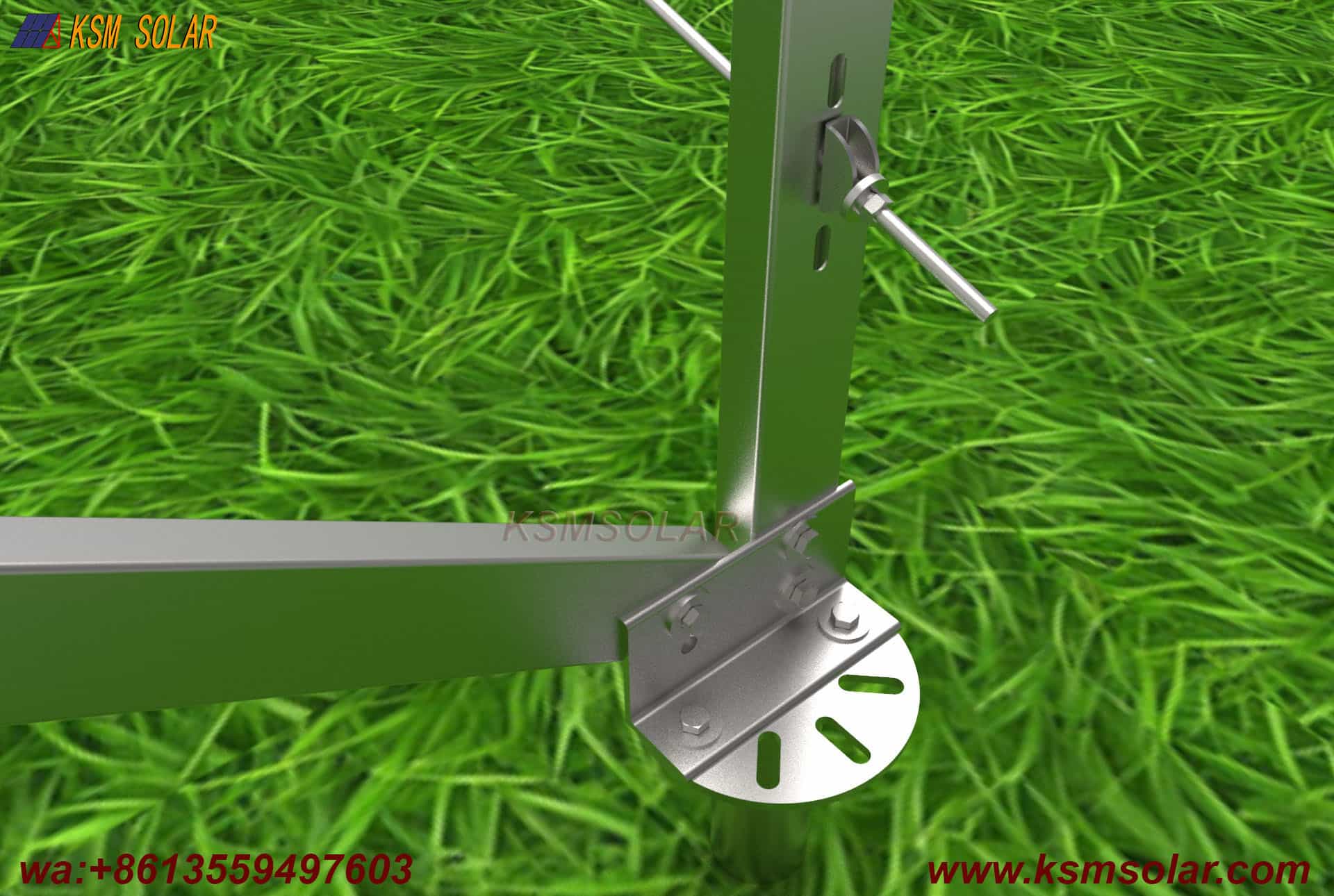

Helical Pile Foundation: The system utilizes helical screw piles—steel shafts with helical plates (flights) welded near the tip—that are rotated into the ground using hydraulic torque motors.These piles serve as the direct foundation for the C-section steel columns

Installation Speed and Efficiency: Helical pile installation achieves significantly faster deployment compared to concrete foundation methods:

• No excavation, concrete pouring, or curing time required

• Immediate load-bearing capacity upon installation

• Installation rates of 50-100 piles per day with proper equipment

• Compatible with various soil types including clay, sand, and soft rock.

Minimal Soil Disturbance: Helical piles displace minimal soil during installation, preserving site conditions, reducing environmental impact, and eliminating the need for soil removal or remediation

Immediate Load Capacity: Unlike concrete foundations requiring curing time, helical piles provide instant structural support, allowing immediate module installation and reducing overall project timelines.

Adjustable Height: Pile tops can be precisely cut or extended to accommodate terrain variations, ensuring proper alignment of the mounting structure.

Terrain Adaptability: Helical piles excel on:

• Sloped or uneven terrain where excavation would be difficult

• Environmentally sensitive areas requiring minimal ground disturbance

• Sites with high water tables where concrete curing is problematic

• Rocky or difficult soil conditions
