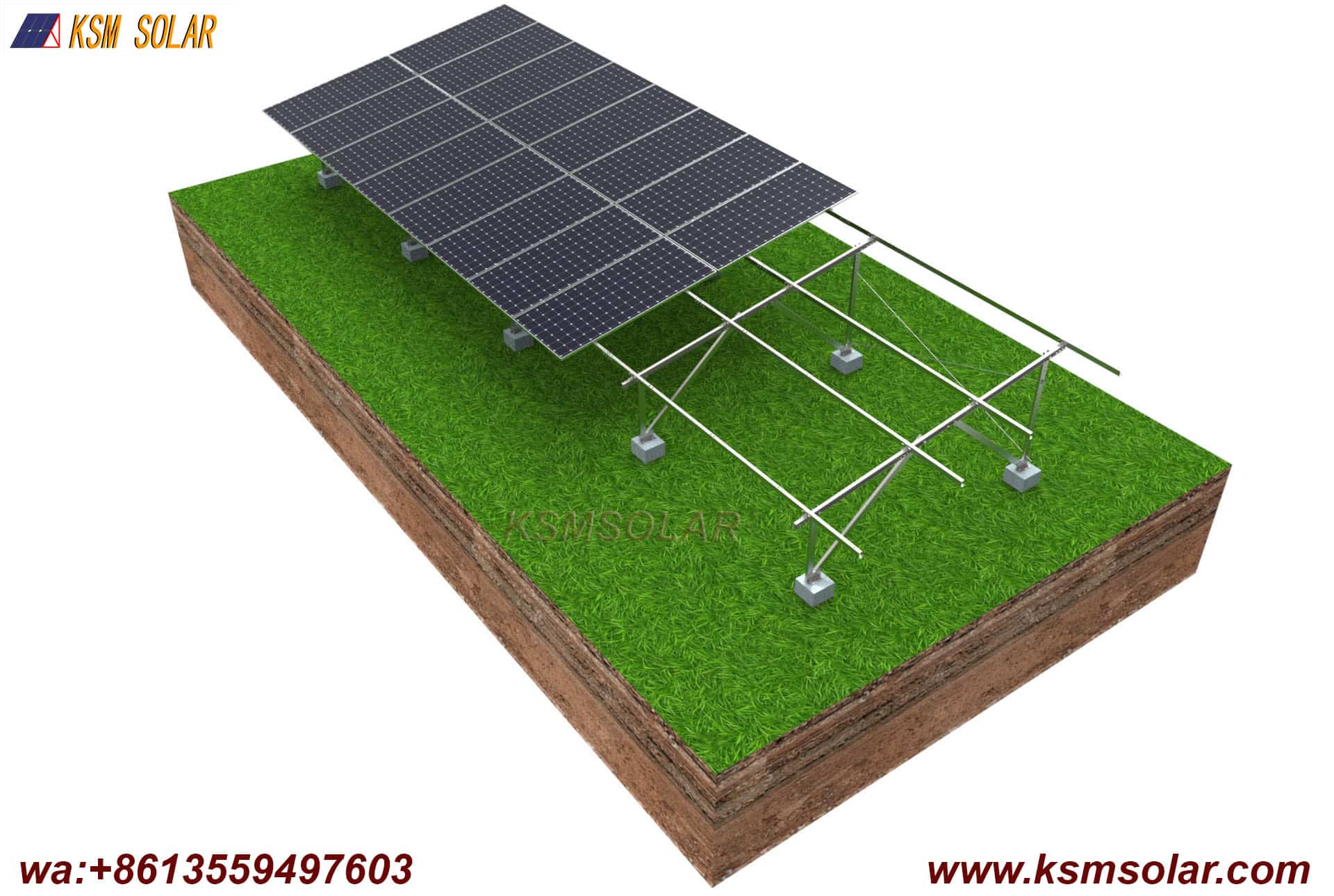

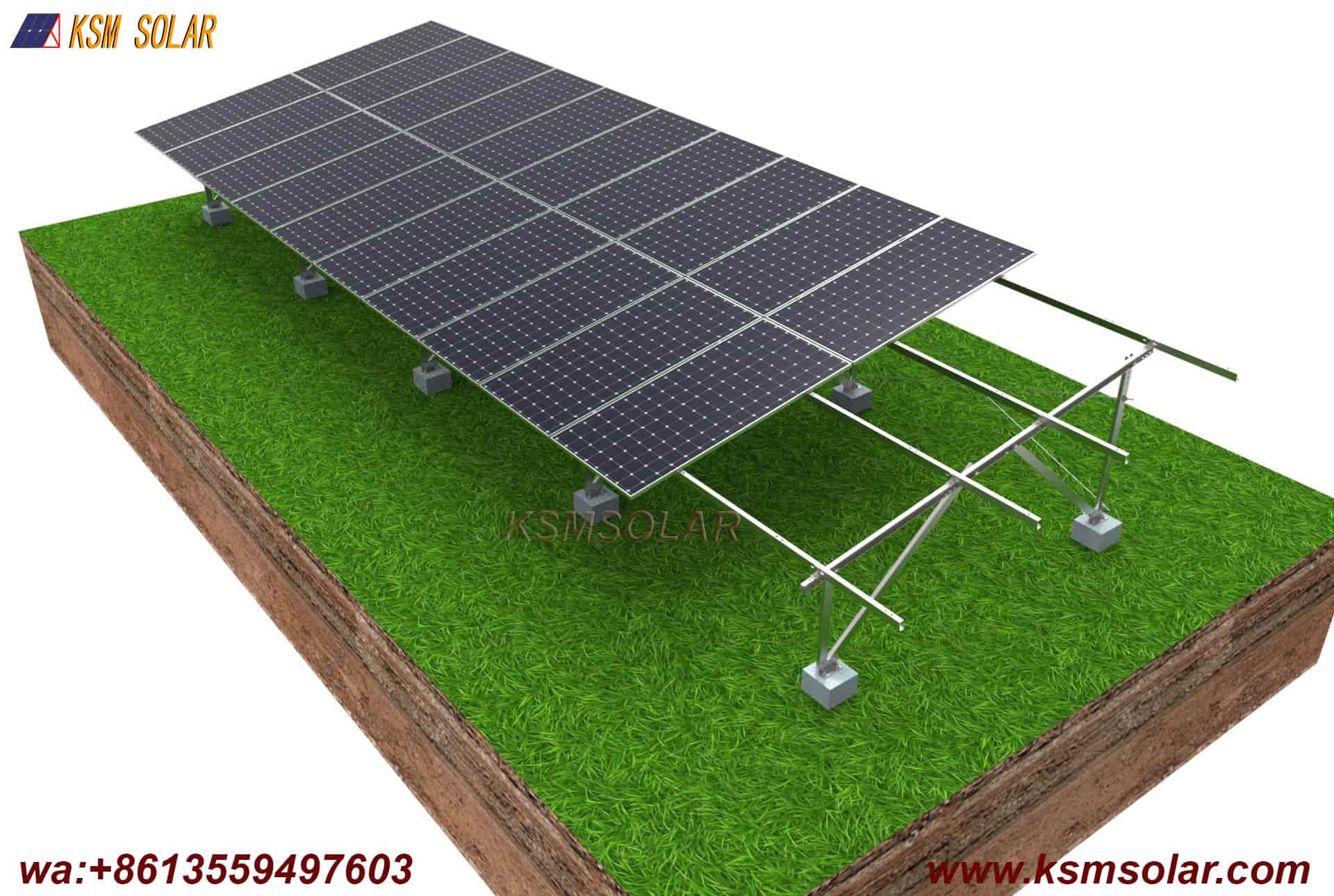

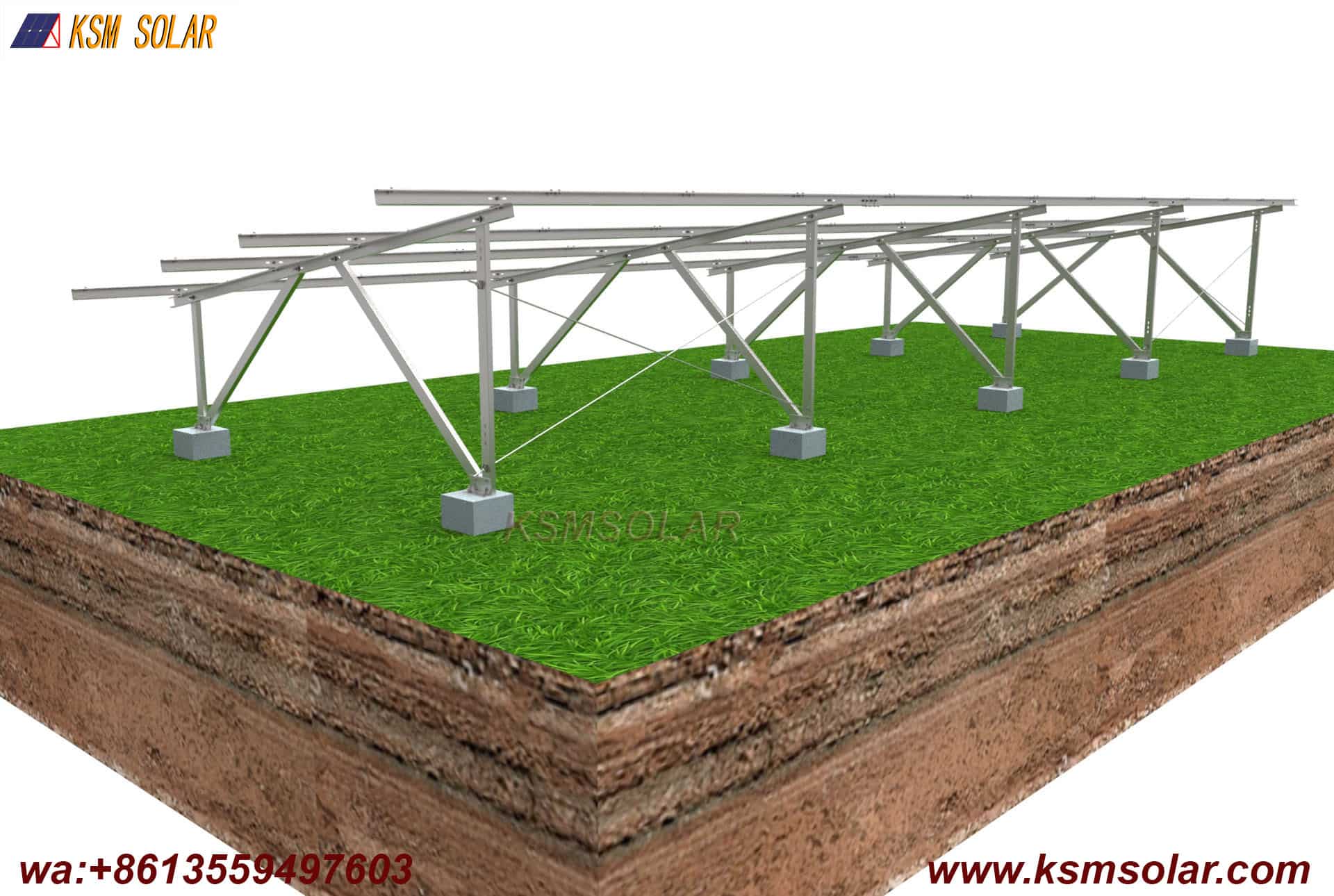

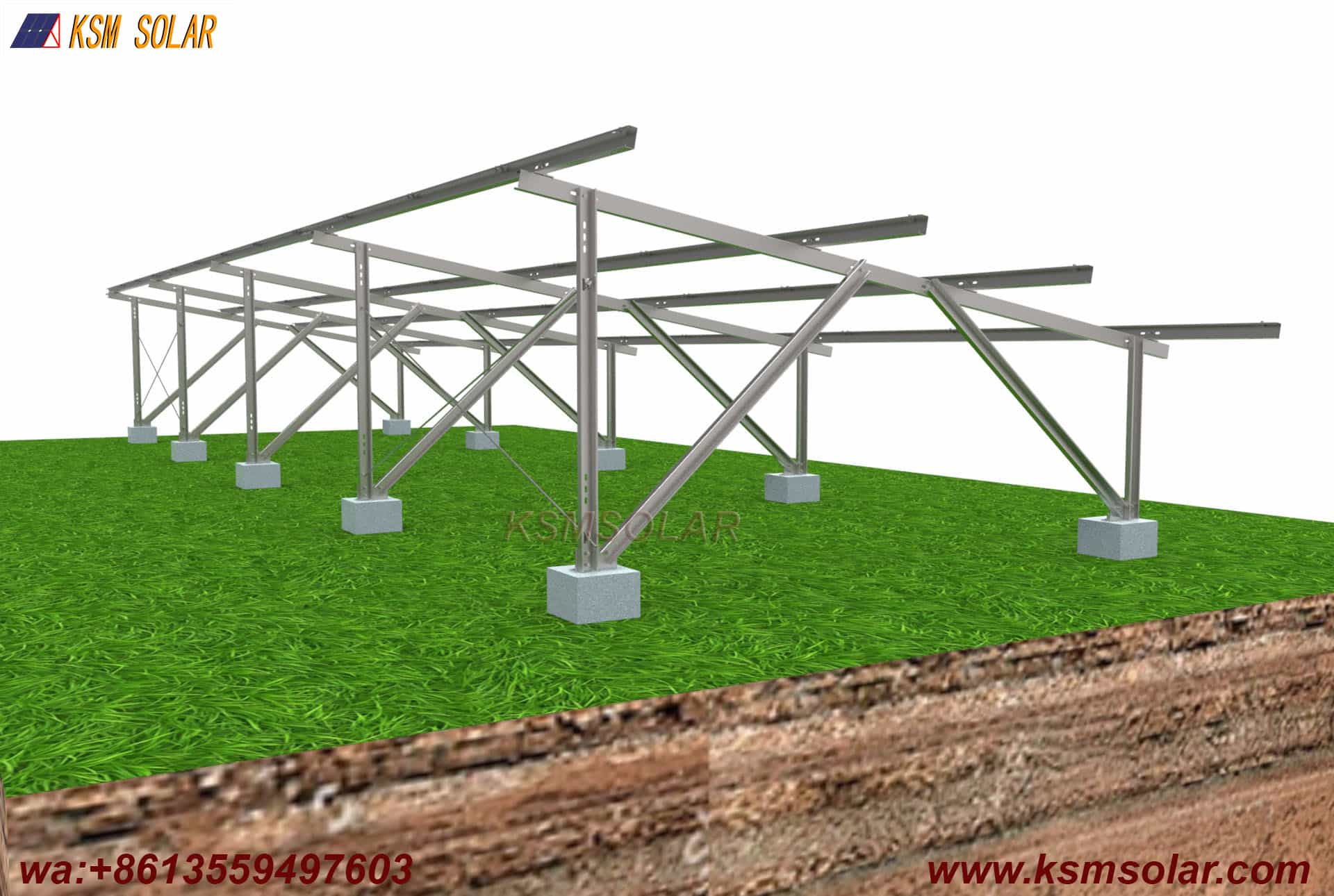

A ground-mounted C-section steel photovoltaic system with Zinc-Aluminum-Magnesium (ZnAlMg) coating and concrete foundation represents a robust, durable, and cost-effective solar racking solution optimized for utility-scale and commercial solar projects. This system combines the structural efficiency of cold-formed C-section steel profiles with next-generation metallic coating technology and the proven stability of concrete foundations, delivering exceptional performance, longevity, and installation flexibility across diverse ground conditions.

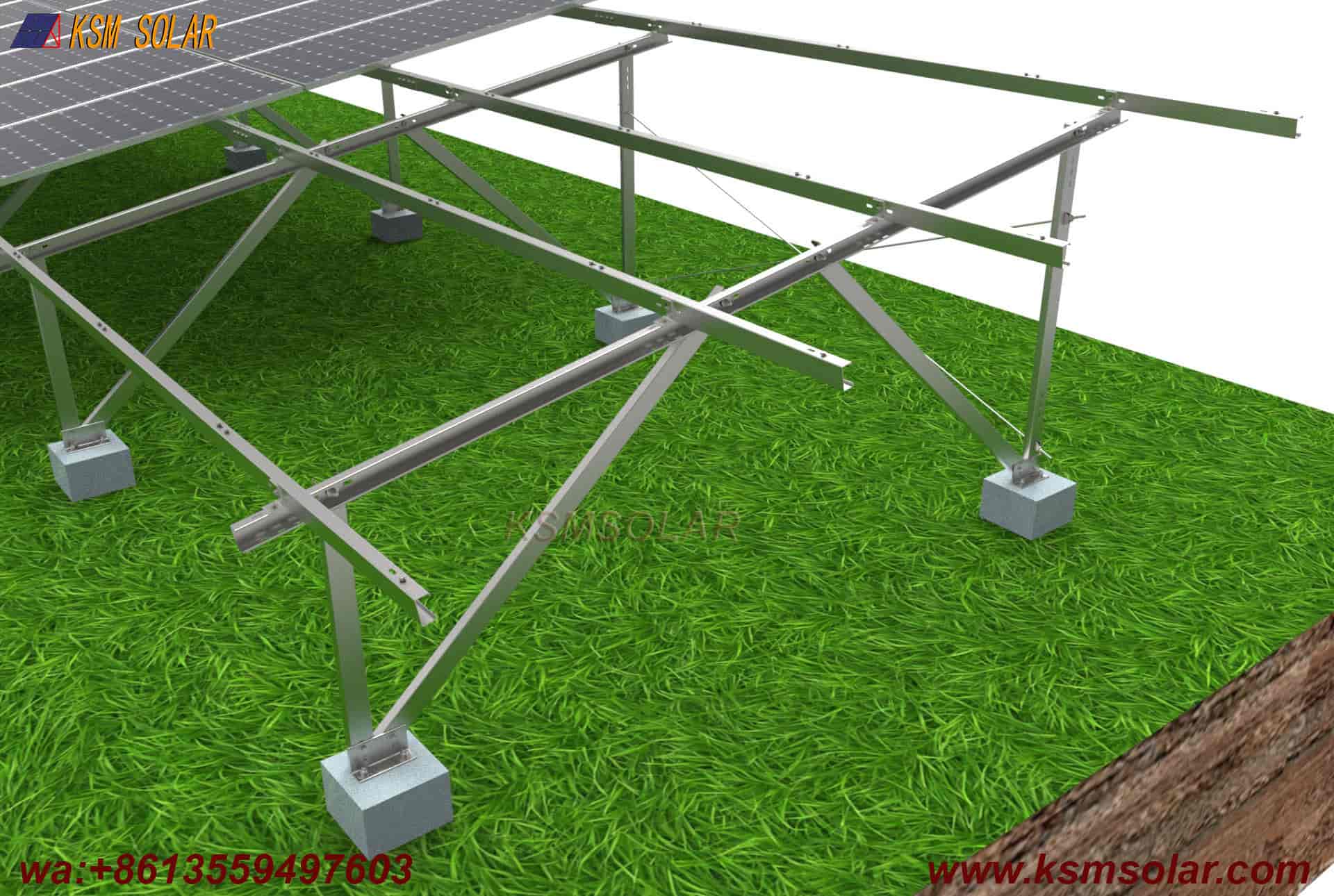

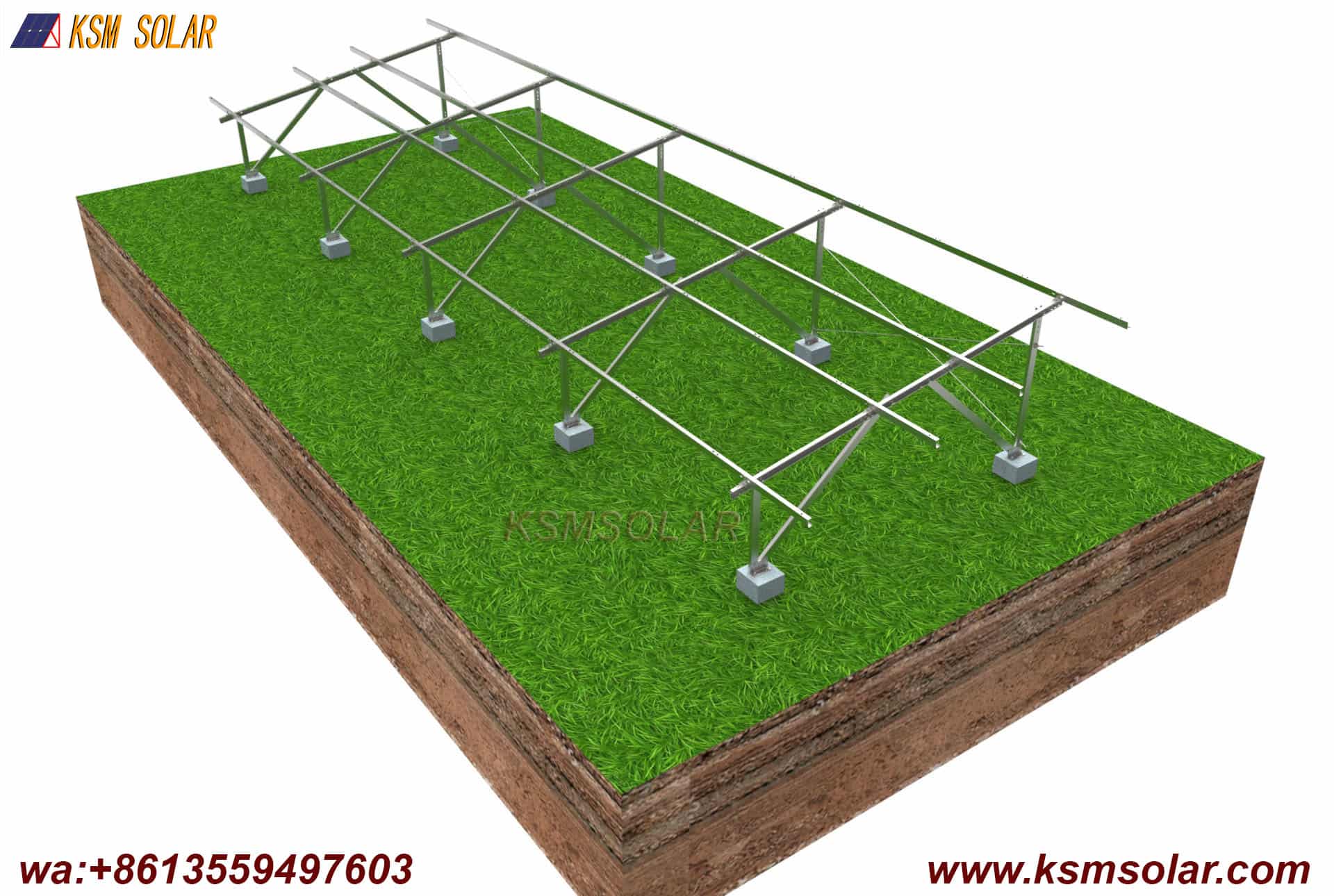

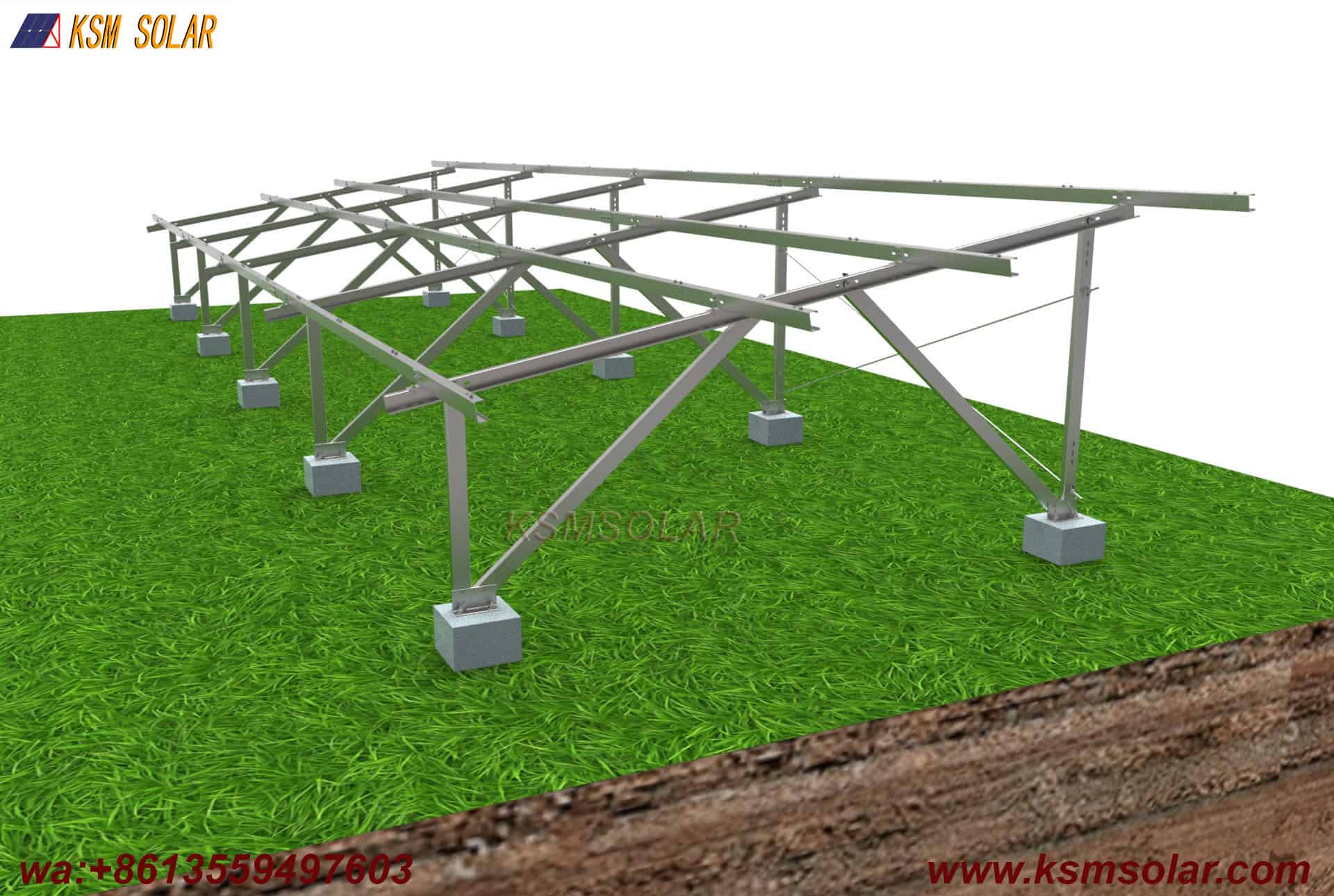

Foundation System: Concrete Foundation Integration

Foundation Types: The system supports multiple concrete foundation options to suit different site requirements

• Precast concrete blocks: Factory-manufactured for consistent quality and rapid placement

• Poured-in-place concrete piers: Cast on-site for customized depth and capacity

• Concrete footings with anchor bolts: Embedded bolts for column attachment

Structural Stability: Concrete foundations provide exceptional pull-out resistance and anti-tilt stability, making them ideal for:

• Soft or unstable soil conditions where pile foundations may be inadequate

• Sites with high water tables or frost heave concerns

• Locations requiring minimal soil disturbance during installation

• Projects where foundation visibility and inspection are important

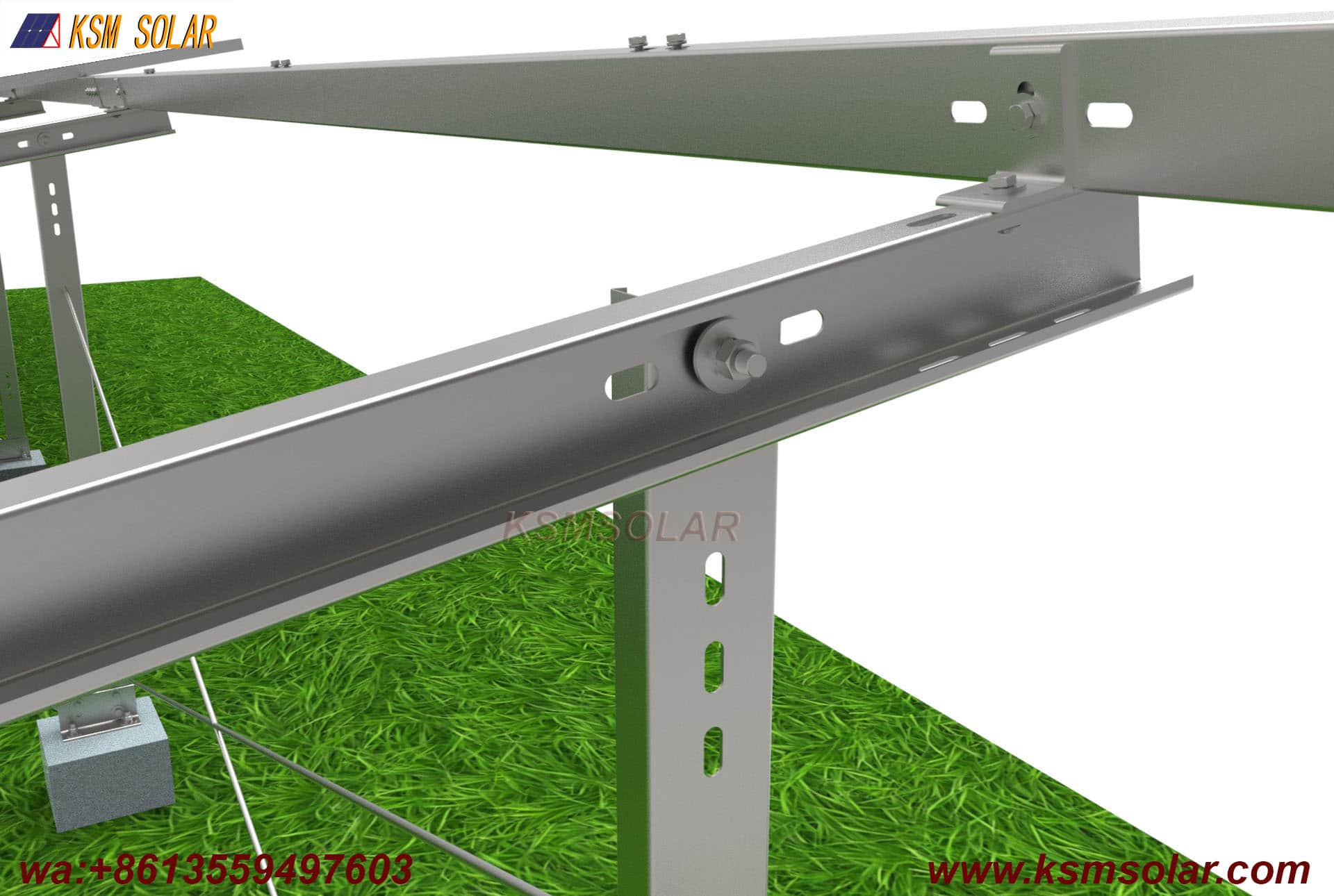

Installation Advantages: The combination with C-section steel columns offers:

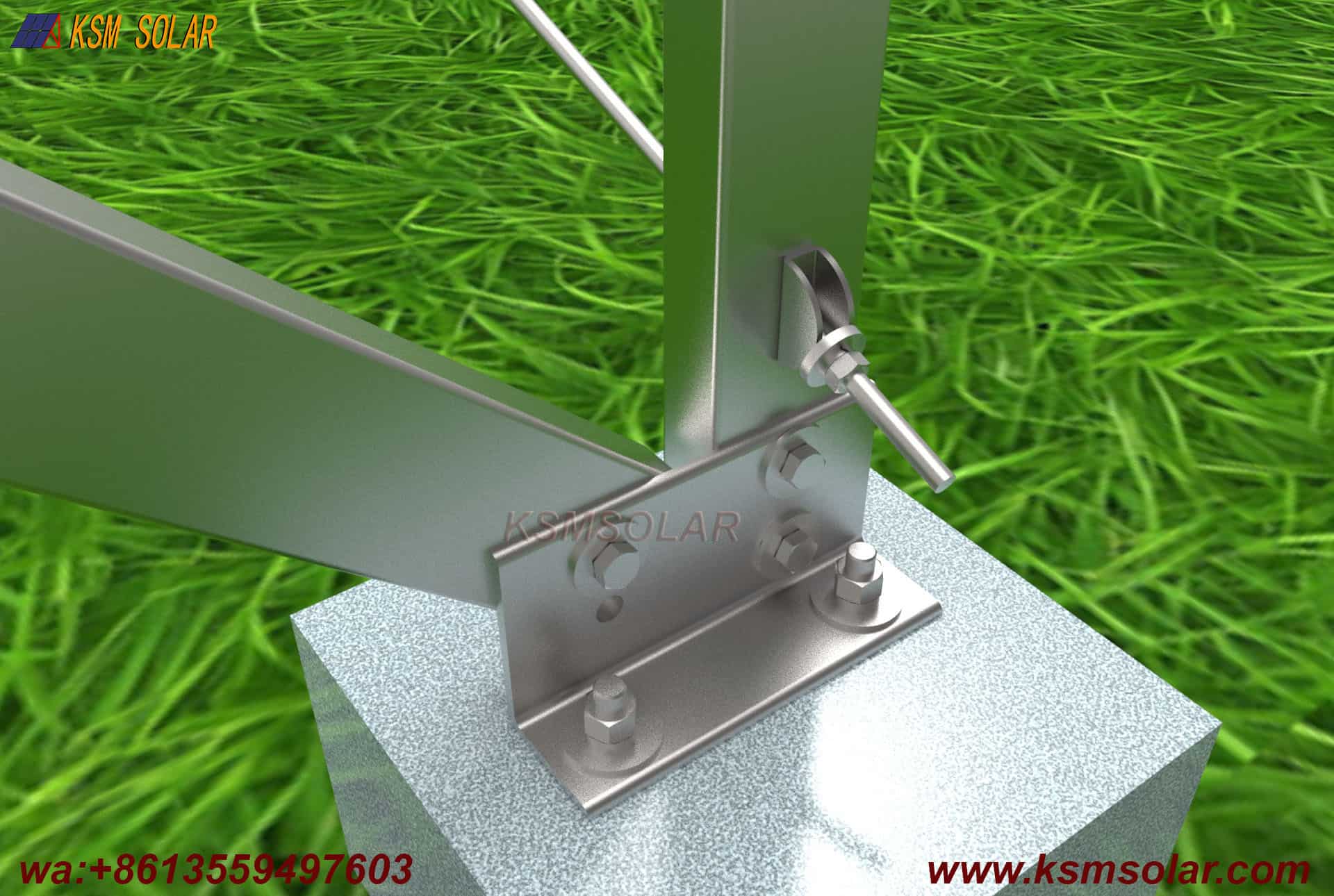

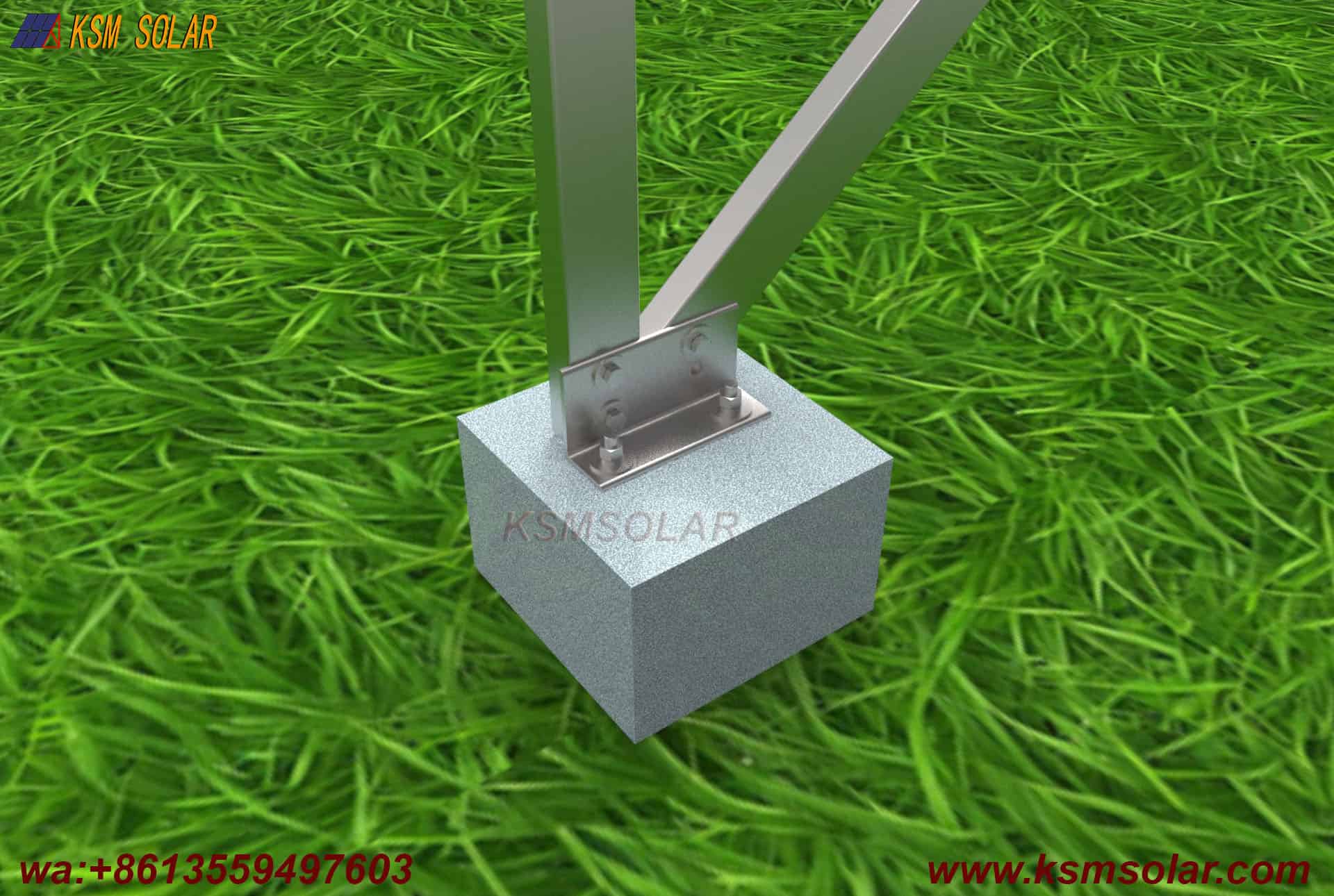

• Simplified assembly: Columns bolt directly to embedded anchor bolts or foundation inserts

• Precise alignment: Concrete foundations can be precisely positioned and leveled

• Immediate load capacity: No curing time required for precast blocks; poured foundations achieve specified strength before module installation
