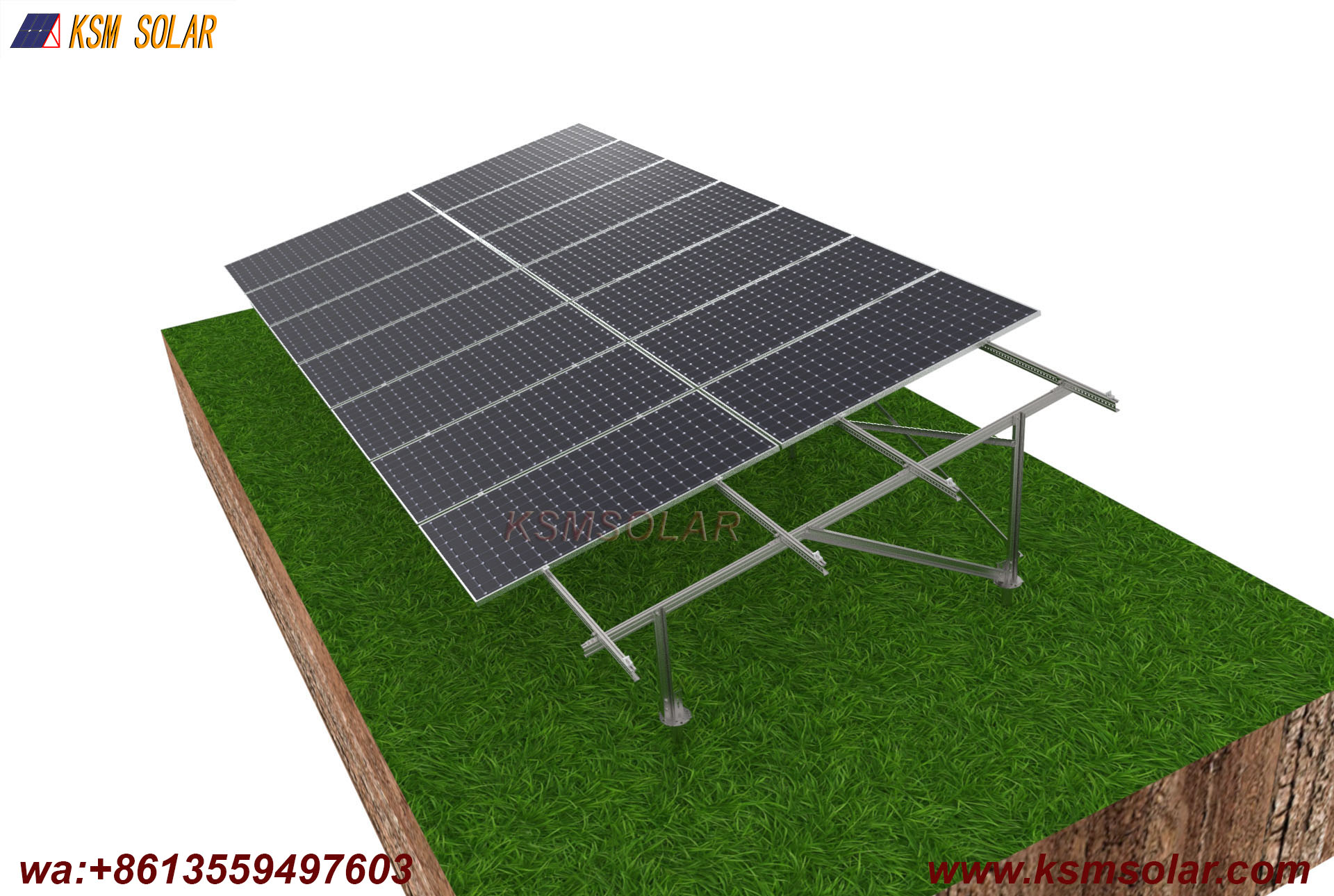

A ground-mounted slotted C-section steel photovoltaic system with helical pile foundation and portrait (vertical) module orientation represents a highly engineered, versatile solar racking solution optimized for utility-scale and commercial solar projects. This system combines the structural efficiency of cold-formed C-section steel profiles with integrated slotting features that enable rapid, flexible assembly and precise module positioning, while the portrait orientation of modules optimizes land utilization and supports advanced applications such as bifacial module configurations.

Core Structural Component: Slotted C-Section Steel Design

Distinctive Profile Geometry: The system utilizes cold-formed C-section steel profiles engineered for maximum structural efficiency. The C-shaped cross-section features inwardly curled flanges that provide:

• Enhanced torsional stiffness compared to plain channel sections

• Smooth, safe edges for handling during installation

• Integrated mounting surfaces for accessory attachment

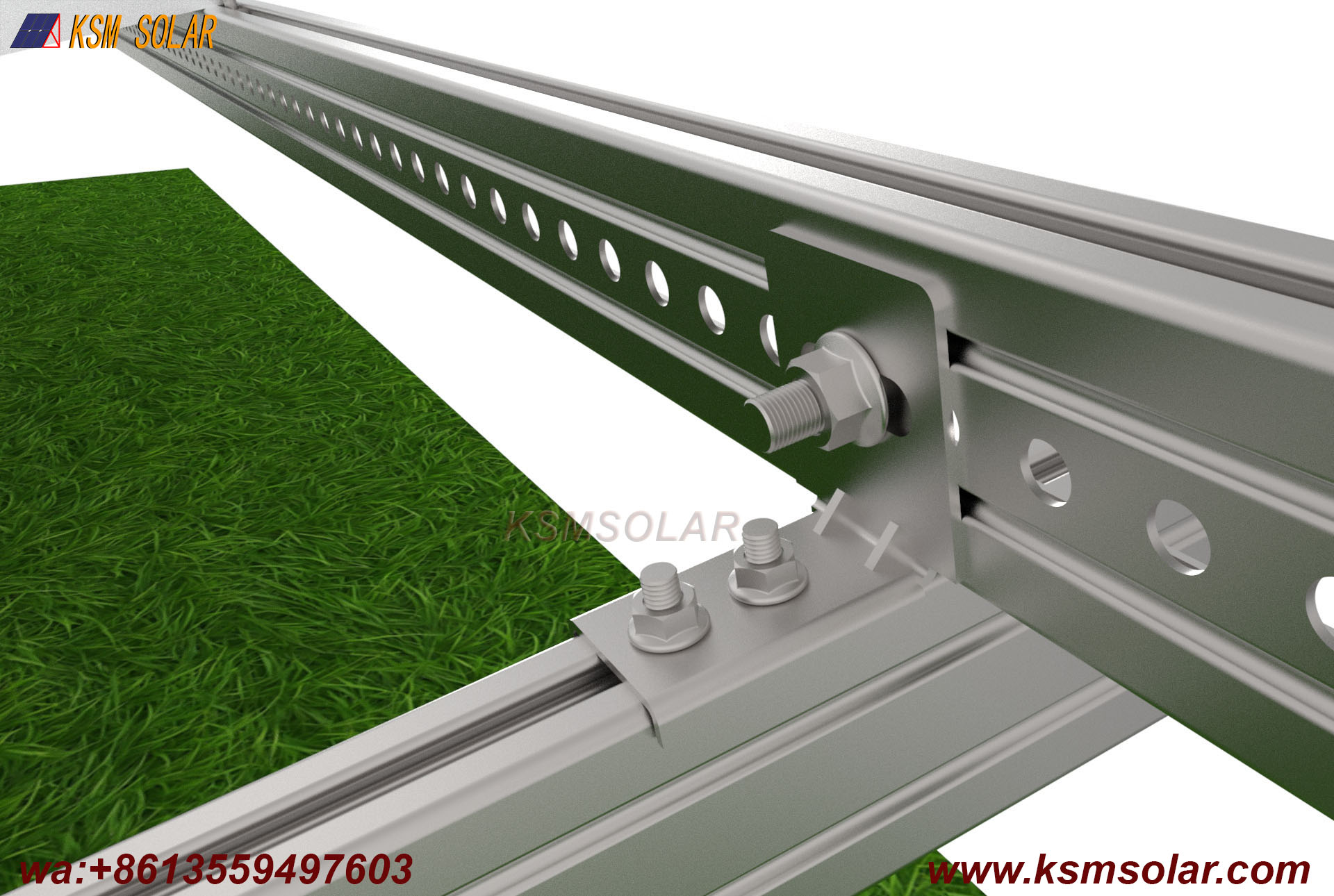

Slotted Hole Design : A defining feature is the precision-punched slotted holes along the channel web.These longitudinal slots provide:

• Multi-axis adjustability during installation

• ±20mm linear adjustment for precise component positioning

• Flexible attachment points for various module layouts and accessory integration

• 20% more adjustment flexibility than fixed-hole channels

Axial Stiffening Ribs : Many high-performance profiles incorporate longitudinal stiffening ribs along the web,which:

• Increase bending resistance significantly compared to plain sections

• Prevent local buckling under high compression loads

• Maintain sectional stability during extreme wind events
