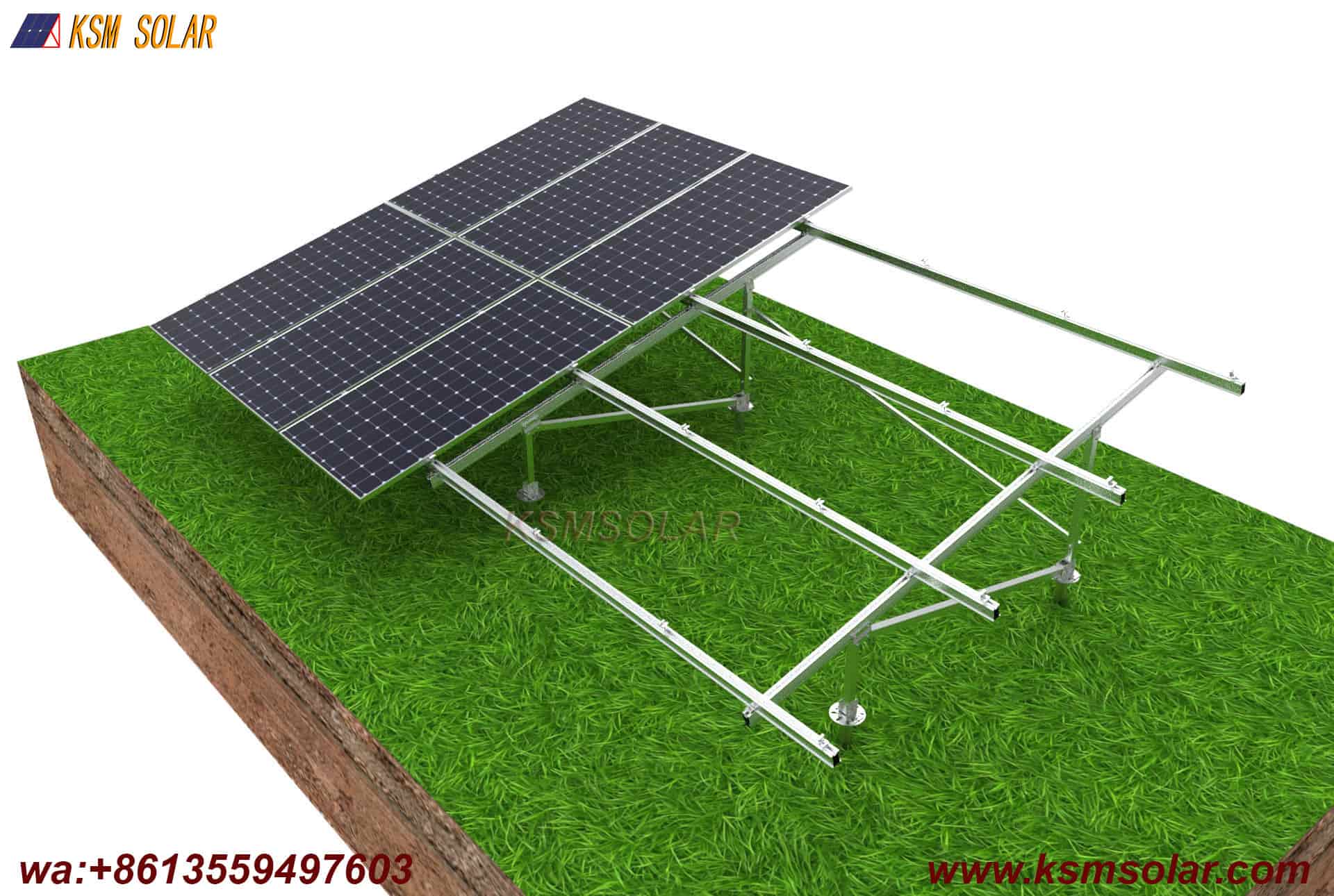

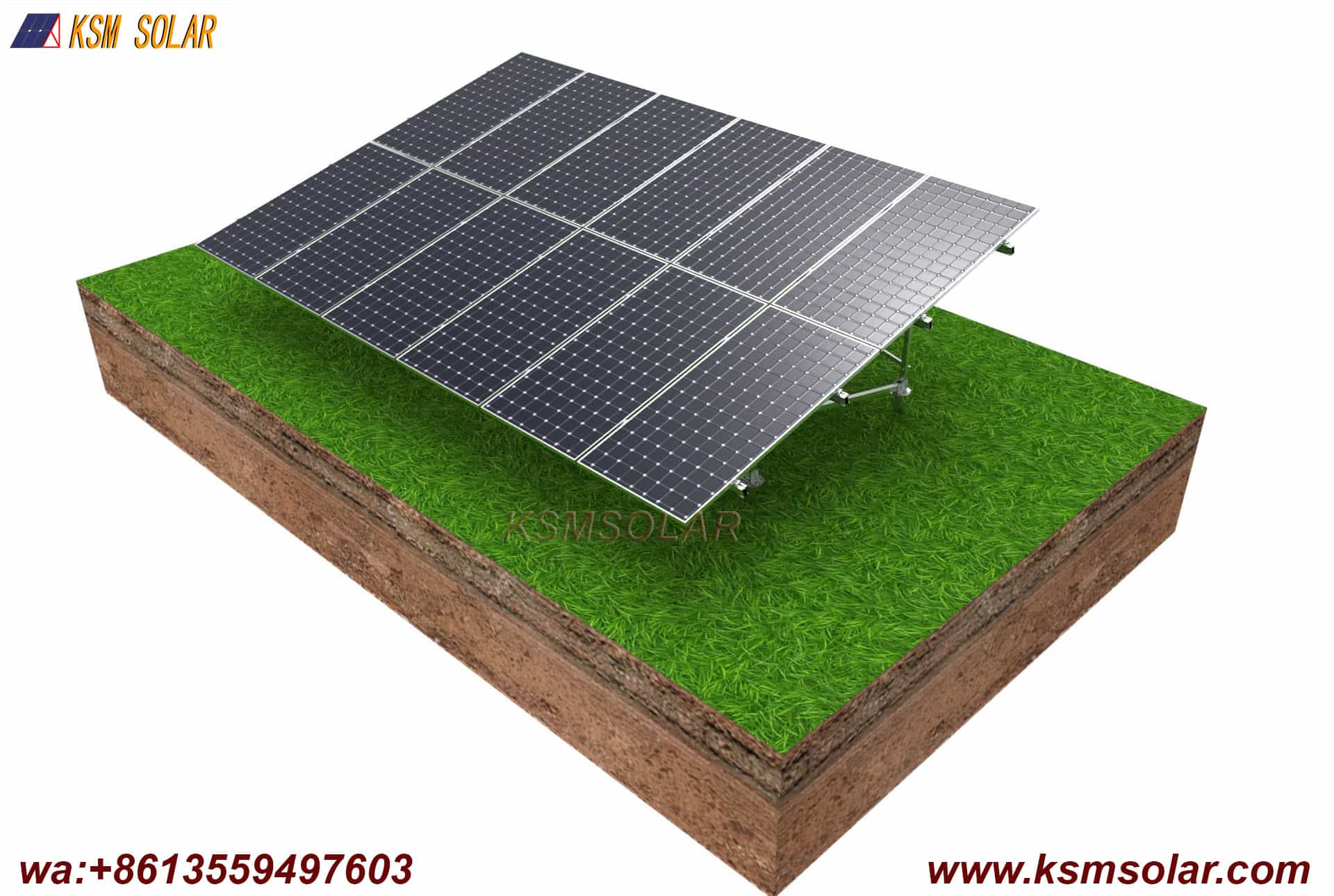

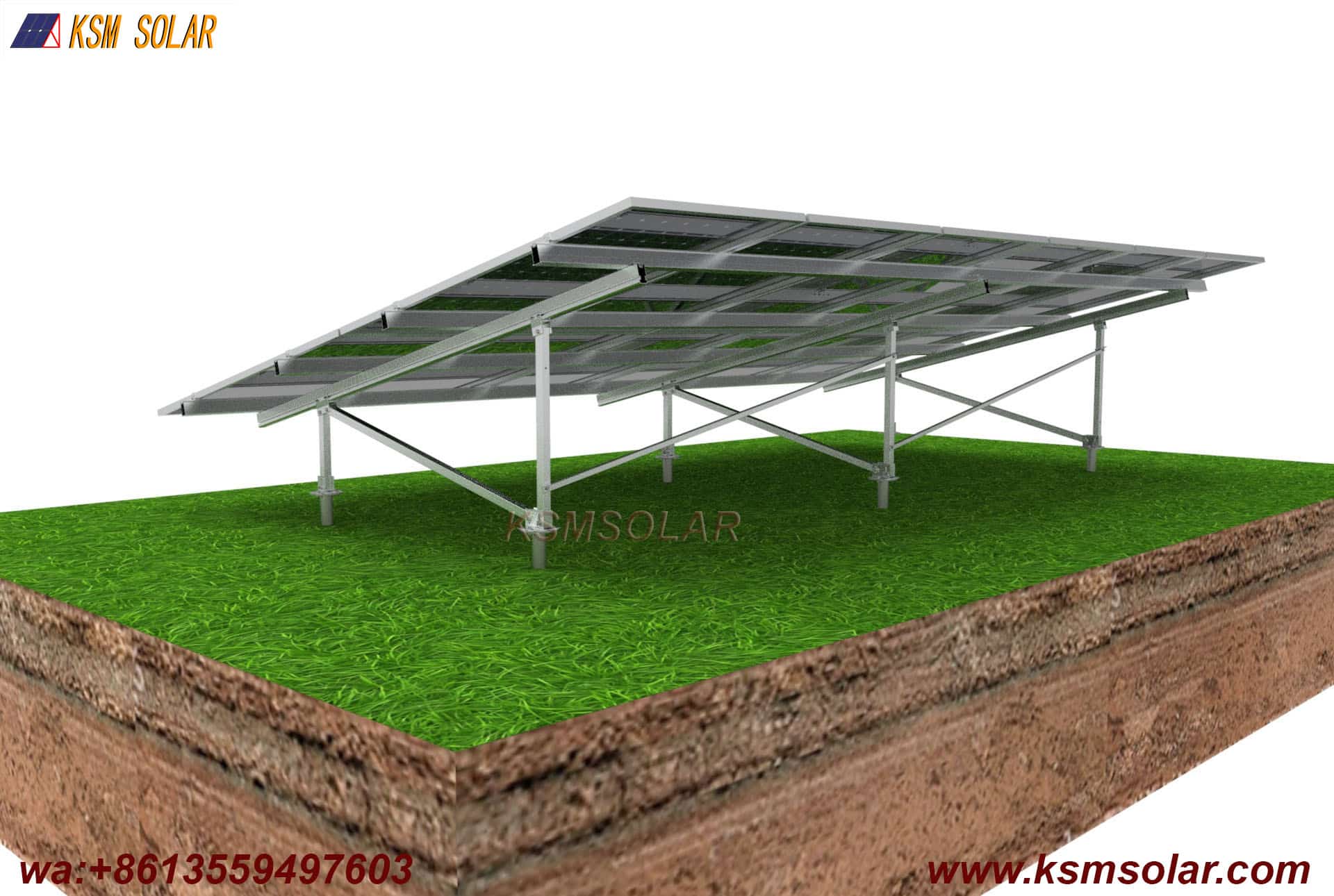

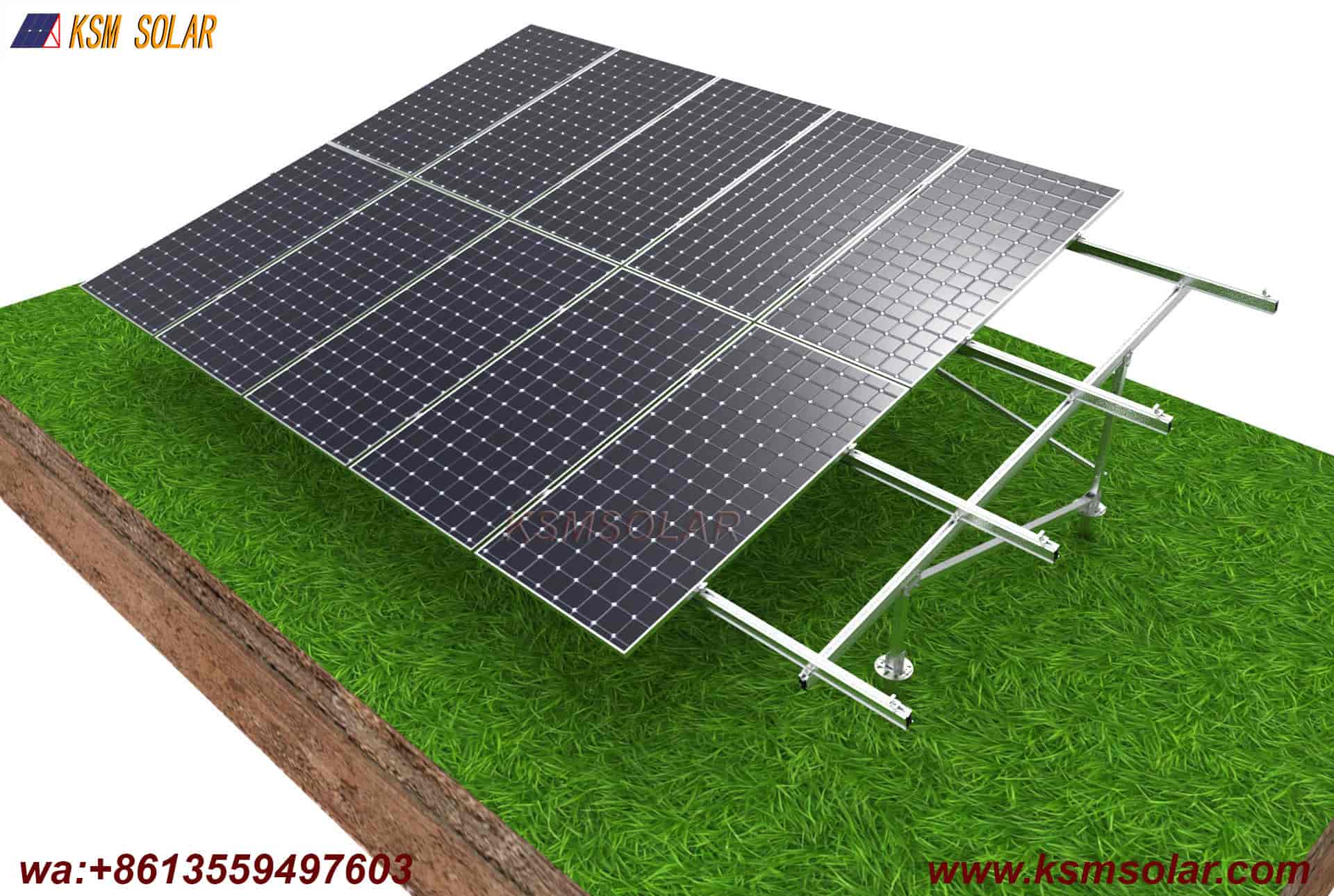

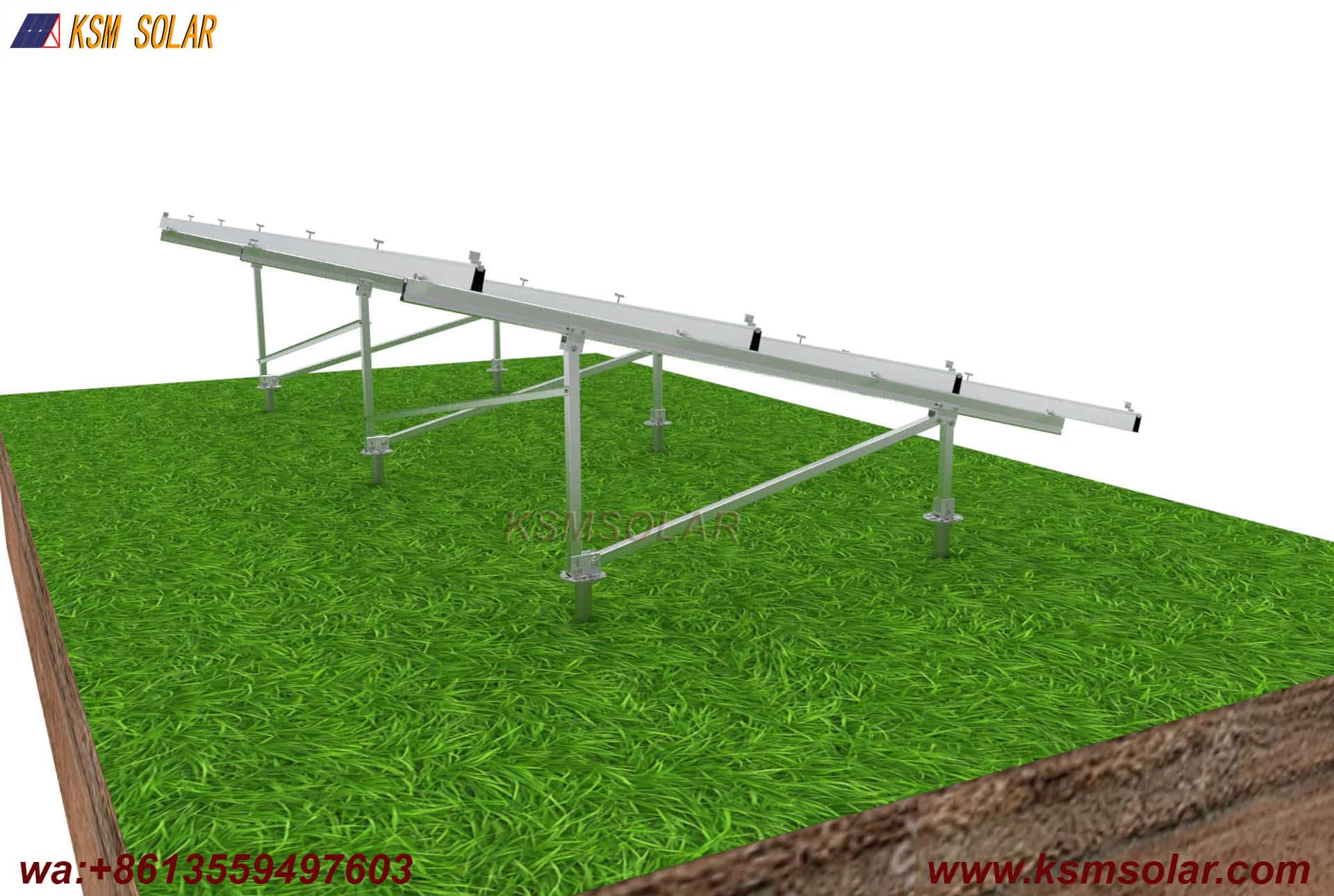

A ground-mounted aluminum N-type PV system is a solar racking solution defined by its distinctive "N" shaped support structure, viewed from the side -2. This design features two inclined beams connected by a horizontal rail, creating a geometry specifically engineered to provide a balanced combination of structural stability, material efficiency, and cost-effectiveness for large-scale solar projects

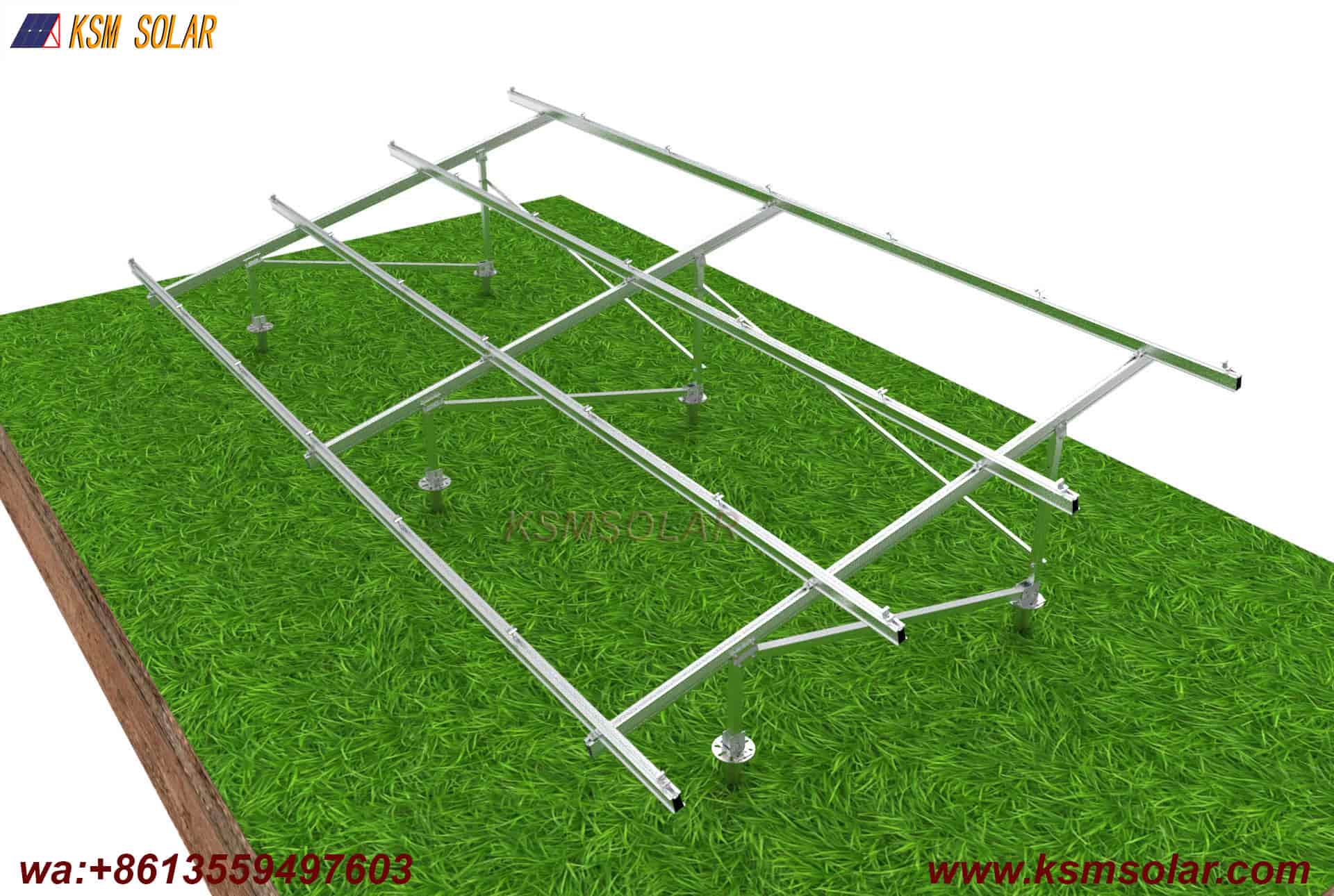

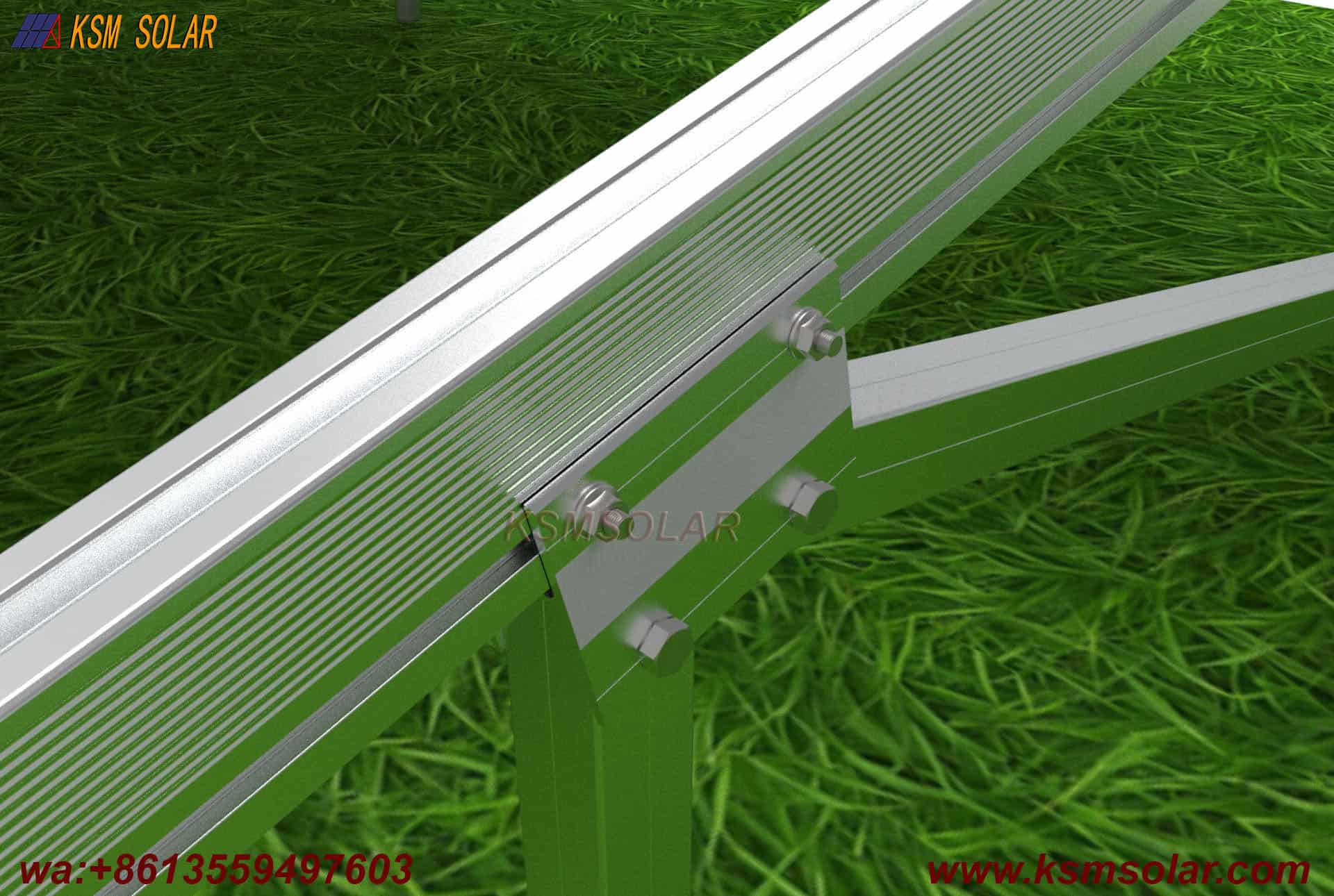

• Optimized Load Distribution: The defining feature of the N-type system is its "N" shape, formed by the front and rear columns and a diagonal cross-brace . This configuration is engineered to evenly distribute multi-directional loads, such as wind and snow, across the structure .
• Balanced Performance: It offers an intermediate solution between the simple A-type and the heavy-duty W-type. It provides excellent load handling for balanced multi-directional forces without the material intensity of a W-type frame . This makes it particularly effective in regions with moderate to high wind and snow loads, outperforming simpler designs like the A-type in challenging conditions .
• Tilt Flexibility: The design allows for configurable tilt angles, typically ranging from 0° to 60°, enabling optimization for maximum solar irradiation at various latitudes and supporting both monofacial and bifacial modules .

• High-Strength Aluminum Alloy: Constructed primarily from structural-grade aluminum alloy 6005-T5, which provides an excellent strength-to-weight ratio .
• Superior Corrosion Resistance: The aluminum components are finished with an anodized surface treatment (typically ≥10μm), enhancing natural corrosion resistance . This makes the system highly durable in diverse environments, including coastal, desert, and agricultural settings . Fasteners are typically stainless steel (SUS304) for comprehensive protection .
• Long Service Life: The combination of robust design and corrosion-resistant materials ensures a designed lifespan of 25 years or more, backed by a 10-year product warranty
