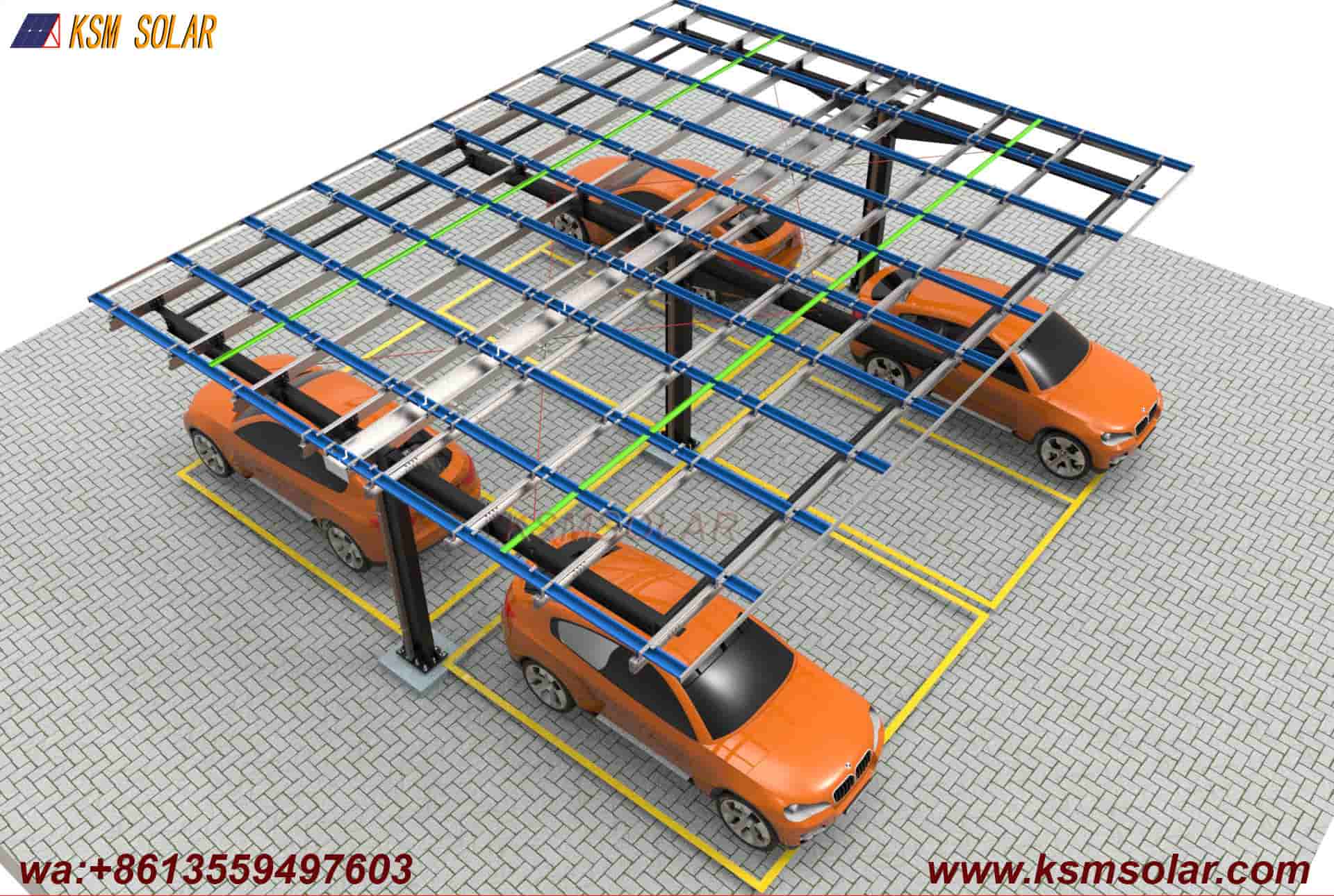

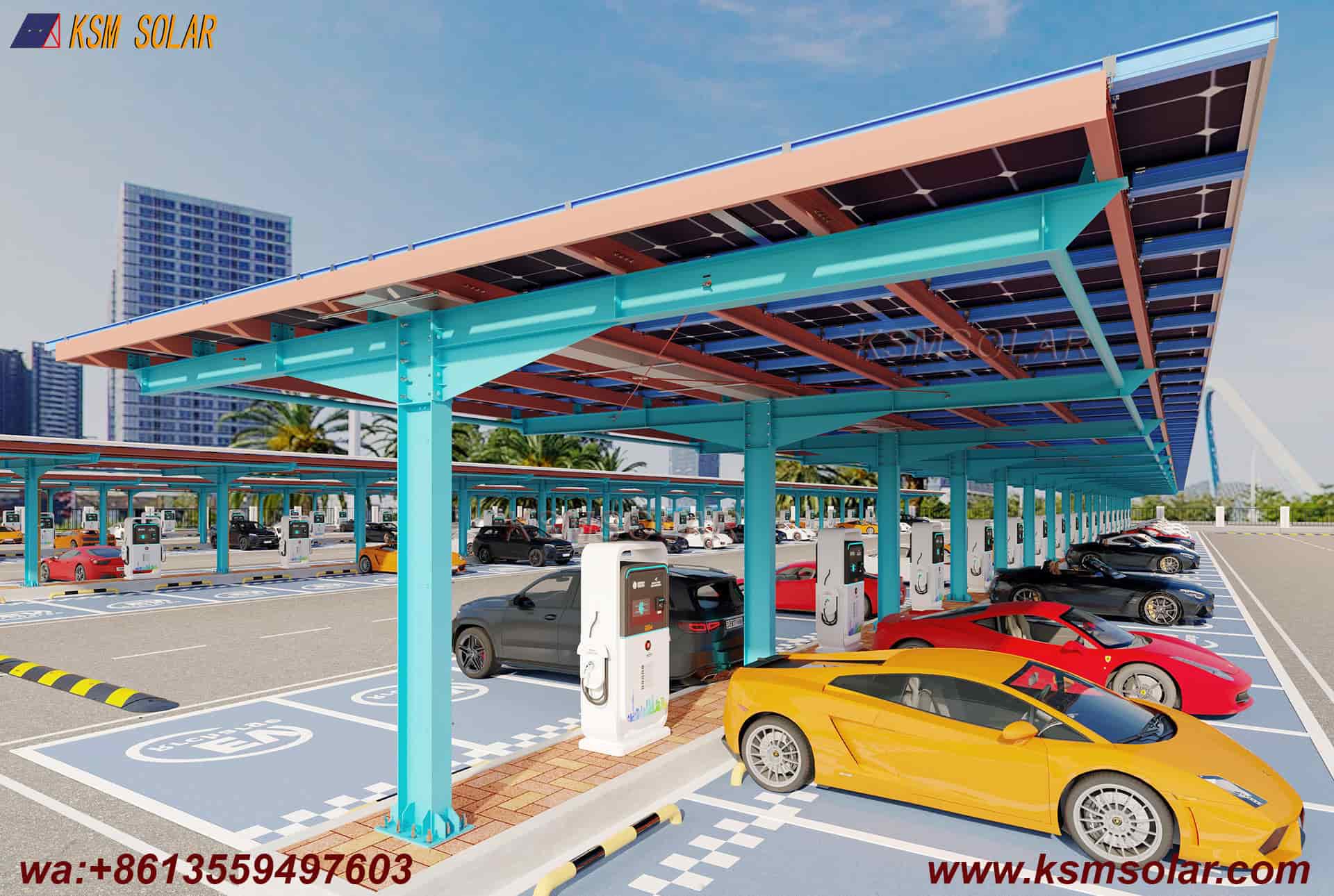

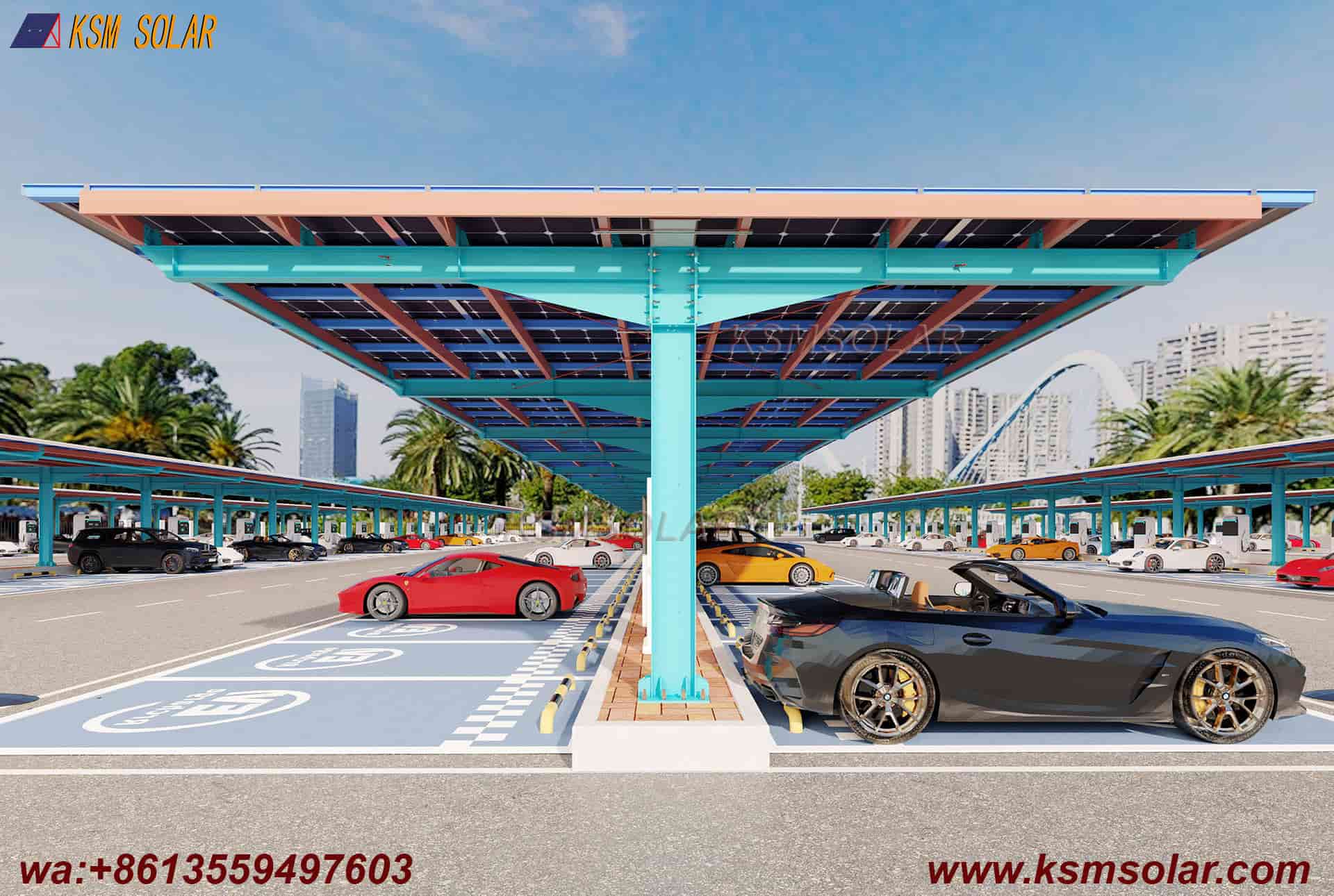

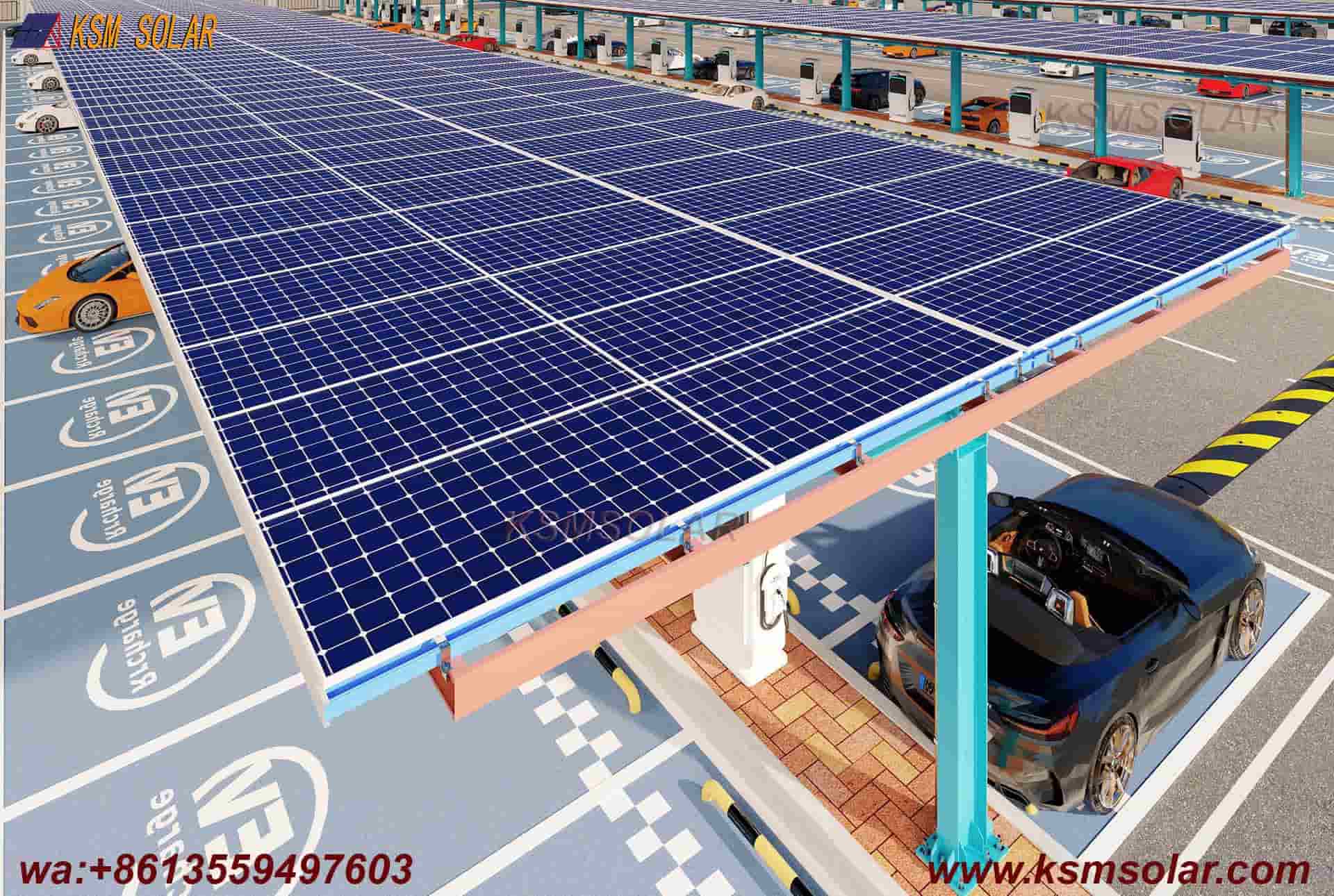

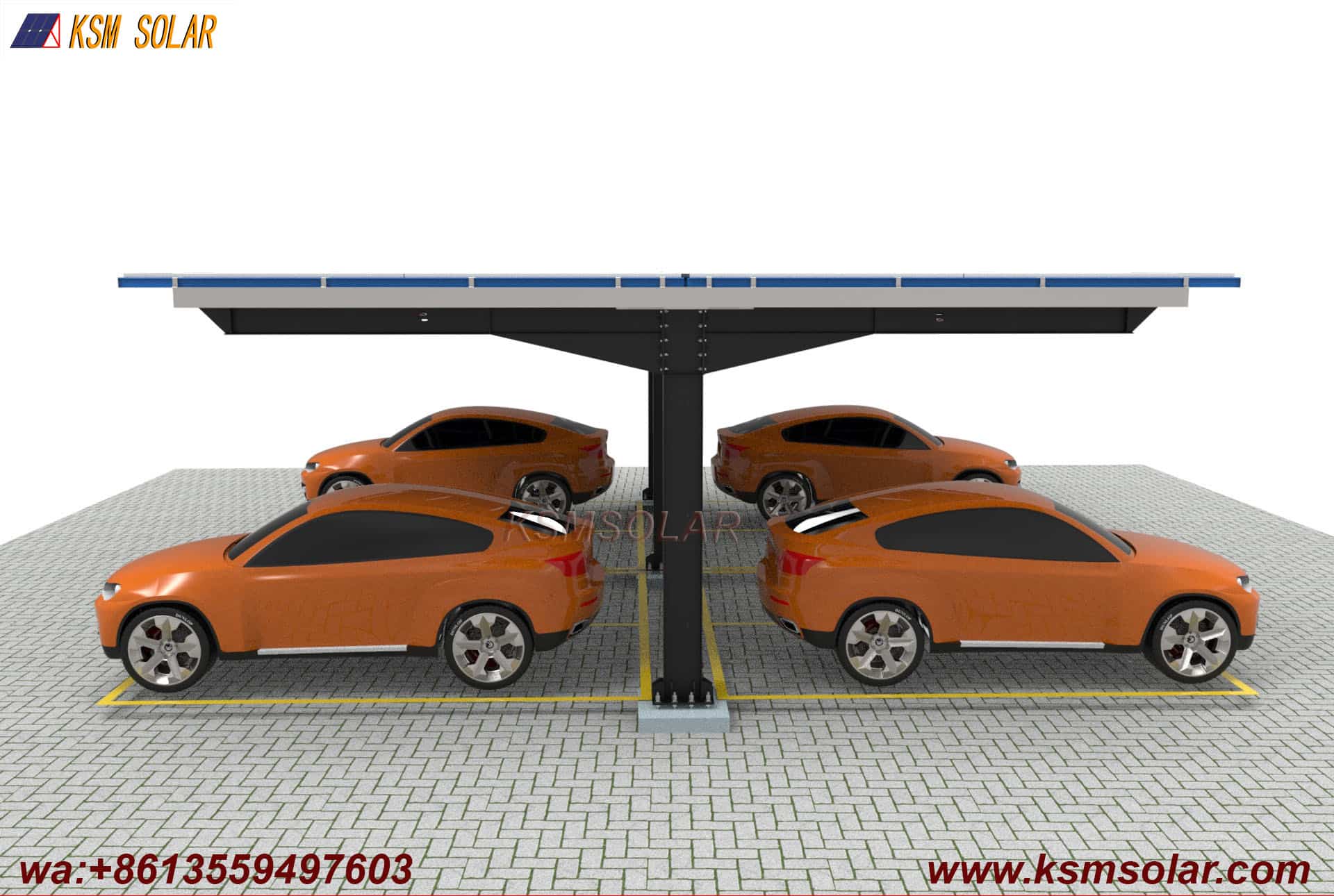

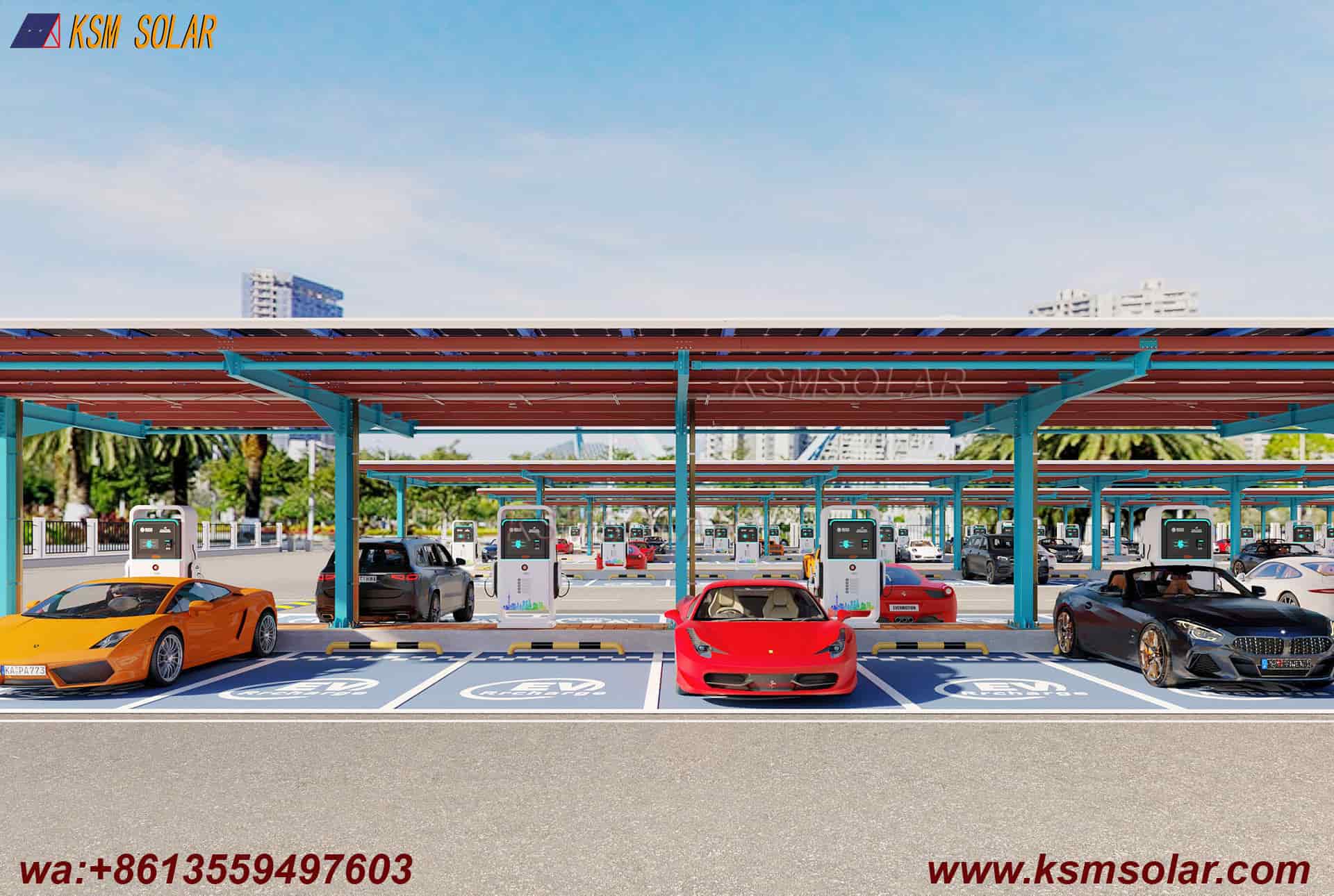

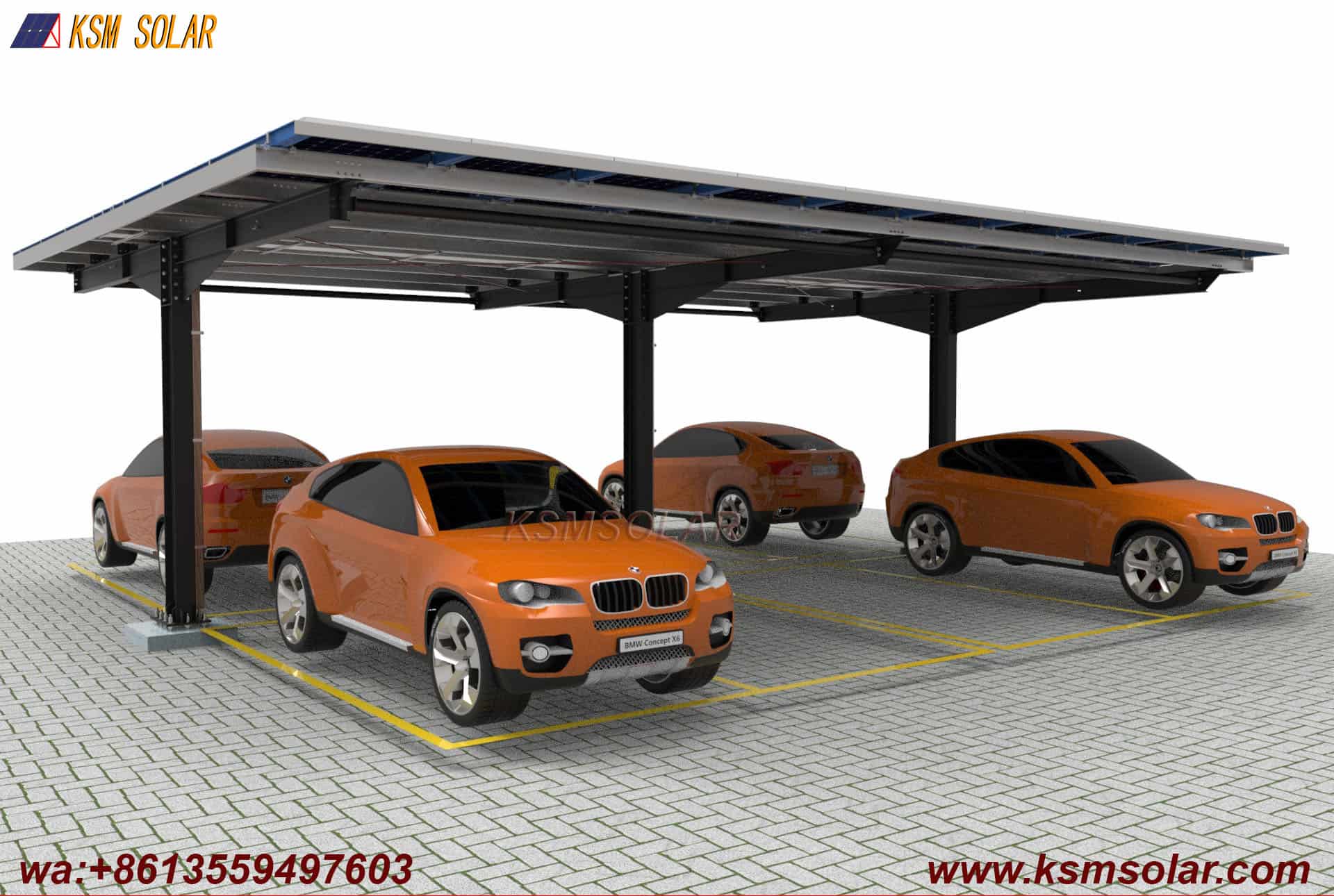

Carbon Steel Single-Column Dual-Sided Low-Angle Photovoltaic Carport combines innovative design with practical engineering to create a versatile solar structure optimized for energy capture in compact spaces. This system leverages a robust single central column to support two opposing, shallow-angle PV arrays, effectively doubling power generation capacity while maintaining space efficiency and structural stability.

Key Features & Advantages:

1. Dual-Sided Low-Angle Array Design

• Optimized Energy Harvesting: The symmetrical dual-sided PV arrays are mounted at a low tilt angle (typically 5–15 degrees), enabling efficient capture of both morning and afternoon sunlight. This configuration extends energy production periods and improves daily power output.

• Space-Saving Symmetry: The bilateral design allows for a single support column to serve two separate vehicle bays, maximizing ground coverage and parking capacity without additional vertical supports.

• Rainwater & Debris Management: The shallow angle of the panels promotes natural water runoff and prevents debris accumulation, reducing maintenance needs while ensuring consistent performance.

2. High-Strength Carbon Steel Central Support

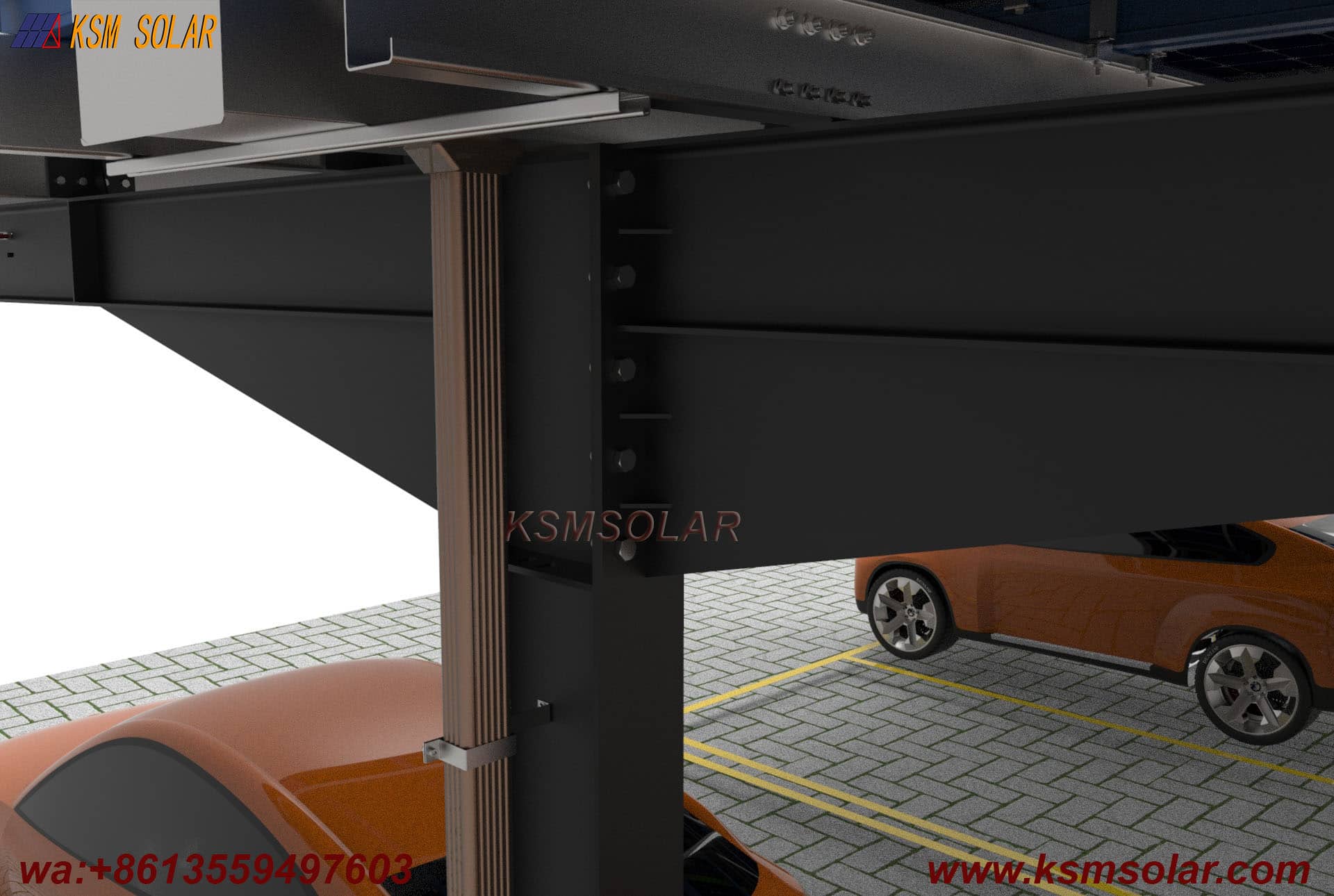

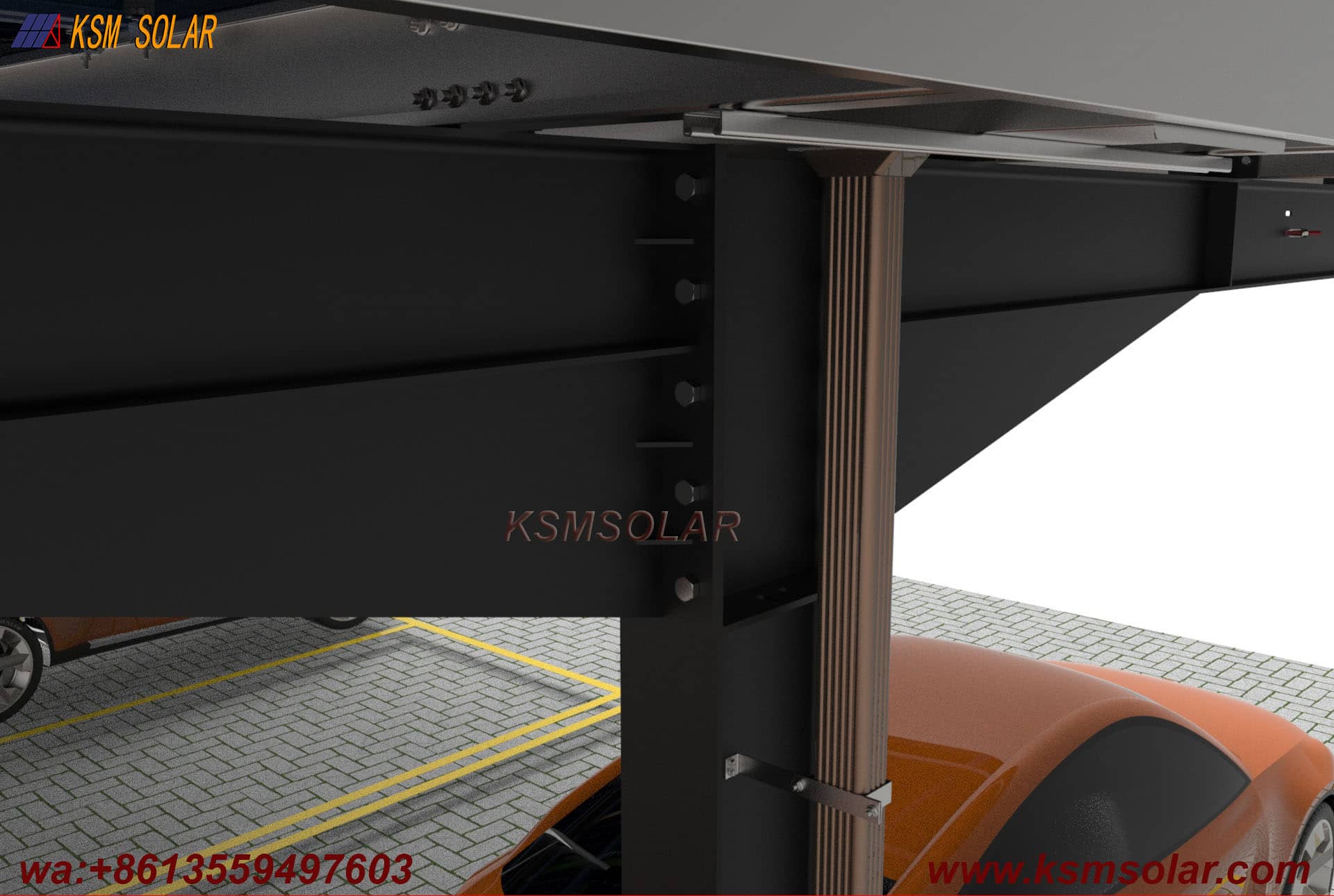

• Cost-Effective Durability: The main column is constructed from hot-rolled carbon steel, offering excellent mechanical strength at a competitive cost. Suitable for medium-span applications, it provides reliable long-term support.

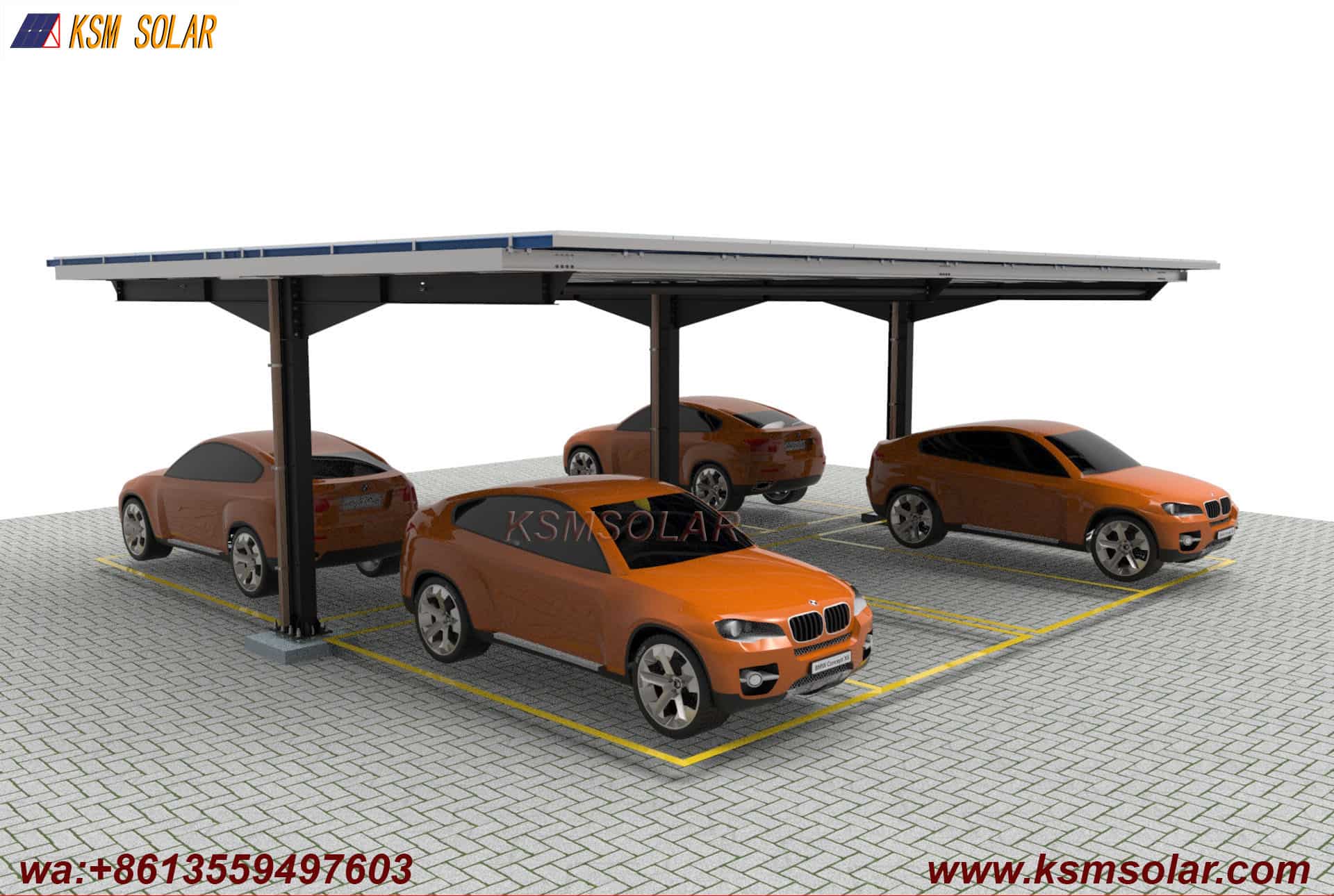

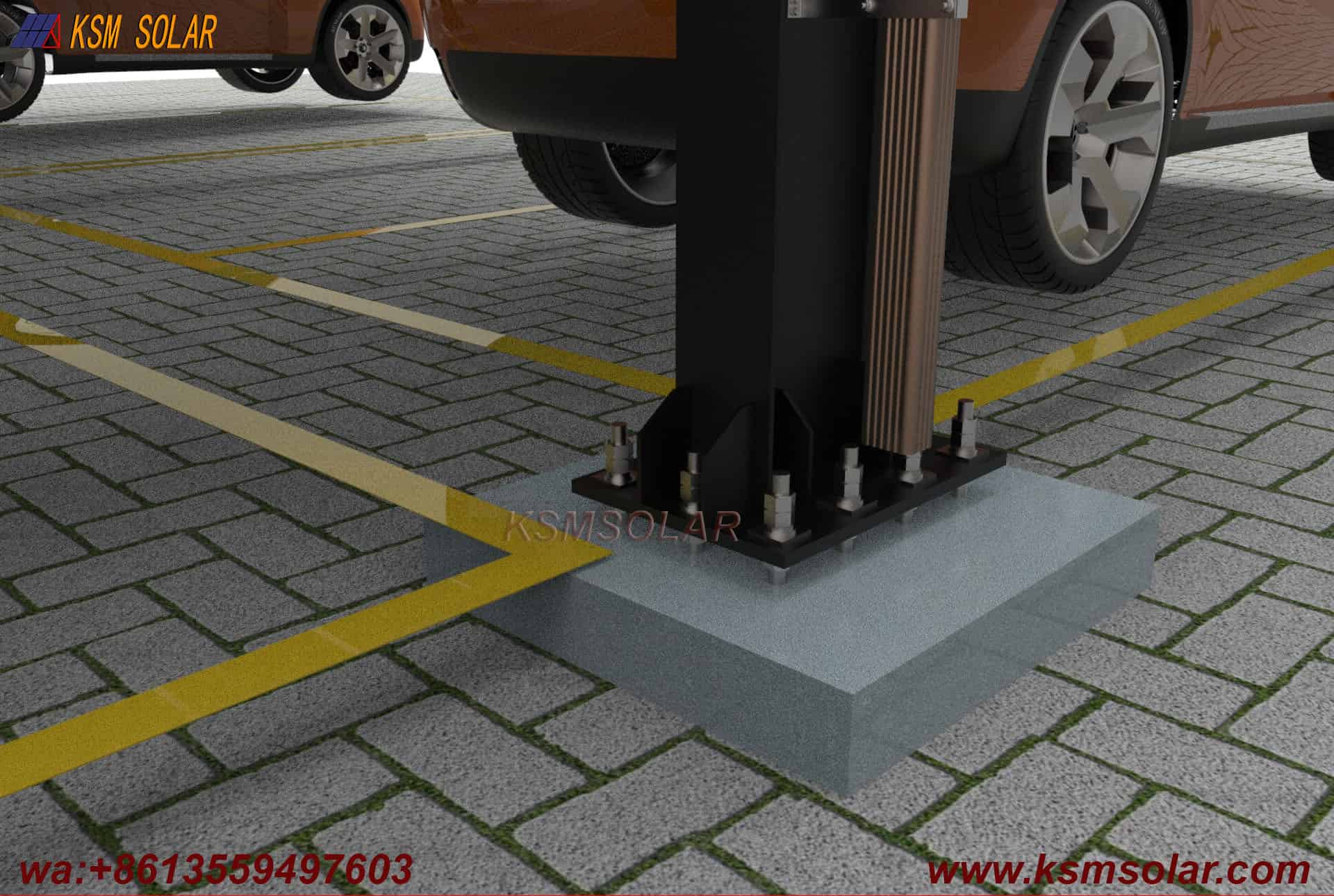

• Structural Stability & Simplicity: The single-column design reduces foundation work and ground obstructions, facilitating easier site layout and vehicle movement. It is particularly suitable for narrow or irregular parking areas.

• Anti-Corrosion Protection: All steel components are treated with hot-dip galvanizing or epoxy coating, ensuring corrosion resistance and extending service life in various environmental conditions.

3. Modular & Quick-Installation Framework

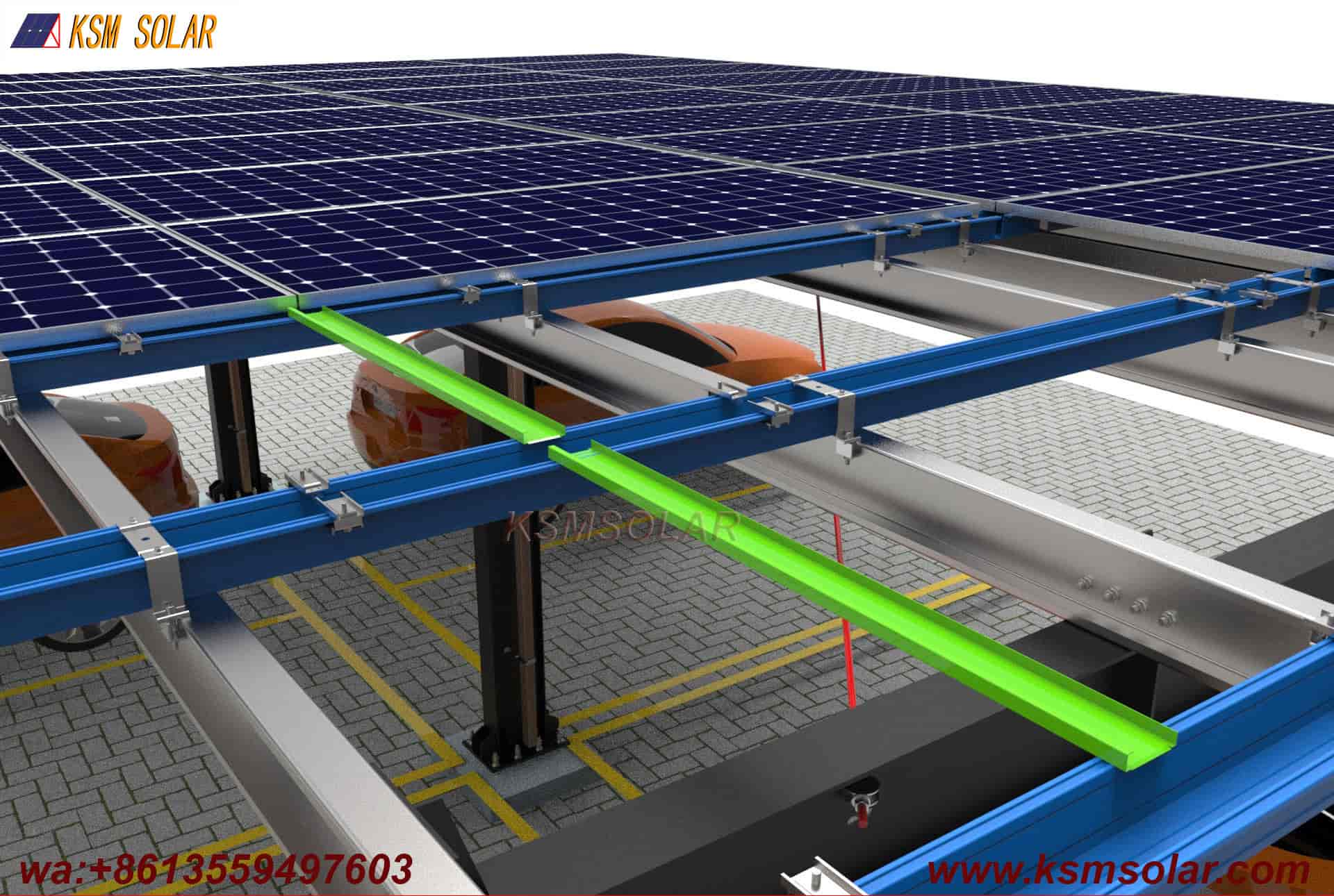

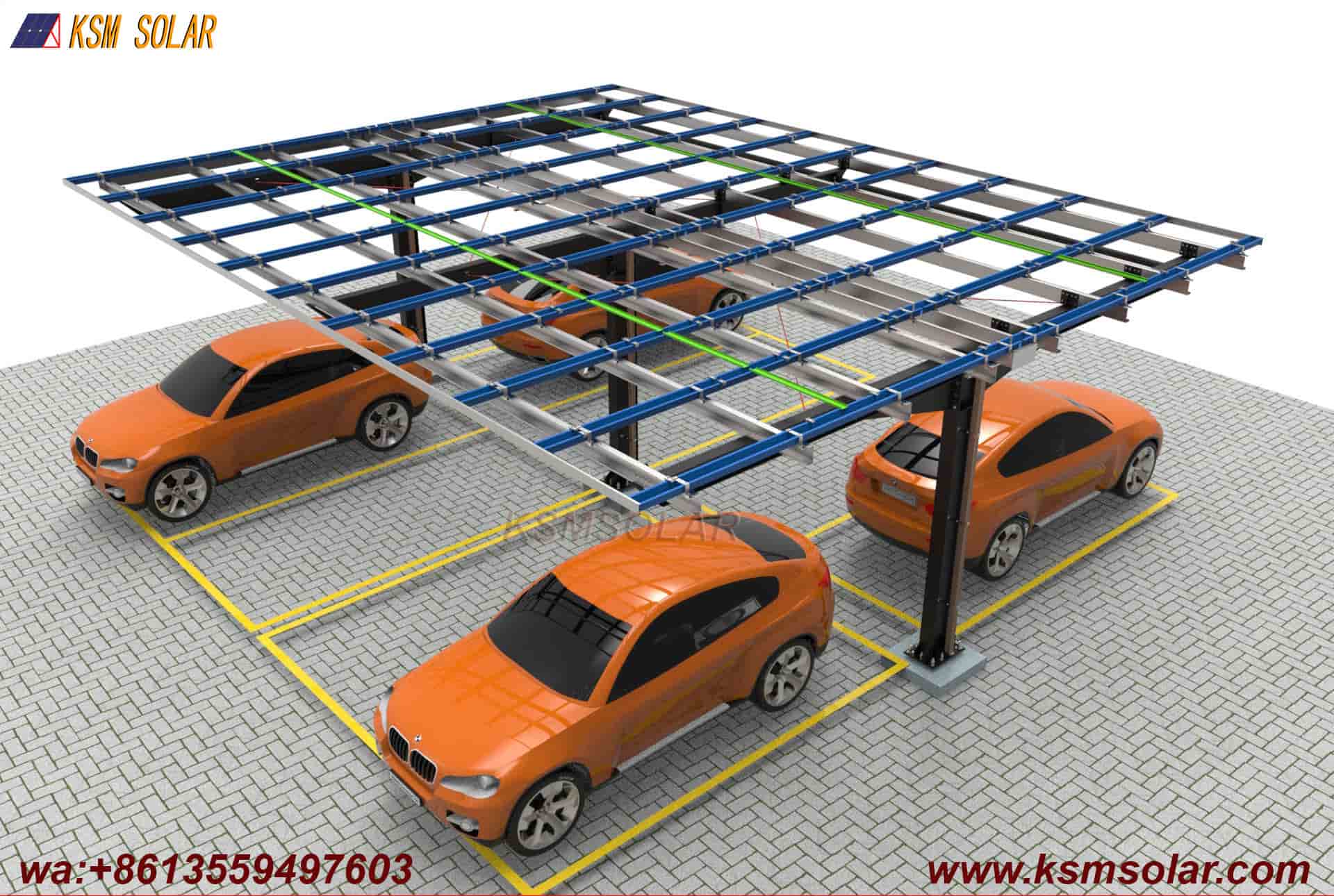

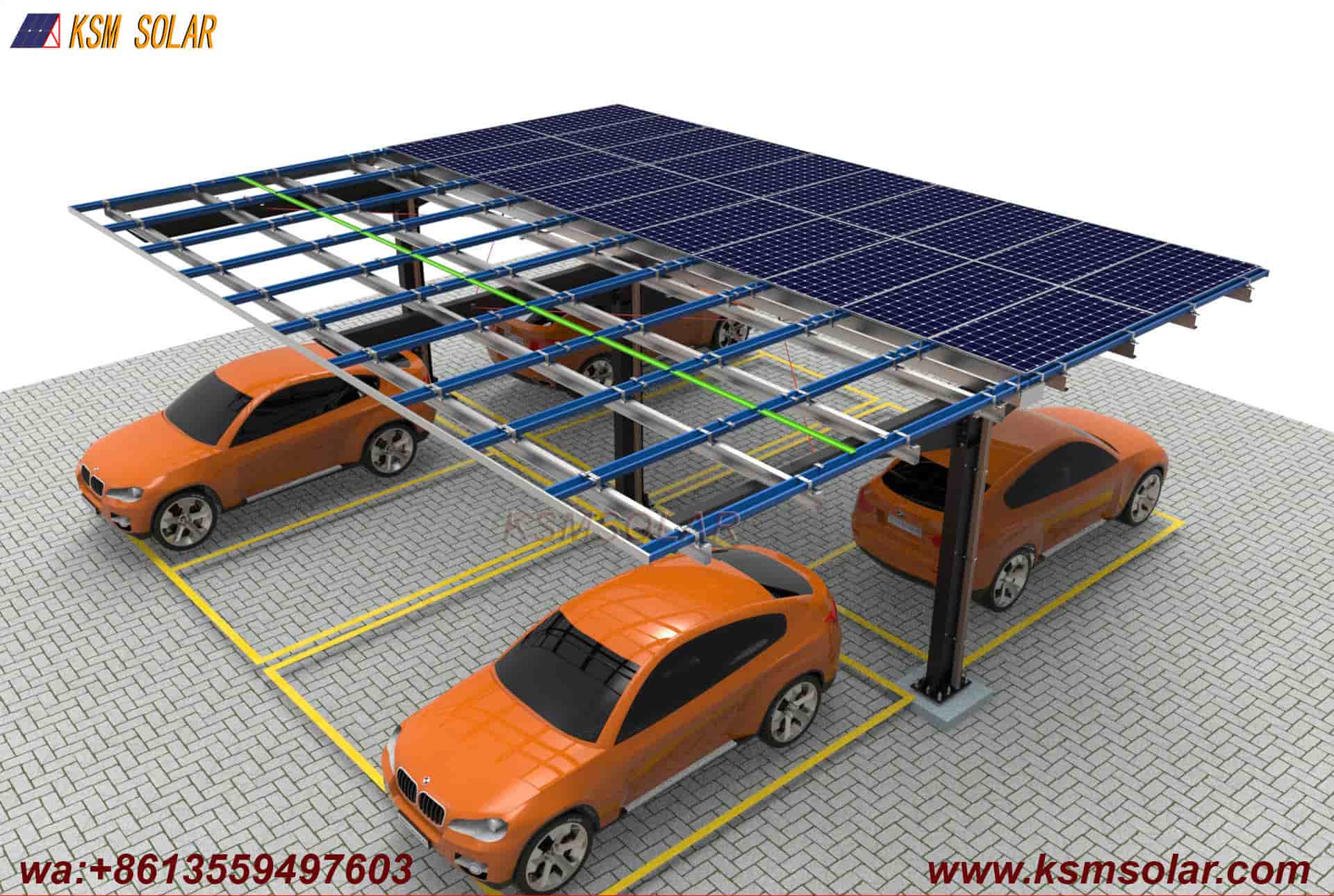

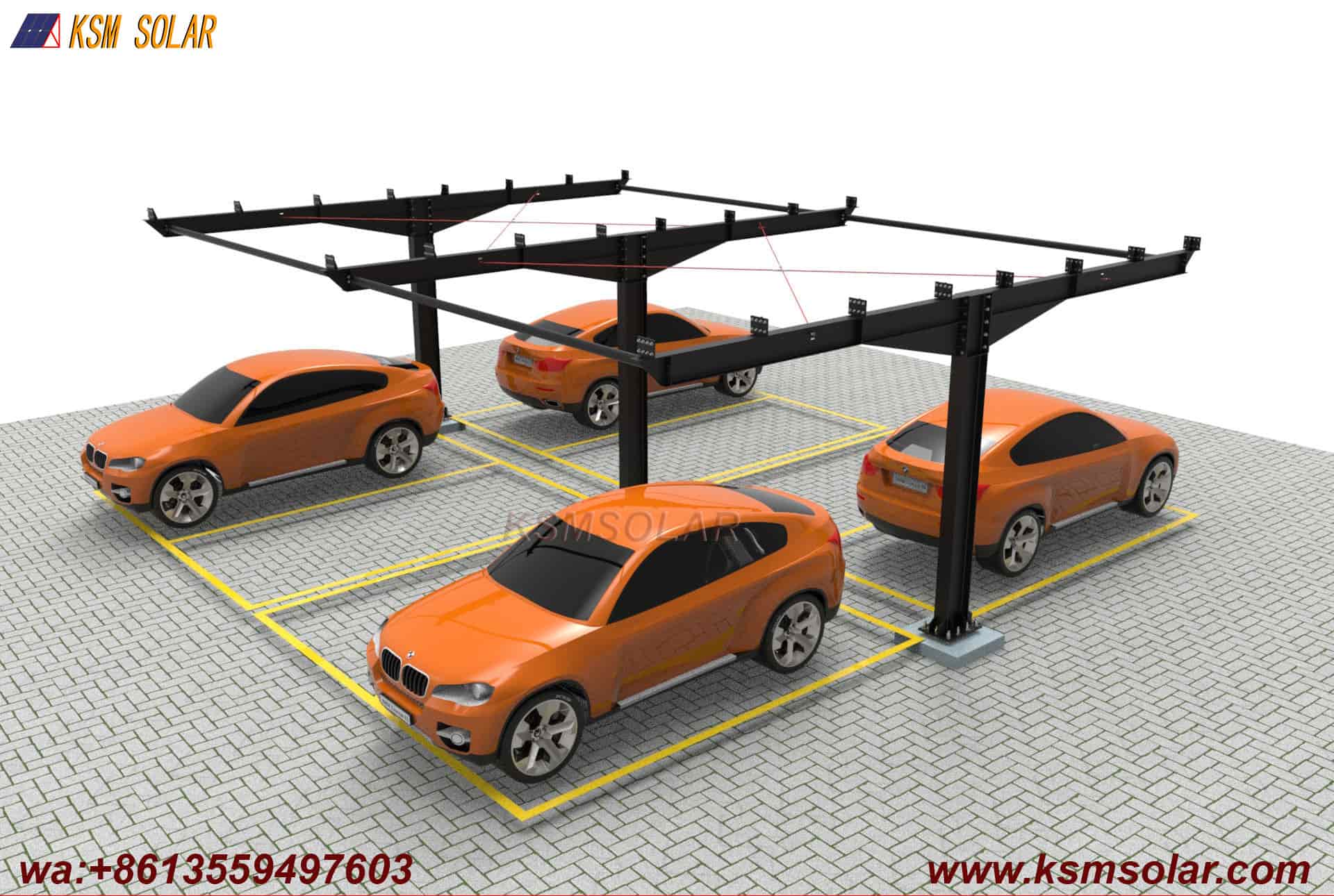

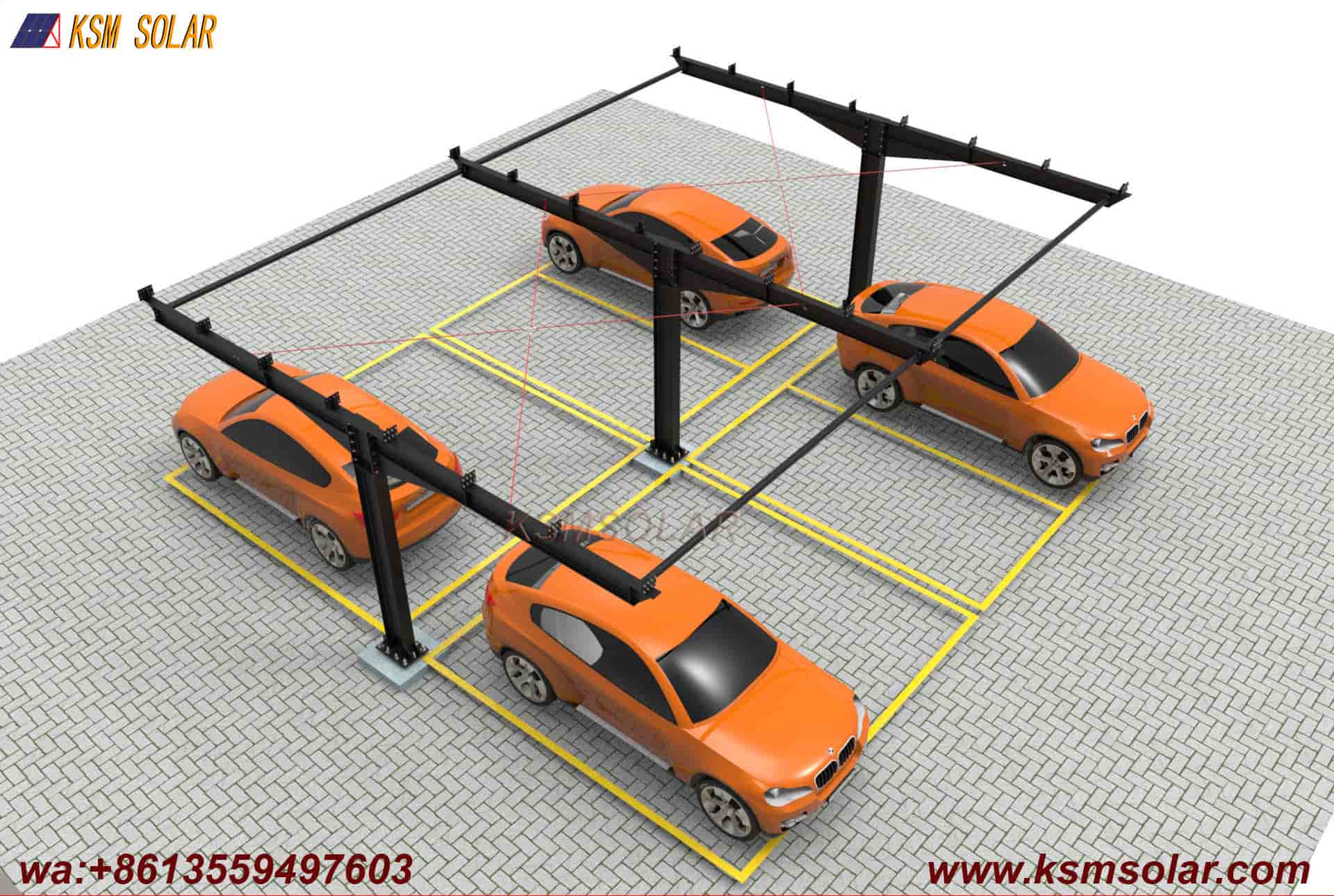

• Pre-Engineered Assembly: The symmetrical beam-and-purlin system is prefabricated to ensure dimensional accuracy and ease of on-site assembly, minimizing installation time and labor costs.

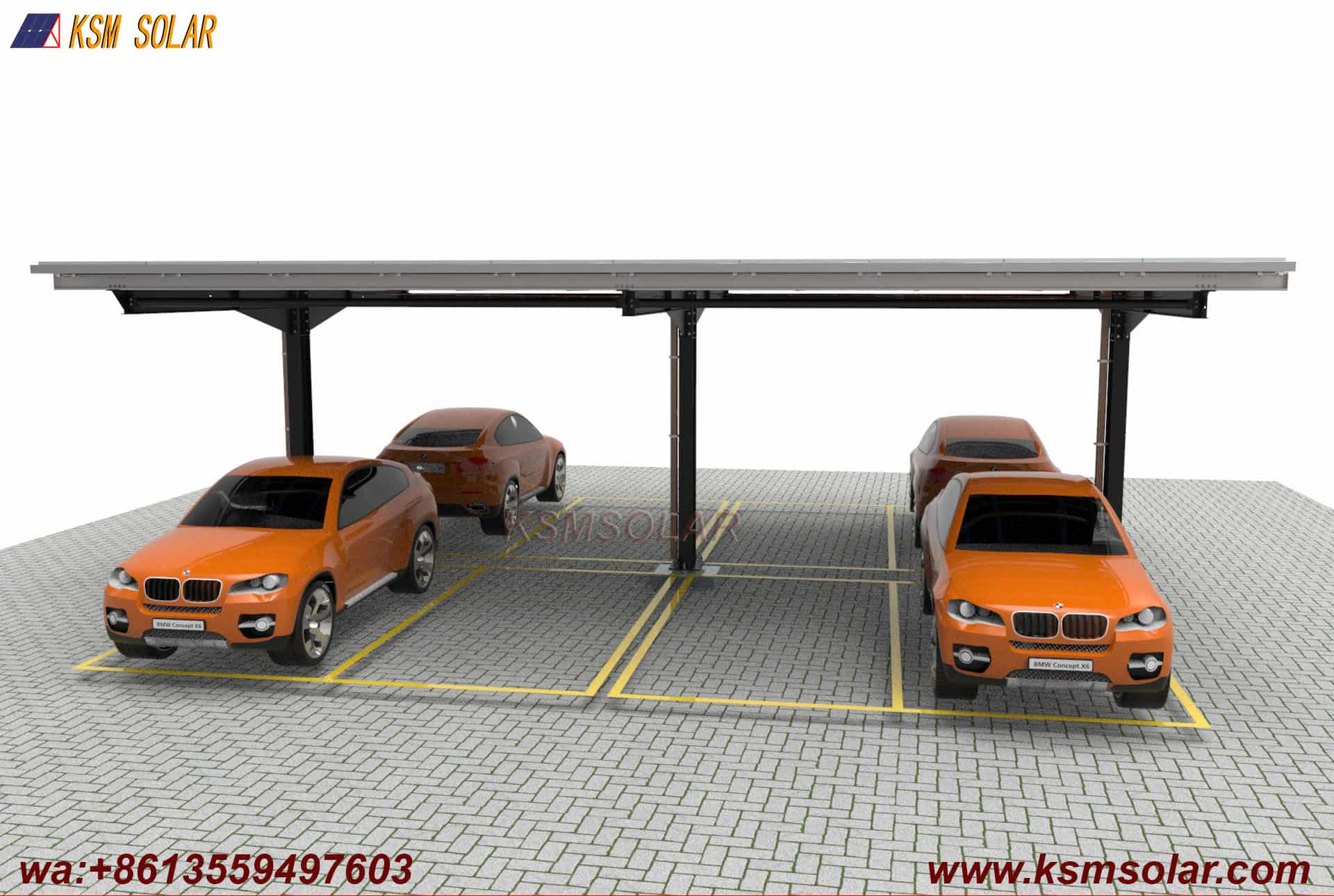

• Scalable Design: The modular layout allows for flexible expansion in linear or parallel arrangements, adapting to different site dimensions and energy requirements.

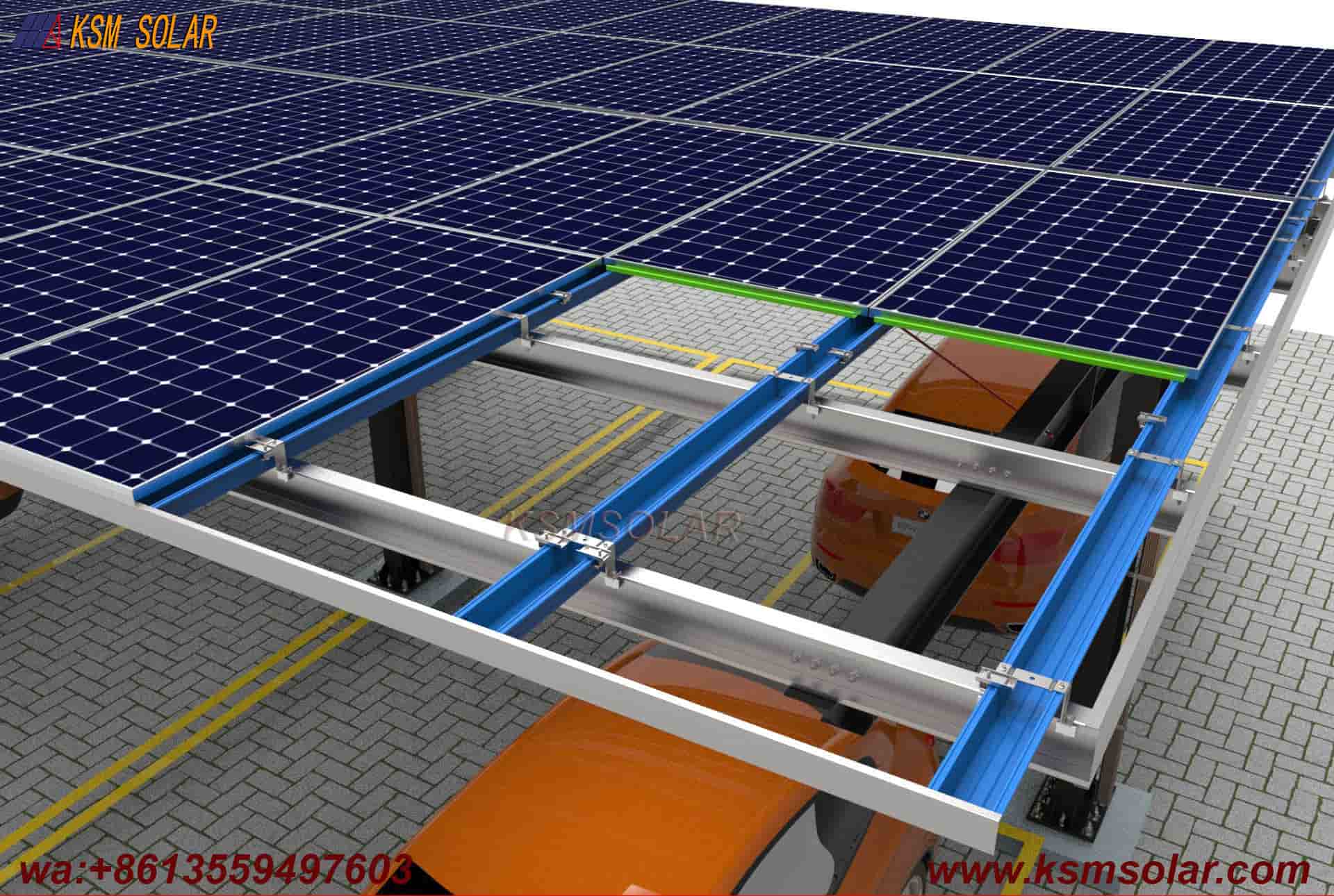

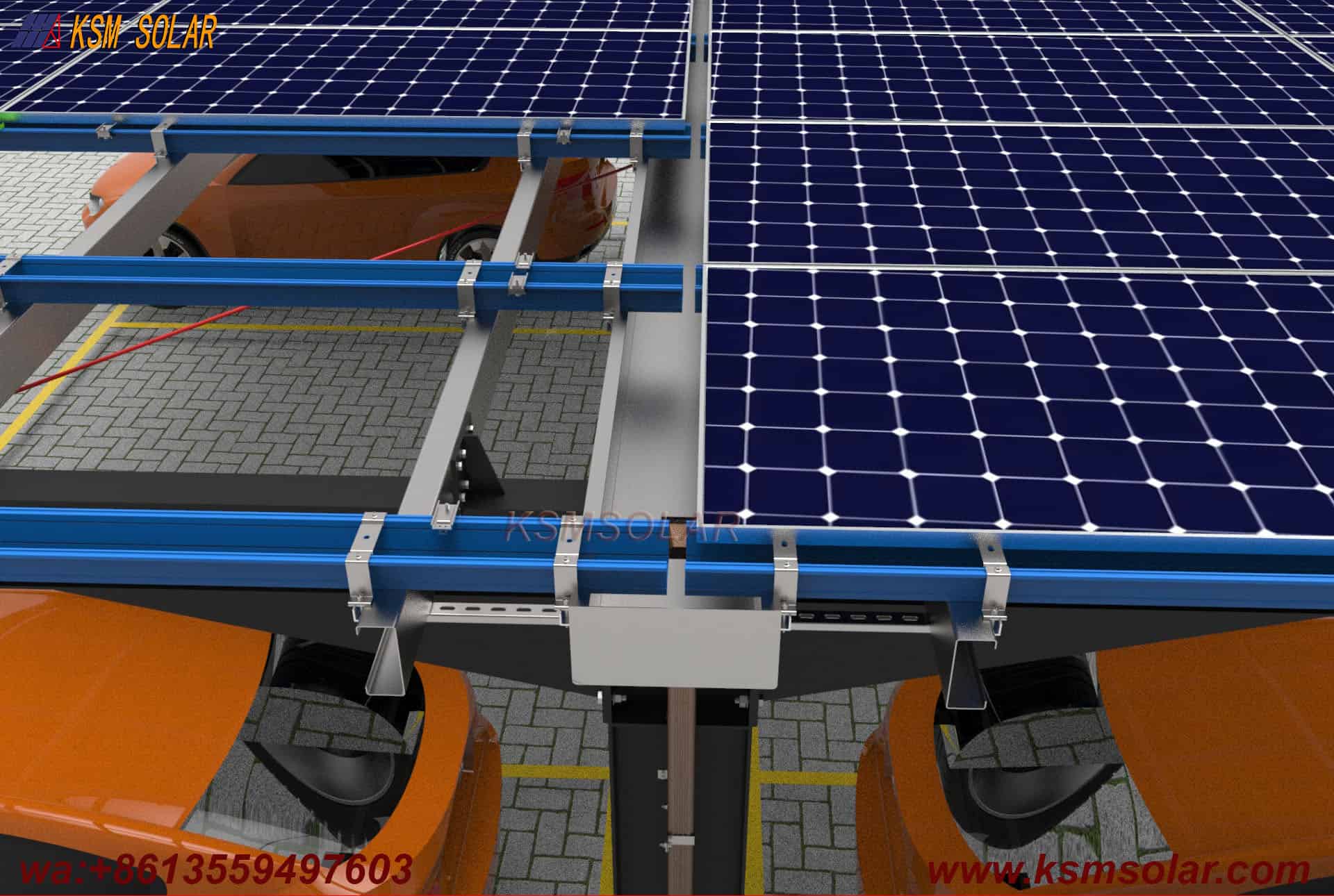

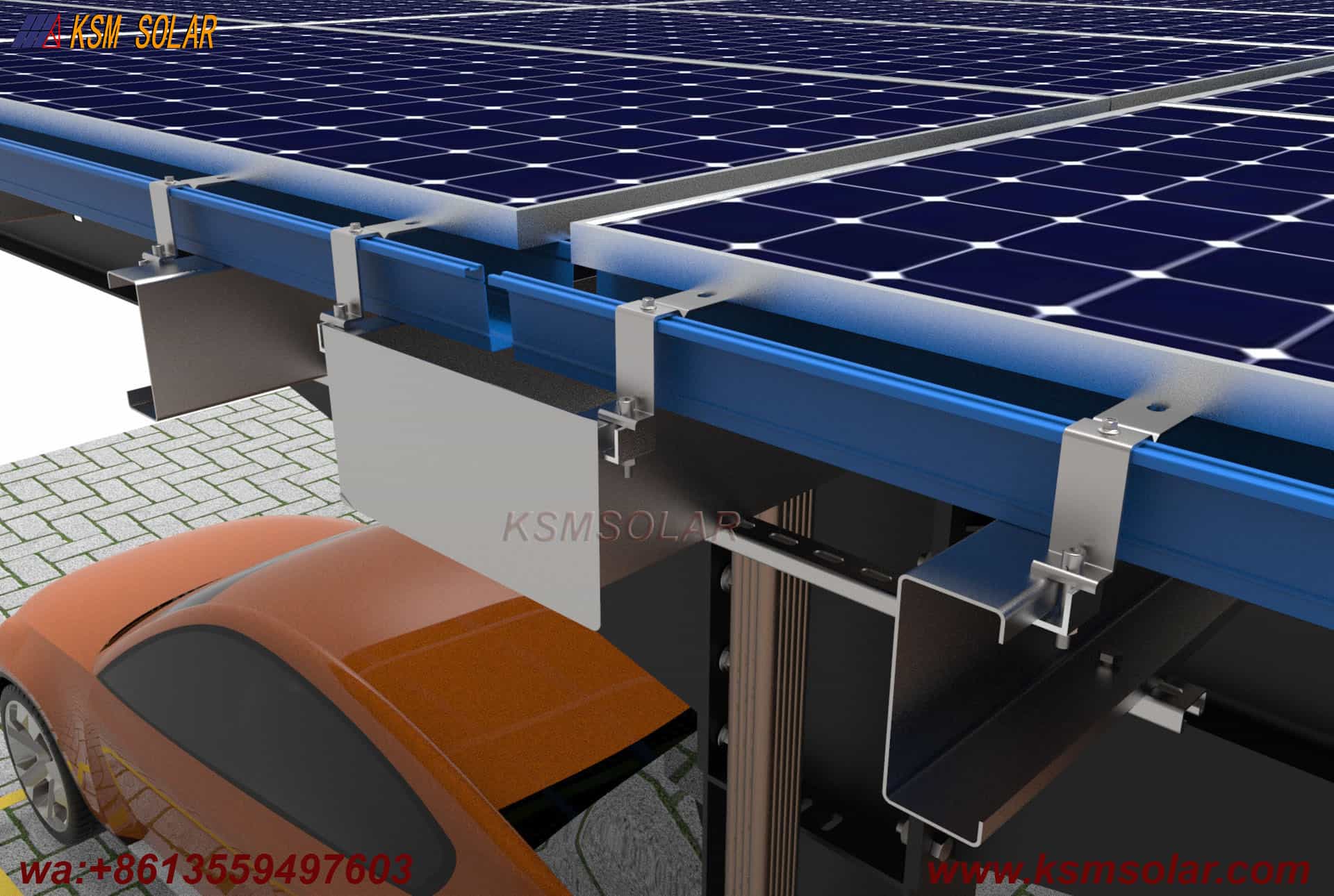

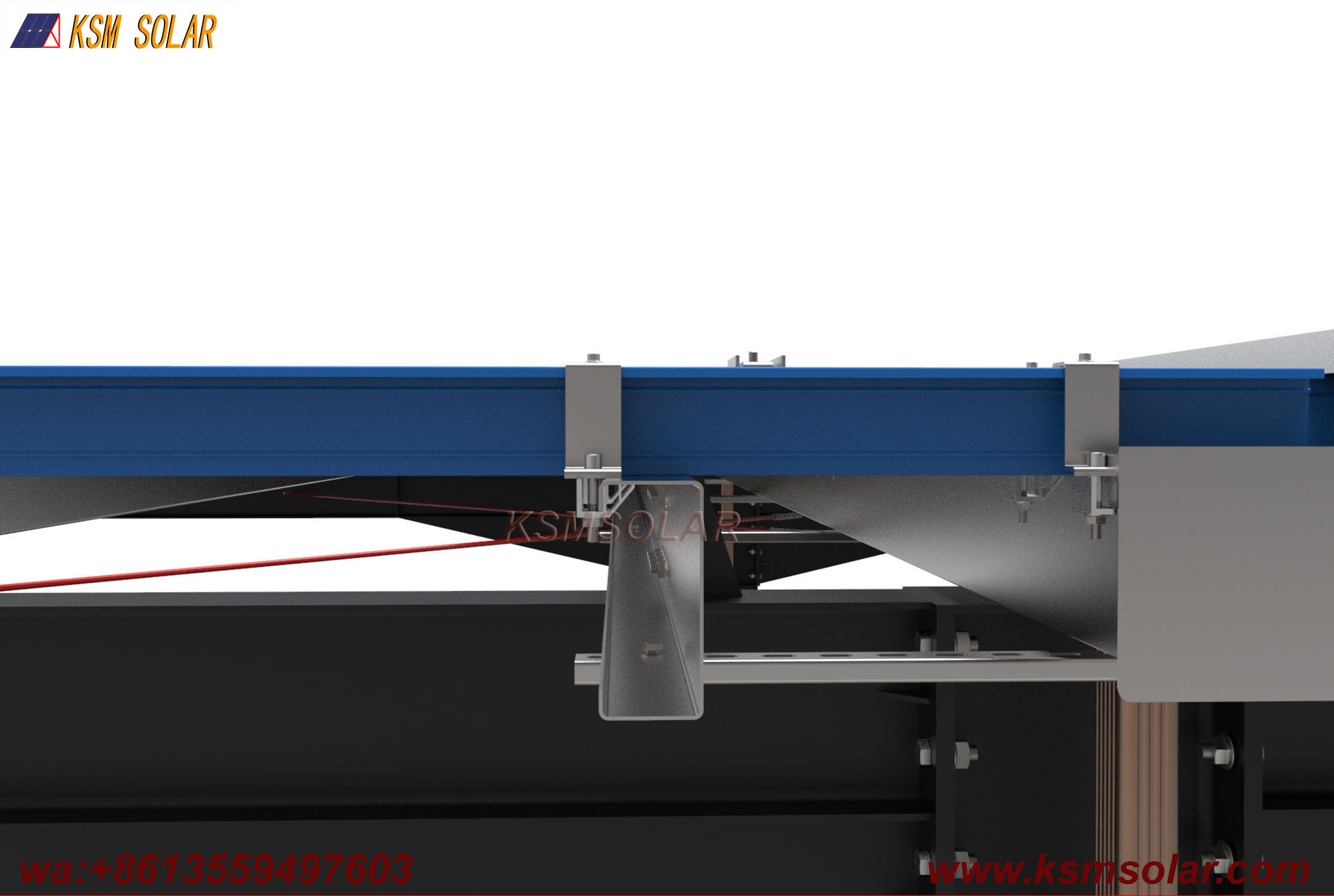

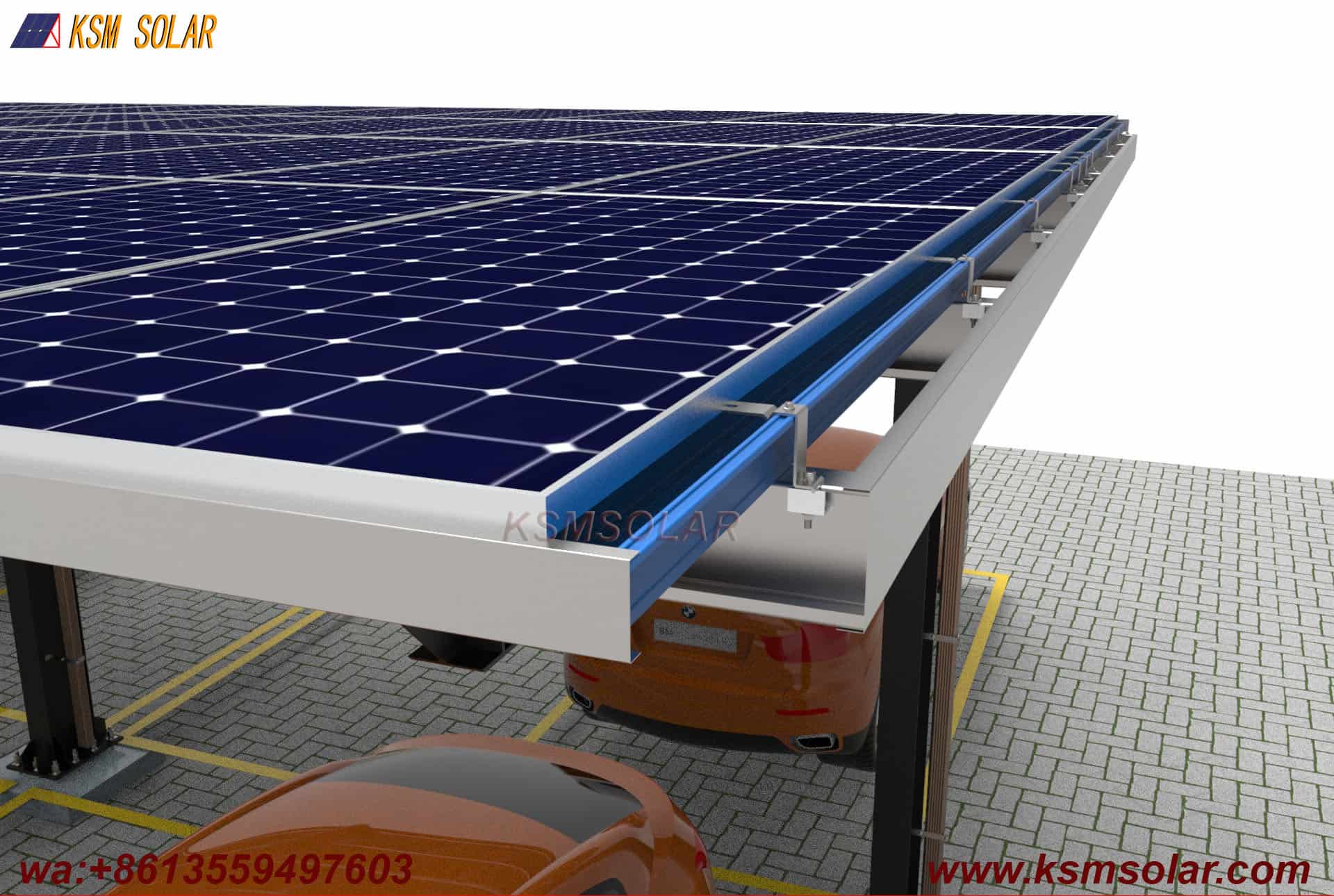

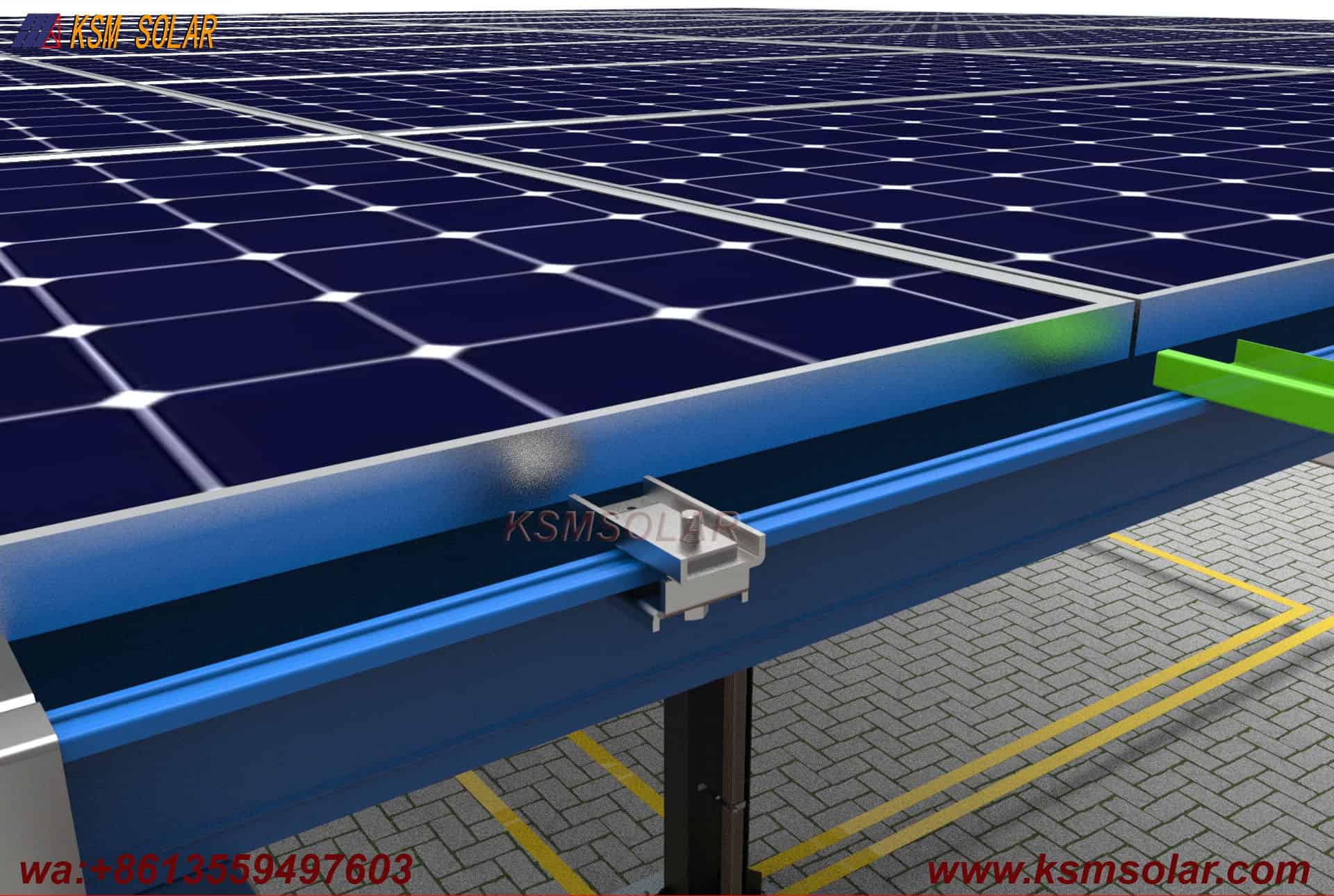

• Plug-and-Play PV Mounting: Integrated clamping systems simplify the installation of solar panels on both sides, allowing rapid deployment without complex adjustments.

4. Performance & Functional Benefits

• Higher Energy Density: By utilizing both sides of the carport structure, this design can generate up to 30–40% more energy per footprint compared to single-sided systems, delivering improved ROI.

• Balanced Aesthetic: The symmetrical low-profile structure offers a clean, modern appearance suitable for corporate, municipal, or residential applications.

• Adaptable to Site Conditions: The shallow tilt angle minimizes wind load, making it suitable for areas with higher wind exposure, and can be oriented to align with solar azimuth for geographic optimization.
