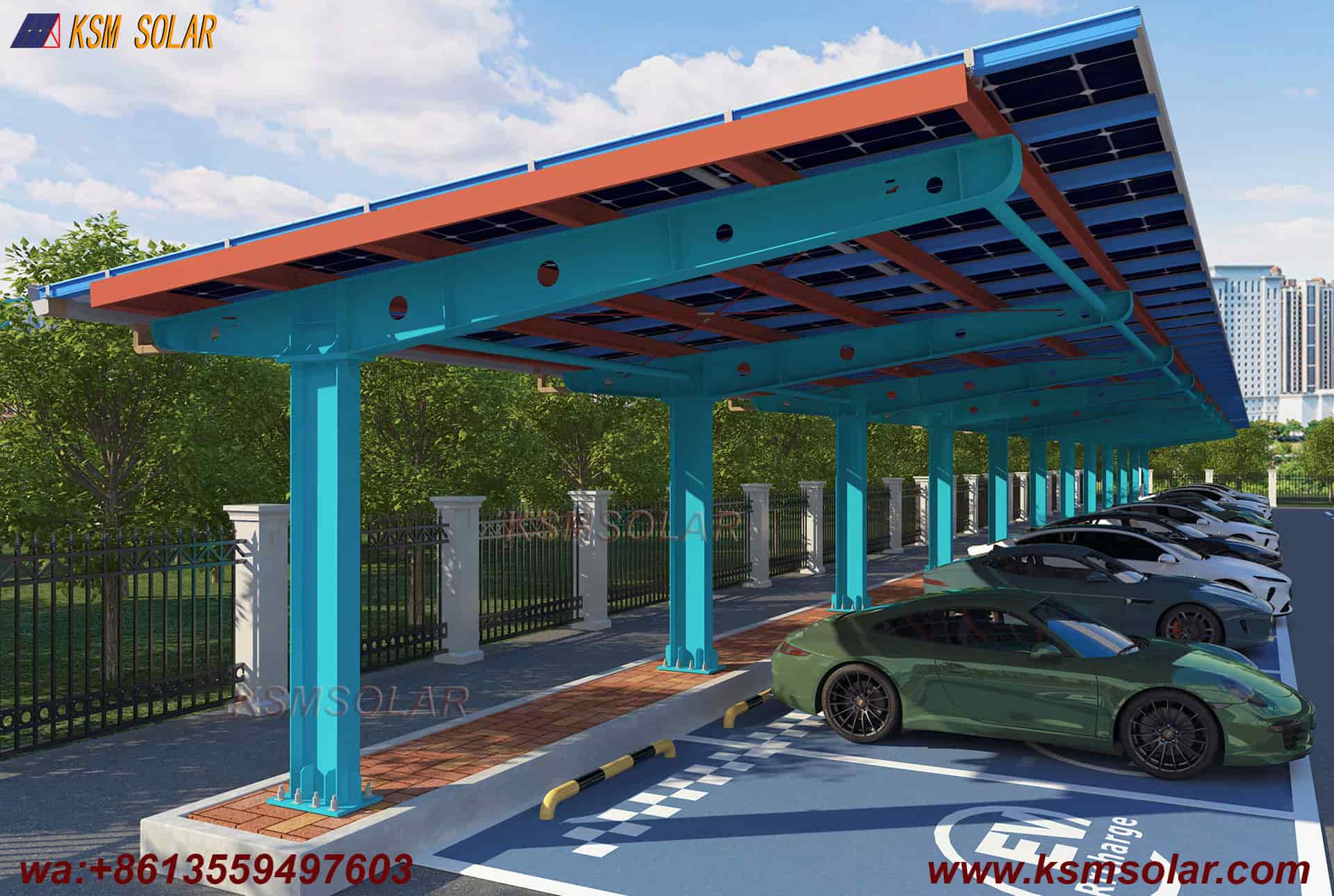

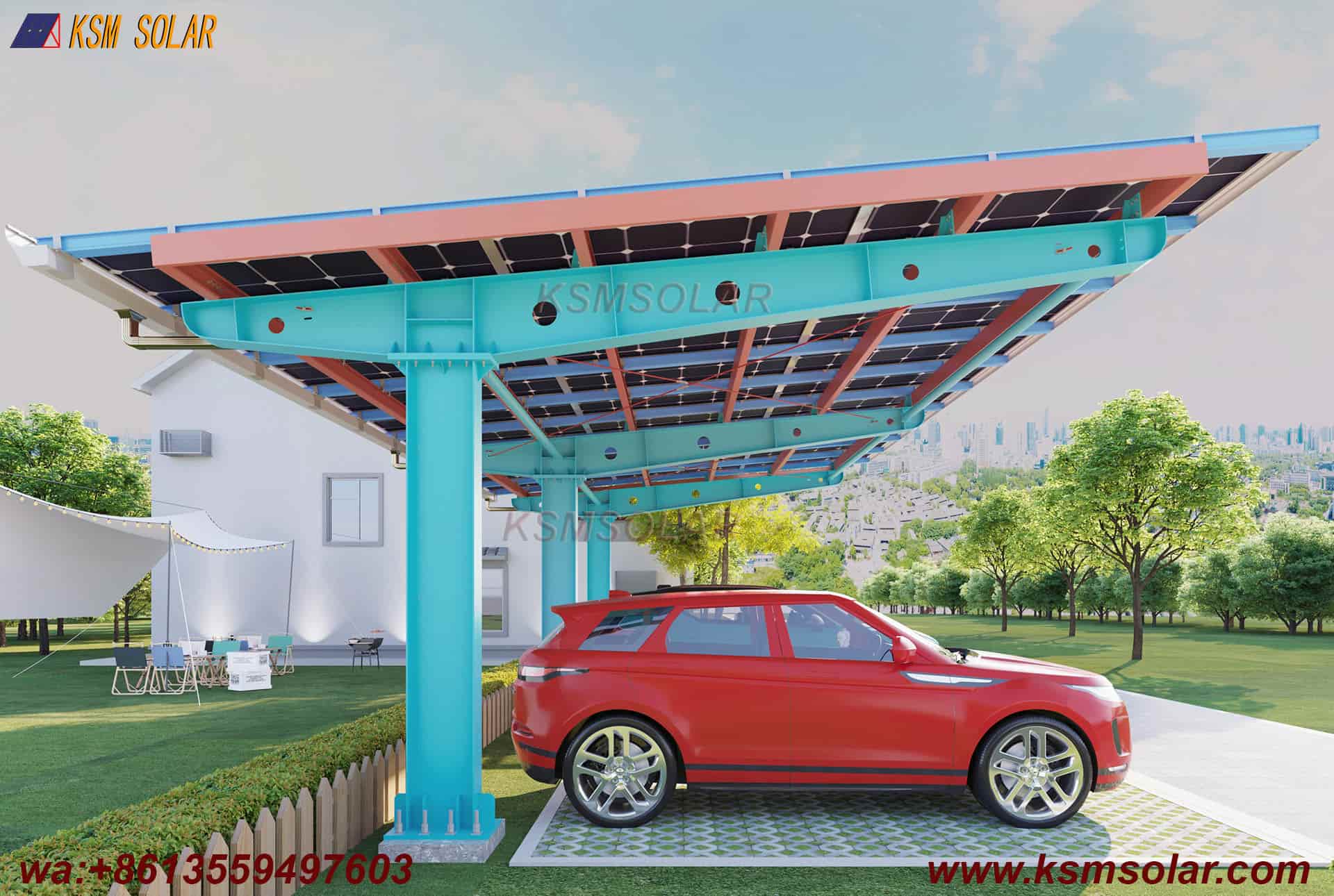

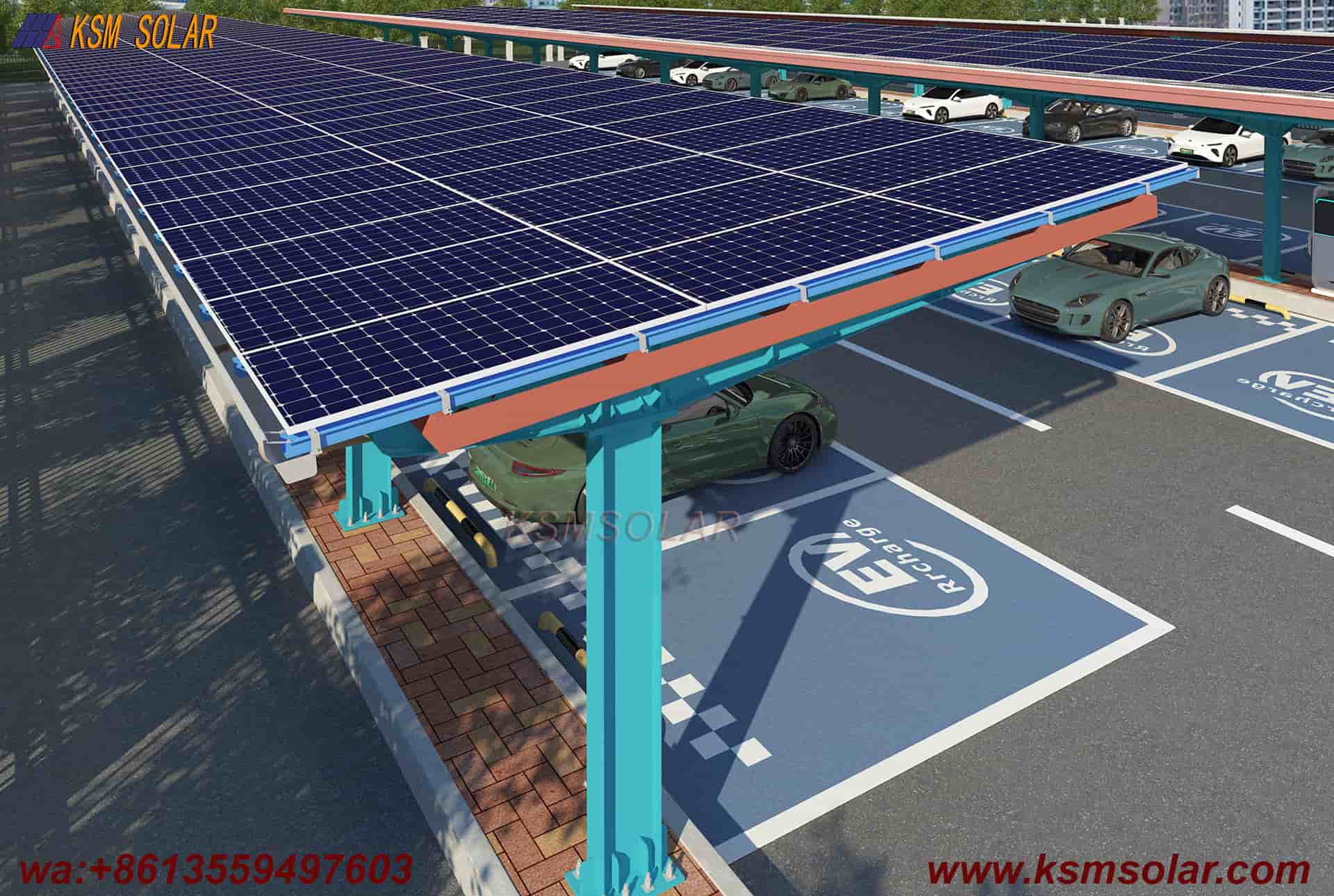

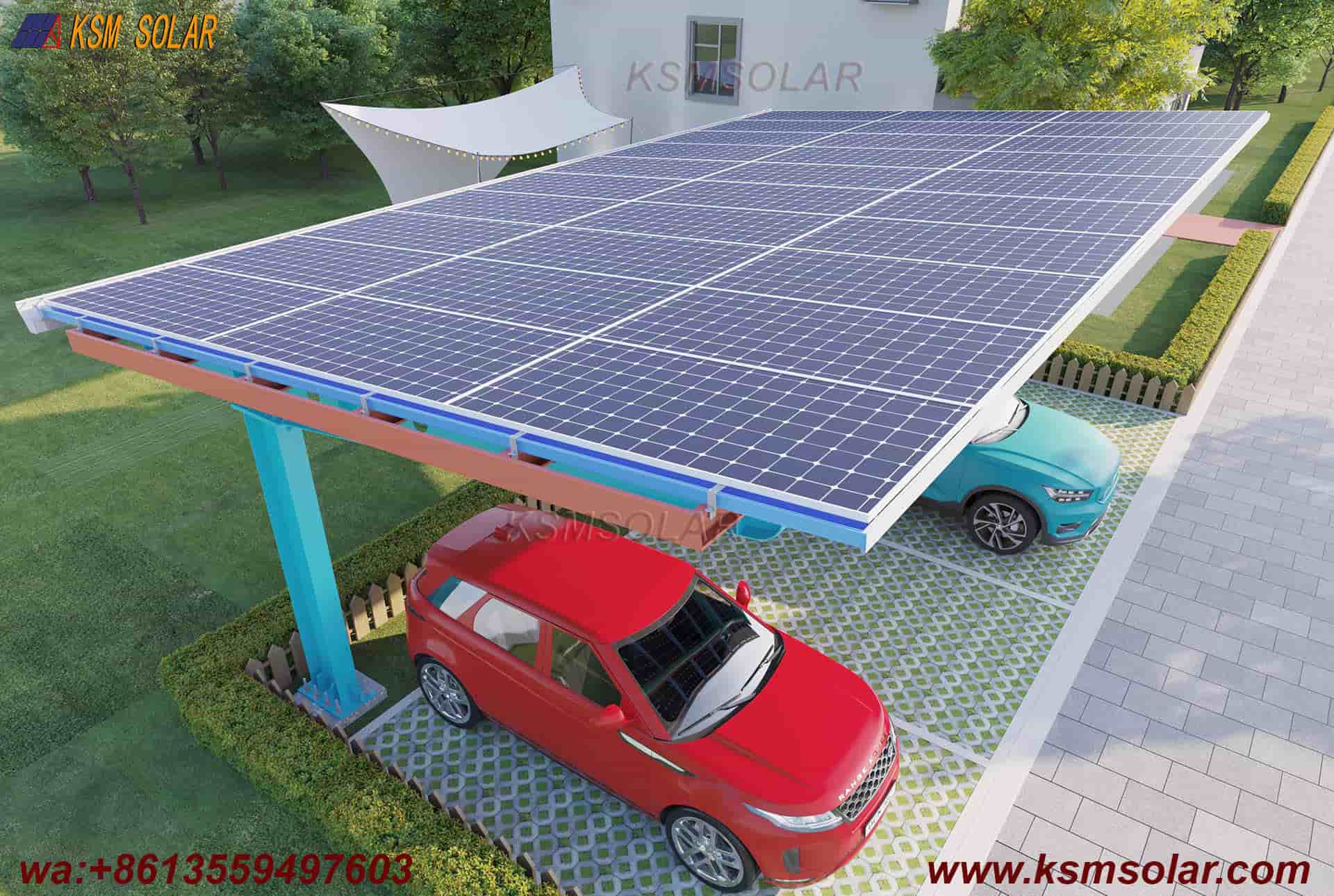

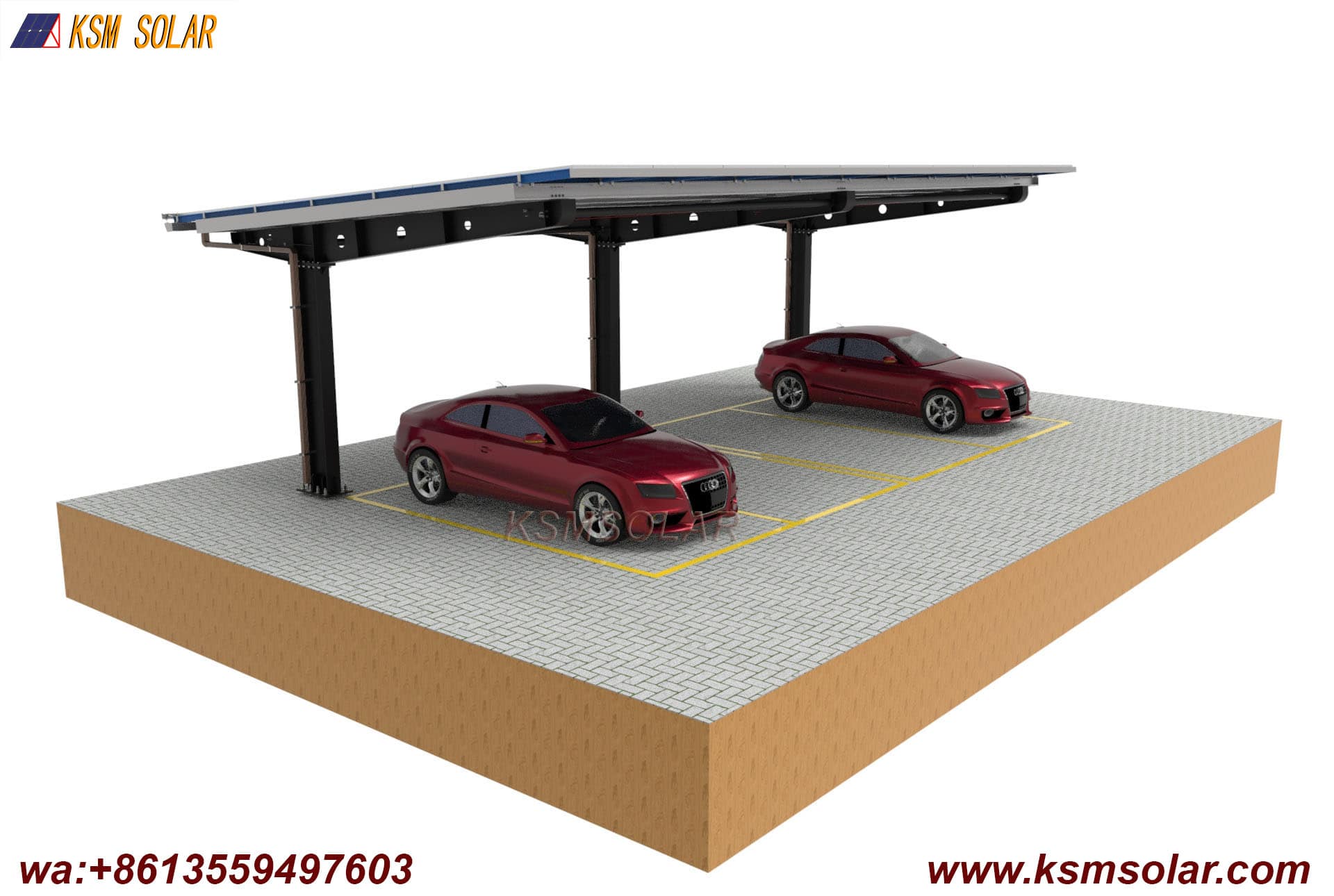

Our H-Beam Single-Column Photovoltaic Carport is engineered for projects that demand exceptional structural strength, efficient space utilization, and complete weather protection. By integrating a single, robust H-beam column with a purpose-designed waterproof canopy, this system provides a durable and highly functional solar carport solution for diverse applications.

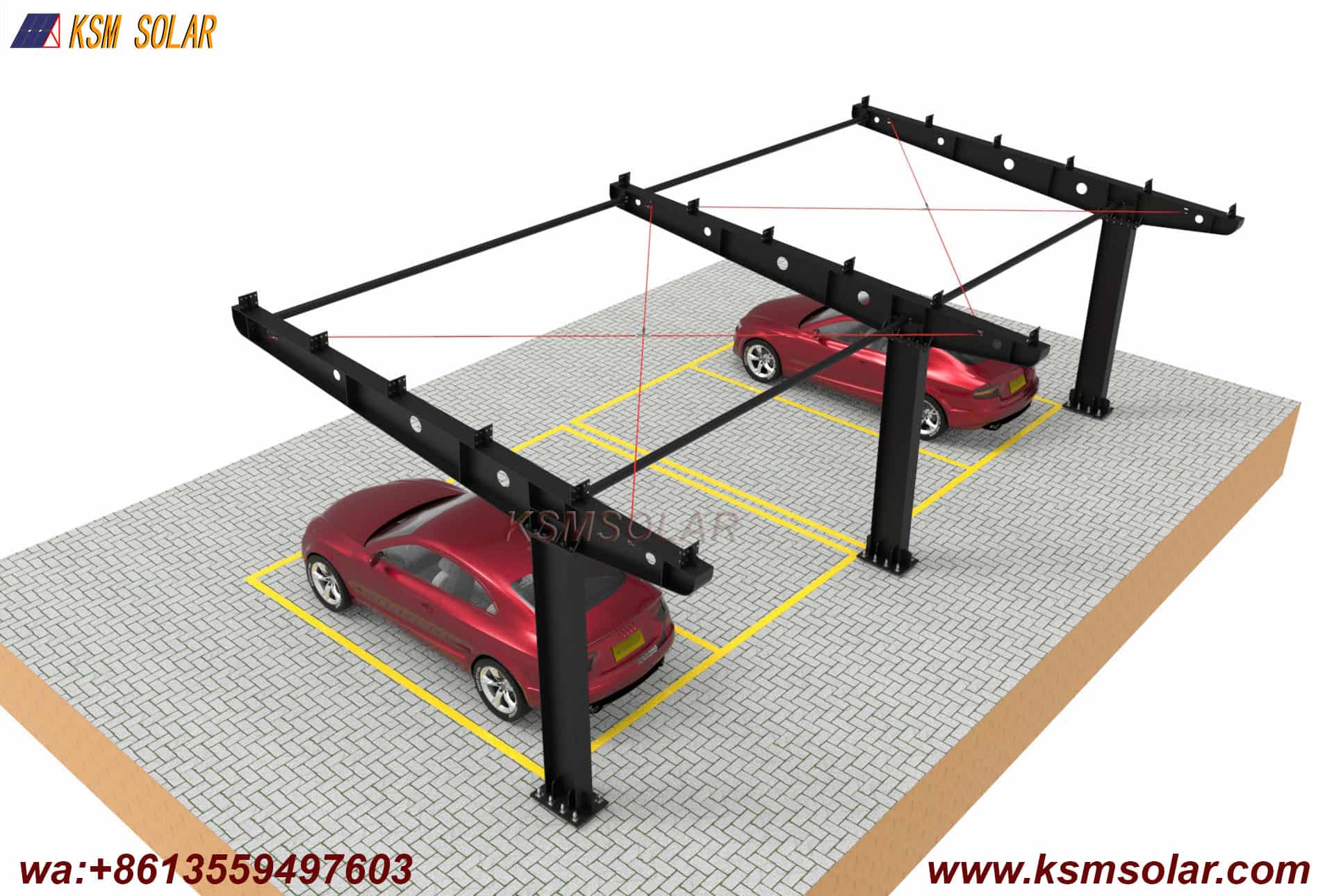

1. High-Strength H-Beam Single-Column Design

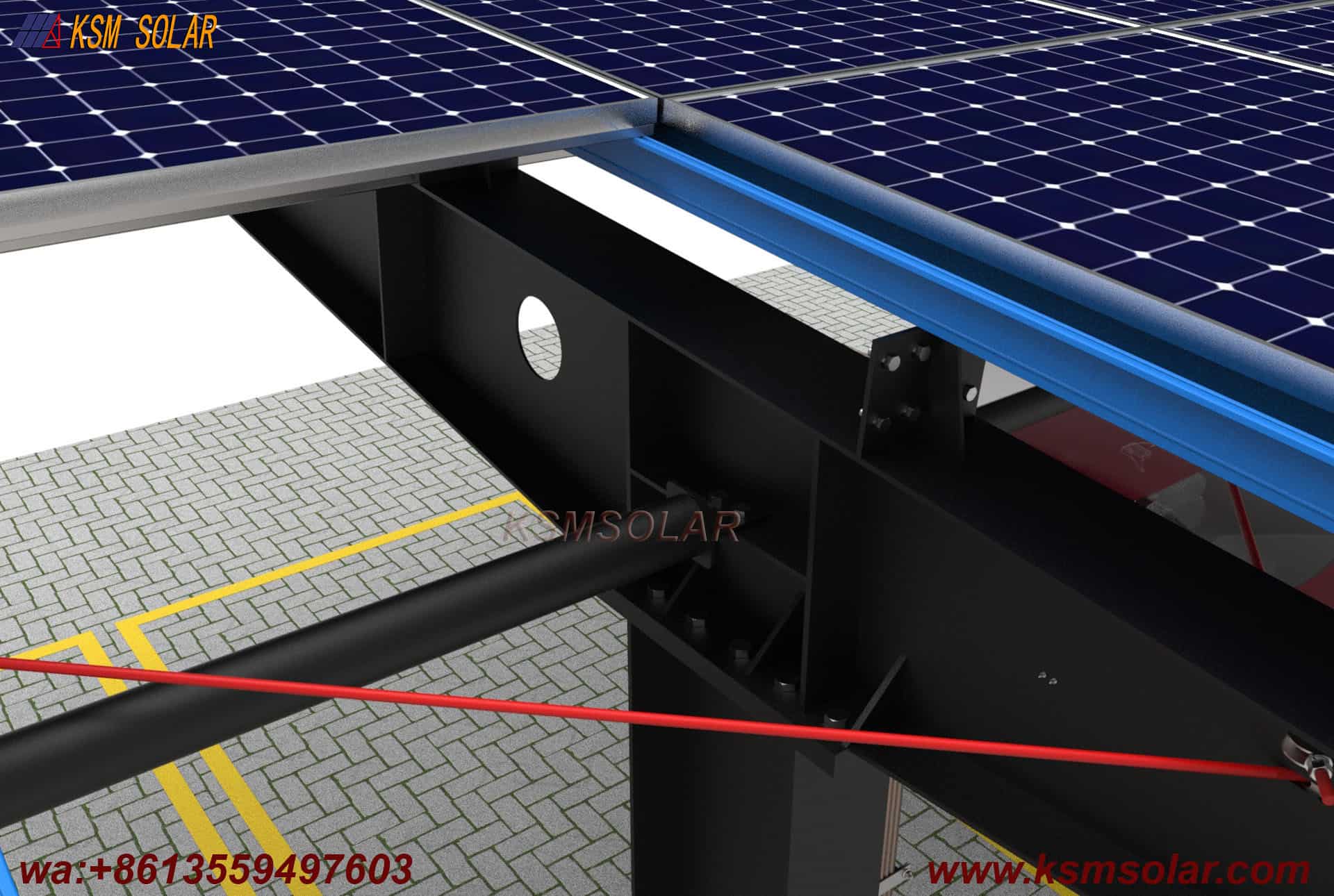

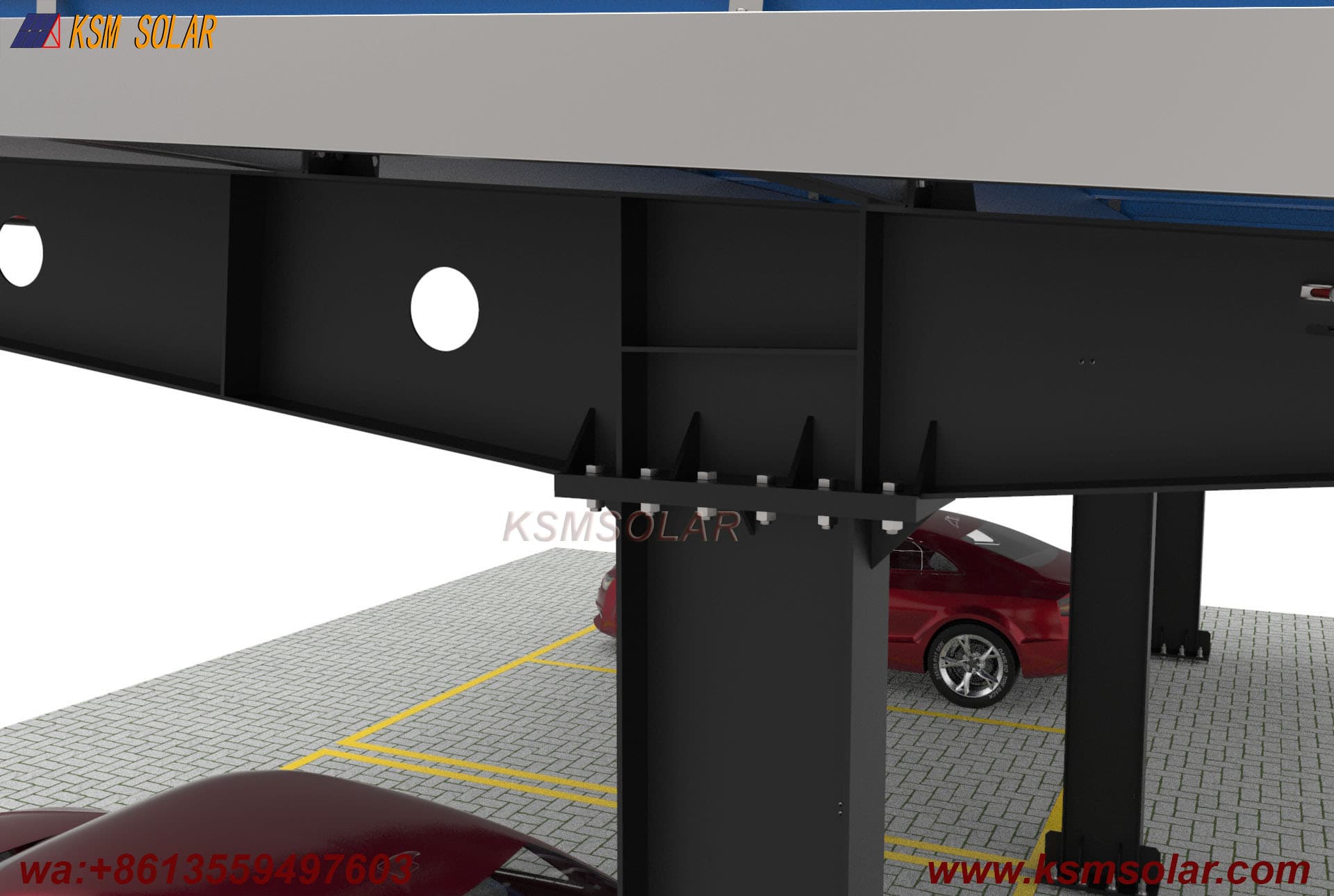

Superior Load-Bearing Capacity: The hot-rolled H-beam acts as the central structural spine, offering an outstanding strength-to-weight ratio and exceptional resistance to bending and torsional forces. This allows it to support a wide-span photovoltaic canopy with just a single-point foundation, optimizing usable parking space.

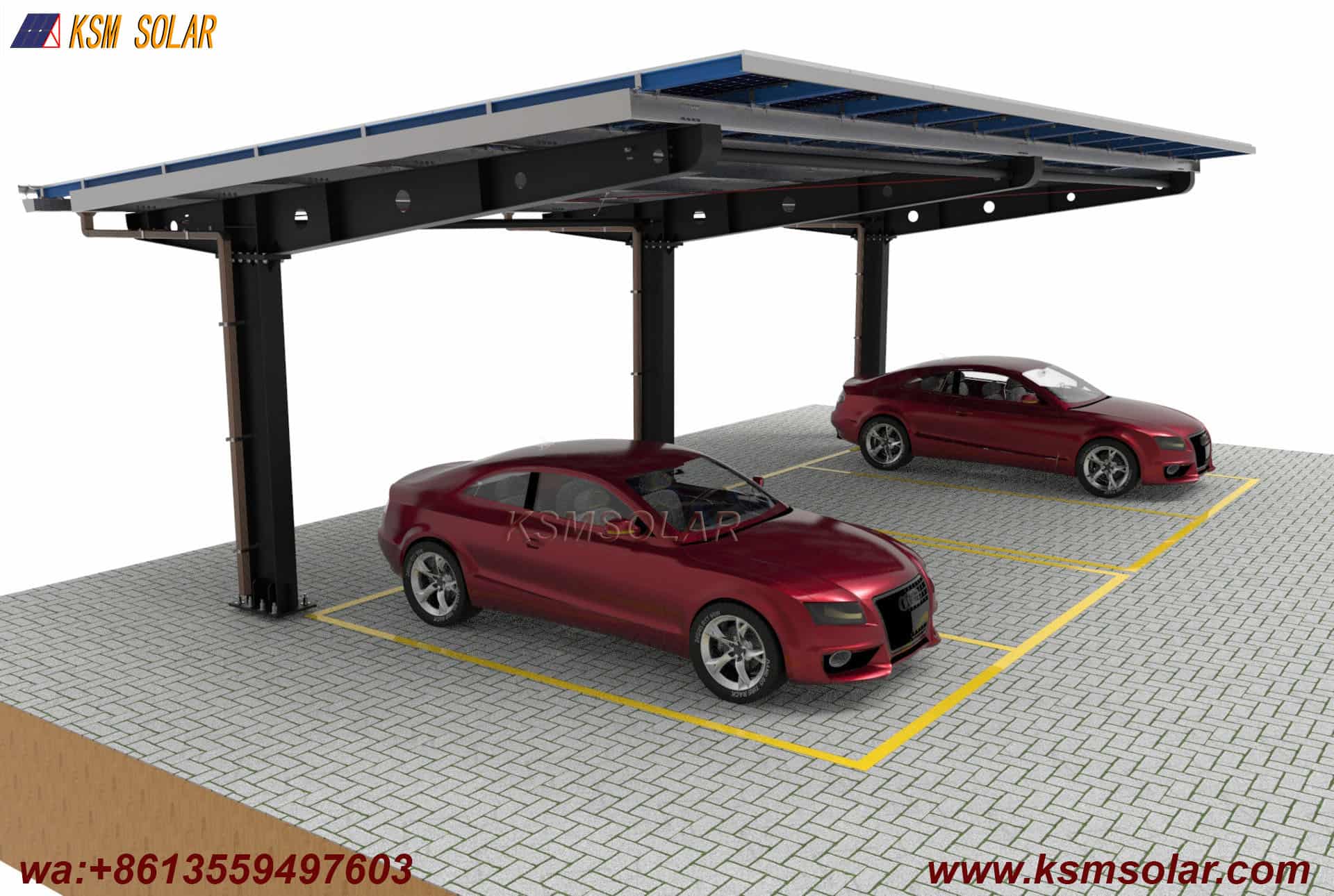

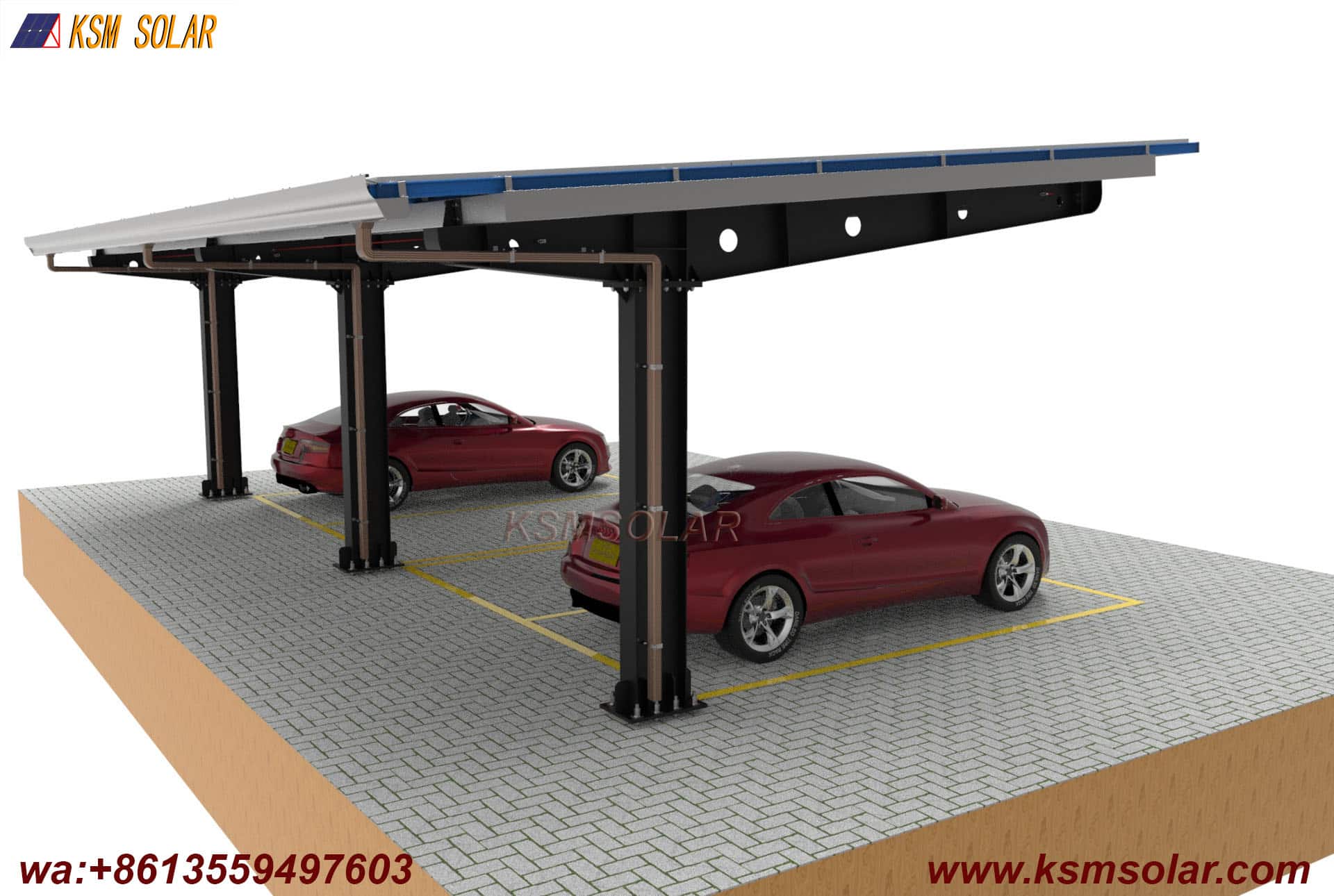

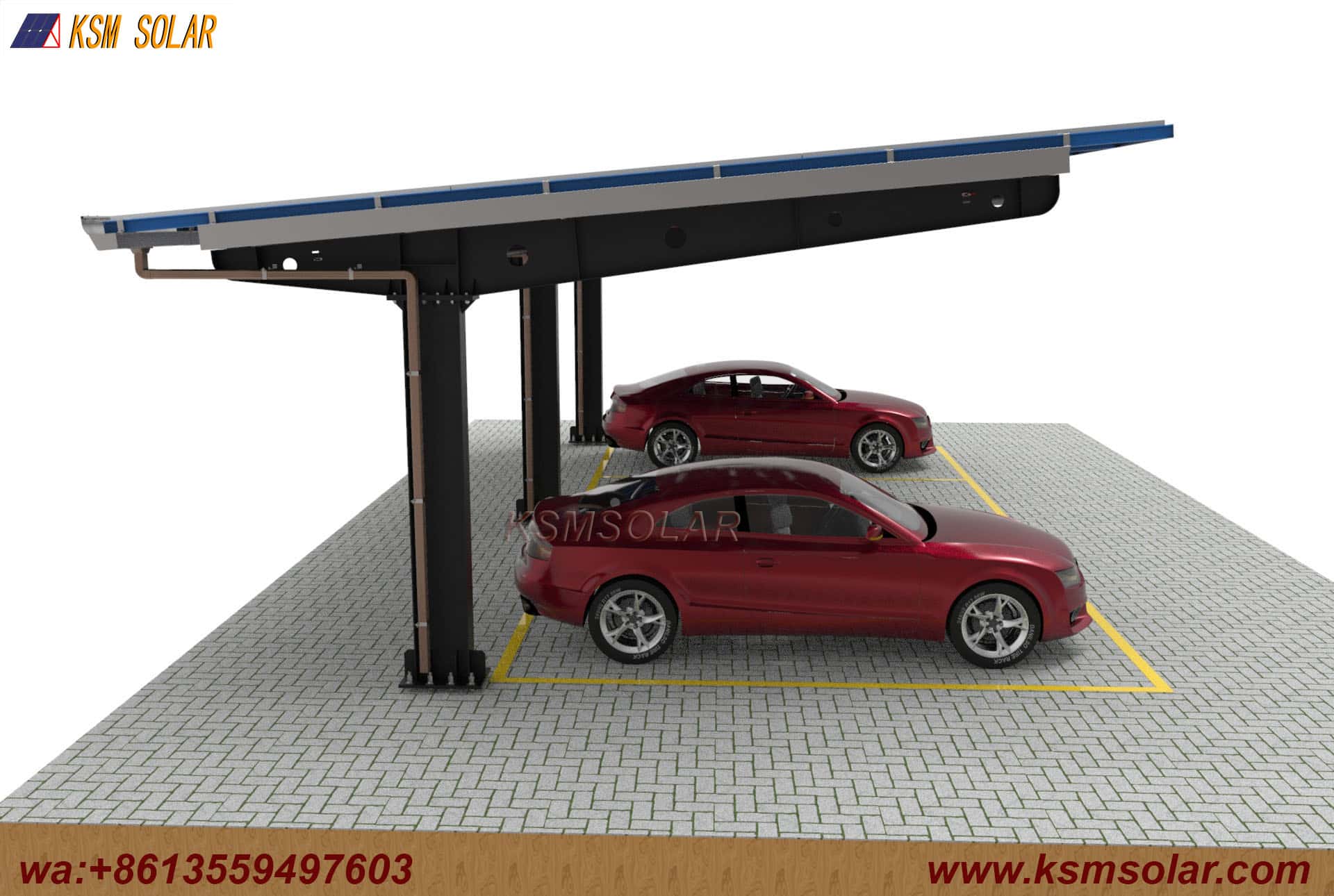

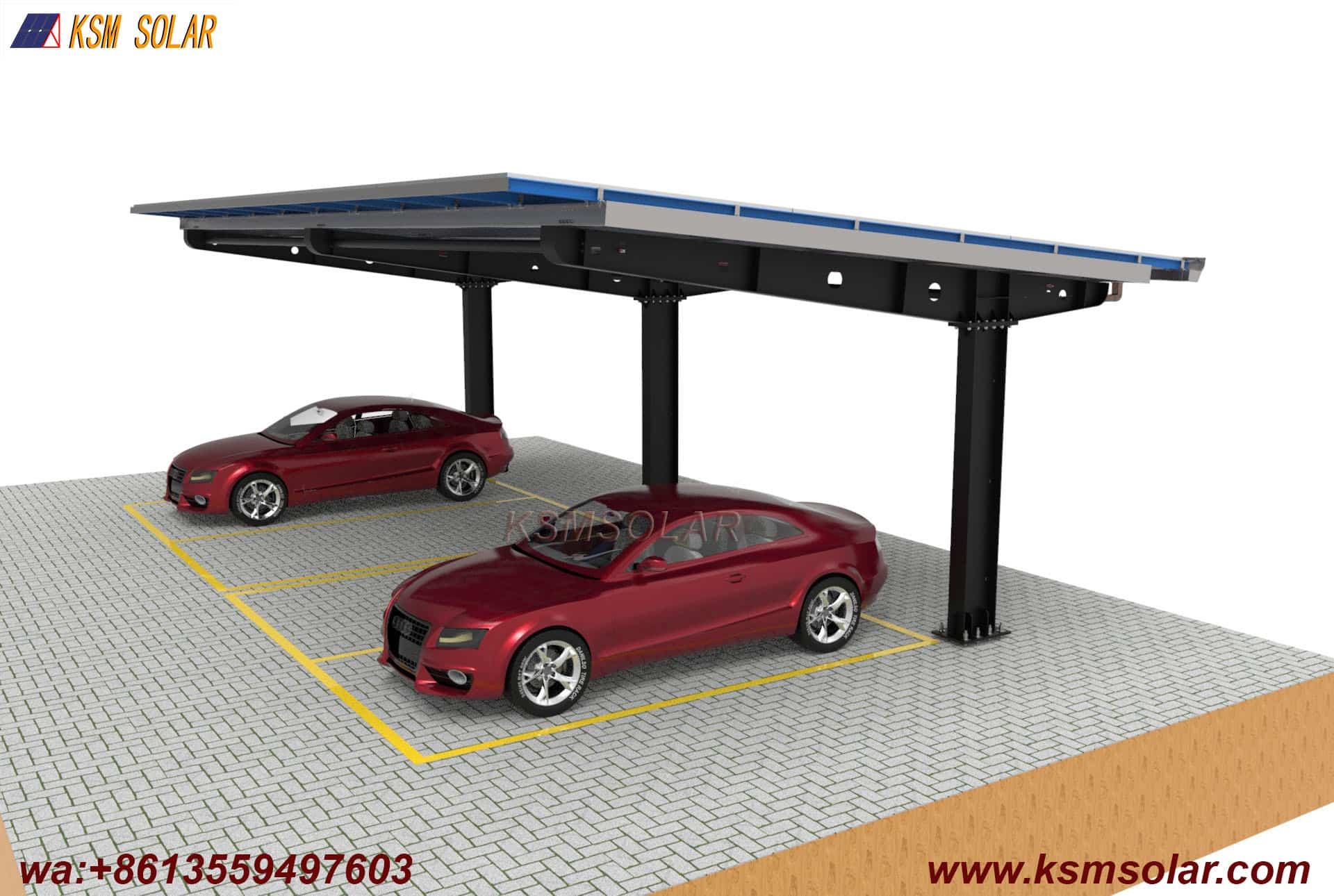

Space-Efficient Layout: The single-column design minimizes ground obstruction, ensuring maximum vehicle maneuverability and simplifying site layout. It is particularly effective in areas with limited space or where a clean, uncluttered aesthetic is desired.

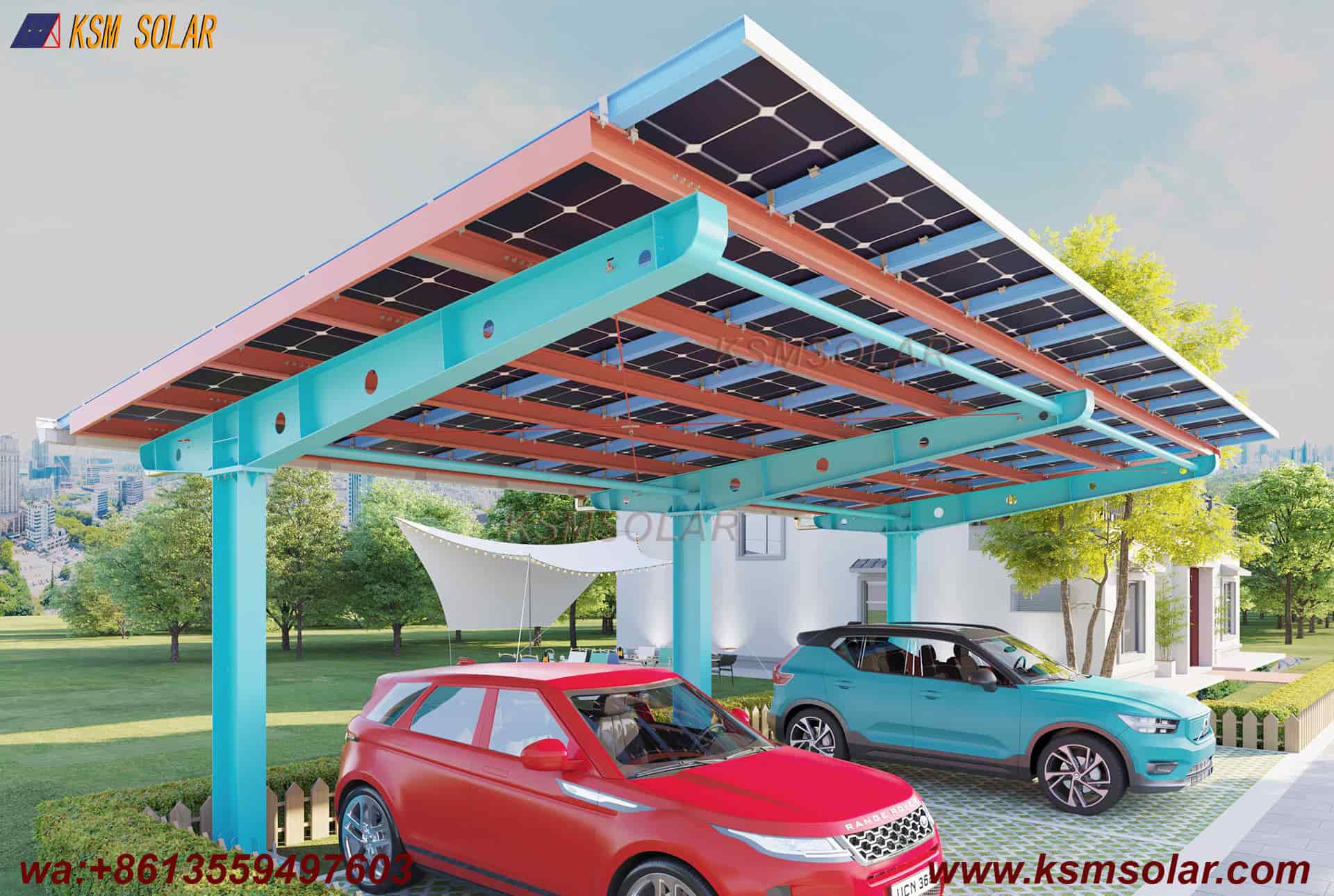

Engineered for Stability: When combined with a cantilevered or asymmetrical roof design, the H-beam column provides reliable stability against wind, snow, and dynamic loads, ensuring long-term structural integrity.
2. Integrated Waterproof Canopy System

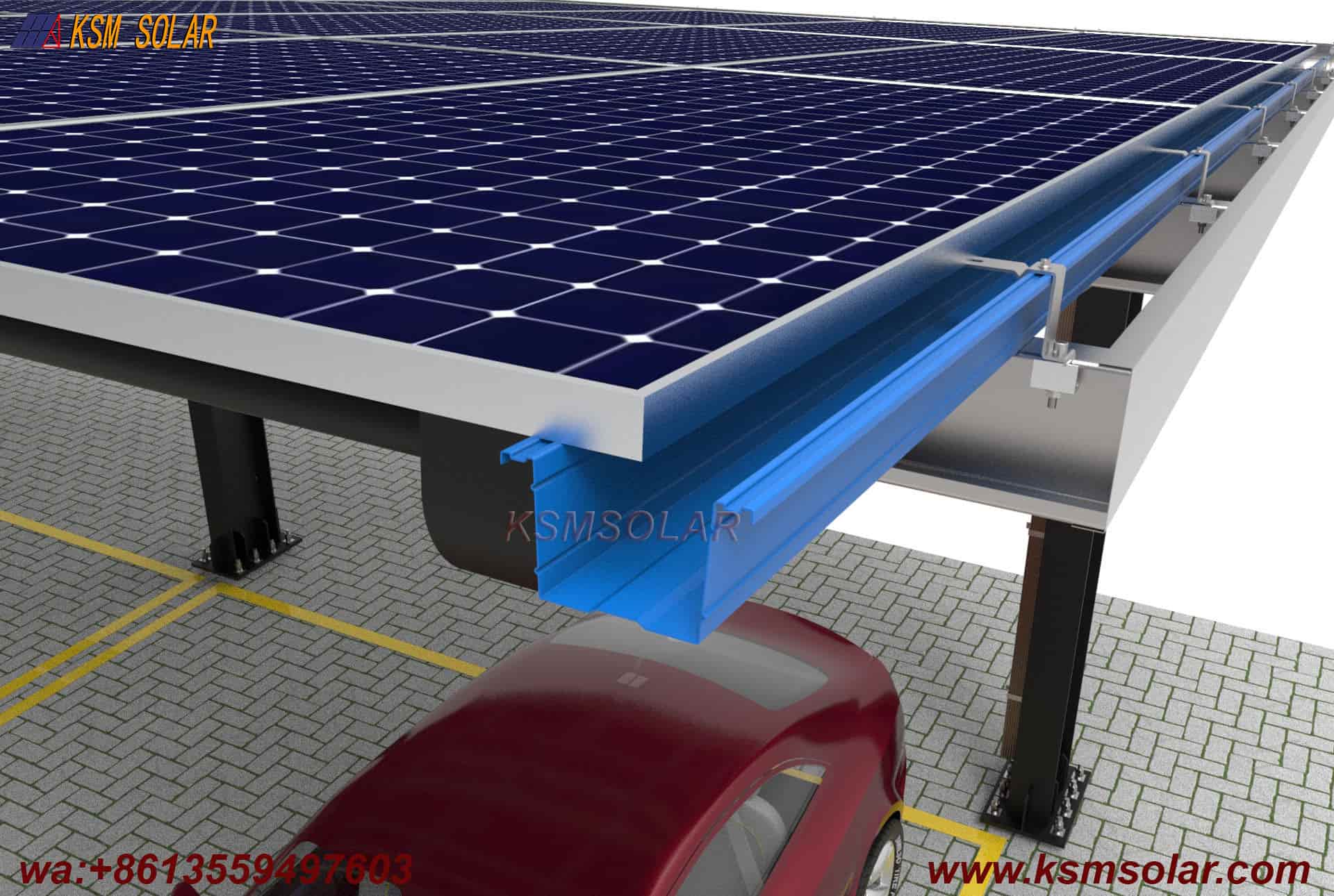

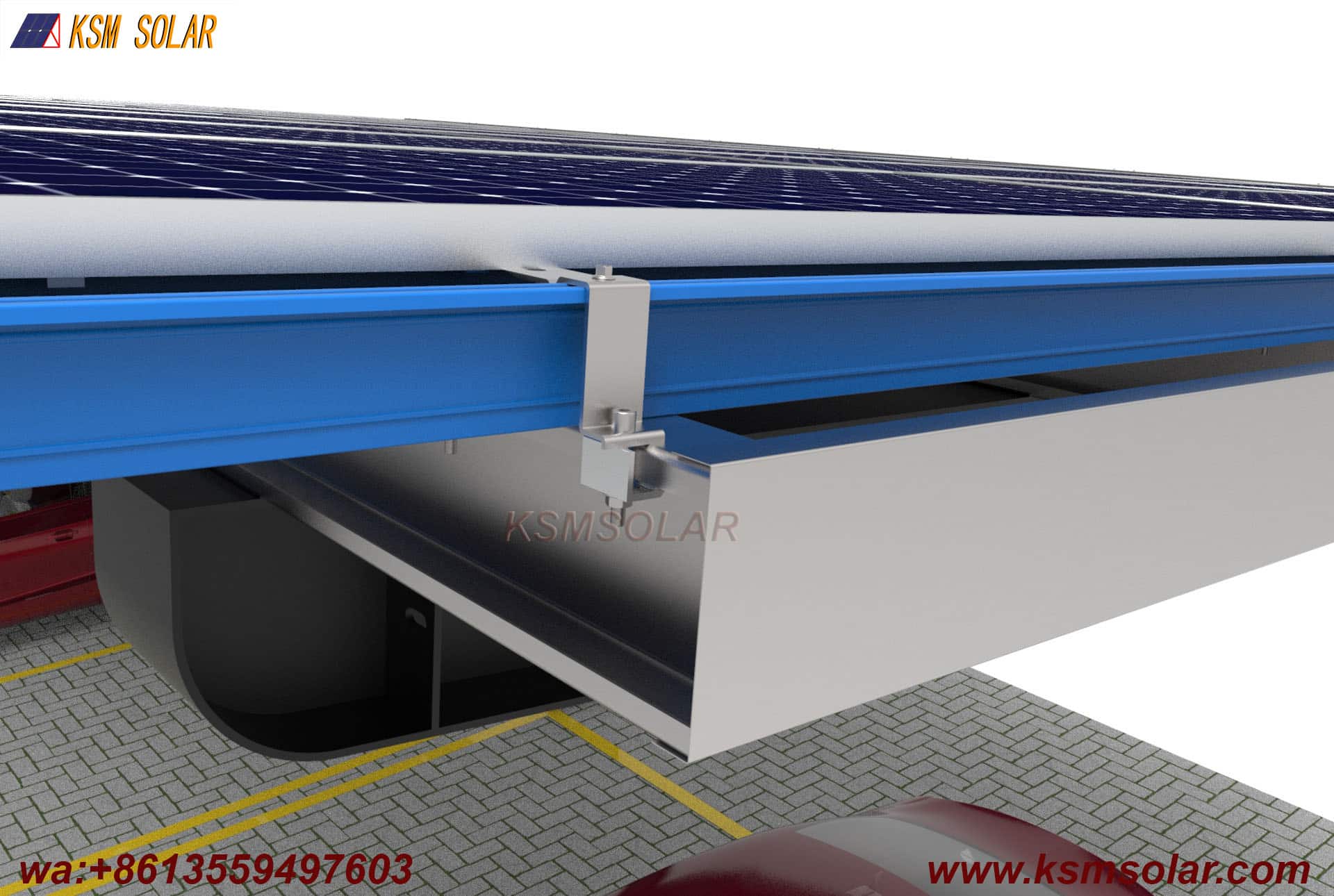

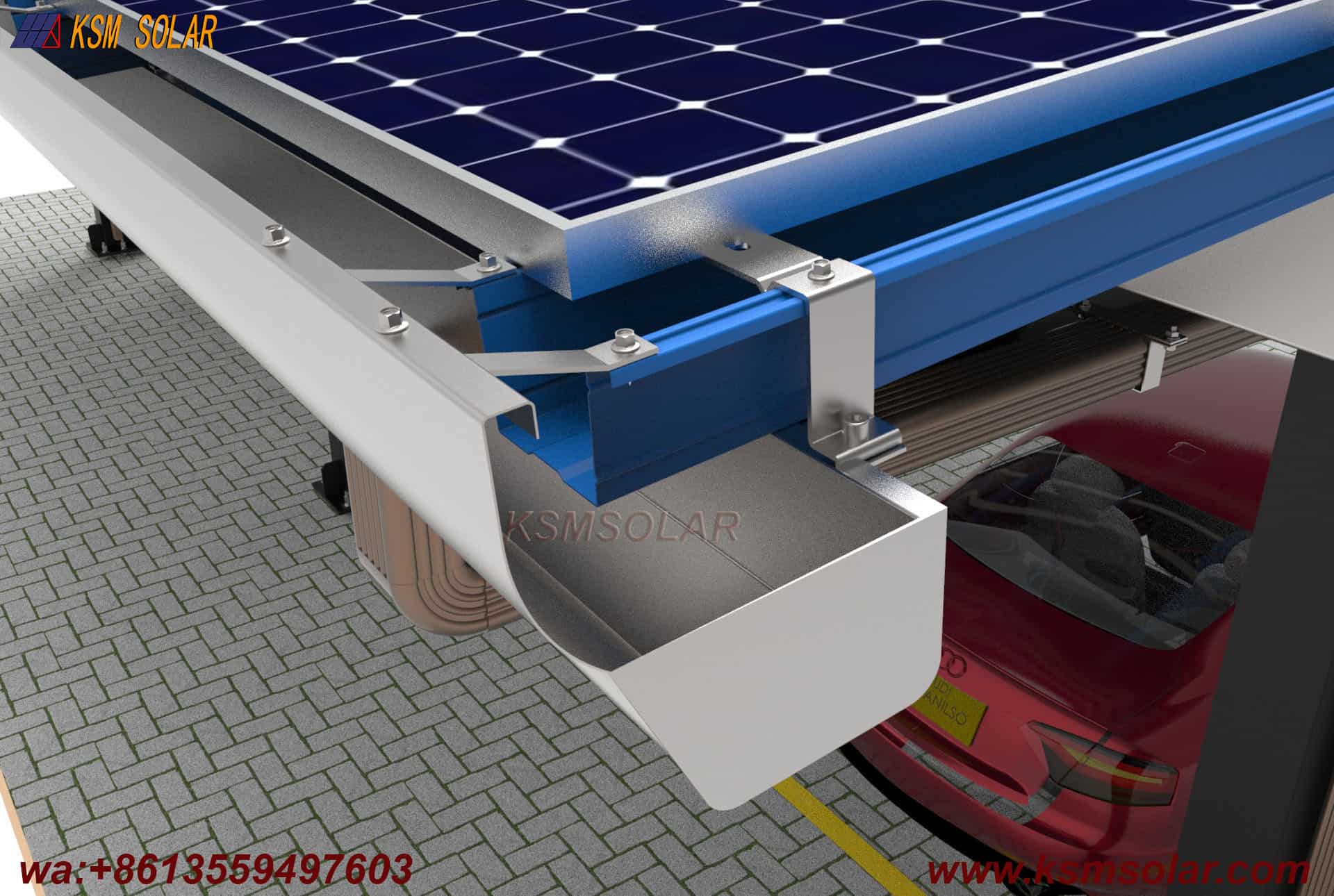

Complete Weather Protection: Unlike standard open-frame carports, this system features a fully sealed, waterproof roofing layer (such as standing-seam metal panels or integrated PV-rainproof membranes) beneath or integrated with the solar panels. This ensures that the sheltered area remains completely dry, protecting vehicles and equipment from rain, snow, and debris.
Enhanced Corrosion Protection: The entire structure, including the H-beam column and roofing system, is manufactured from hot-dip galvanized or aluminum-zinc alloy coated steel, providing robust resistance to rust and environmental degradation.
Dual-Function Energy & Shelter: The design seamlessly merges a high-efficiency solar power generation platform with a fully functional, weatherproof shelter, maximizing return on investment.
3. Streamlined Fabrication & Installation

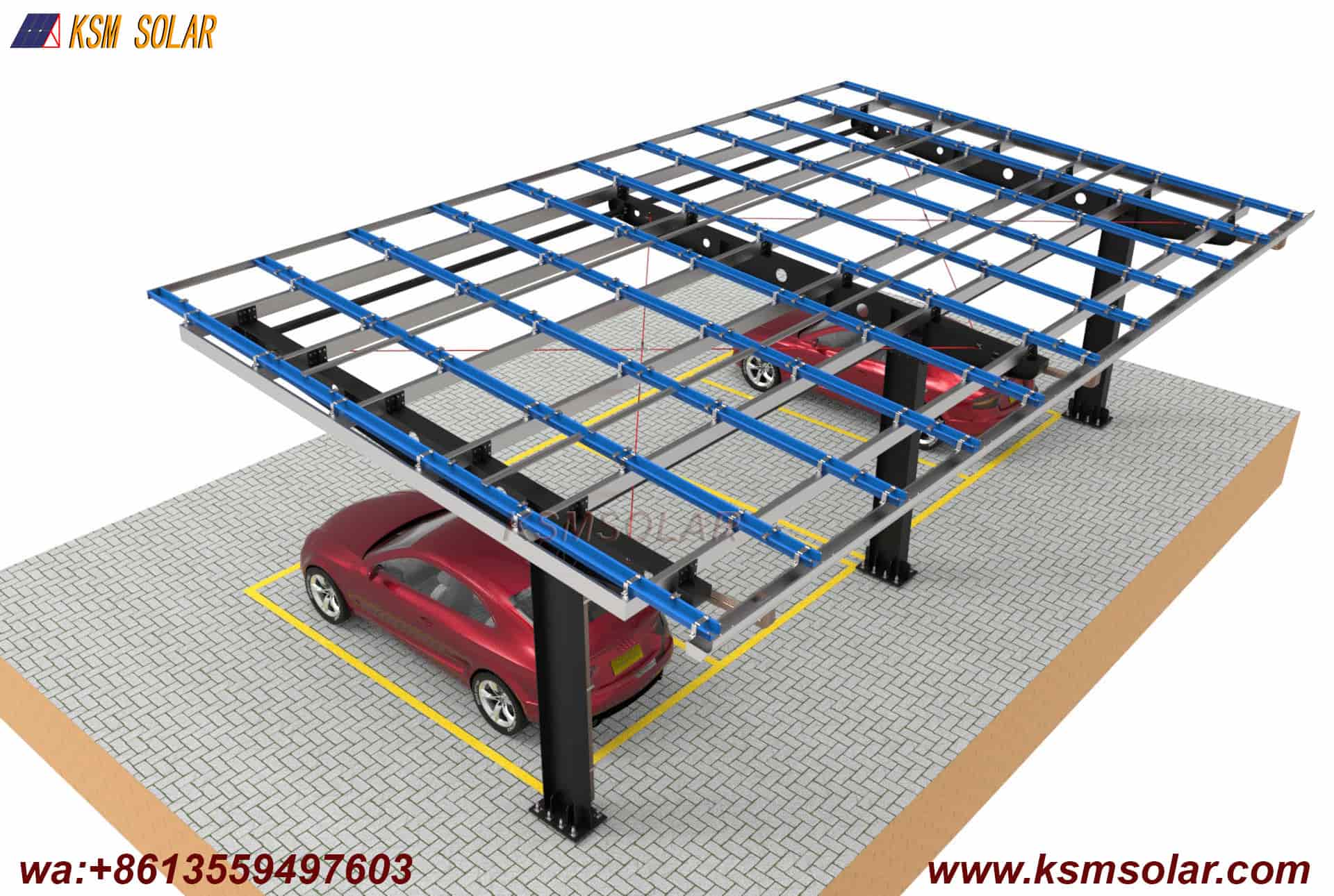

Pre-Engineered Modular Components: The primary H-beam column and pre-assembled roof modules are factory-fabricated to precise specifications, ensuring rapid bolt-together on-site assembly with minimal heavy equipment or specialized labor.

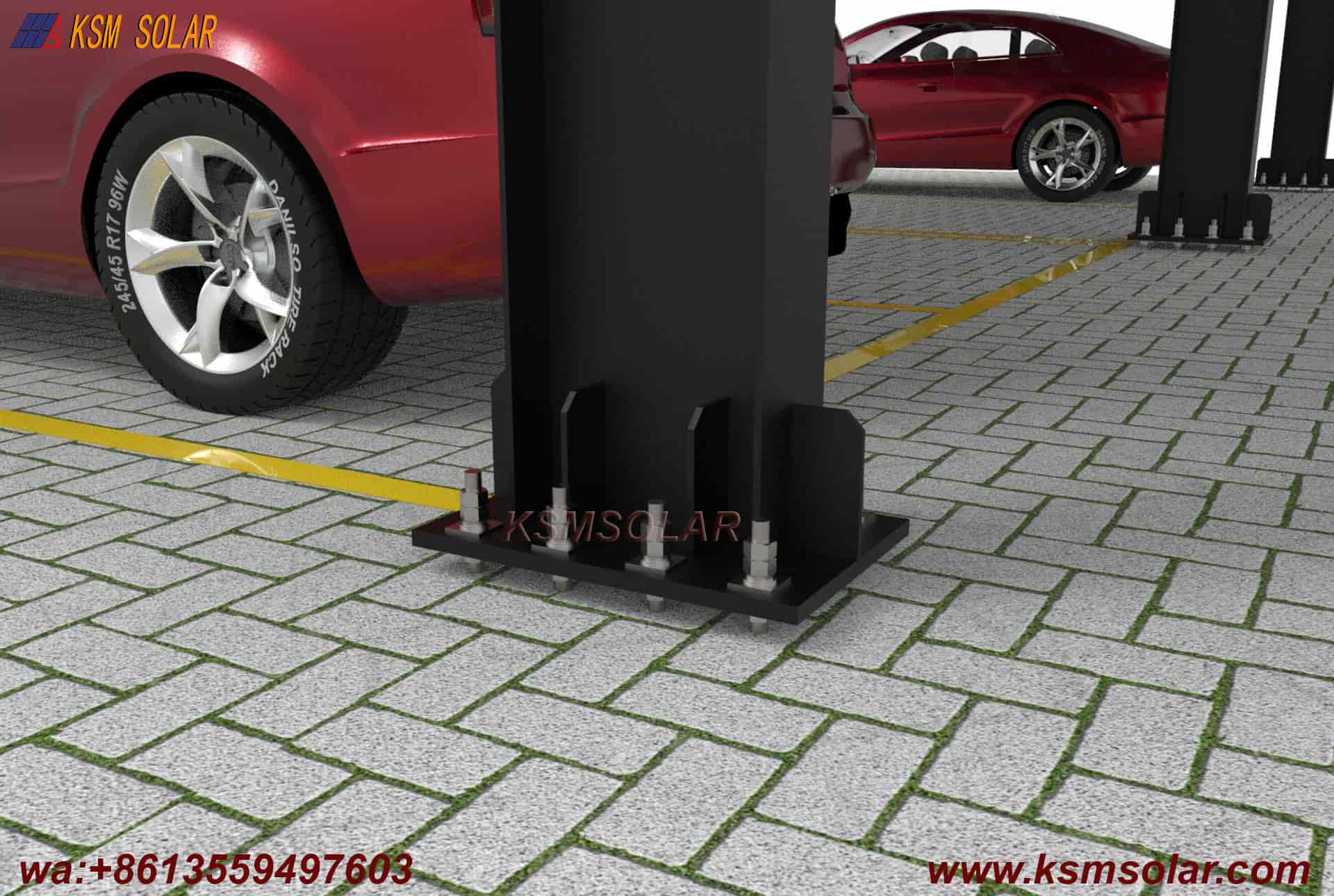

Simplified Foundation Work: The single-column design requires only one primary foundation point, significantly reducing concrete work, excavation time, and overall construction complexity.

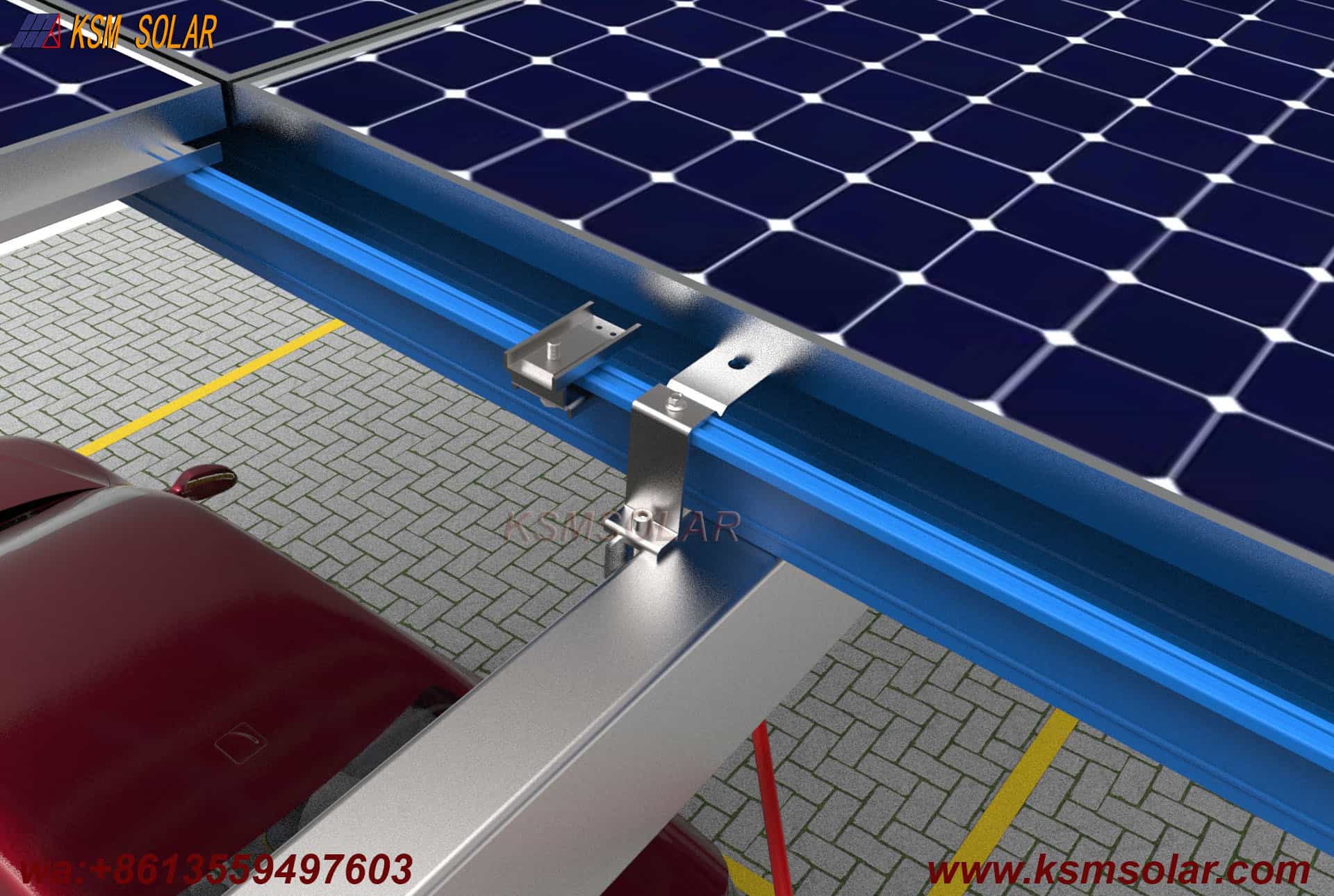

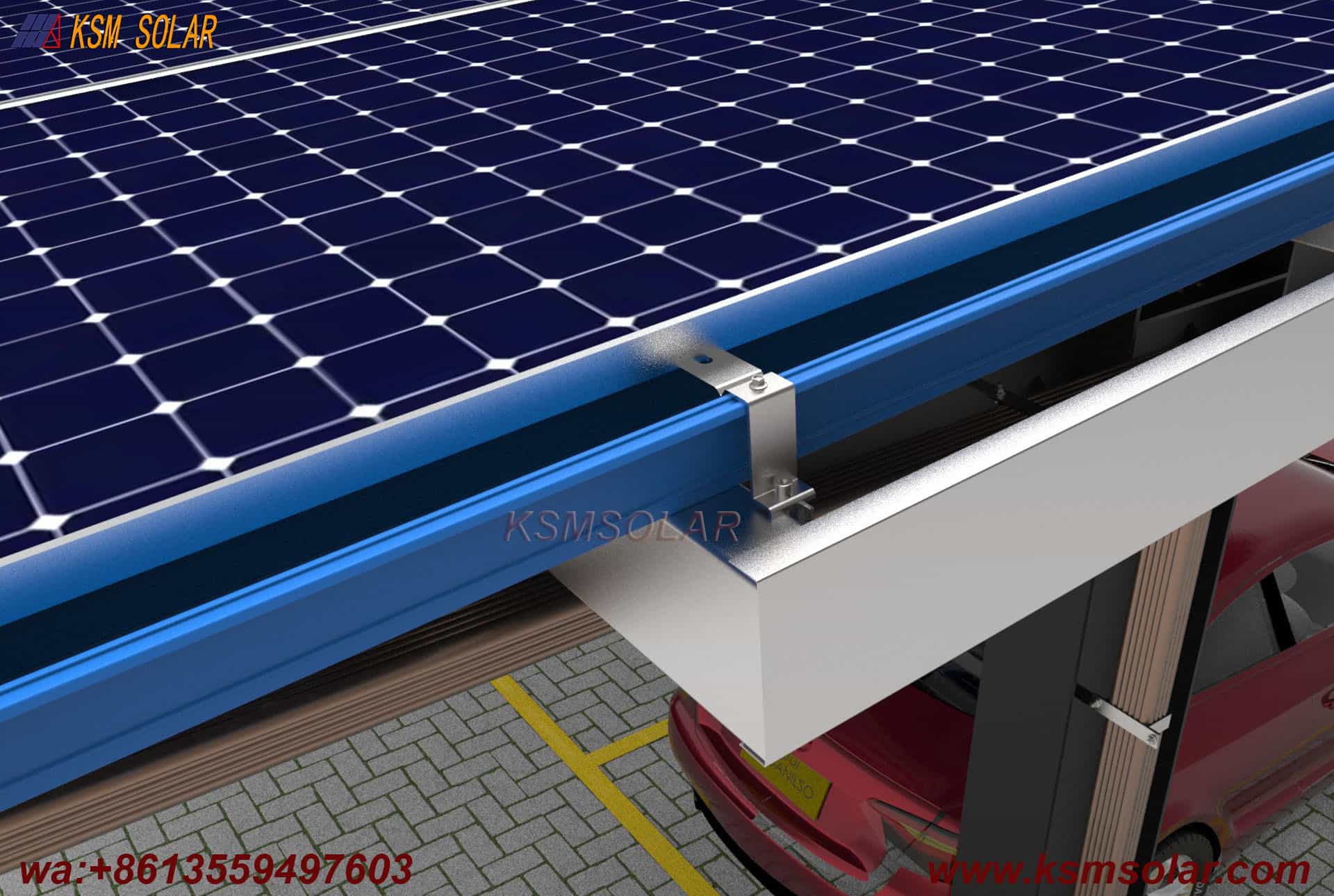

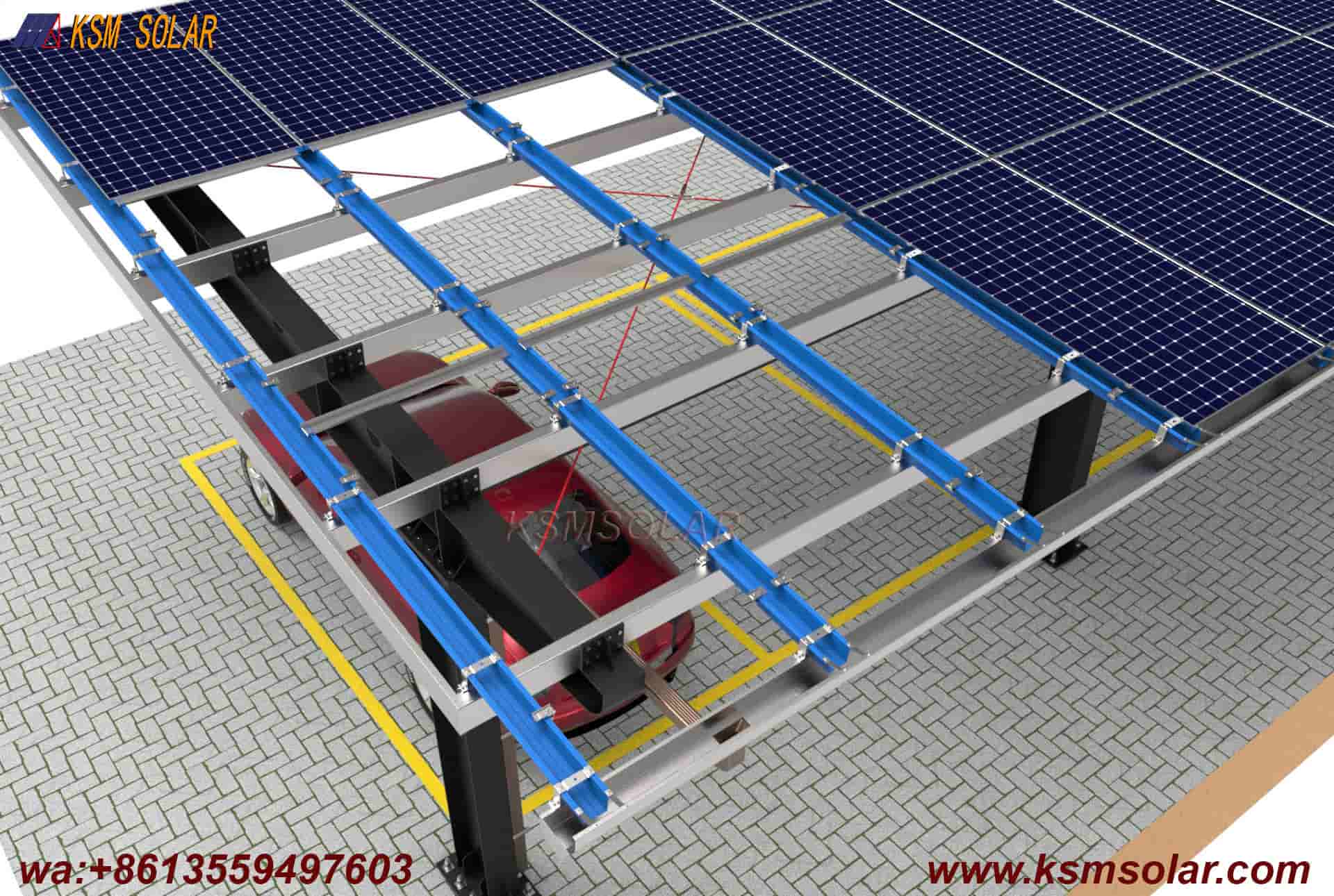

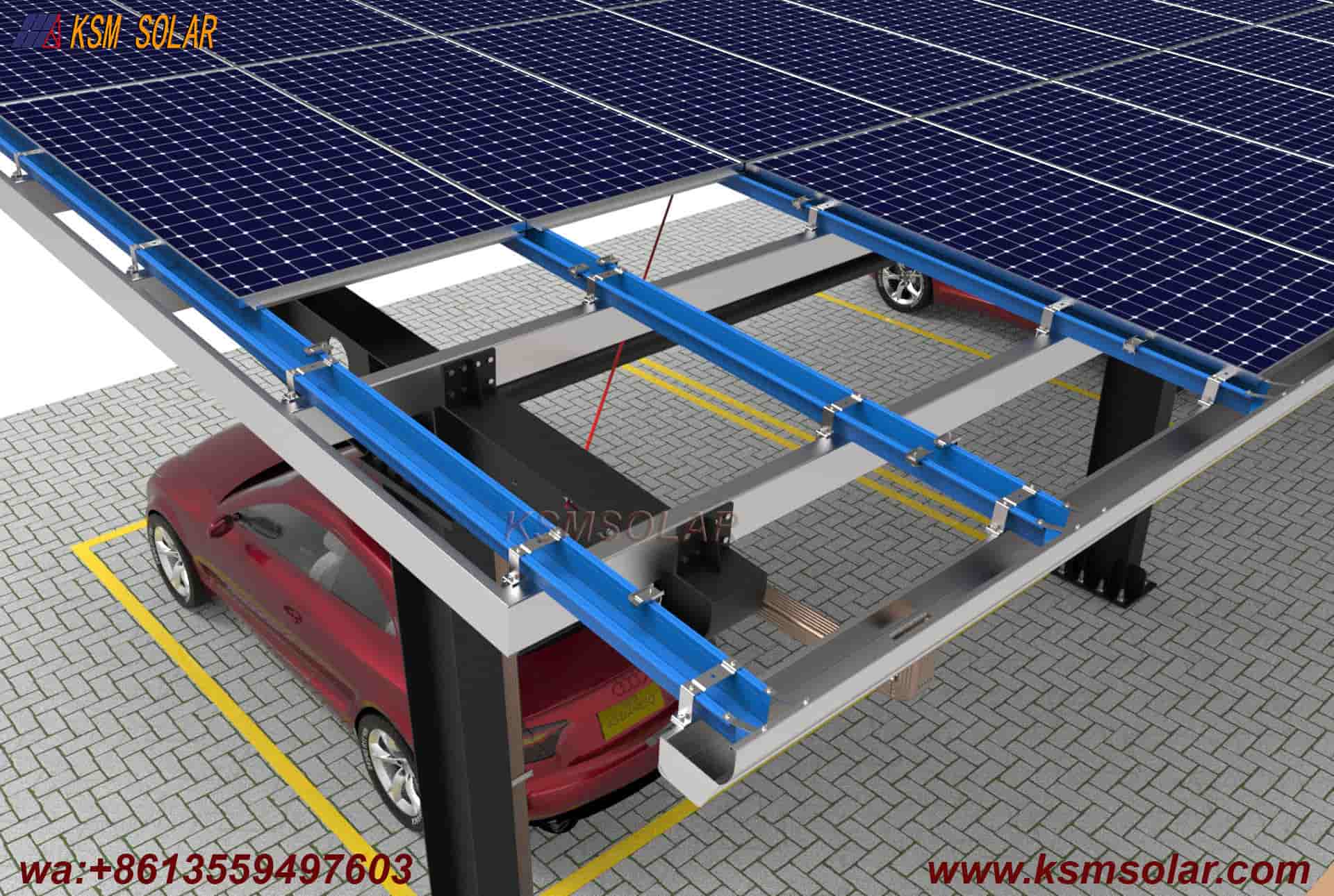

Plug-and-Play PV Integration: The waterproof canopy is designed with integrated mounting rails or brackets, allowing for quick and secure installation of solar panels without compromising the weather seal.
4. Performance & Functional Benefits
Optimized for Tight Spaces: Ideal for driveways, compact commercial lots, or roadside installations where a traditional multi-column carport is not feasible.
Professional Aesthetic: The sleek, modern profile of the H-beam column combined with a clean, sealed roof presents a highly professional and architecturally refined appearance.
Ready for Smart Upgrades: The sturdy structure easily supports add-ons such as LED lighting, surveillance systems, and EV charging stations, making it a future-ready infrastructure asset.
Material: | Q235B/Q355B |
Standard: | ASCE7-10/EU/JISC8955-2017 |
Surface Treatment: | Hot-Dip Galvanized/Spray Paint |
Wind Load: | 0-60m/s |
Snow load | 0-150cm |
Warranty | 10 Years |
Service Life | 25 Years |
