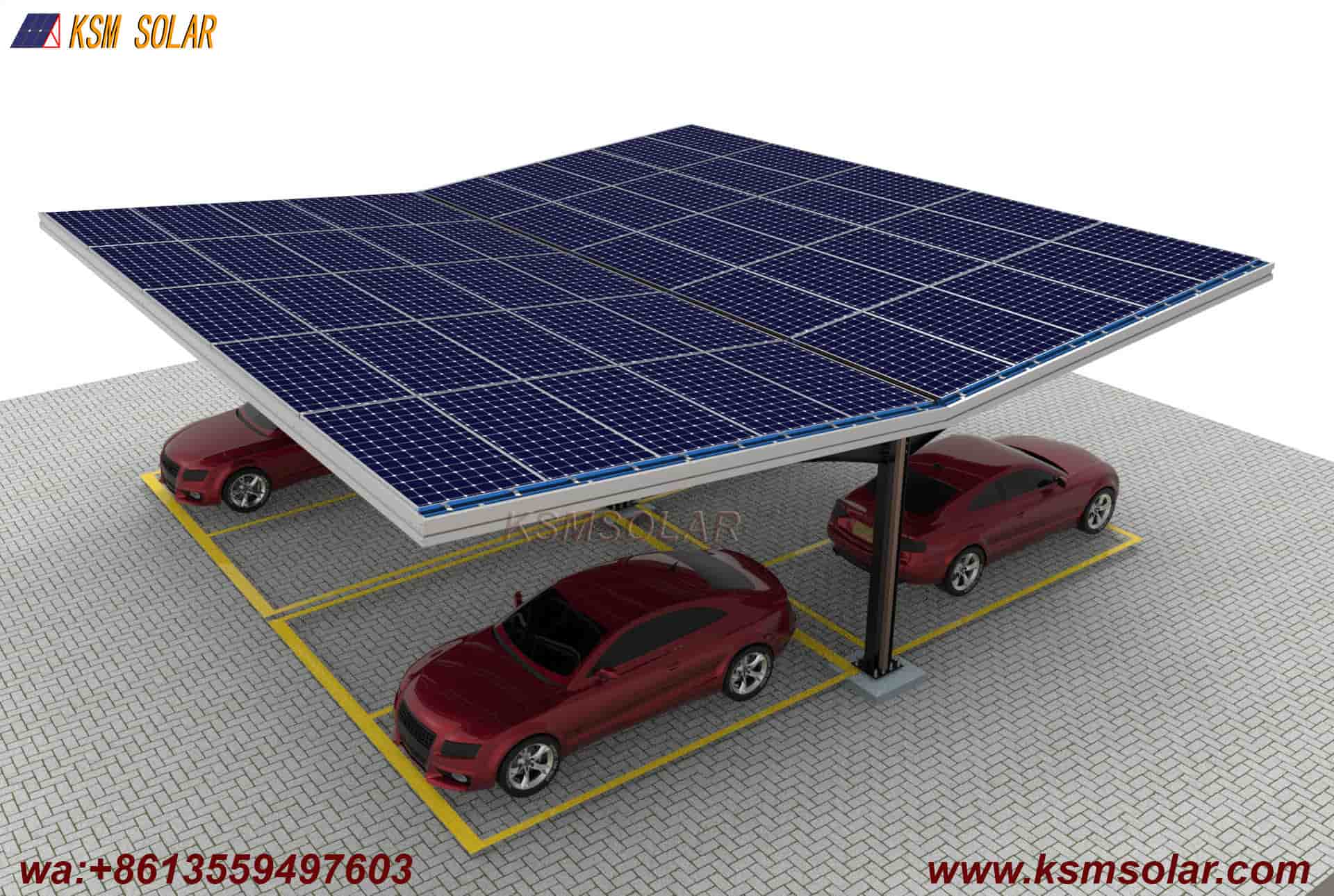

H-Beam Single-Column Dual-Inclined Photovoltaic Carport represents a sophisticated fusion of structural strength, smart energy design, and architectural elegance. Featuring a single, high-capacity H-beam central column supporting two opposing inclined PV arrays, this system maximizes solar exposure, space utilization, and load management in a streamlined and visually striking configuration.

Key Features & Advantages:

1. Dual-Inclined Array Design for Enhanced Energy Capture

• Optimized Bi-Directional Sun Exposure: The two opposing inclined planes are precisely angled to capture sunlight effectively from both east-west or south-north orientations, extending energy production periods and increasing daily power yield by up to 25–40% compared to single-slope designs.

• Efficient Rainwater Runoff & Self-Cleaning: Each inclined surface promotes natural water drainage and reduces debris accumulation, ensuring consistent PV performance with minimal maintenance.

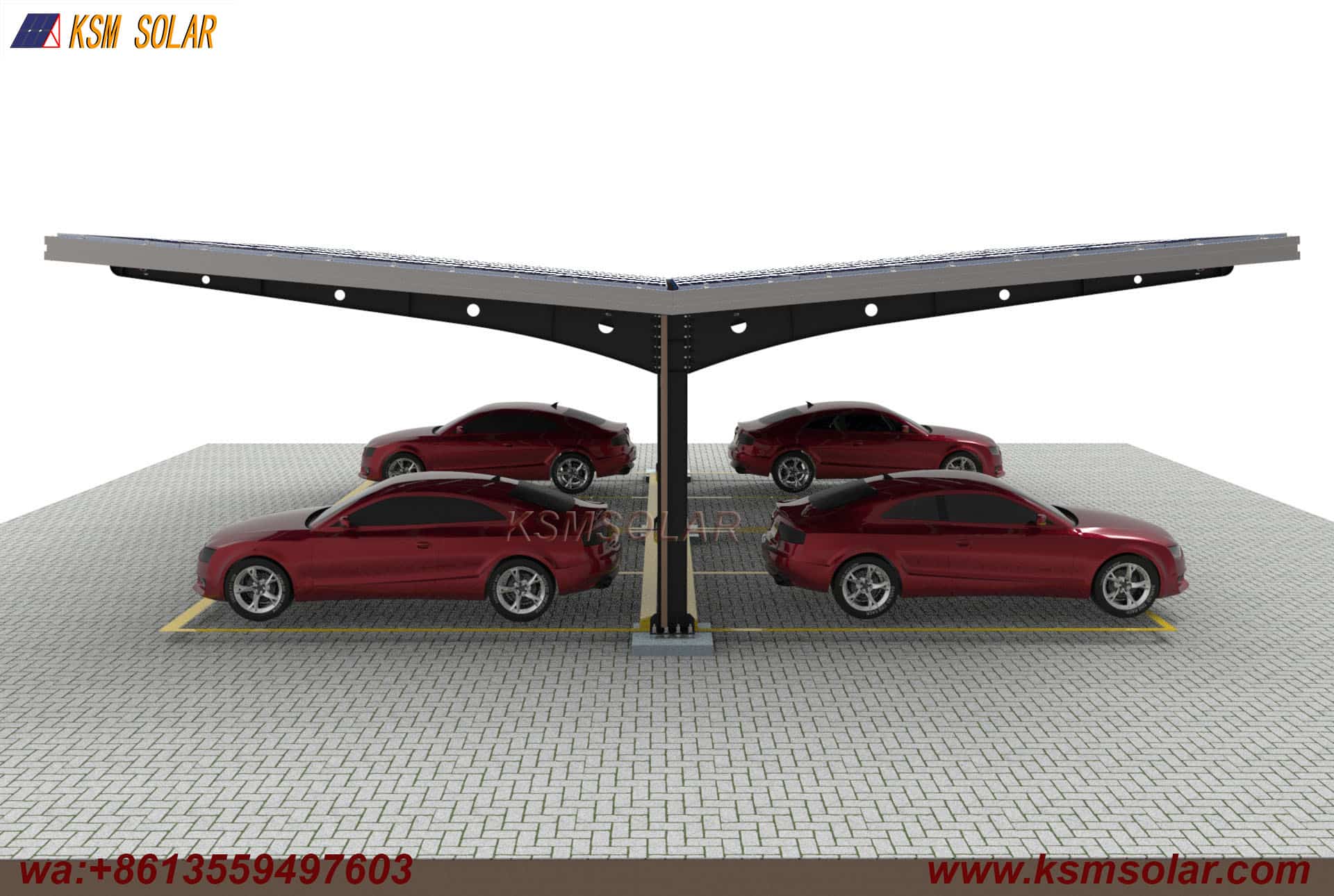

• Balanced Wind Load Resistance: The symmetrical dual-slope configuration helps distribute wind pressure evenly, enhancing aerodynamic stability in exposed or high-wind locations.

2. High-Strength H-Beam Central Column Structure

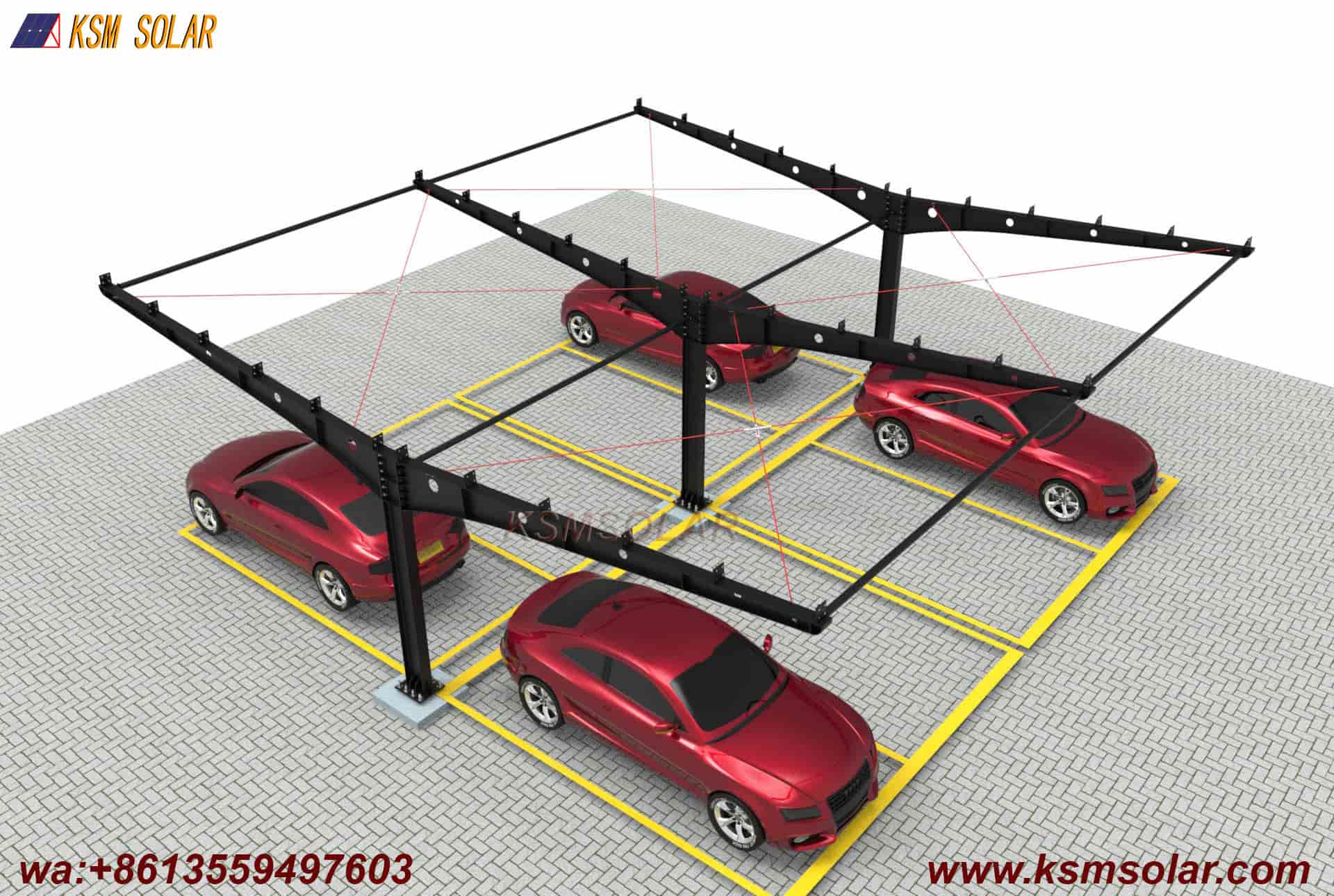

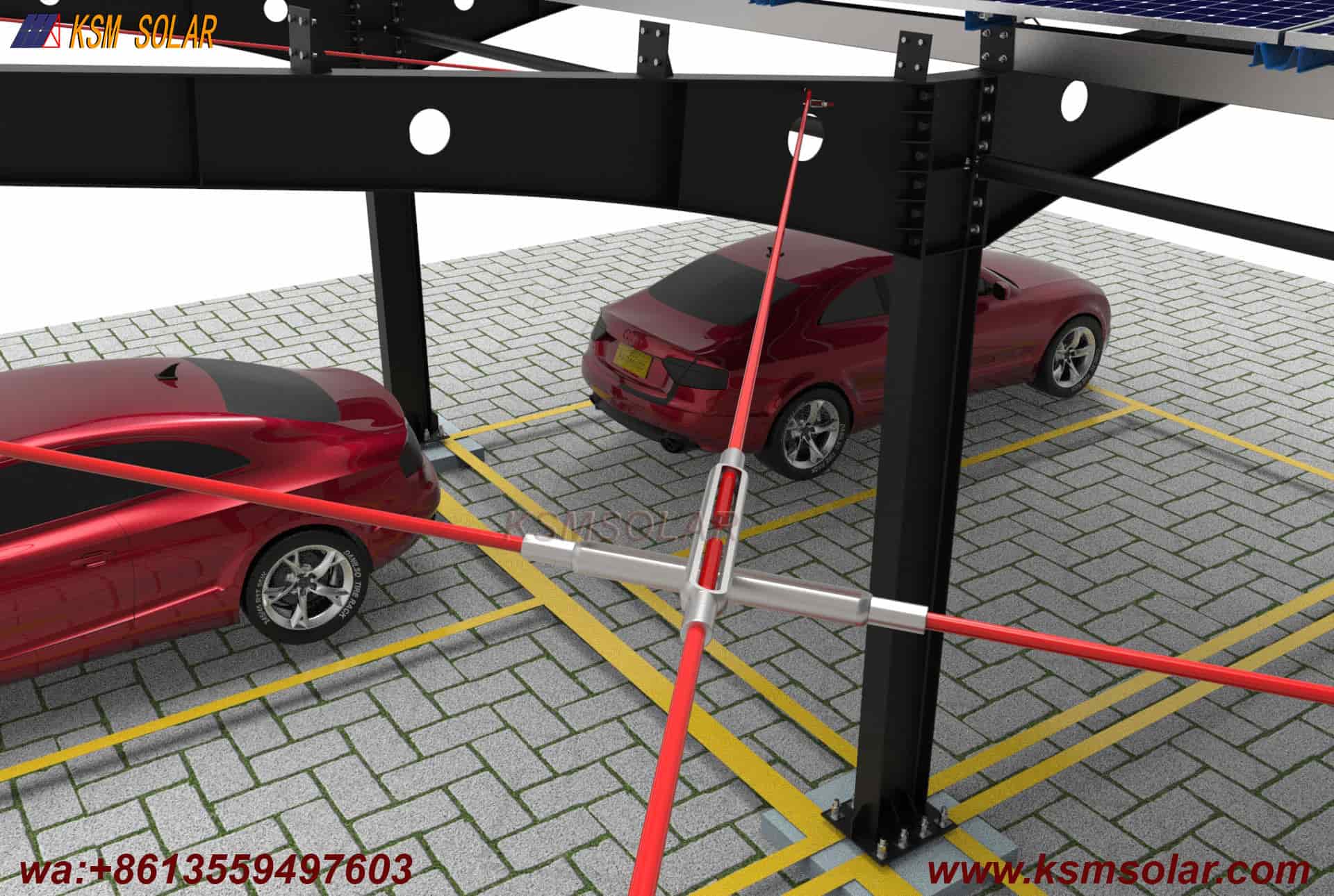

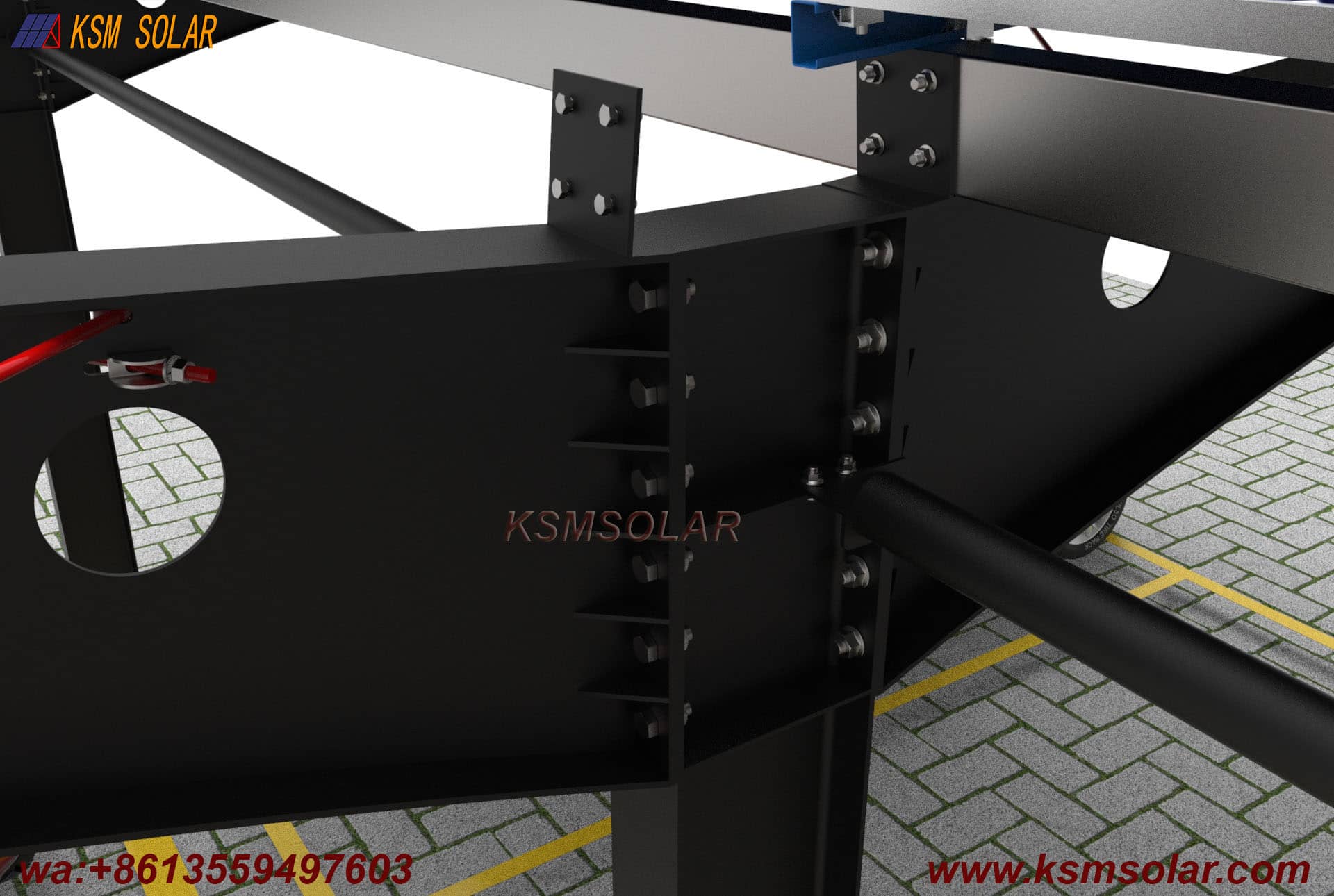

• Superior Load-Bearing Capacity: The hot-rolled H-beam serves as a robust central spine, providing exceptional bending and torsional resistance. It efficiently supports the dual-sided canopy, enabling wider spans without intermediate columns.

• Space-Optimized Layout: The single-column design minimizes ground obstructions, allowing flexible parking arrangements and easy vehicle access beneath both sides of the carport.

• Long-Term Structural Integrity: Combined with hot-dip galvanizing or advanced alloy coating, the H-beam offers excellent corrosion resistance, ensuring durability in diverse climates.

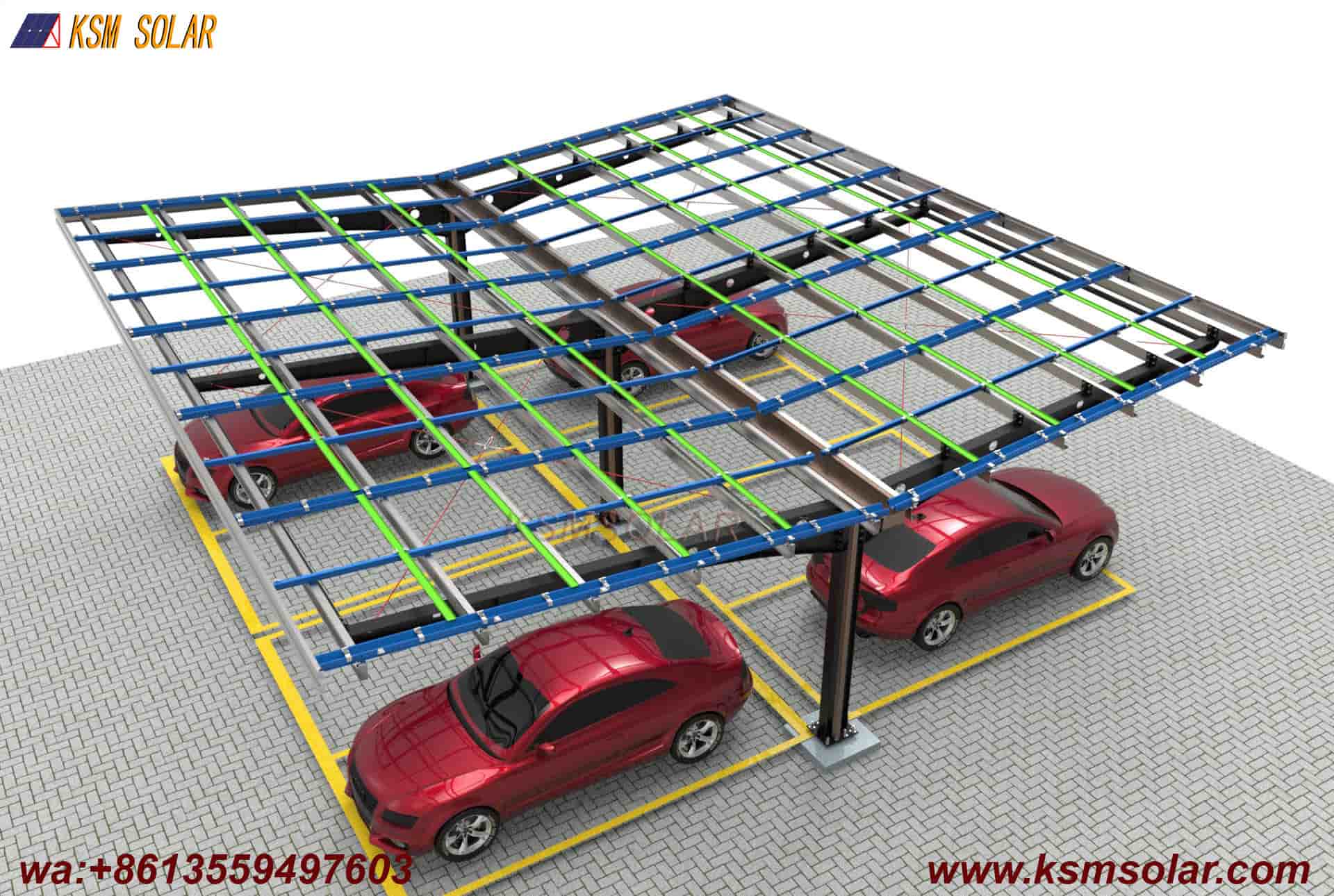

3. Prefabricated Modular System for Efficient Installation

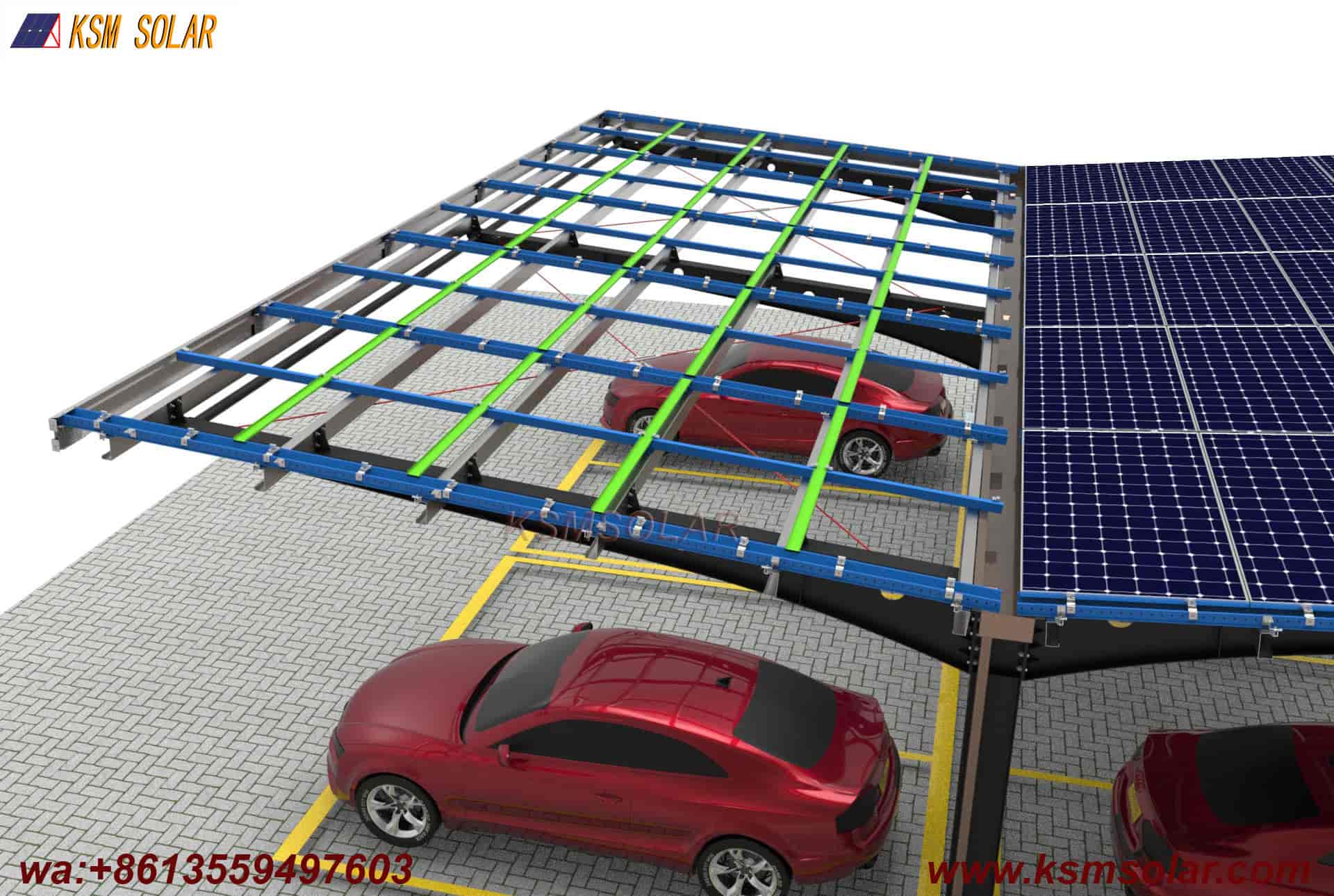

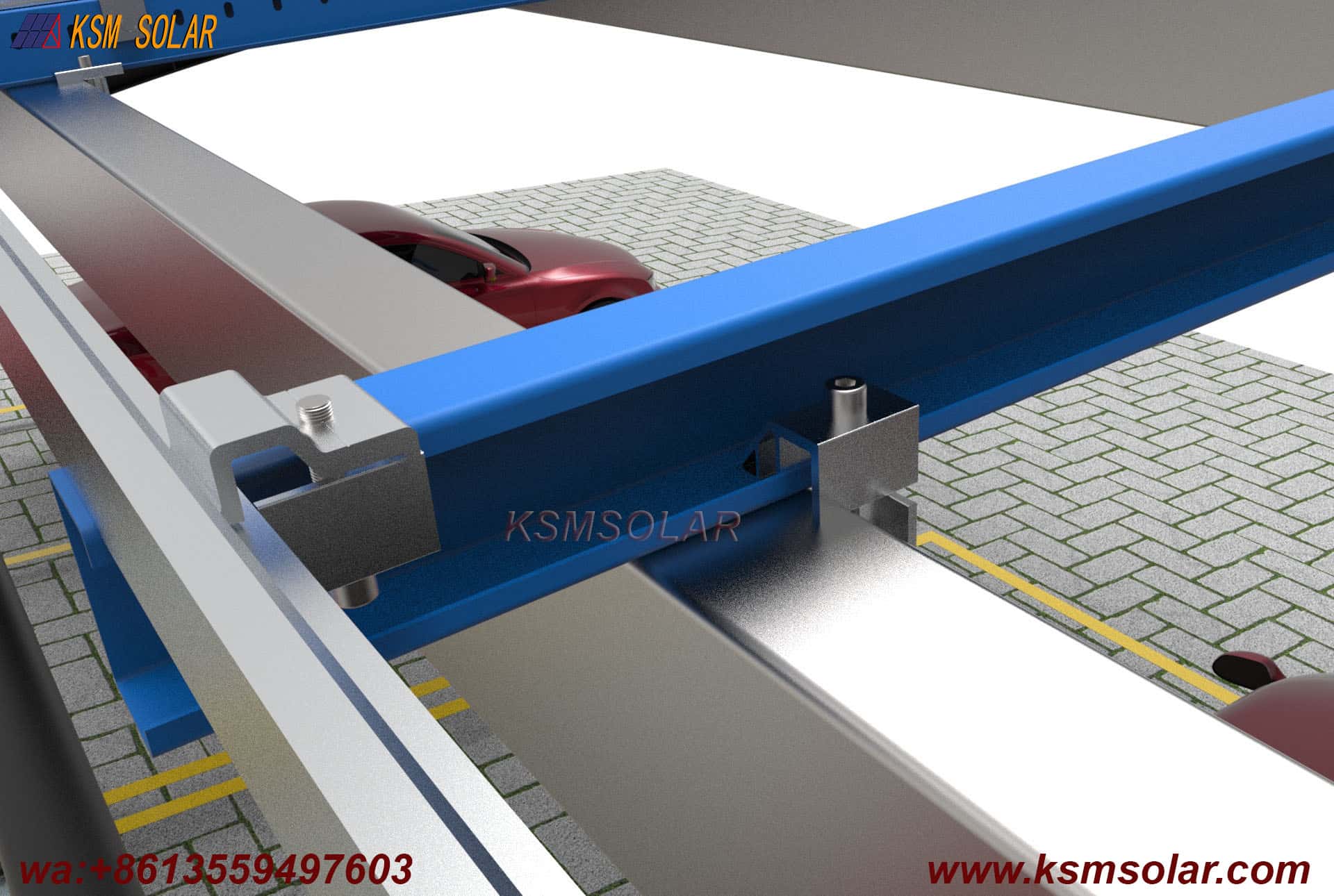

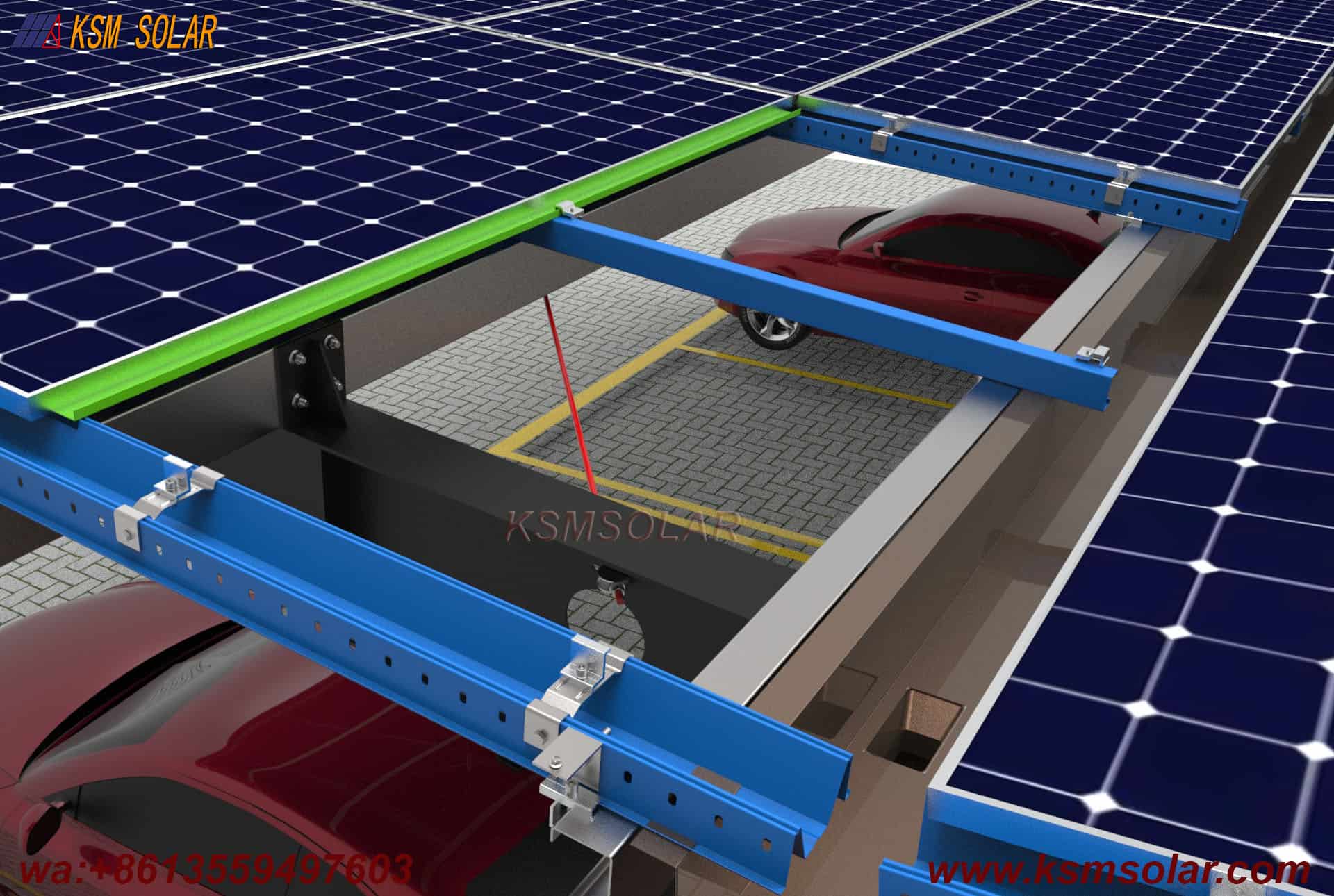

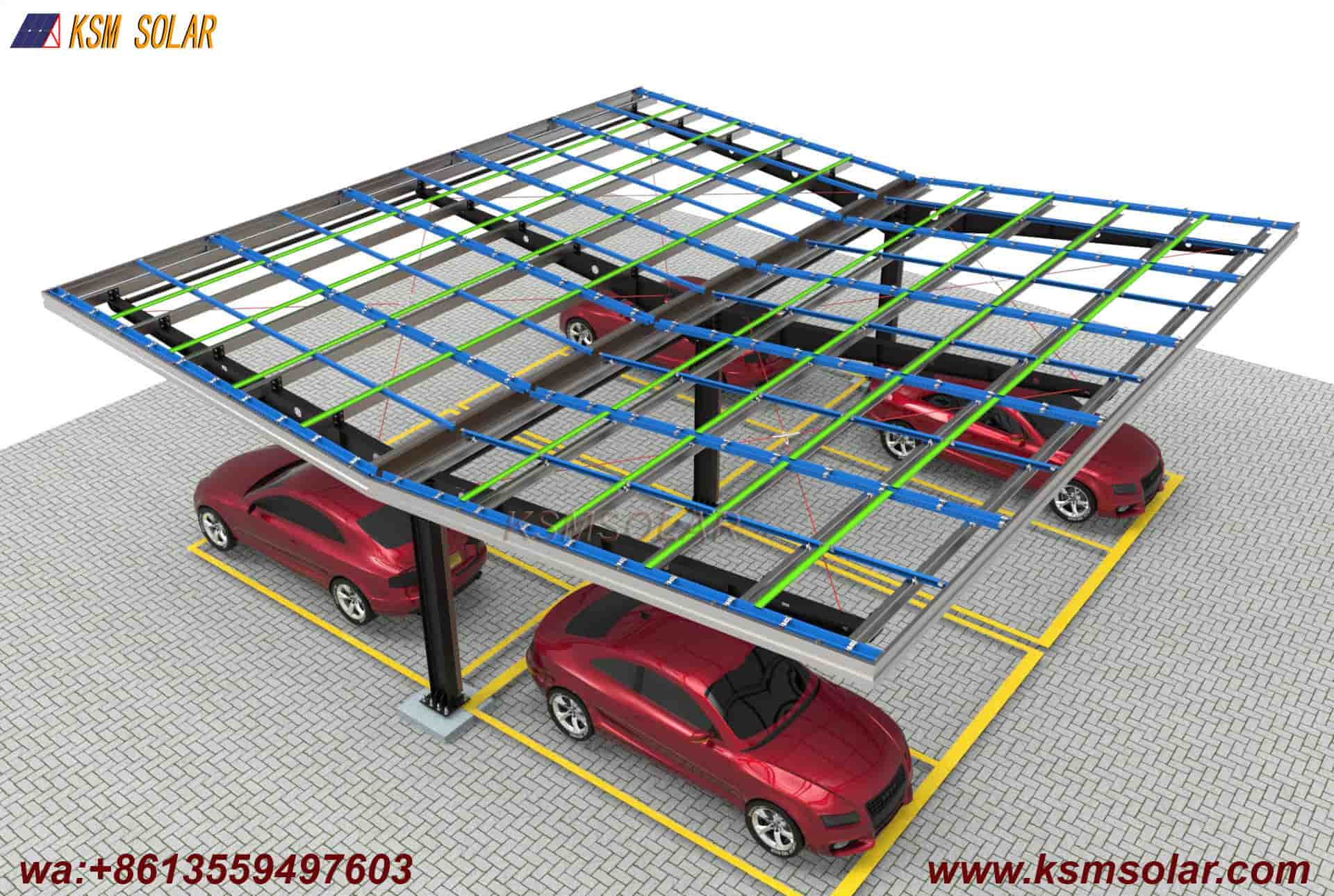

• Factory-Engineered Components: All structural parts—including the H-beam column, inclined rafters, and mounting rails—are precision-manufactured for quick bolt-together assembly, reducing on-site labor time and complexity.

• Simplified Foundation Work: Only one central foundation is required, significantly lowering concrete use, excavation efforts, and overall construction duration.

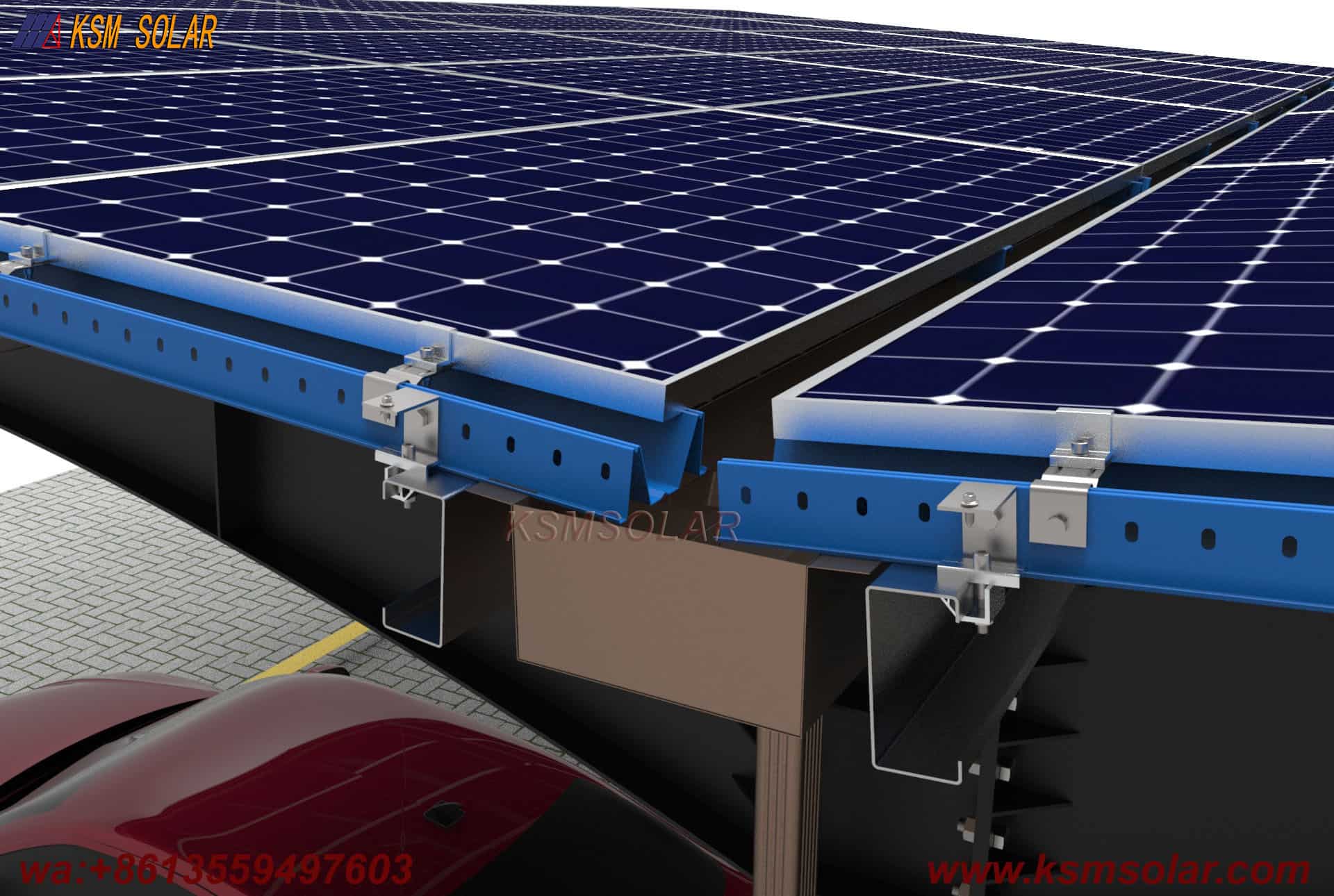

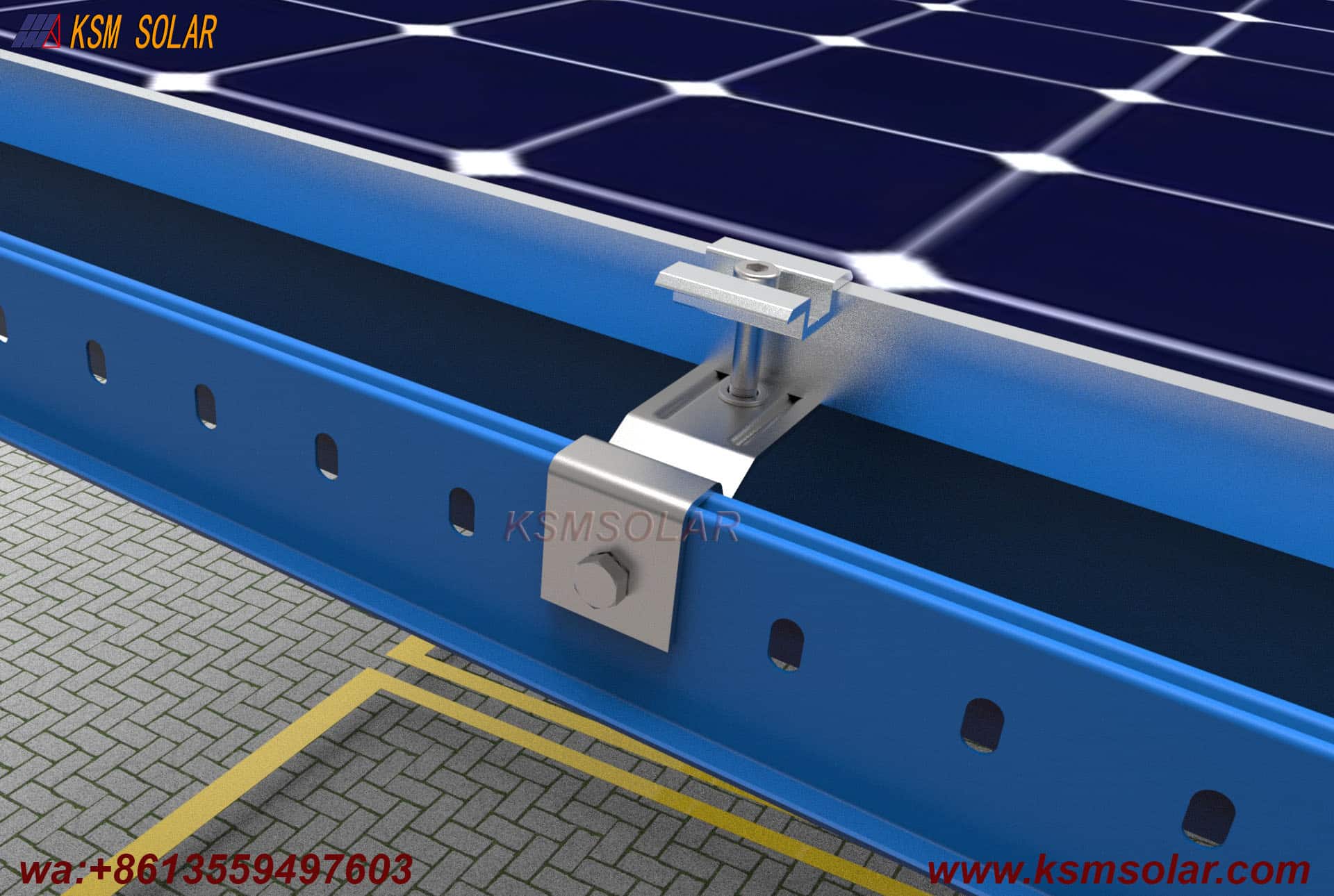

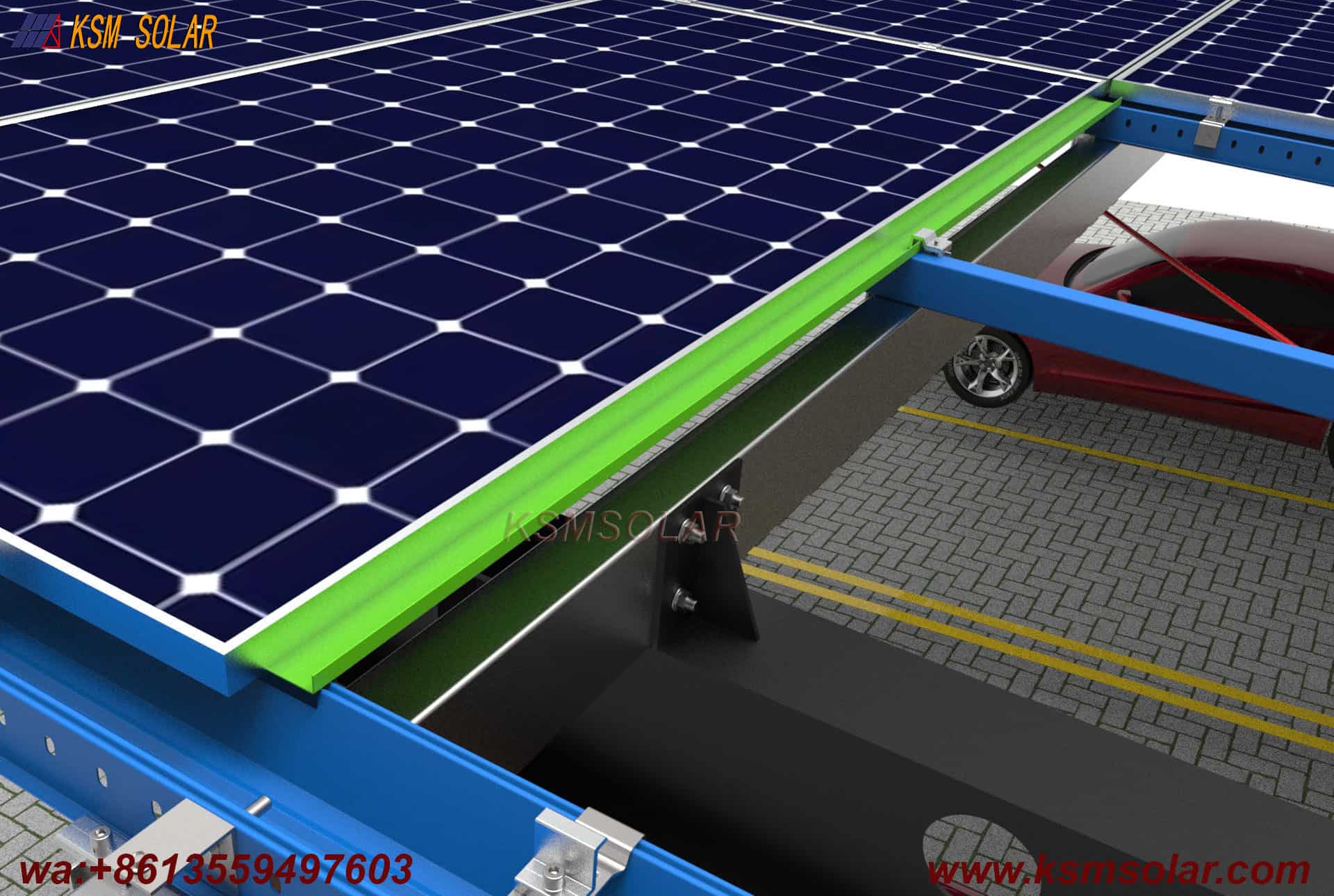

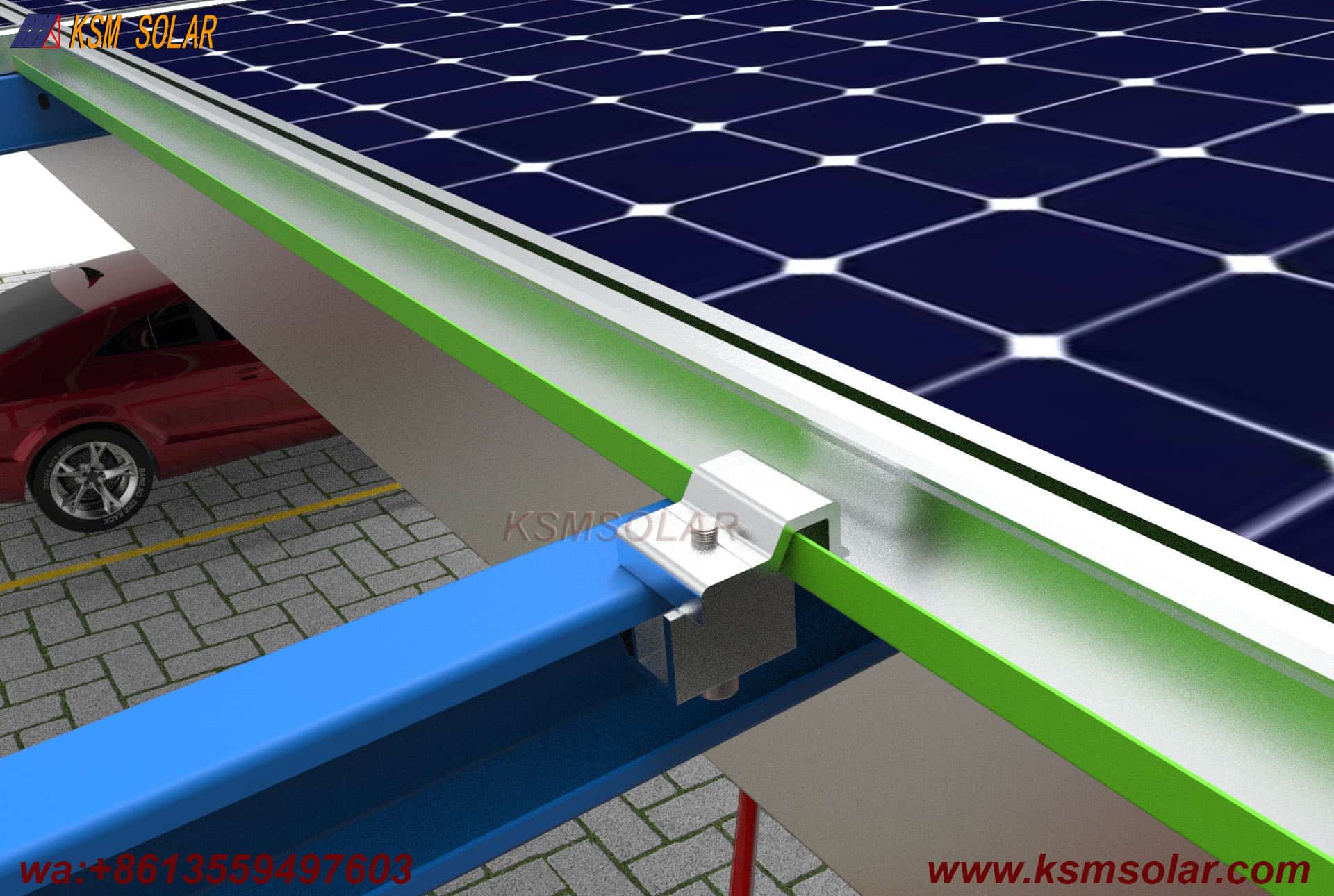

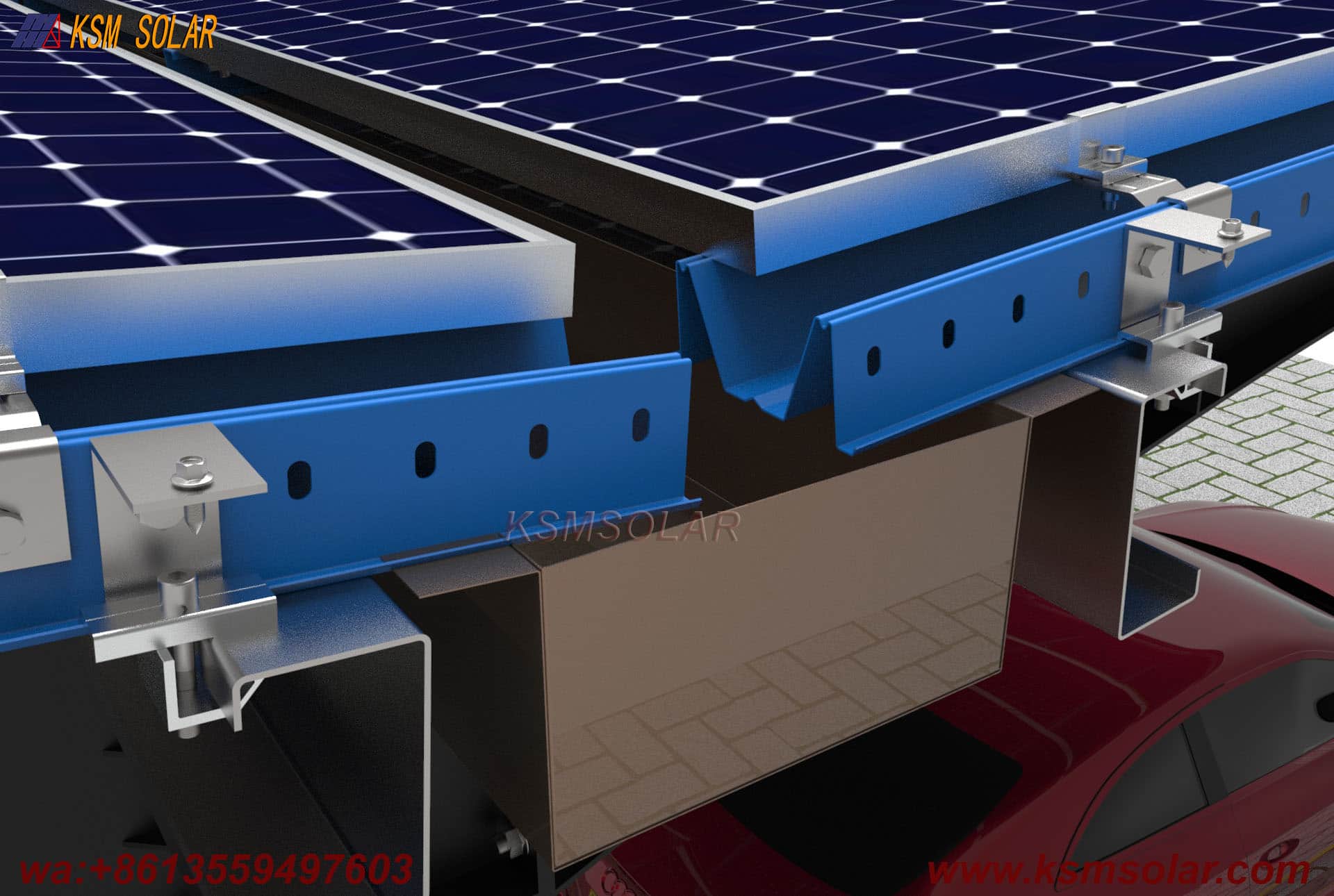

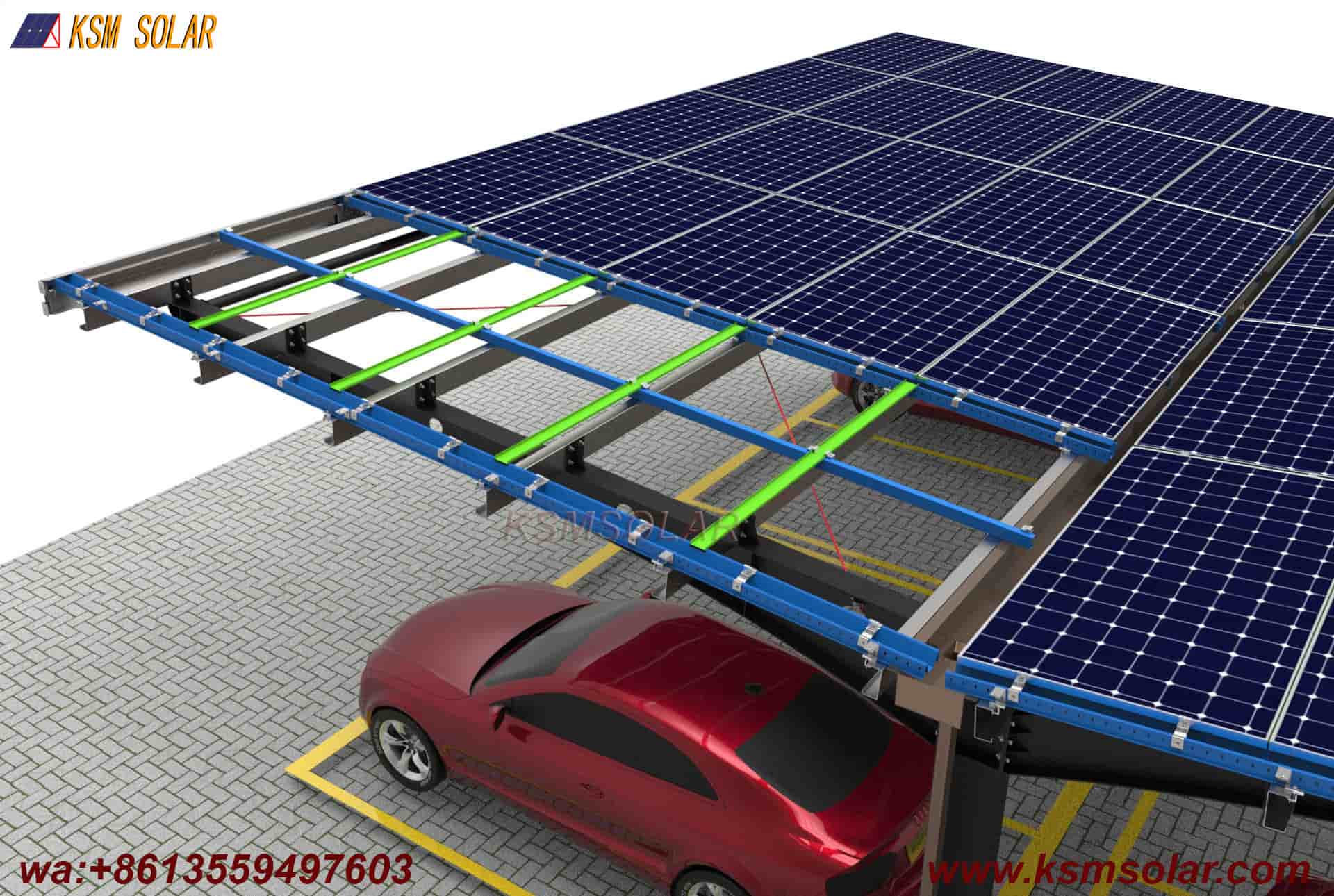

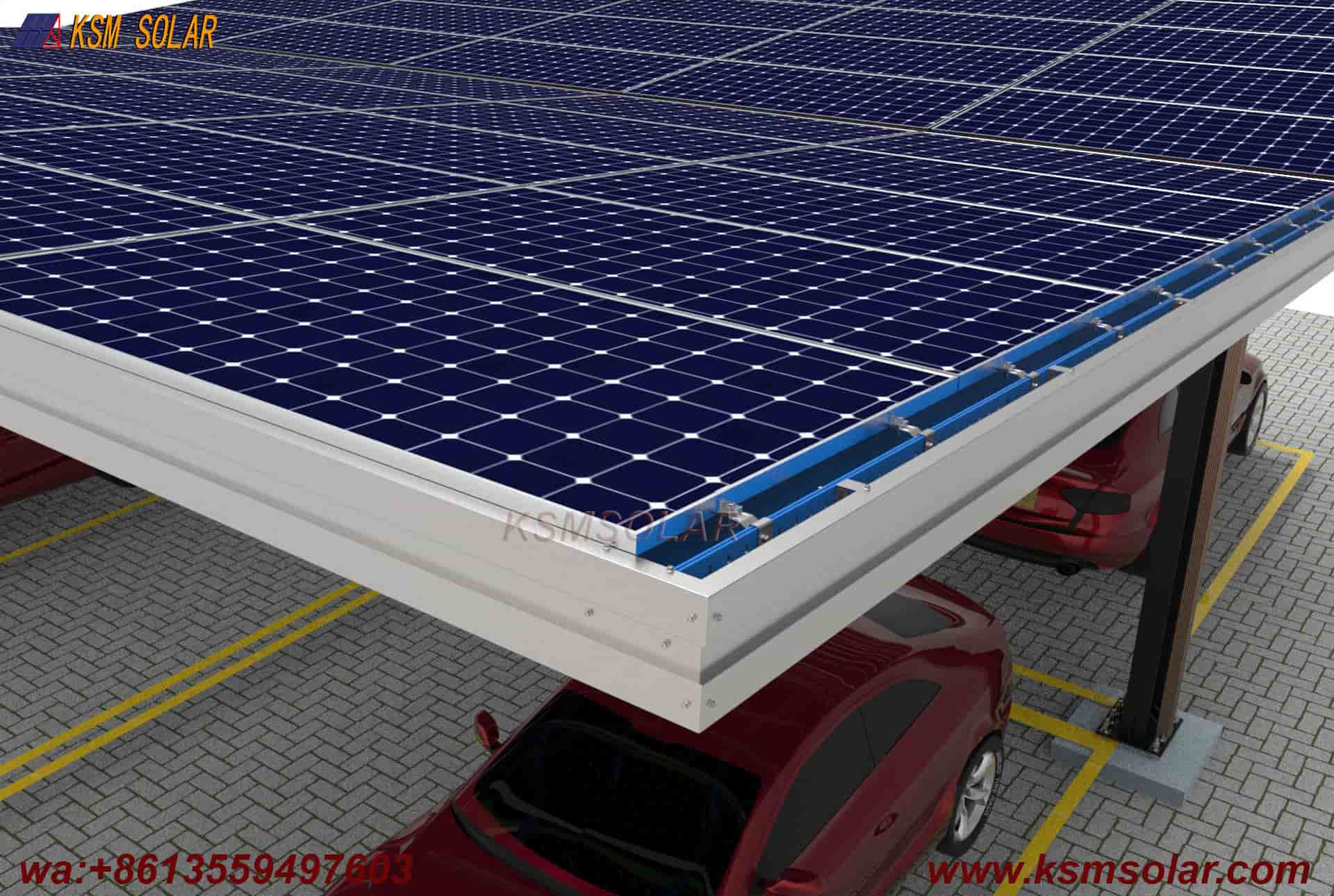

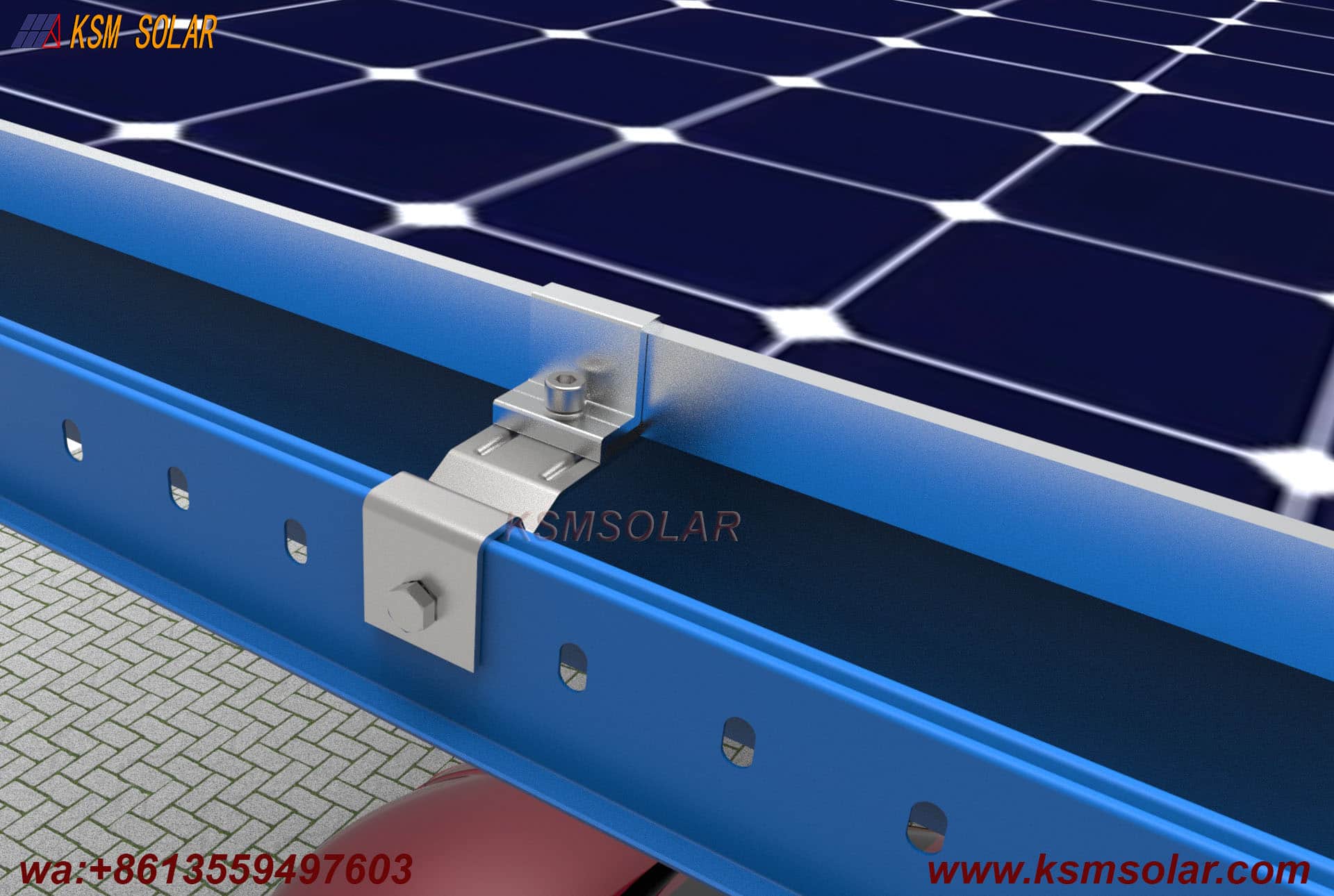

• Seamless PV Integration: Pre-positioned purlins and clamps enable fast and secure installation of solar panels on both inclined surfaces, streamlining electrical wiring and system commissioning.

4. Performance & Functional Benefits

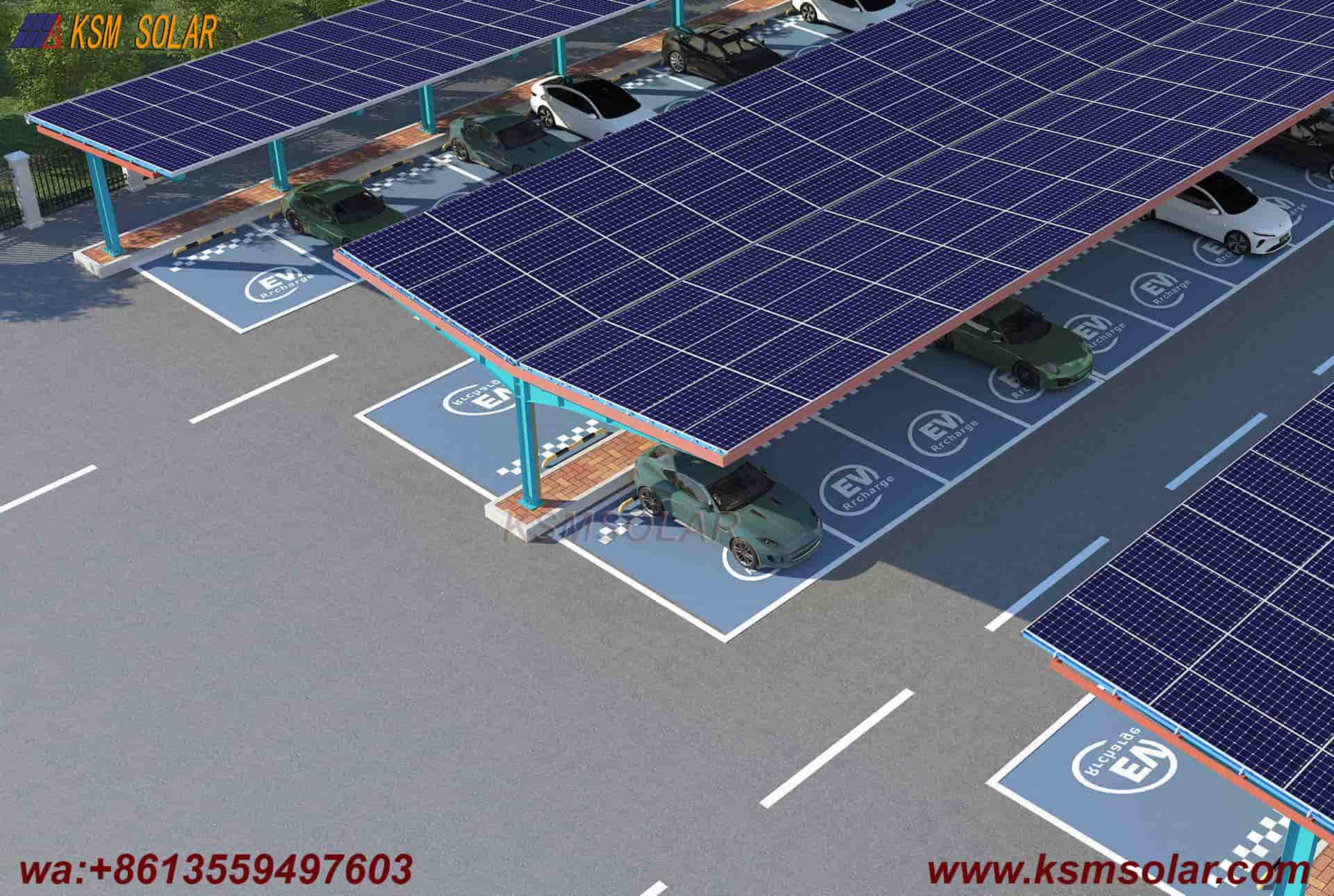

• Higher Energy Density per Footprint: The dual-inclined layout effectively doubles the usable PV area relative to ground space, delivering greater energy output per parking bay.

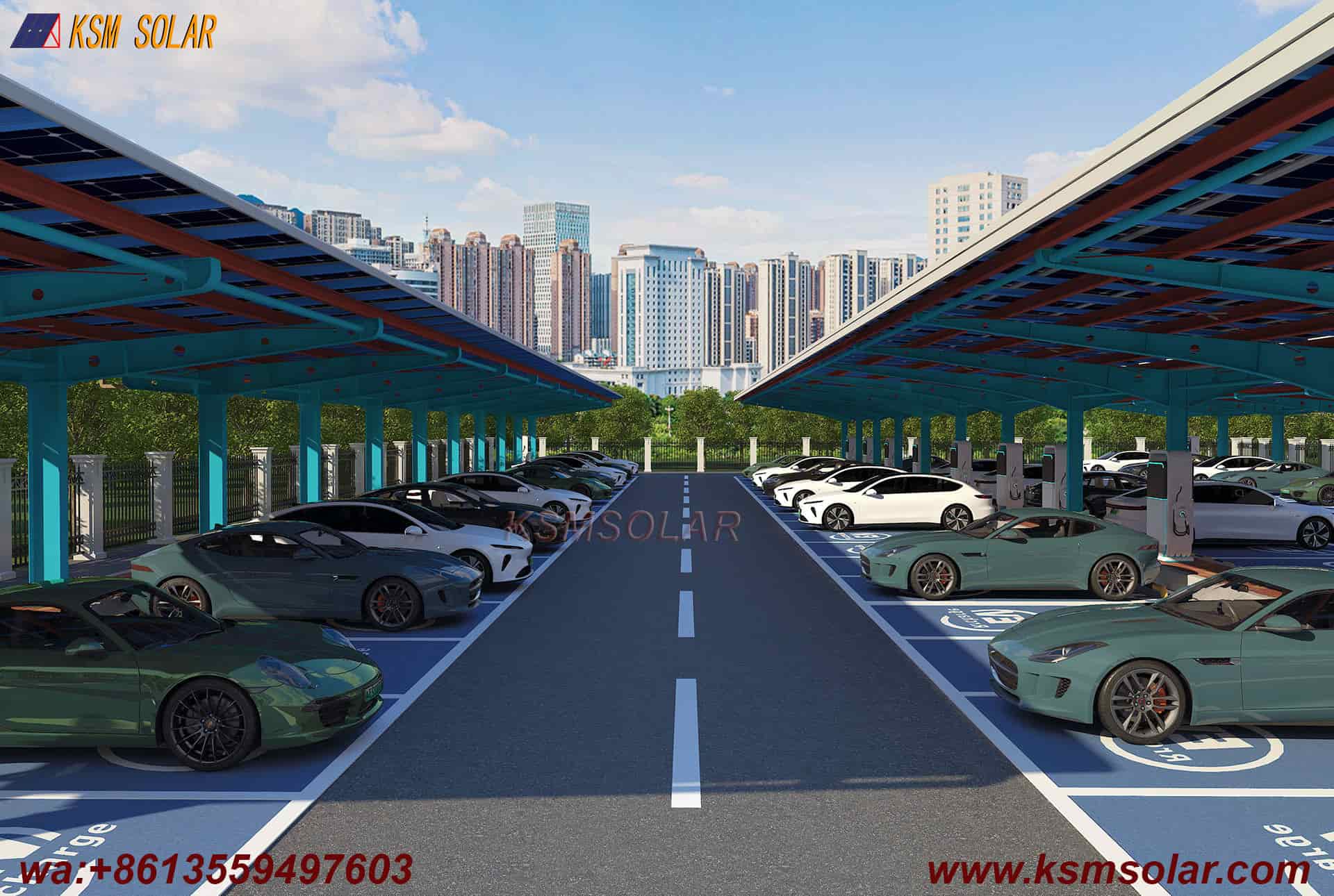

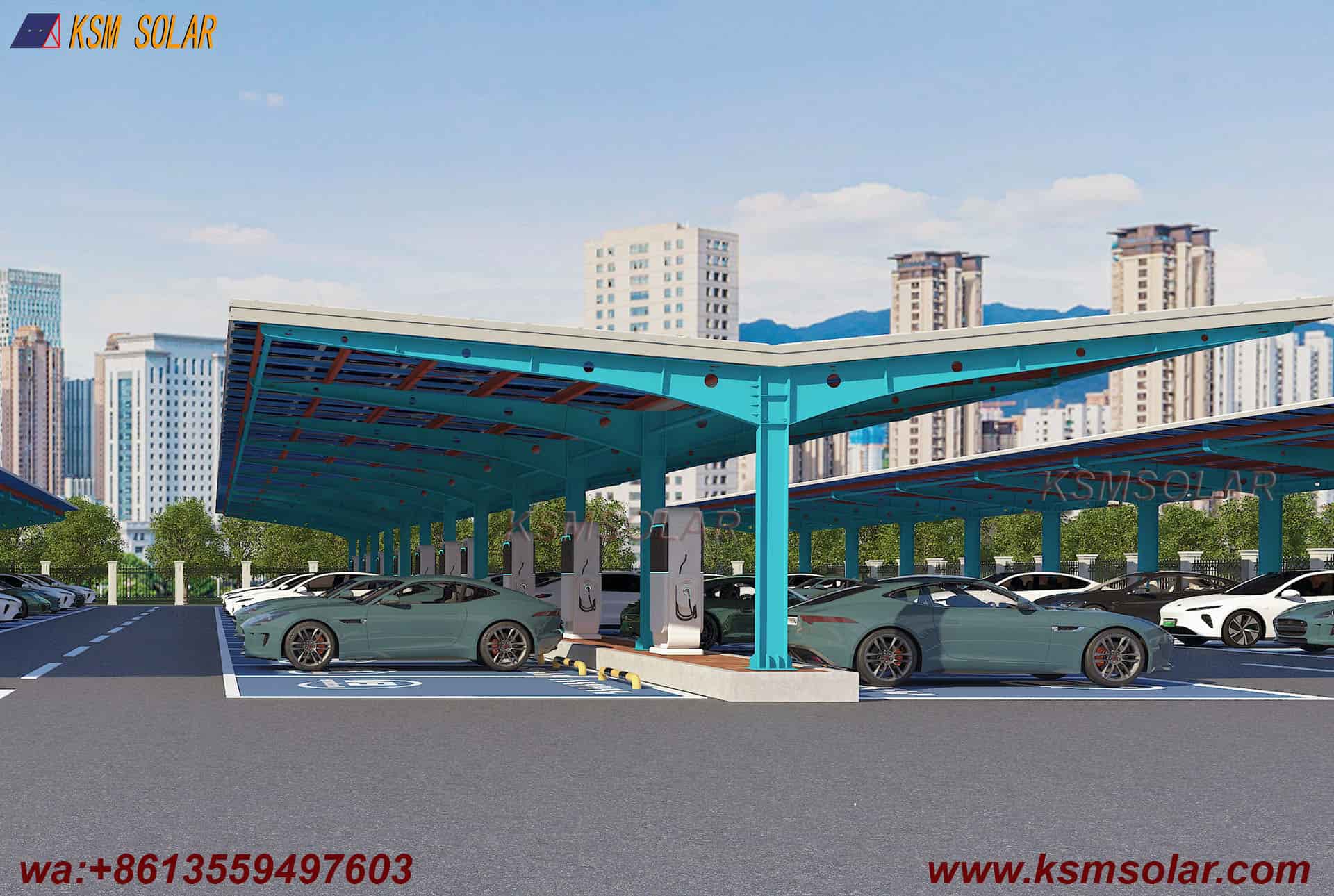

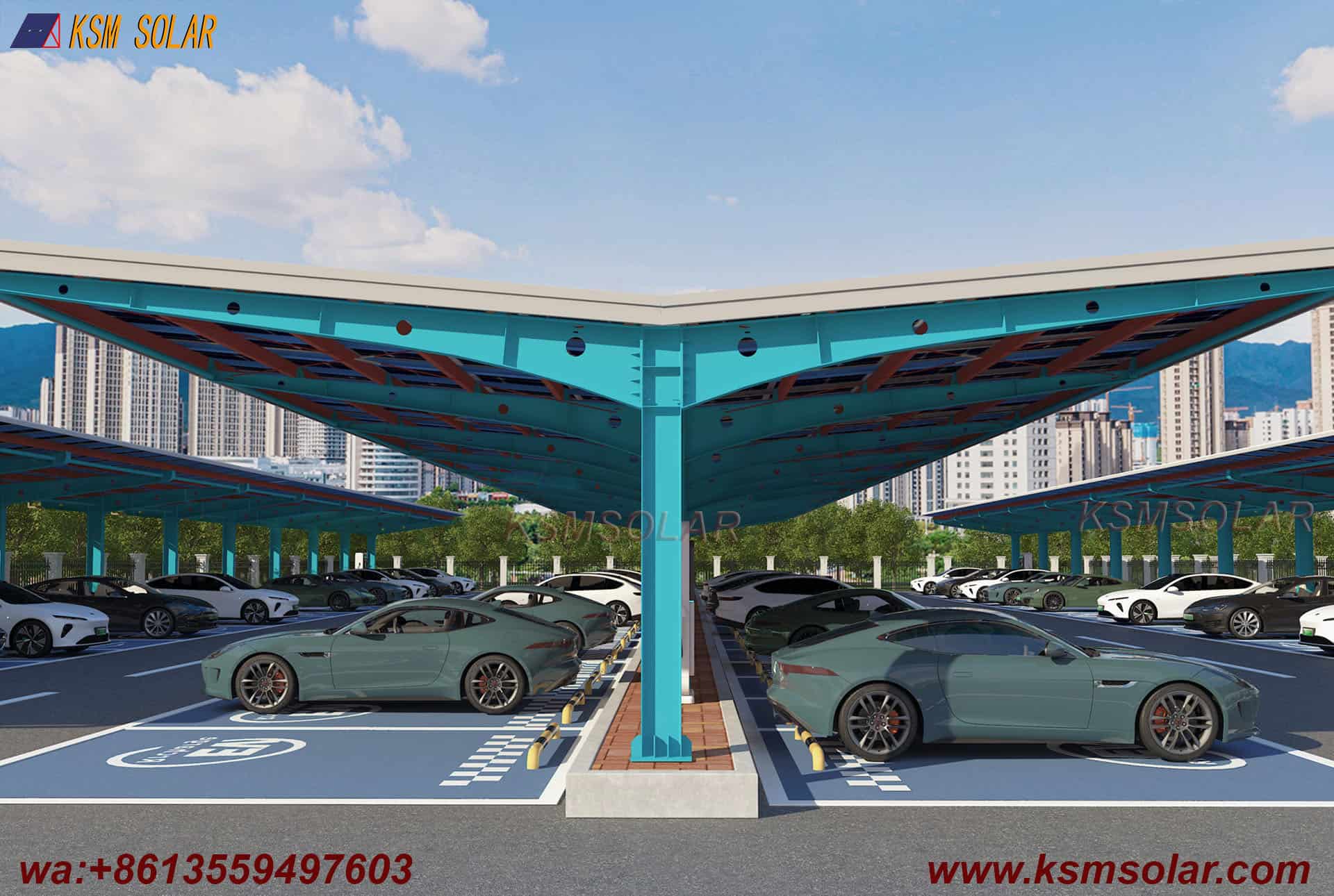

• Modern & Professional Aesthetic: The bold symmetry of the dual-slope design supported by a single H-beam creates an architecturally clean, contemporary appearance suitable for corporate campuses, public facilities, and premium commercial sites.

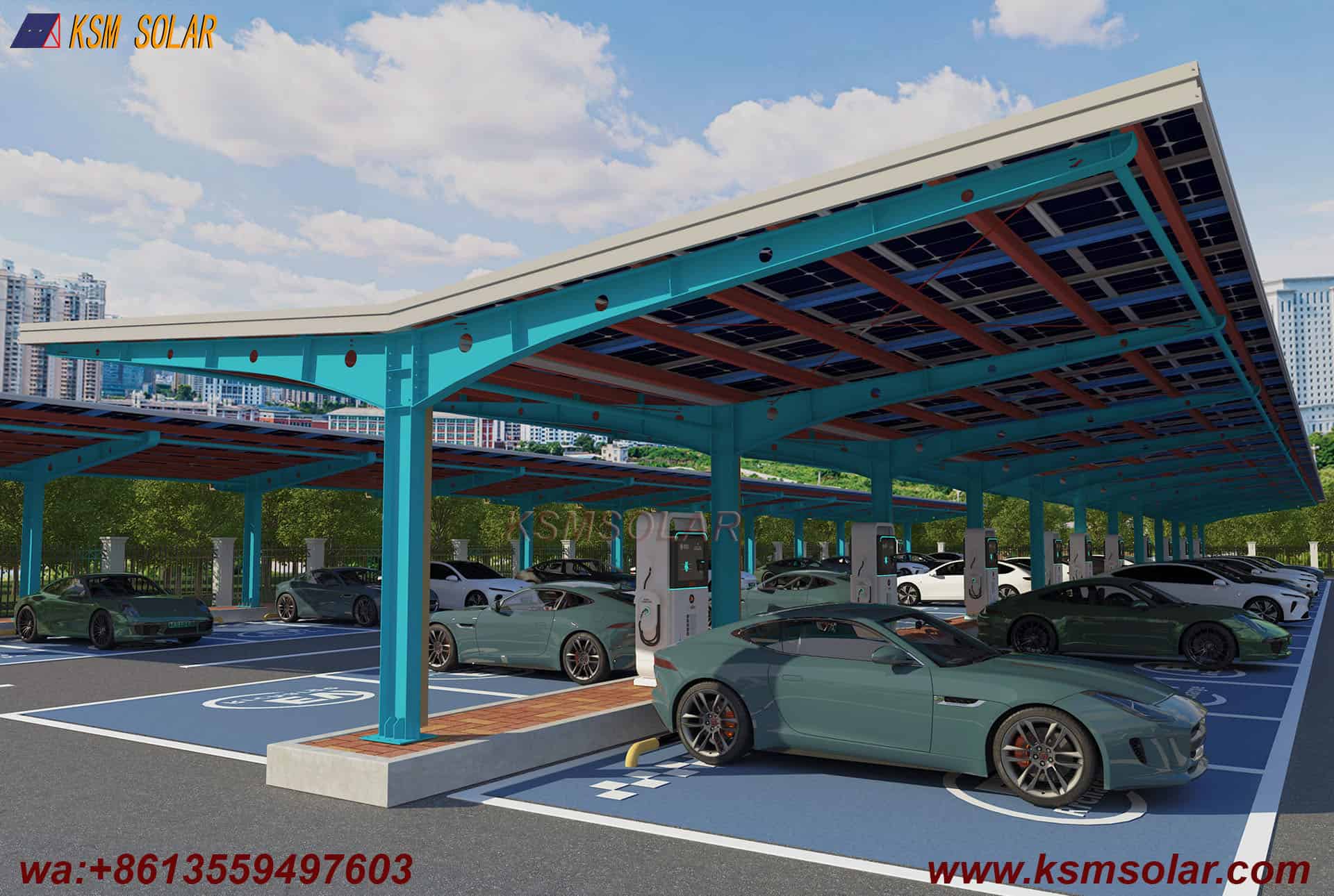

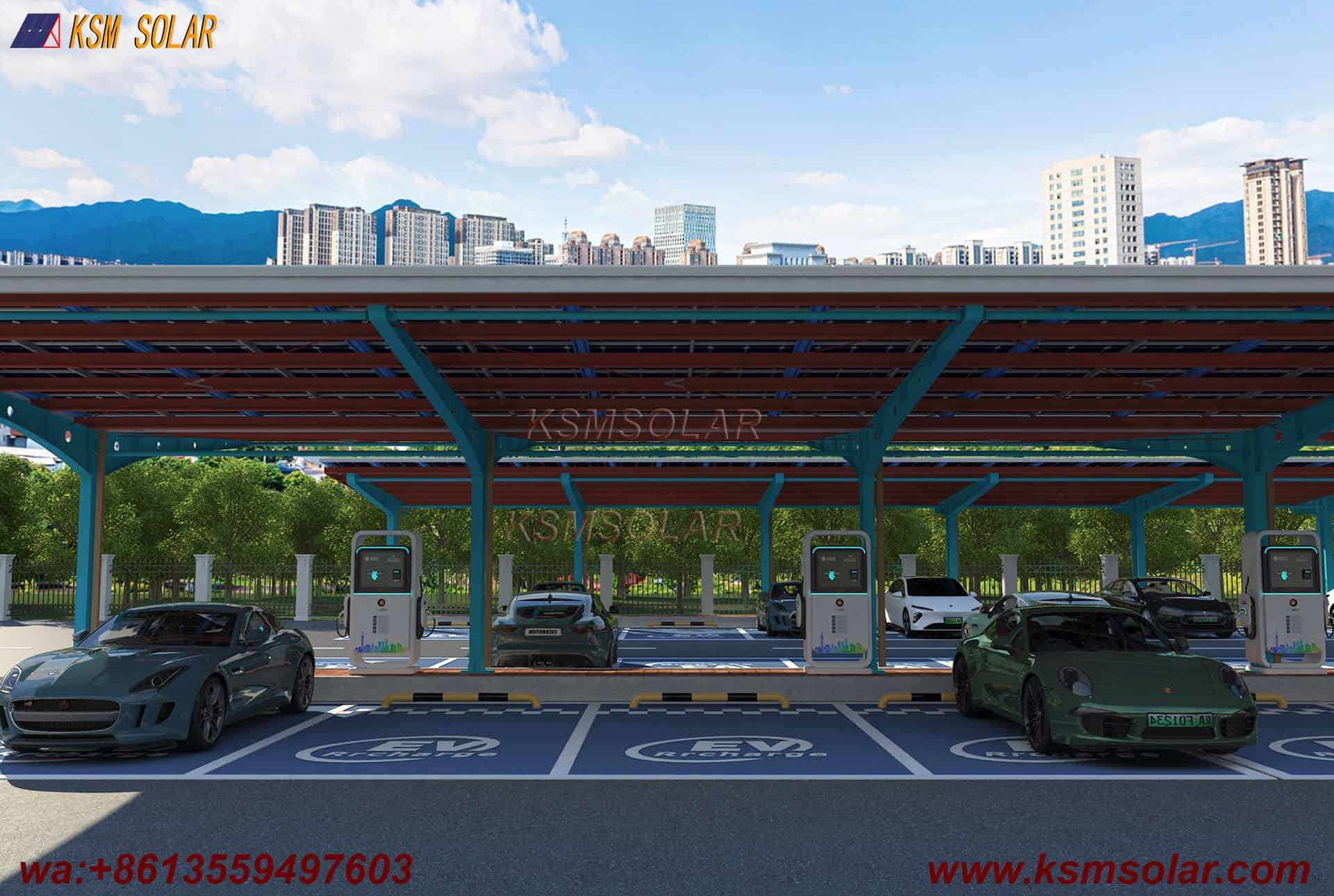

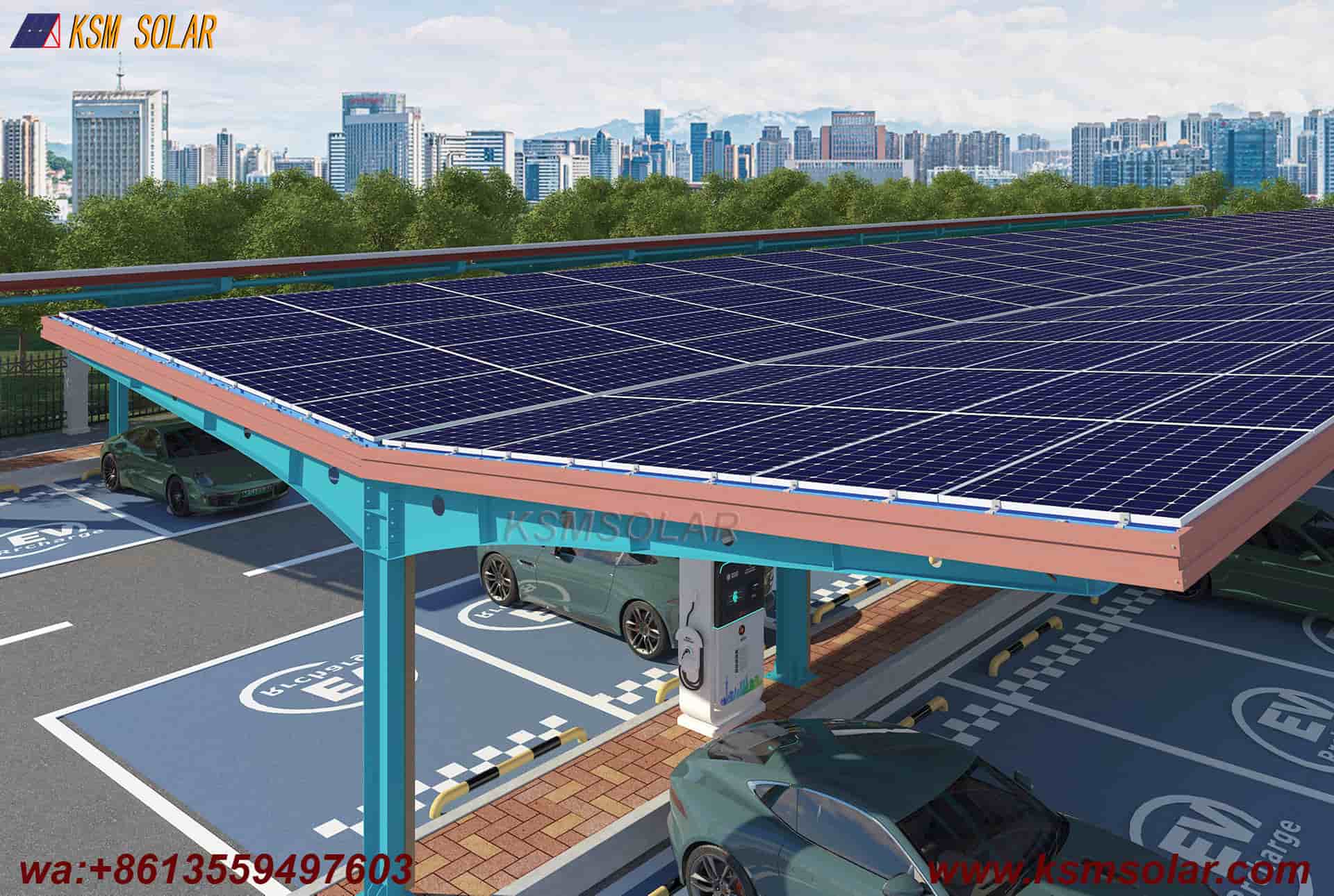

• Scalable & Future-Ready: Designed to support next-generation solar technologies, the system can be easily integrated with bifacial panels, EV charging infrastructure, and smart energy management systems.
