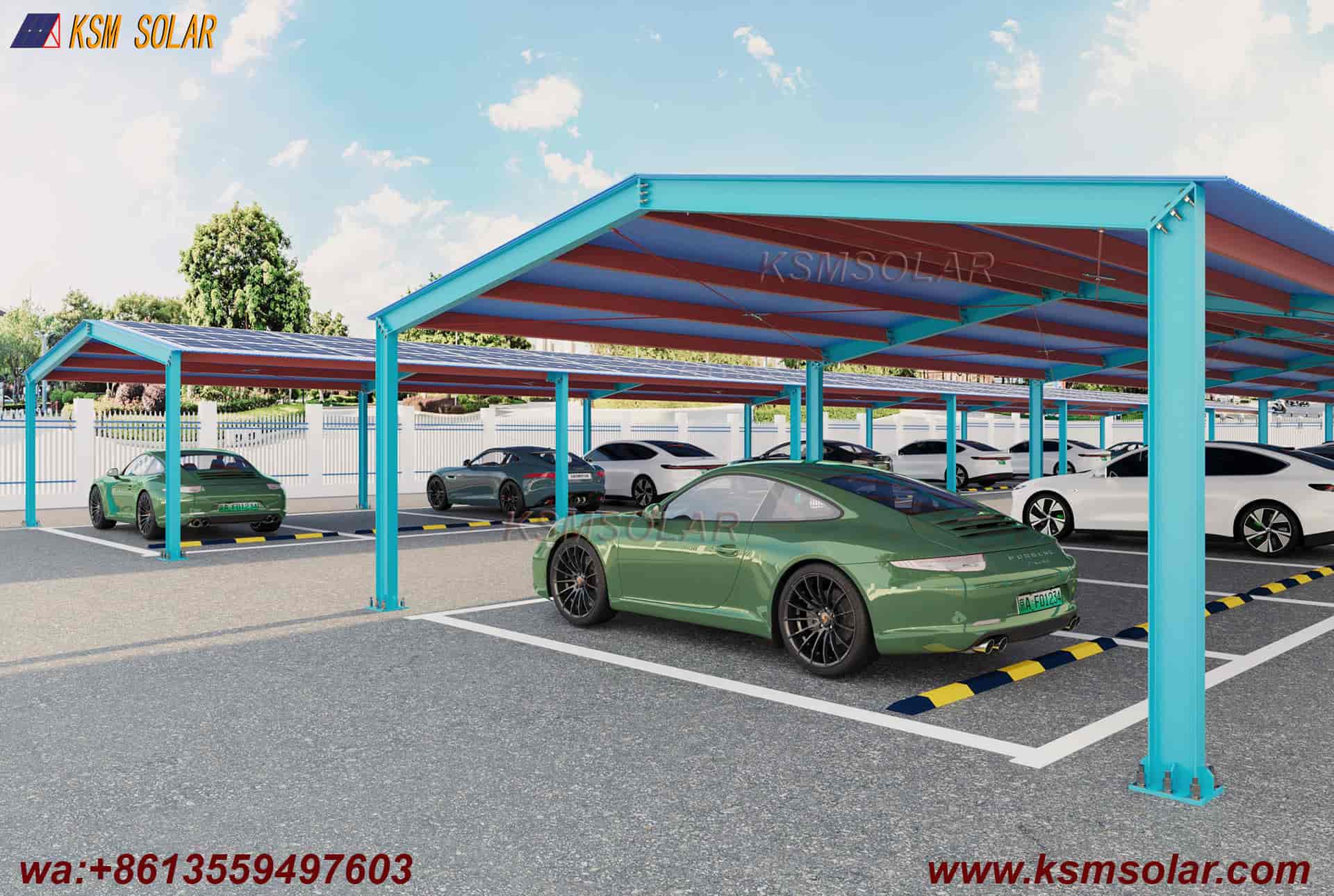

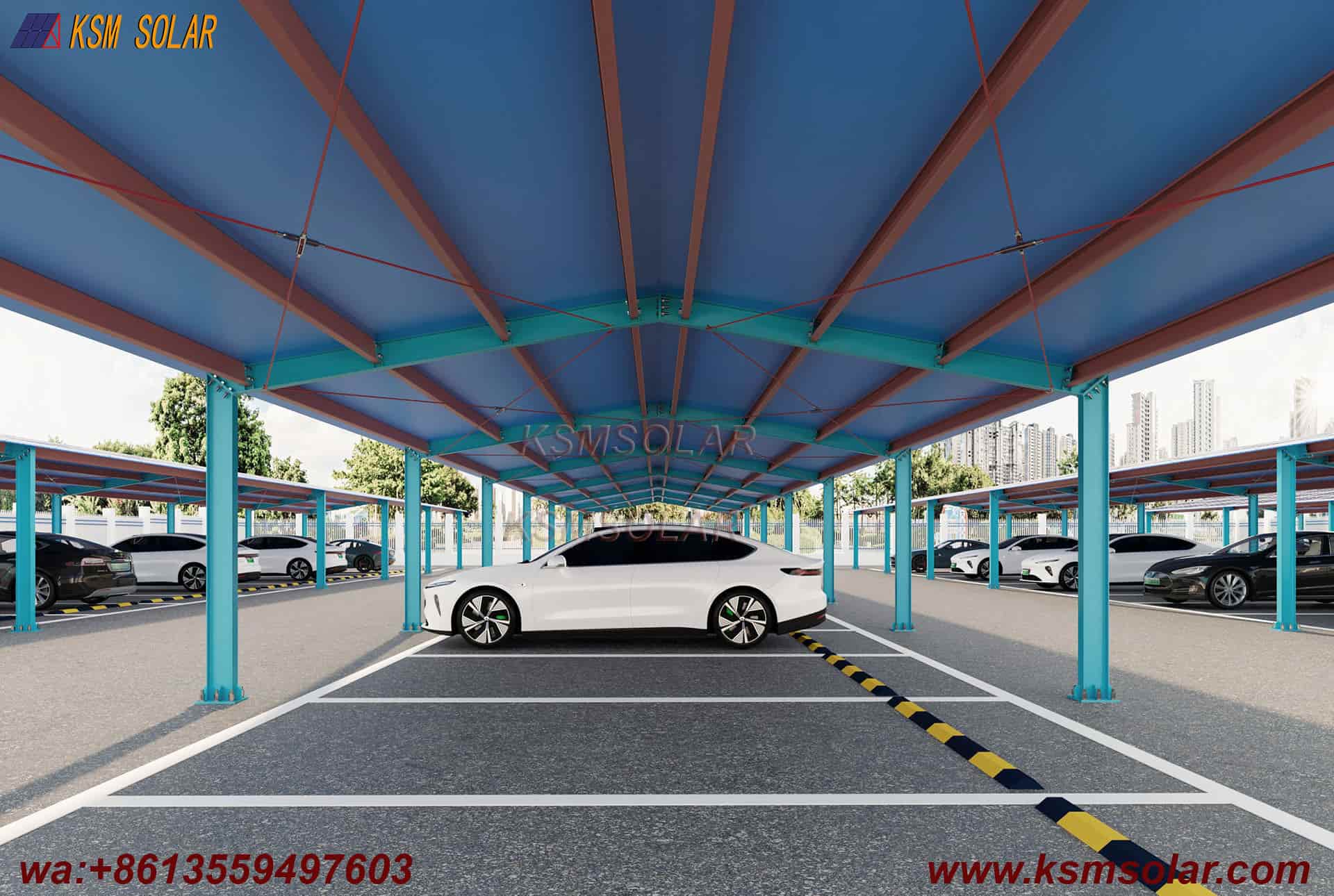

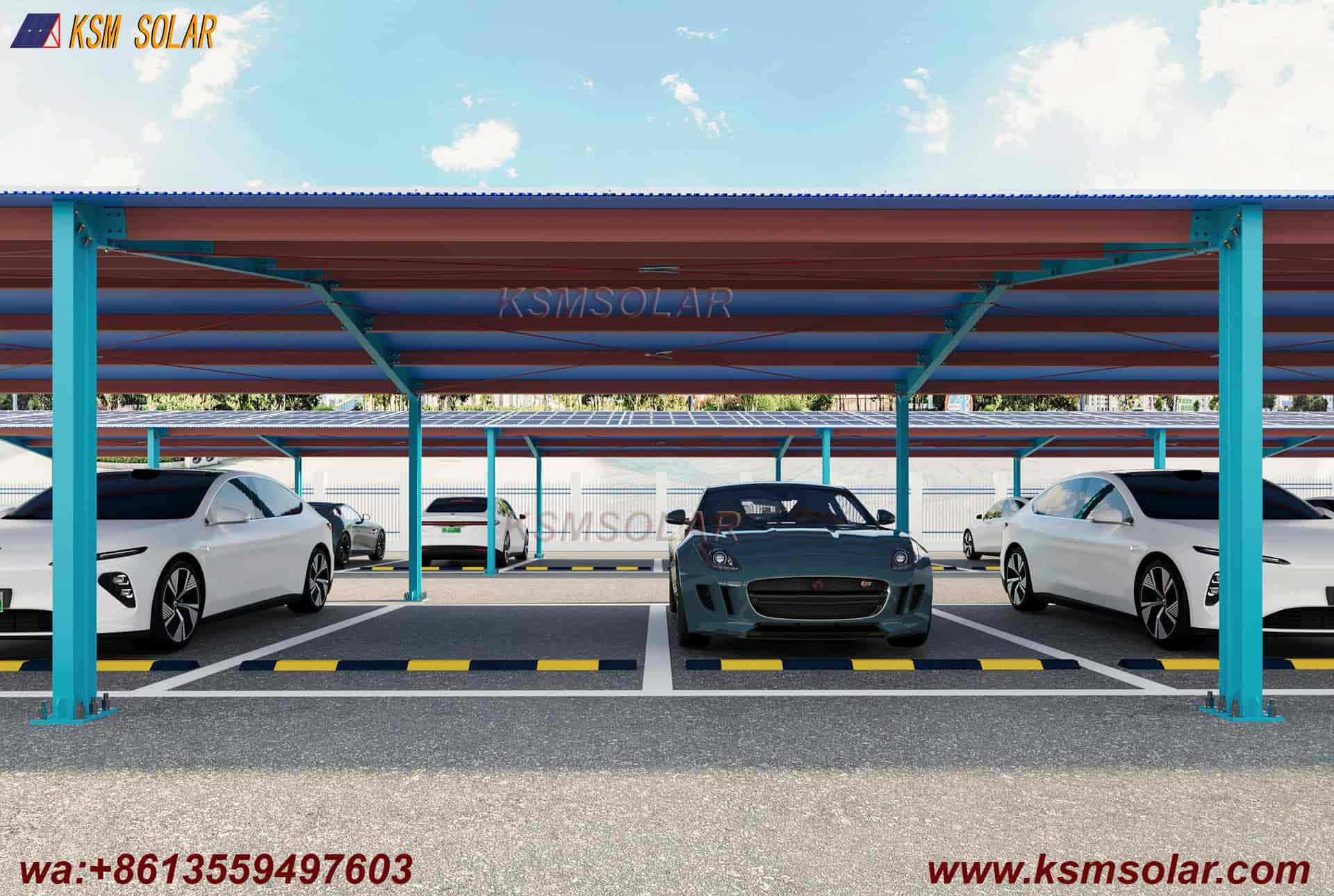

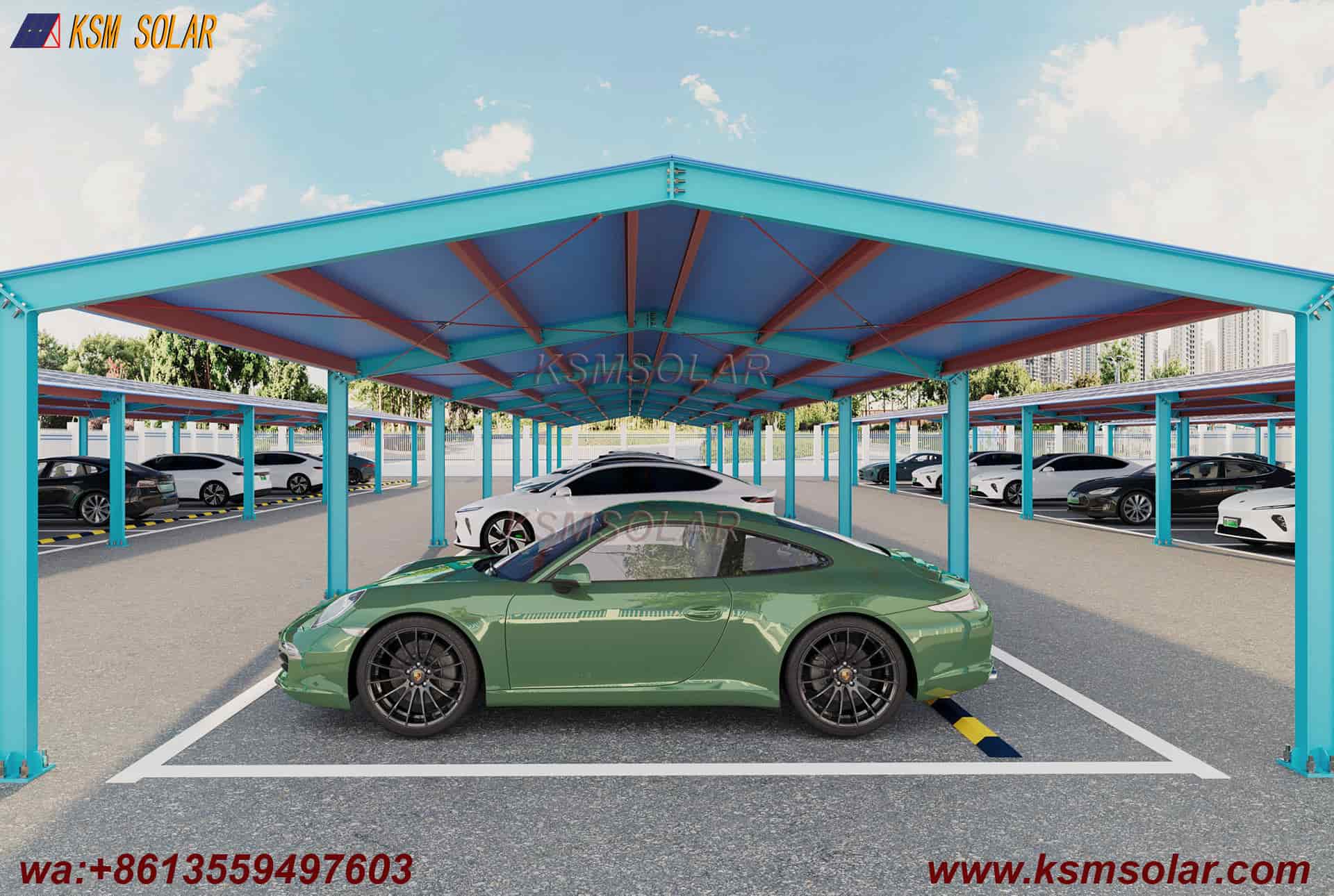

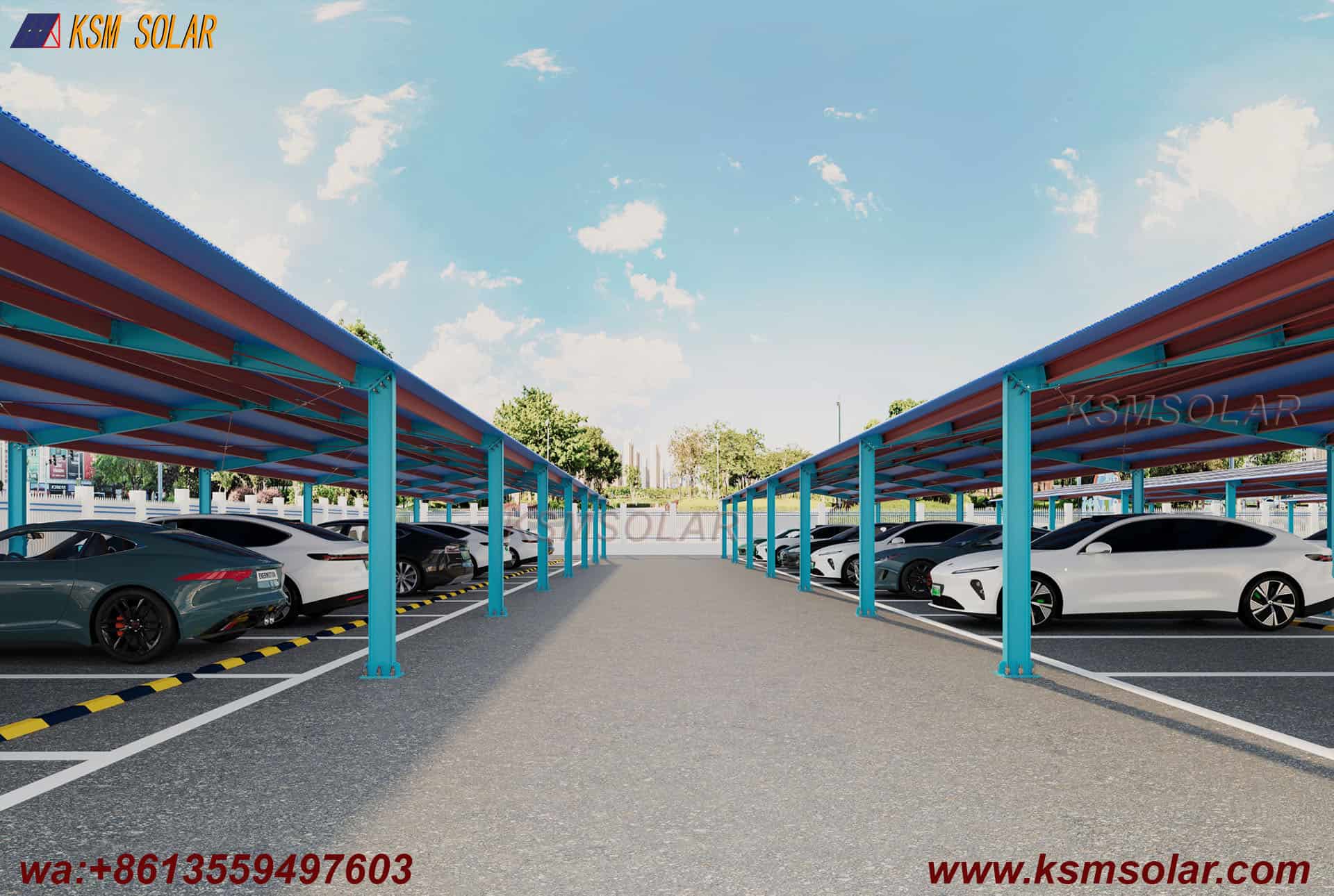

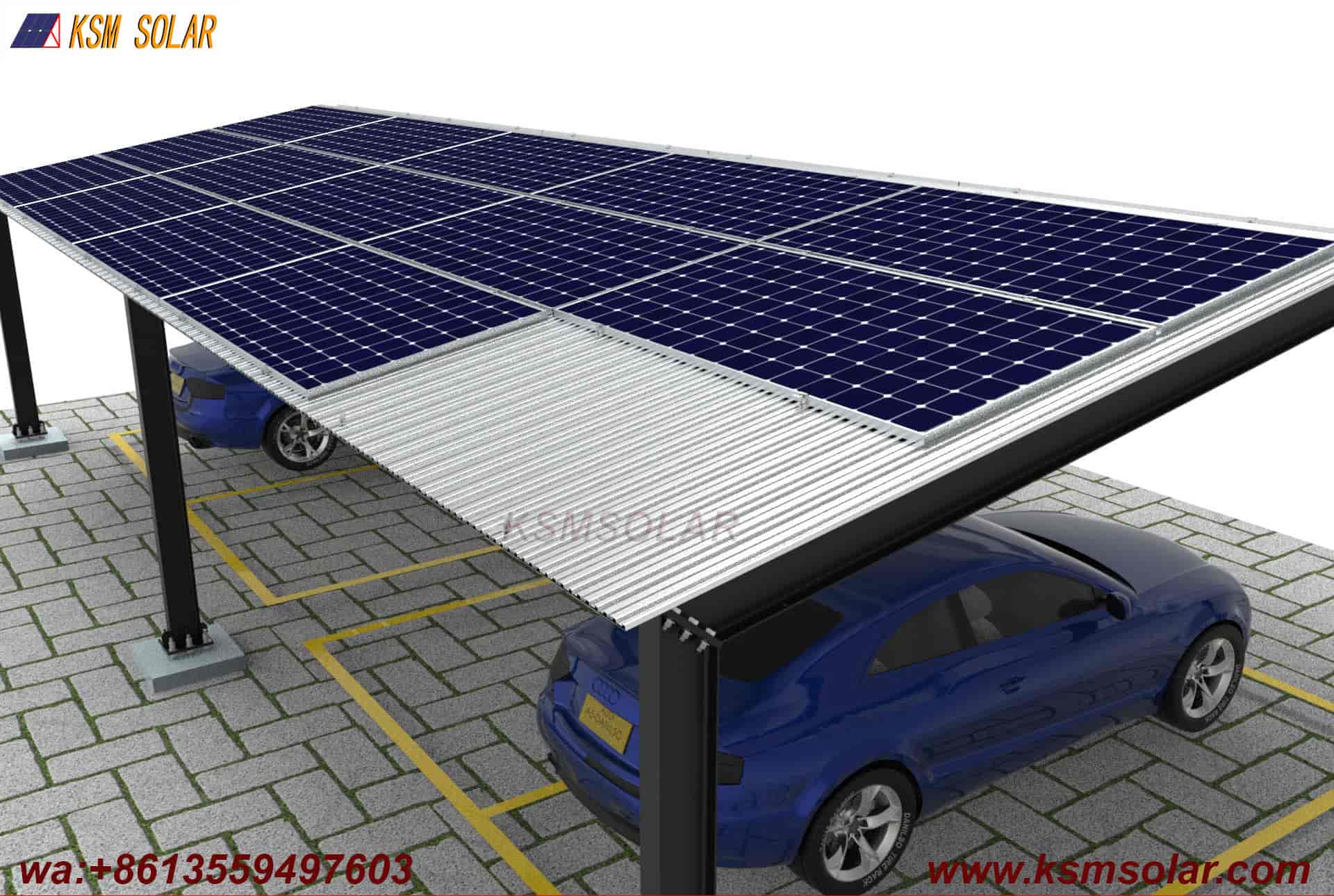

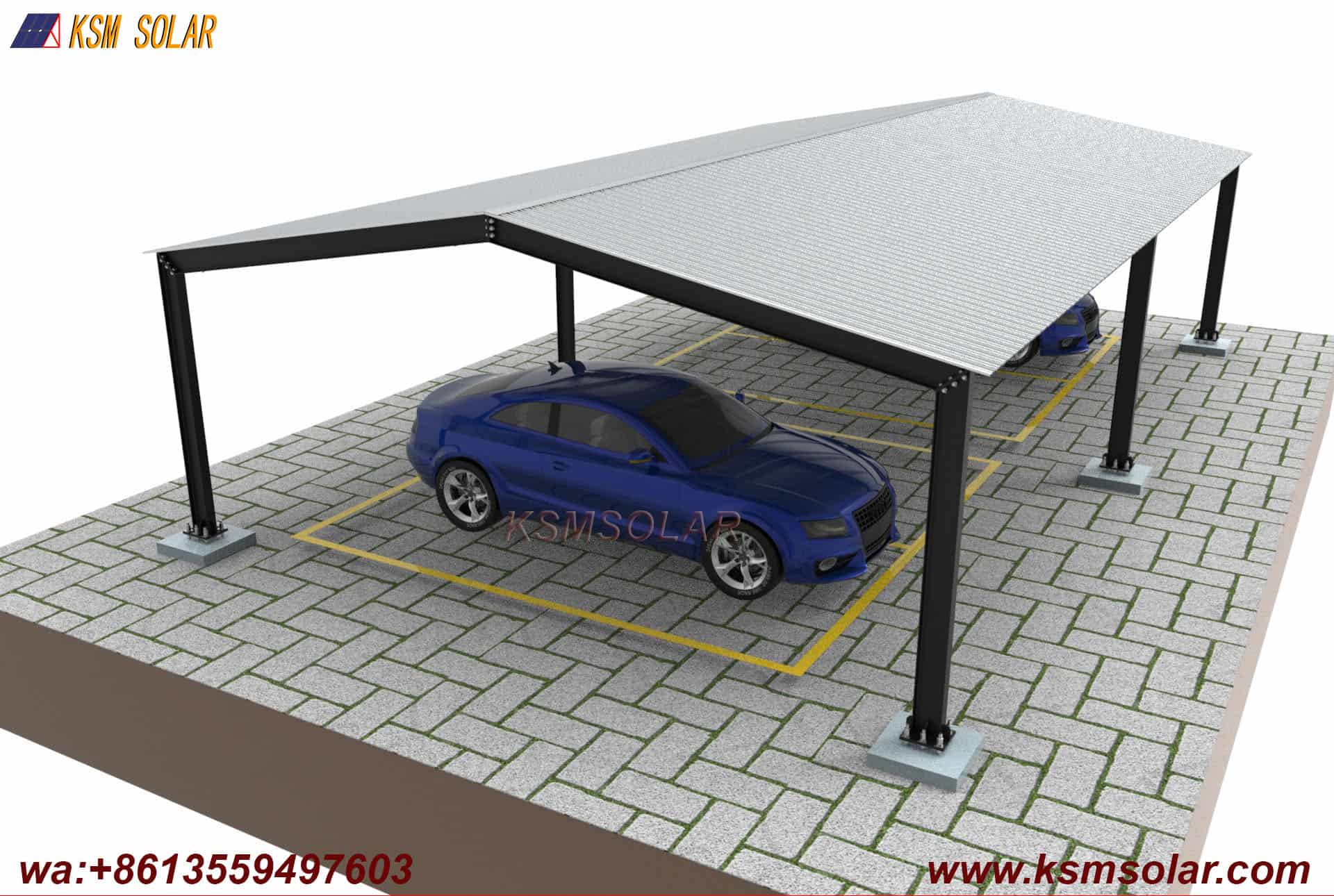

H-Beam Dual-Slope Large-Span Photovoltaic Carport is an advanced structural solution designed to deliver exceptional strength, expansive coverage, and high-efficiency solar energy harvesting. Utilizing the superior load-bearing properties of H-beams in a dual-slope configuration, this system achieves wide spans without intermediate supports, making it ideal for large-scale parking and commercial applications where space optimization and structural reliability are critical.

Key Features & Advantages:

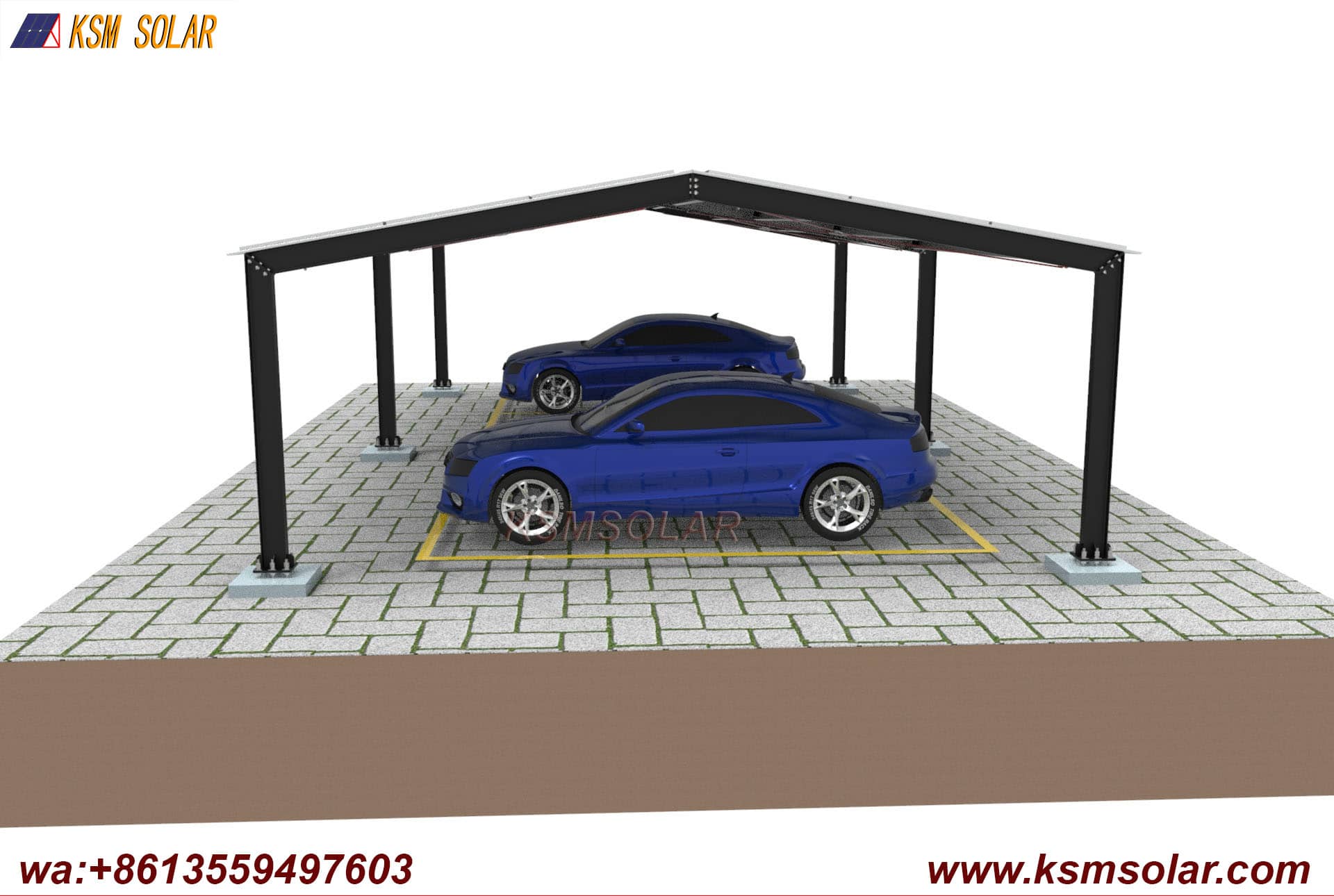

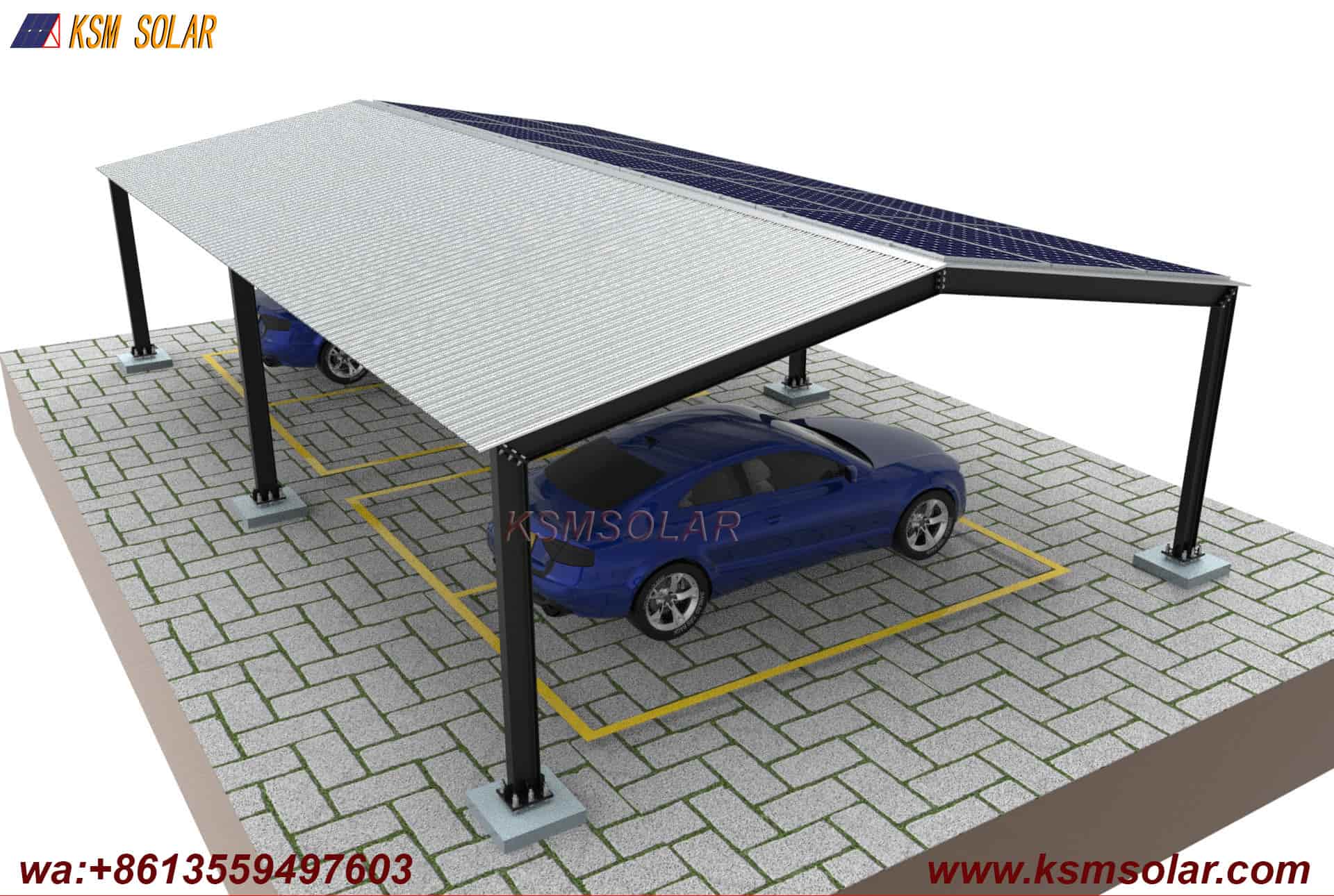

1. Large-Span Dual-Slope Design

• Wide Uninterrupted Coverage:  This design maximizes usable space beneath the canopy, allowing flexible parking layouts and unobstructed vehicle movement.

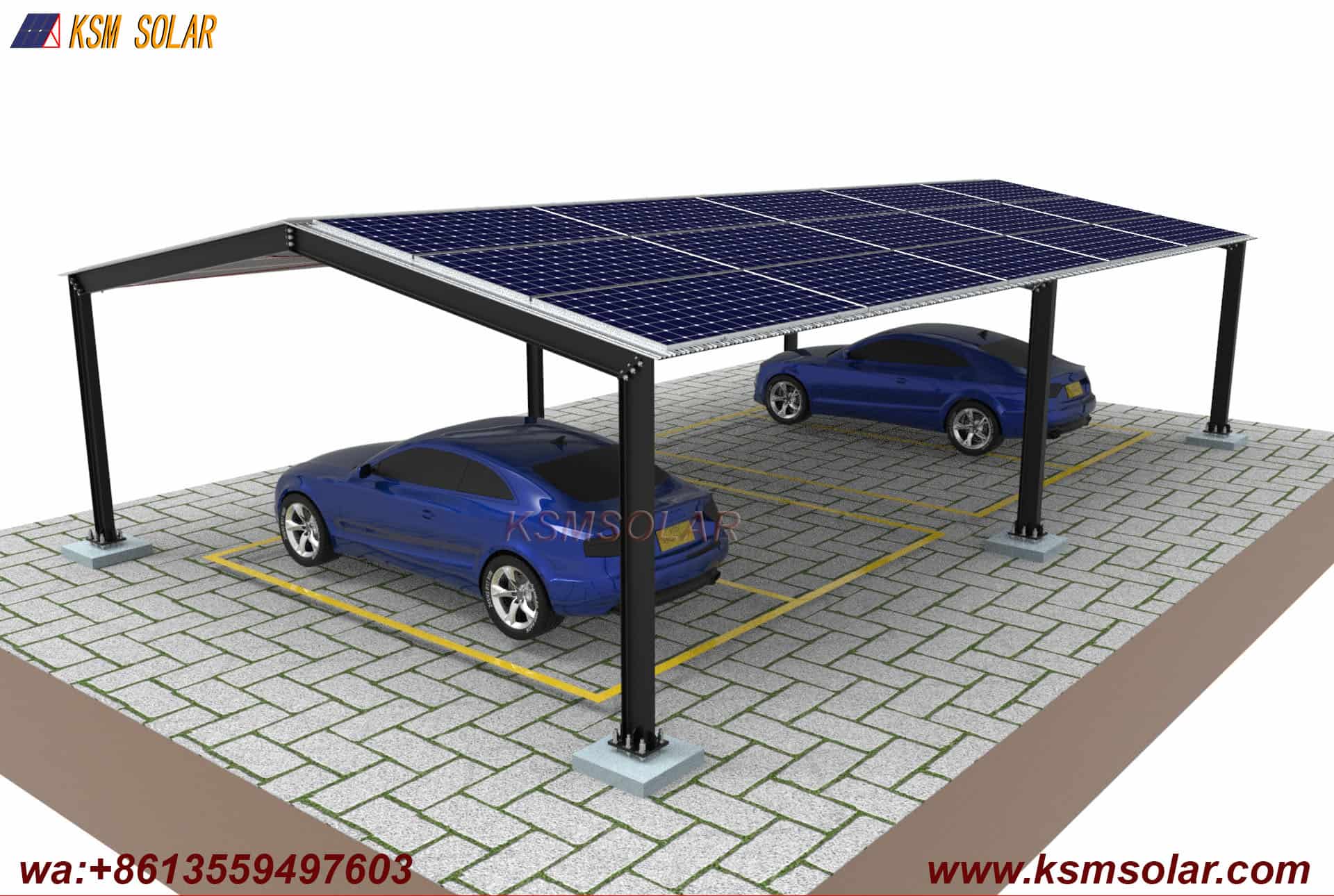

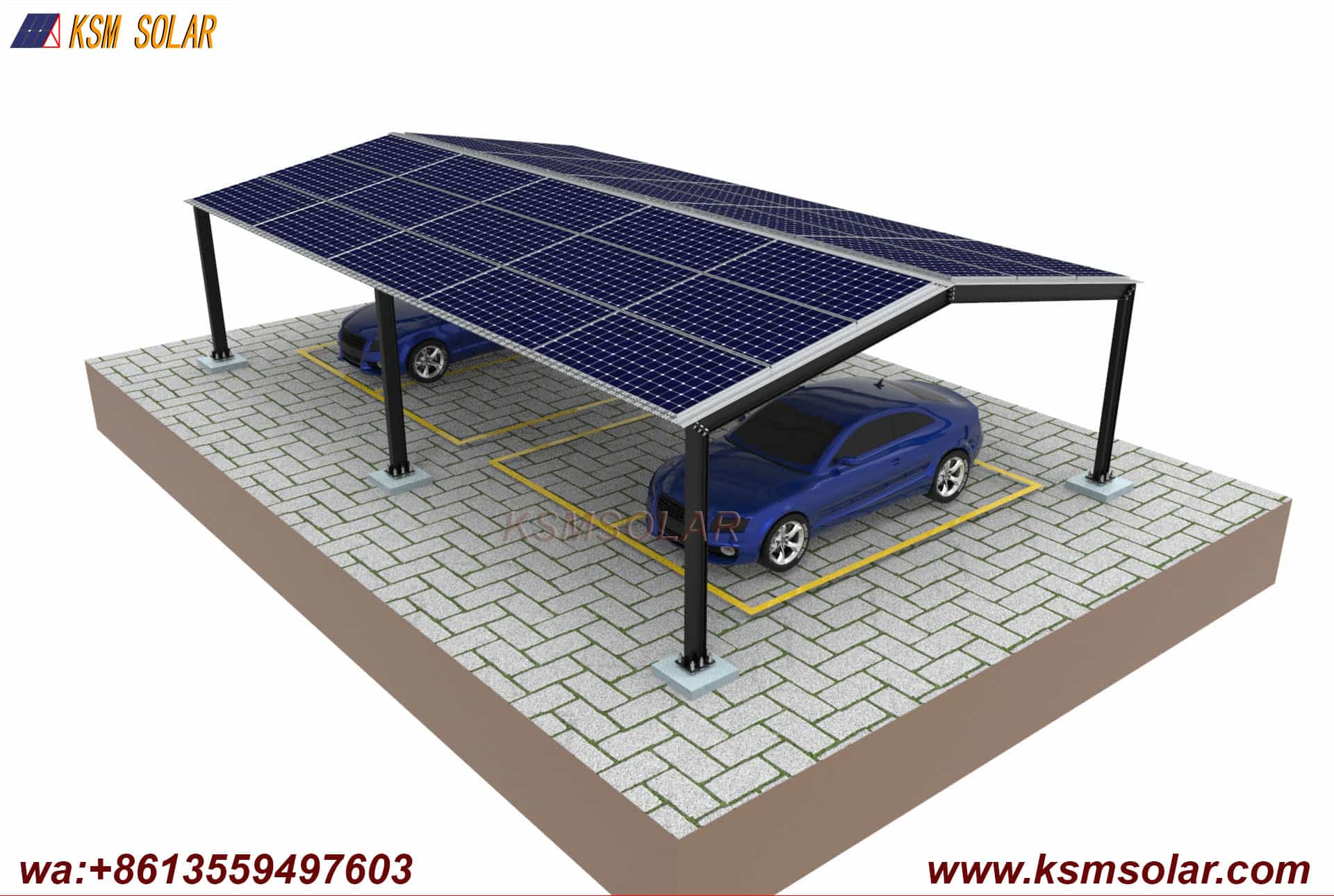

• Optimized Solar Exposure: The dual-slope roof structure is angled to capture sunlight efficiently from two directions, enhancing energy yield throughout the day. This configuration is particularly effective in regions with variable sun paths.

• Enhanced Rainwater Drainage: The symmetrical slopes facilitate rapid runoff, preventing water accumulation and reducing the risk of structural overload or corrosion.

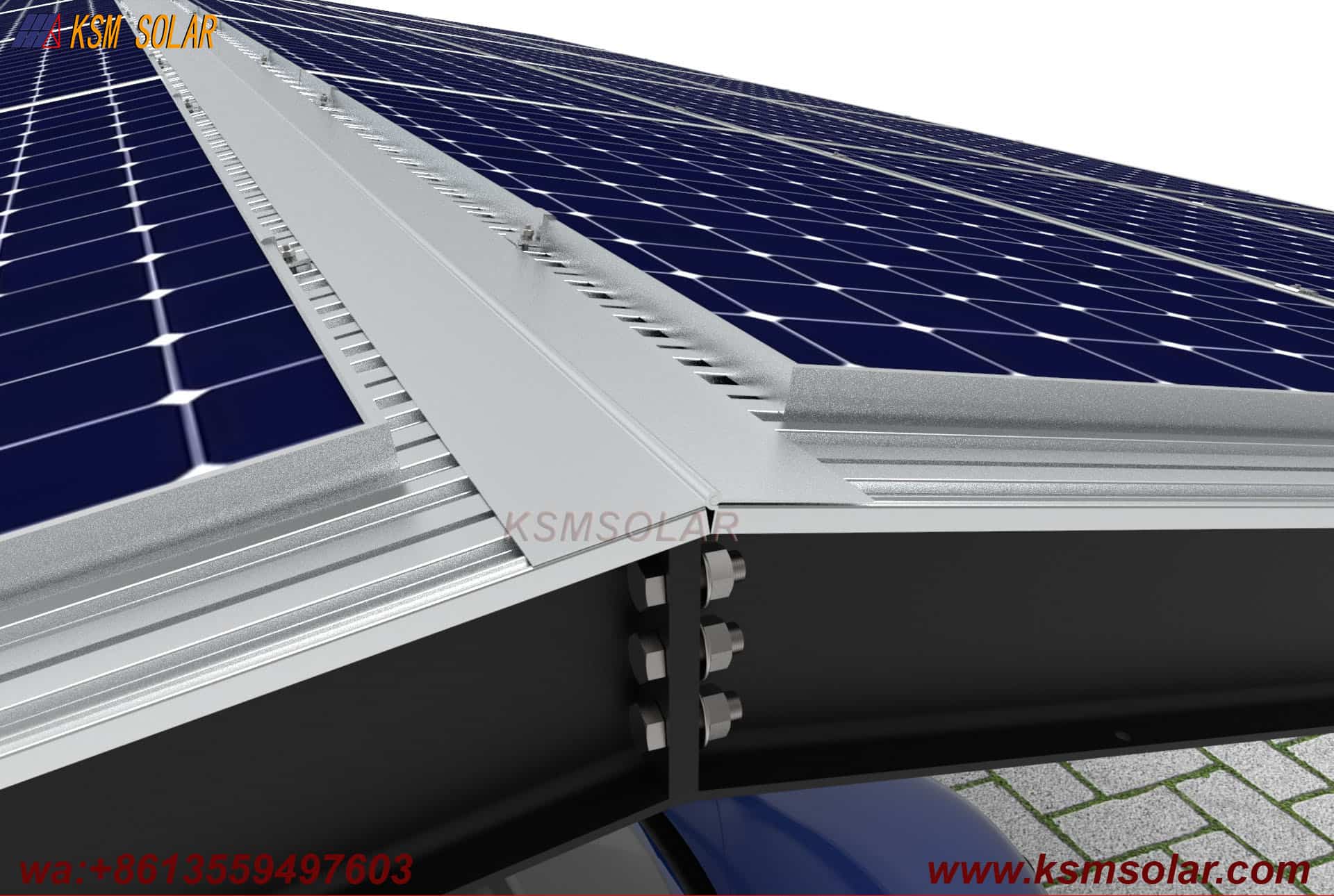

2. High-Strength H-Beam Framework

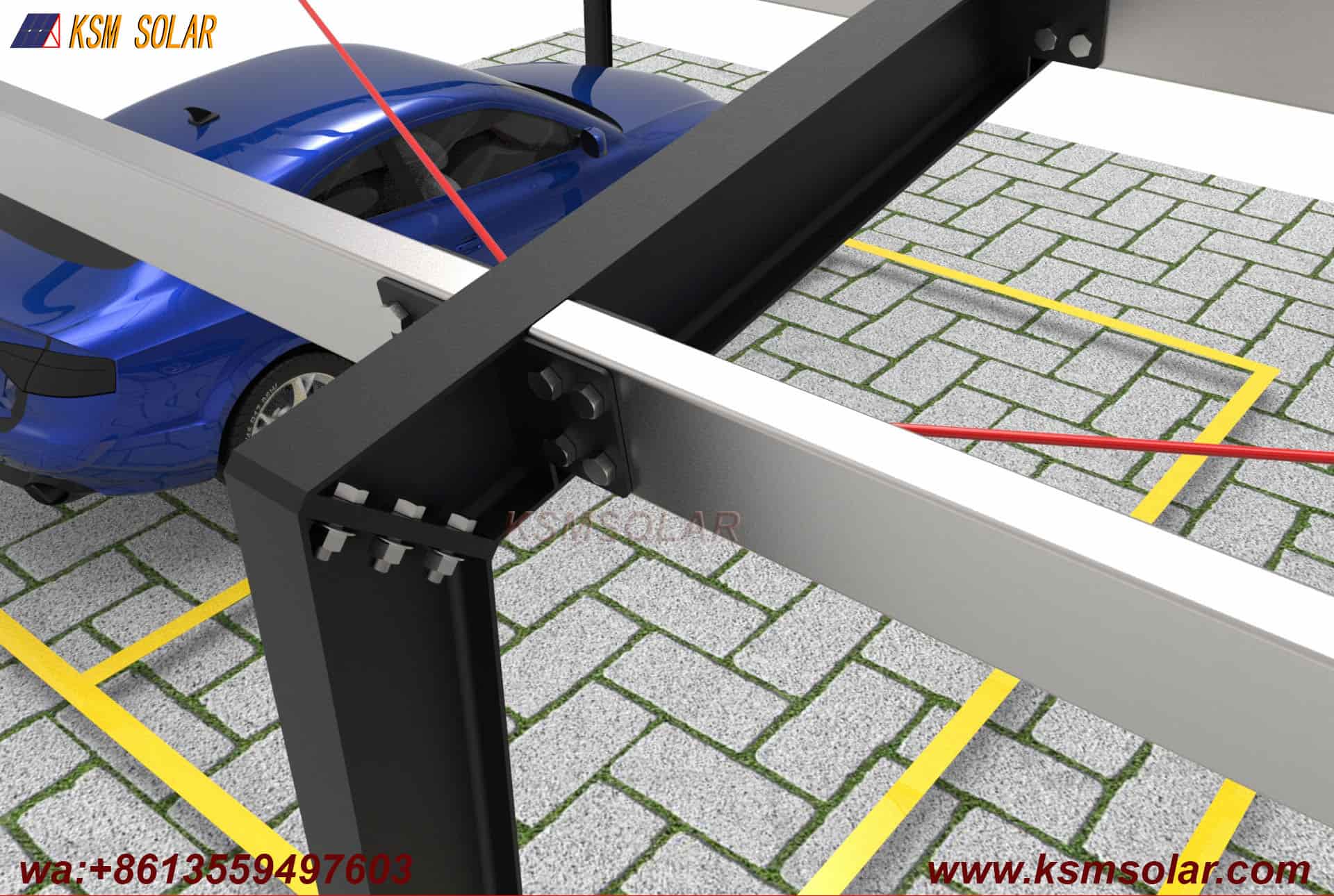

• Superior Load-Bearing Capacity: Constructed with hot-rolled H-beams, the framework offers exceptional resistance to bending, shear, and torsional forces, supporting heavy snow loads, wind pressures, and the weight of PV modules over large spans.

• Corrosion-Resistant Construction: All steel components are protected with hot-dip galvanizing or Zinc-Aluminum-Magnesium (ZAM) coating, ensuring long-term durability in harsh environmental conditions.

• Design Flexibility: The modular H-beam system allows customization of span widths, roof pitches, and column arrangements to meet specific site and performance requirements.

3. Pre-Engineered for Efficient Deployment

• Factory-Prefabricated Components: Major structural elements are precision-manufactured off-site, ensuring consistent quality and enabling fast bolt-together assembly with minimal on-site welding or adjustment.

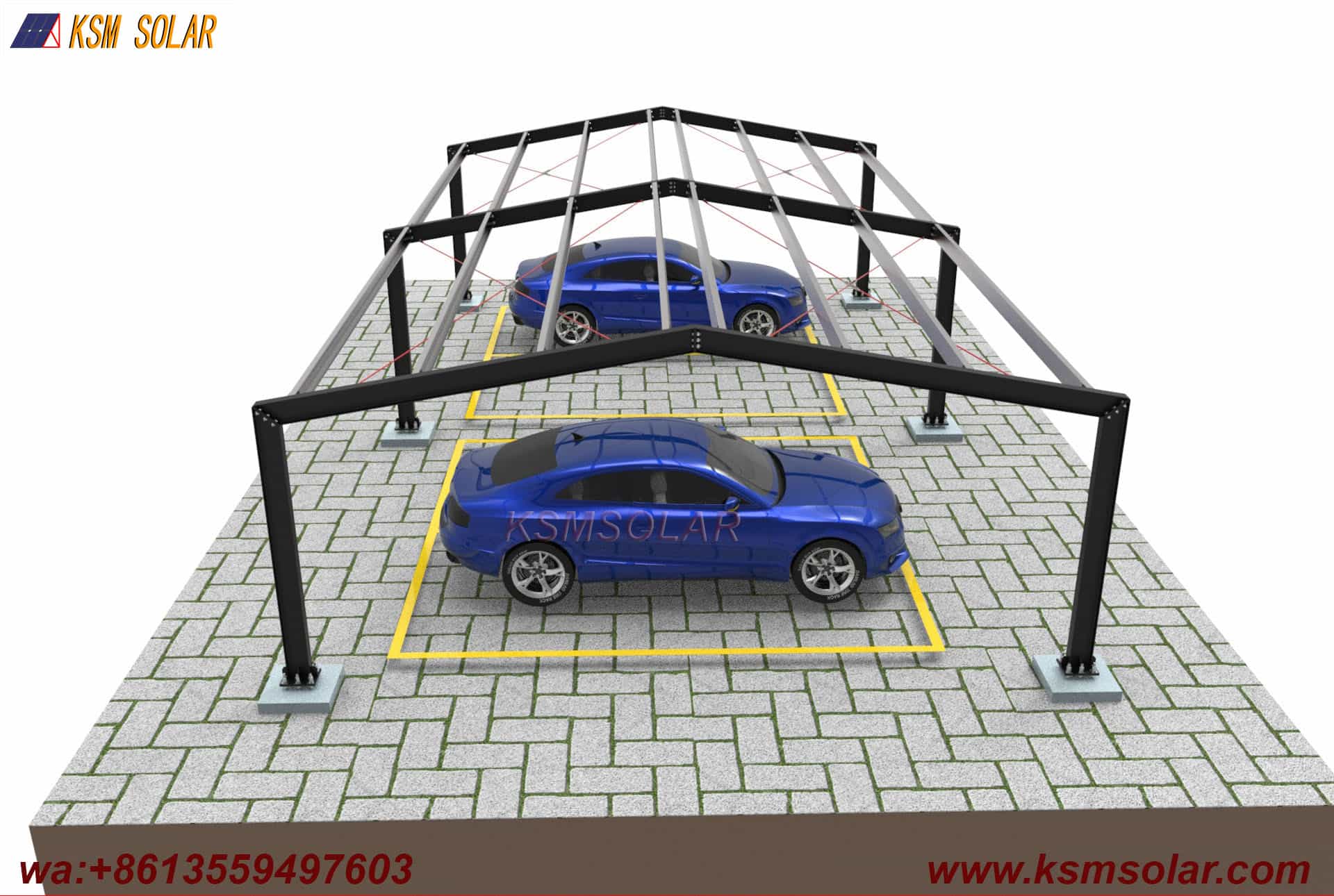

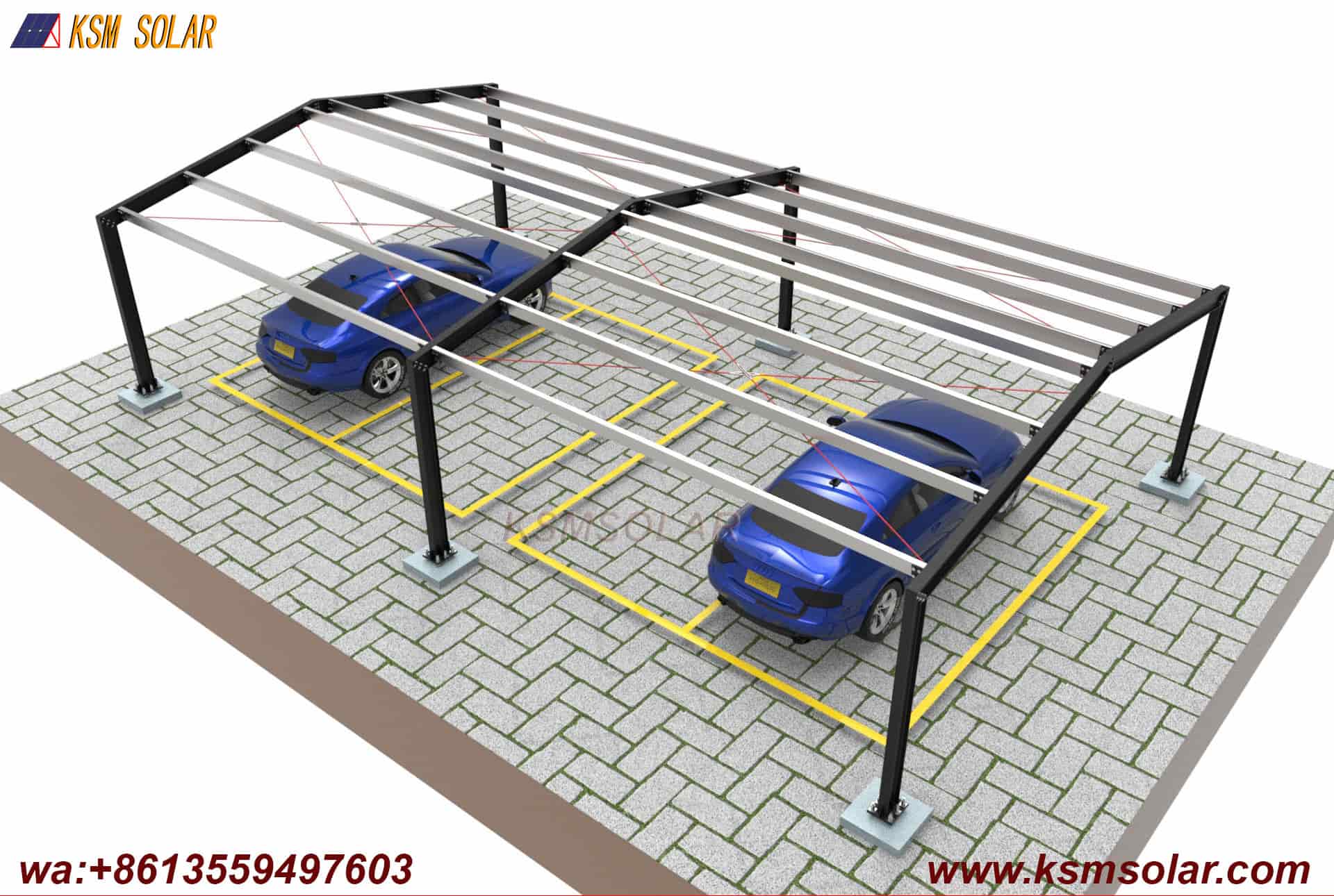

• Streamlined Installation Process: The use of large prefabricated trusses or portal frames reduces the number of components and connections, accelerating project timelines and lowering labor costs.

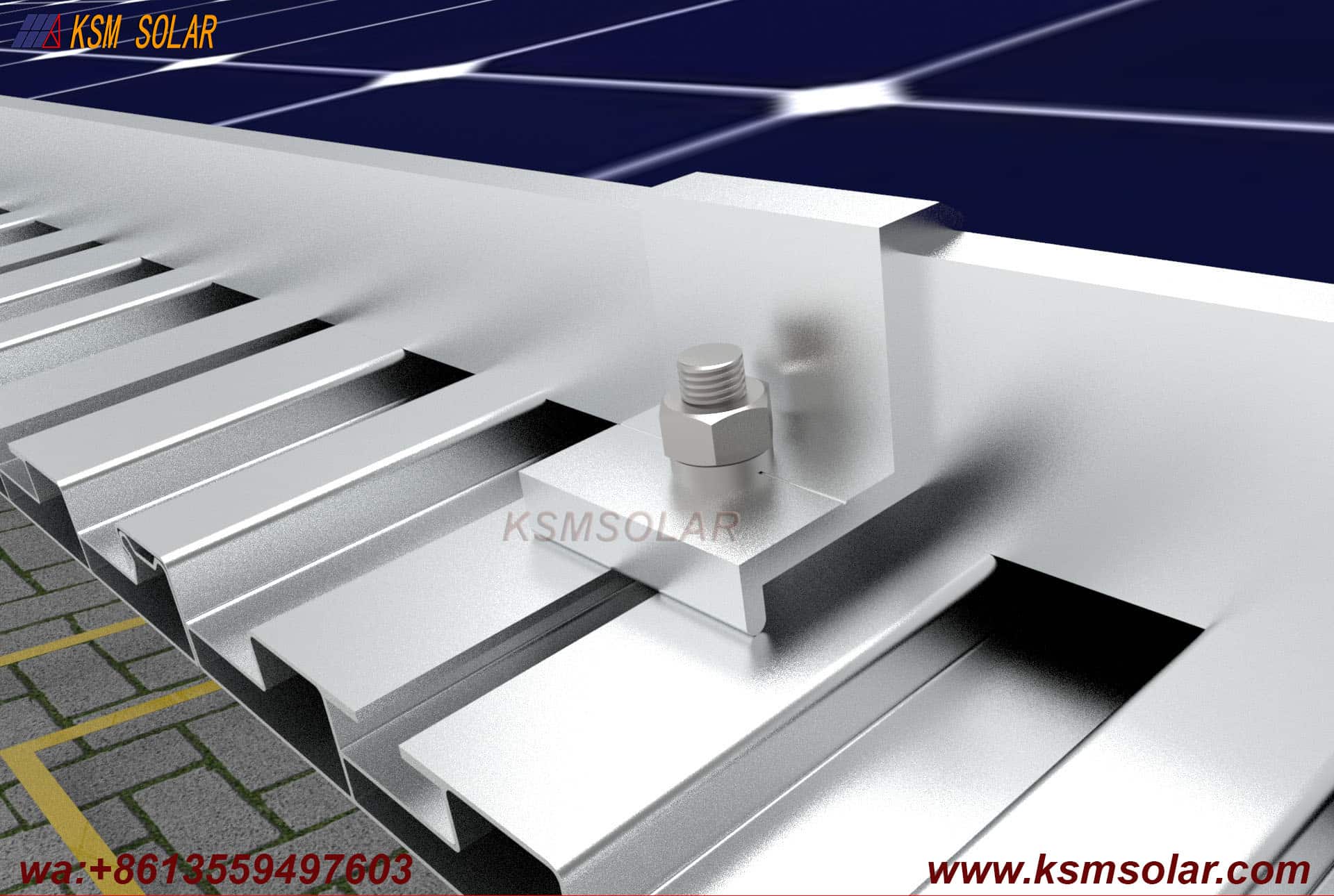

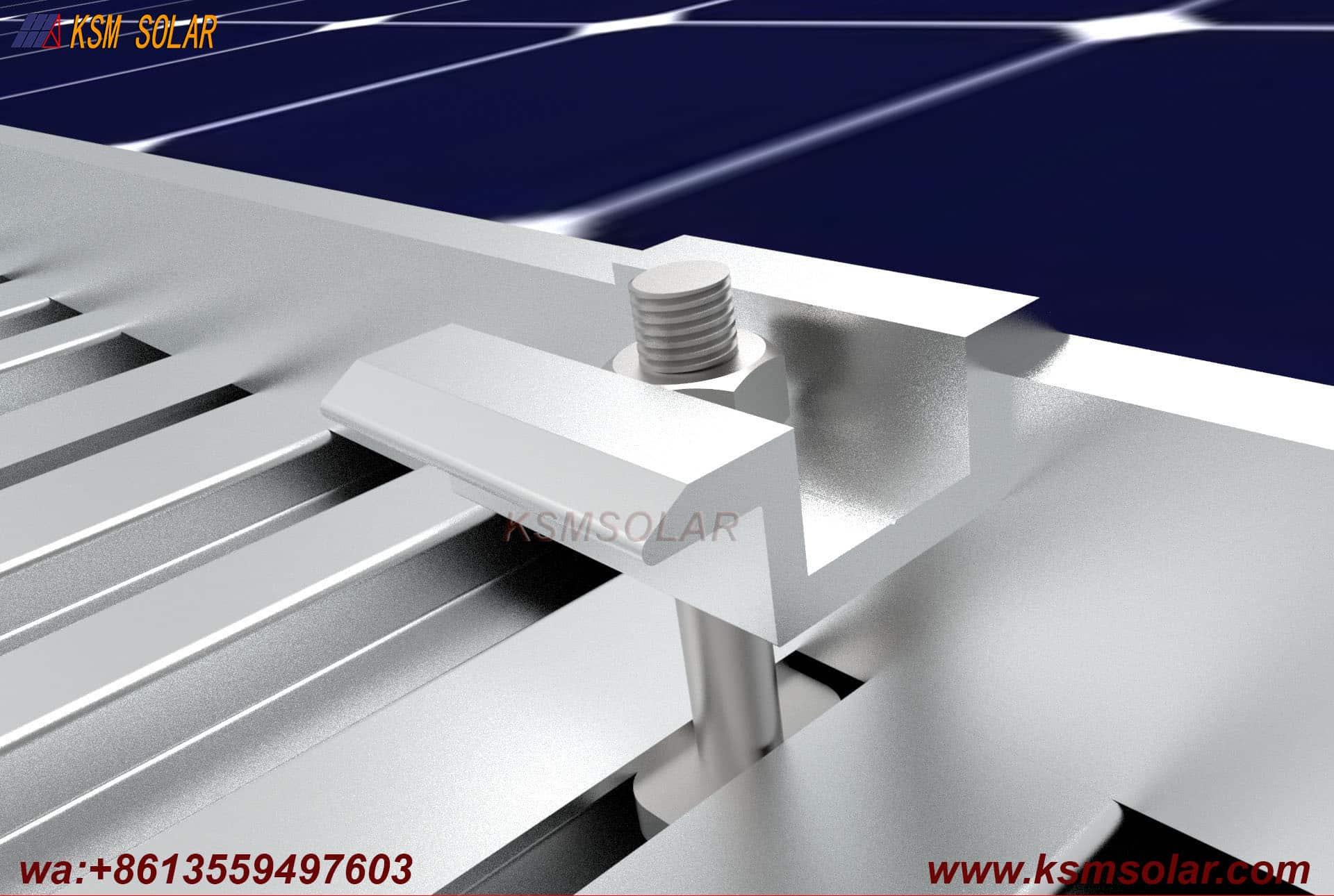

• Integrated Mounting System: The purlin and rail system is designed for easy and secure installation of solar panels, with pre-configured cable management pathways for neat and efficient electrical integration.

4. High-Performance & Functional Benefits

• Maximum Energy Output per Area: The large-span design accommodates extensive PV arrays, significantly boosting renewable energy generation capacity per installation footprint.

• Ideal for Commercial & Industrial Scale: Suited for parking lots of shopping centers, logistics hubs, corporate campuses, and public facilities requiring wide coverage and high structural integrity.

• Future-Ready Adaptability: The robust framework supports integration with bifacial solar panels, EV charging canopies, and smart grid connectivity, ensuring long-term relevance and ROI.
