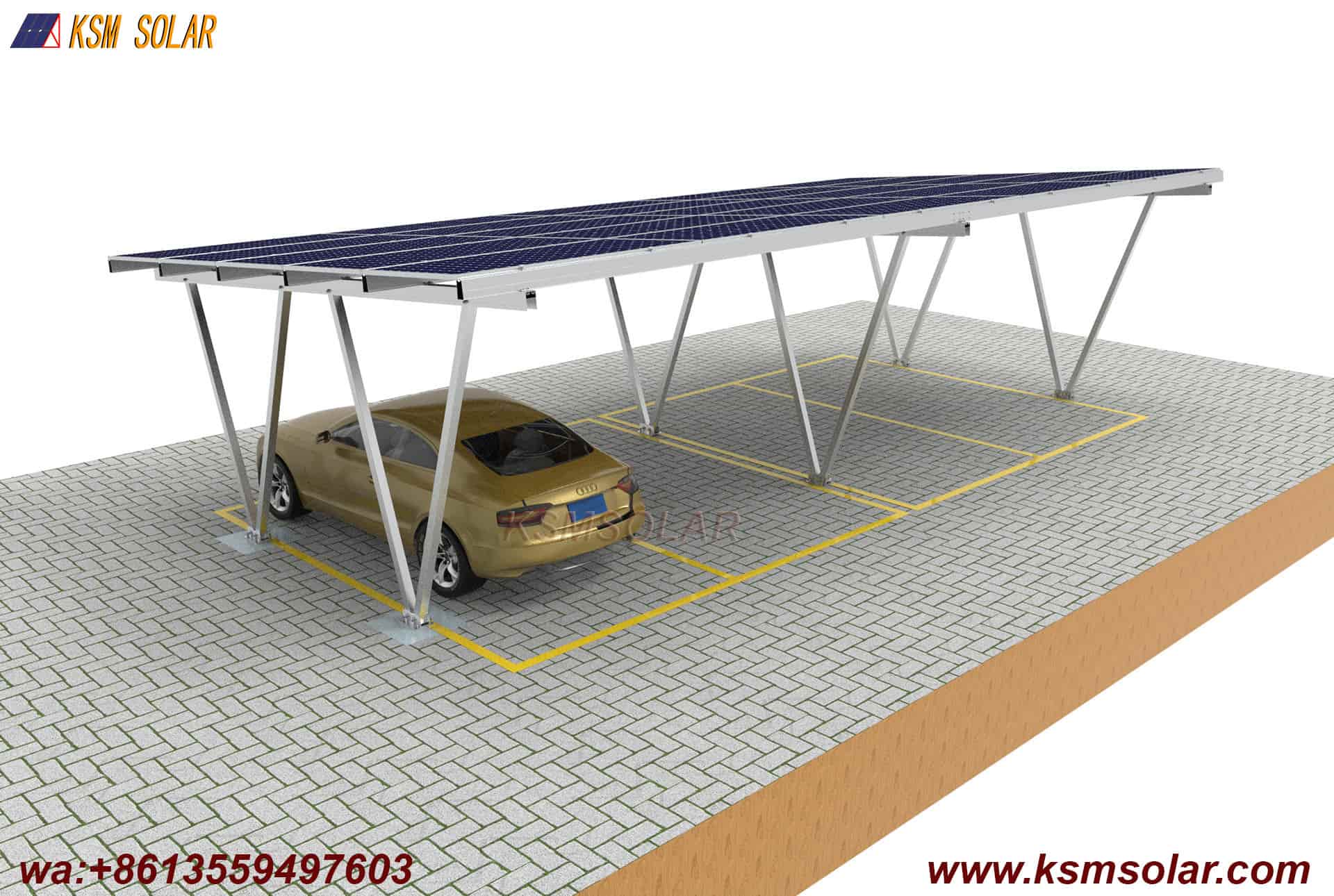

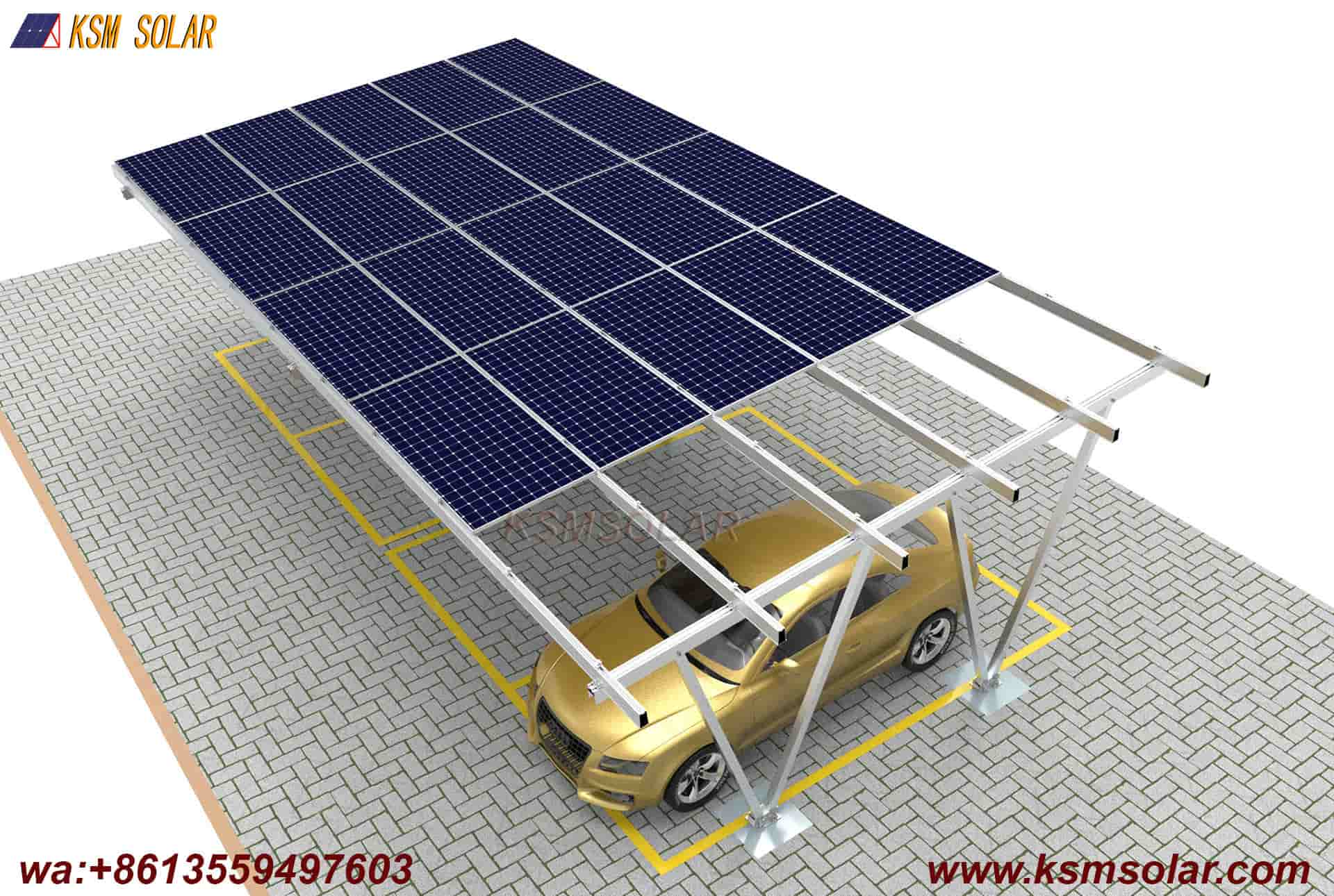

The Aluminum Alloy W-Shape Structure Photovoltaic Carport represents an advanced engineering solution characterized by its distinctive multi-valley roof profile that forms a repeating "W" pattern in cross-section. This innovative design combines the material advantages of aluminum alloys with a geometrically optimized configuration to deliver enhanced structural efficiency, superior water management, and increased photovoltaic capacity per unit area.

Core Structural Characteristics

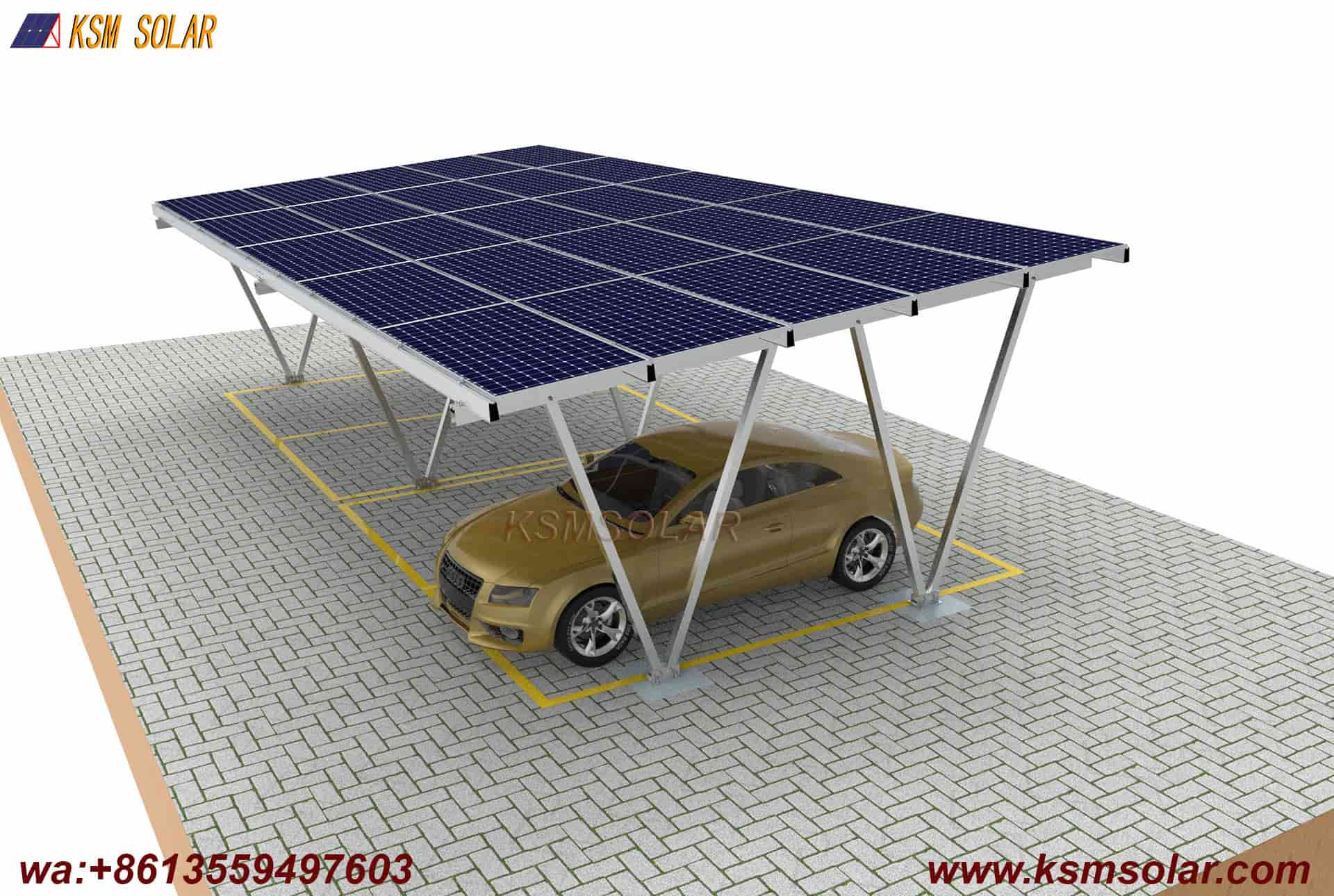

W-Shape Geometric Configuration

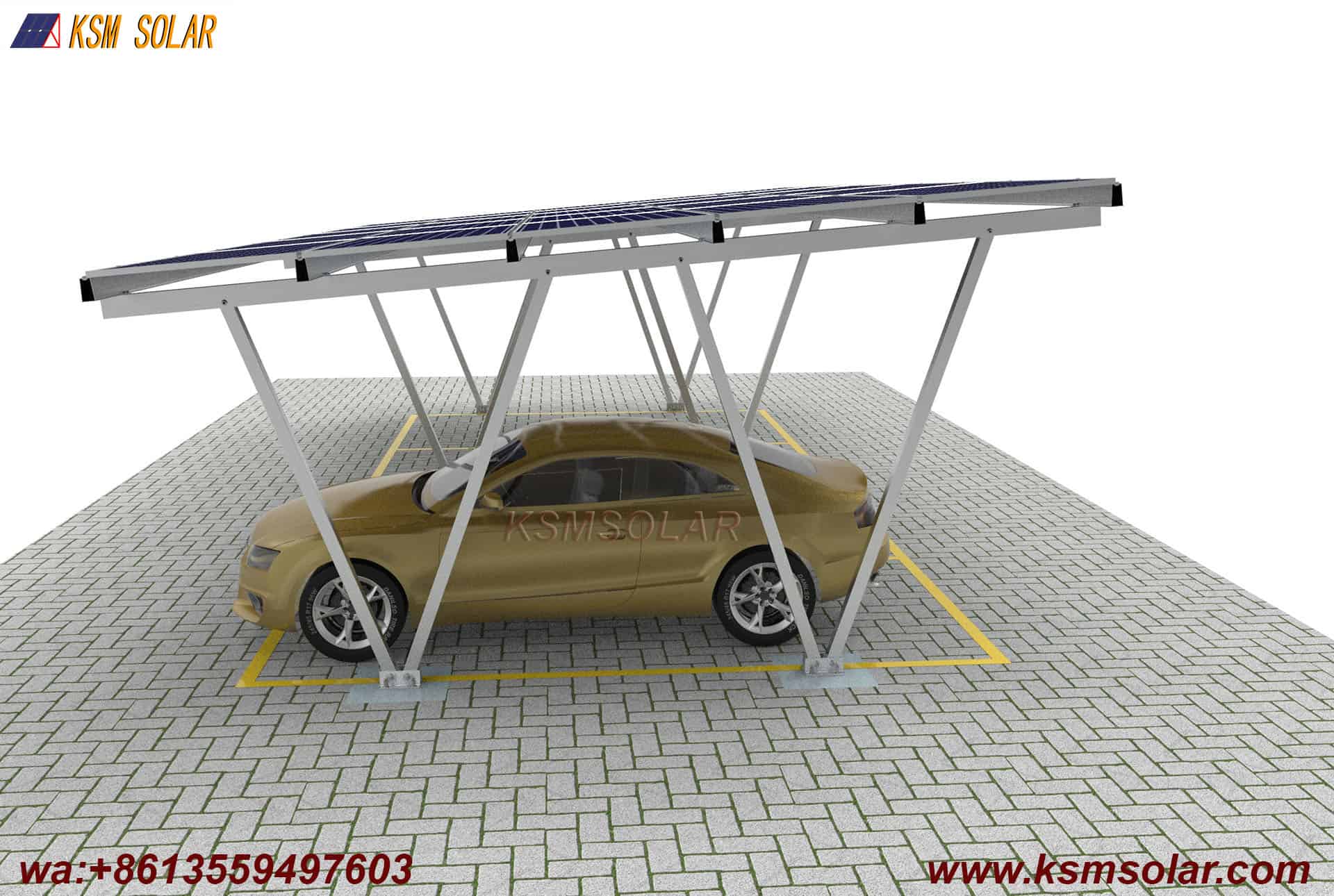

• Optimized Slope Angles: Each of the three roof planes is typically inclined at 5-12 degrees, with the central plane often designed at a steeper angle for improved drainage. The symmetrical geometry ensures balanced load distribution while maximizing solar exposure across all surfaces.

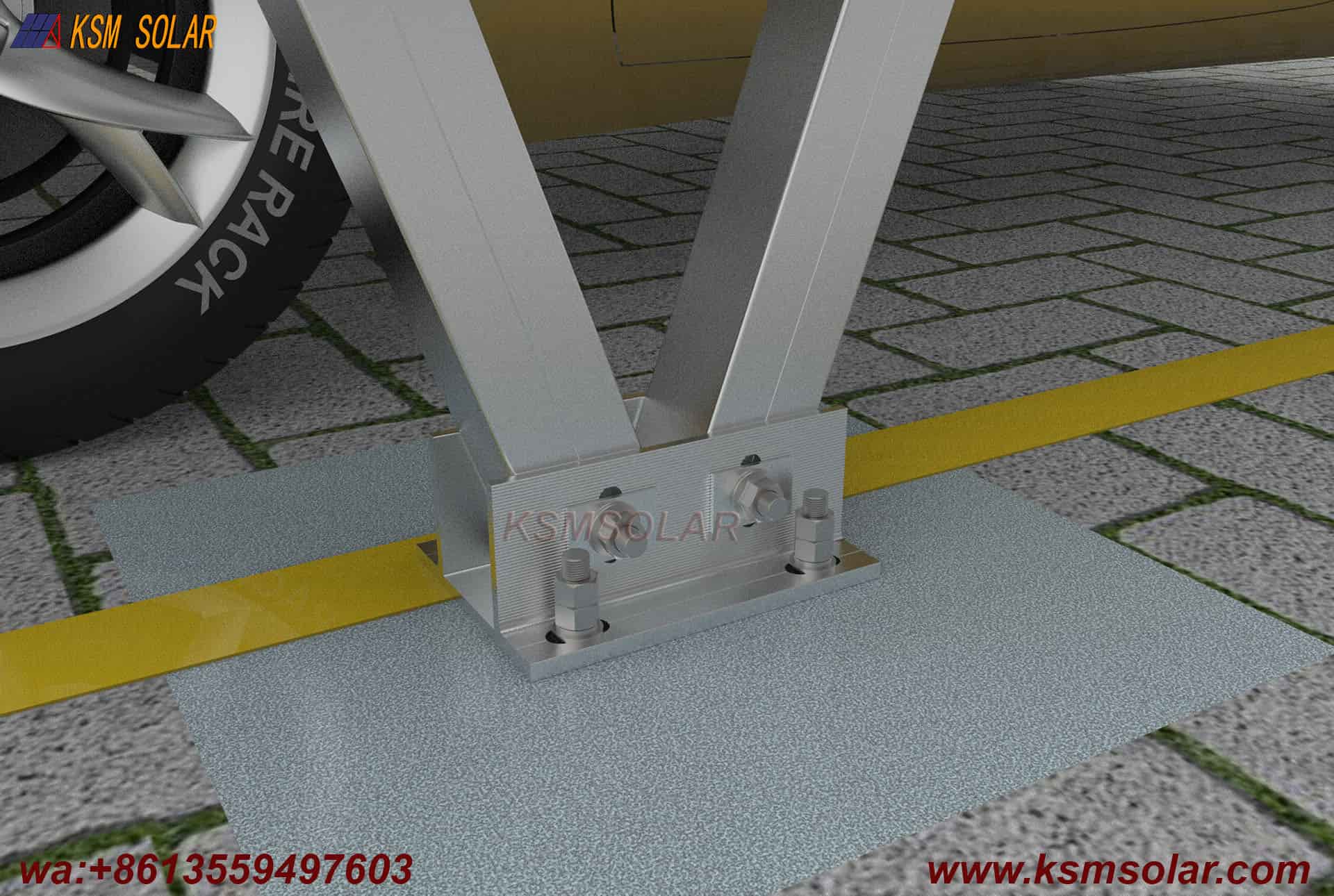

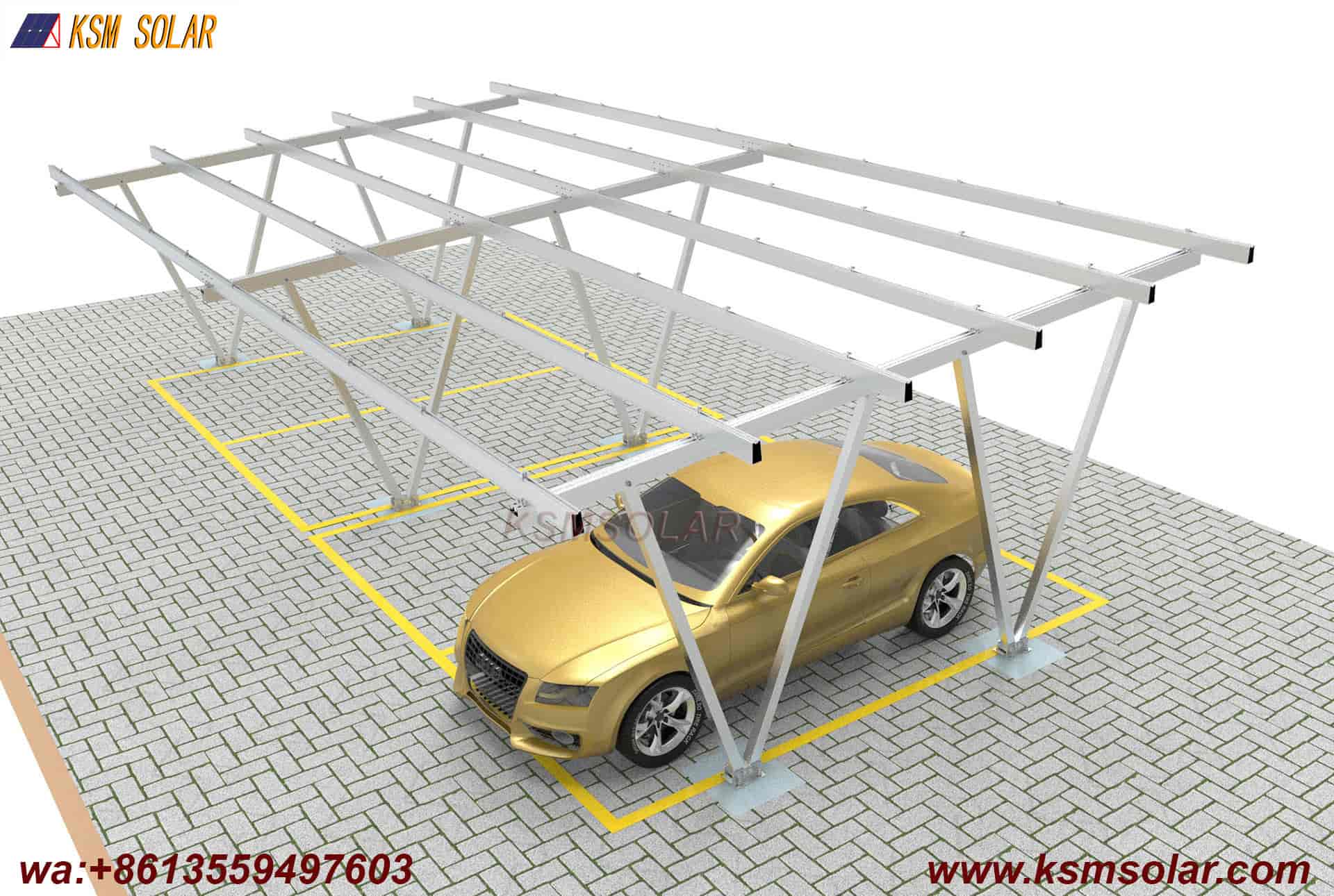

• Column Placement Strategy: Support columns are strategically positioned at the valley intersections, creating a highly efficient load path that minimizes material usage while maintaining structural integrity over spans of 4-6 meters.

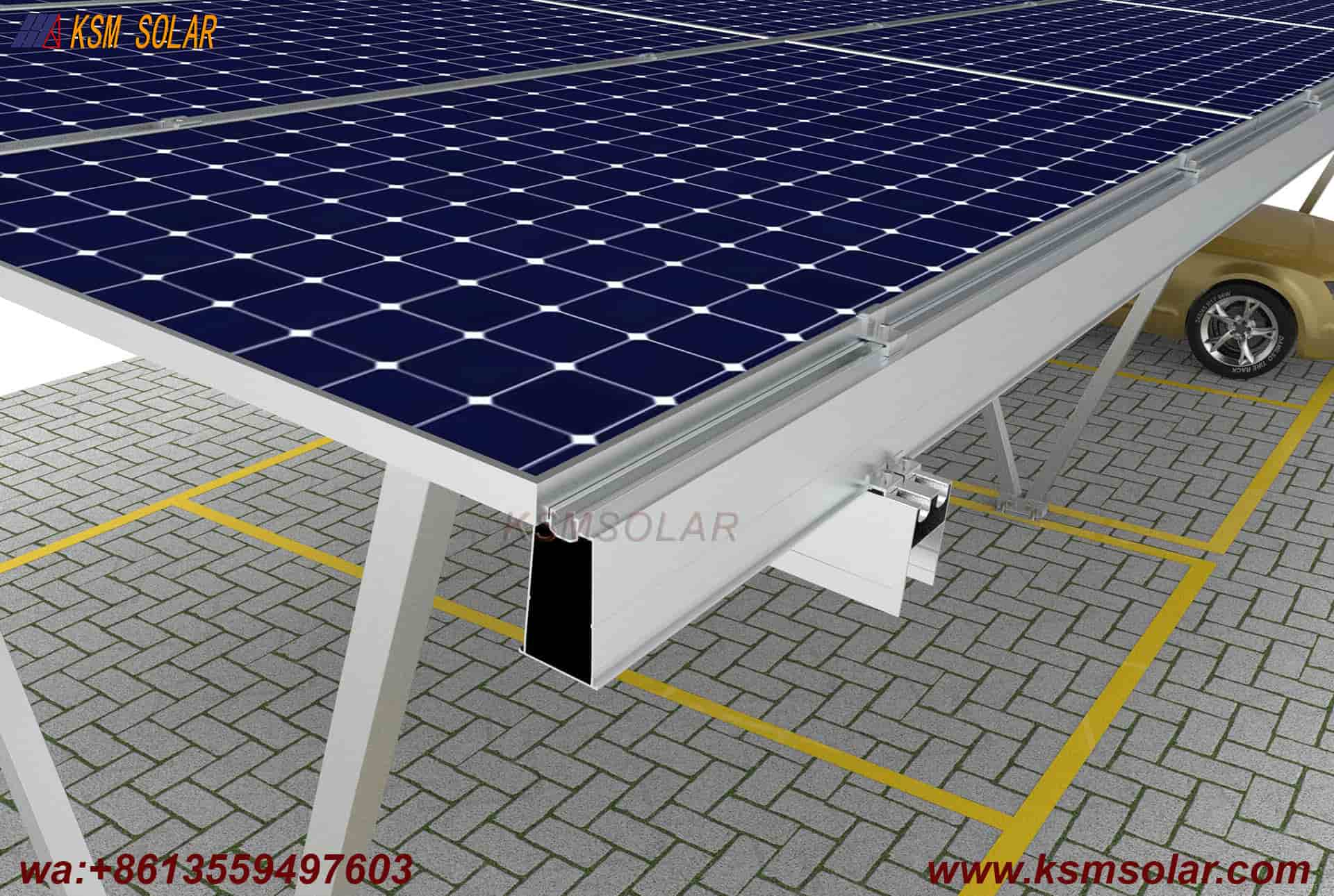

Modular Construction System

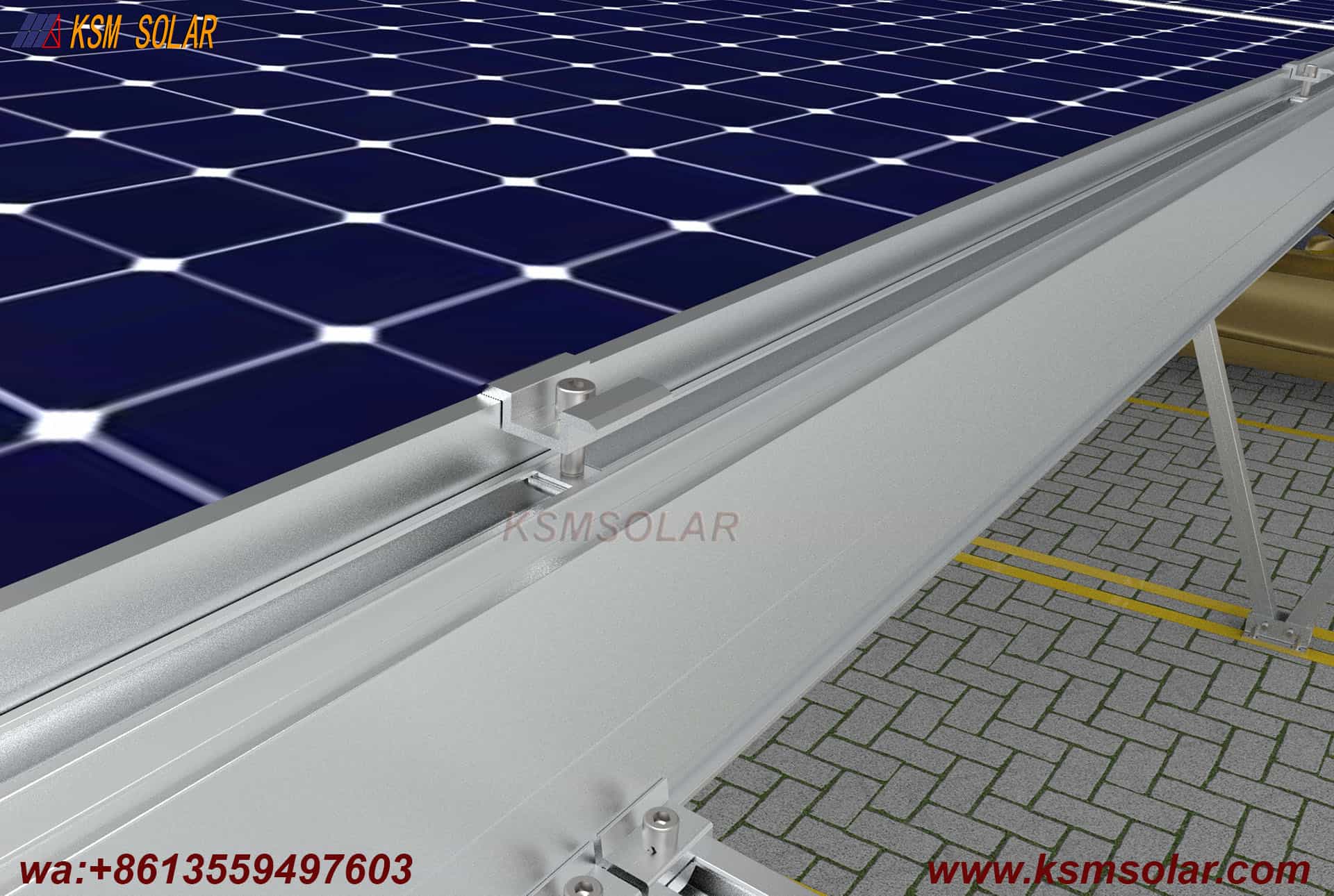

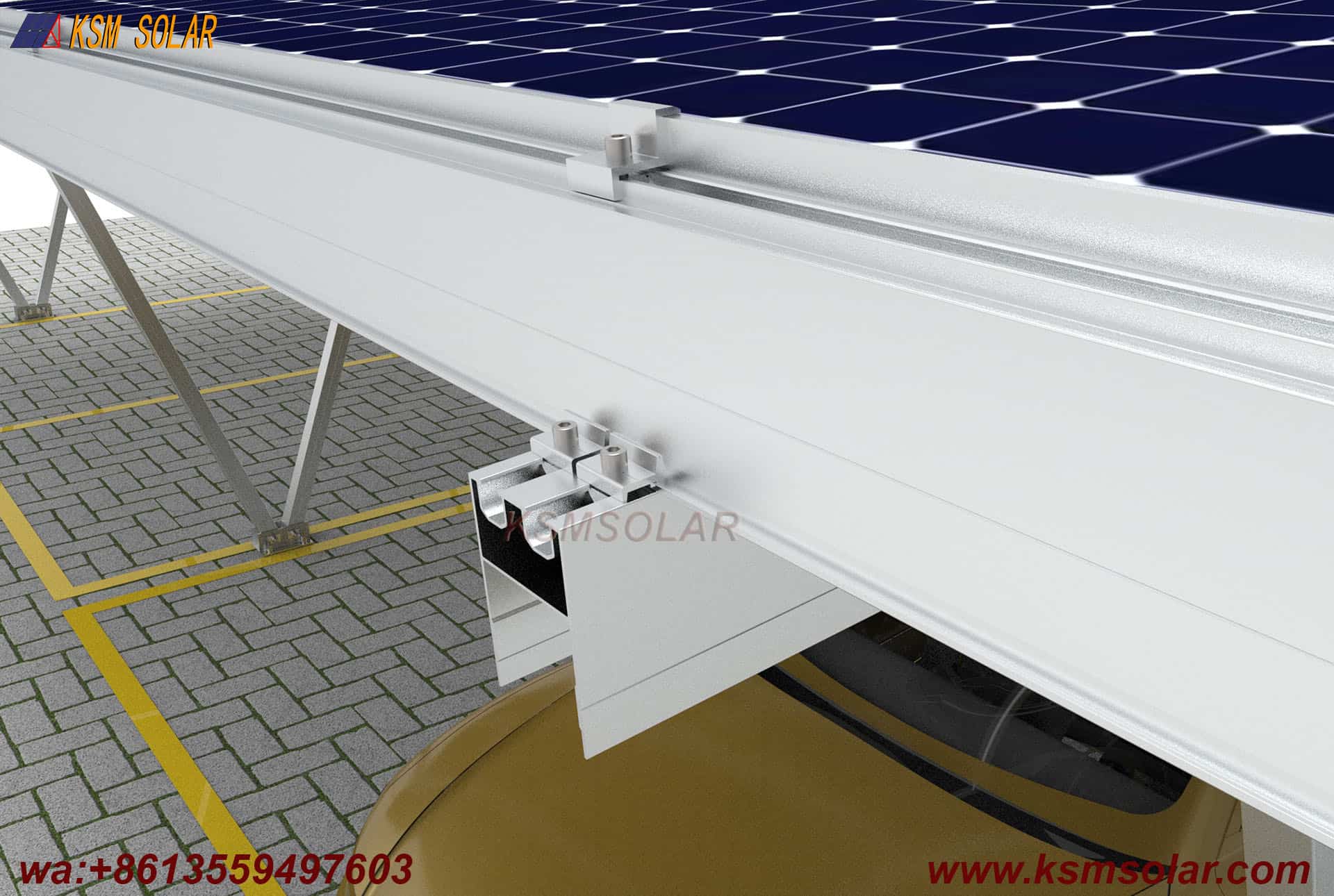

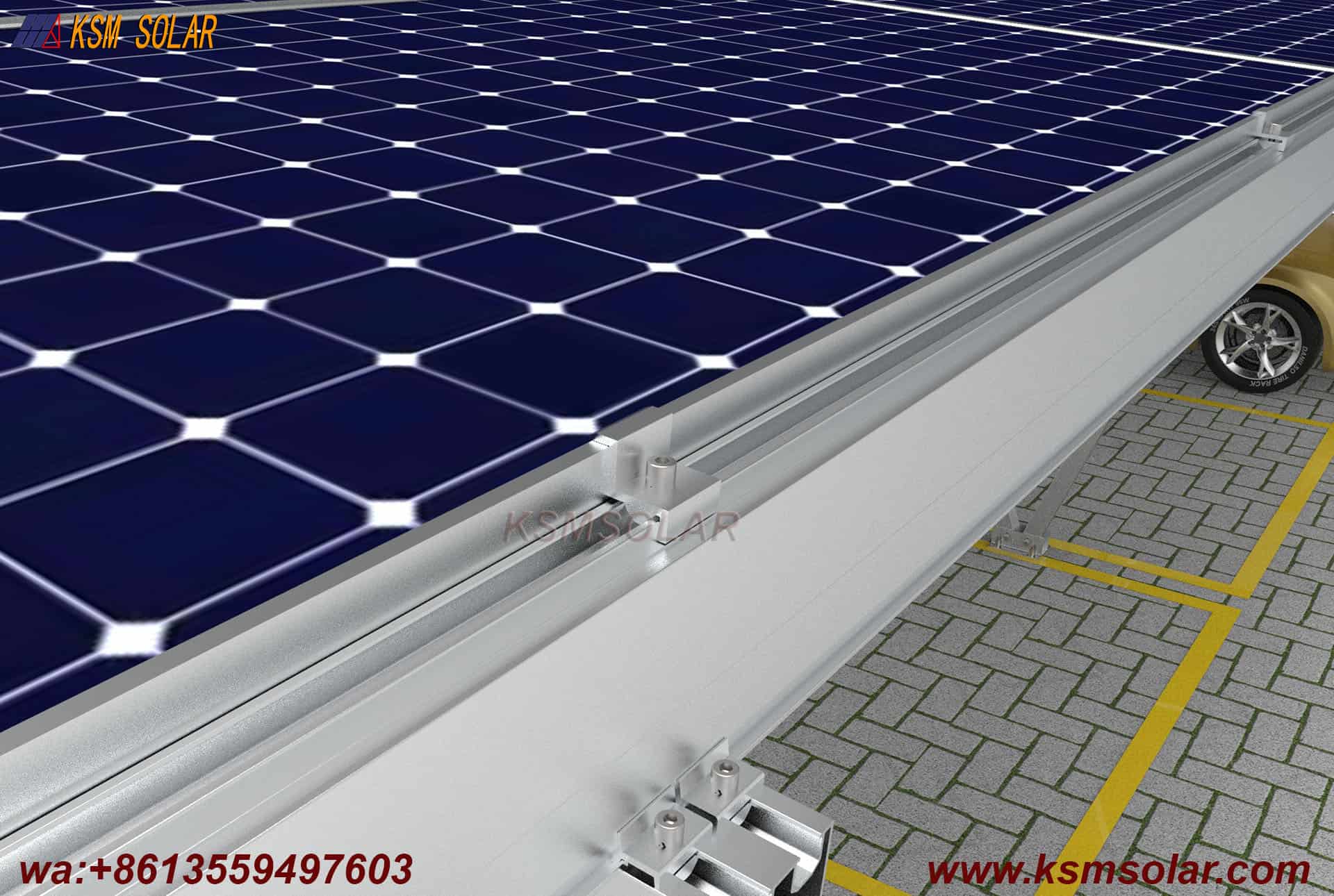

• Rapid Field Assembly: Bolt-together connections reduce on-site time by 40-50%

• Lightweight Handling: Aluminum components enable manual positioning without heavy equipment

• Sequential Erection: Systematic installation process with laser-guided alignment

Parameters

• Material:	AL6005-T5
  Standard:	ASCE7-10/EU/JISC8955-2017
  Surface Treatment:	Anodizing/electrophoresis
  Wind Load:	0-60m/s
  Snow load	0-150cm
  Warranty	10 Years
  Service Life	25 Years
