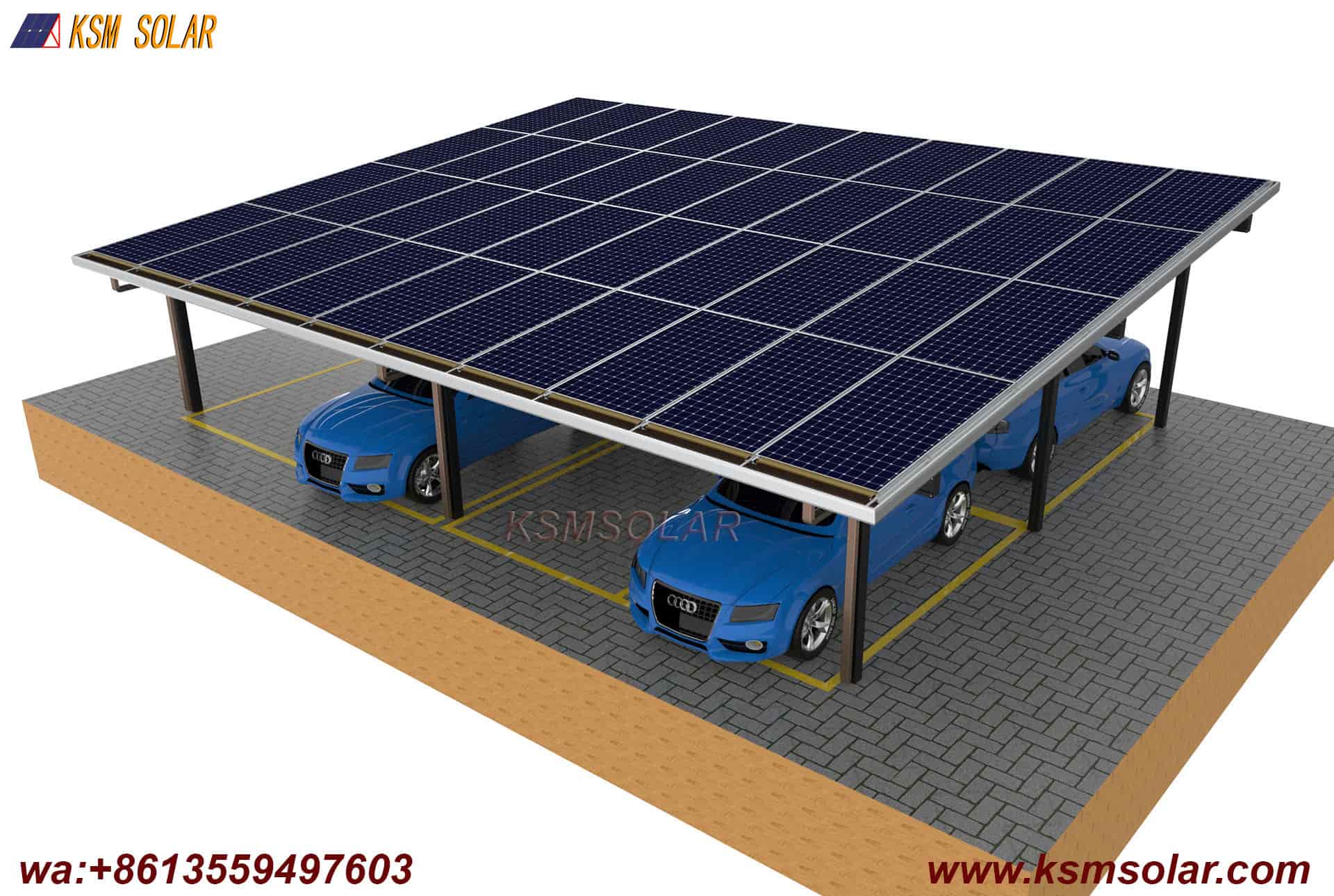

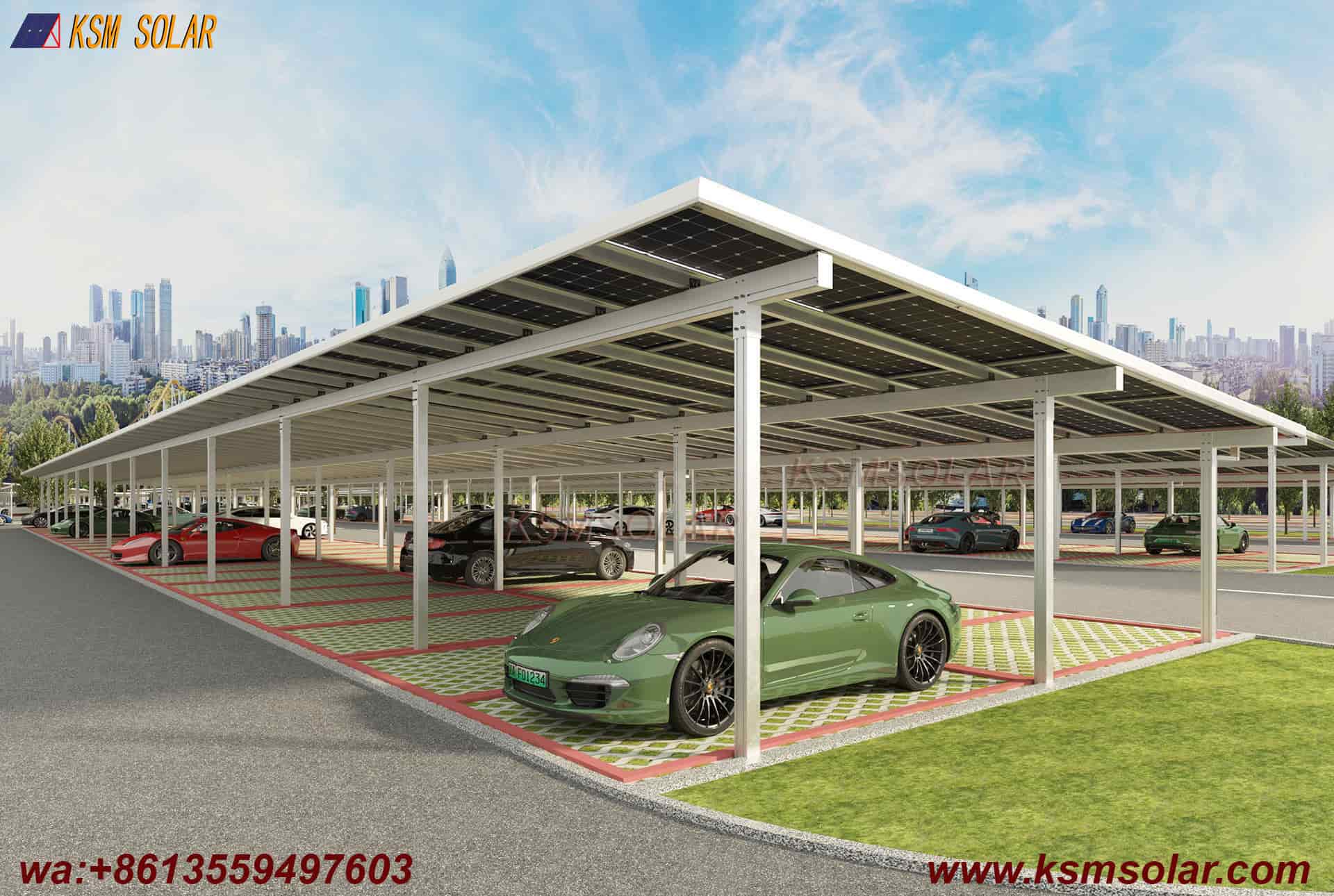

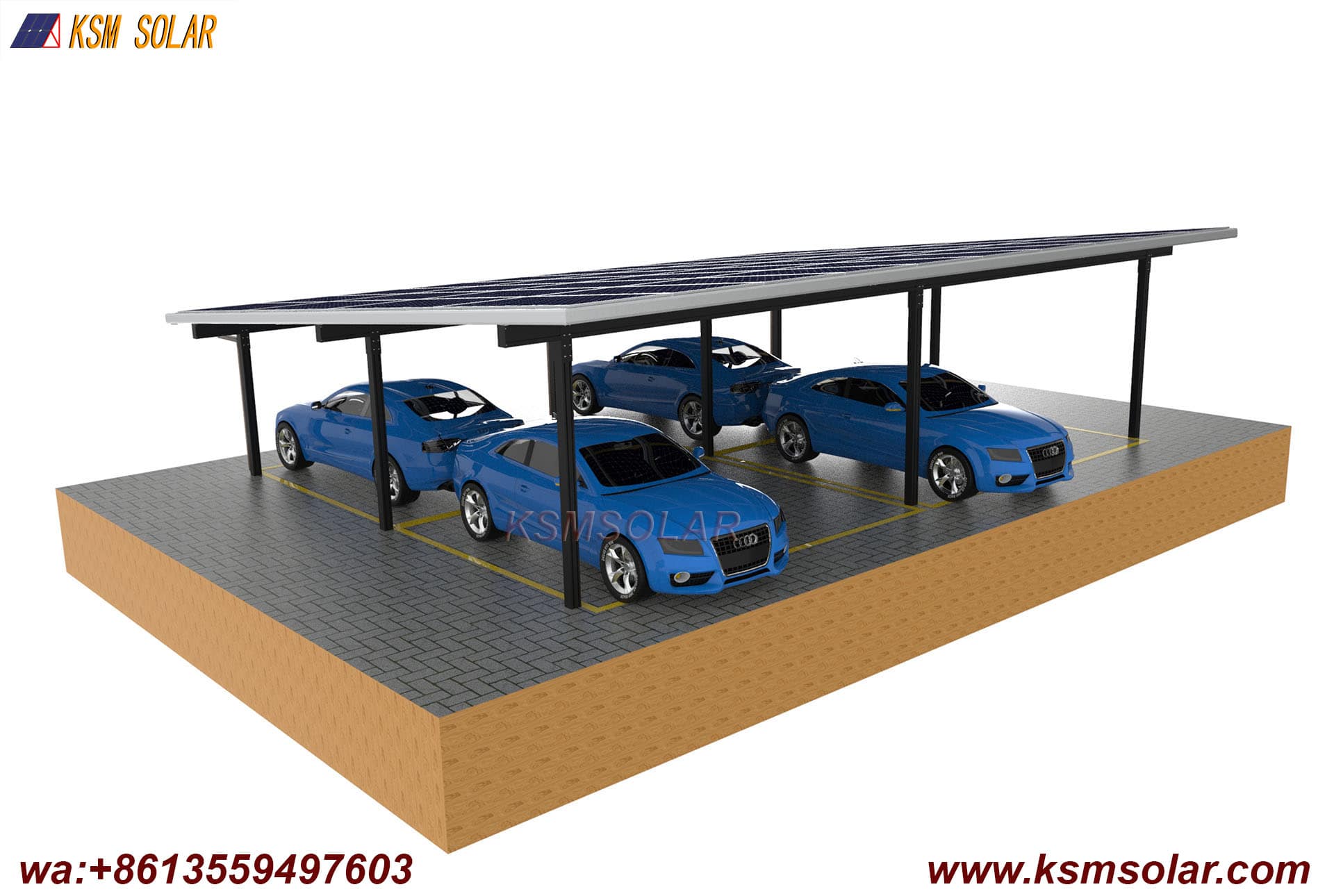

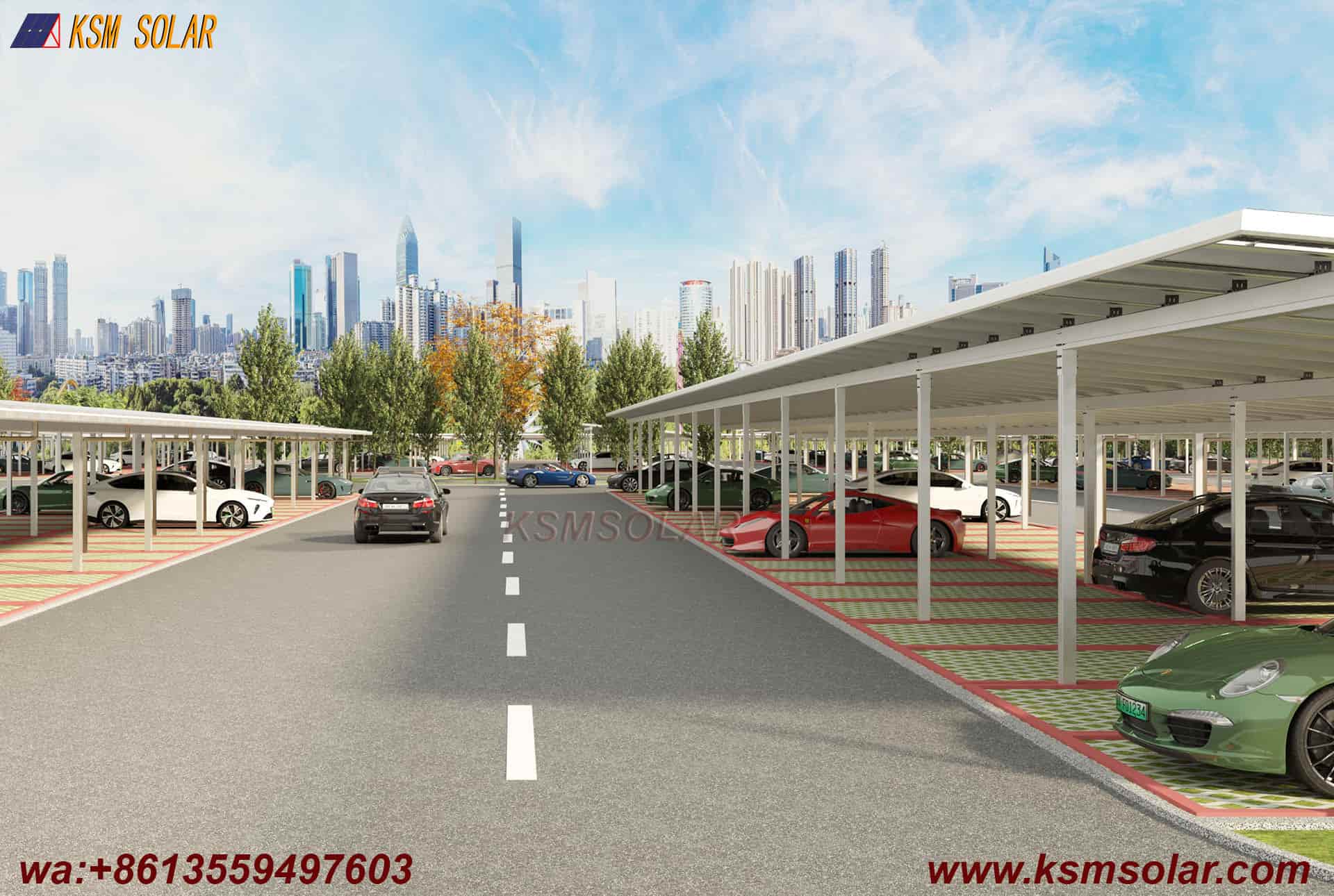

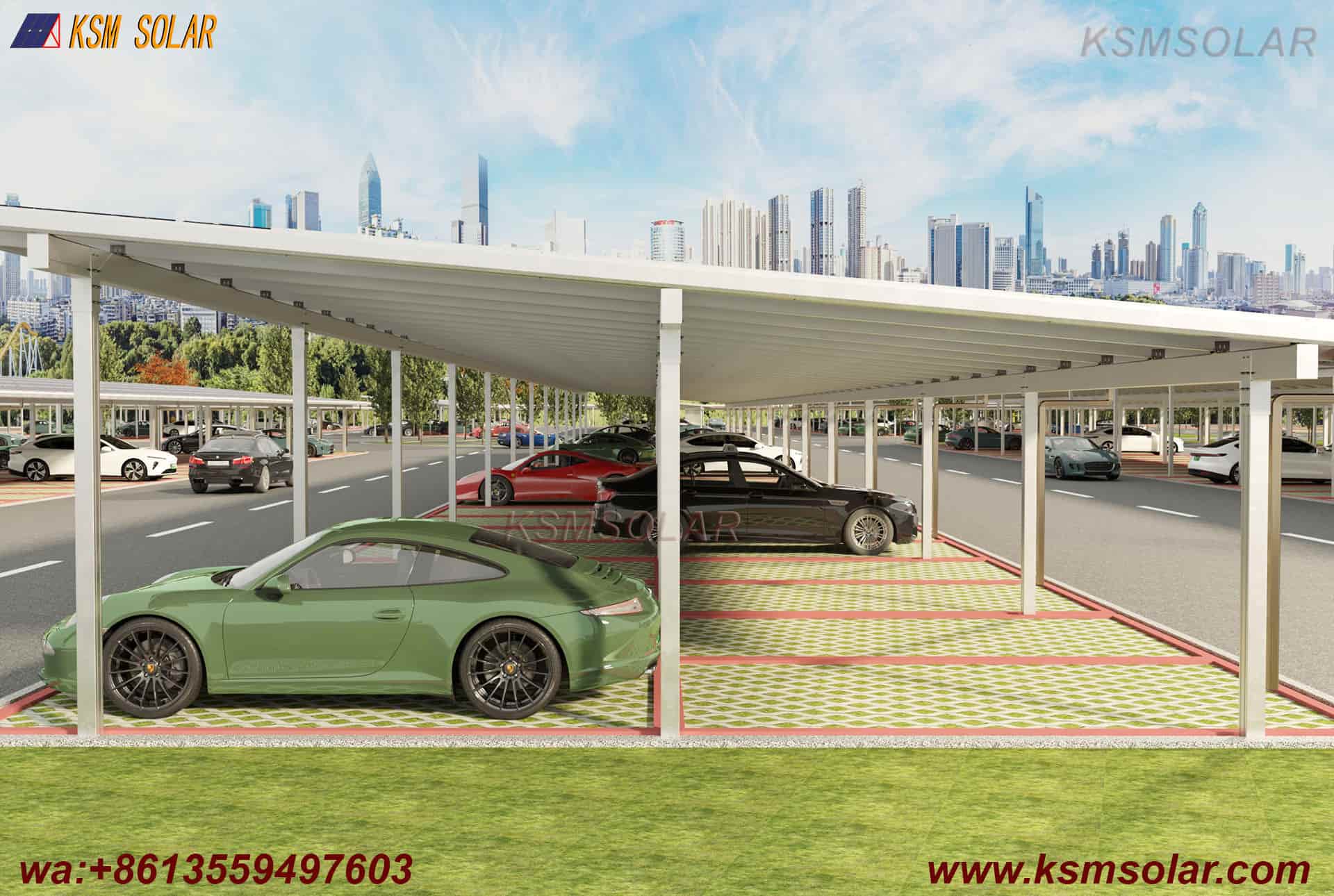

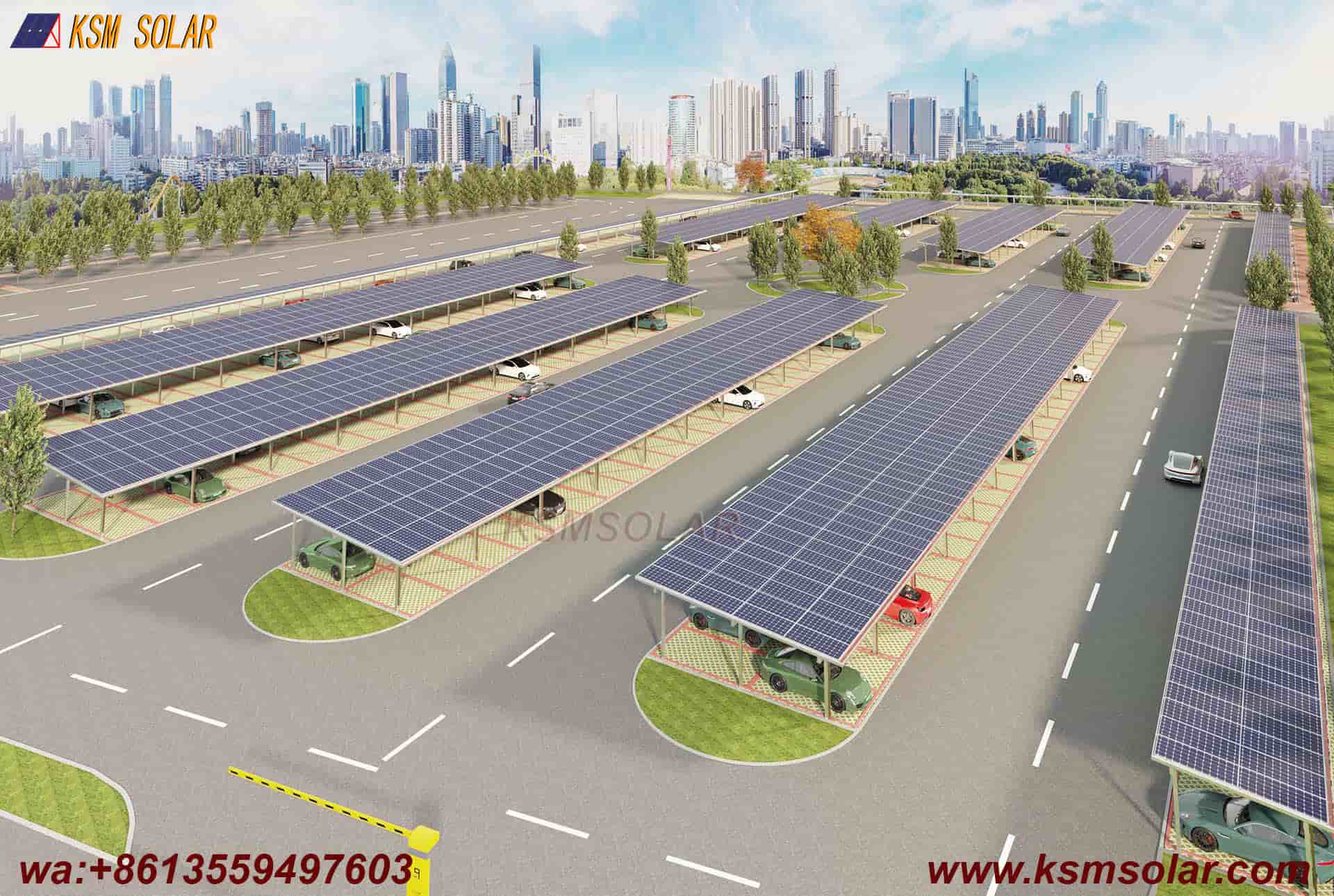

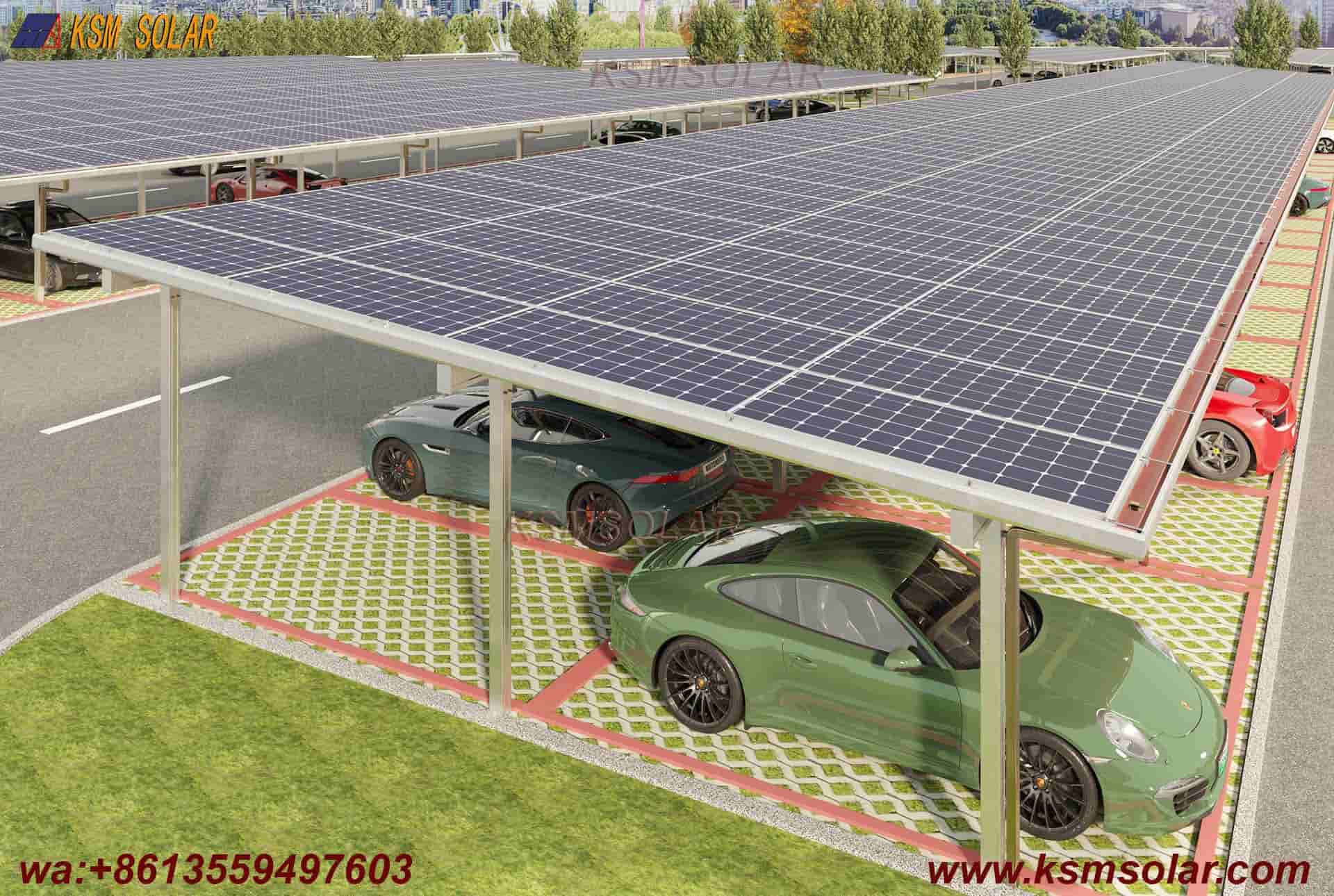

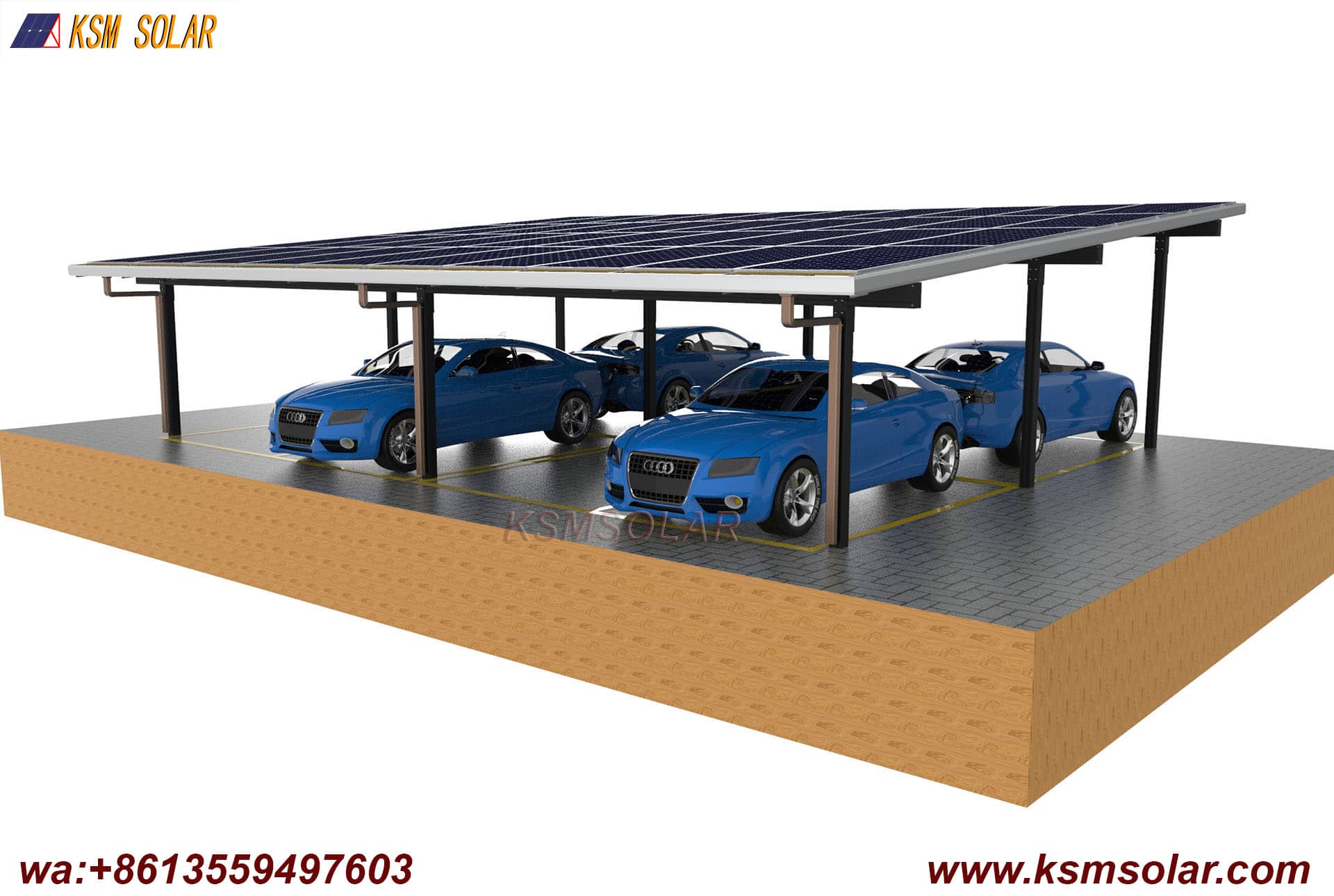

The Aluminum Alloy Single-Slope Double-Row Photovoltaic Carport is an engineering-optimized system that provides continuous covered parking for two parallel vehicle rows under a unified, inclined roof plane. Constructed entirely from high-strength aluminum alloys, this configuration maximizes spatial efficiency through modular repetition while delivering superior corrosion resistance, lightweight durability, and enhanced photovoltaic performance in a streamlined architectural form.

Unified Single-Slope Roof Configuration

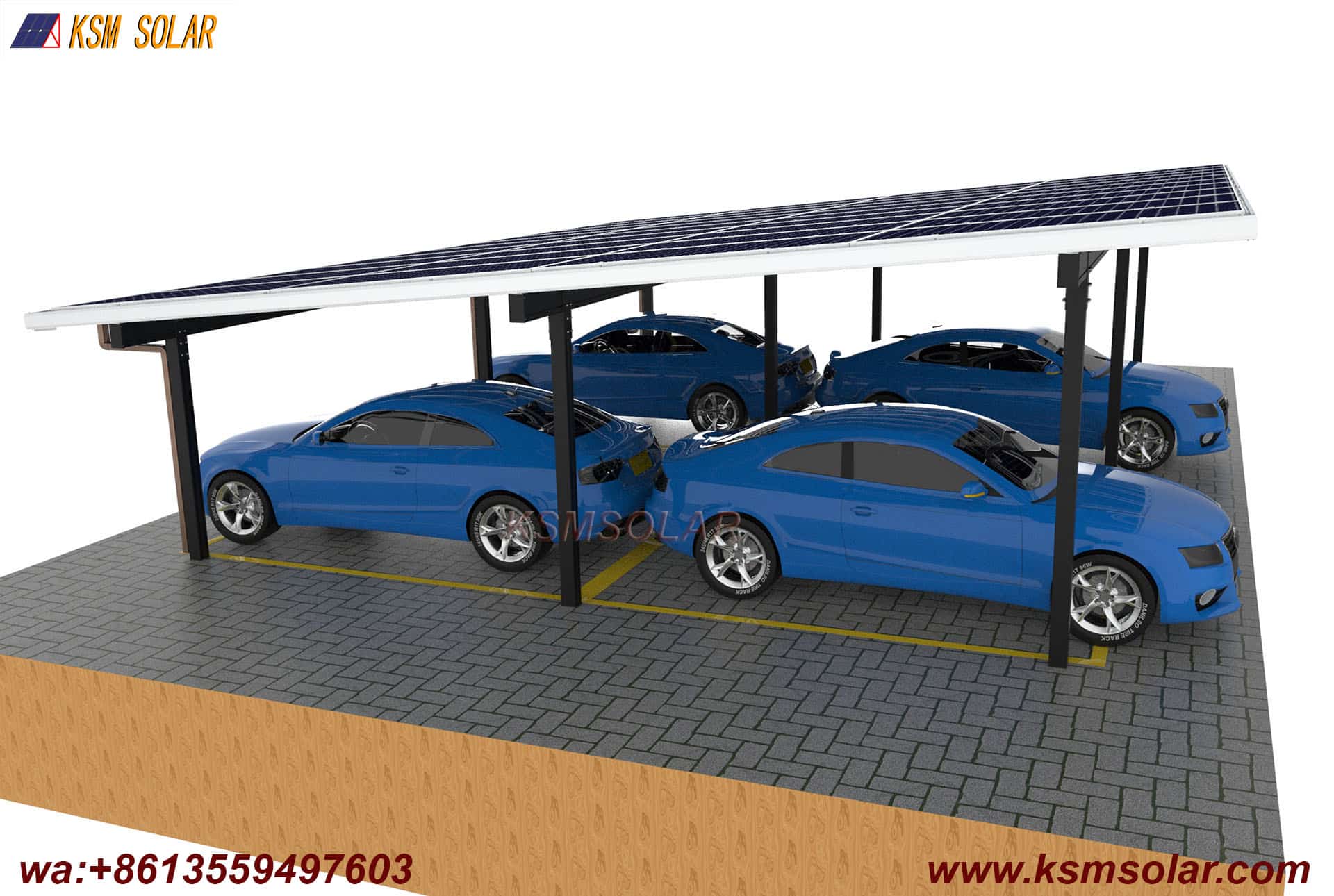

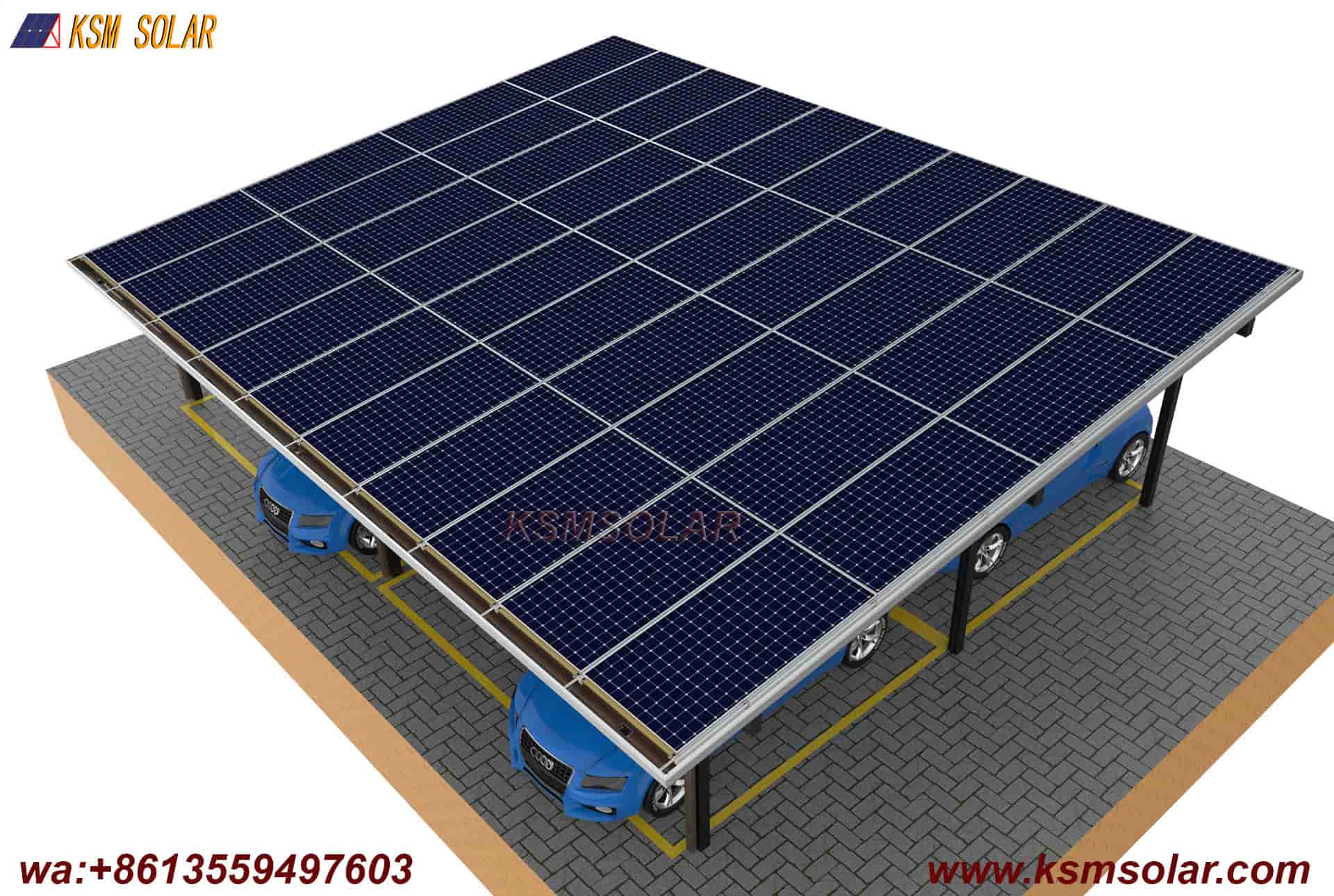

• Continuous Inclined Plane: Features a single, uninterrupted roof surface inclined at an optimized angle of 5-12 degrees, extending continuously over two adjacent parking rows with a central support structure. This design creates a clean visual line while simplifying water drainage and snow management.

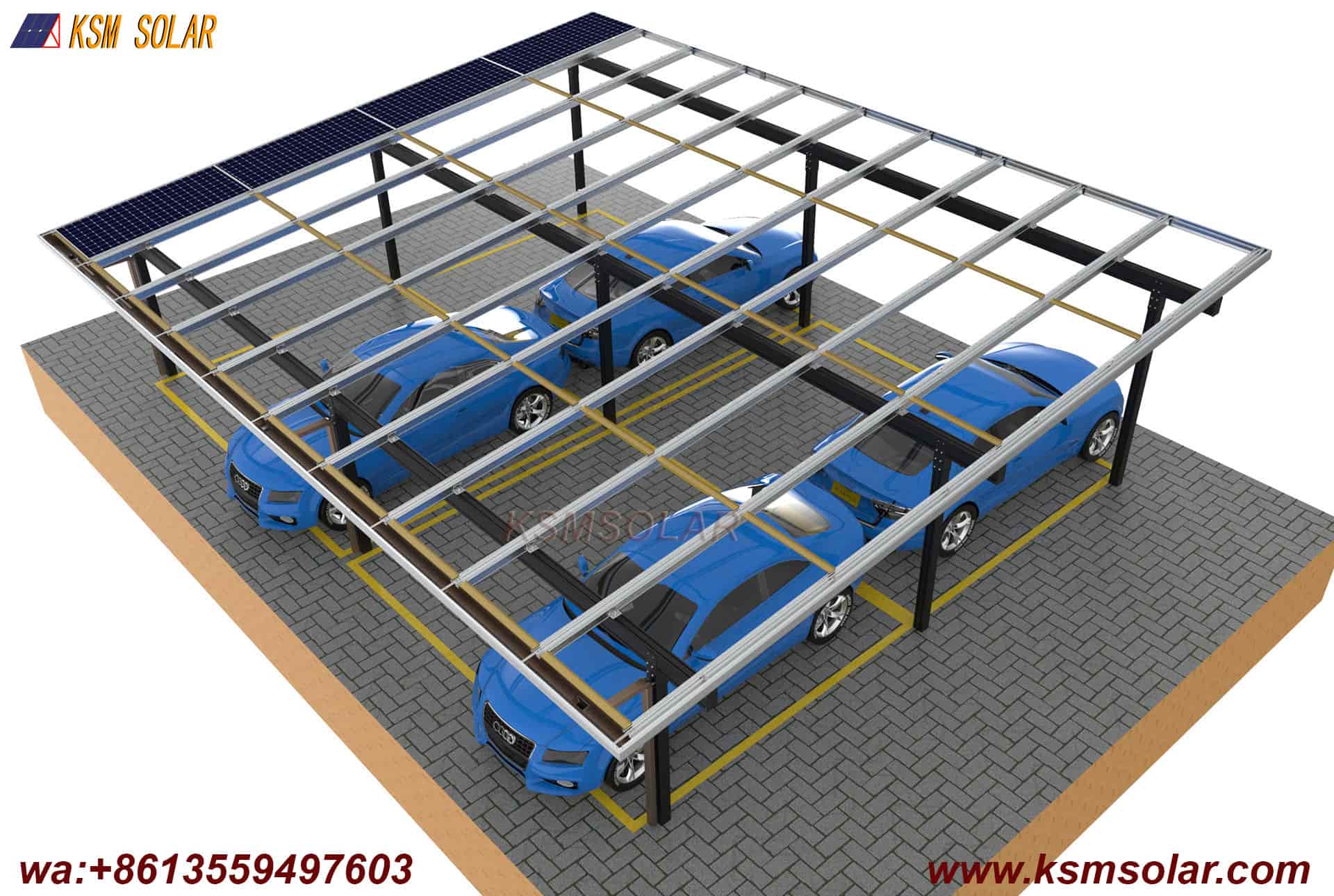

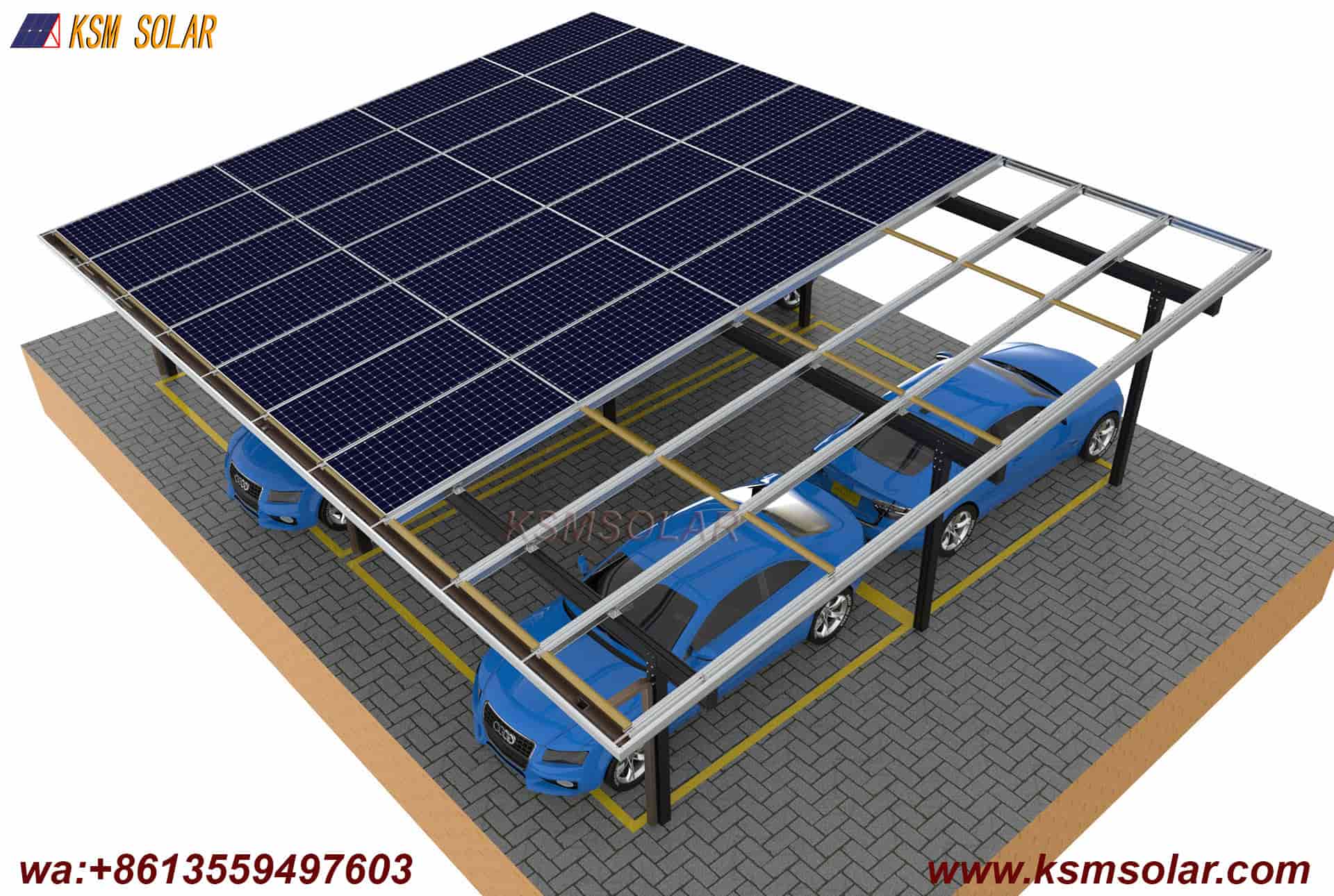

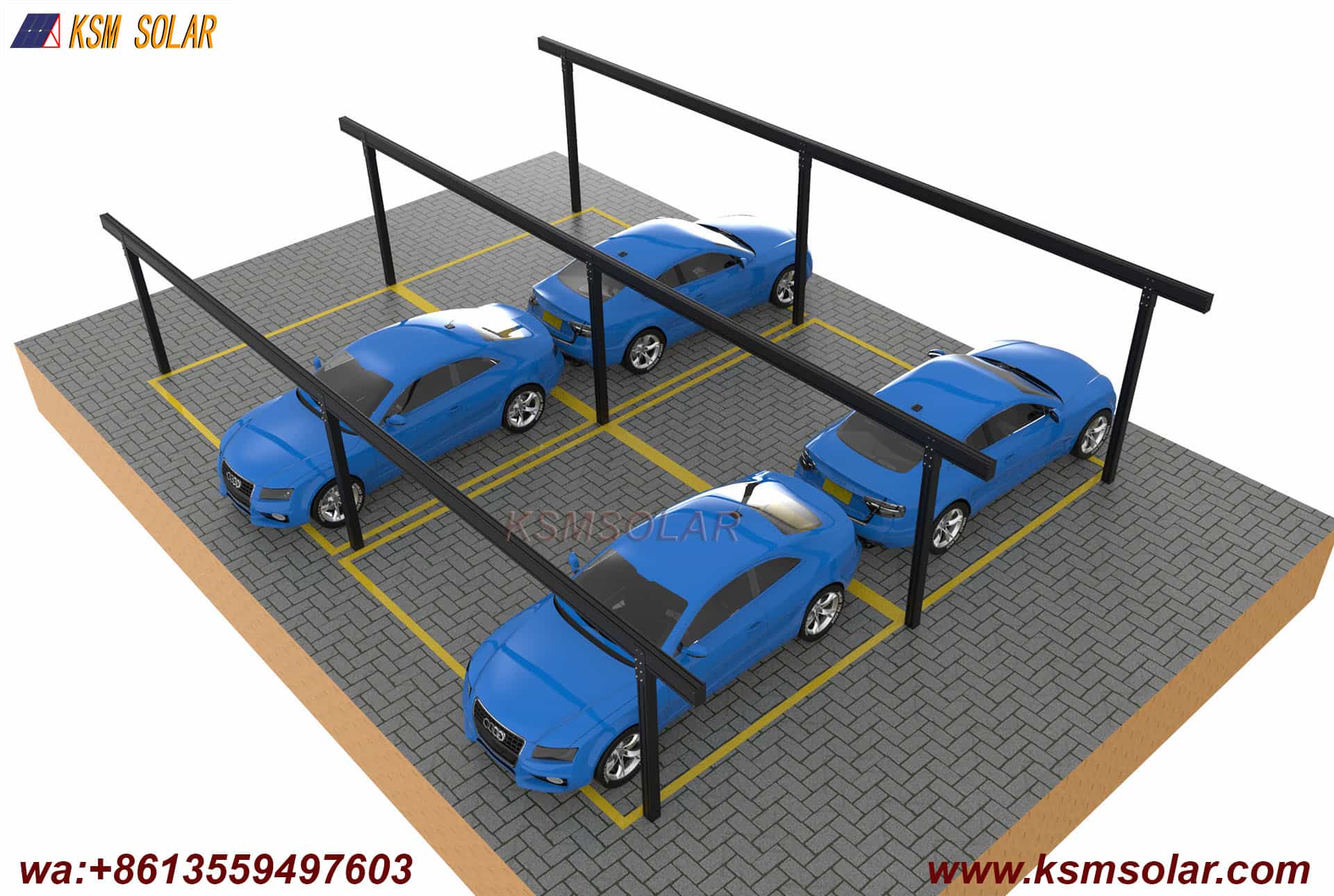

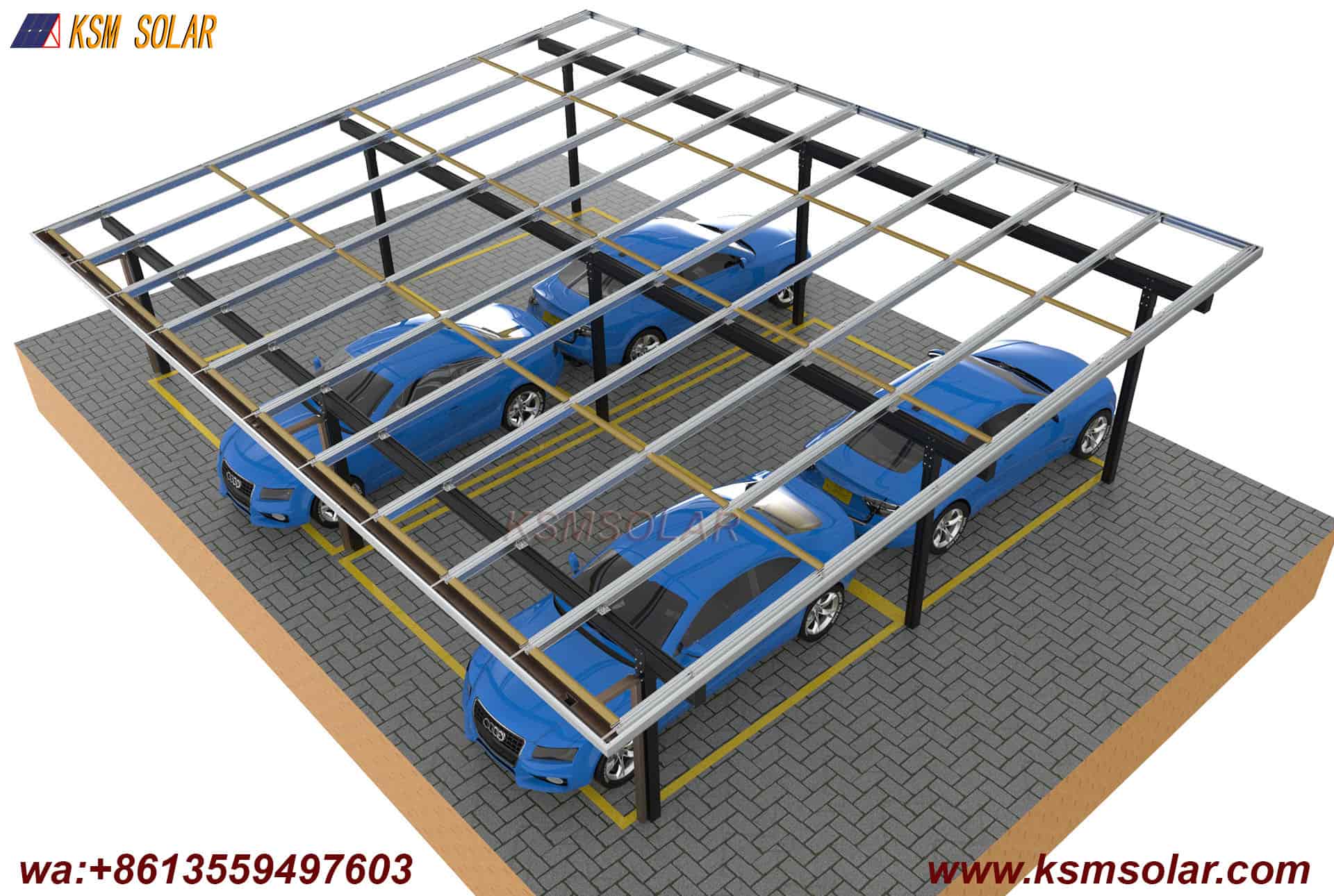

• Central Support Alignment: The roof is supported by a linear series of aluminum portal frames or trestles positioned along the centerline between the two parking rows. Each support unit typically consists of:

• Two primary aluminum columns

• A horizontal tie beam or truss at the column tops

• Cantilevered rafters extending symmetrically to both sides

• Span Optimization: Designed for total widths of 10-18 meters (5-9 meters per side from center), with column spacing of 4-6 meters along the length. This provides clear, unobstructed space for vehicle access and parking maneuvers.

• Parameters

• Material:	AL6005-T5
  Standard:	ASCE7-10/EU/JISC8955-2017
  Surface Treatment:	Anodizing/electrophoresis
  Wind Load:	0-60m/s
  Snow load	0-150cm
  Warranty	10 Years
  Service Life	25 Years

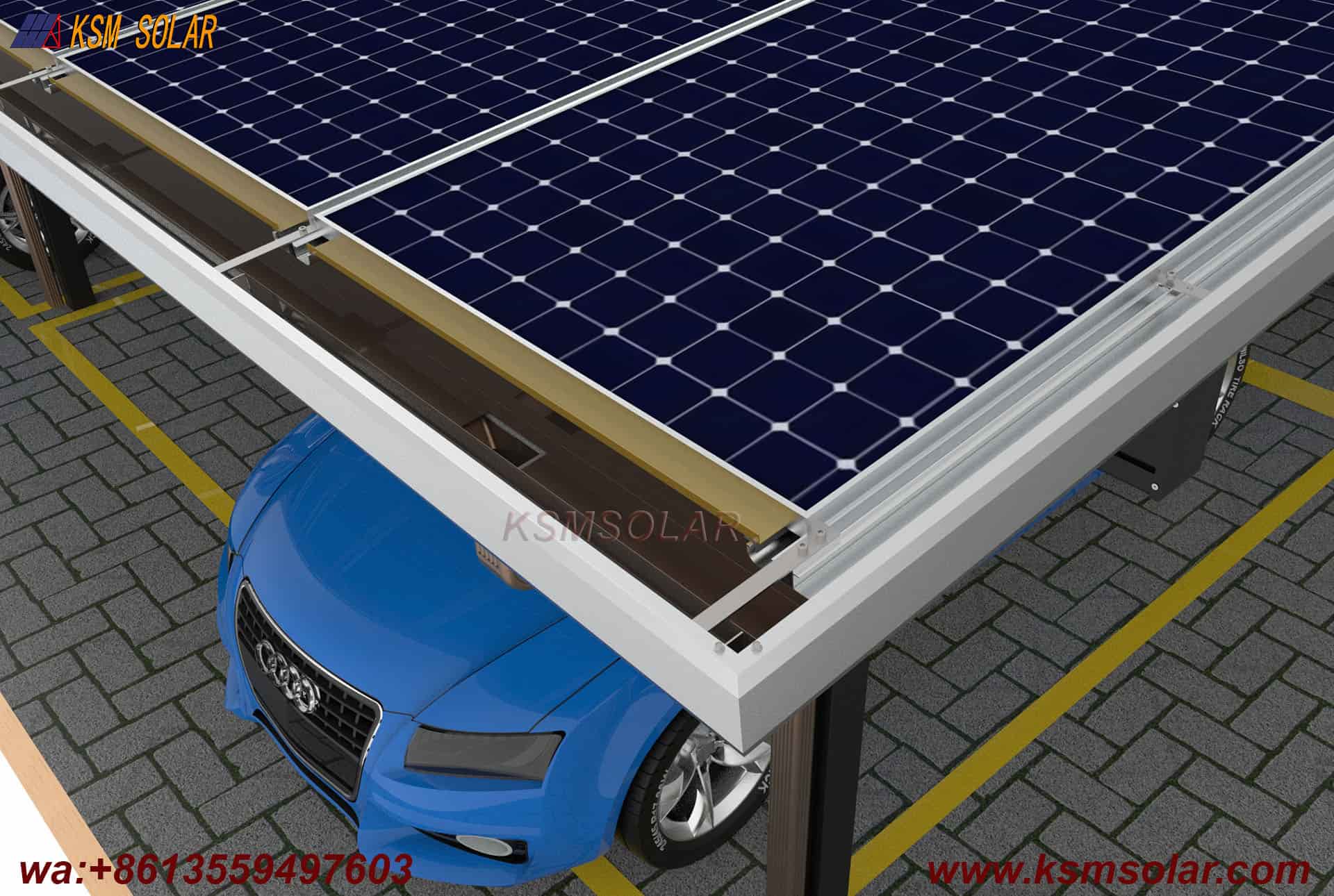

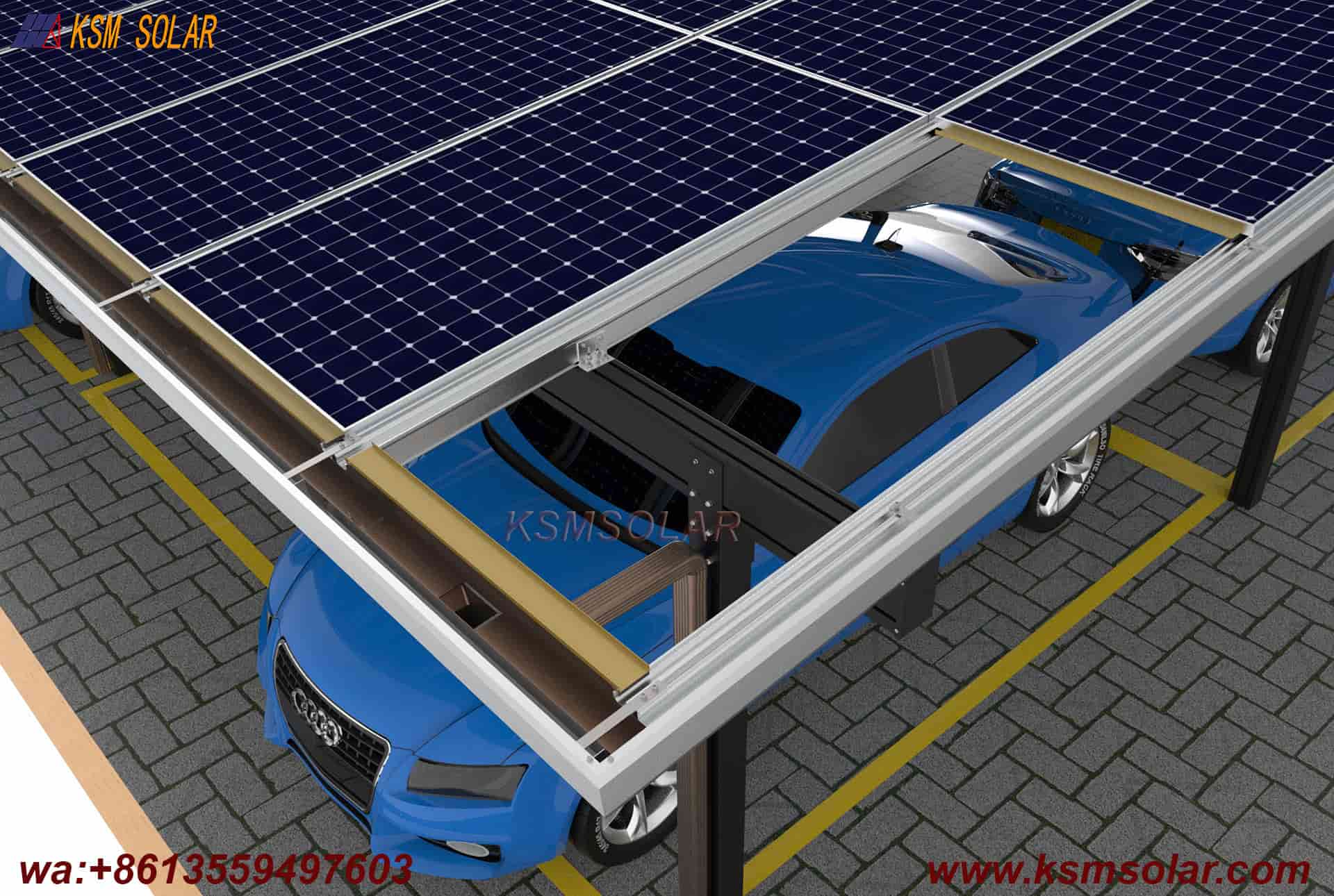

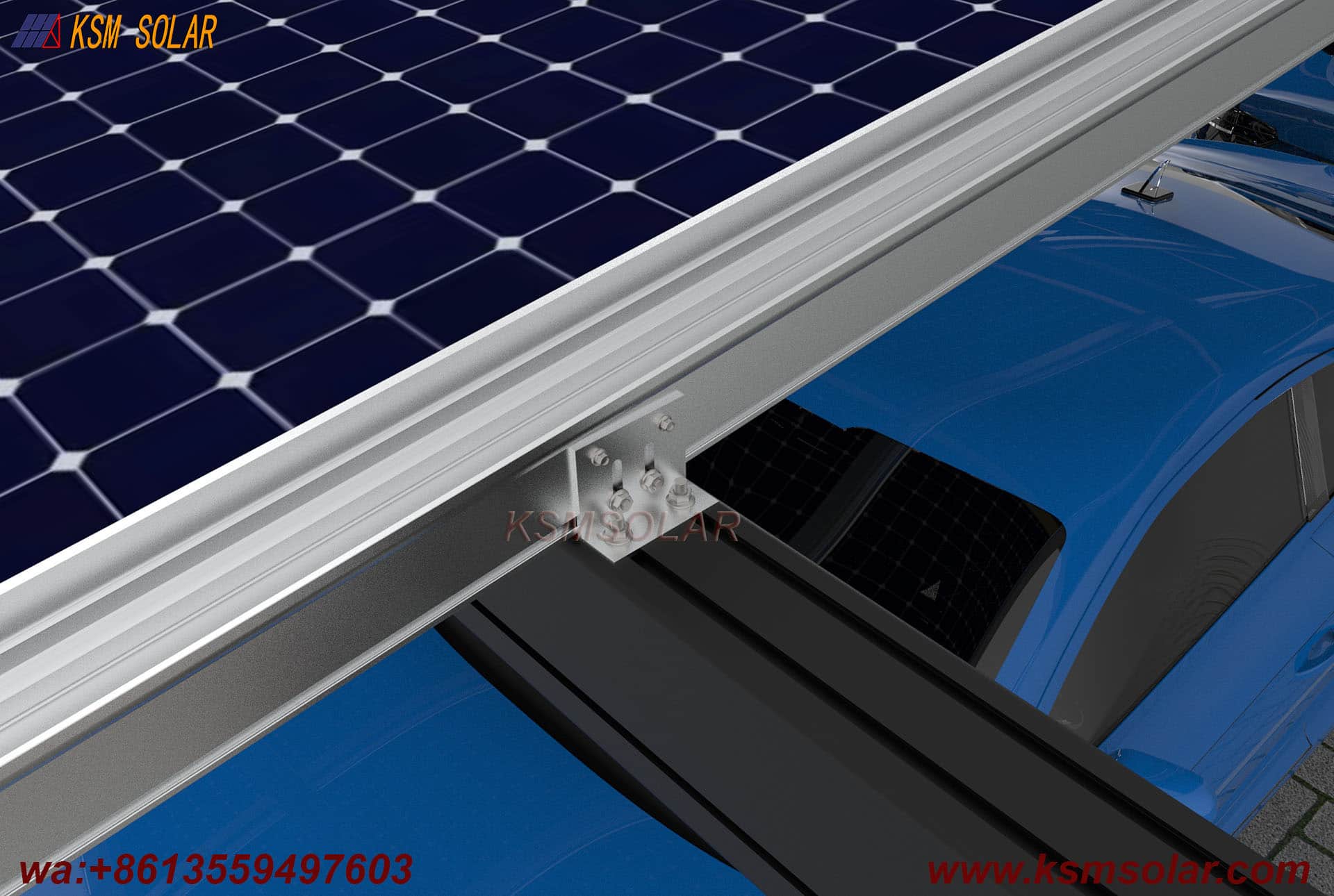

• Details
