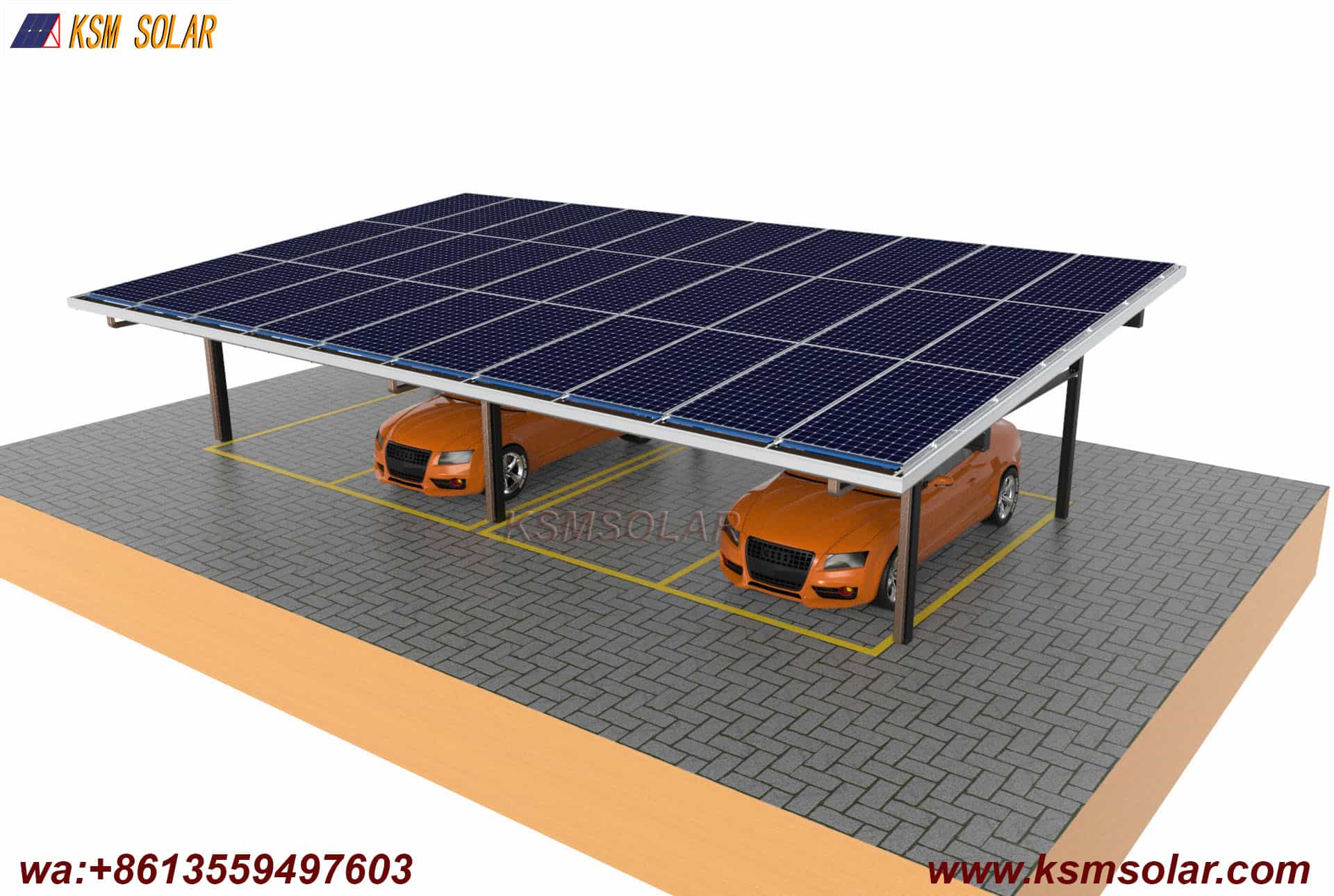

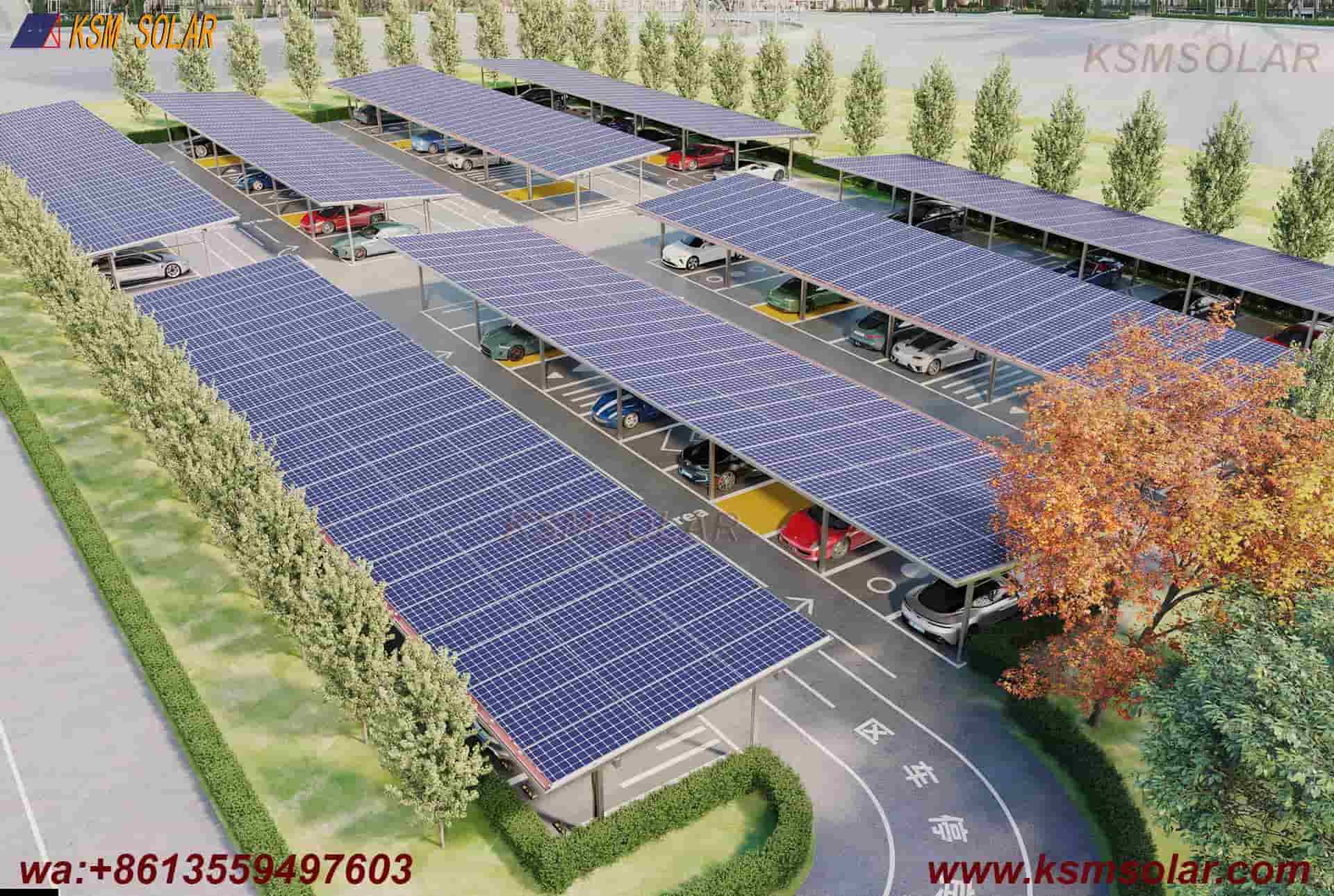

The Aluminum Alloy Double-Column Vertical PV Array Carport represents an innovative photovoltaic integration solution where solar modules are mounted in vertical or near-vertical orientation between dual aluminum columns. This configuration maximizes energy production in specific environmental conditions while creating distinctive architectural aesthetics and optimized spatial efficiency.

Core System Characteristics

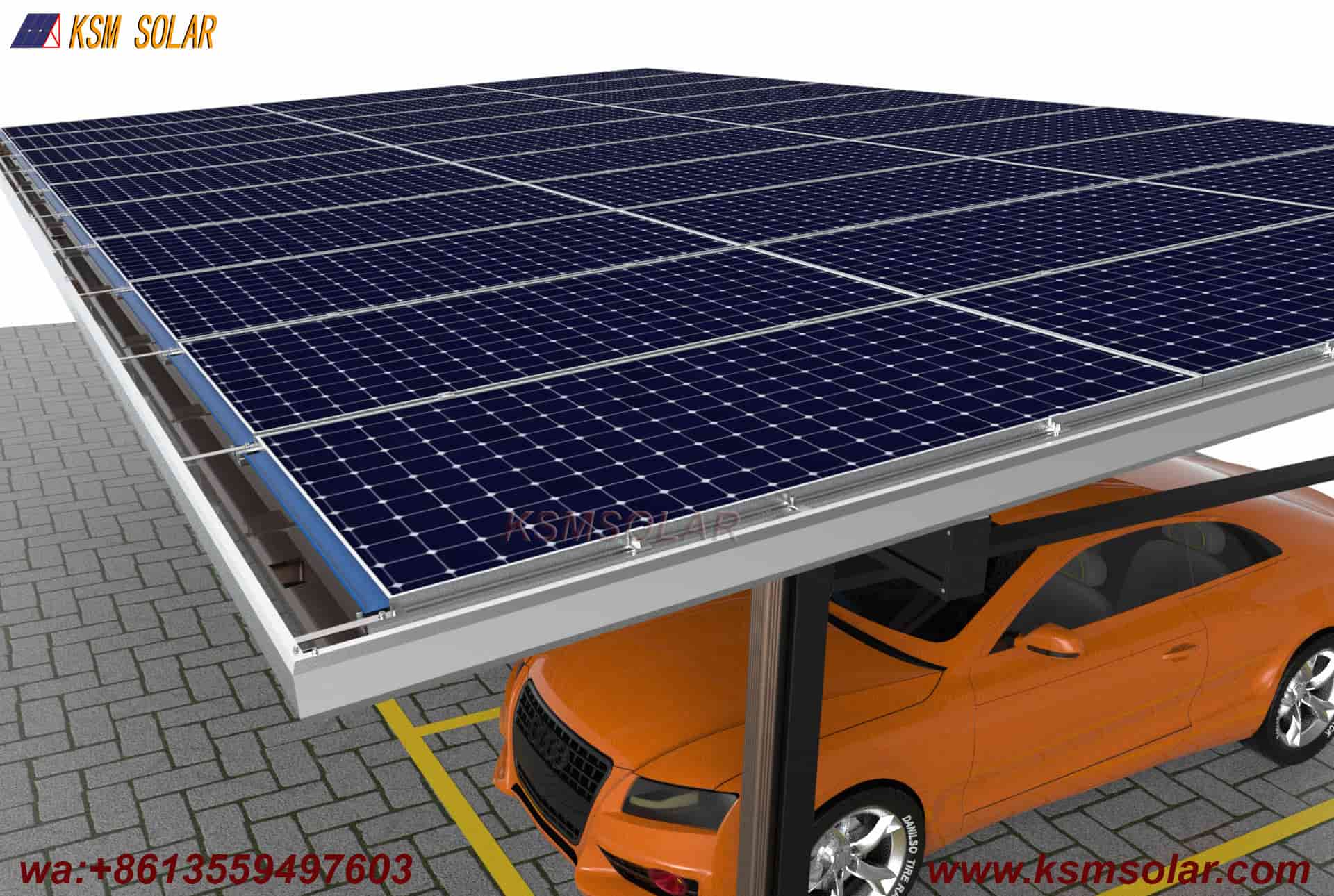

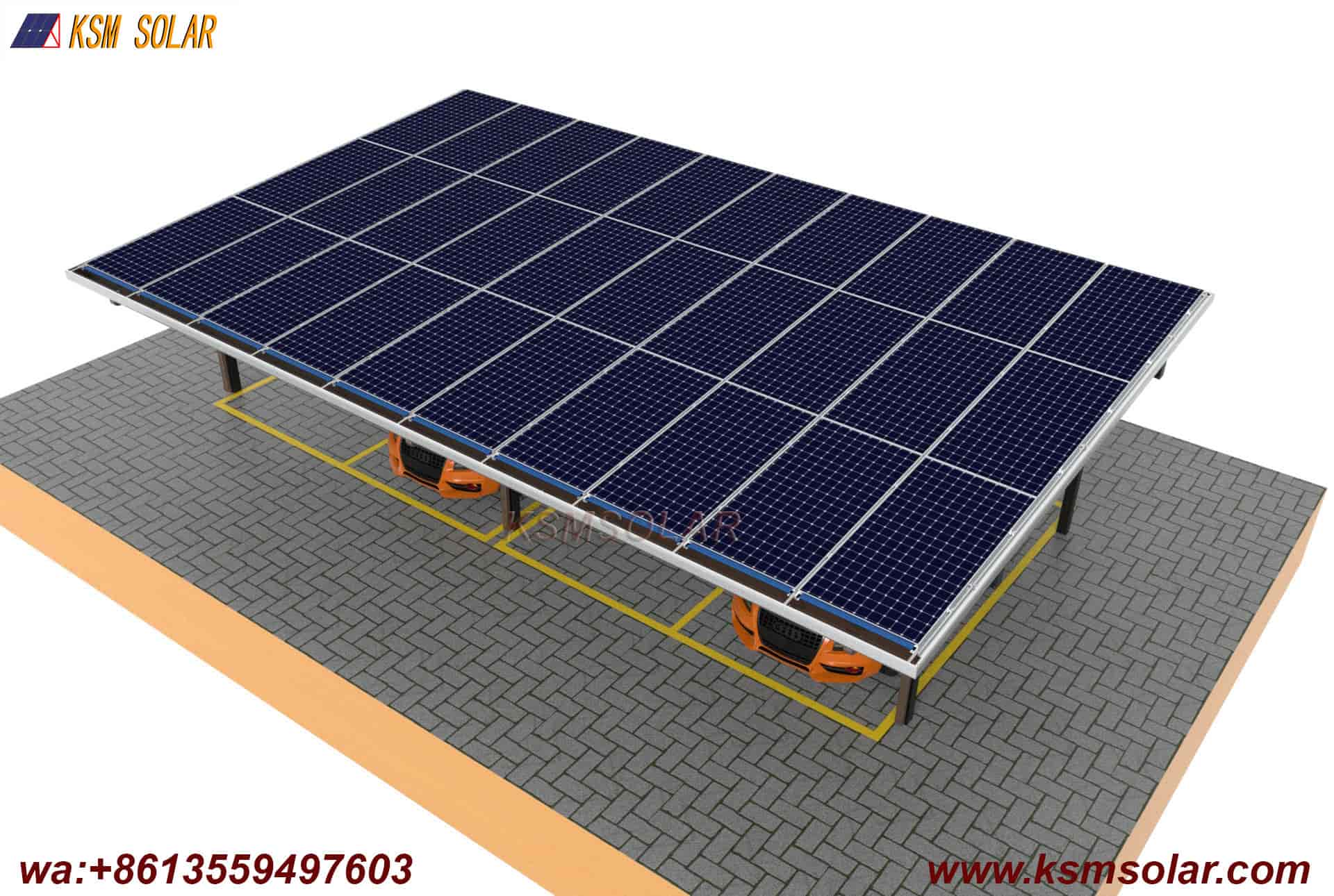

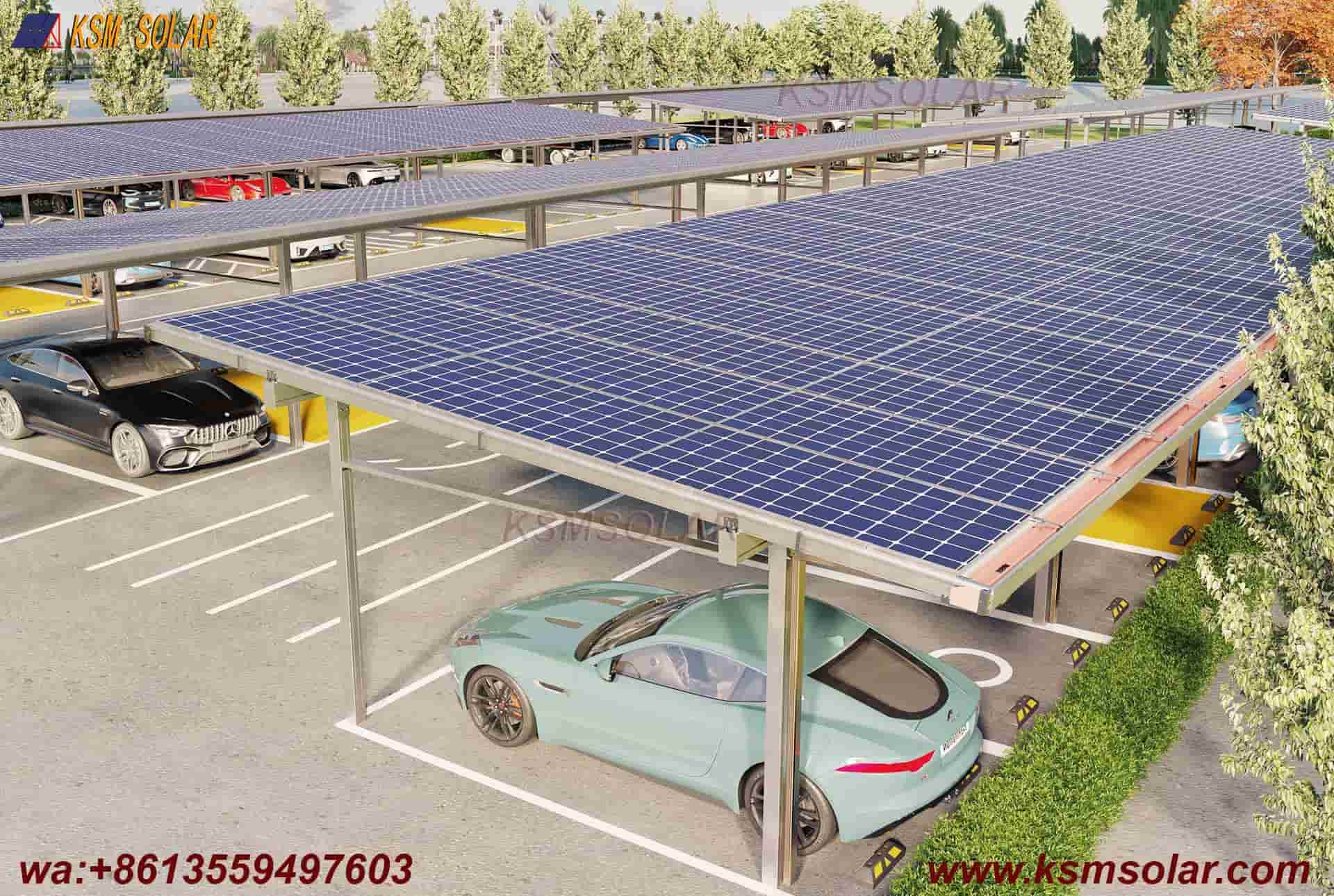

1. Vertical PV Array Integration

• Orientation & Configuration:

• PV modules installed in vertical plane orientation

• Bifacial module compatibility to capture reflected and albedo radiation from both sides

2. Aluminum Alloy Structural System

• Material Specifications:

• Primary structure: 6000-series aluminum alloys (6061-T6/6063-T6)

• Custom extruded aluminum profiles with integrated cable management channels

• Anodized finish (10-25μm) for corrosion resistance and aesthetic appeal

• Weight reduction of 60-65% compared to equivalent steel structures

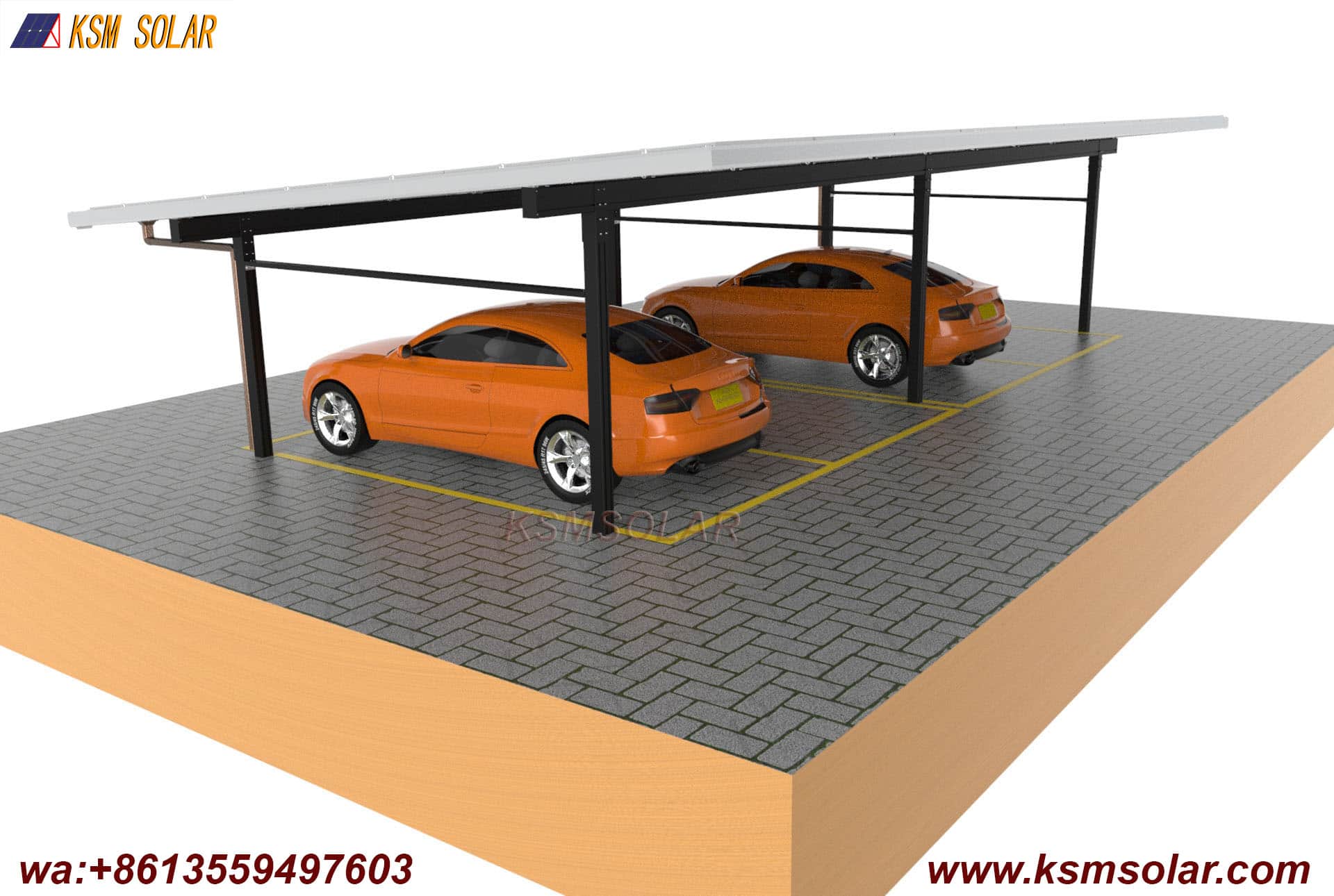

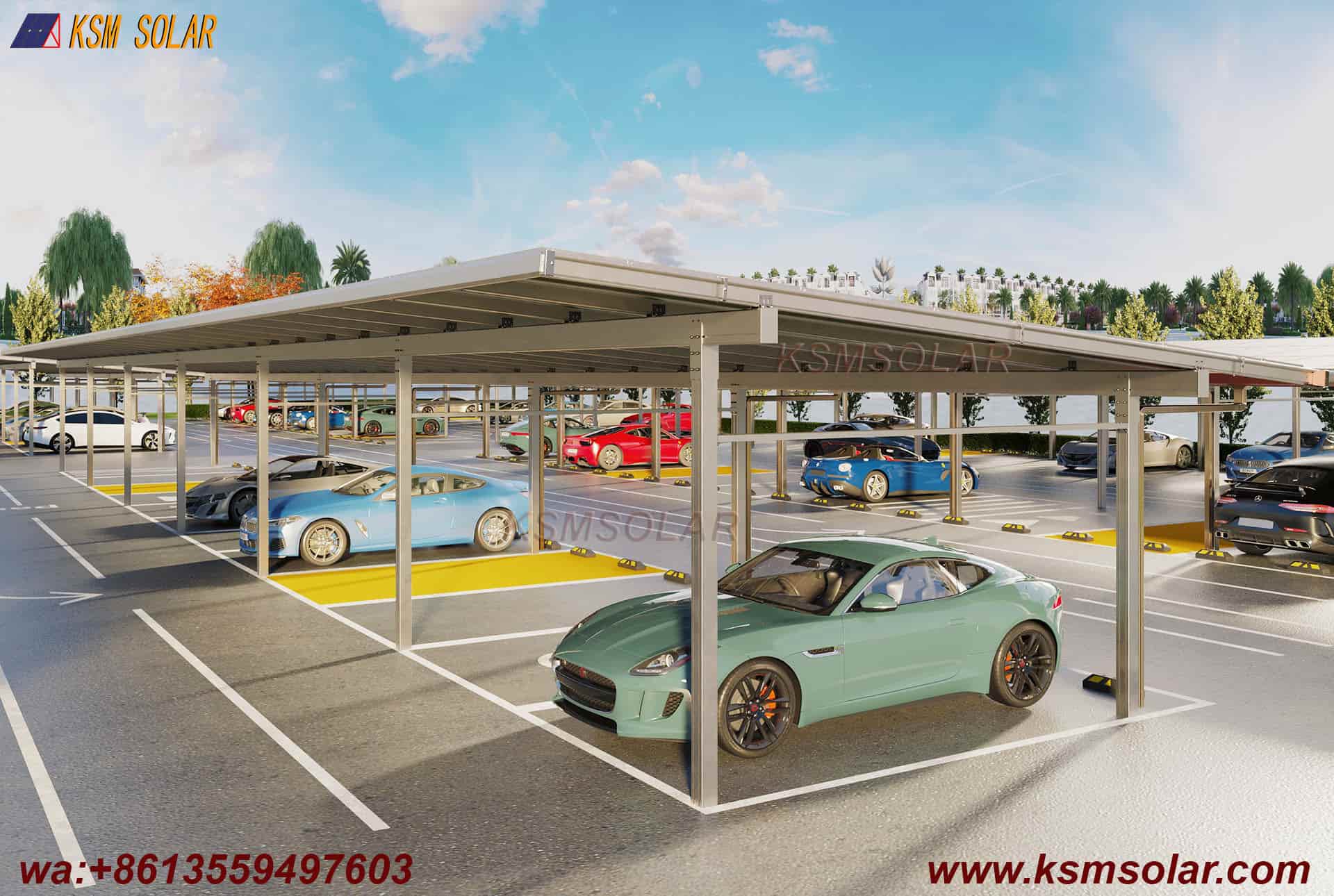

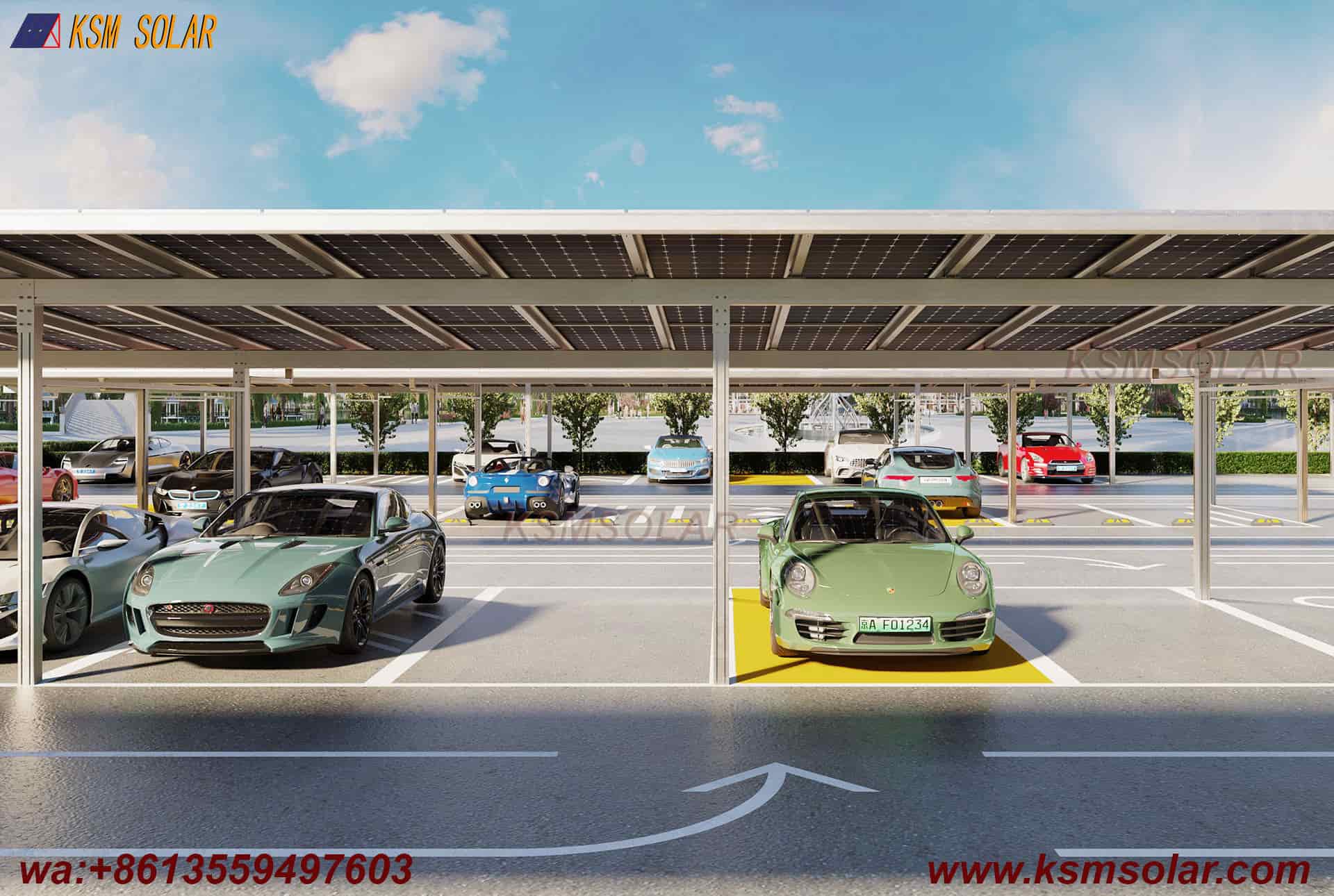

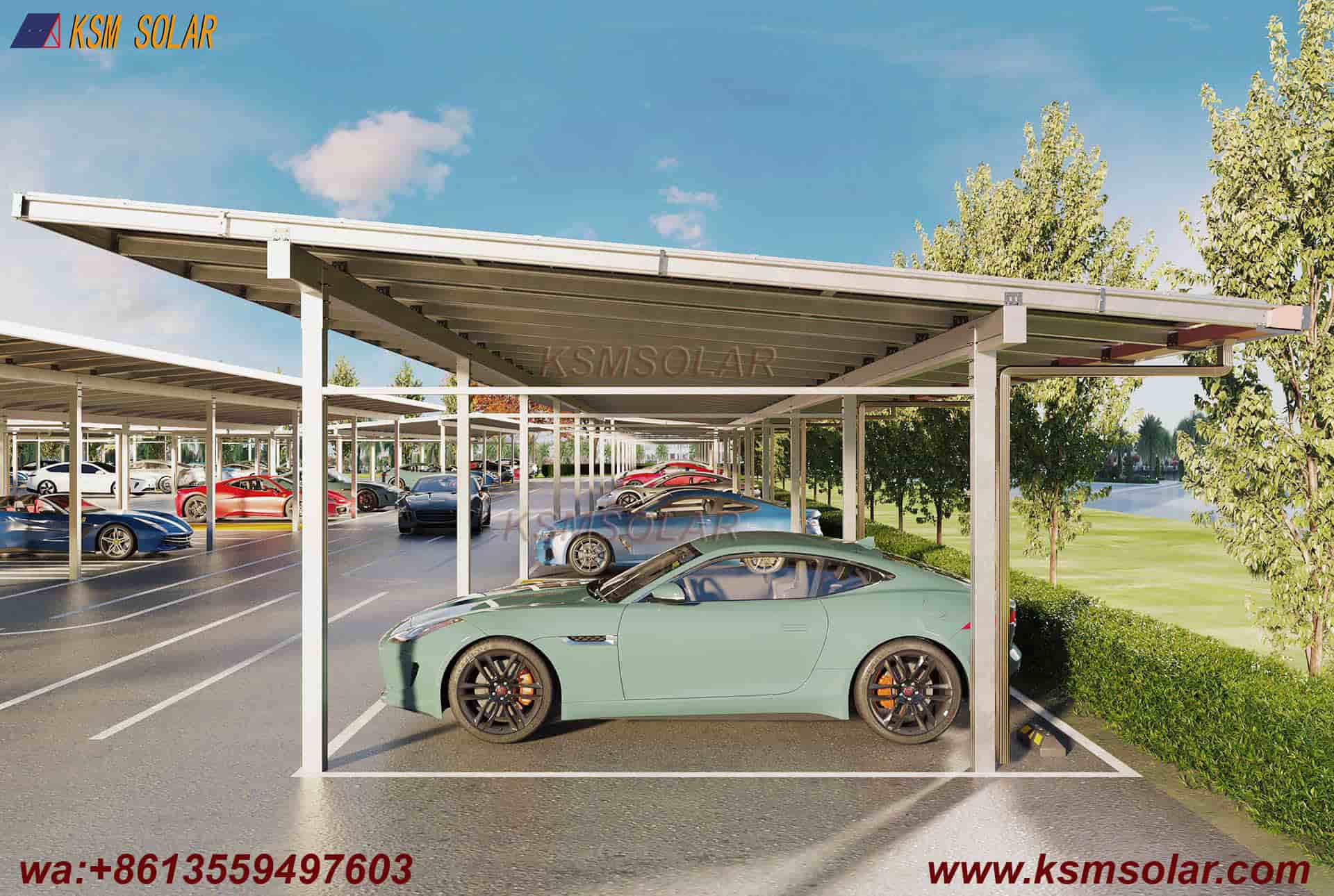

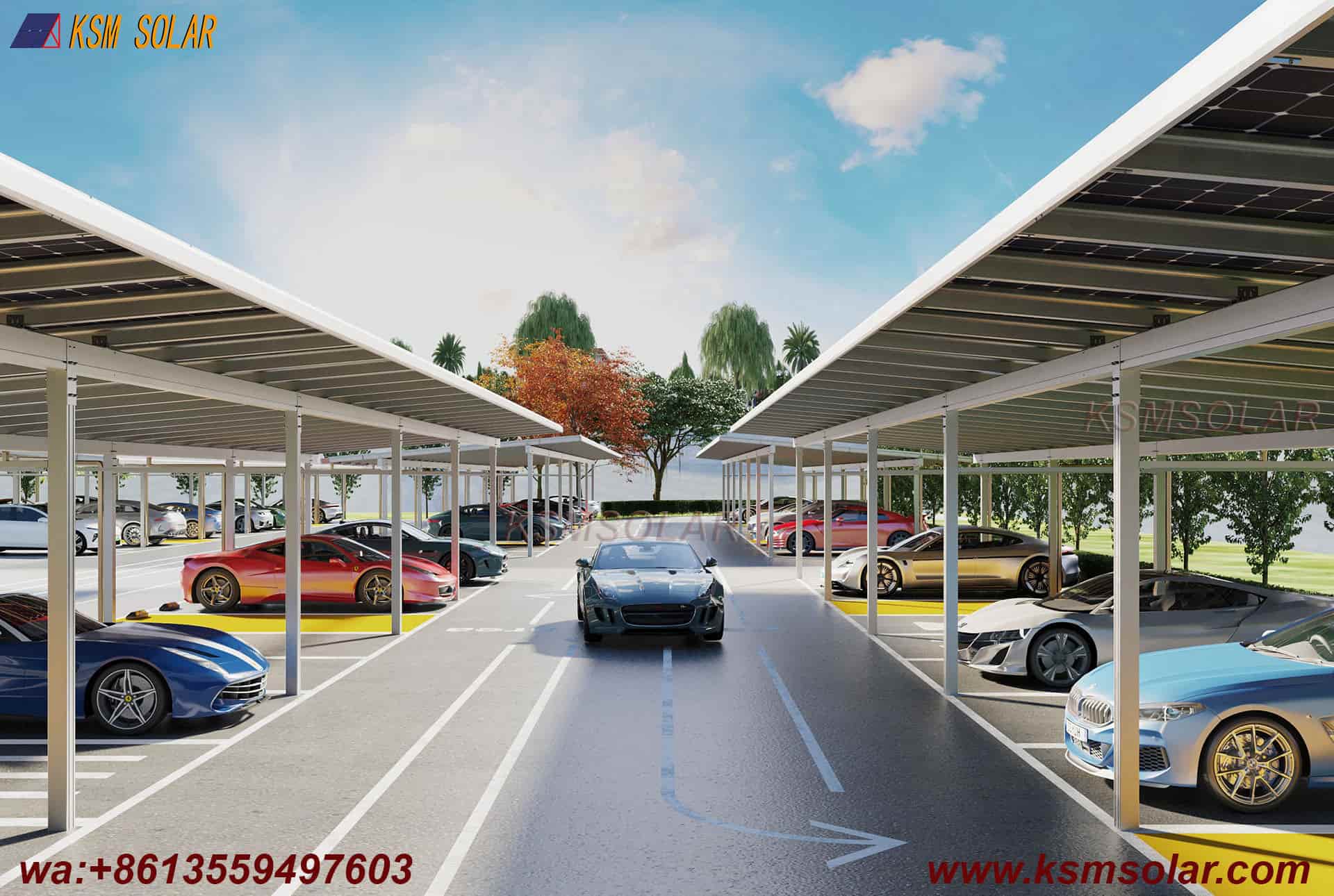

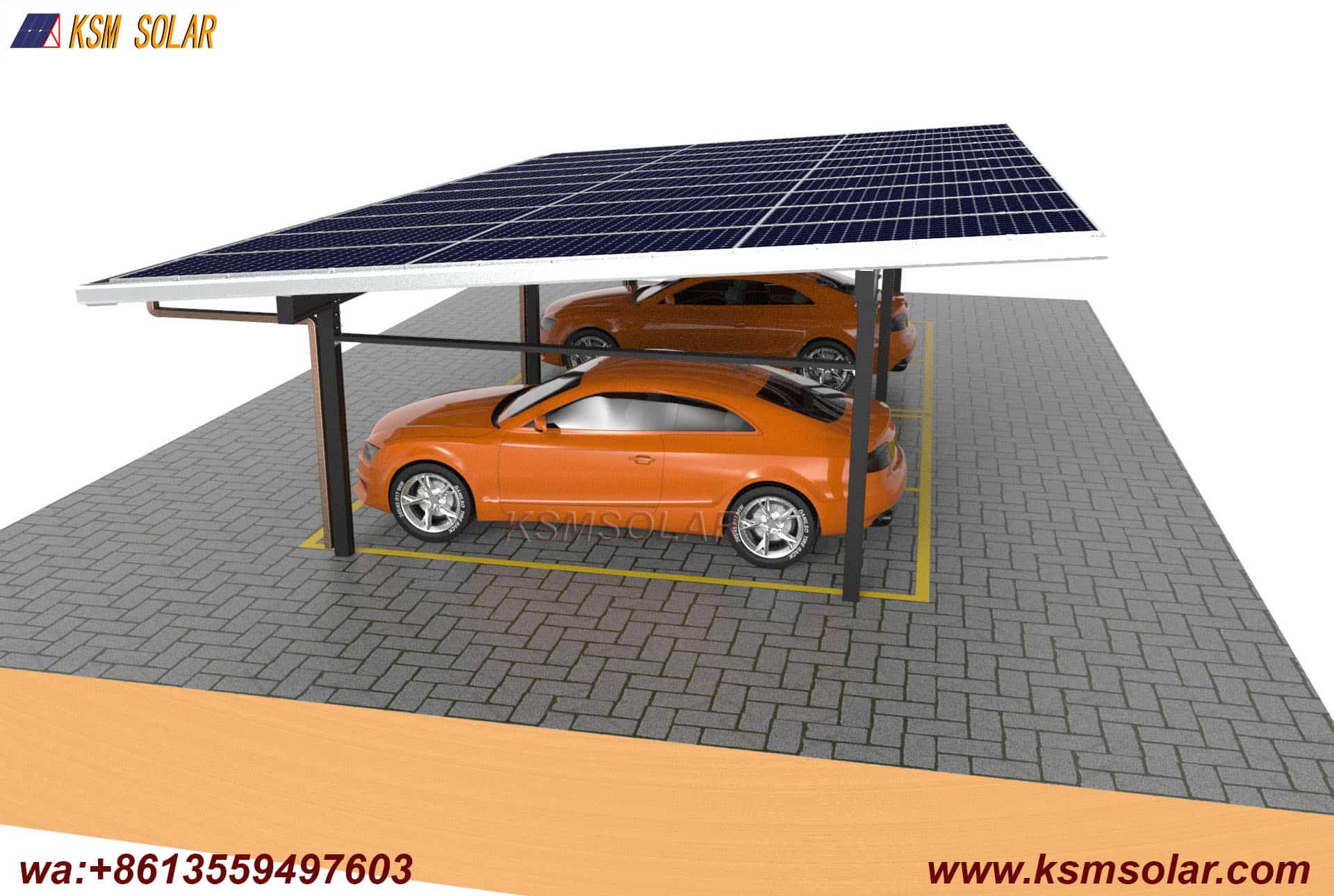

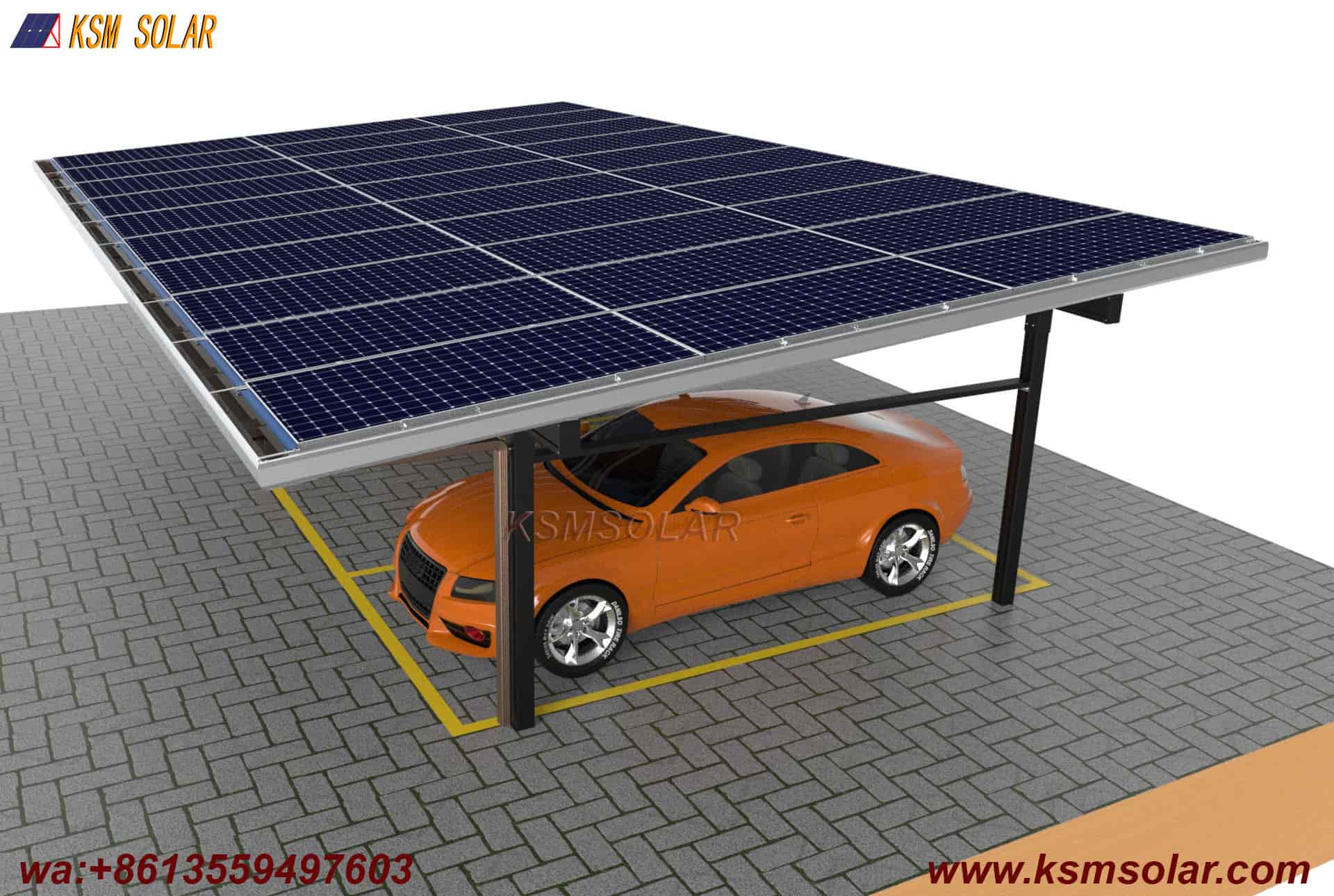

• Dual-Column Design:

• Column spacing: 3-5 meters depending on module dimensions and wind loads

• Column sections: 100×100mm to 120×120mm square hollow sections

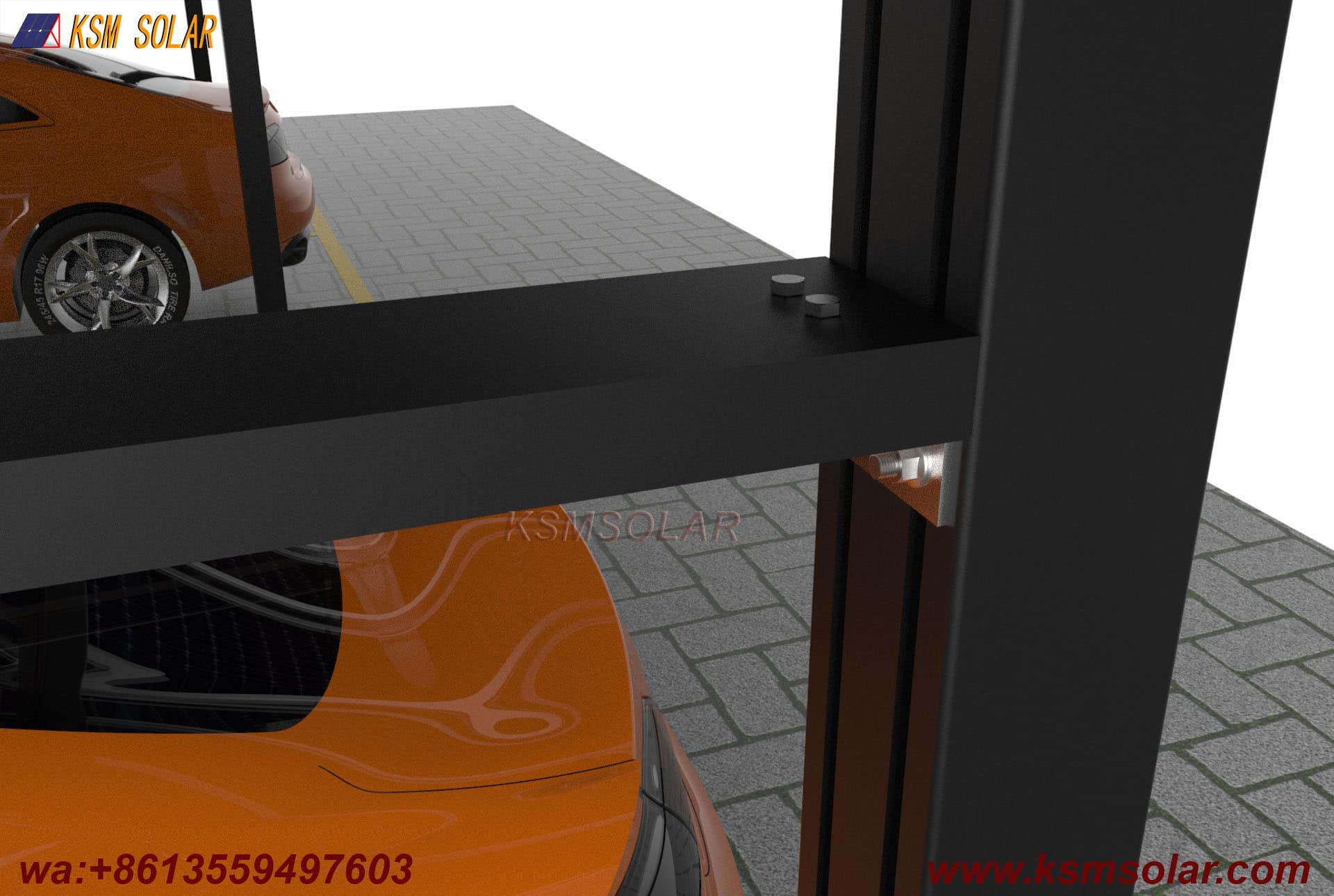

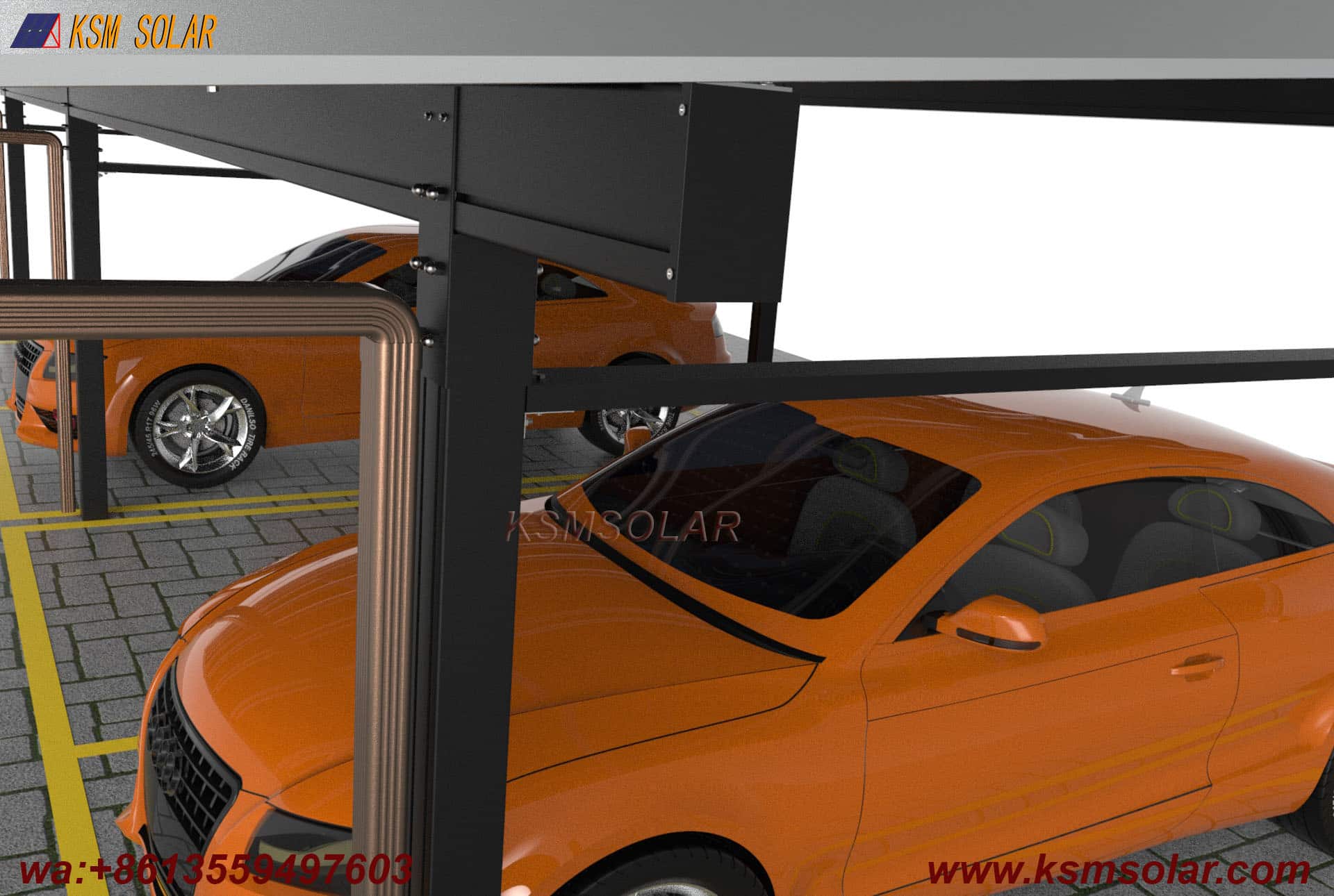

• Integrated vertical mounting rails extruded as part of column profiles

• Diagonal bracing systems using aluminum rod or cable elements




Parameters

• Material:	AL6005-T5
  Standard:	ASCE7-10/EU/JISC8955-2017
  Surface Treatment:	Hot-Dip Galvanized/Spray Paint
  Wind Load:	0-60m/s
  Snow load	0-150cm
  Warranty	10 Years
  Service Life	25 Years
